Sightmark Ultra Shot M-Spec LQD Reflex Sight

Sightmark Ultra Shot M-Spec LQD Reflex Sight


Regular price $ 249.00
Regular price Sale price $ 249.00
Sale Sold out
Shipping calculated at checkout.

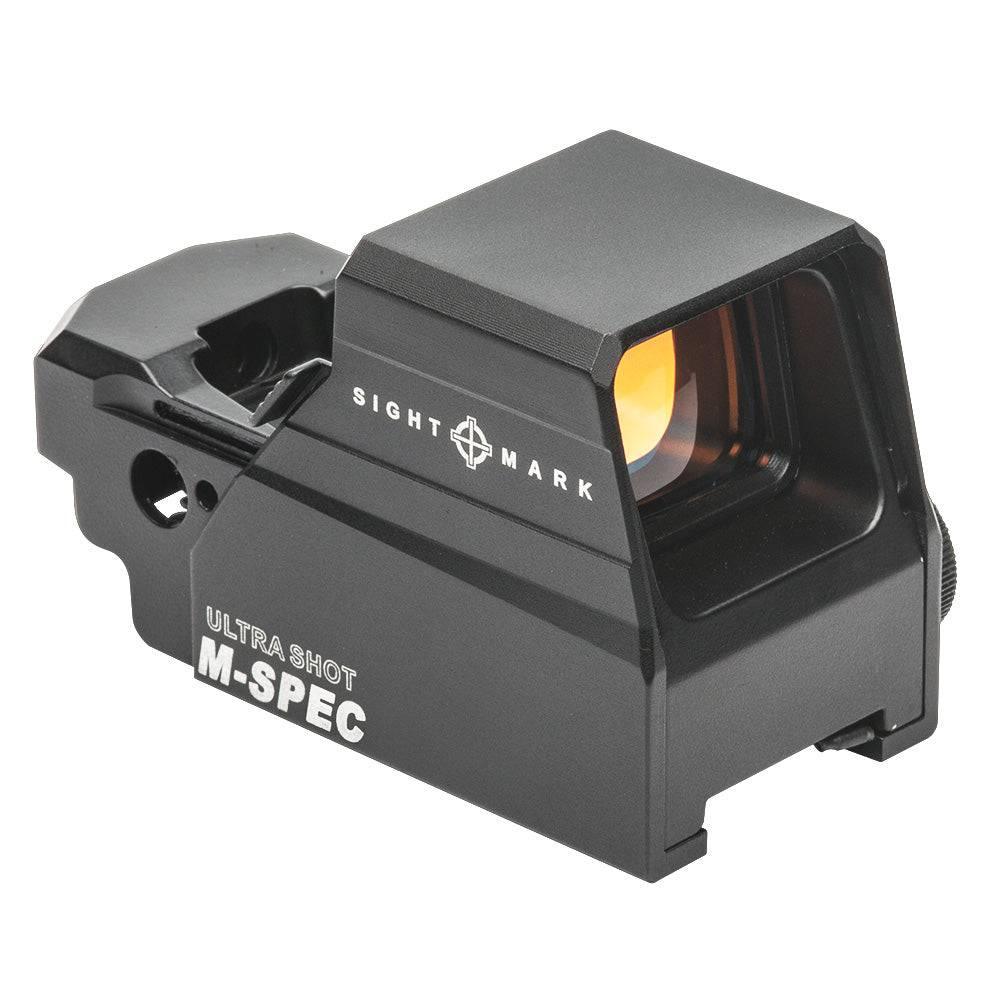

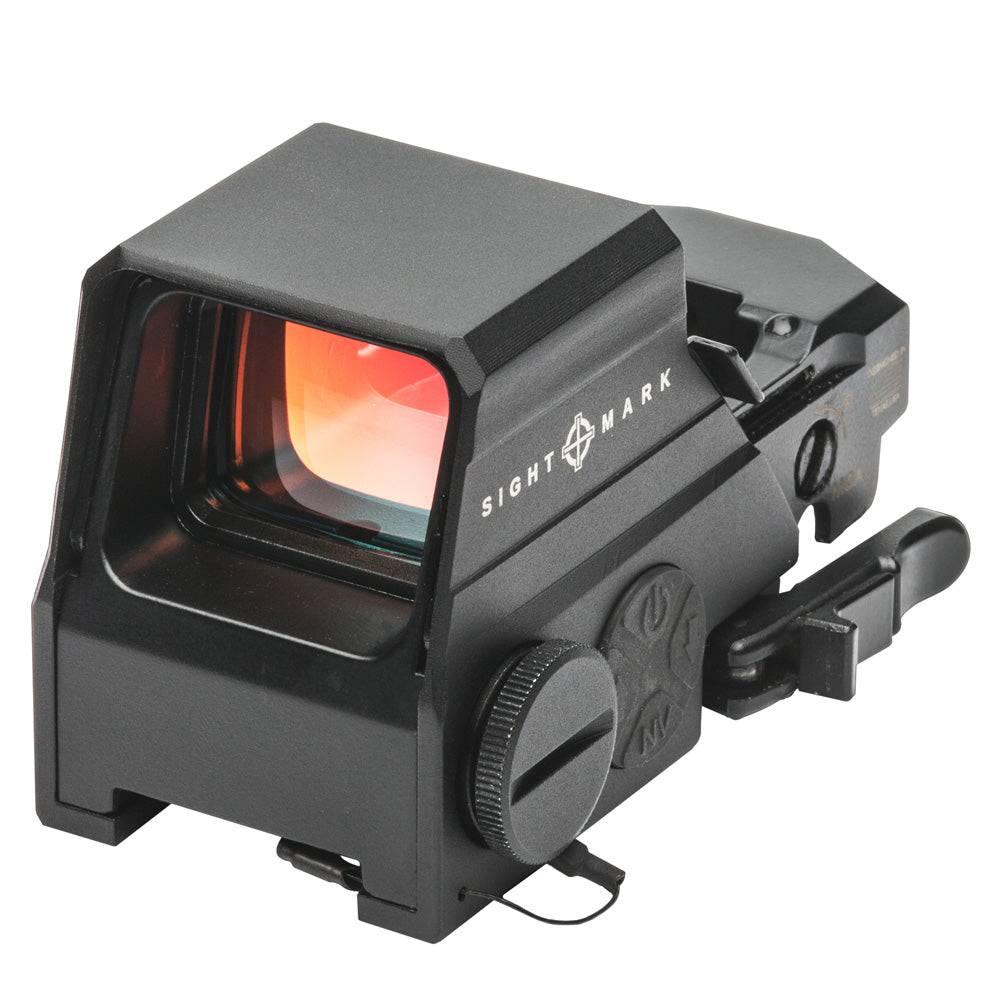

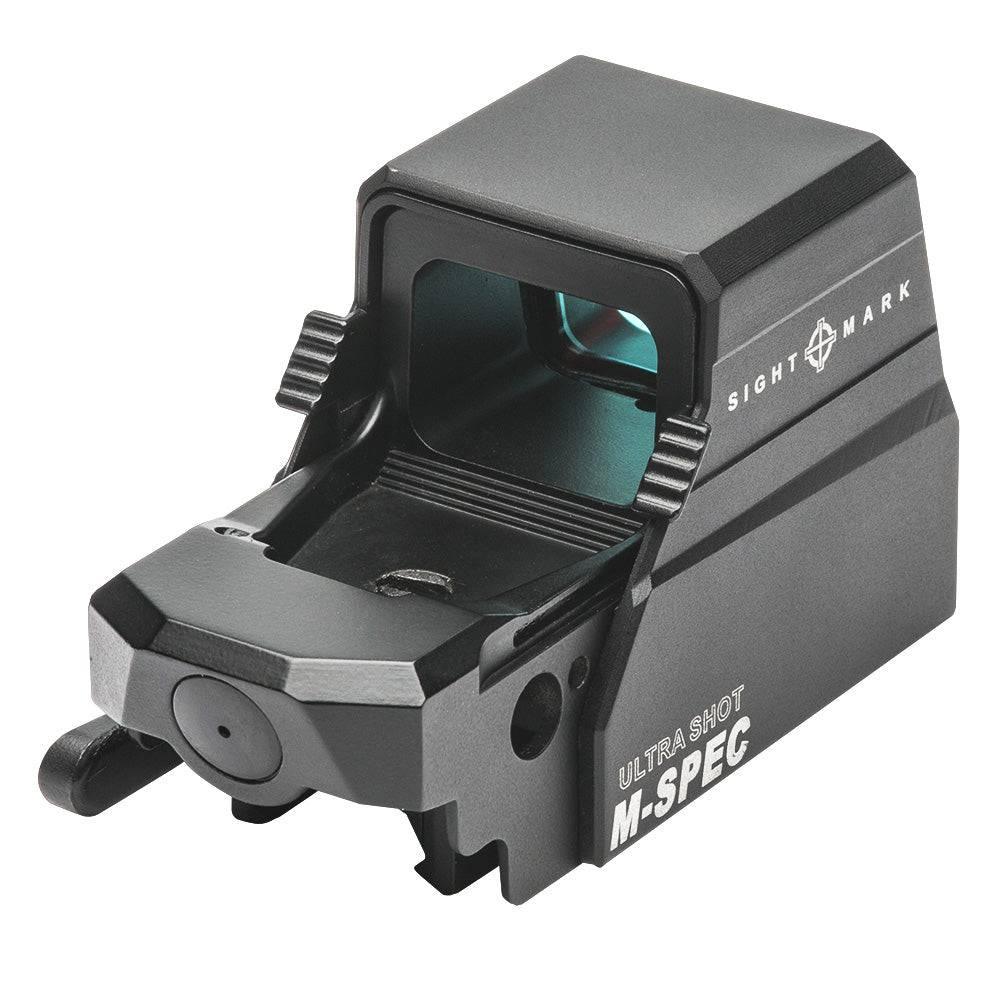

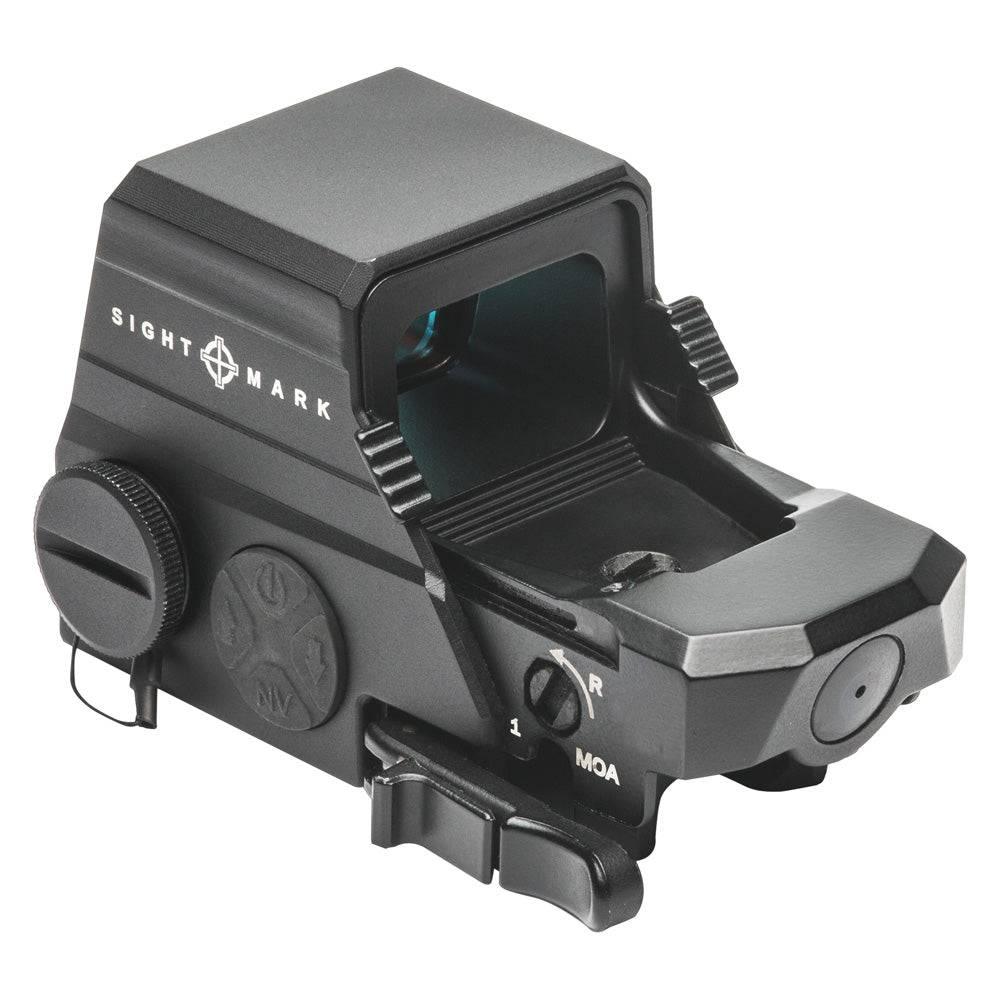

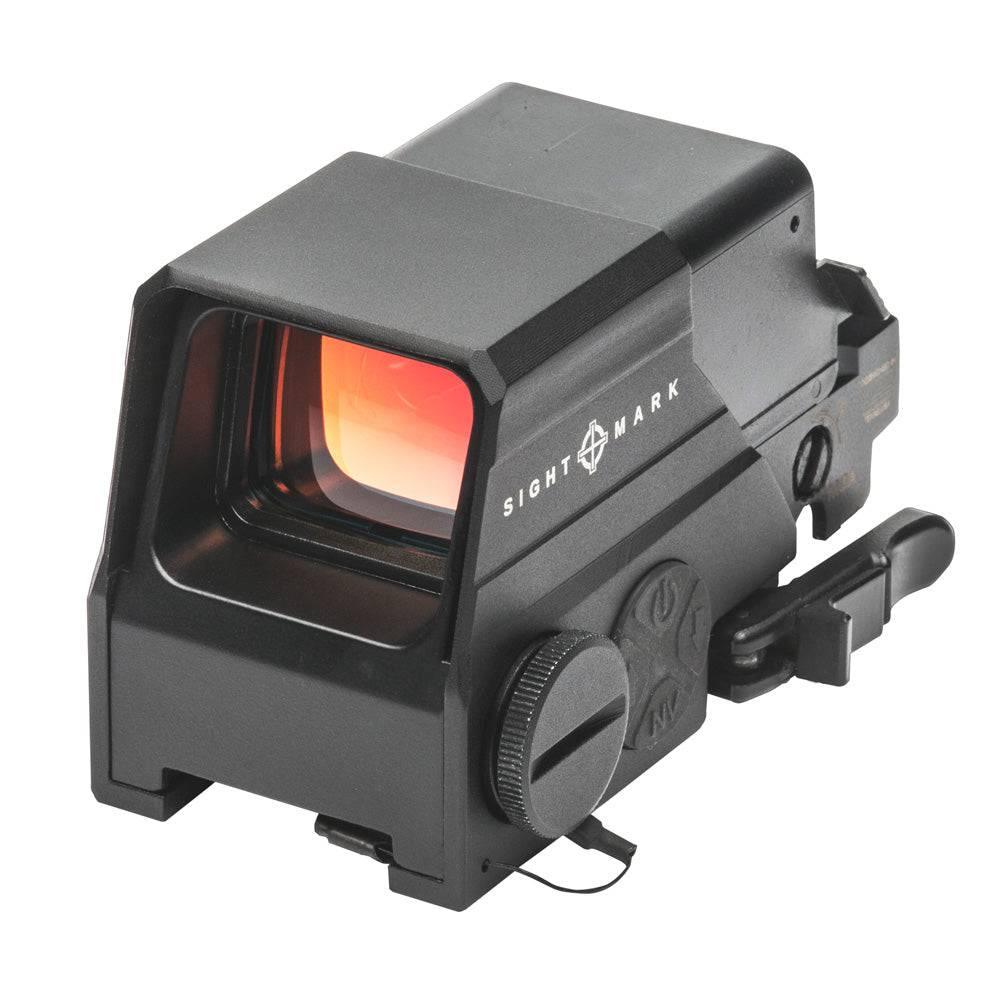

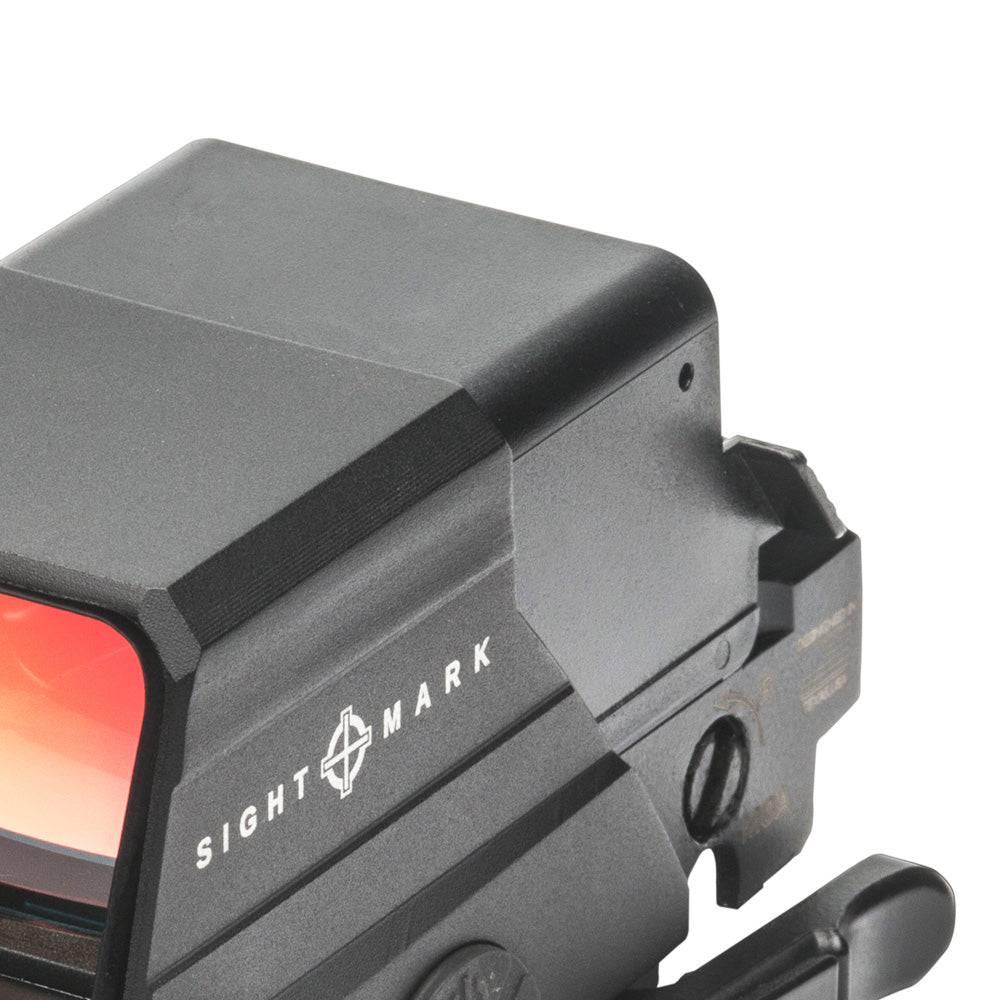

Sightmark Ultra Shot M-Spec LQD Reflex Sight Rifle Scope with QD Mount (SM26034)


The Sightmark Ultra Shot M-Spec LQD Reflex Sight provides repeatable accuracy, quick target acquisition, and mil-spec reliability in all conditions. The advanced lens system with scratch-resistant, anti-reflective red coating, sun-shade, illuminated circle-dot reticle with 10 brightness settings, night vision modes, and parallax correction offer superior visibility even in low light. Constructed with 6061-T6 aluminum, the sight is shockproof, dustproof, IP68-rated waterproof, and recoil-rated up to .338 Win. Mag. for use in the harshest conditions.

The Sightmark Ultra Shot M-Spec LQD Reflex Sight offers 1 MOA windage and elevation adjustments and up to 120 MOA of travel, enabling you to get on target quickly and accurately. The Interlock internal locking adjustment system and a single CR123A battery guarantee you will stay on target with battery life of up to 2,000 hours. Further features include a low battery indicator, motion sensing auto on/off activation, digital switch controls, 12-hour auto shut-off, locking quick-detach picatinny mount and Sightmark's lifetime warranty. The Ultra Shot M-Spec LQD Reflex Sight is also compatible with the Sightmark XT-3 Tactical Magnifier. Includes adjustment tools, CR123A battery, operation manual and neoprene cover.


  • Patented integrated sunshade
  • Advanced coated, scratch resistant lens system
  • Locking quick-detach picatinny mount
  • 12-hr. auto shut-off
  • Motion sensing on/off activation
  • Low battery indicator

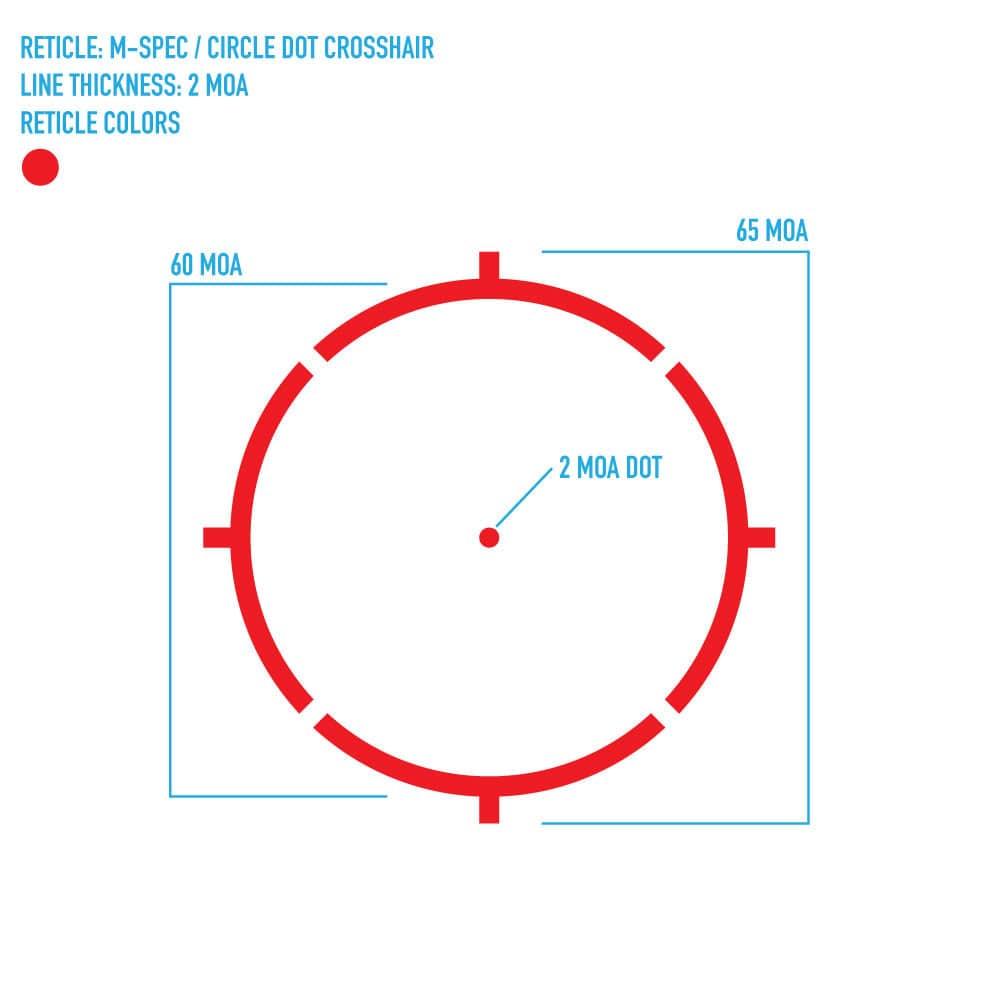

Reticle, Type 65 MOA Circle Dot Crosshair (60 MOA circle w/ 5 MOA subtension, 2 MOA central dot)
Reticle, Color Red
Reticle Brightness Setting Off, 1-10, NV
Eye Relief Unlimited
Objective overall dimension (mm) 33x24 mm
Elevation Range of Adjustment 120 MOA
Windage Range of Adjustment 120 MOA
Adjustment Value 1 MOA
Parallax Setting 10 / 9.1 yd/m
Finish/Color Matte black
Body Material Magnesium alloy
Maximum Recoil  .50 BMG Max caliber
IP Rating (waterproof) IP68 - waterproof to 40ft/12m
Nitrogen Filled No
Shock-proofness Yes, 8ft / 2.4m
Fog Proof No
Lens Coating Red
Battery Type CR123A
Mount Type Picatinny
Battery Life 200-2,000 Hours
Battery Voltage, V 3 V
Operating temperature, F/C -22 to 160 / -30 to 71 F/C
Length (in/mm) 4.01 / 102 in/mm
Width (in/mm) 2.24 / 57 in/mm
Height (in/mm) 2.32 / 59 in/mm
Weight, oz 10.2 oz.



  • Manual
  • CR123A battery
  • Adjustment tools
  • Neoprene cover
