AGM PVS-7 NW1 Night Vision Goggle Gen 2+ "Level 1" White Phosphor 12PV7122254011
The PVS-7 is renowned for its unmatched reliability and ergonomic design, making it a U.S. Military-grade night vision goggle system trusted in combat. As the top AN/PVS-7 B/D system on the market, it can be equipped with high-performance Gen 2+ or Gen 3 image intensifier tubes, available in either green phosphor or P45 white phosphor. The PVS-7 features Automatic Brightness Control (ABC) to automatically adjust image brightness in varying light conditions, ensuring clear and defined visuals.
A built-in infrared illuminator provides an invisible light source, allowing the user to operate in total darkness without detection. It also includes a bright light cut-off to safeguard the image tube from intense light exposure and a flip-up shut-off feature for use with the optional helmet mount system. The eyepiece has two LED indicators to signal when the IR illuminator is active and when the battery is low.

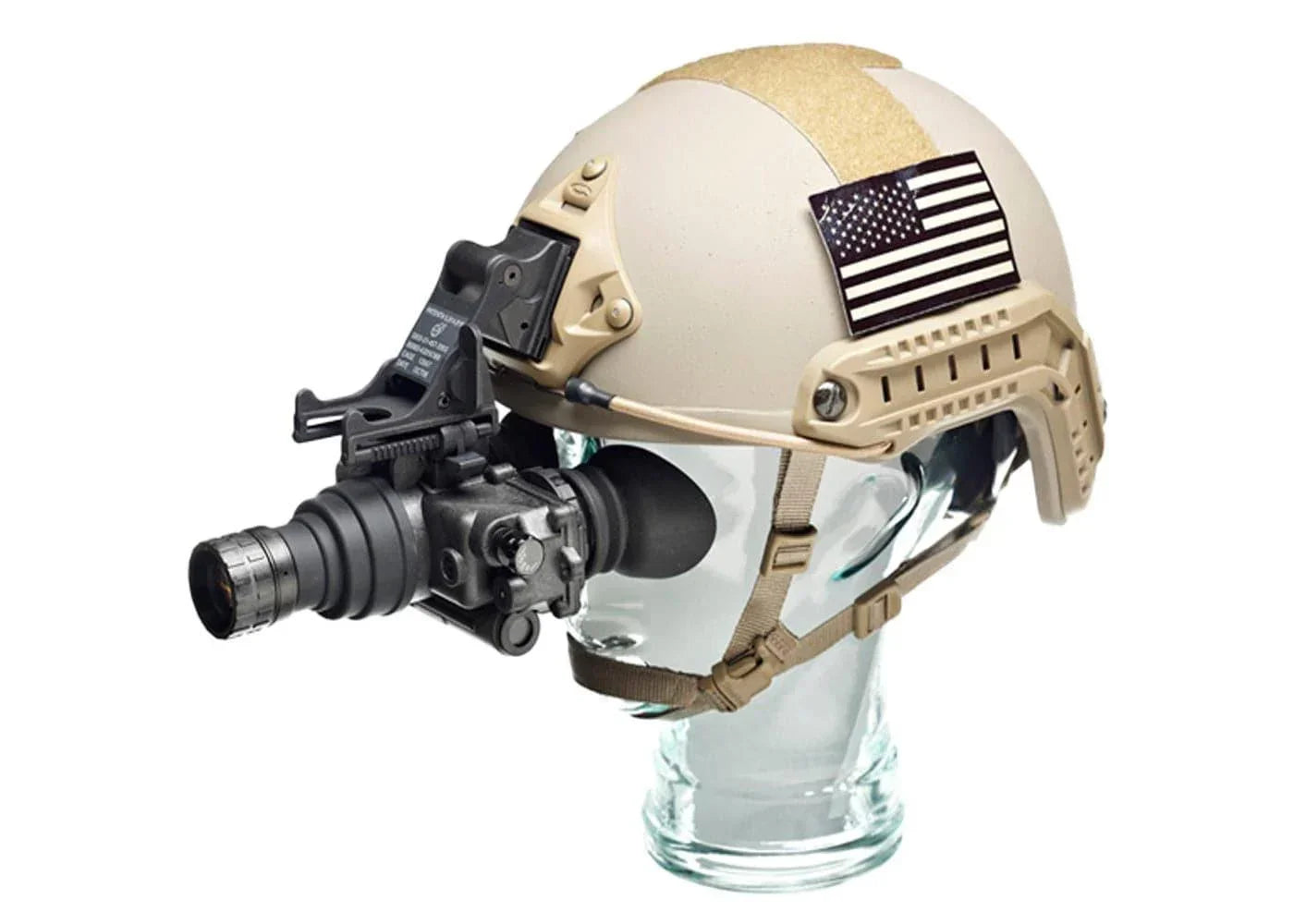

Lightweight, durable, and adaptable, the PVS-7 can be used handheld or mounted on the head or helmet. It is also compatible with afocal magnifier lenses for enhanced long-distance viewing.
AGM PVS-7 NW1 Features:
- Compact, rugged design
- Waterproof
- Head or helmet-mountable for hands-free operation
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited 3-Year Warranty
|
Gen2+ Lvls
|
NL1/NW1 - Gen2+ Lvl1
|
NL2/NW2 - Gen2+ Lvl2
|
NL3 - Gen2+ Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls
|
3NL1/3AW1 - Gen3 Lvl1
|
3NL2/3AW2 - Gen3 Lvl2
|
3NL3/3AW3 - Gen3 Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
AGM PVS-7 NW1 Specifications:
Image Intensifier Tube
Gen 2+ "Level 1" White Phosphor
Resolution
55-72 lp/mm
Field of view cleanness by zone
Gen 2 IIT NW1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm; F/ 1.2
FOV
40°
Focus Range
0.2 m to infinity
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low battery; IR On; Excessive light conditions
Automatic Brightness Control
Yes
Infrared Illuminator
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
2 AA Alkaline or 1 Lithium (BA-5567/ U)
Battery Life (Operating)
Up to 60 hours at 20°C
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
0.68 kg (1.5 lbs)
Overall Dimensions
162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)
Package Includes
Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual
Optional Equipment:
AGM Afocal Magnifier Lens Assembly, 3X
8x Lens for PVS-7
AGM Afocal Magnifier Lens Assembly, 5X
Norotos PASGT Helmet Mount Assembly (PVS-7, PVS-14)
Norotos MICH Helmet Mount Assembly (PVS-7, PVS-14)
Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger
Hard Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
