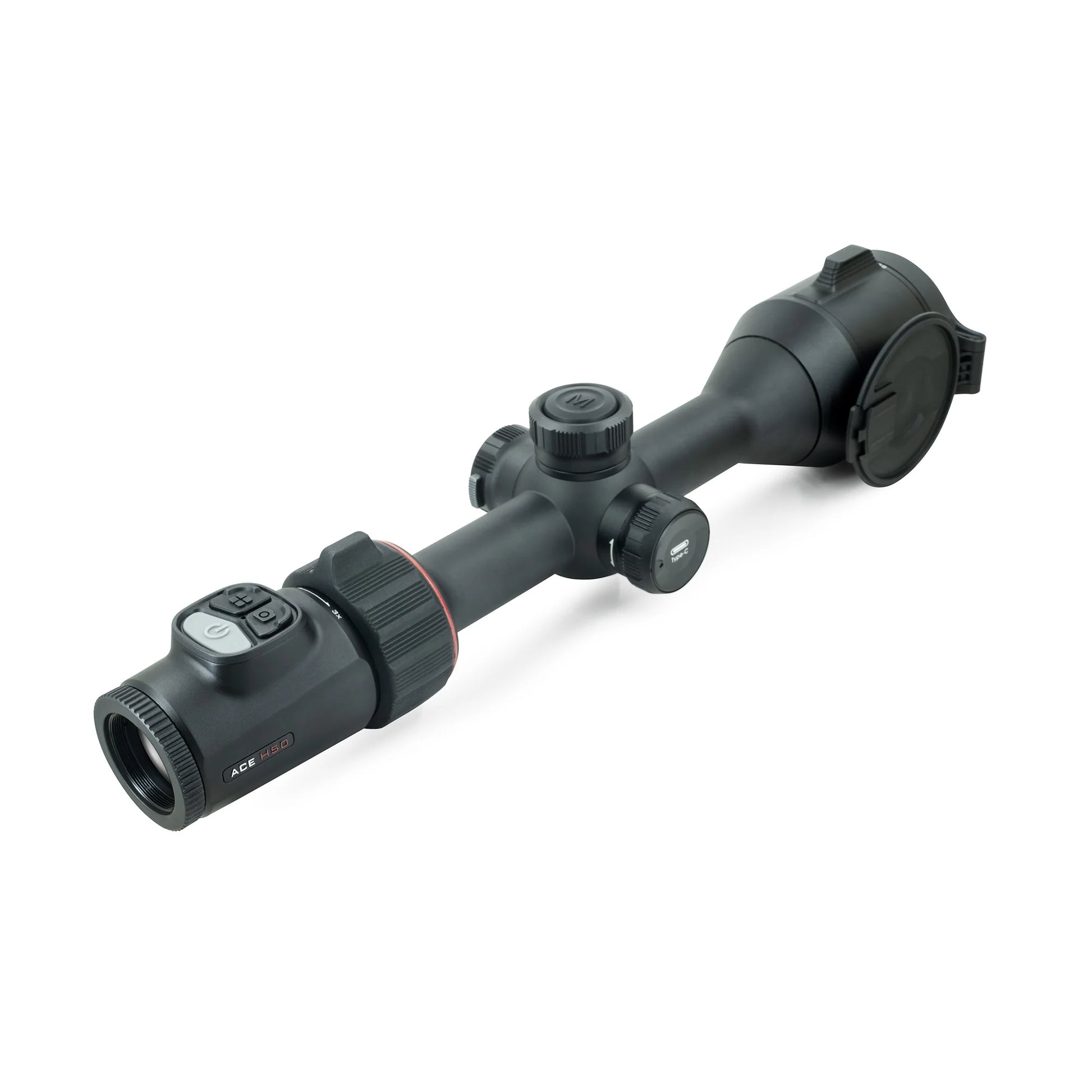

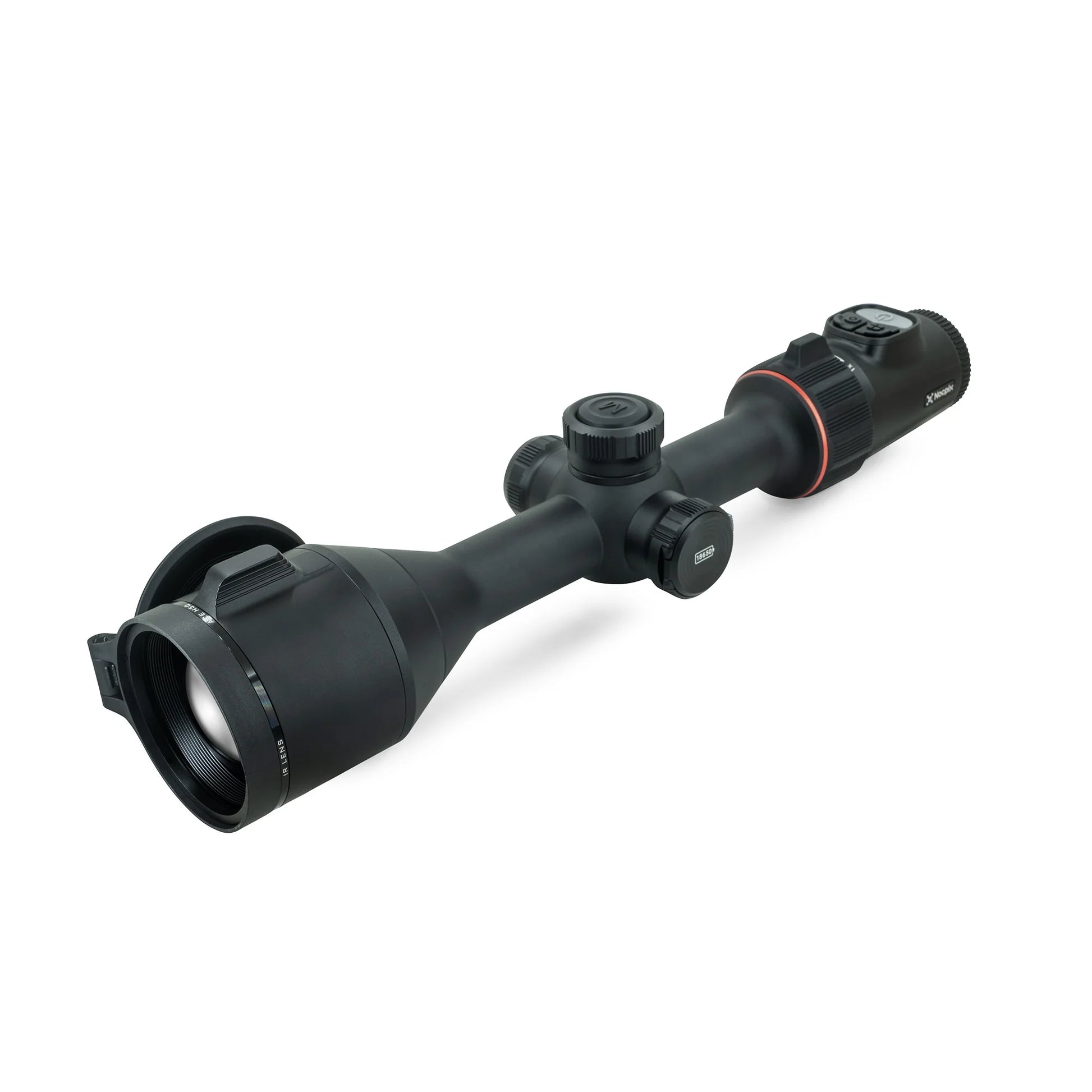

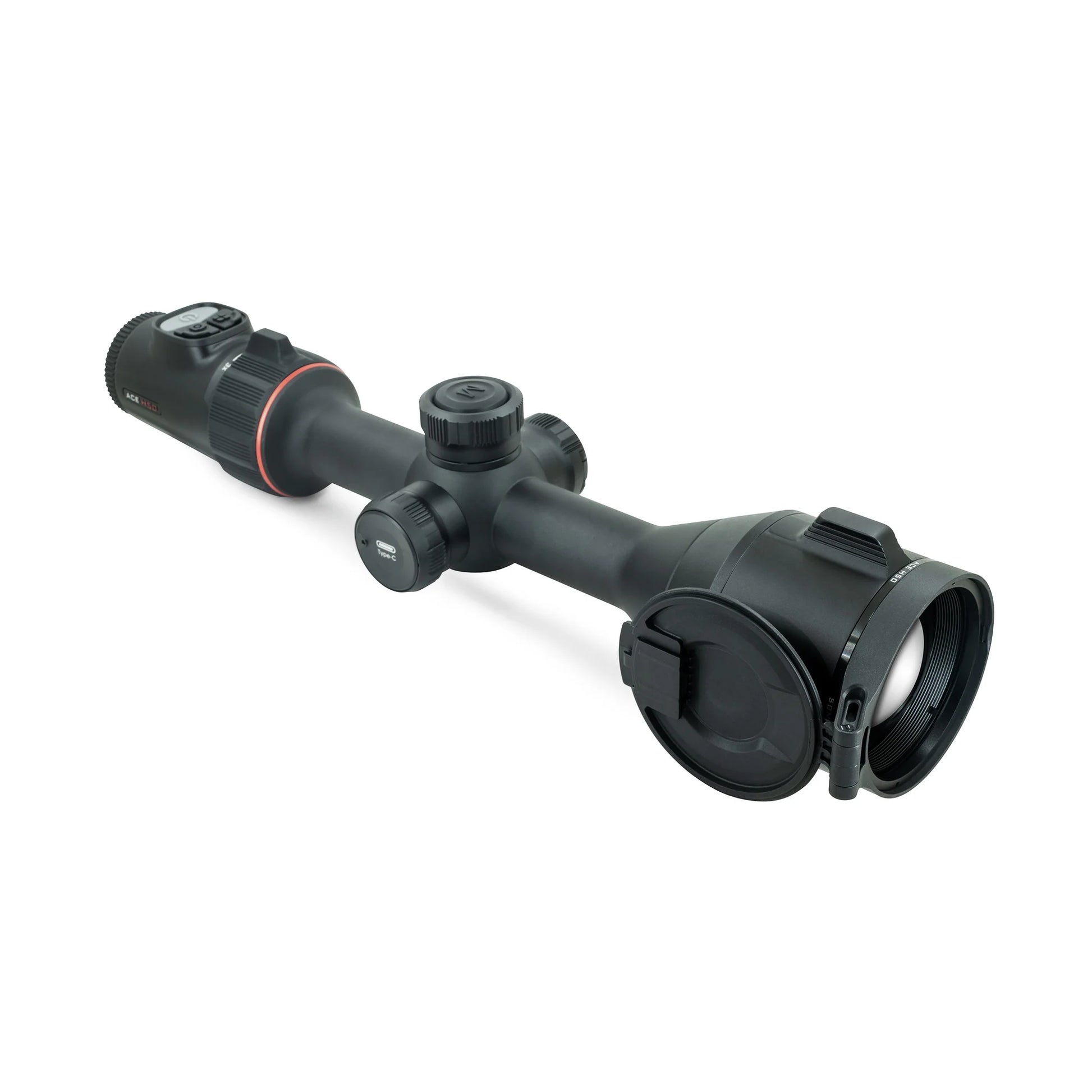

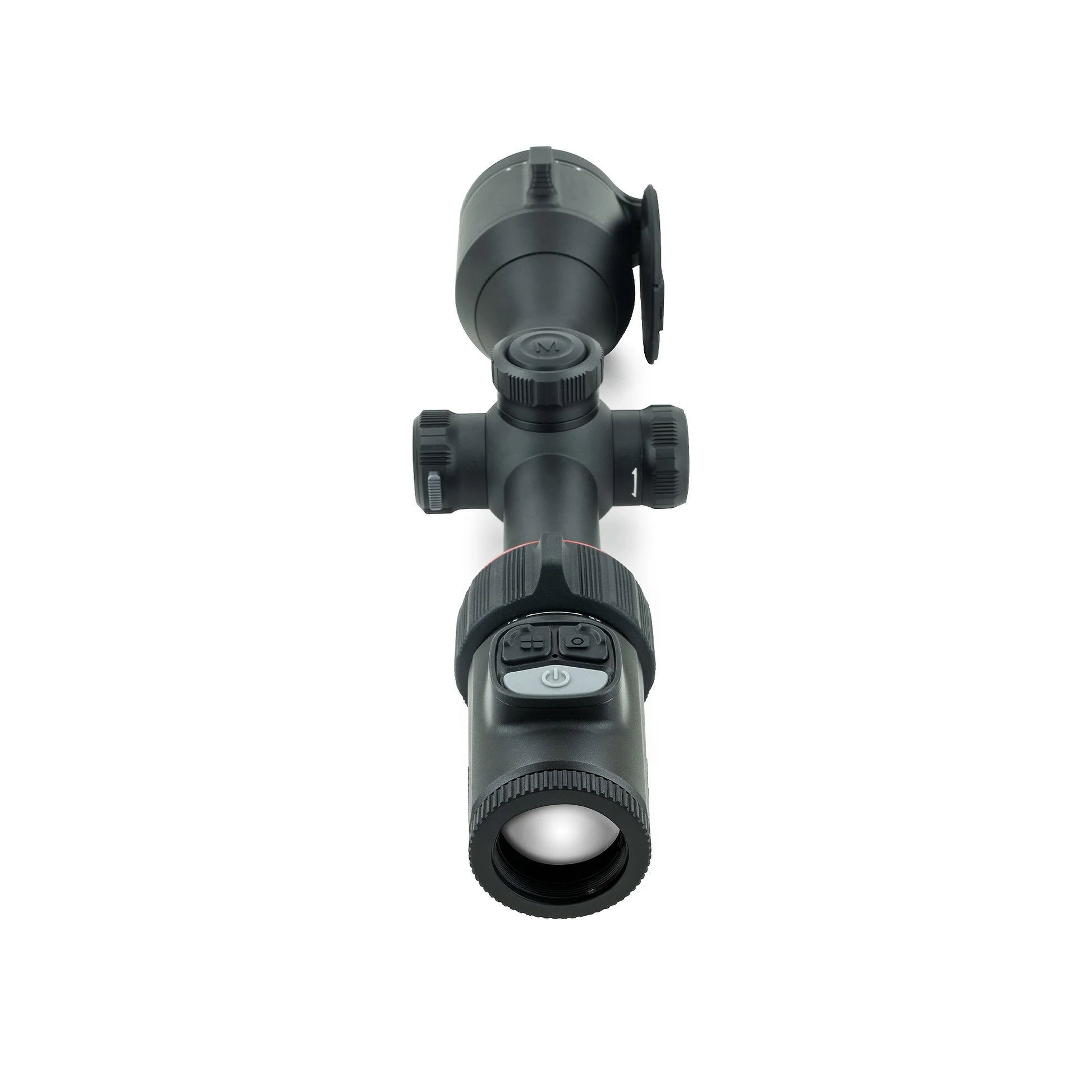

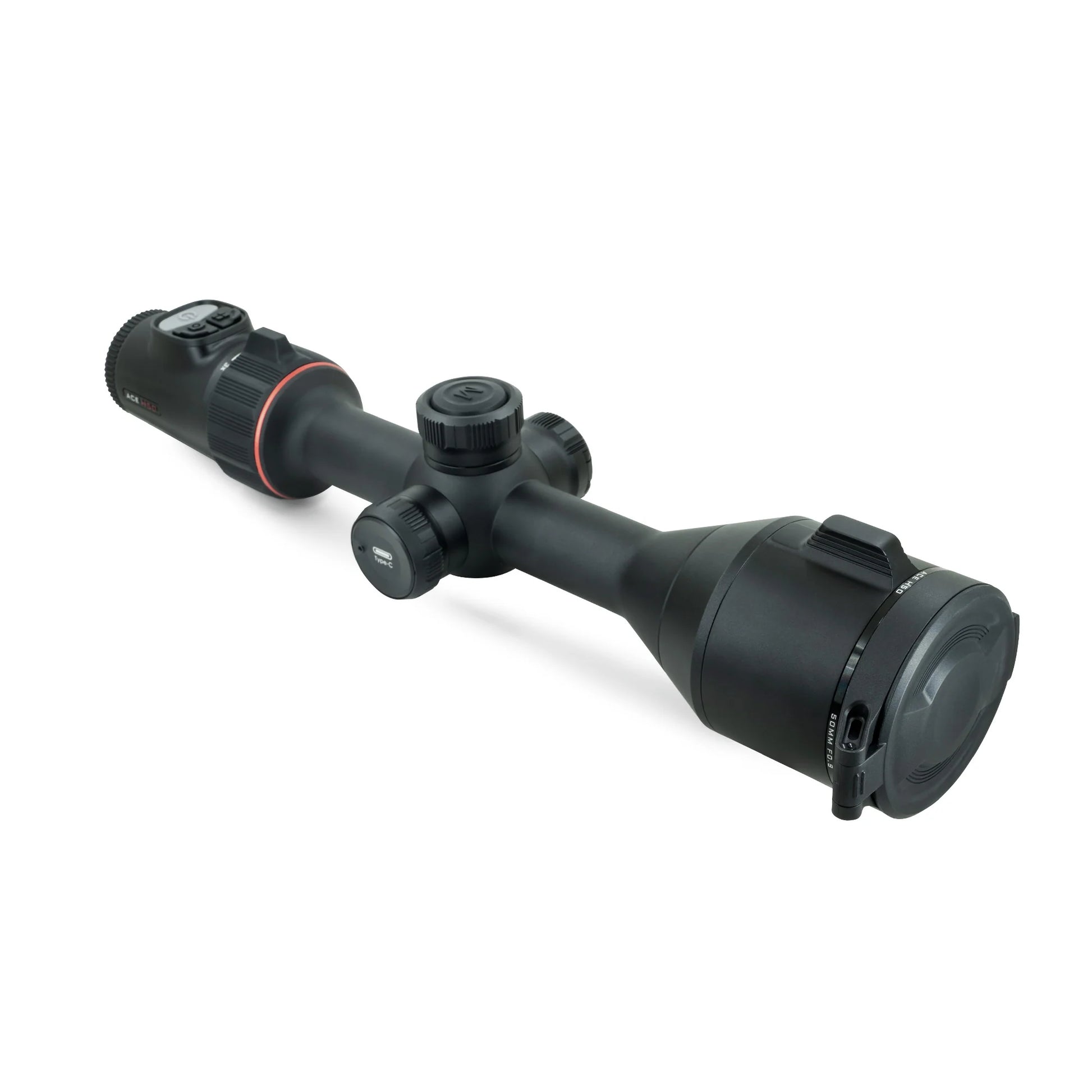

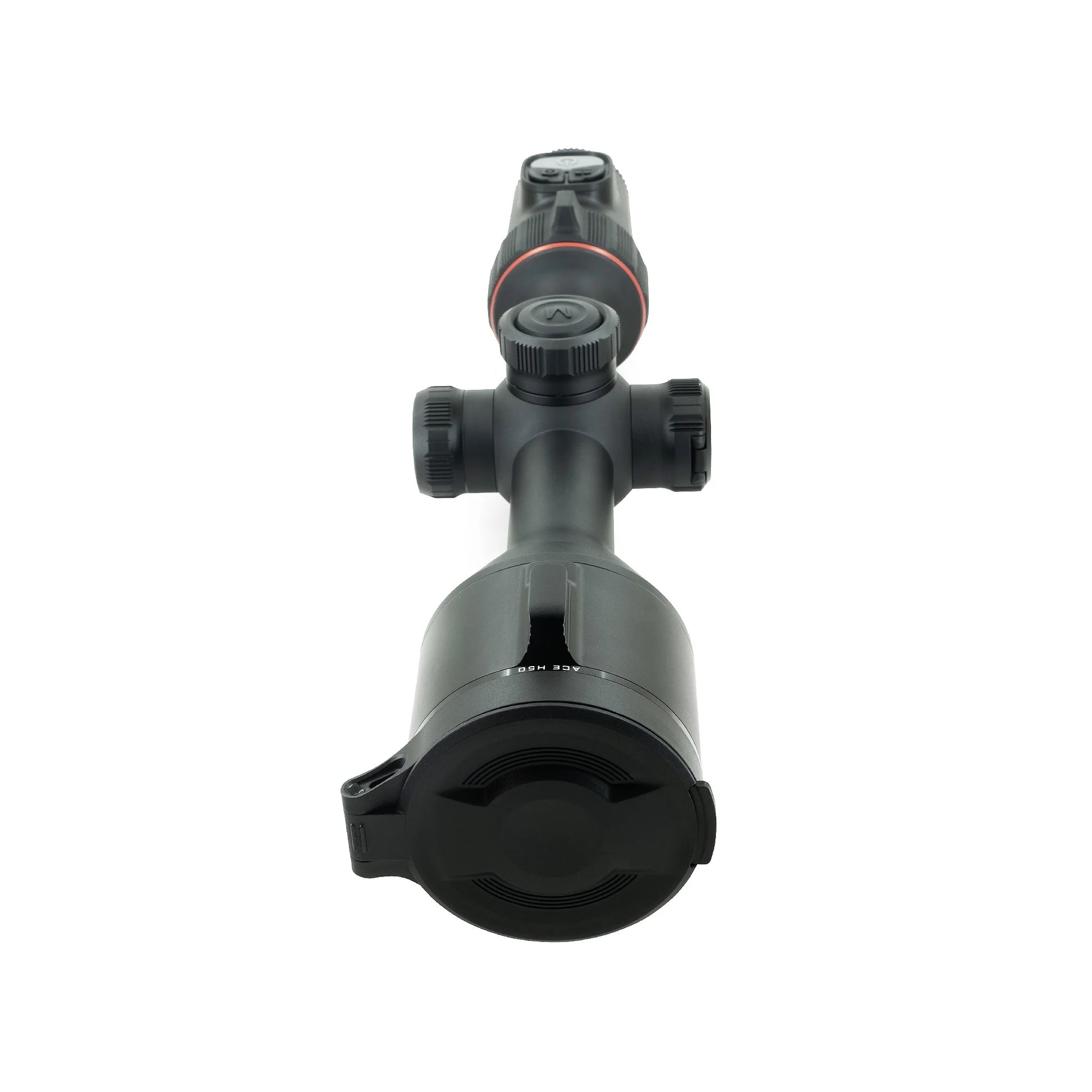

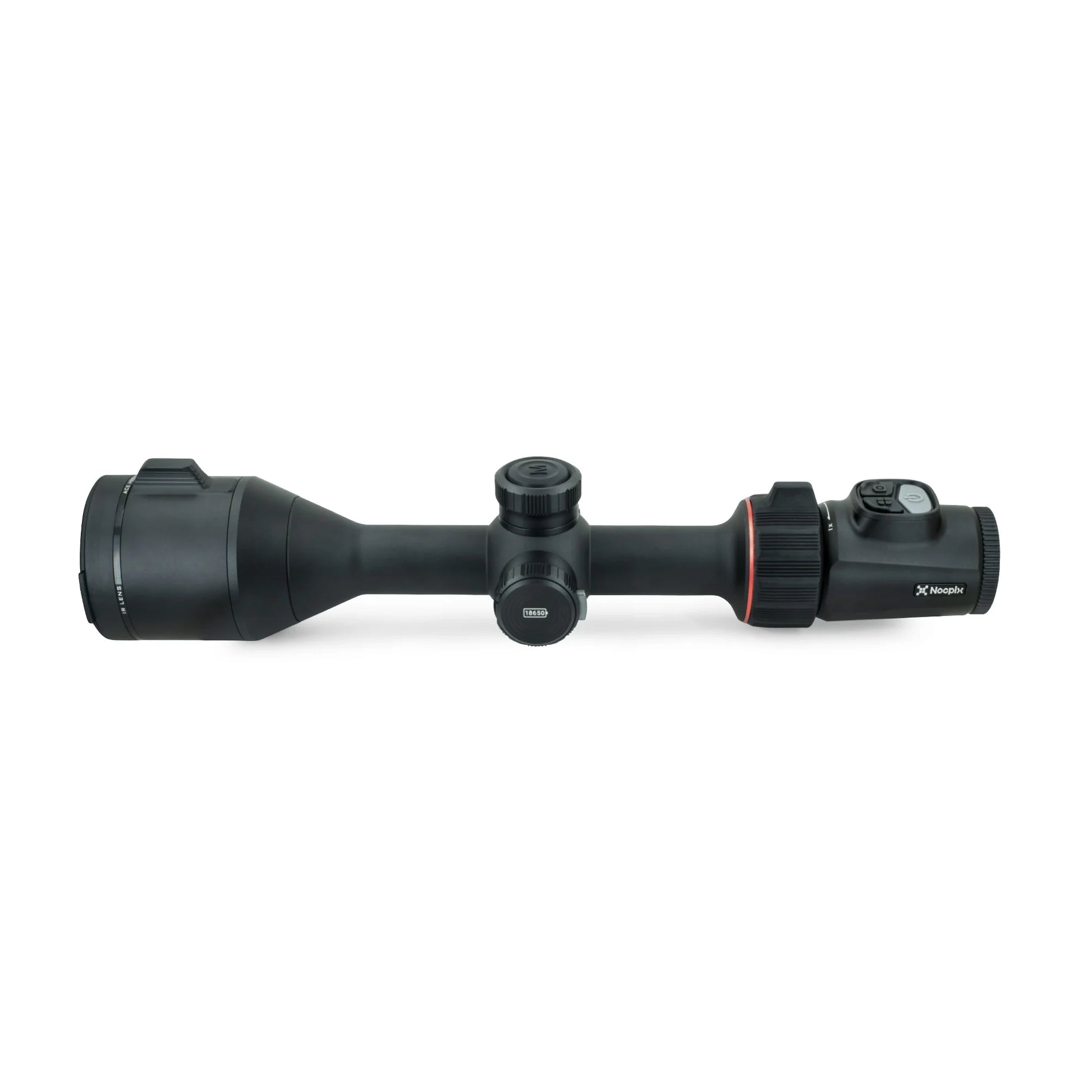

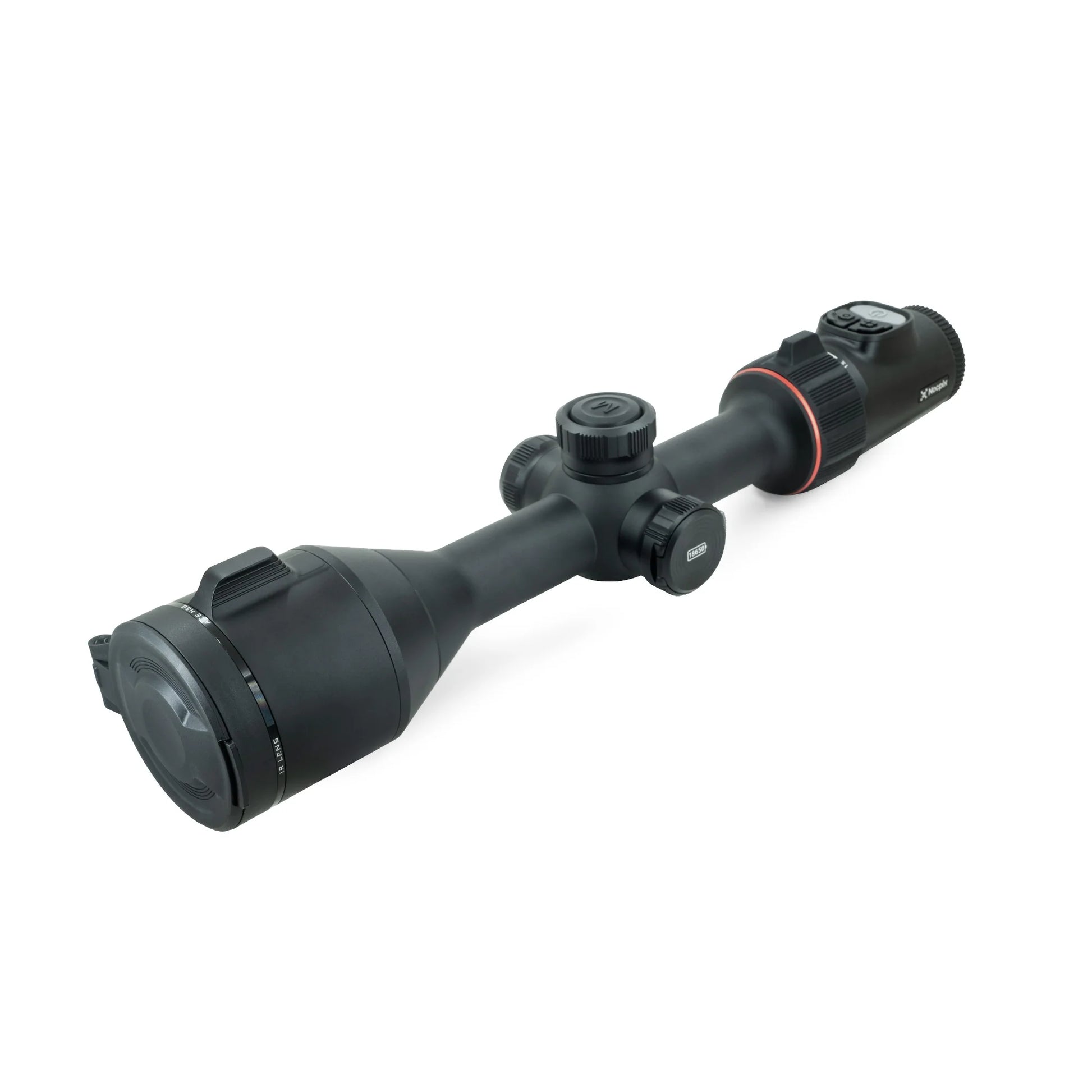

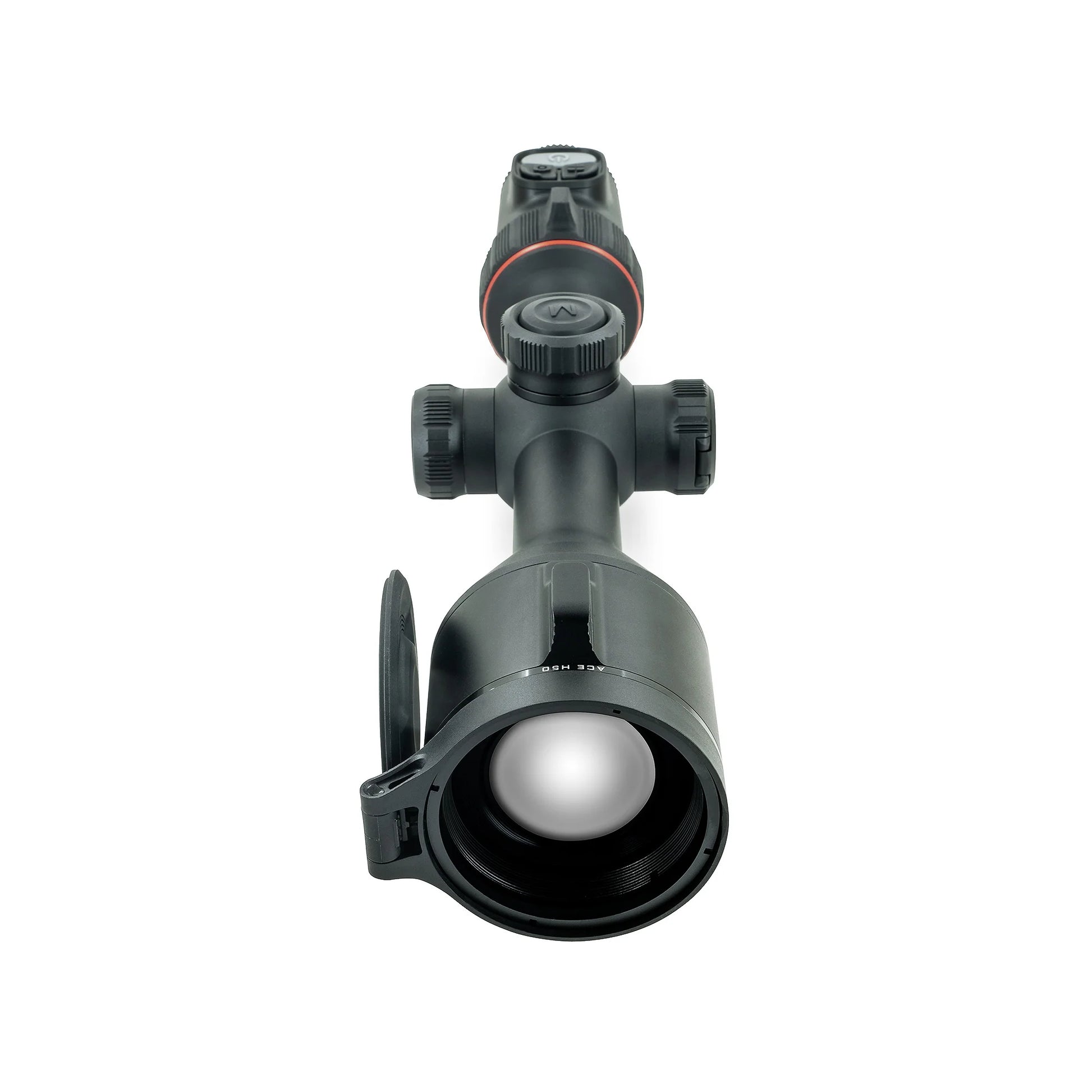

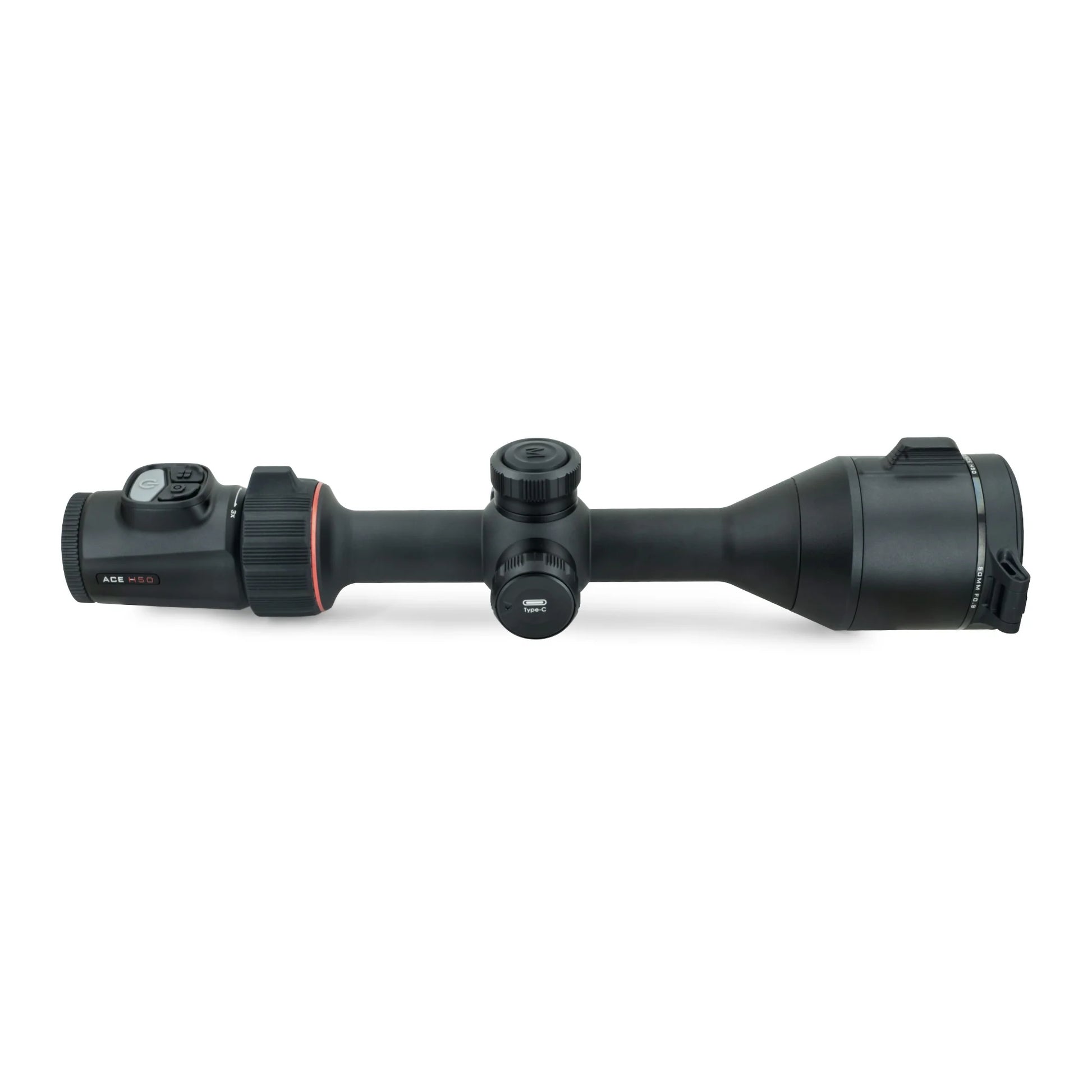

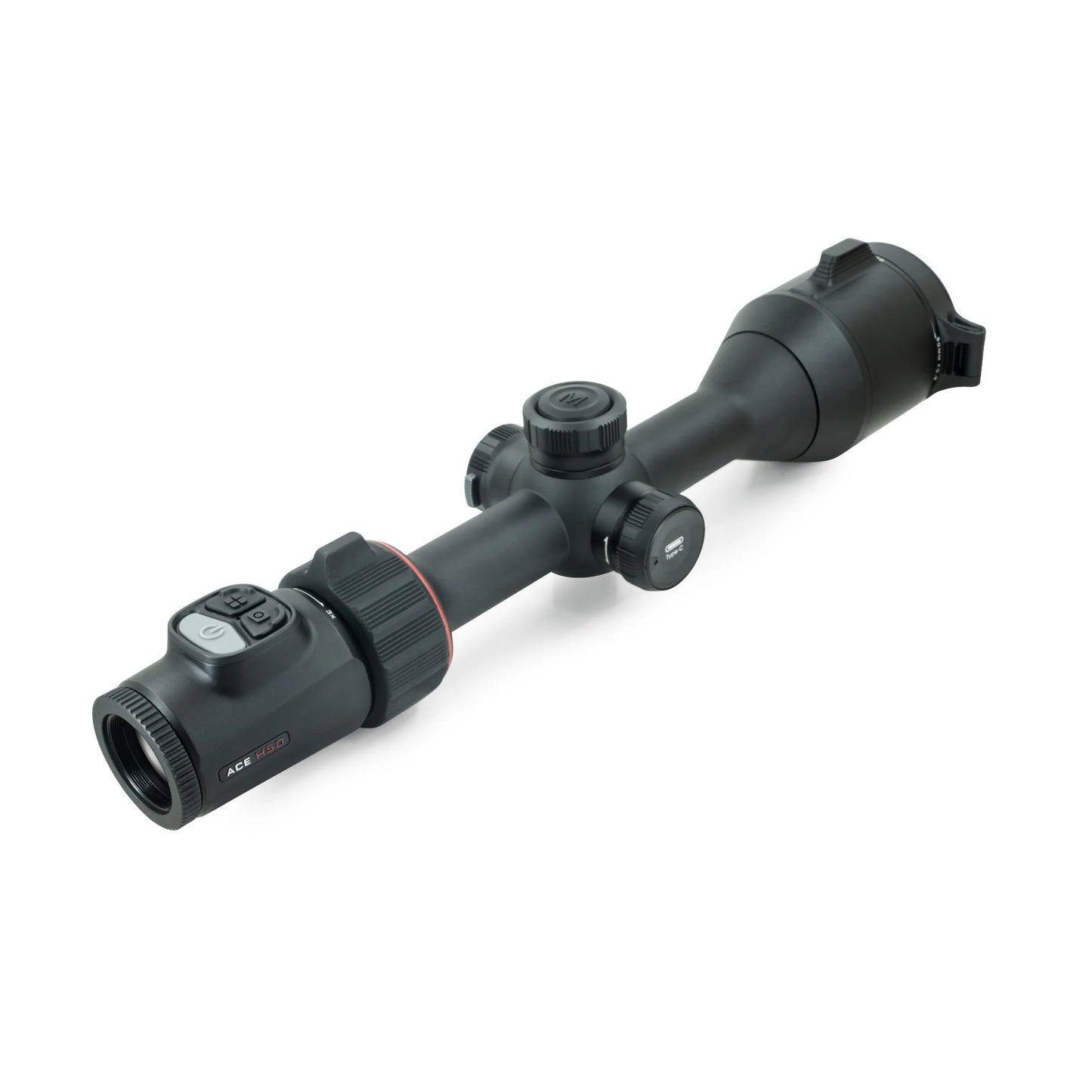

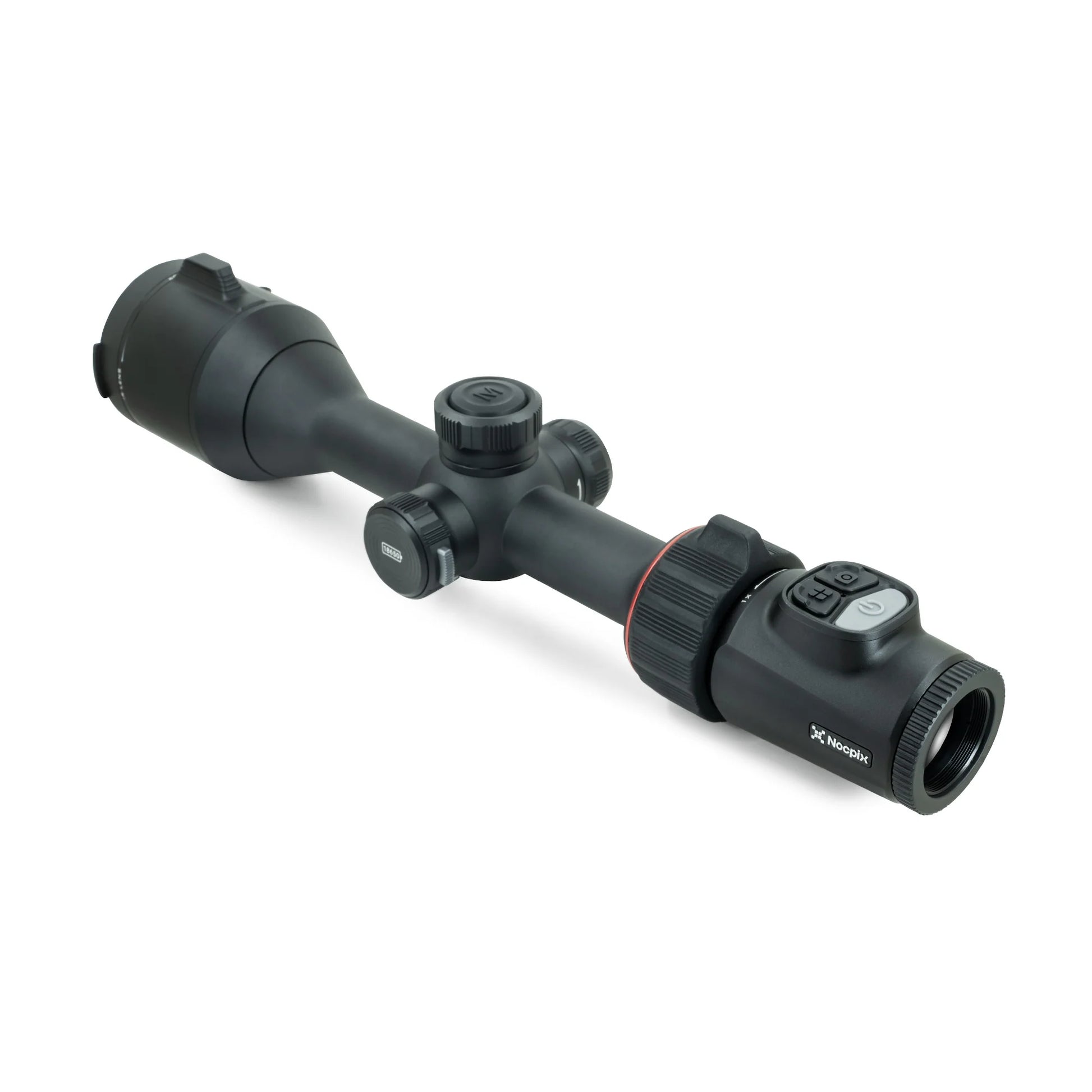

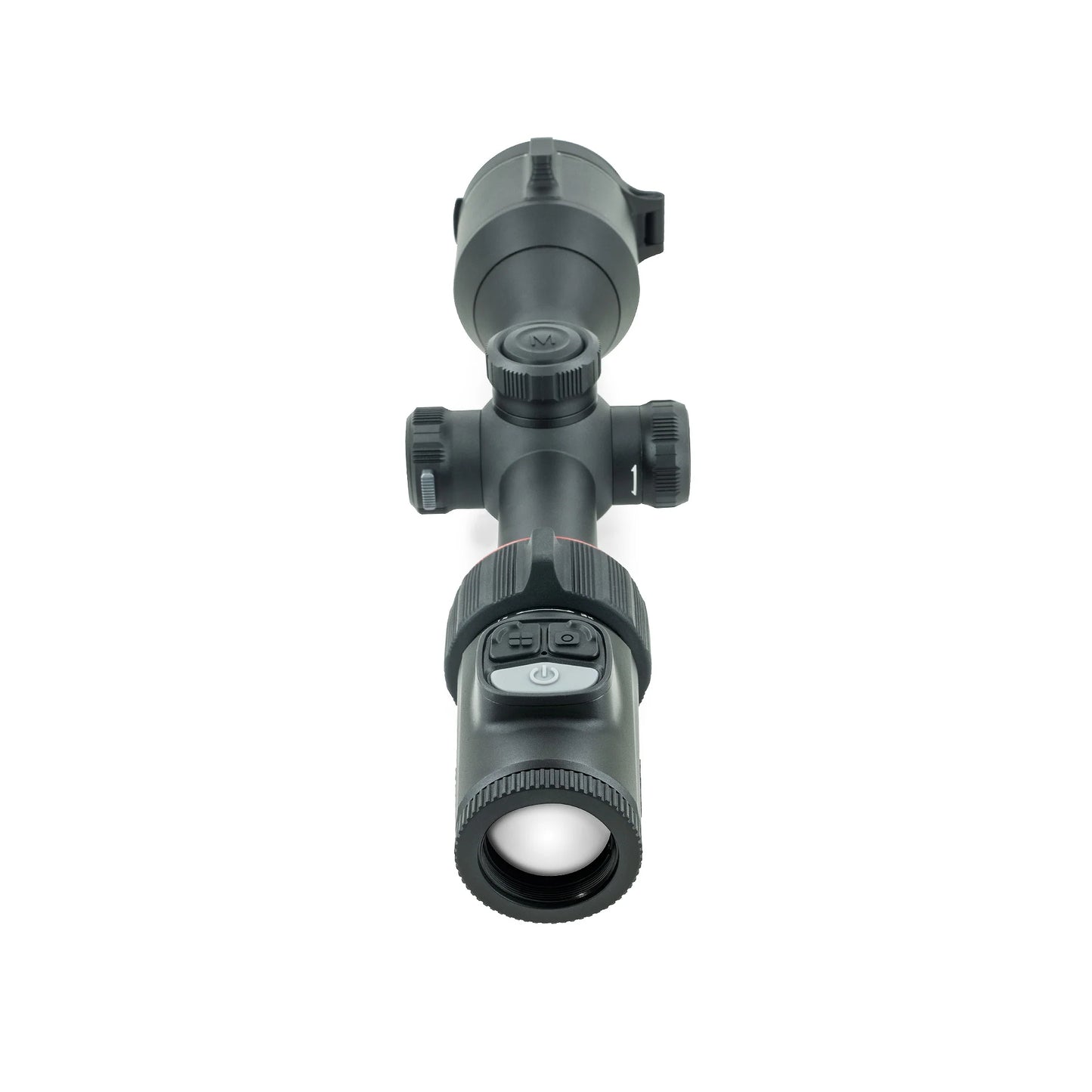

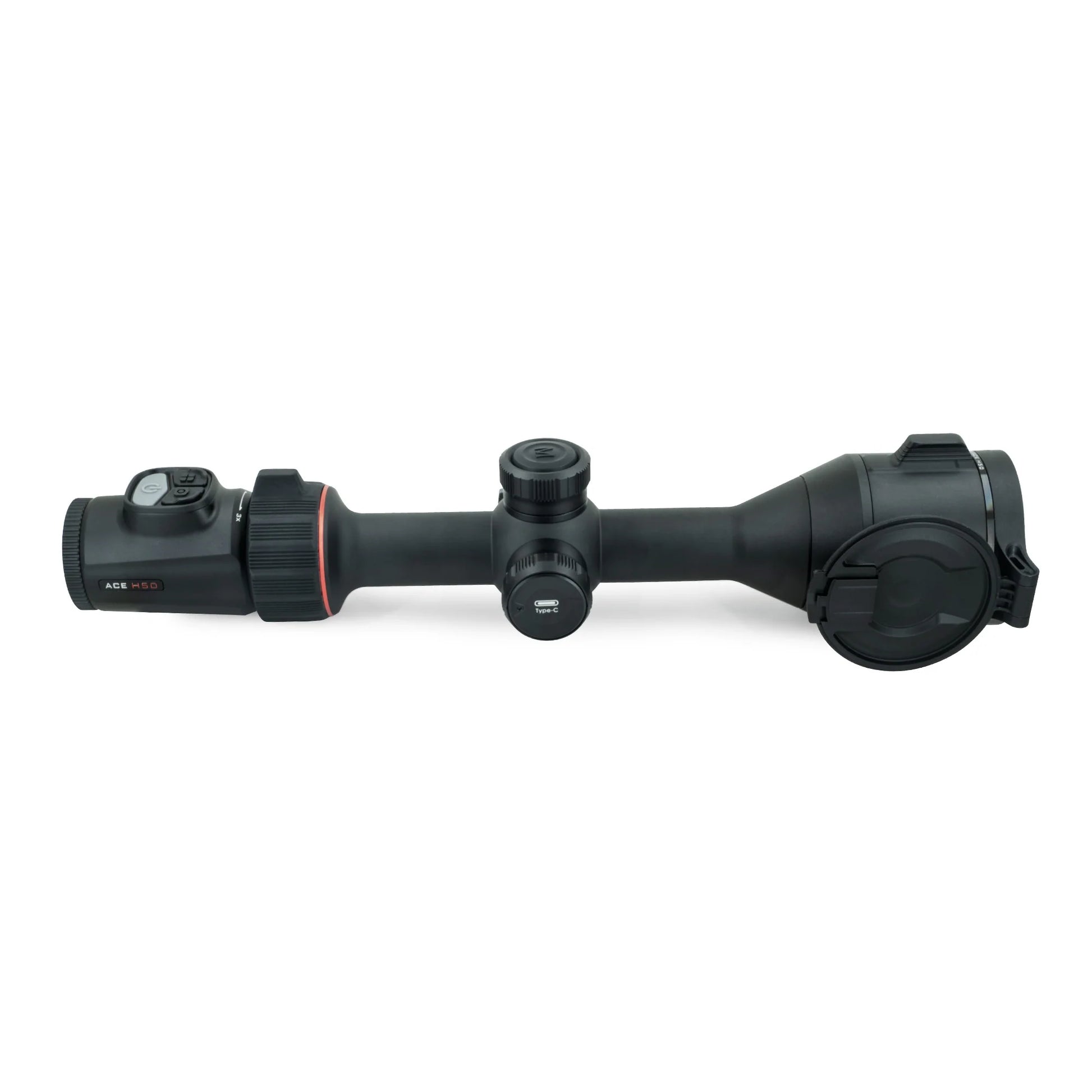

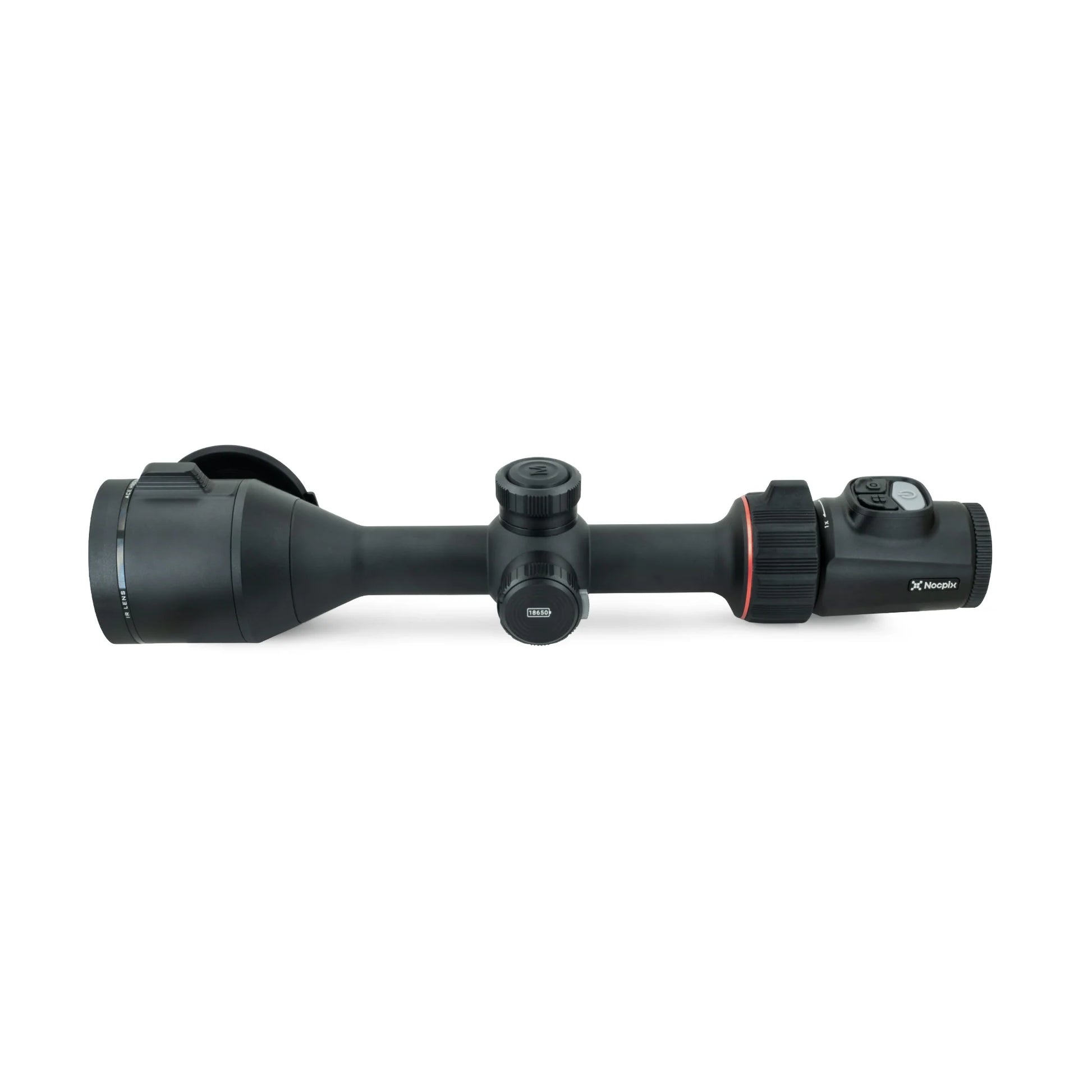

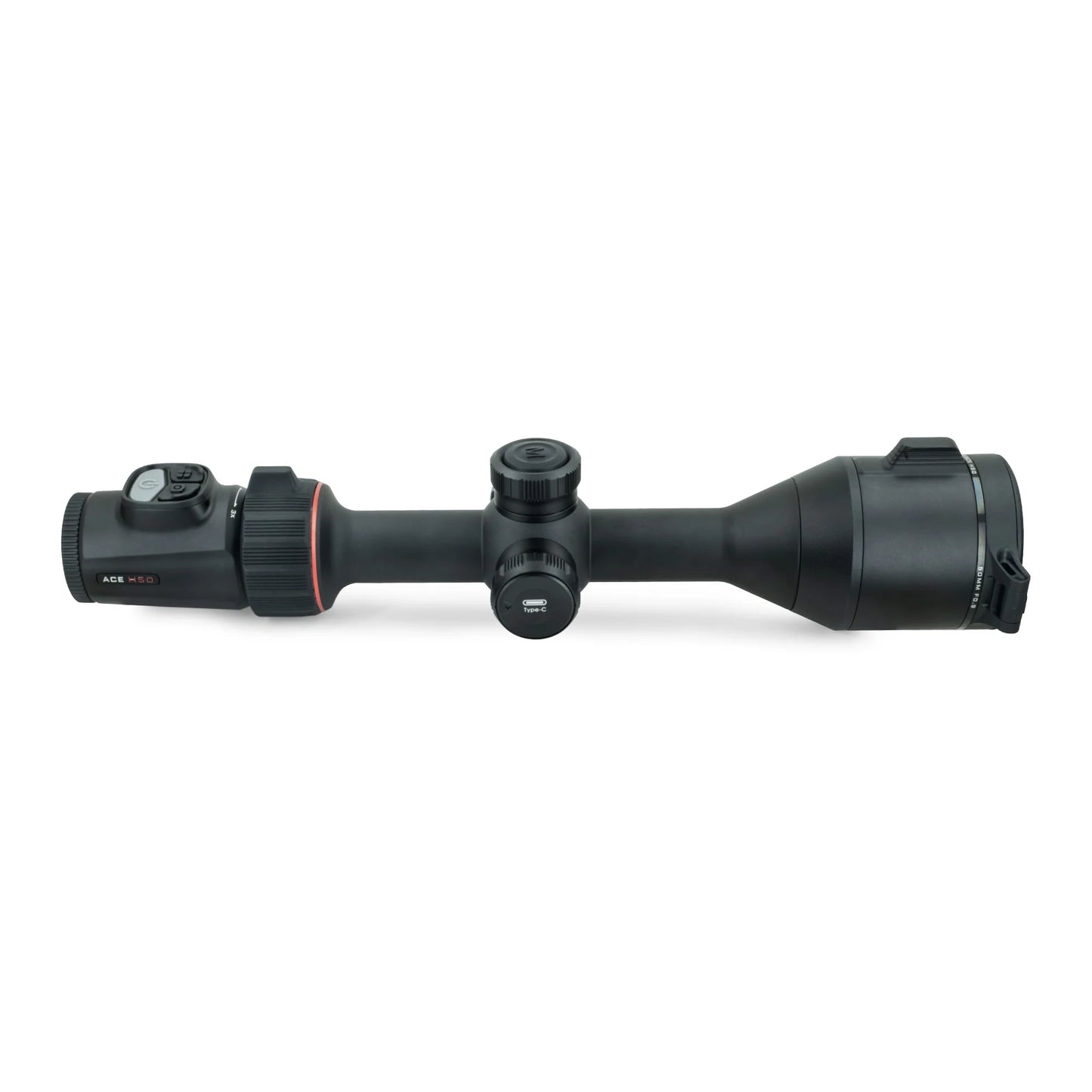

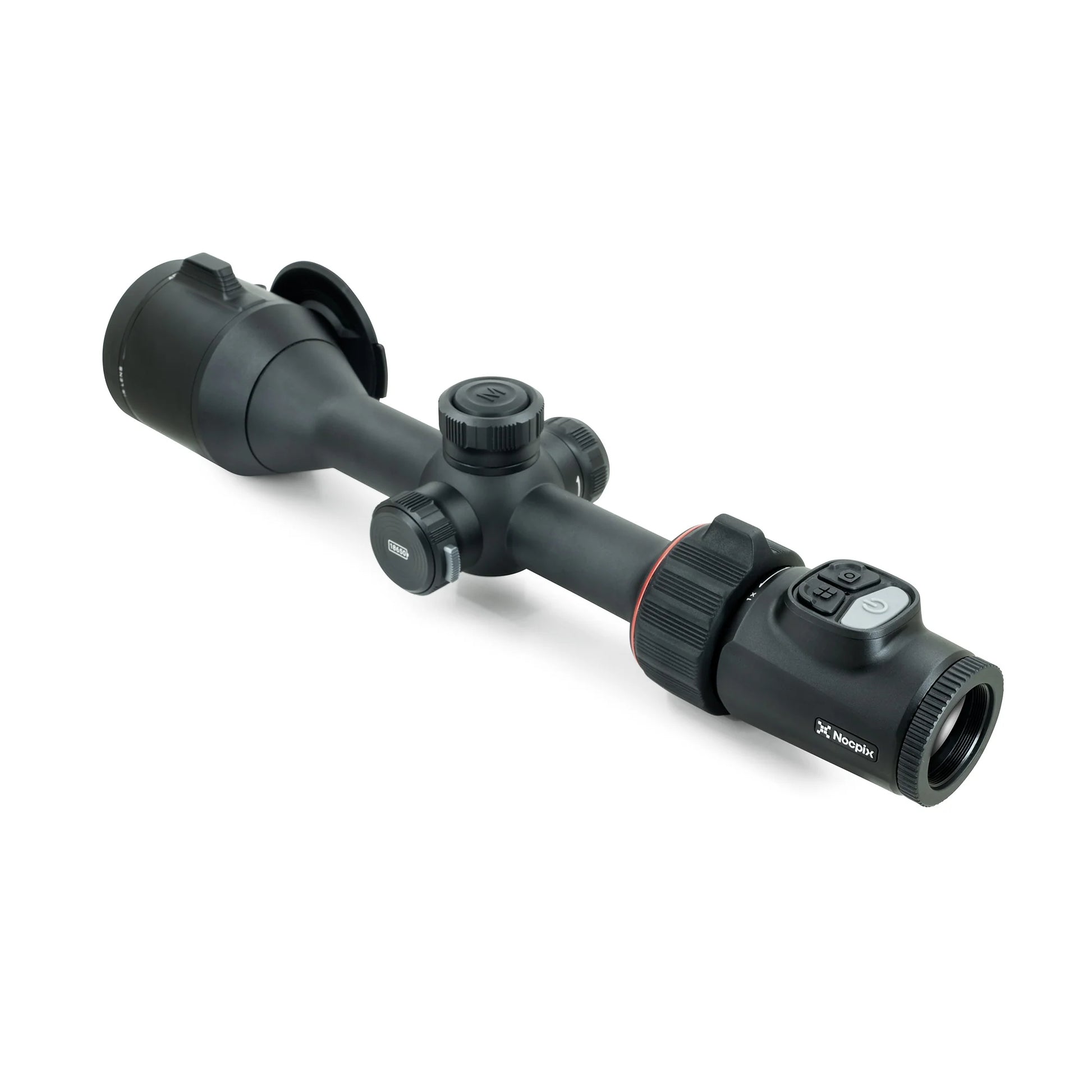

Nocpix ACE Optical Zoom Optimized Thermal Scope 640 H50

Nocpix ACE Optical Zoom Optimized Thermal Scope 640 H50

SKU:ACE-H50

Regular price $ 4,299.00
Regular price Sale price $ 4,299.00
Sale Sold out
Shipping calculated at checkout.

Nocpix ACE Optical Zoom Optimized Thermal Scope 640x512 50mm 2X ACE-H50



The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image.

Nocpix ACE H50 Features:

  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.

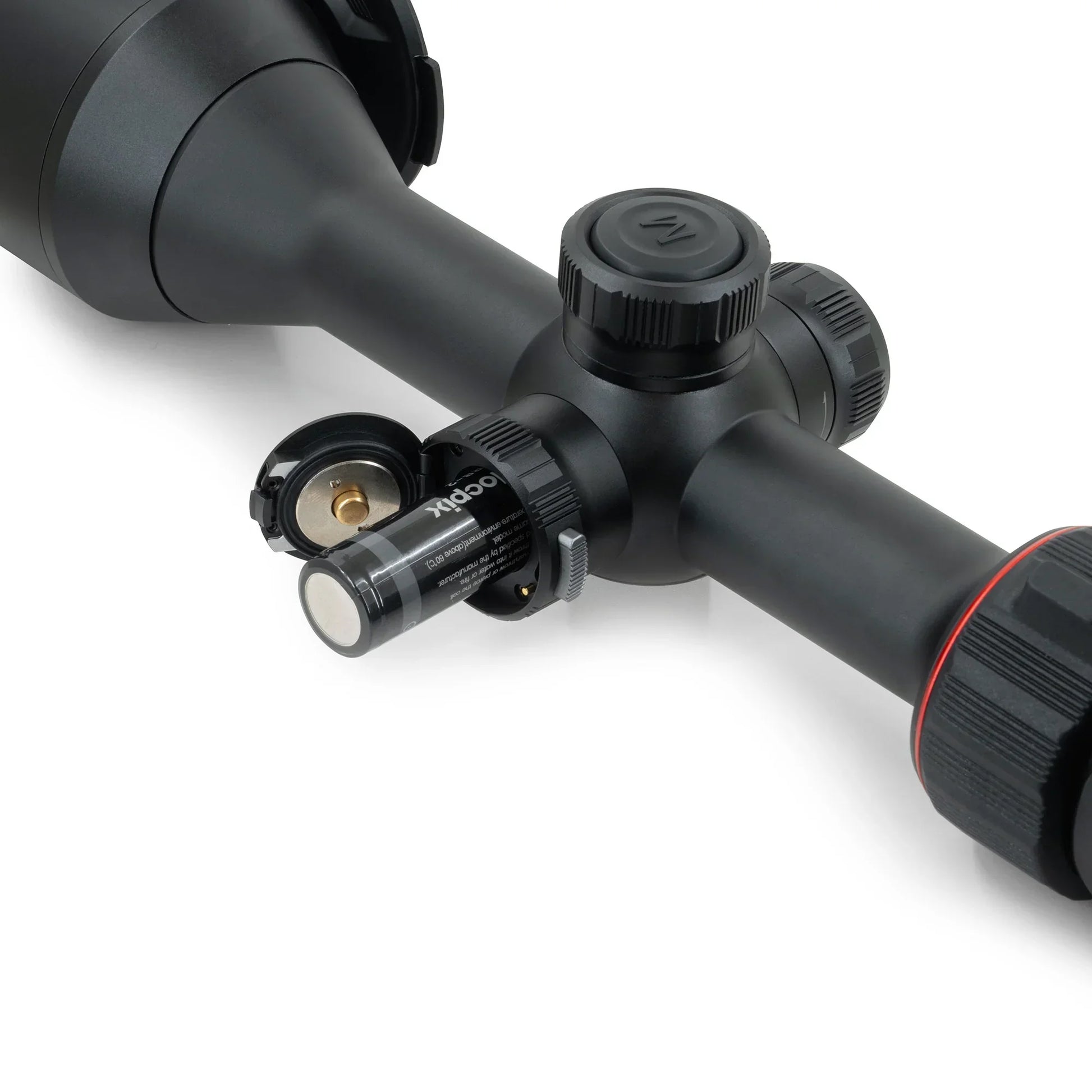

  • Uses common 18650 style rechargeable batteries.
  • Charge through the unit with a unique lock-out USB-C port design.
  • 5 Year Warranty

Nocpix ACE H50 Specifications:

SENSOR

Resolution 640x512

Pixel Size 12 μm

Frame Rate 60 Hz

Sensor Sensitivity ≤15 mK

Image Processing Reality+

Core Nocpix 640

OPTICS

Objective Lens 50 mm f/0.9

Native Magnification 3x

Digital Zoom 8x

Field of View 8.8° x 7.0°

Detection Range 2,850 yards

Display Type 1.03-inch Large-format AMOLED

Display Resolution 2560x2560

Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet

Picture-in-Picture Yes

Rangefinder None

Eye Relief 50 mm

Diopter Range -5 to +5

ELECTRONICS

Onboard Recording Video and Image

Onboard Storage 32 GB

Wireless Connectivity Image and Video via App.

Data/Power Connector USB-C

Power Supply USB-C External, Built-In Battery, 18650 Batteries x2

Max. Operating Time 7+ Hours

Start Up Time <10 Seconds, Instant from Standby

PHYSICAL

Size 14.37” x 3.54” x 2.68”

Weight 38.5 oz.

ENVIRONMENTAL & WARRANTY

Warranty 5 Years

Housing Material T-6063 Aluminum

Ingress Protection IP67

Operation Temperature -4°F~122°F

The Nocpix ACE ships with everything you need to get out and hunt.

50mm Objective Lens Cap

QD Mount

Standard Rubber Eyeguard

18650 Battery ×2

Battery Charger

USB-C Cable for Data/Video

Soft Case and Straps

Lens Cloth

User Manual

The Nocpix ACE ships with everything you need to get out and hunt.

50mm Objective Lens Cap

QD Mount

Standard Rubber Eyeguard

18650 Battery ×2

Battery Charger

USB-C Cable for Data/Video

Soft Case and Straps

Lens Cloth

User Manual

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
