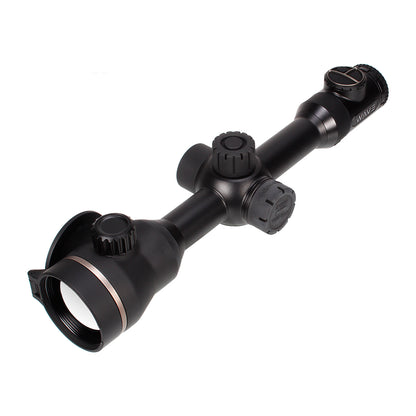

Wave Infrared ATRIS 635 V2 Thermal Scope 640 35mm 640x512 12um (50Hz) (WTS101)
Introducing the ATRIS 635 V2 – new smaller lighter V2 with wider field of view.
Engineered from the ground up to deliver unmatched image quality, simplicity, and bombproof durability without compromising anything, the ATRIS 635 V2 is our flagship thermal scope purpose-built to exceed the demands of the most discerning night hunter.
Every component, every line of code, and every ergonomic detail has been ruthlessly optimized for one mission: to give you the best possible thermal experience when it matters most – in the dark, in the cold, and under the pressure of the hunt.
Maximum precision, meets compact design and top end thermal performance in the WAVE ATRIS 635 V² Advanced Thermal Riflescope.Built for hunters, professionals, and tactical operators who demand superior clarity and accuracy, this powerhouse features a premium 640×512 12µm thermal sensor with ultra-sensitive <15mK NETD performance, delivering crisp thermal images in all conditions—even in humidity, fog, or complete darkness.
Whether you’re scanning wide terrain or ranging a target at distance, the ATRIS 635 LRF V² provides unmatched capability with its 35mm objective lens and magnification up to 11.20x. With intelligent features like onboard storage, multiple color palettes, and real-time streaming via the WAVE Infrared App, this riflescope redefines what’s possible after dark. Backed by our 5-Year Transferable Warranty.
Arclight™ Ultra HD Germanium Lens
The single most important component of a world-class thermal optic is its lens. If you go cheap with the lens, it doesn’t matter how good the rest of your components are; the unit will never perform to its full potential. Our Arclight™ Ultra HD Germanium Lenses are not cheap—only the most passionate builders would consider using a lens this good—but great lenses are necessary if you want to build a world-class thermal scope. The Arclight™ lens system perfects the task of funneling clean infrared energy into the thermal sensor, completely unhindered by distortion. This high-intensity energy transmission saturates every pixel, unleashing the full potential of our MicroTherm™ Sensor. Get ready for a different kind of thermal!
MicroTherm™ Sensor
Experience thermal images like never before. Our MicroTherm™ Sensor is so precise that it can measure Fahrenheit temperature differences as small as twenty-seven thousandths of one degree. This micro-differentiation of temperature bands allows us to create images that are so smooth and natural you’ll likely forget you’re using a thermal scope. Gone are the days of cartoon- and video-game-style images. Our MicroTherm™ Sensor produces images in a completely new way, so get ready for a new kind of thermal experience.
ViewMax™ HD Display
Let’s face it: optical systems designed for use in complete darkness have some very special requirements. After all, there’s not much you can see once you come off your scope. Getting the display just right is not a luxury; it’s an essential requirement. In fact, we’ll go so far as to say that your success or failure in the field will be directly tied to what you can see on, and how you interact with, your scope’s display. The first priority is to make sure your field of view is maximized and completely unencumbered, as maintaining maximum situational awareness is critical to success. Our oversized ViewMax™ HD Display excels at this task by producing generous and clean images on a wide-field, immersive high-definition screen with perfect edge-to-edge clarity.
Featured Technology
- Arclight Lens™ | Ultra Pure Germanium Lens
- MicroTherm Sensor™ | Natural View Image Presentation
- ViewMax Display™ | Immersive WideField Display Experience

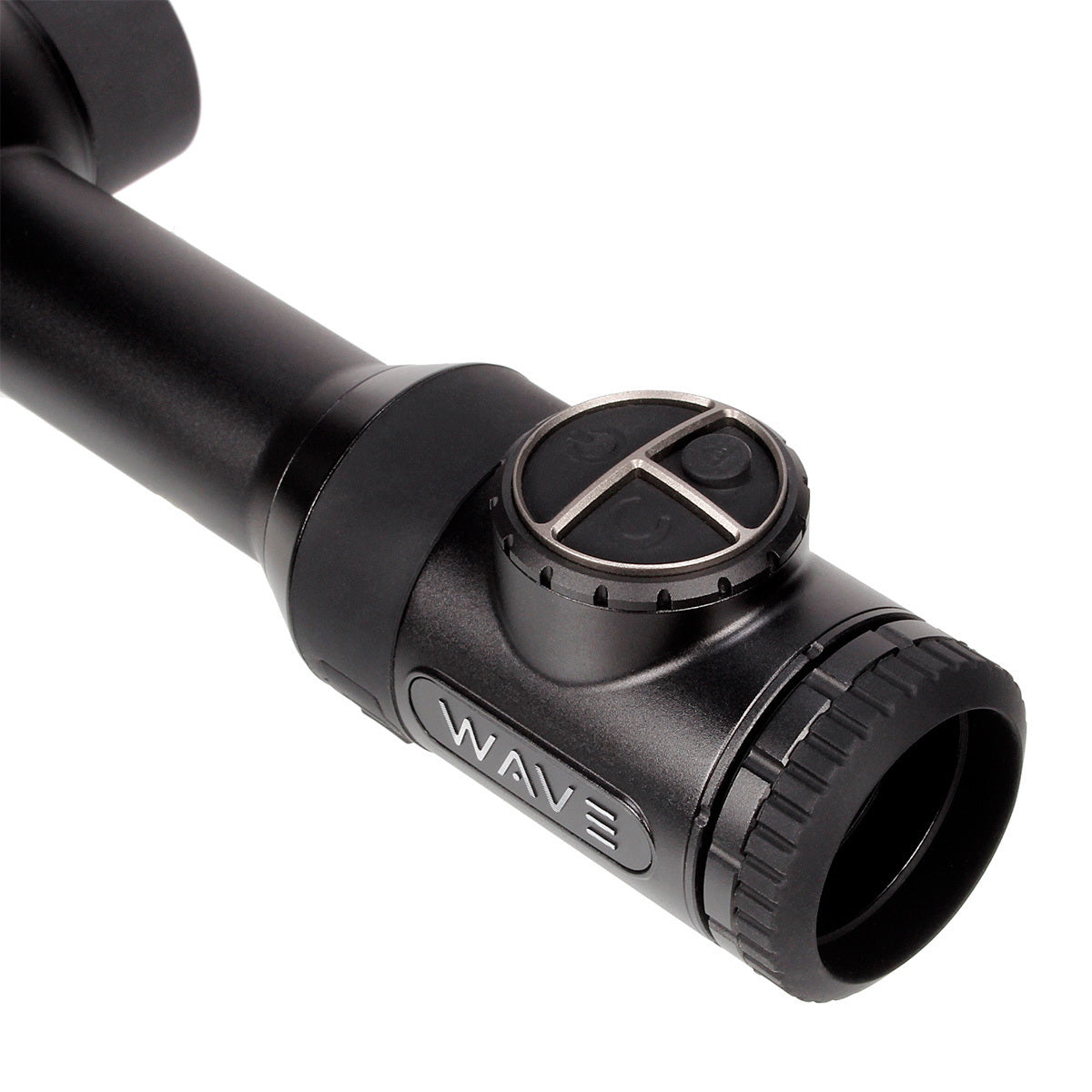

- MicroSmooth Focus™ | Top-Mounted Ambidextrous Focusing
- Relentless Runtime™ | Zero-Worry Power Supply
- 5T Warranty | 5-Year Transferable Warranty
Wave Infrared ATRIS 635 V2 Thermal Scope 640 35mm Specifications:
Thermal Sensor: 640 x 512
Sensor Pixel Size: 12 Micron
Objective Lens Diameter: 35 mm
NETD: <15mK
Frame Rate: 50 Hz
Field-of-View: 470′ at 1000 Yards (2.8x Optical Mag.)
Base Level Magnification: 2.8x (Before Any Digital Zoom)
Digital Magnification: 2.8x to 11.2 with 2 Options (Rapid and Smooth)
Display Type/Resolution: HD AMOLED / 2560 x 2560
Display OLED Adjustment: Yes with 4 Hue Options
Color Palette Modes: 6 (White, Black, Red, Green, Golden, Violet)
Picture-in-Picture (PIP): Yes
Recoil Activated Recording: Yes with Sensitivity Threshold Adjustment
Hot Tracking: Yes
Outline Mode: Yes
Reticle Design Options: 9 (Plus a “No Reticle” 10th Option)
Reticle Color Options: Black or White with Polarity Reversal Option
Reticle Illuminated Dot: Yes, 4 Designs w/ Center Dot Illumination
Reticle Center Dot: 3 Illumination Options (Red, Blue, Green)
Reticle Focal Plane Options: Yes (Front Focal or Second Focal)
Laser Class: N/A
Laser Ranging Distance: N/A
Ballistic Calculation: N/A
Multiple Gun Profiles: Yes (Save up to 5 Different Zeros)
Gun Profile Nicknaming: Yes (Caliber Labeling and Zero Distance)
Detection Range: Up to 2900 Yards
Start-Up Time: 3 Seconds
Auto Shutdown: Yes with 4 Options (Off, 30, 60, and 90 Minutes)
Media Recording Yes: (Photo, Video, and Audio with On or Off)
Media File Management: Yes (On-Board Viewing and File Deletion)
WIFI: Yes
Battery Type Options: (1x) 28650 Protected (18650 Adaptable)
Expected Battery Life: 10+ Hours
Recoil Rating: 10,000 J
Nitrogen Purged: Yes
Scope Length: 14″
Scope Tube Size: 30mm (25 Inch Pound Ring Attachment)
Weight: 33 oz. (Without Batteries)
Waterproof Rating: IP67
