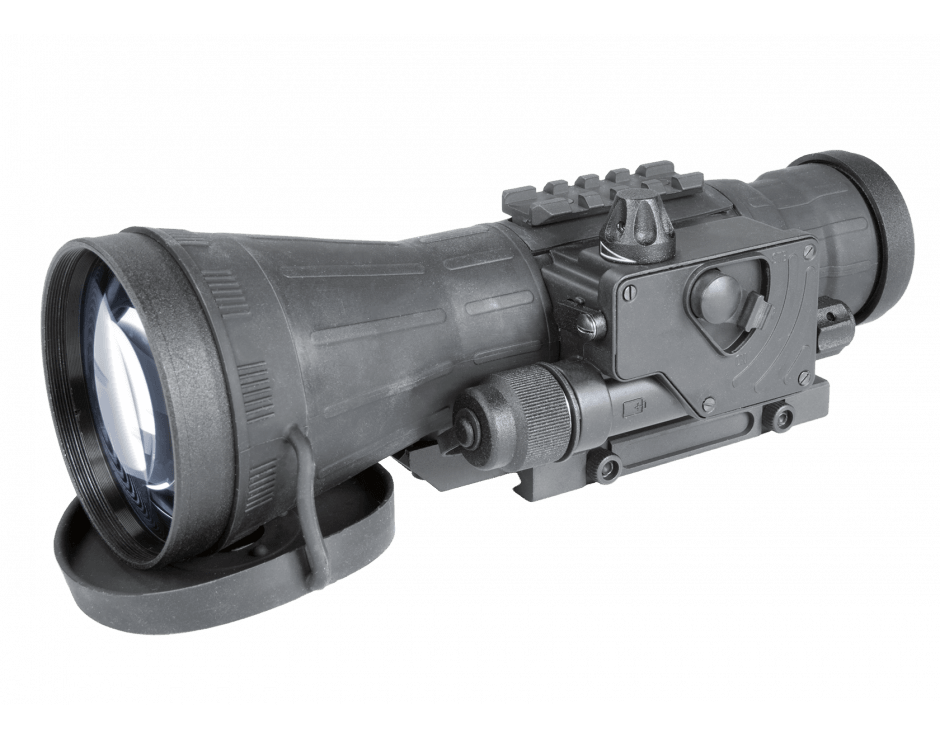

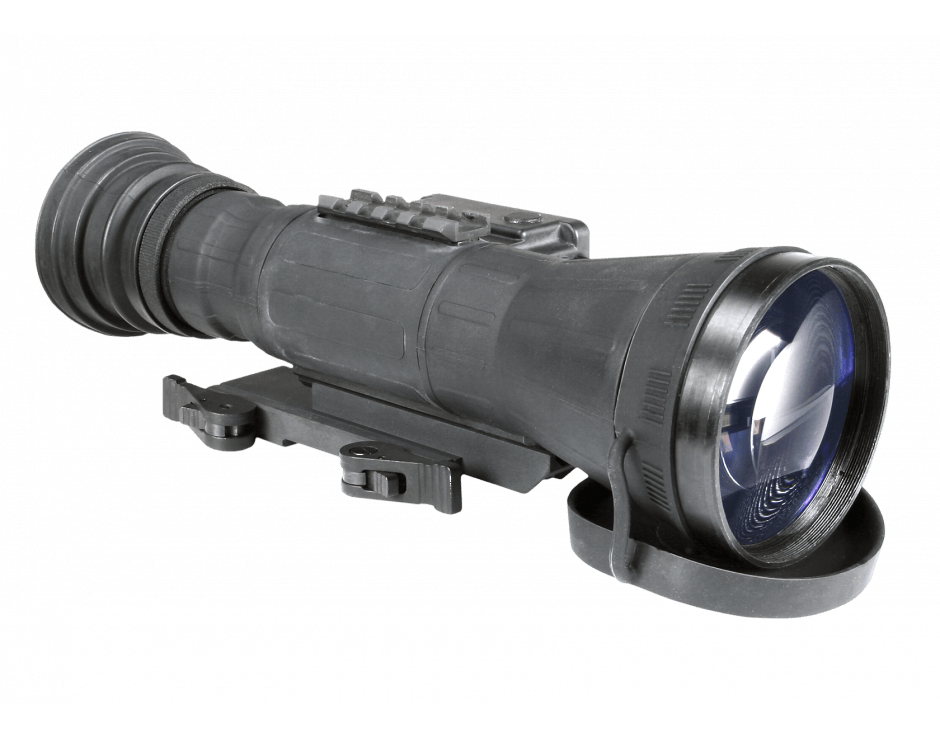

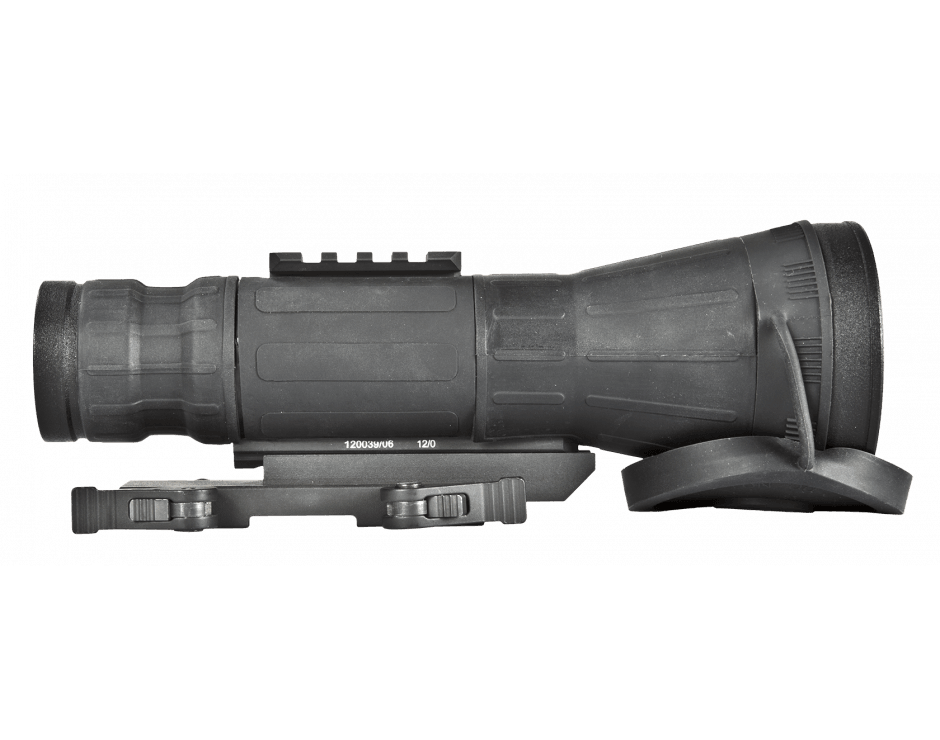

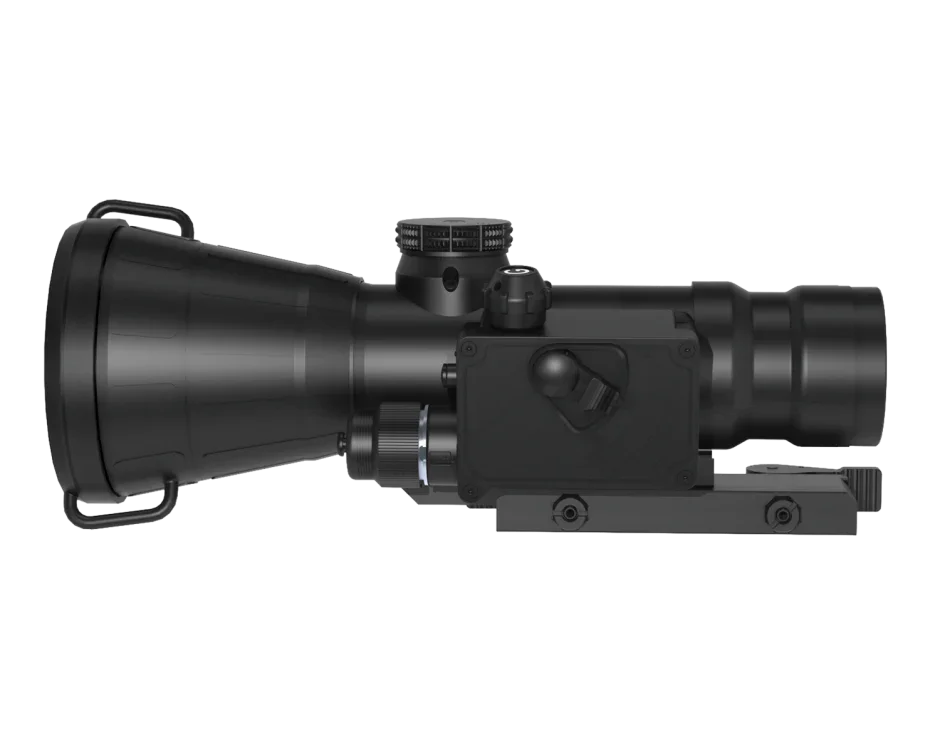

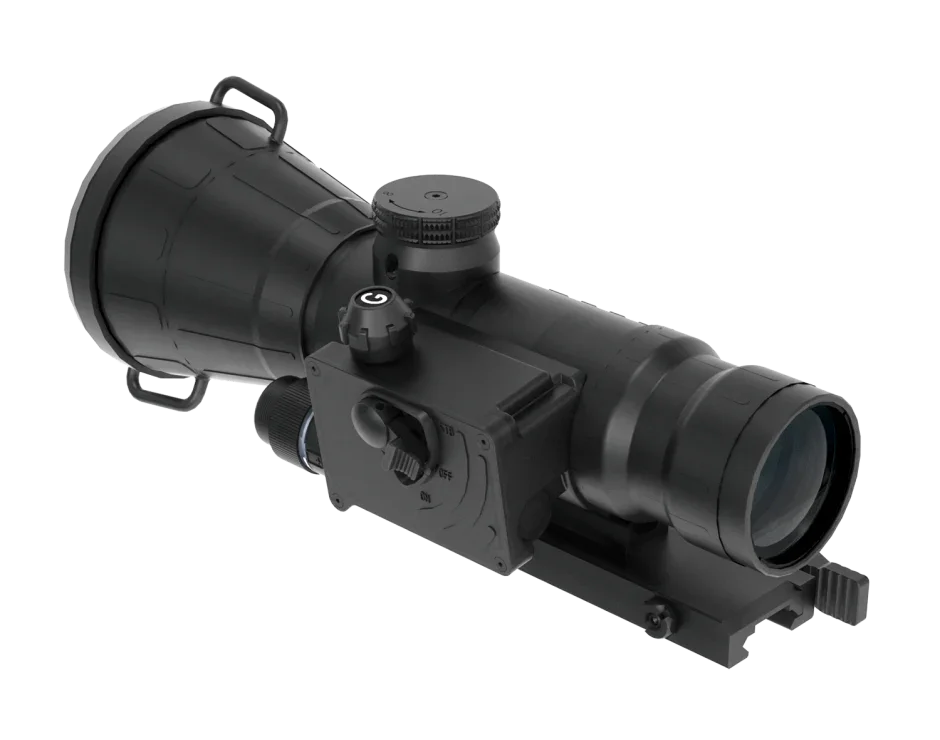

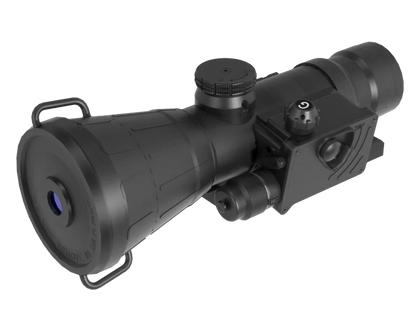

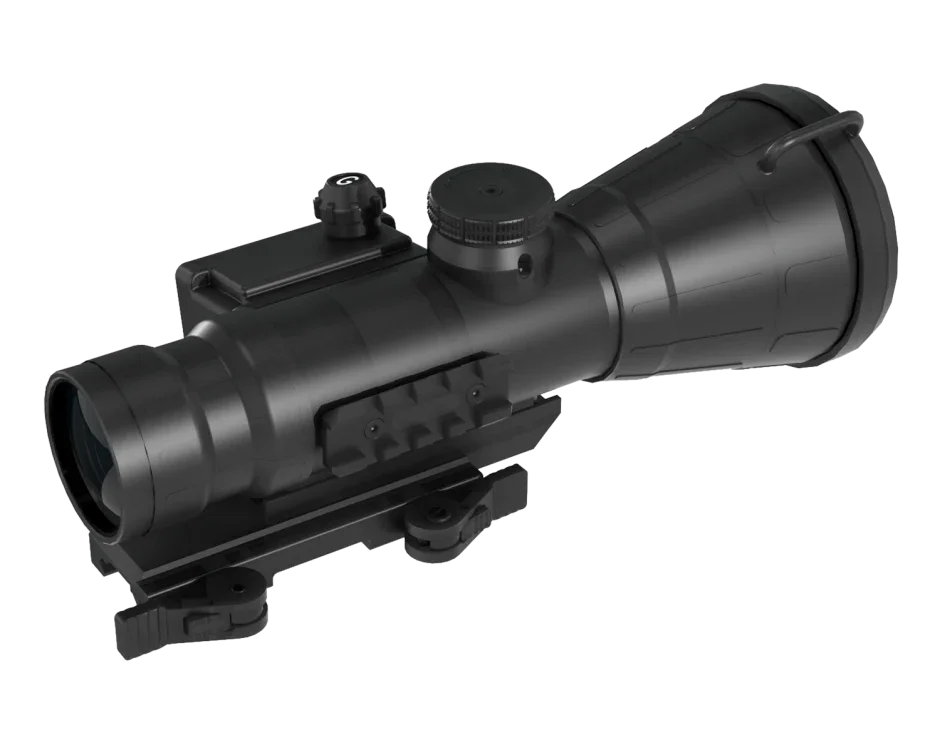

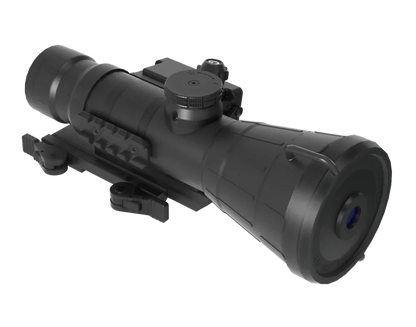

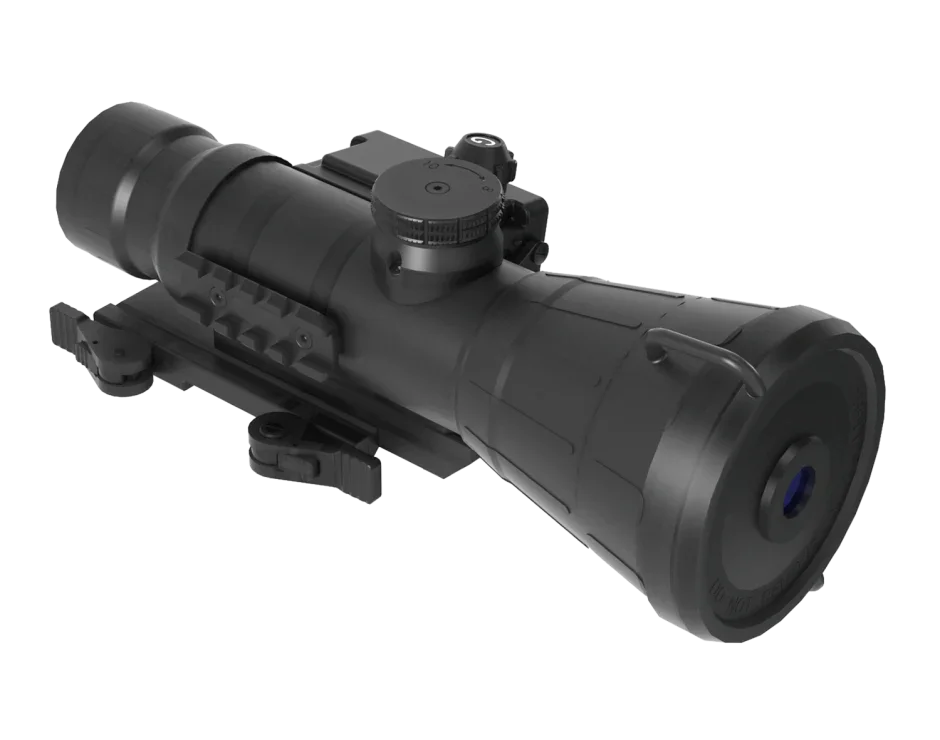

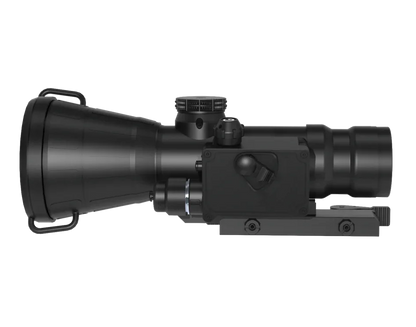

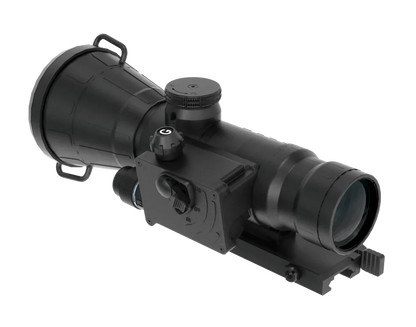

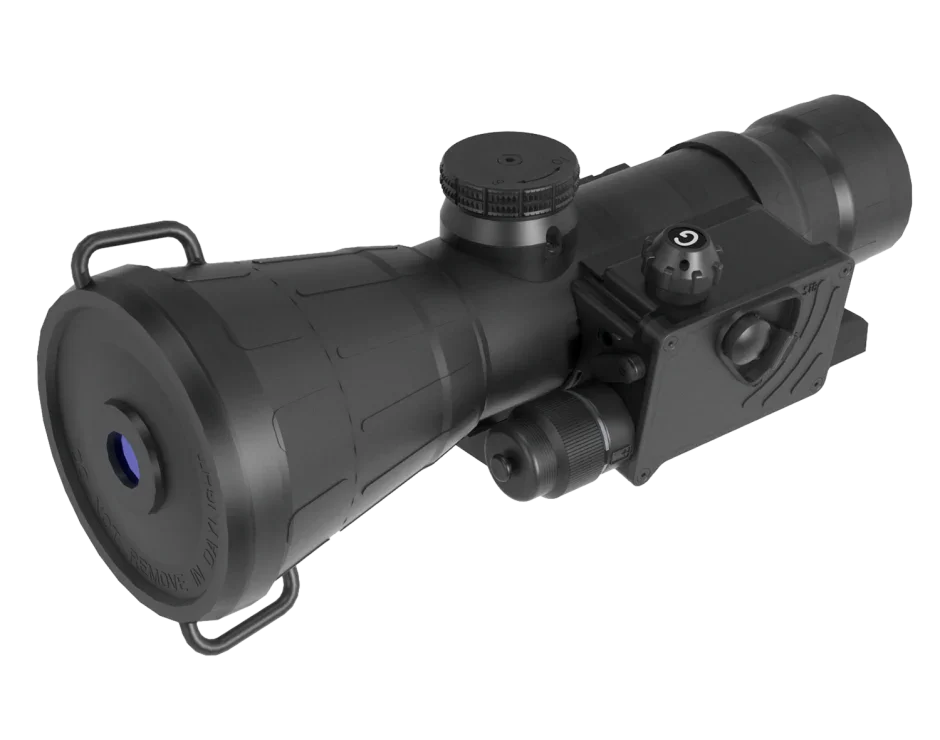

AGM Comanche 40ER 3AW1 Extended Range Night Vision Clip-On Scope
AGM Comanche 40ER 3AW1 Extended Range Night Vision Clip-On Scope
SKU:16C4O123454011
Couldn't load pickup availability
AGM Comanche 40ER 3AW1 Extended Range Night Vision Clip-On System Gen 3 White Phosphor "Level 1" 16C4O123454011
Authorized Dealer

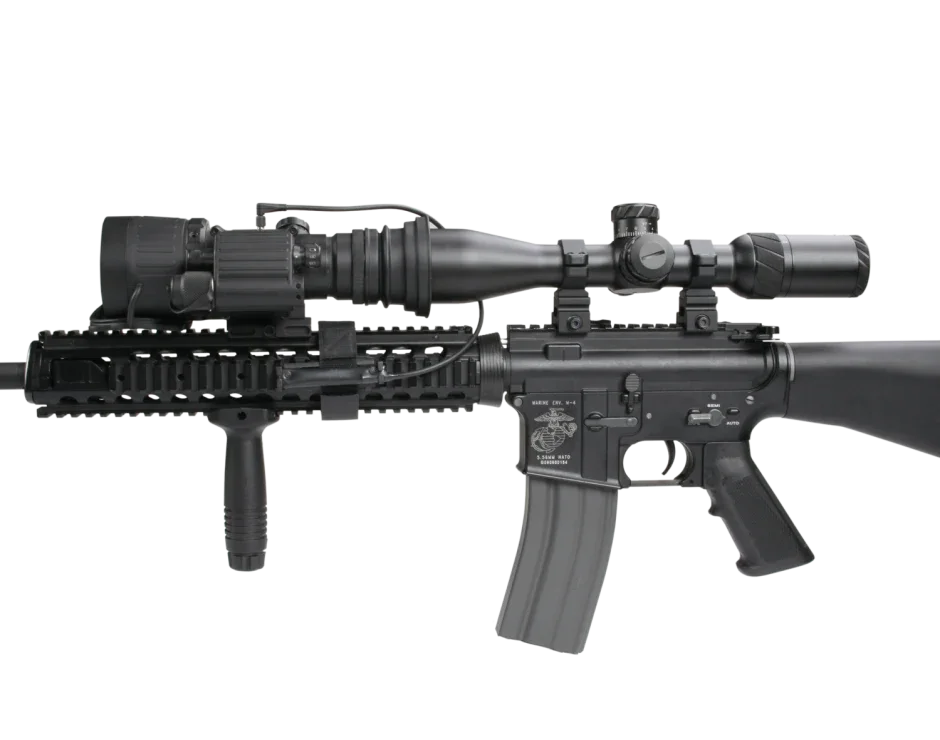

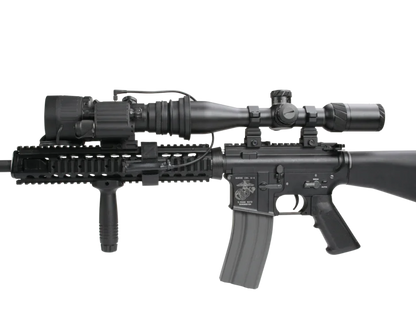

The AGM Comanche 40ER 3AW1 Extended Range Night Vision Clip-On Scope utilizes advanced NVCO technology for precise long-range nighttime shooting. It easily mounts to the Weaver or Picatinny rail and can be used with day scopes up to 10x power, without the need for re-zeroing. Features include quick release mount and remote control capability, providing improved target acquisition and enhanced aiming capability up to 1000 yards.
AGM Comanche 40ER 3AW1 Features:
- Simple, quick conversion of daytime scopes to NVDs
- Manual gain control
- Mounts in front of any daytime scope, no re-zeroing required
- Equipped with a wireless remote control

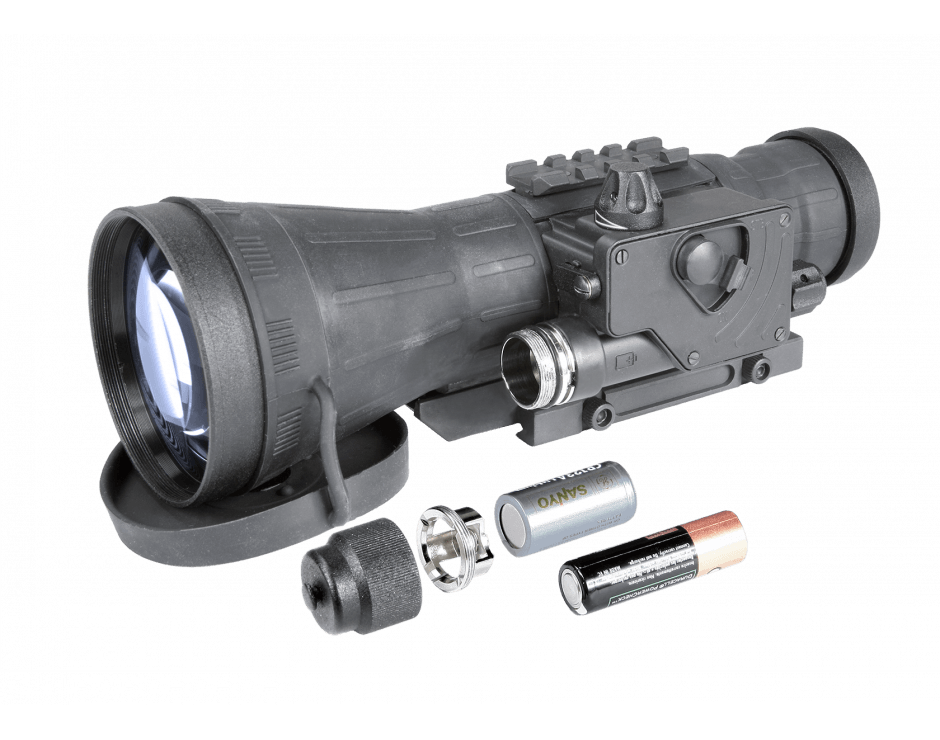

- Powered by a single Alkaline 1.5V AA or 3V CR123A Lithium battery
- Bright-light cut-off system
- Quick-release mount
- 3-Year Warranty
Tube Level Info:
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|||||||||
AGM Comanche 40ER 3AW1 Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution
64-72 lp/mm
Magnification
1x
Lens System
108 mm; F/1.54
FOV
9°
Led Indicators
- Low battery - Excessive light conditions
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1. V)
Battery Life (Operating)
Up to 60 hours (3V) at 20°C
Exit Pupil Diameter
40 mm
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +50°C (-58°F to +122°F)
Weight
0.91 kg (2.0 lb)
Overall Dimensions
230 × 87 × 97 mm (9.1 × 3.4 × 3.8 in)
PACKAGE INCLUDES:
- Night Vision Clip-On
- Lens Cap
- Quick-Release Mount
- Output Lens cap
- Battery Adapter
- CR123A Battery
- Light Suppressor
- Remote Control
- User
- Manual
- Carrying Case
|
Warranty |
3 Years |
