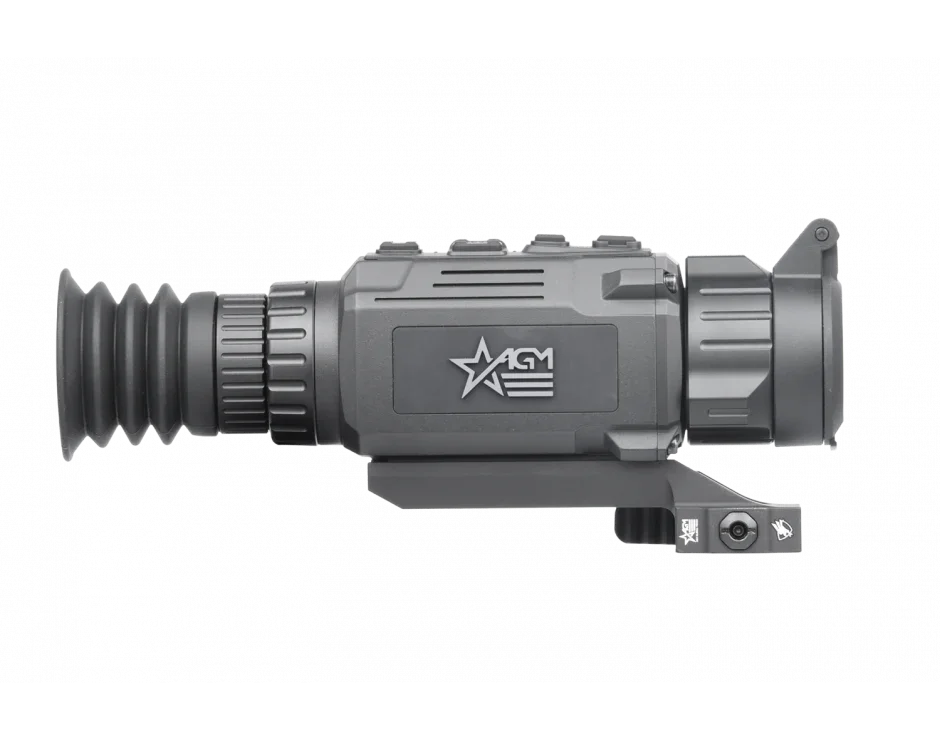

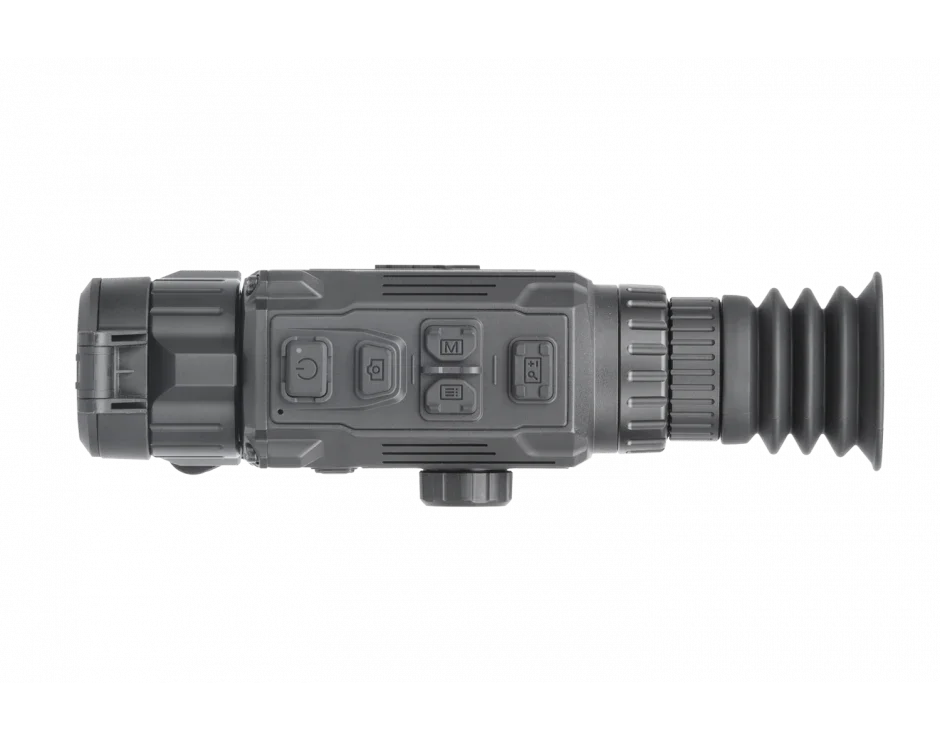

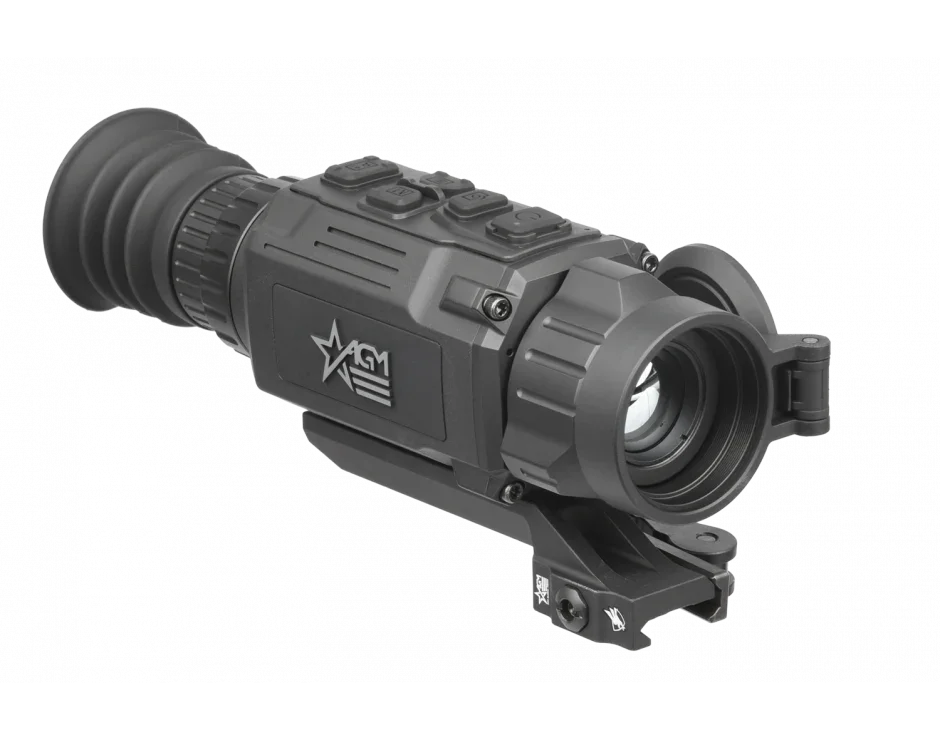

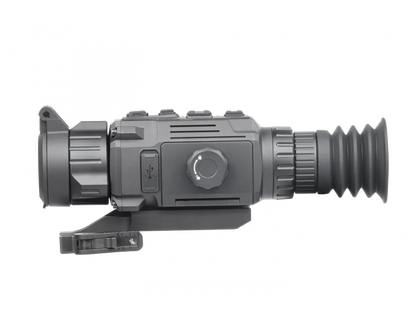

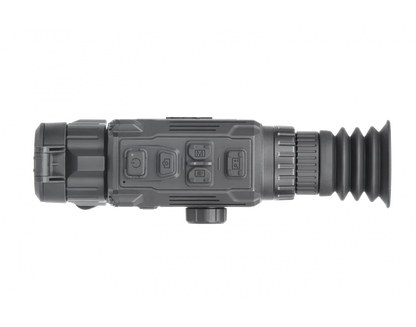

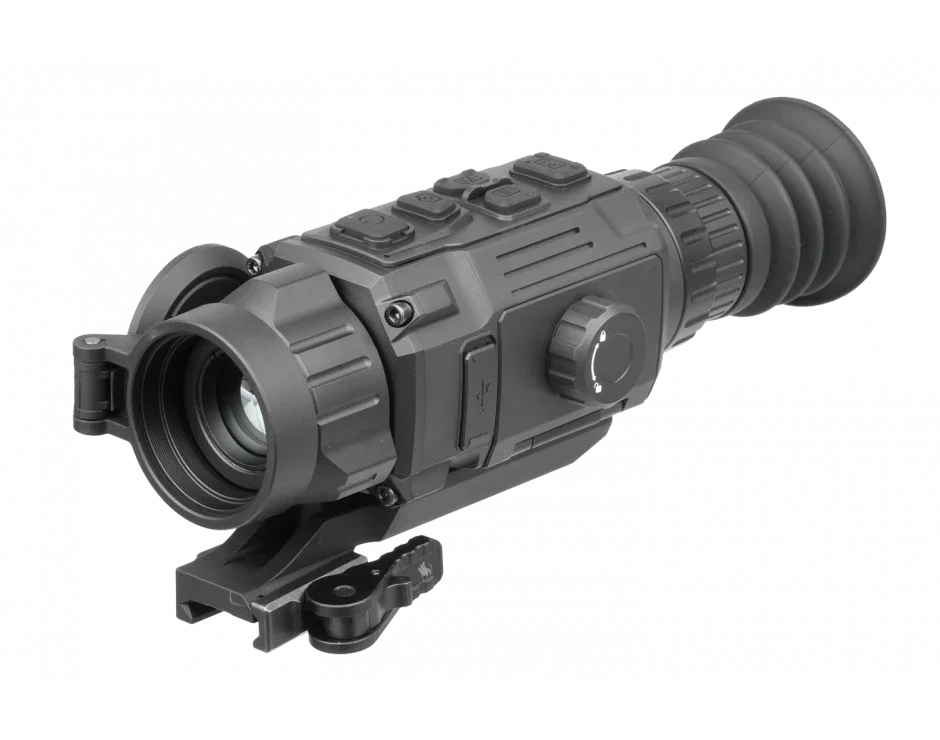

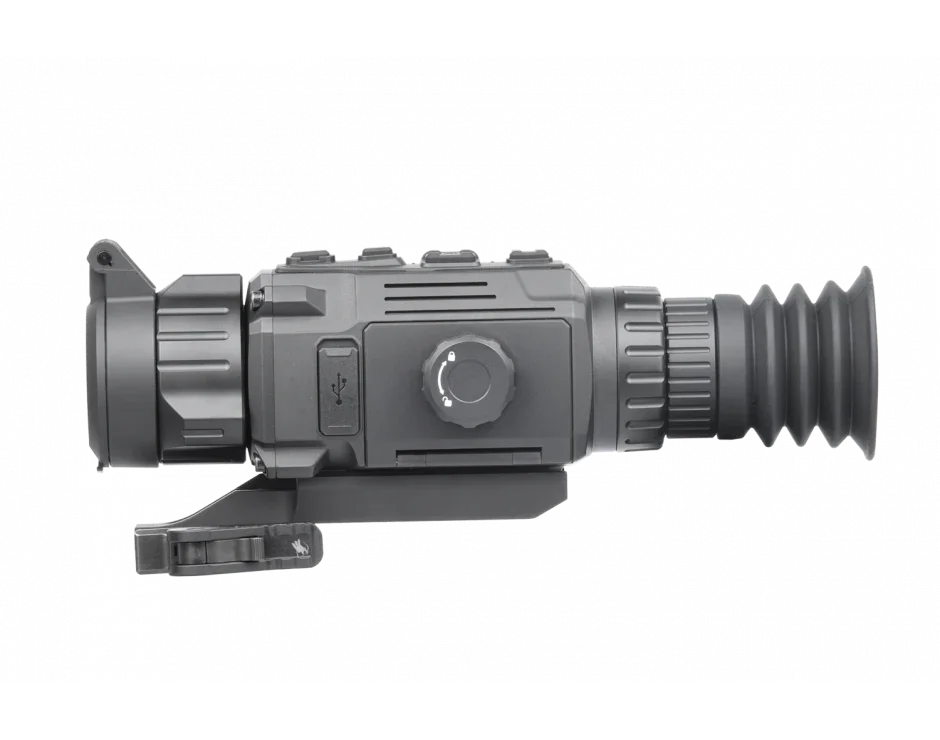

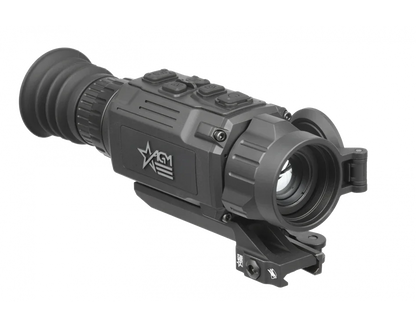

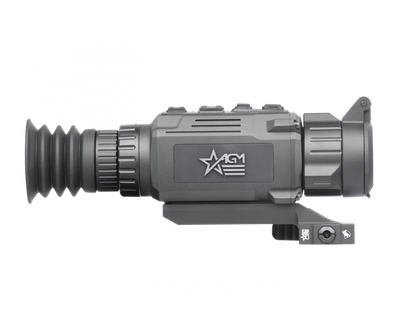

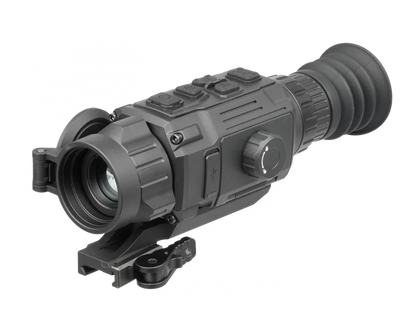

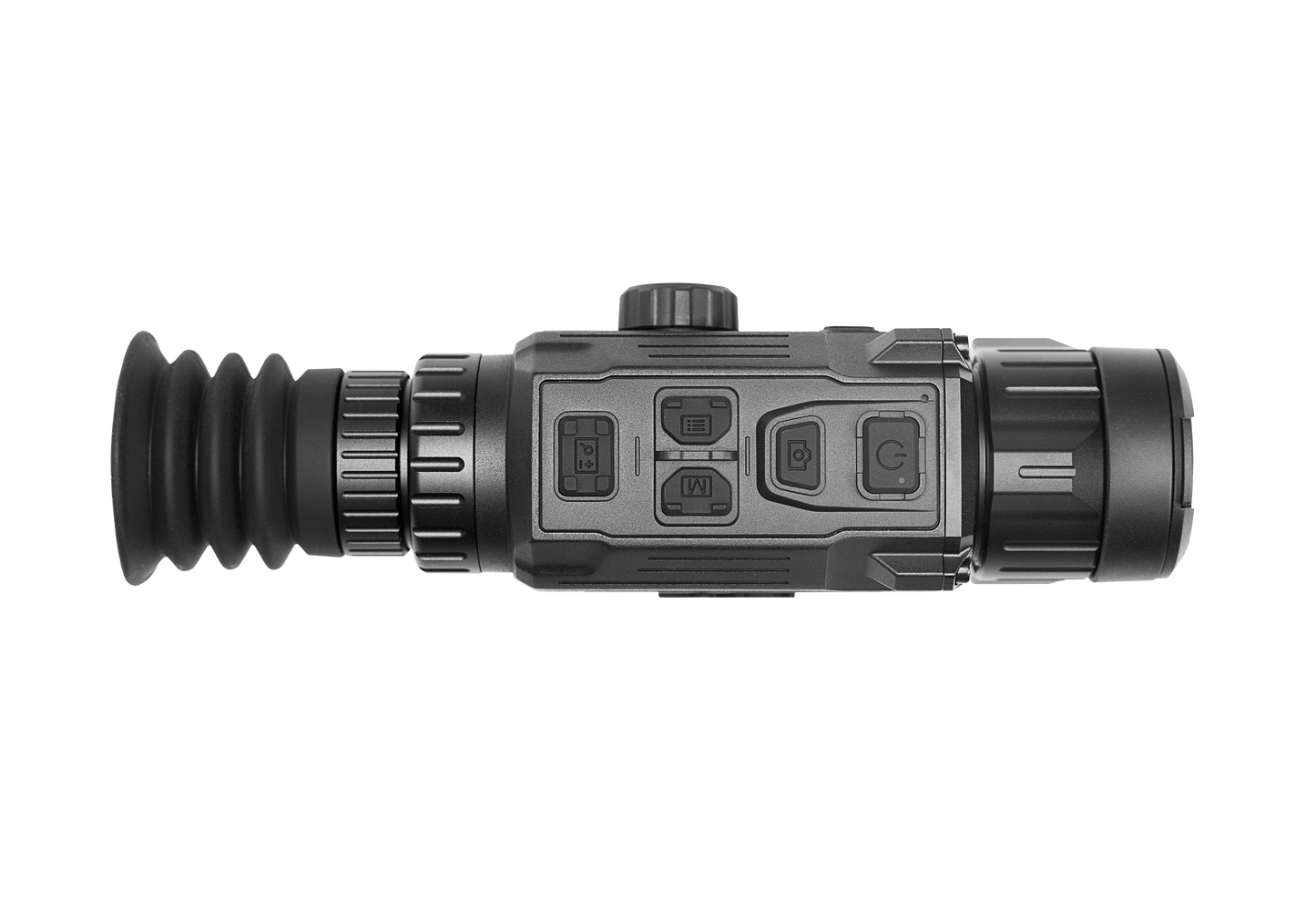

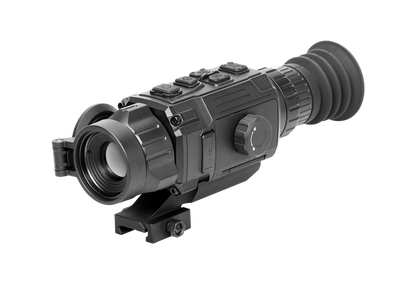

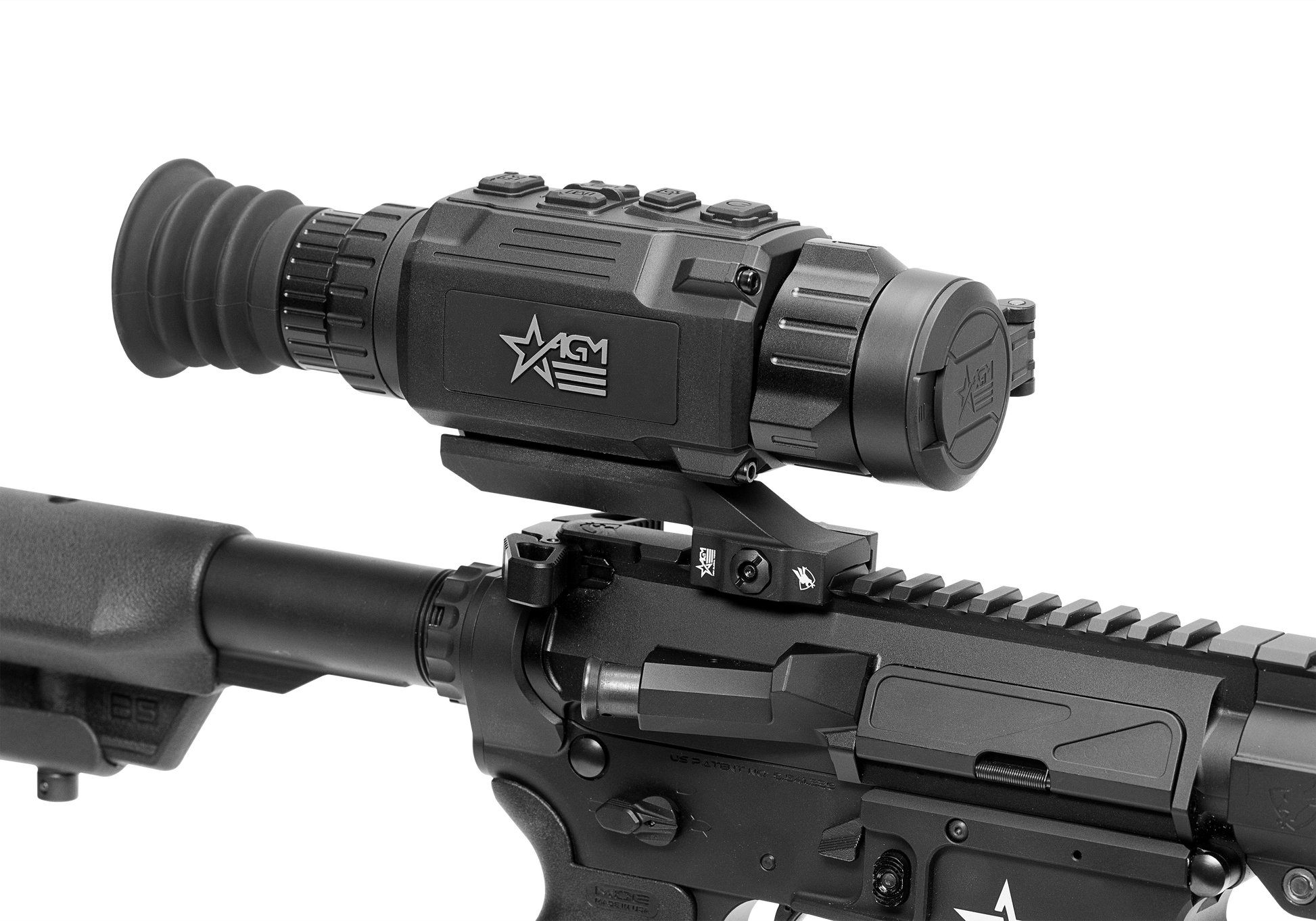

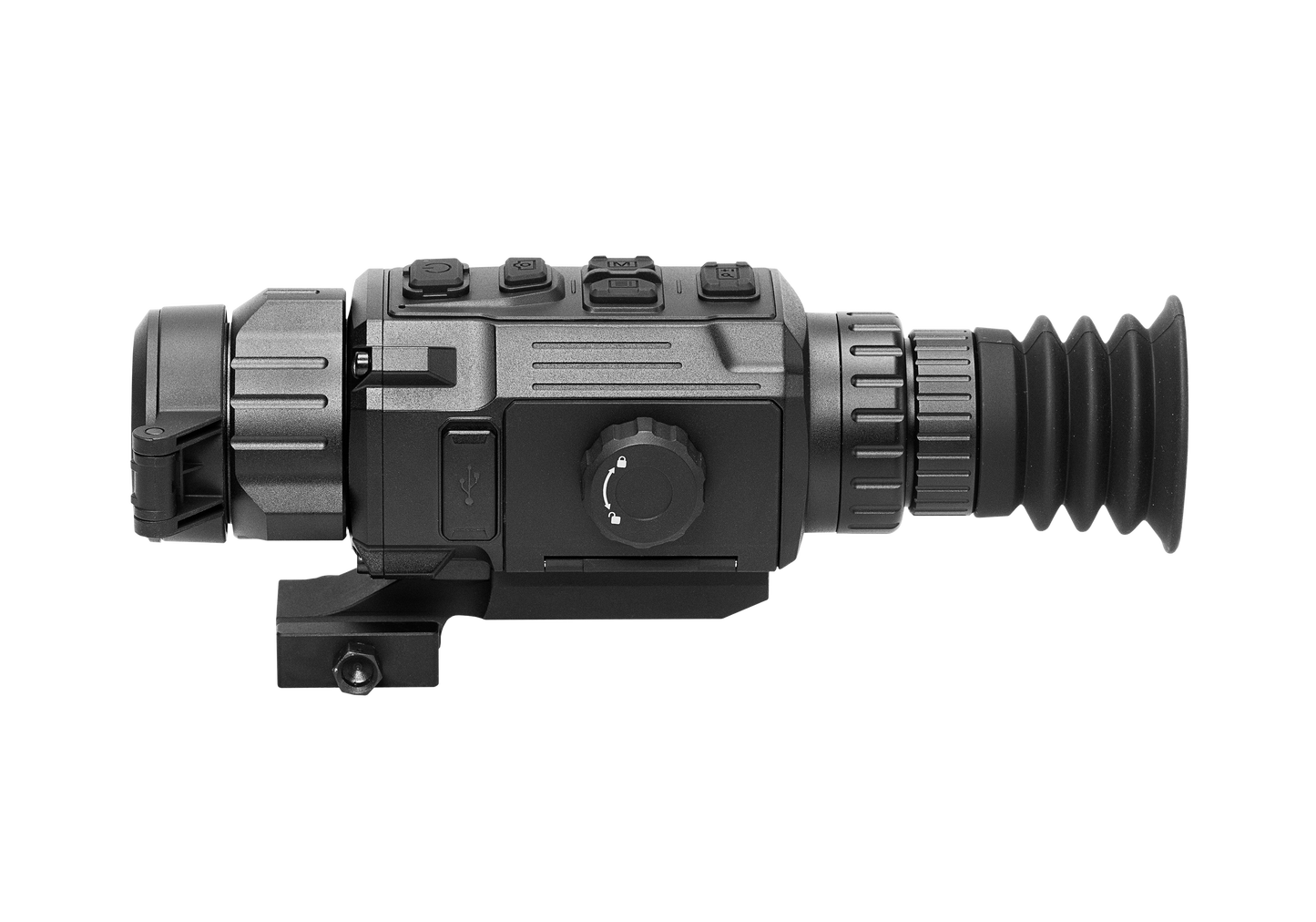

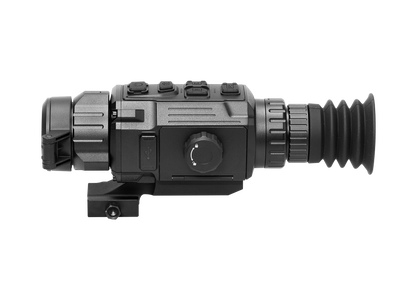

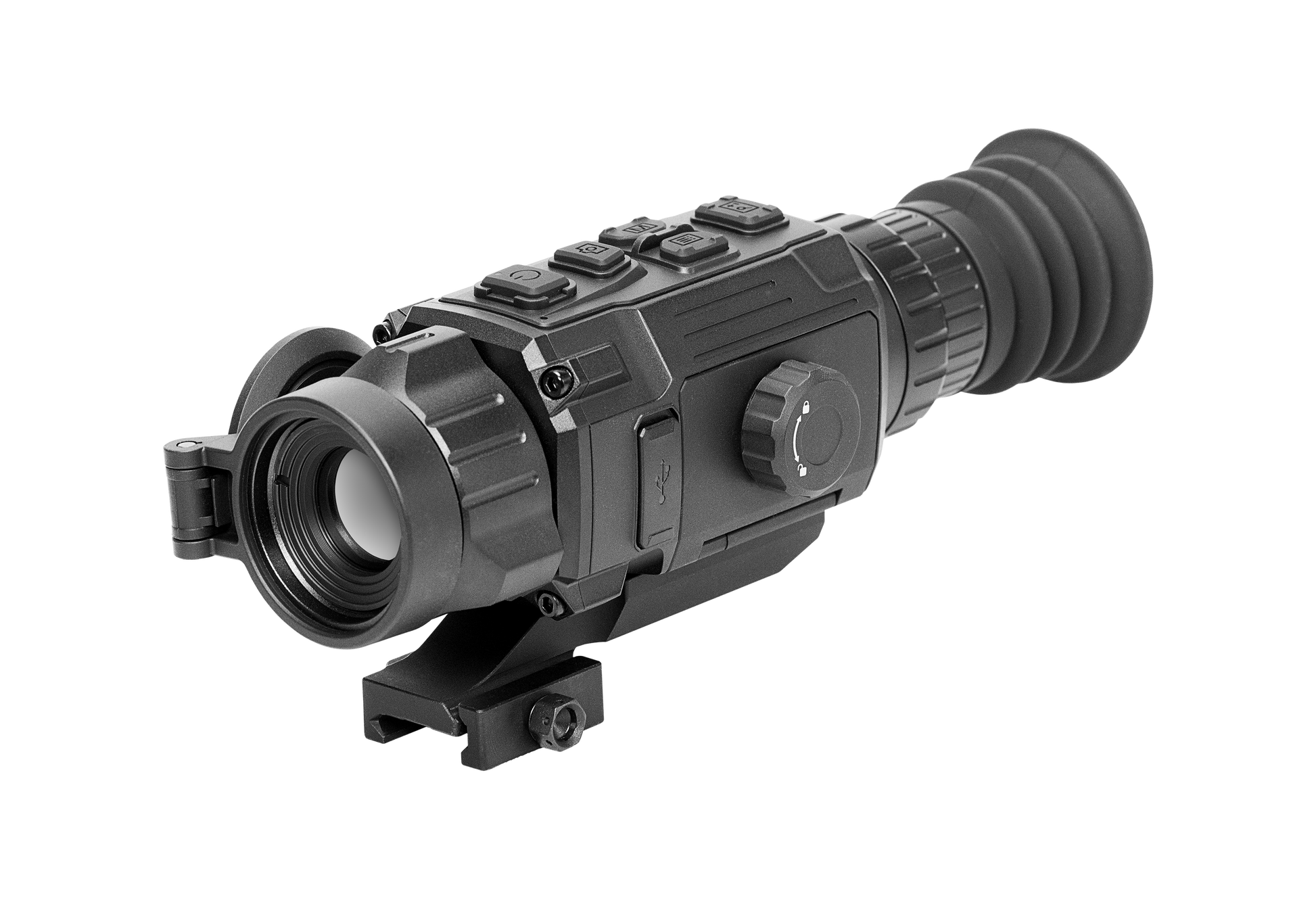

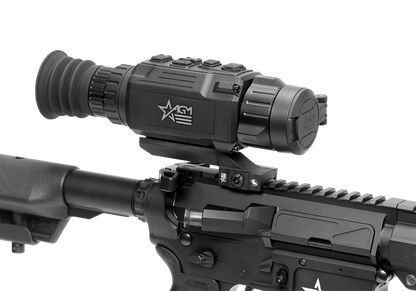

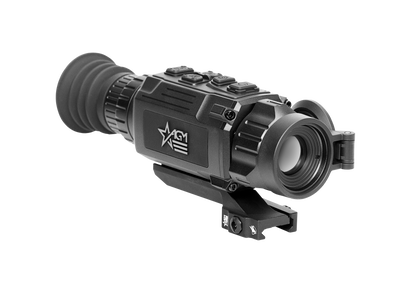

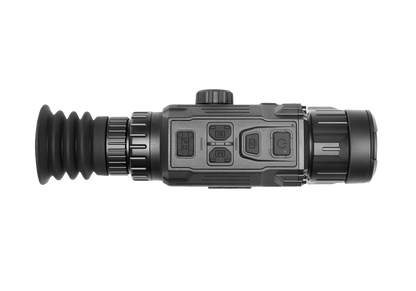

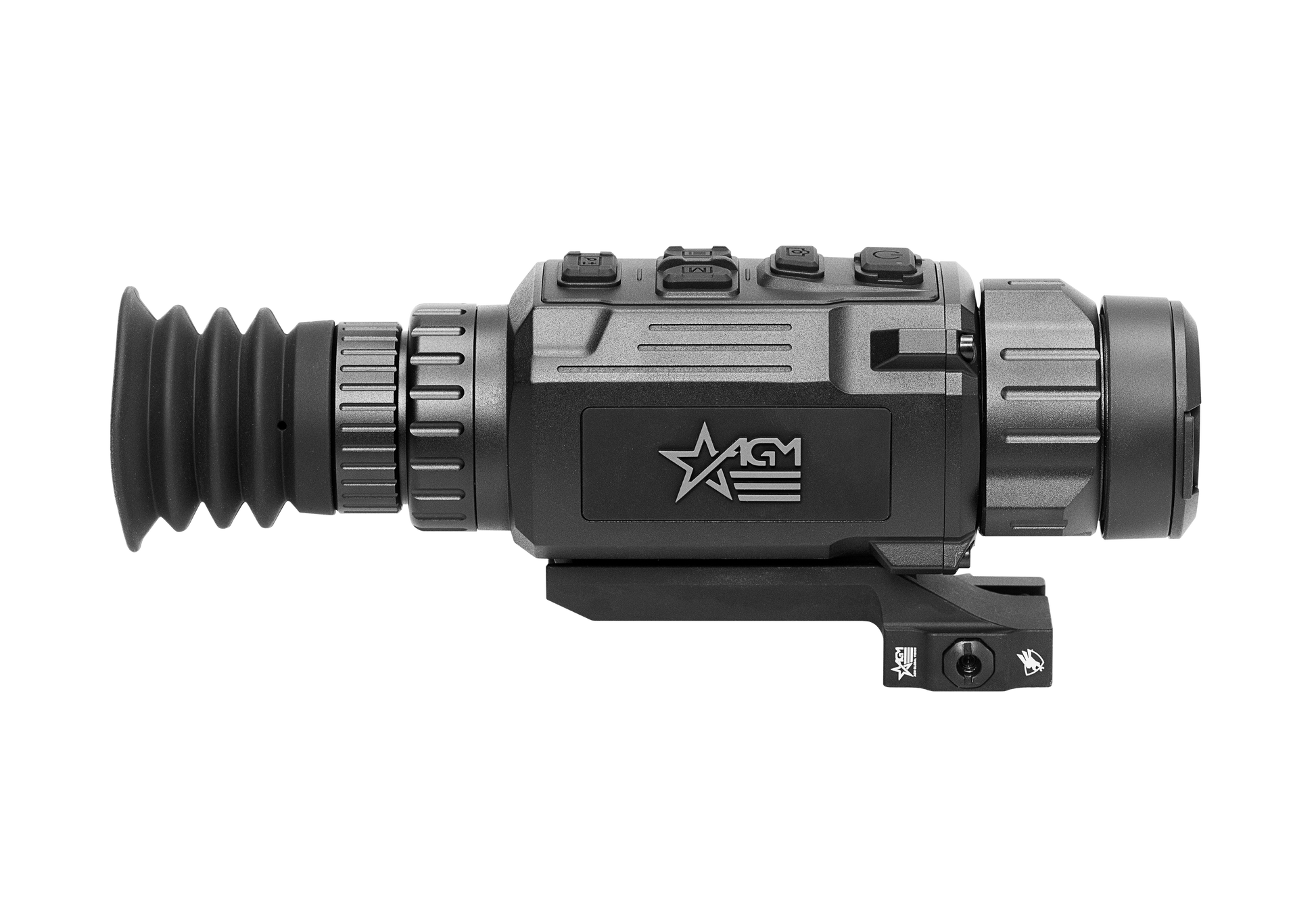

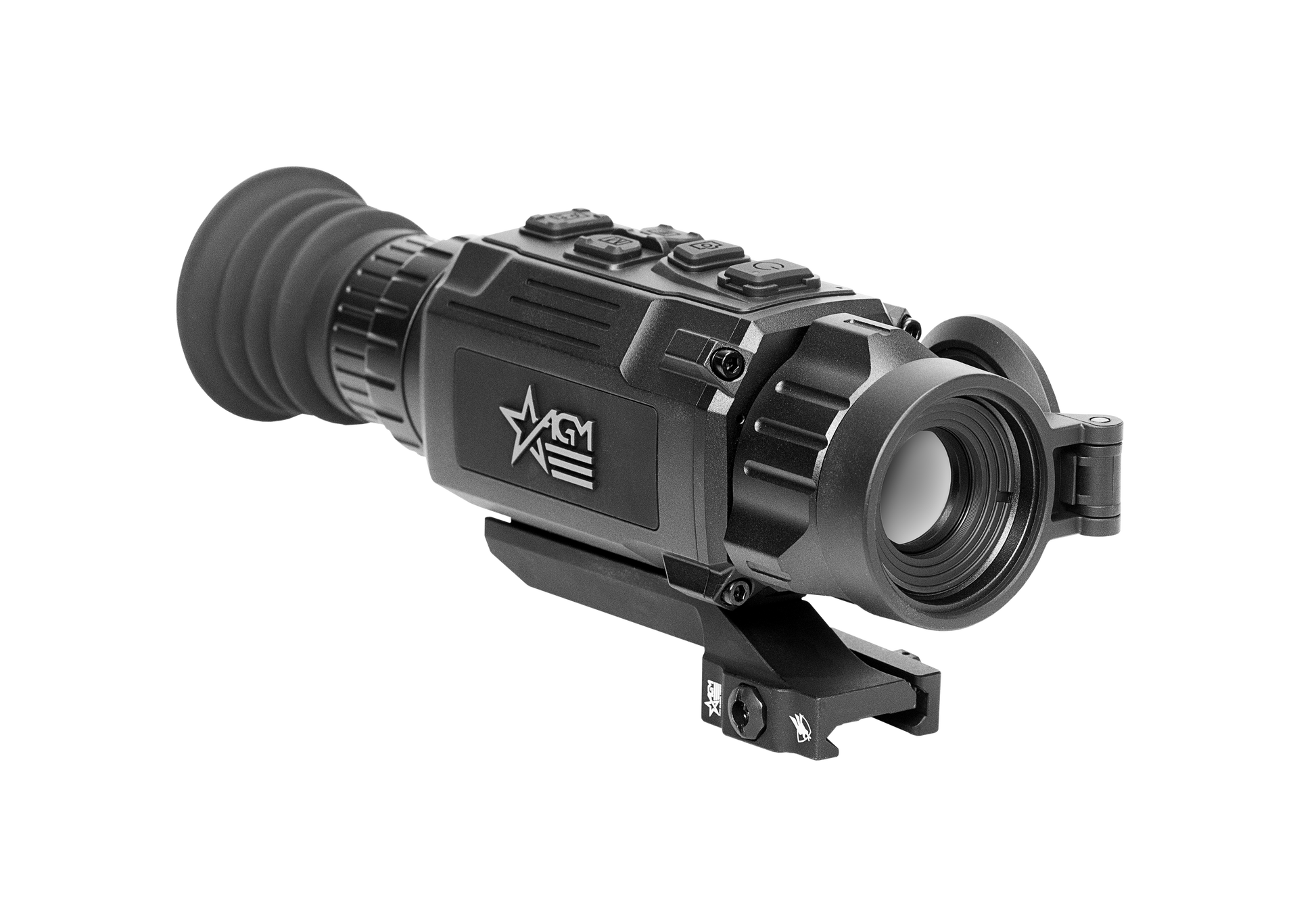

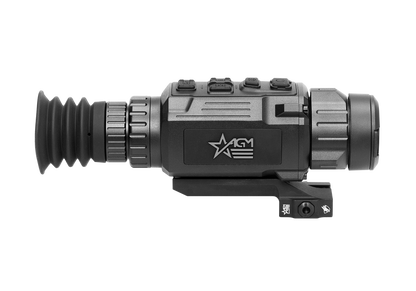

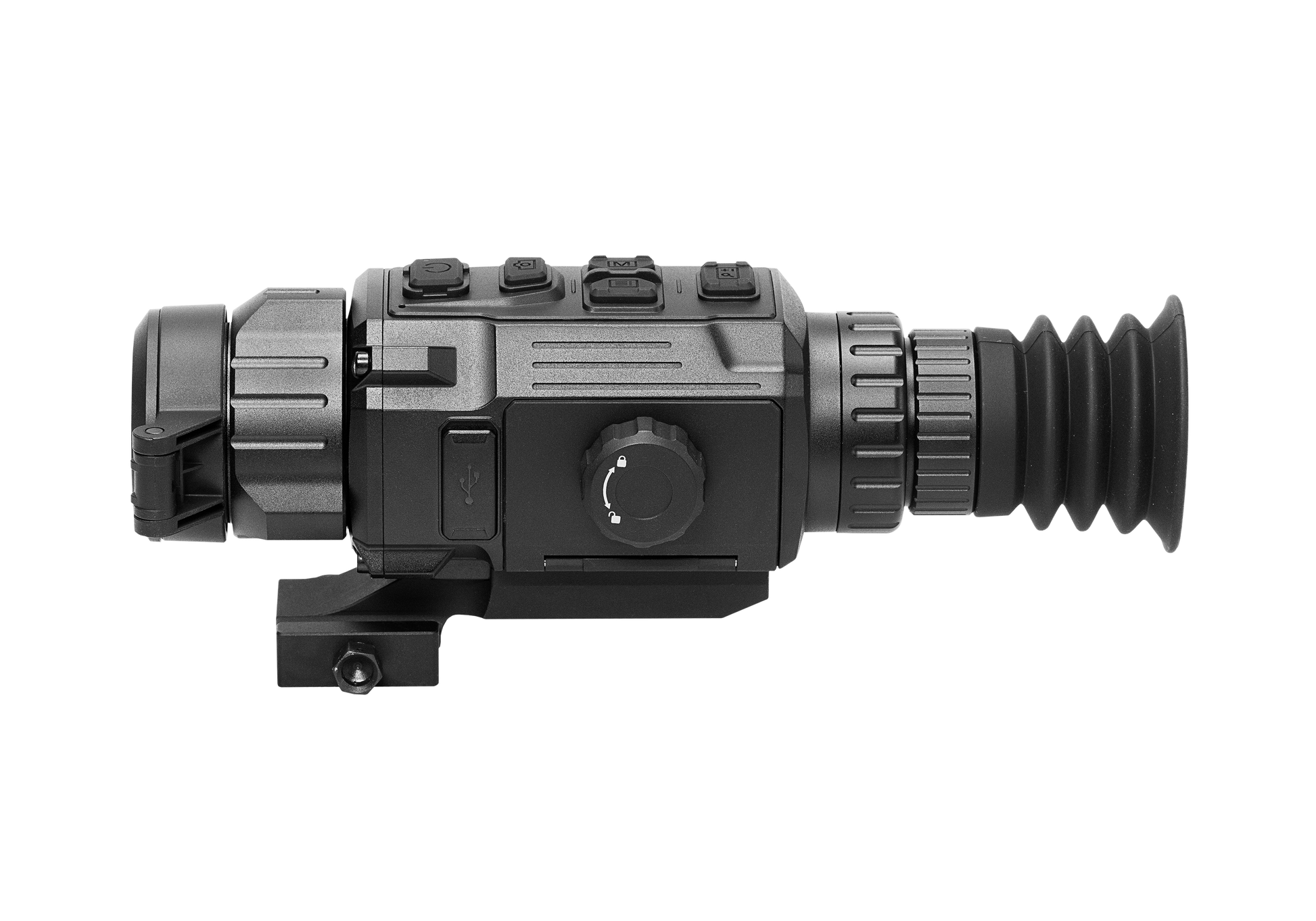

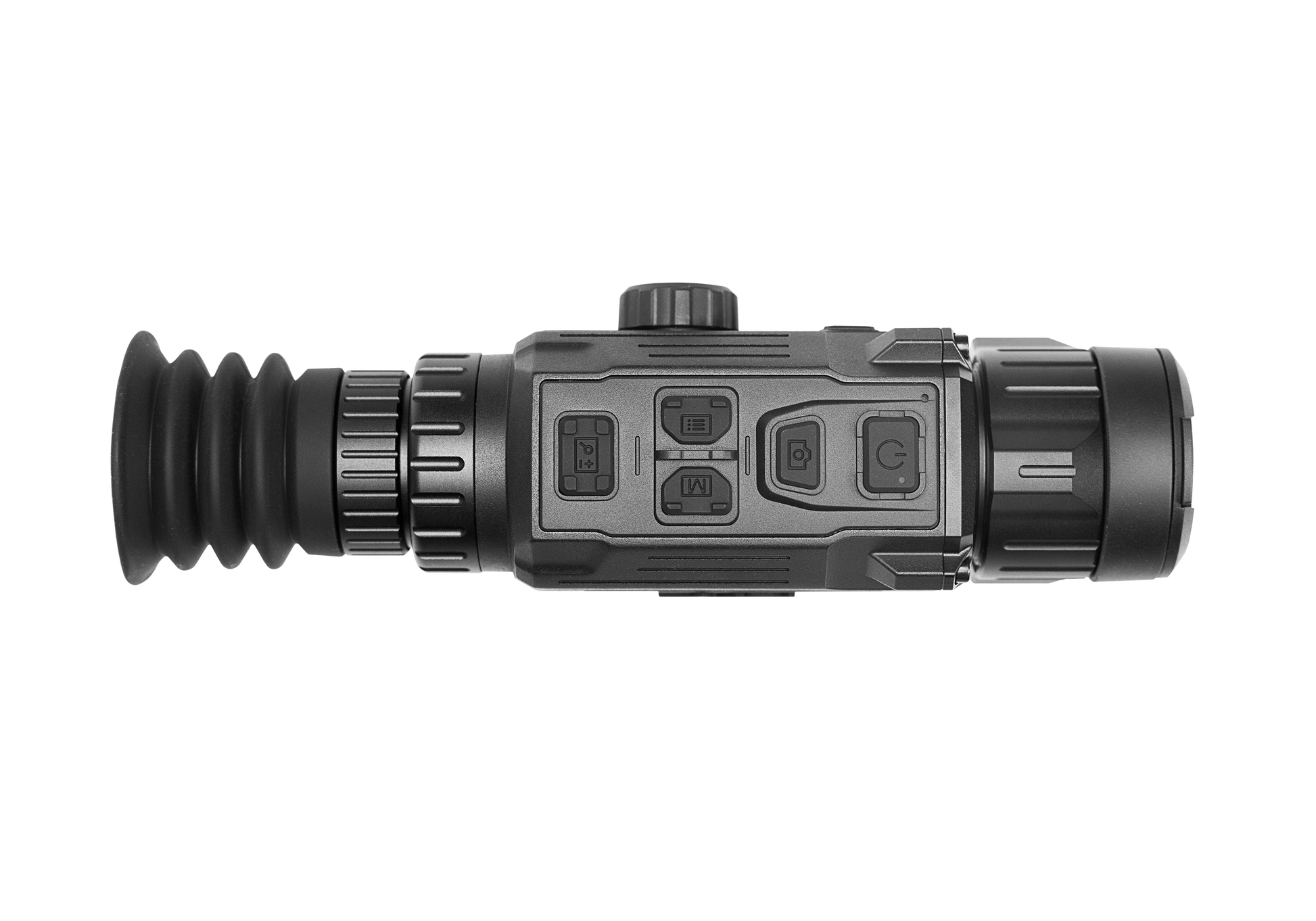

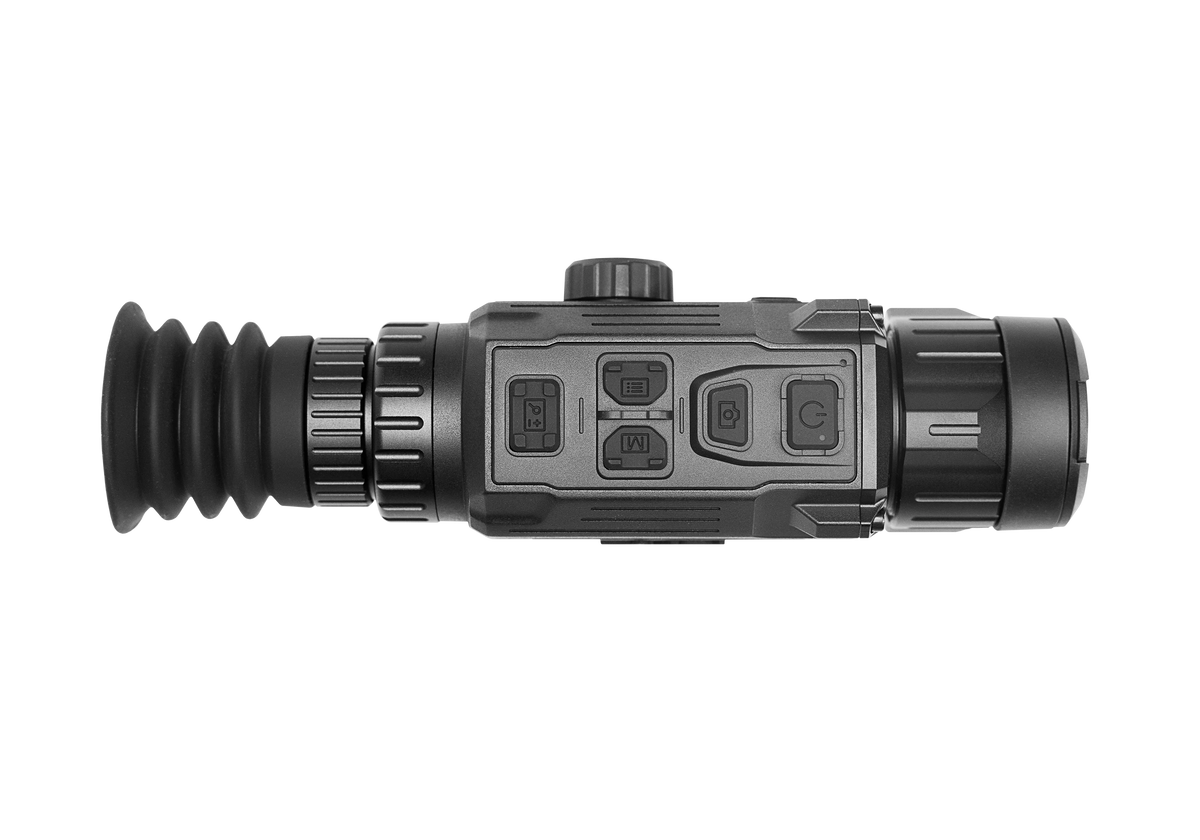

AGM Rattler V2 25-320 Thermal Rifle Scope Weapon Sight 320x256 (50Hz) 25mm (RATT25-320-2)
The NEW Rattler V2 is one of the most highly-anticipated product releases. Improving on what is already considered the best-selling thermal riflescope product family in the United States, the RattlerV2 brings many of the most sought after design improvements into one sleek new housing. These improvements include, but are not limited to: dramatically expanded battery life offered through the unit’s proprietary removable and rechargeable battery system, which will afford users 6.5 hours on a single charge (2 included), an expanded built-in reticle assortment, expanded brightness and contrast settings, shot activated recording with sound and new 12-micron thermal sensor that have the highest rated sensitivity rating (sub-20 mK) on the market. For a product family which was already boasted one of the best value propositions in the market, the new RattlerV2’s will only expand on that reputation. The RattlerV2 5-320 with a 25mm Germanium lens is the perfect addition to any hunter’s arsenal. Equipped with a 320x256 resolution thermal sensor, these unit has 3.5X magnification, and a detection range of 1200 meters. This base magnification allows for a wide field of view, which many hog hunters prefer, as it allows them to see and track multiple animals in a group at once.
AGM Rattler V2 25-320 Features:
- Superior sub-20 milikelvin thermal sensitivity
- 320×256 resolution with 12-micron sensor
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- Over 6.5 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
AGM Rattler V2 25-320 Specifications:
Shot-Activated Recording
Yes
Max. Recoil
1000 g/0.4 ms
Flat Field Correction (FFC)
Auto, Manual, Semi-Auto
Palettes
Black Hot, White Hot, Red Hot, Fusion
Dimensions
219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Defective Pixels Correction (DPC)
Yes
Audio Recording
Yes
Magnification
3.5× - 28×
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
320 × 256
Detection Range (6' object)
1200 m/yd
Snapshot
Yes
Lens system
25 mm; F/1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Field of view (H × X)
7.0° × 5.3°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 dpt
Focusing range
7 m to infinity
Hot Track
Yes
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Battery Type
Replaceable and Rechargeable Li-ion Battery
Wi-Fi
Yes
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.49 kg (1.08 lb)
Protection Level
IP67
Battery Life (Operating)
Over 6.5 hours (25°C, with WiFi off)
Data Sheet
PACKAGE INCLUDES
Thermal Imaging Rifle Scope
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
