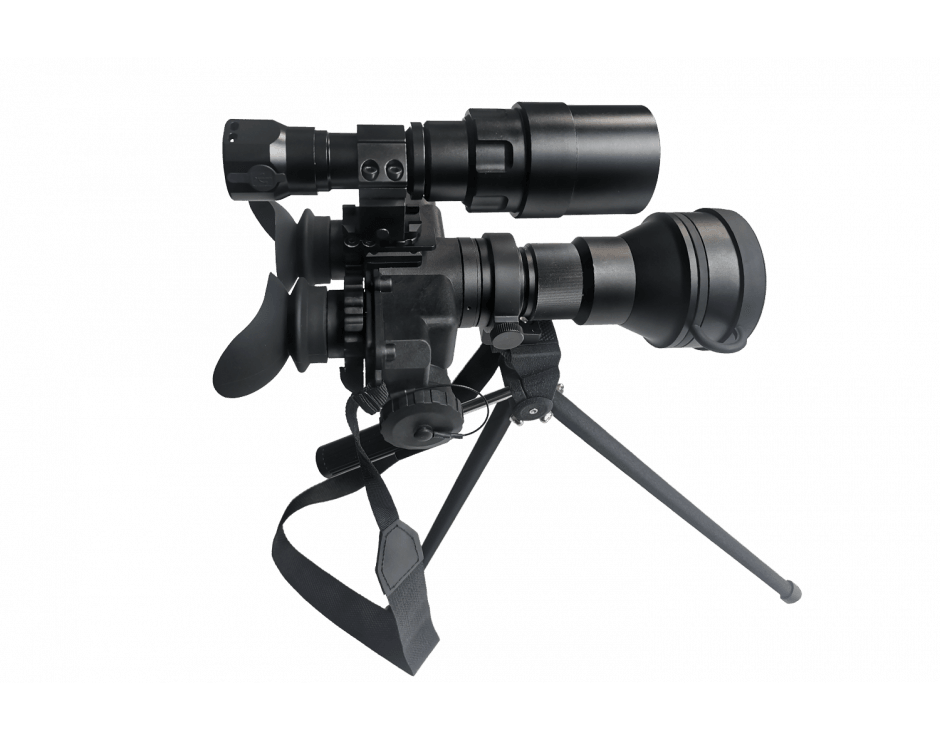

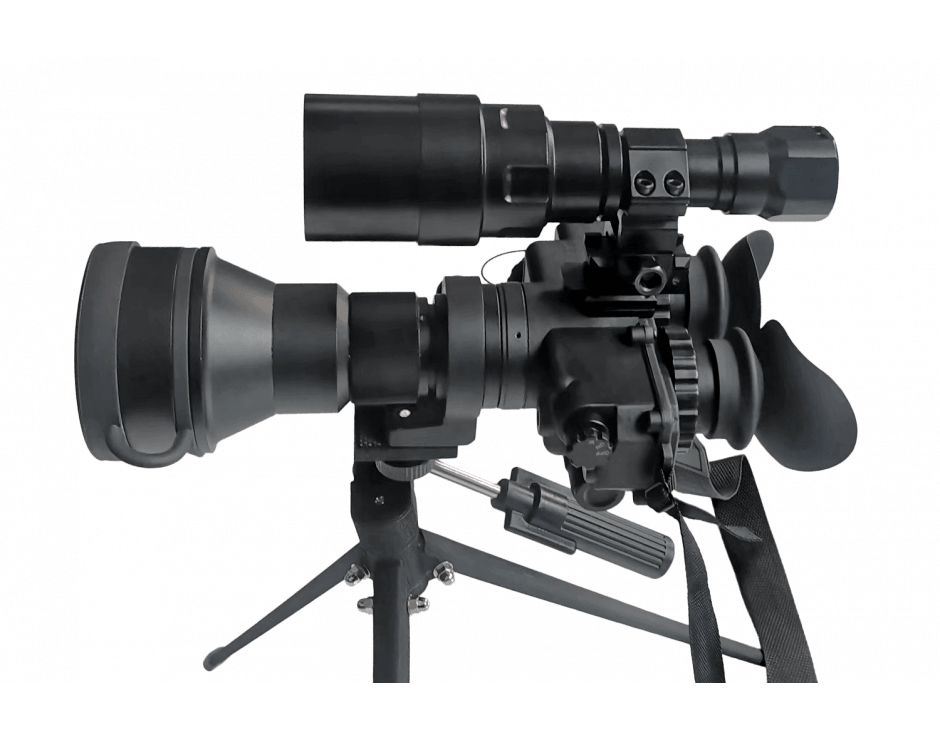

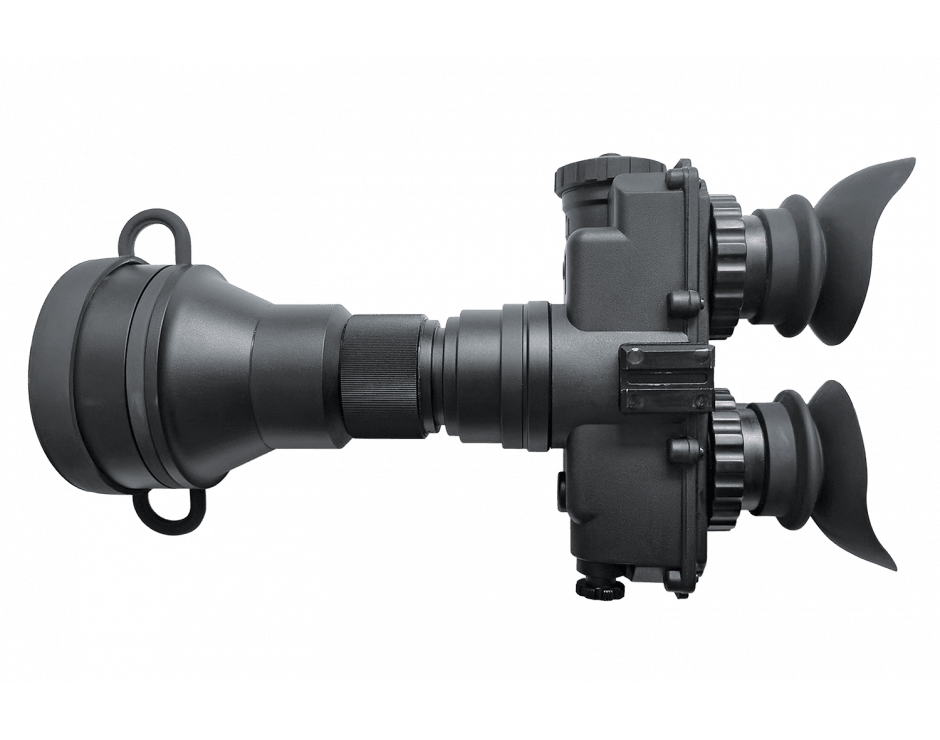

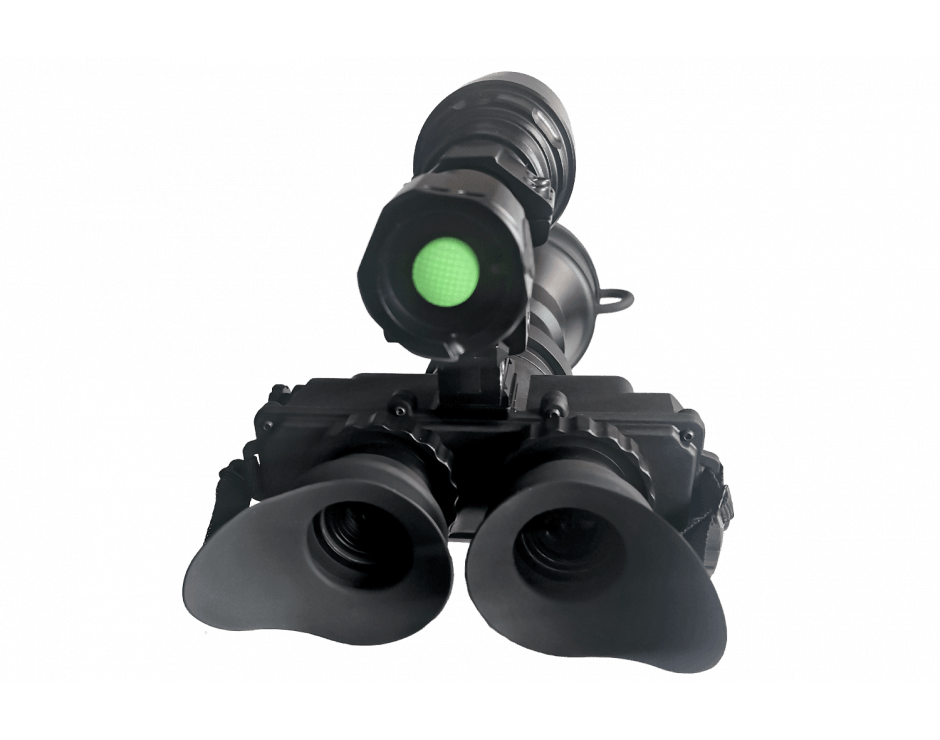

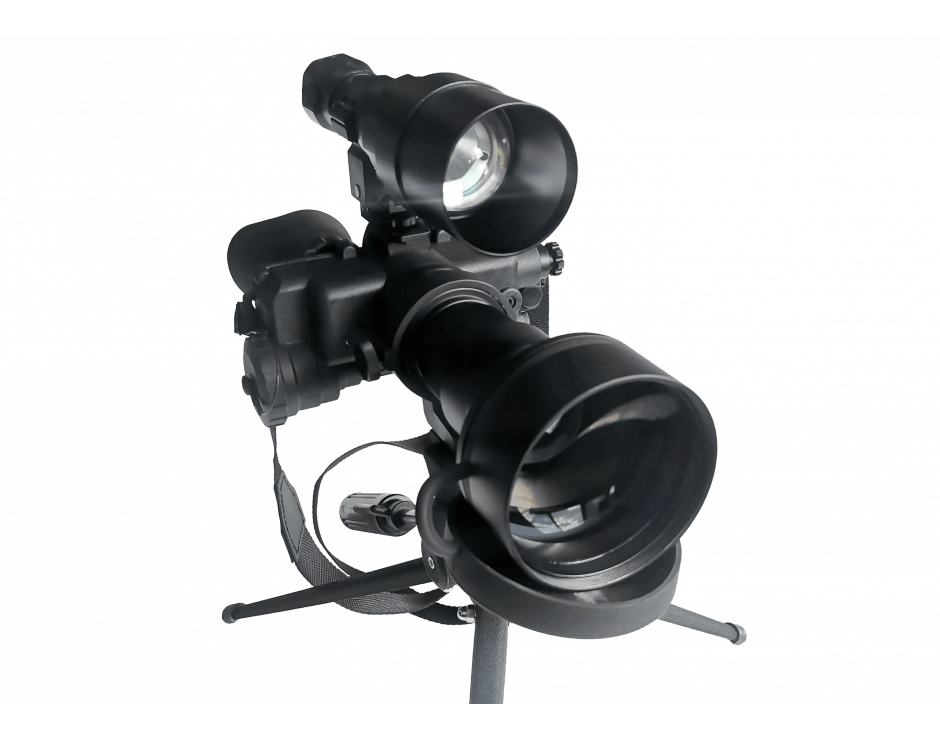

AGM FoxBat-5 NW1 Night Vision Bi-Ocular 5x Gen 2+
AGM FoxBat-5 NW1 Night Vision Bi-Ocular 5x Gen 2+
SKU:13FXB525104011
Couldn't load pickup availability
- 5x magnification
- Super-fast, multi-coated, all-glass optics
- Dual eye viewing system for long viewing sessions
- Rugged and versatile design
- Water and fog resistance
- Ergonomic and easy to operate controls
- Detachable long-range IR illuminator
- Tripod mountable
- 3-Year warranty
Tube Level Info:
Gen2+ Lvls | NL1/NW1 - Gen2+ Lvl1 | NL2/NW2 - Gen2+ Lvl2 | NL3 - Gen2+ Lvl3 | ||||||
Zone | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
>.015 or larger | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
>.012 - .015 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 |
>.009 - .012 | 0 | 1 | 1 | 0 | 2 | 2 | 1 | 2 | 2 |
>.006 - .009 | 0 | 1 | 2 | 1 | 2 | 2 | 1 | 2 | 2 |
.003 - .006 | 1 | 2 | 3 | 2 | 3 | 3 | 2 | 3 | 3 |
*Qty indicates Max Spots Allowed in Each Zone | |||||||||
**Spot Size (in.) | |||||||||
Gen3 Lvls | 3NL1/3AW1 - Gen3 Lvl1 | 3NL2/3AW2 - Gen3 Lvl2 | 3NL3/3AW3 - Gen3 Lvl3 | ||||||
Zone | 1 | 2 | 3 | 1 | 2 | 3 | 1 | 2 | 3 |
>.015 or larger | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 |
>.012 - .015 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 1 |
>.009 - .012 | 0 | 1 | 1 | 0 | 2 | 2 | 1 | 2 | 2 |
>.006 - .009 | 0 | 1 | 2 | 1 | 2 | 2 | 1 | 2 | 2 |
.003 - .006 | 1 | 2 | 3 | 2 | 3 | 3 | 2 | 3 | 3 |
*Qty indicates Max Spots Allowed in Each Zone | |||||||||
**Spot Size (in.) |
Specifications:
Image Intensifier Tube
Gen 2+ "White Phosphor Level 1"
Magnification
5x
Lens System
140 mm; F/2.0
FOV
9.4°
Focus Range
10 m to infinity
Diopter Adjustment
-4 to +2 diopters
Led Indicators
- Low Battery - Excessive Light Conditions
Automatic Brightness Control
Yes
Infrared Illuminator
Detachable long-range IR illuminator
Bright Light Cut-Off
Yes
Battery Type
Two 1.5V AA batteries
Battery Life (Operating)
Up to 40 hrs
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
1070 g (2.35 lb)
Overall Dimensions
280 × 150 × 78 mm (11.0 × 5.9 × 3.0 in)
Package Includes:
Night Vision Bi-ocular, Detachable IR Illuminator, Tripod, Lens Cloth, Hard Case, User Manual
Warranty | 3 Years |
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
