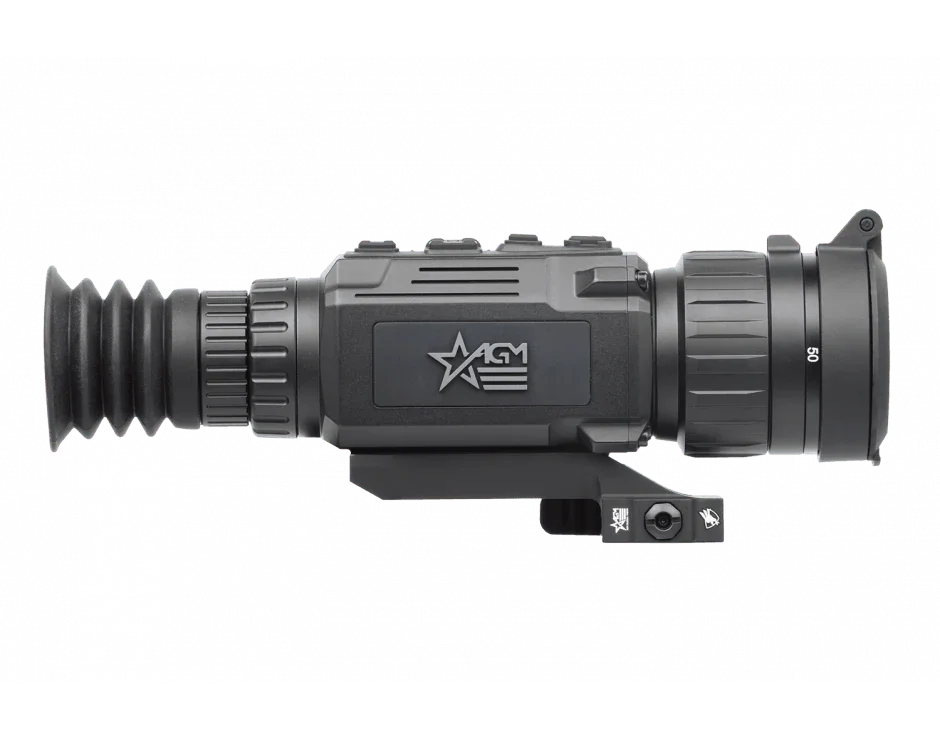

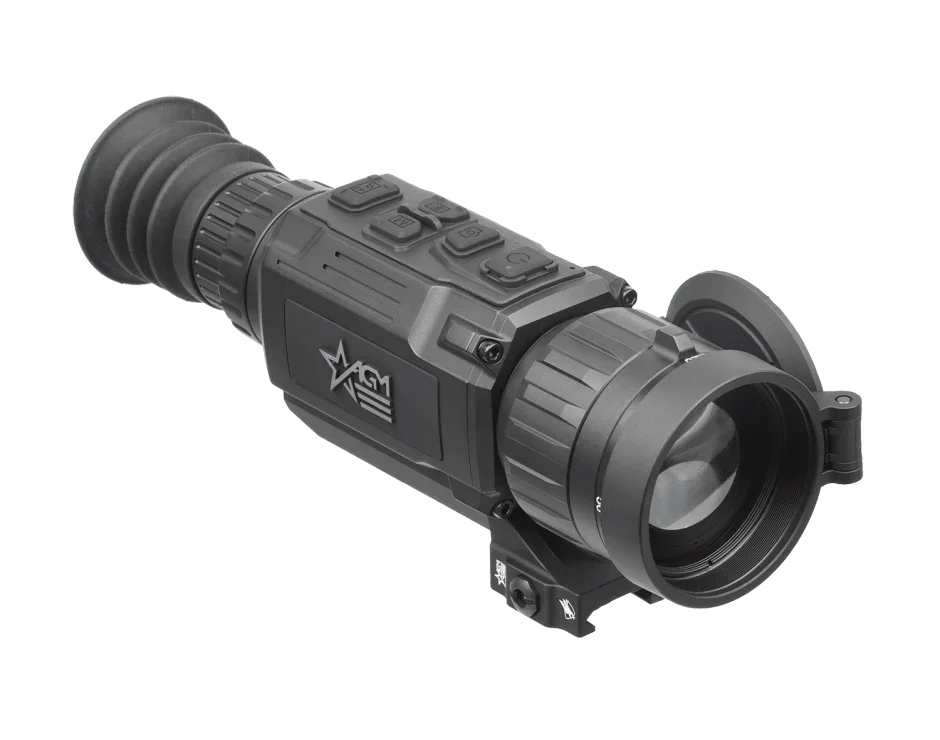

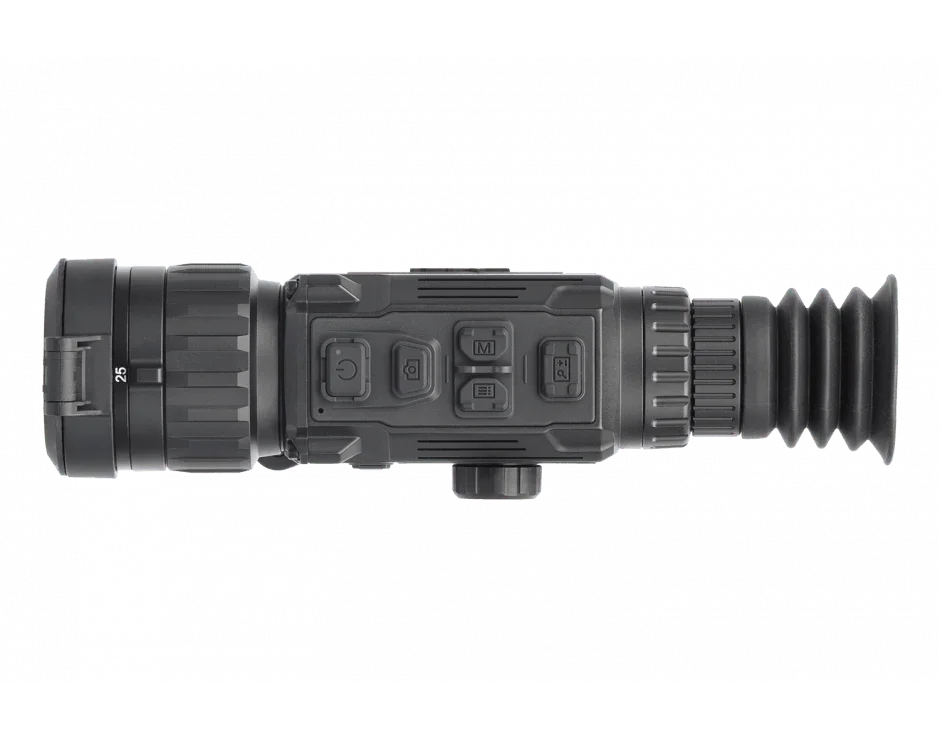

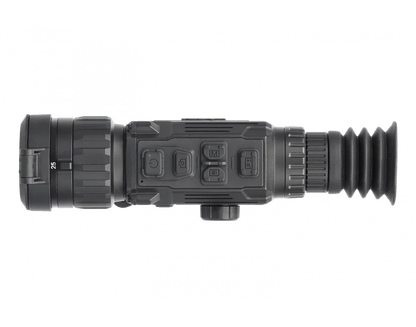

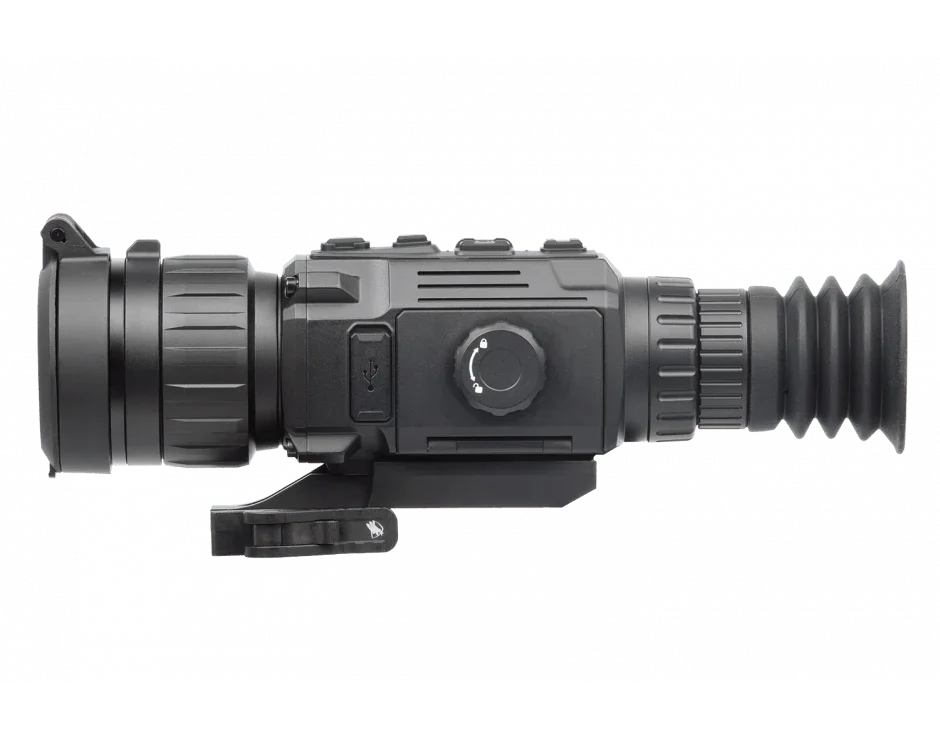

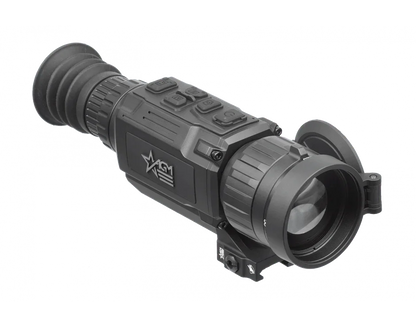

AGM Clarion 640 Dual Focus 35/60mm Thermal Rifle Scope 640x512 (50Hz) (CLAR35-640)
The NEW Clarion dual base magnification thermal scope stands as one of the most advanced thermal scopes on the market. Designed to tackle one of the biggest challenges night hunters face—choosing the right lens size and sensor configuration—the Clarion offers a revolutionary solution. It features a dual-lens optical system that allows users to mechanically switch between a 25mm and a 50mm lens. This innovation lets hunters seamlessly alter the base magnification and field of view without any loss in image resolution.
With the Clarion 384, hunters can utilize the 25mm lens for a 2x base magnification and a wide field of view (10.5° × 7.9°, or 53 ft at 100 yards), and easily switch to the 50mm lens for a 4.5x base magnification and a narrower field of view (5.3° × 4.0°, or 27 ft at 100 yards). This flexibility ensures precise target identification and shot placement, whether hunting in open plains or tighter environments.
This dual magnification system marks a new milestone in electro-optics, offering hunters the versatility to adapt to different terrains and game, from hogs in eastern fields to coyotes in western deserts. The Clarion also boasts a highly sensitive thermal sensor with a sub-20 mK temperature rating, making it one of the most responsive in its class.
Despite its advanced optical system, the Clarion maintains all the features hunters expect from AGM, such as a 384x288 12-micron thermal sensor, removable rechargeable battery with up to 11 hours of operation (two batteries included), 10 reticle options, 5 customizable zeroing profiles, 10 brightness and contrast settings, Wi-Fi hotspot, built-in recording with sound, image capture, AGM Connect app compatibility, 4 reticle colors, 4 color palettes, 5 image sharpness settings, and a high-quality American Defense mount suitable for both AR and bolt-action platforms.
AGM Clarion 640 Dual Focus Features:
Dual focus objective lens
12μm thermal detector
Superior sub-20 milikelvin thermal sensitivity
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
8.5 - 11 hours battery life (depending on model)
External power supply compatibility
Waterproof & shockproof
5-year warranty
AGM Clarion 640 Dual Focus Specifications:
Flat Field Correction (FFC)
Auto, Manual, External Correction
Palettes
Black hot, White hot, Red hot, Fusion
Dimensions
254 × 80 × 68 mm (10.0 × 3.1 × 2.7 in)
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Picture In Picture Mode (PIP)
Yes
Hotspot
Yes
Video Recording
Yes
Audio Recording
Yes
Magnification
2× - 16× / 3× - 24×
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Detection Range (6' object)
1800 m/yd / 3000 m/yd
Lens system
35 mm; F0.9 / 60 mm; F1.1
NETD
Less than 20 mK (25°C, F# = 1.0)
Field of view (H × X)
12.5° × 10.0° / 7.3° × 5.9°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 diopters
Focusing range
7 m to infinity / 10 m to infinity
Hot Track
Yes
Eye relief
45 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Battery Life (Operating)
≥ 11 h (25°C, hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.84 kg (1.85 lb)
Protection Level
IP67
Data Sheet
Package Includes:
Thermal Imaging Rifle Scope, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
