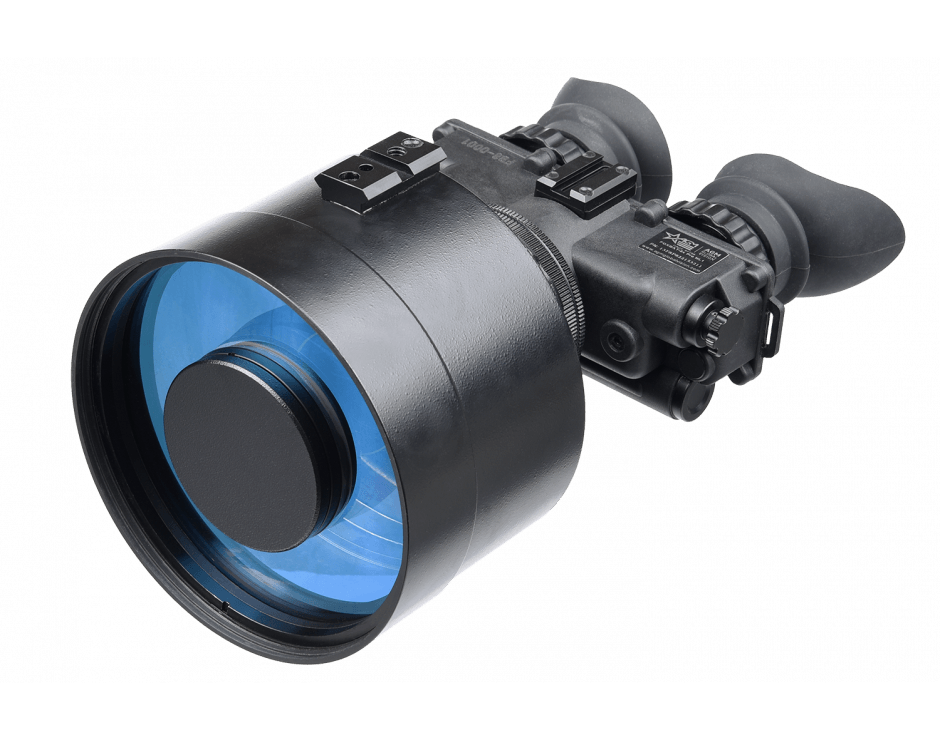

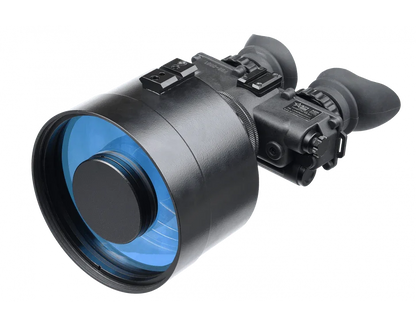

AGM FoxBat-8 3AW1 Night Vision Bi-Ocular 8x Gen 3 "Level 1" White Phosphor 13F8P82325401

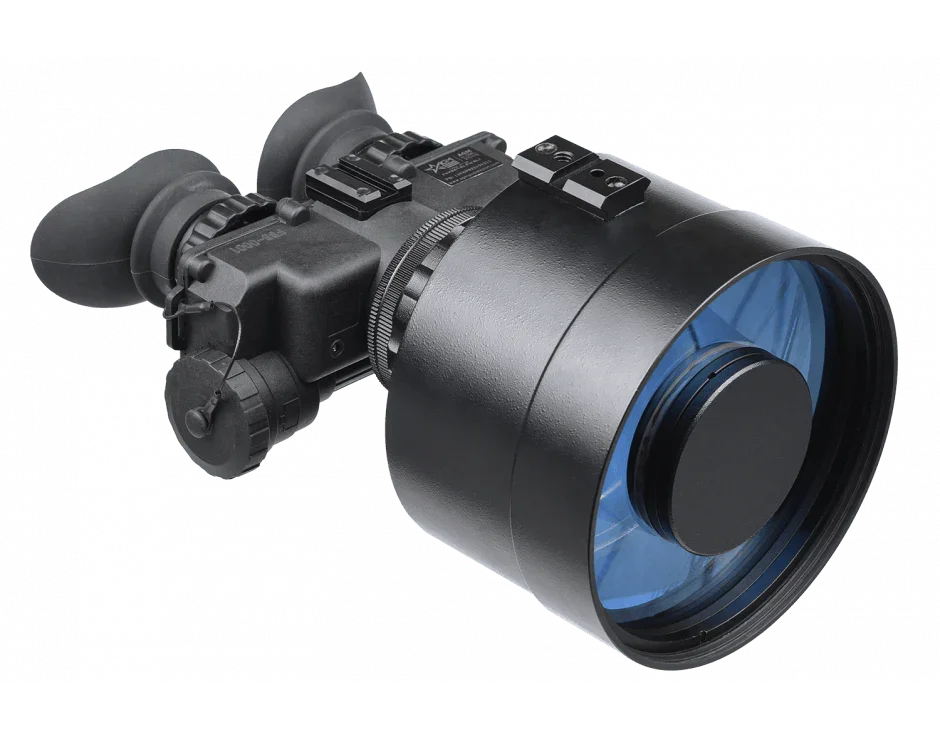

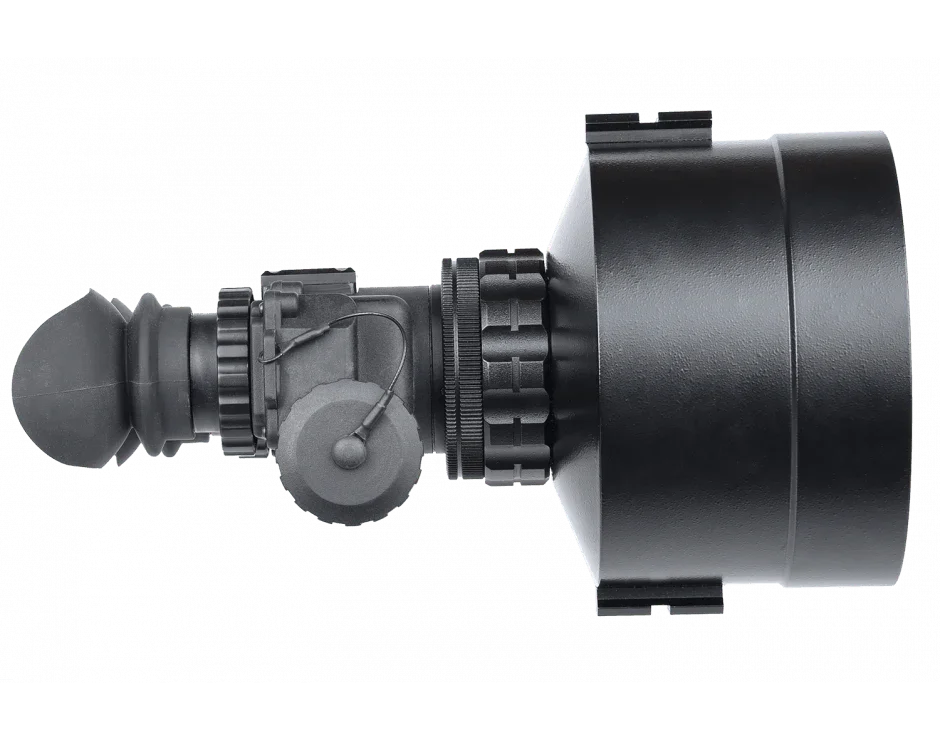

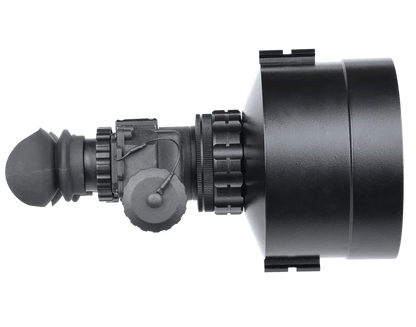

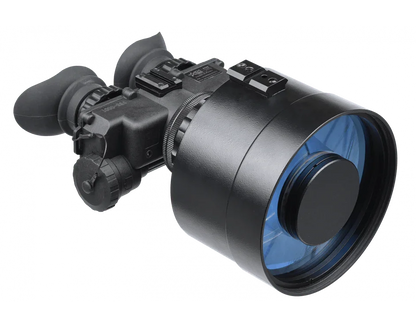

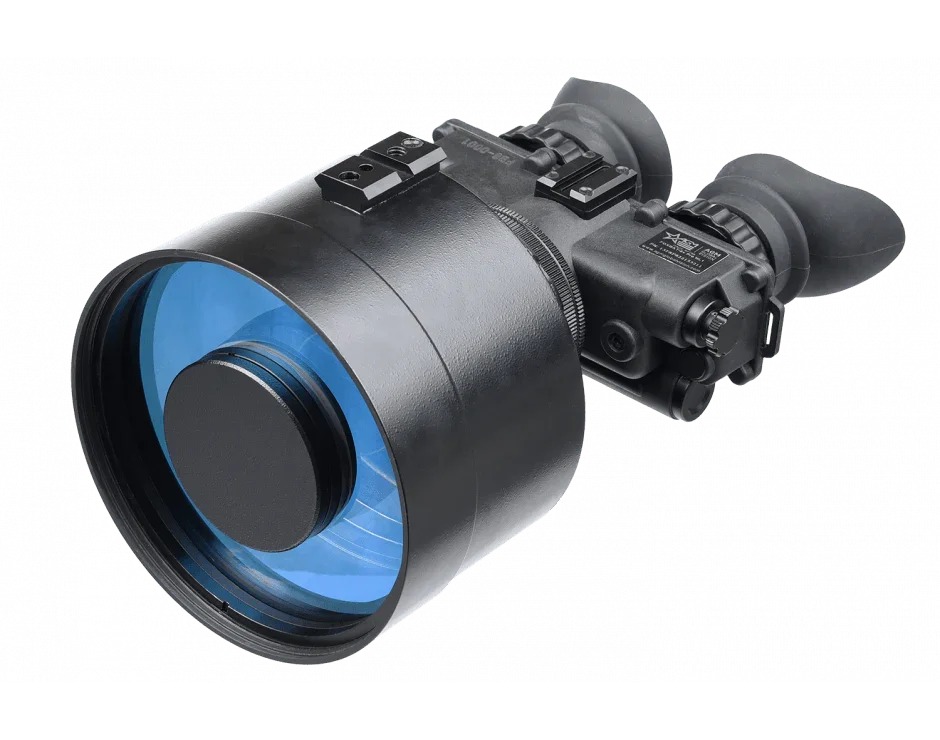

The AGM Foxbat-8X night vision bi-ocular is an excellent tool for long-range observation, combining a compact catadioptric objective lens with a single high-quality image intensifier tube, an image beam splitter, a double eyepiece, and reliable electronics. This bi-ocular is specifically designed for extended viewing sessions, making it ideal for long-range observation tasks such as border security, base perimeter monitoring, drug interdiction, intelligence gathering, and even recreational use.
Users benefit from crystal-clear imagery, enhanced by fast, professional-grade multicoated optics. The Foxbat-8X also offers a tripod mounting option, helping to alleviate operator fatigue during prolonged observation. Built around a high-performance Gen 2+ image intensifier tube, this night vision device includes a high-light shut-off feature to protect the tube from overexposure. Powered by two AA batteries, the Foxbat-8X can run for up to 40 hours of continuous use on a single set, offering durability and efficiency for any mission.
AGM FoxBat-8 3AW1 Features:
- 8x magnification
- Super-fast, multi-coated, all-glass optics

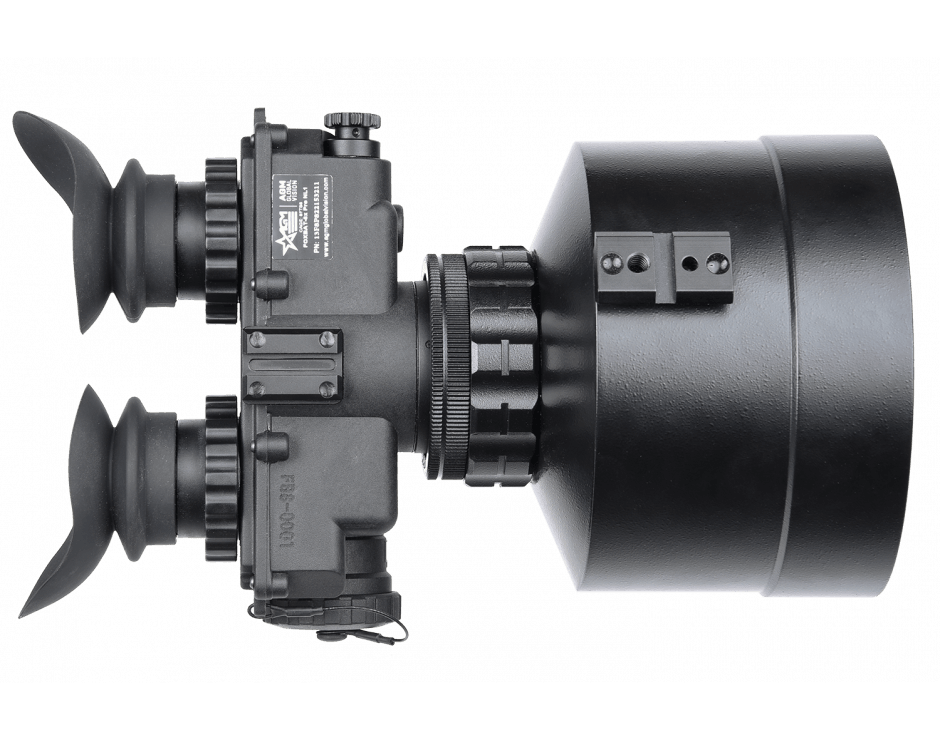

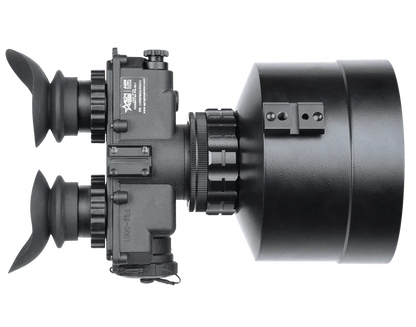

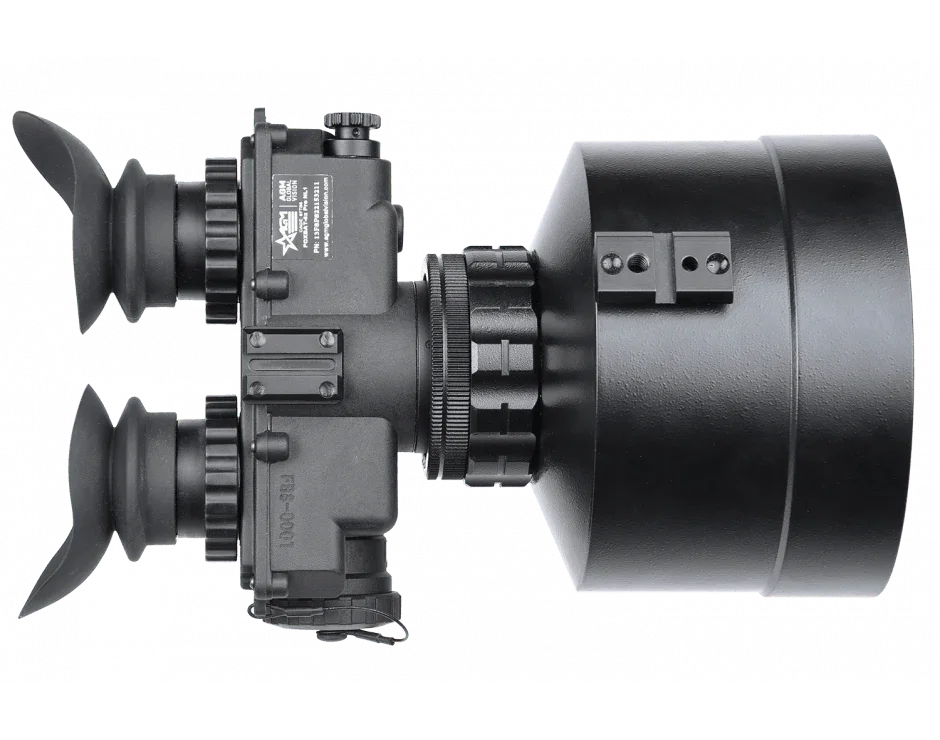

- Dual eye viewing system for long viewing sessions
- Rugged and versatile design
- Water and fog resistance
- Ergonomic and easy to operate controls

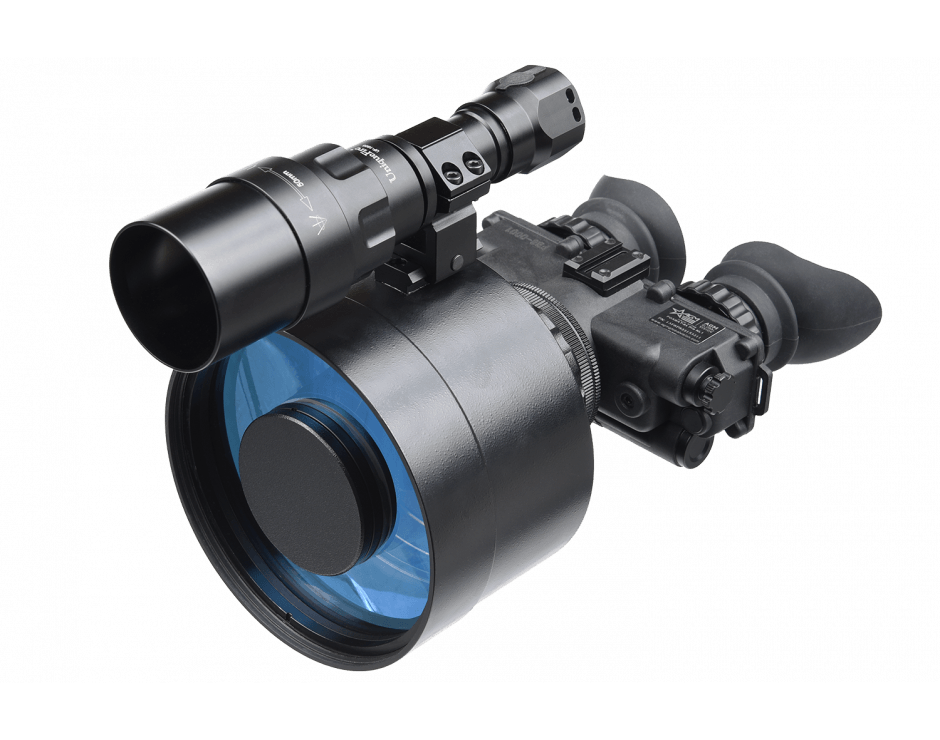

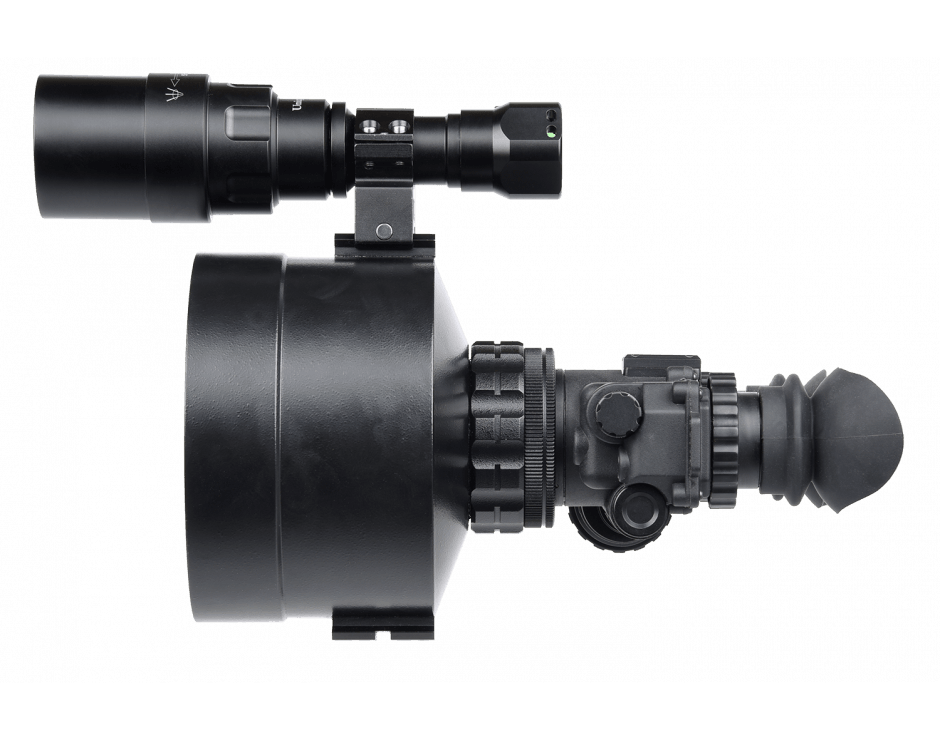

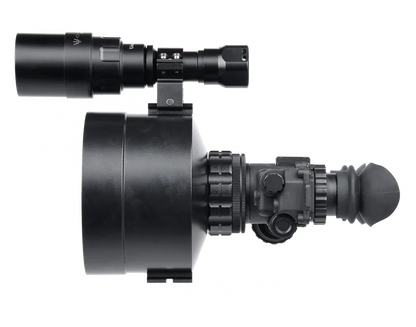

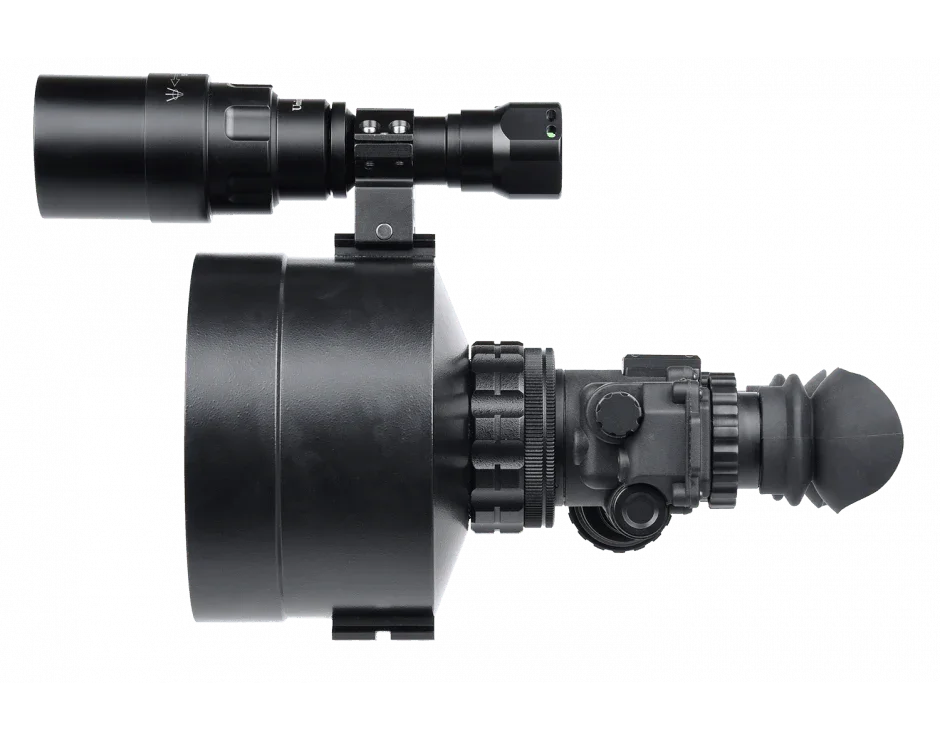

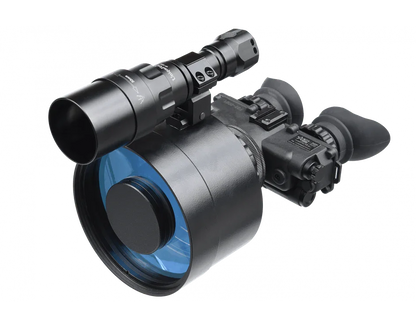

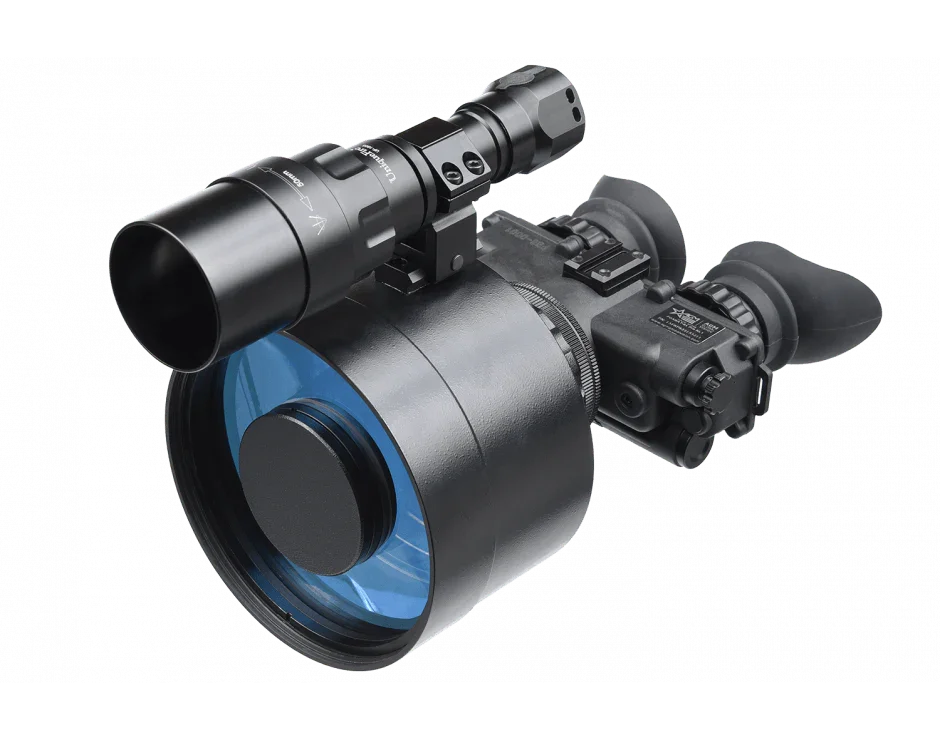

- Detachable long-range IR illuminator

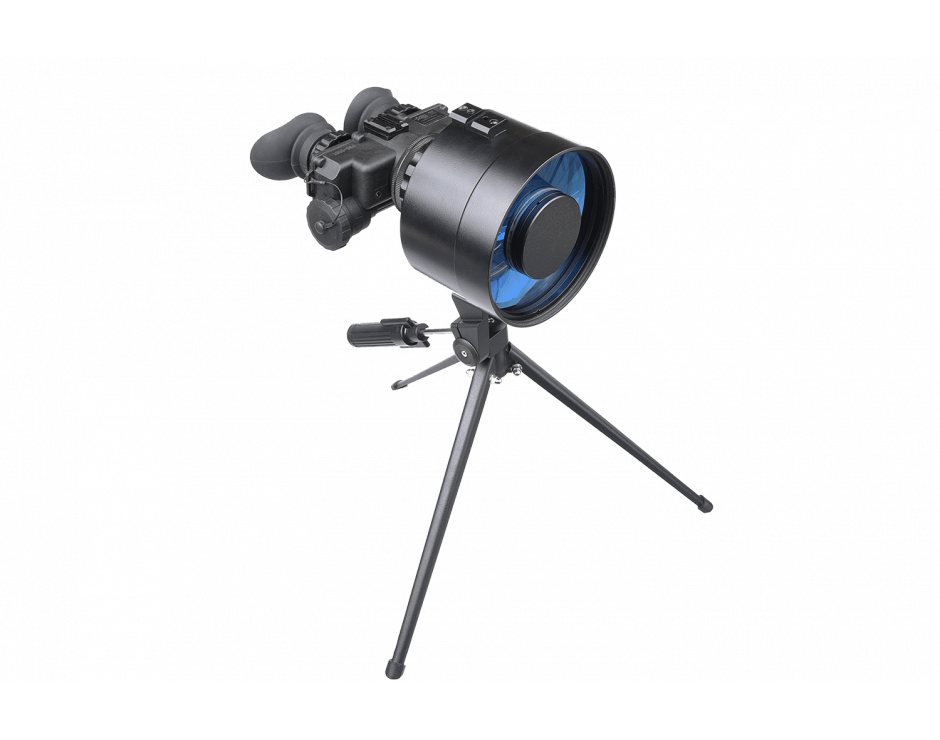

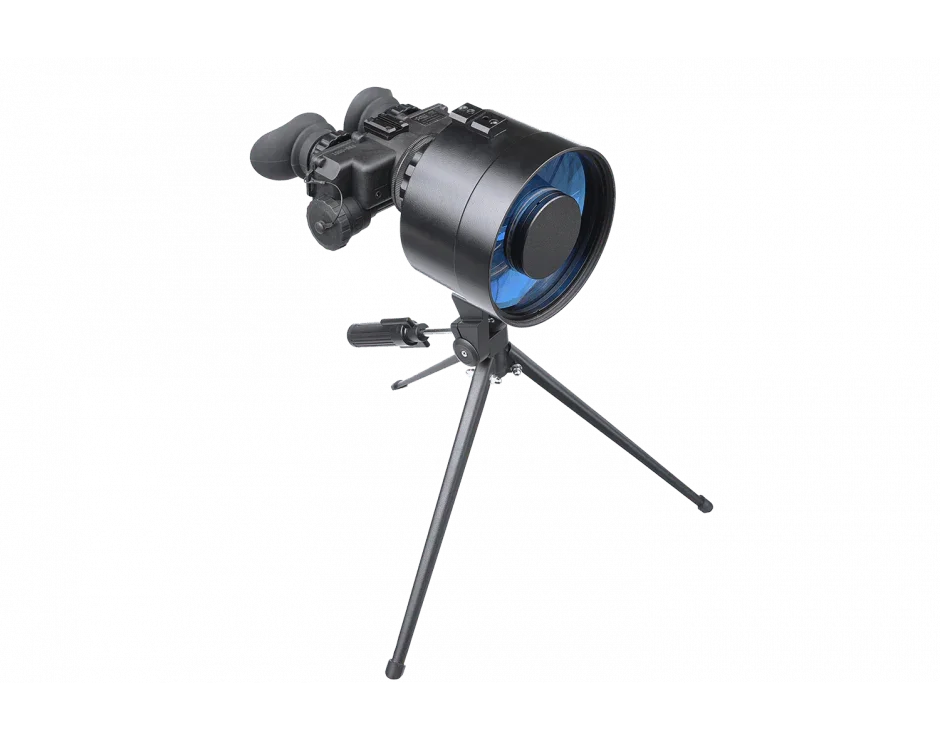

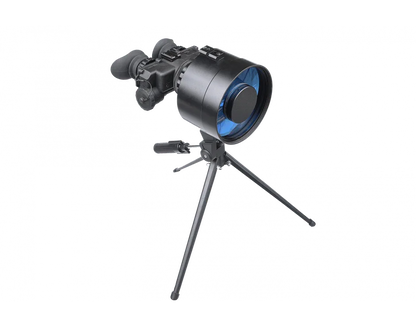

- Tripod mountable
- 3-Year warranty
Tube Level Info:
|
Gen2+ Lvls
|
NL1/NW1 - Gen2+ Lvl1
|
NL2/NW2 - Gen2+ Lvl2
|
NL3 - Gen2+ Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls
|
3NL1/3AW1 - Gen3 Lvl1
|
3NL2/3AW2 - Gen3 Lvl2
|
3NL3/3AW3 - Gen3 Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
AGM FoxBat-8 3AW1 Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated "White Phosphor Level 1"
Resolution
64-72 lp/mm
Magnification
8x
Lens System
216 mm; F/1.8
FOV
4.5°
Focus Range
10 m to infinity
Diopter Adjustment
-6 to +6 diopters
Automatic Brightness Control
Yes
Infrared Illuminator
Detachable long-range IR illuminator
Bright Light Cut-Off
Yes
Battery Type
Two 1.5V AA batteries or 1 Lithium (BA-5567/U)
Battery Life (Operating)
Up to 40 hrs
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
1.76 kg (3.9 lb)
Overall Dimensions
215 × 155 × 146 mm mm (8.5 × 6.1 × 5.7 in)
Package Includes:
Night Vision Bi-ocular, Detachable IR Illuminator, Tripod, Lens Cloth, Hard Case, User Manual
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
