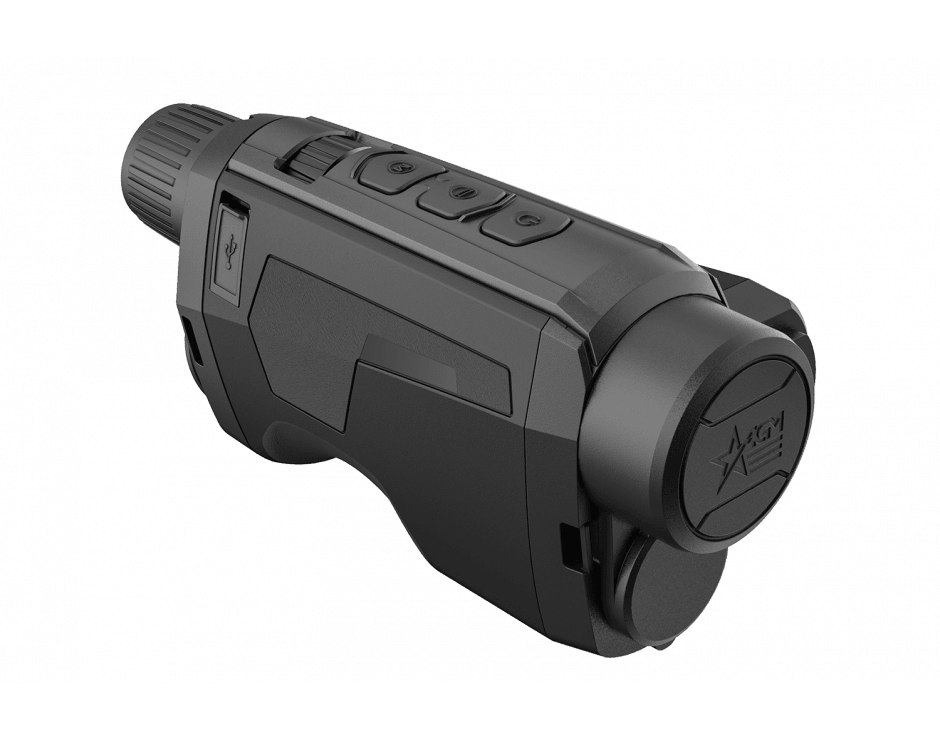

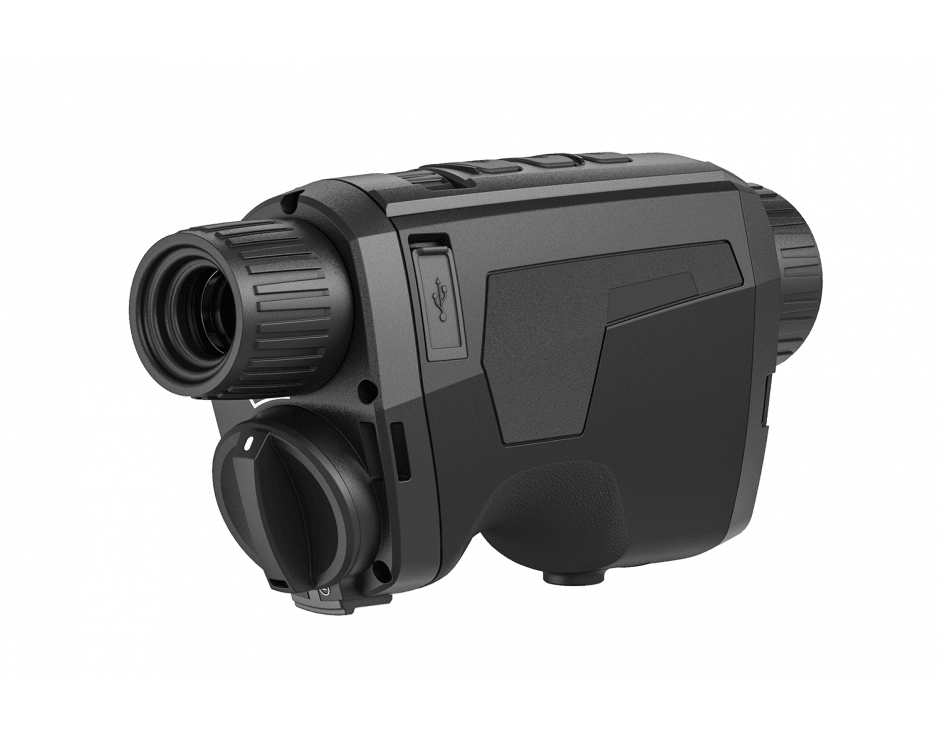

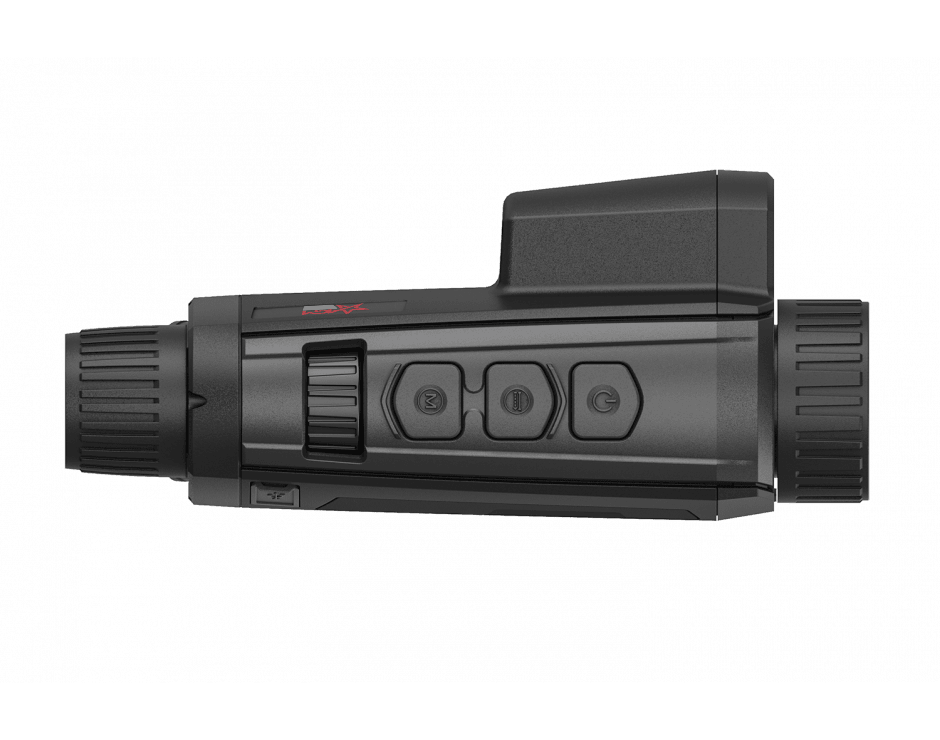

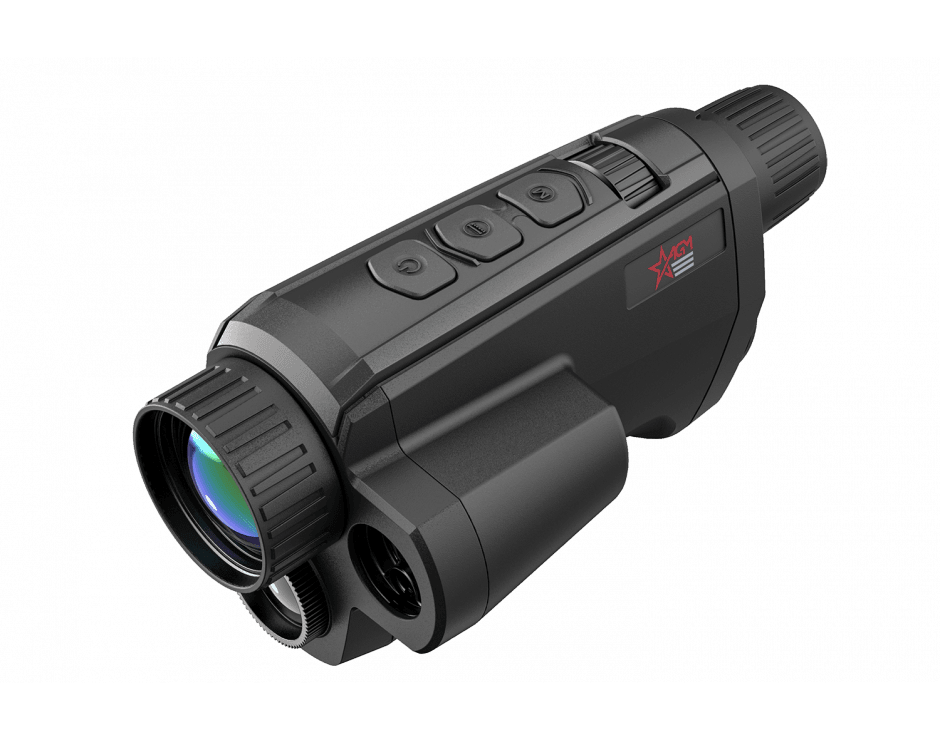

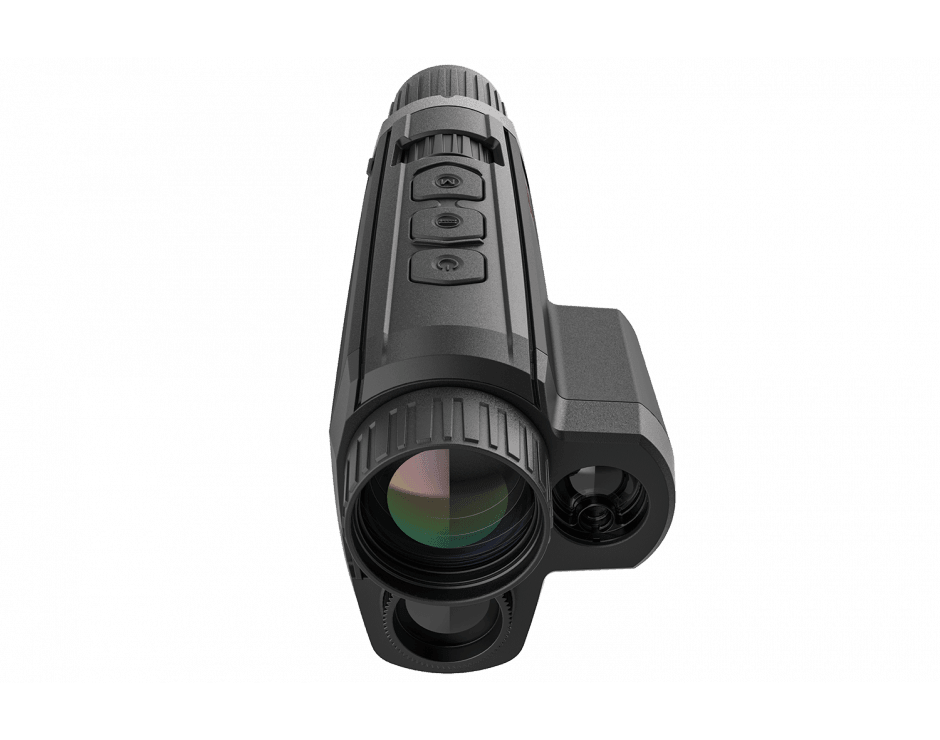

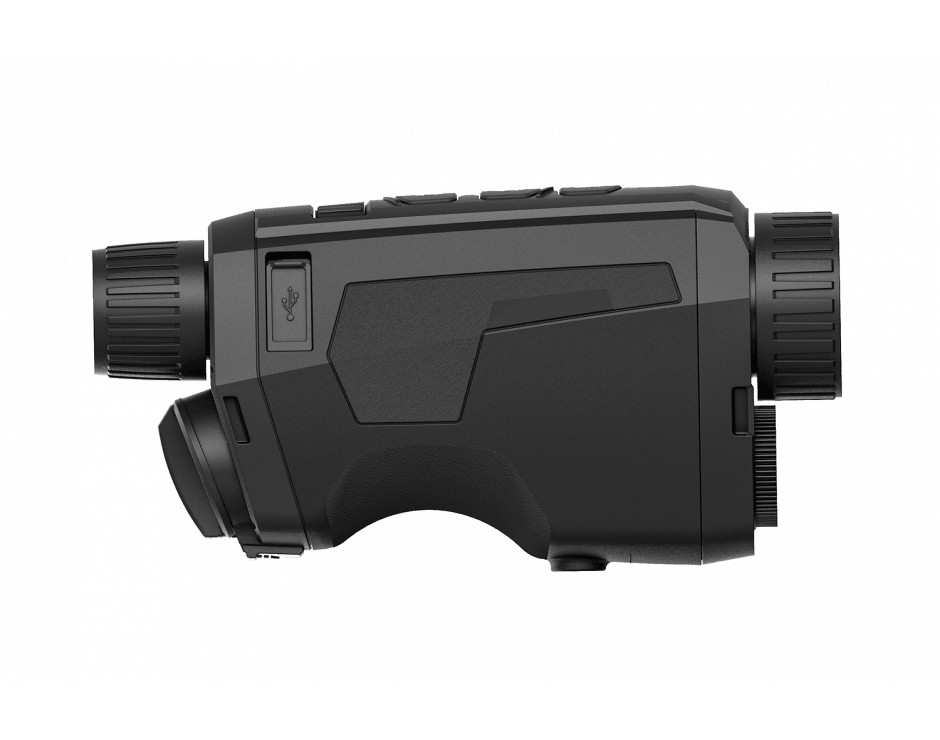

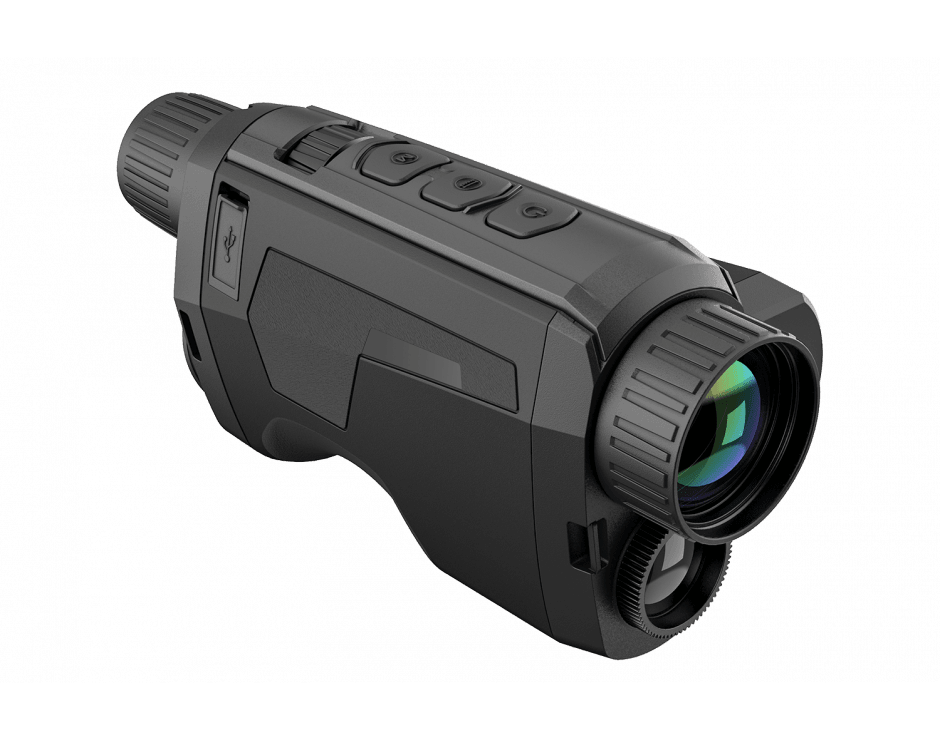

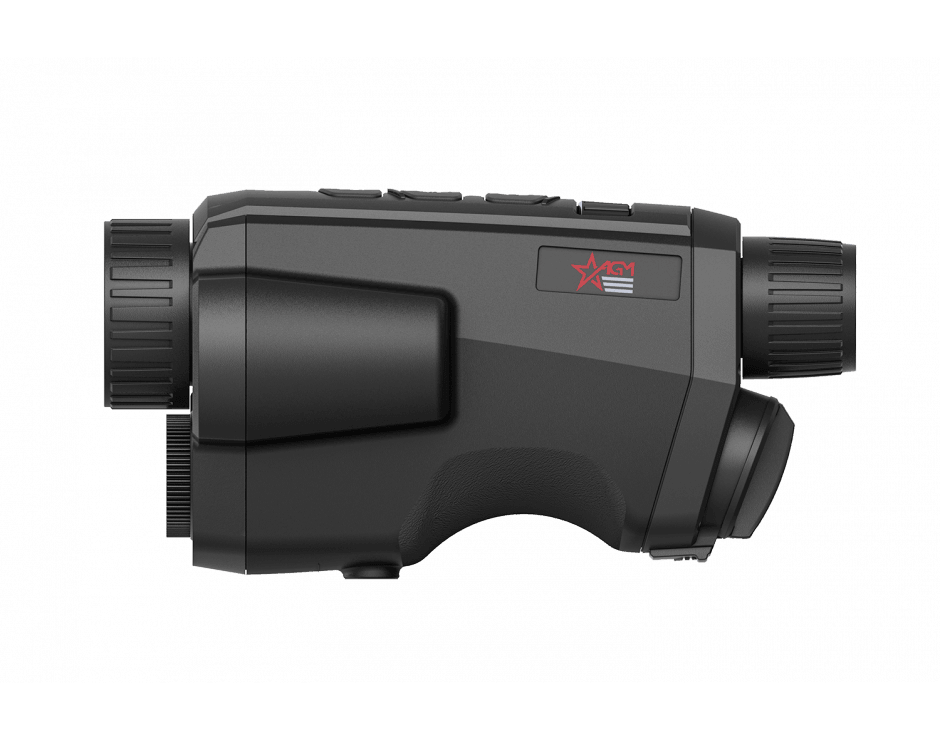

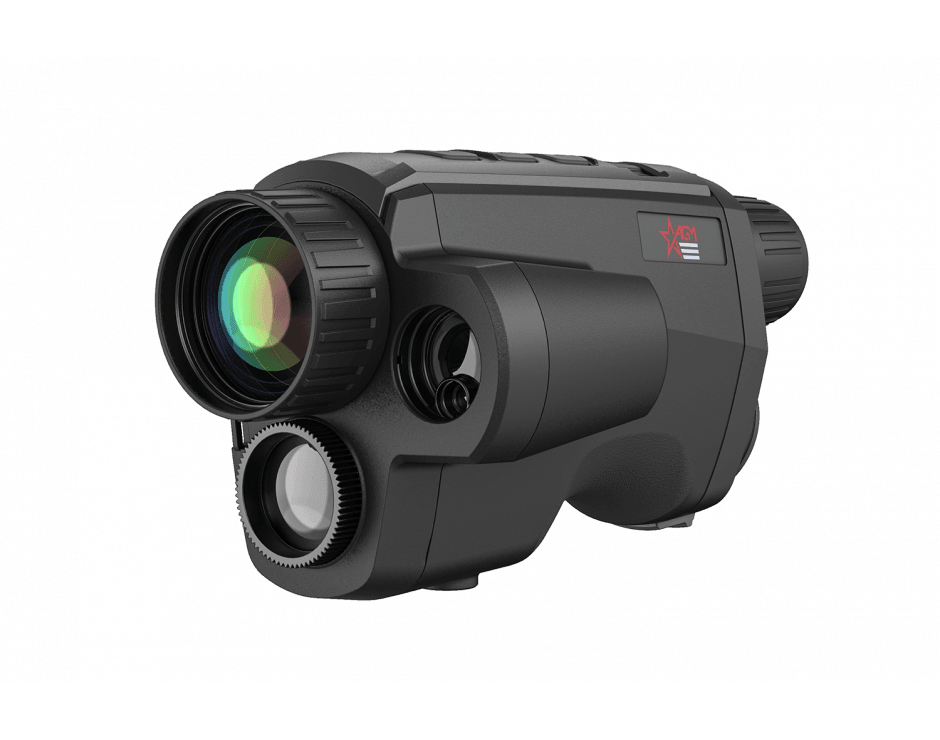

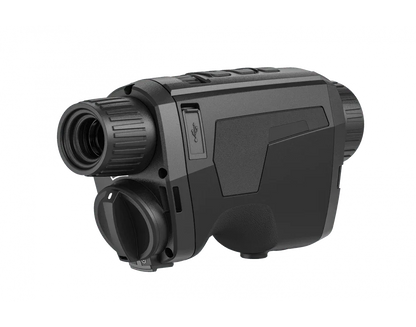

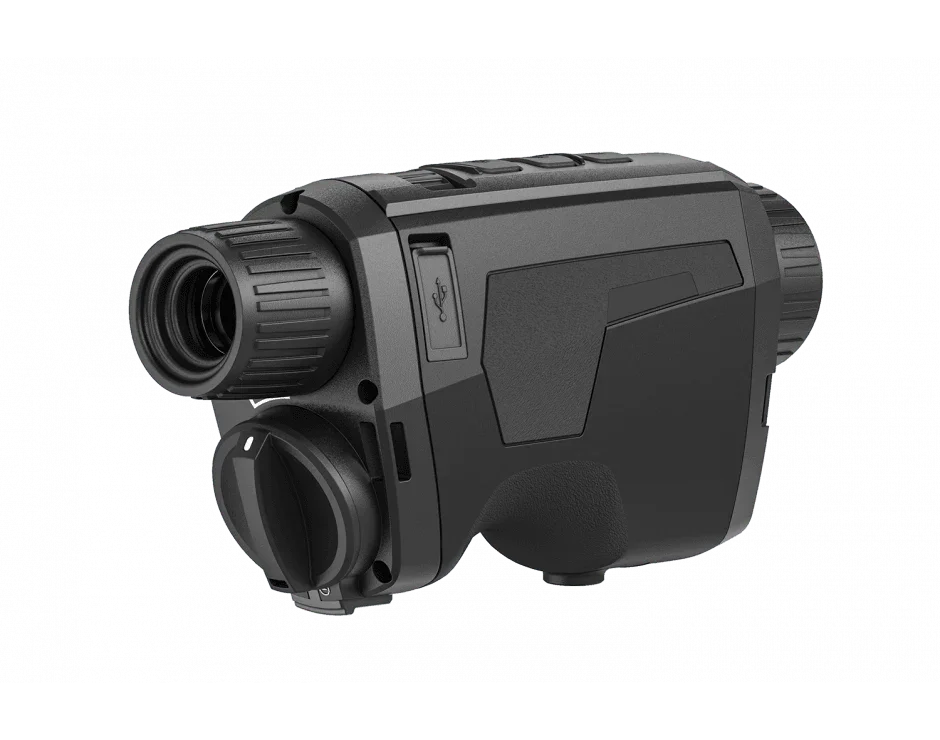

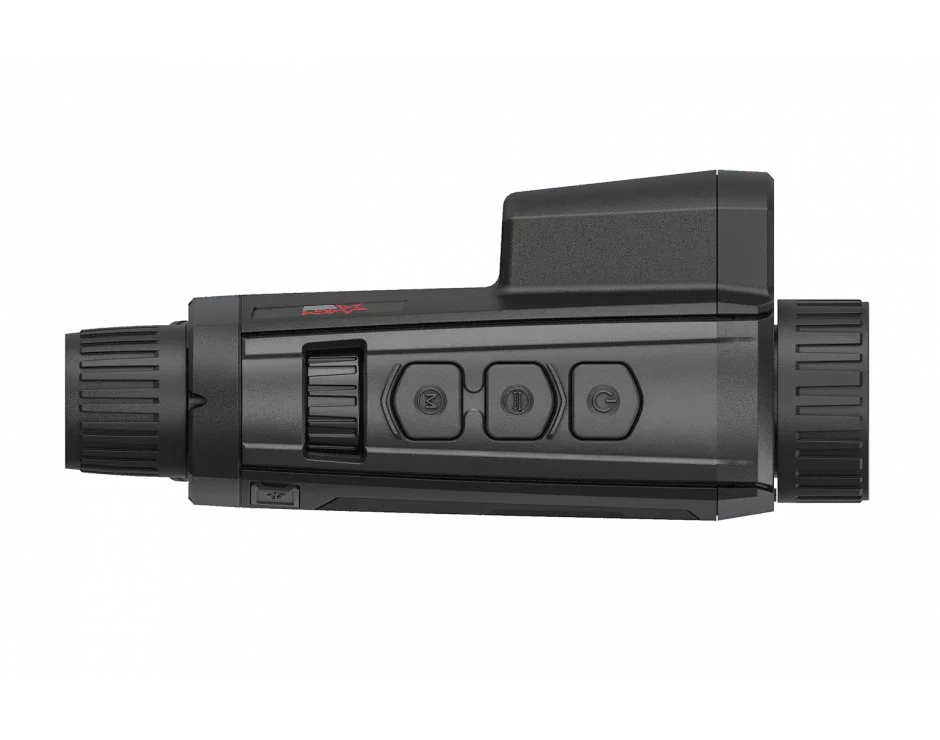

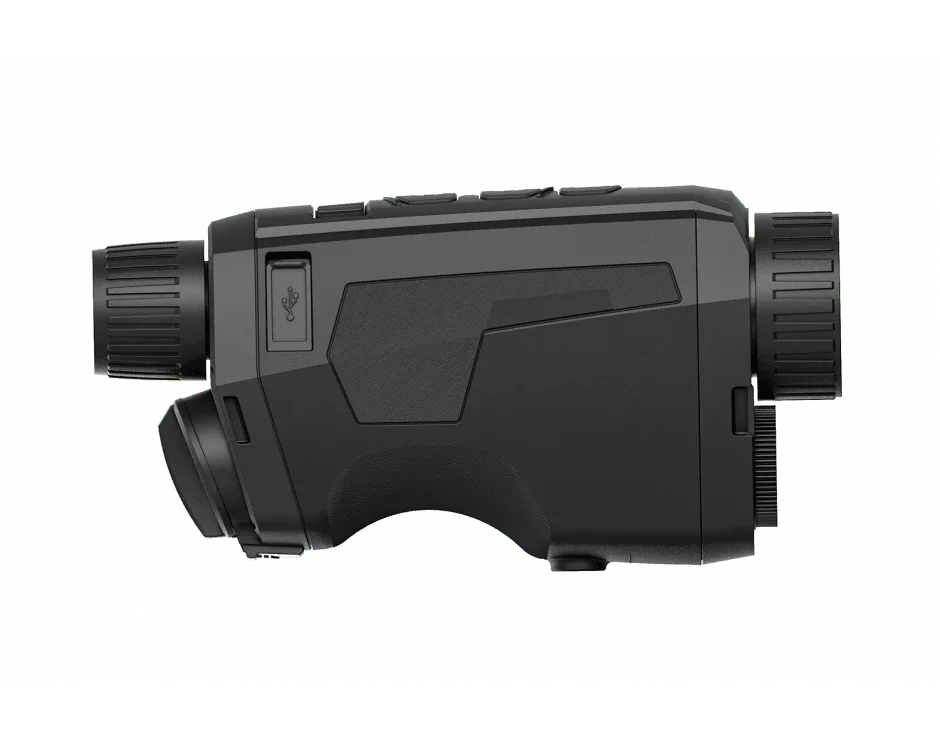

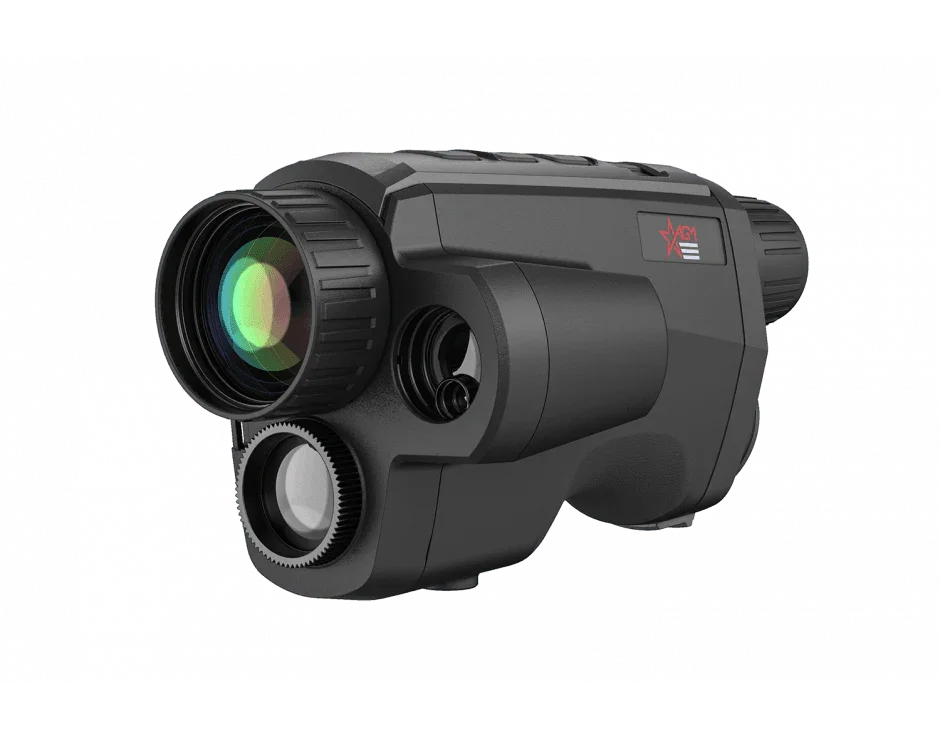

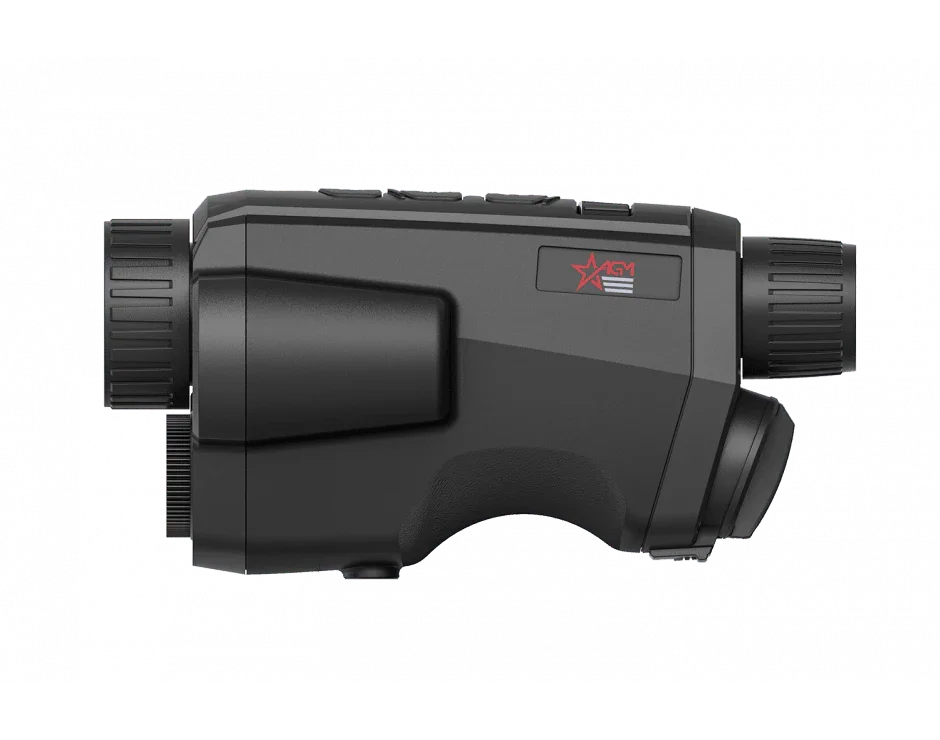

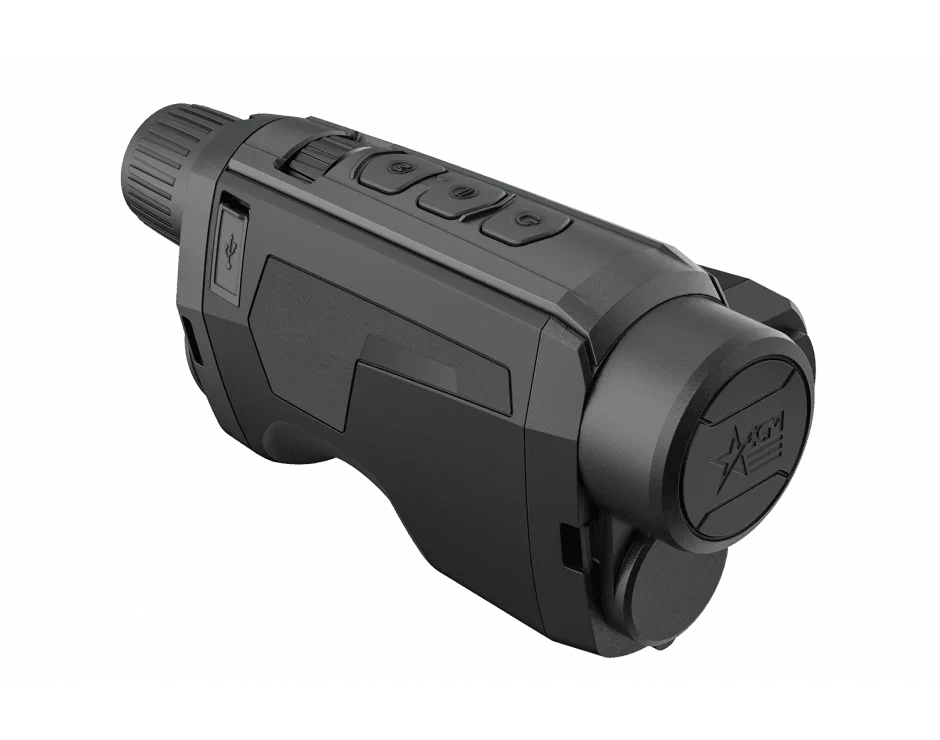

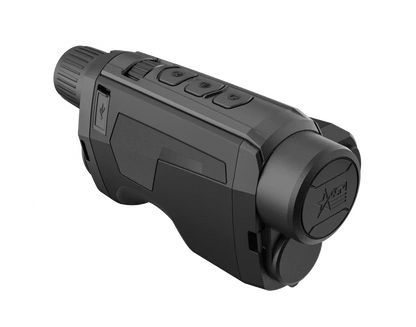

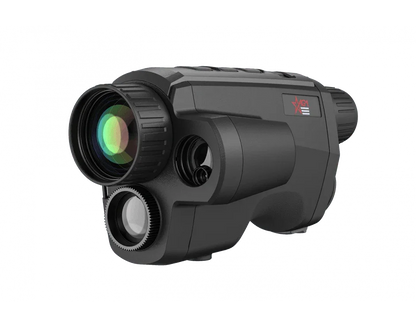

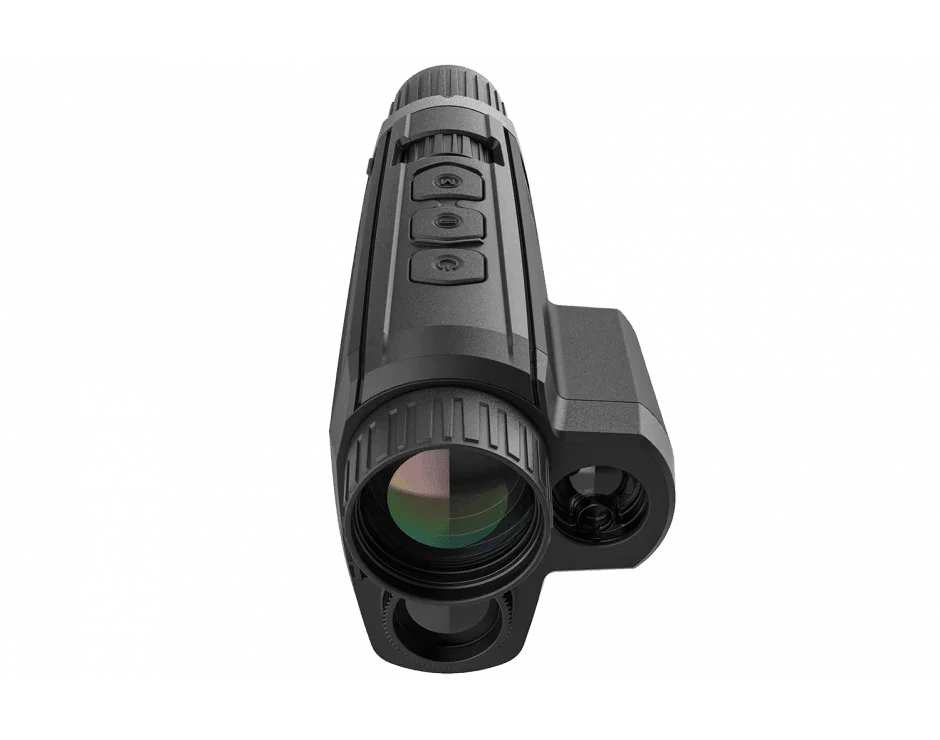

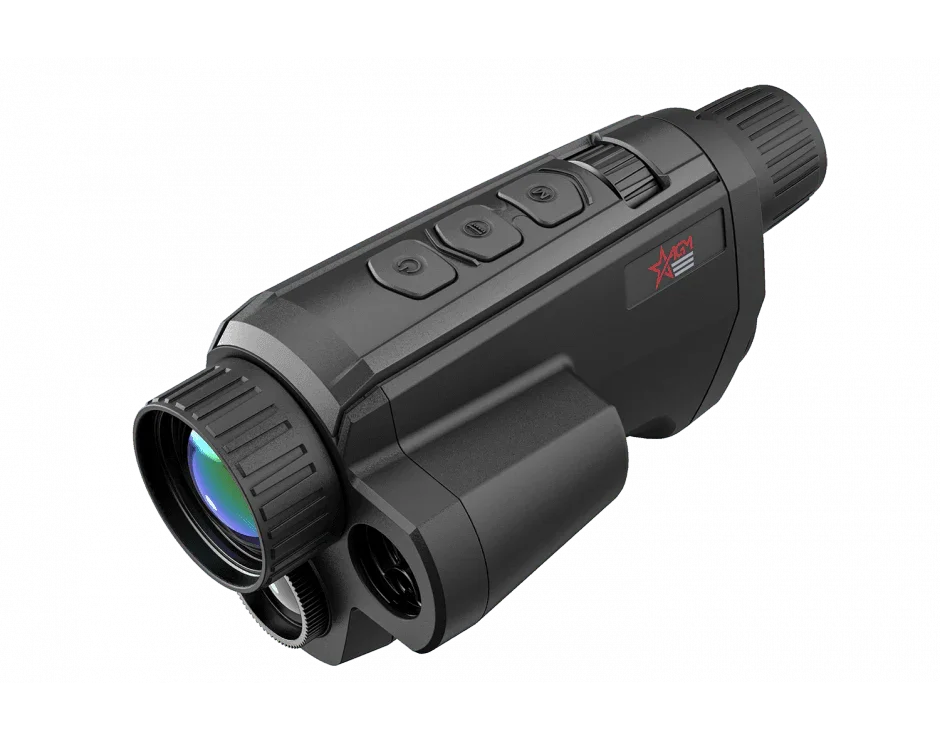

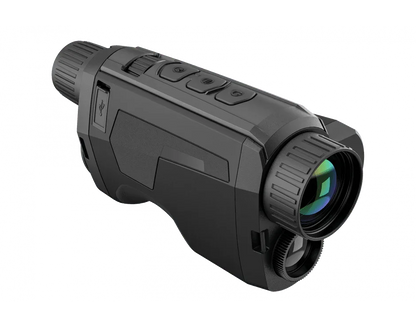

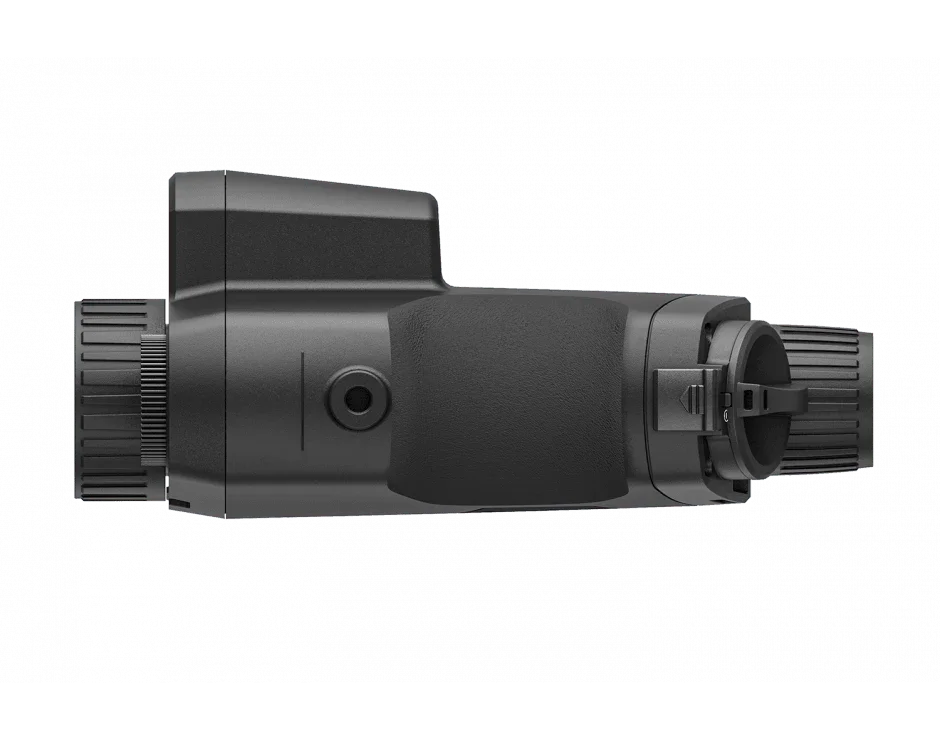

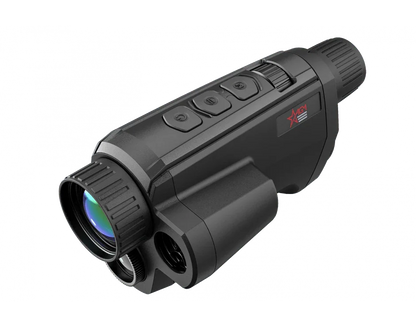

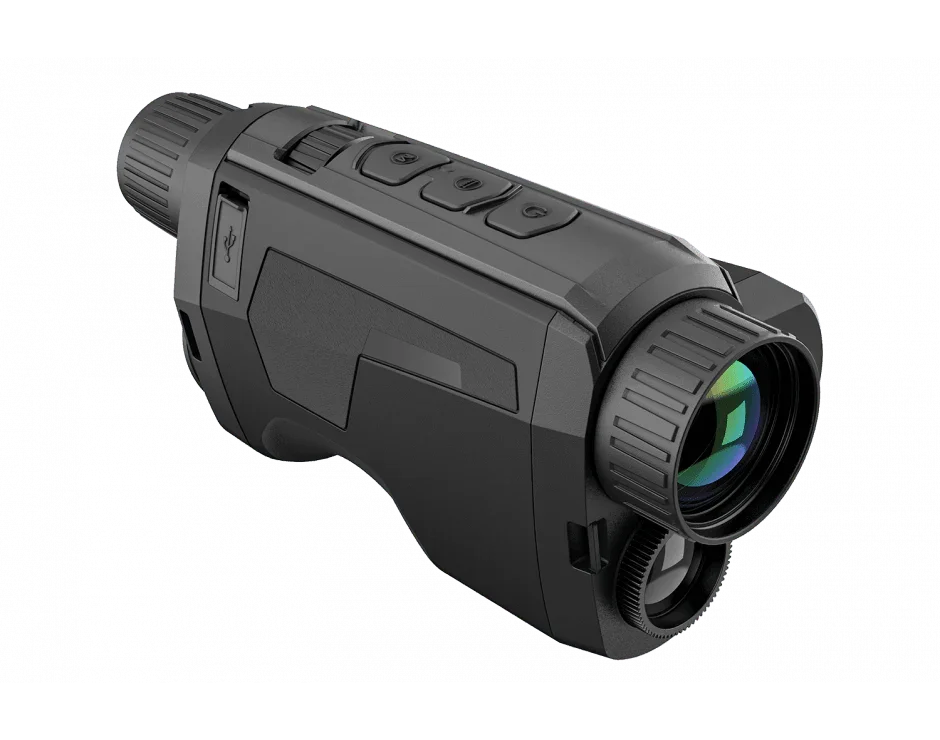

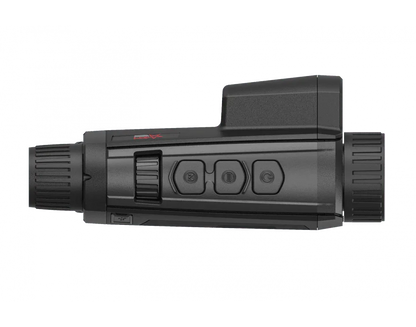

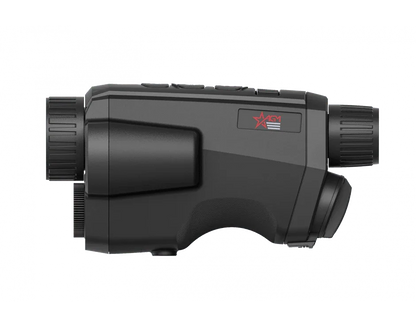

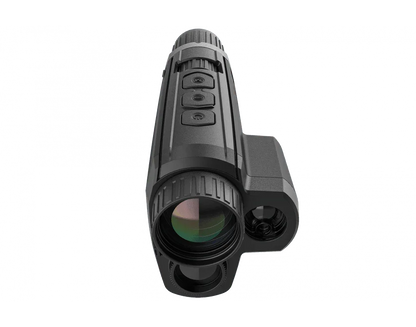

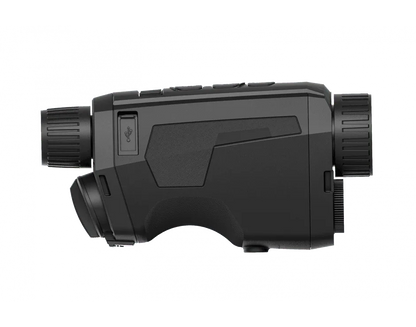

AGM Fuzion LRF TM35-384 Fusion Thermal Monocular 384x288 12um (50Hz) 35mm (3142451305FM31)
The AGM Fuzion LRF TM35-384 Thermal & Digital Day/Night Vision monocular stands as one of the most technologically advanced and feature-rich optics available. Its core strength lies in the thermal viewing channel, powered by a highly sensitive 12-micron 384x288 thermal detector, capable of detecting human-sized heat signatures from up to 1 mile (1750m) away. In addition to its thermal capability, the Fuzion LRF is equipped with a digital night vision channel, which aids in recognizing targets identified by the thermal channel. The built-in 600m laser rangefinder further enhances its performance, and that's on top of its 16GB internal memory and Wi-Fi compatibility.
The Fuzion LRF is also packed with numerous software enhancements and features commonly found in AGM thermal products. These include a high-sensitivity thermal detector, a 35mm Germanium lens with a 1.0 aperture, a 1920x1080 ultra-low light CMOS sensor, and a range of viewing modes, such as fusion imaging and multiple color palettes. It offers a 3.5X base magnification, 8X digital zoom, picture-in-picture mode, and the built-in laser rangefinder. Powered by a single removable, rechargeable 18650 battery, it provides up to 5 hours of continuous use. Additional features include a USB Type-C port for external power, an IP67 waterproof rating, a long-range IR illuminator, wrist strap, charger, and AGM’s 5-Year Transferable Warranty.
AGM Fuzion LRF TM35-384 Features:
- Bi-spectrum image fusion and object highlight
- Detail enhancement and target recognition
- Selection of thermal view channel, visible light channel, or both them combined
- 12 μm, 35 mK NETD high sensitivity thermal detector
- Fast 50Hz imaging
- 1x, 2x, 4x, 8x digital zoom
- Digital image processing technology
- Ultra-low illumination optical channel
- 1920×1080 Optical resolution
- Eye-safe laser rangefinder
- 1024×768 resolution, 0.39-inch OLED display
- Video recording and snapshot, built-in EMMC (16 GB)
- Wi-Fi hotspot
- Standby mode
- Up to 5 hours continuous running
- Waterproof
- 5-year warranty
AGM Fuzion LRF TM35-384 Specifications:
Palettes
Black Hot, White Hot, Red Hot, Fusion, Visible, Image Fusion
Working Temperature
-20°C to 55°C (-4°F to 131°F)
Dimension (LxWxH)
168 × 87 × 74 mm (6.6 × 3.4 × 2.9 in)
Distance Measurement
Yes (Laser Rangefinder: up to 600 m, ±1 m accuracy)
Scene Mode
Jungle, Recognition
Hotspot
Yes
Observation Distance
1,653 m
Detector type
12 μm VOx Uncooled Focal Plane Arrays
Response Waveband
8 μm to 14 μm
Optical Image Sensor
1/2 Wavelength 400-1000 nm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Aperture
F1.0
Resolution
384 × 288
Laser Wavelength
905 nm
Optical magnification
3.5x – 28x
Lens (focal length)
Thermal Lens Focal Length - 25mm, Optical Module Lens Focal Length - 22mm
Power
5 VDC/2 A, USB Type-C interface Supports external power supply
Field of view (H × X)
7.5° × 5.7°
Digital zoom
1x, 2x, 4x, 8x
Monitor
1024x768, 0.39 inch, OLED, 50Hz
Storage
Built-in 16 GB EMMC
Record Video
On-board video recording
Capture Snapshot
Yes
Battery Type
One 18650 rechargeable battery (removable)
CVBS Output
Yes (via USB)
Battery Operating Time
Up to 5 hours continuous running (@25°C, WiFi and CVBS off) Up to 3 hours continuous running (@25°C, WiFi and CVBS on)
Battery Capacity Display
Yes
Weight
520 g (1.15 Ib)
Protection Level
IP67 (Waterproof)
Included:
Monocular
18650 Rechargeable Battery (2)
USB Cable
Battery Charger
Power Adapter
Lens Cloth
User Manual
