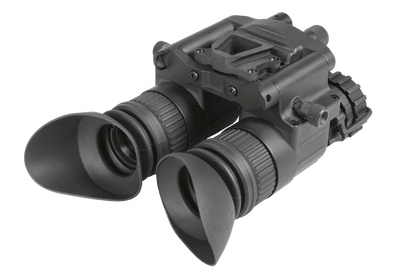

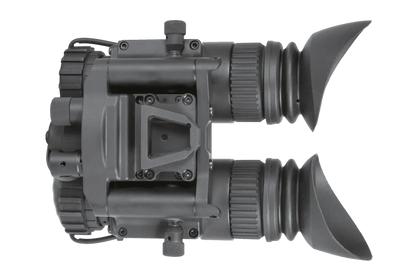

AGM NVG-40 3APW Night Vision Goggles/Binocular Dual Tube Gen 3 "White Phosphor" 14NV4123474111

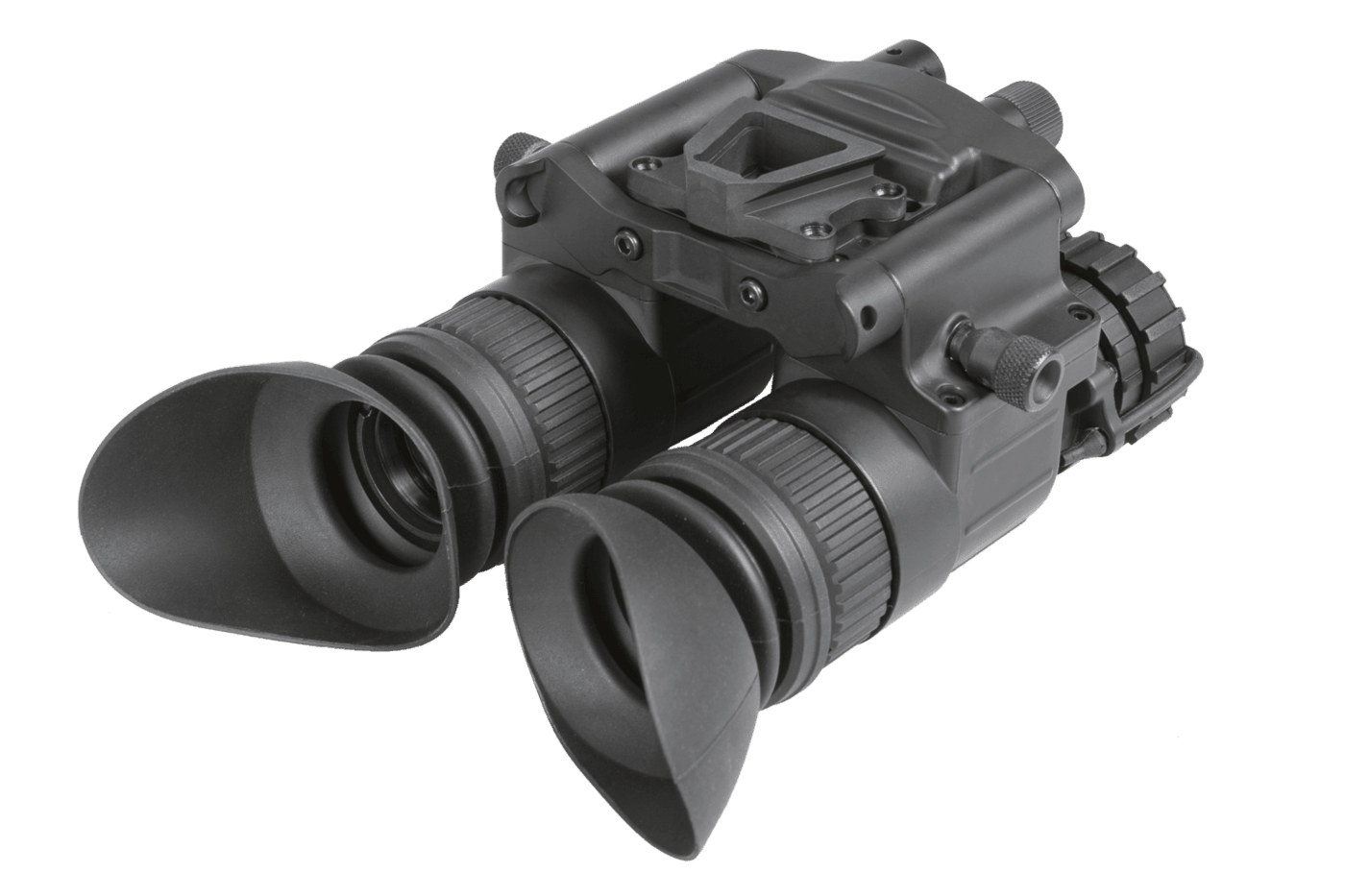

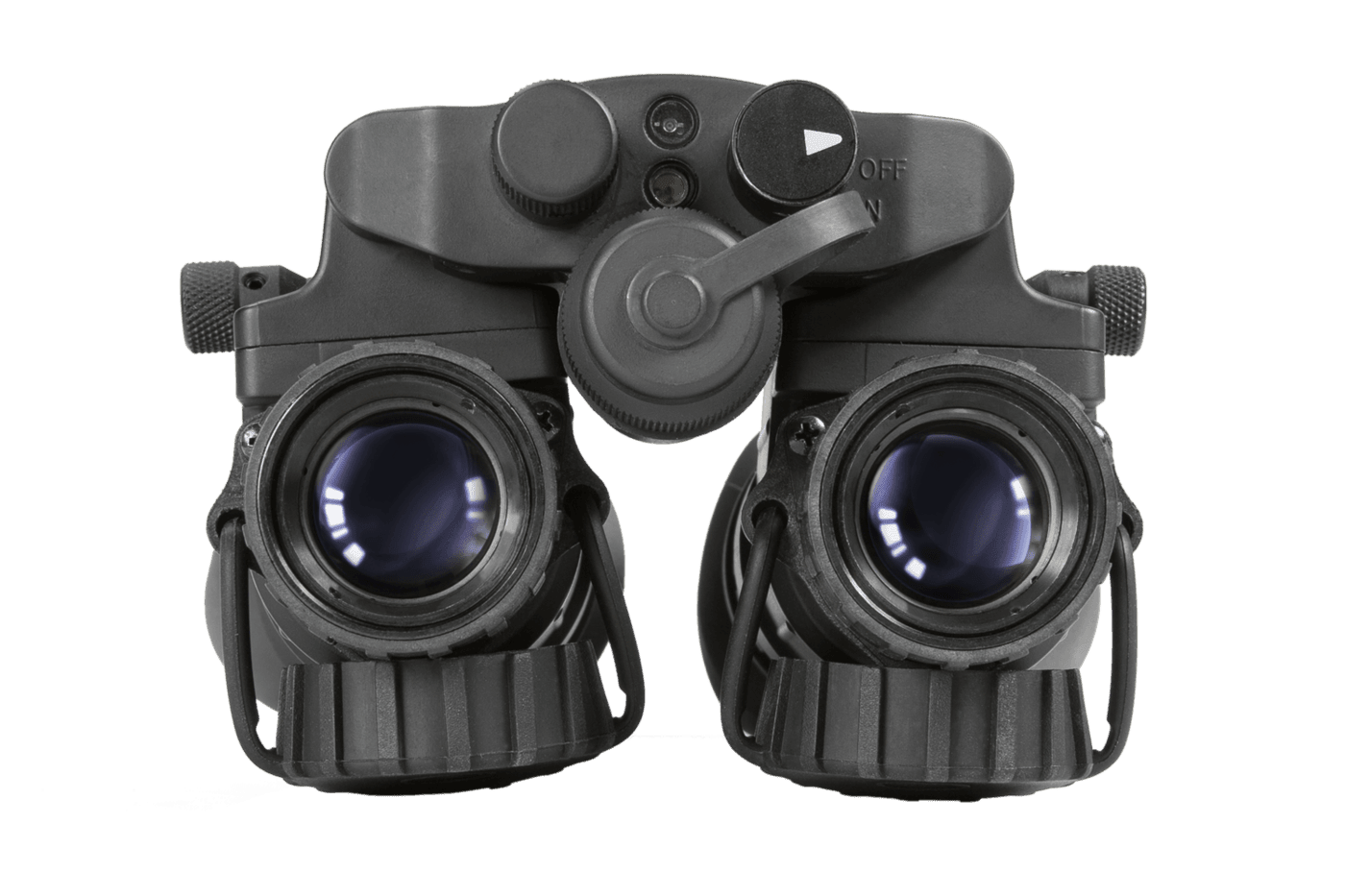

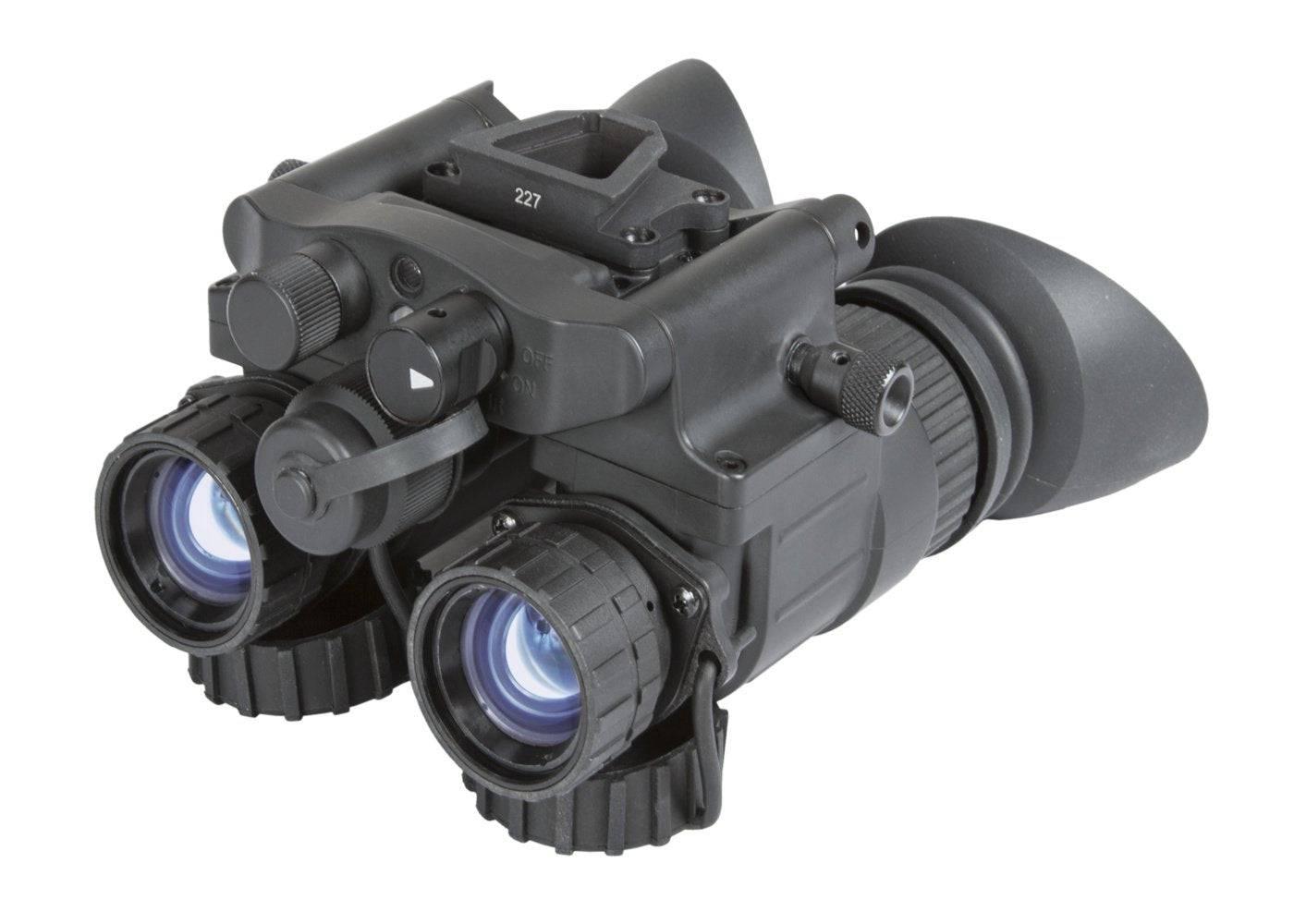

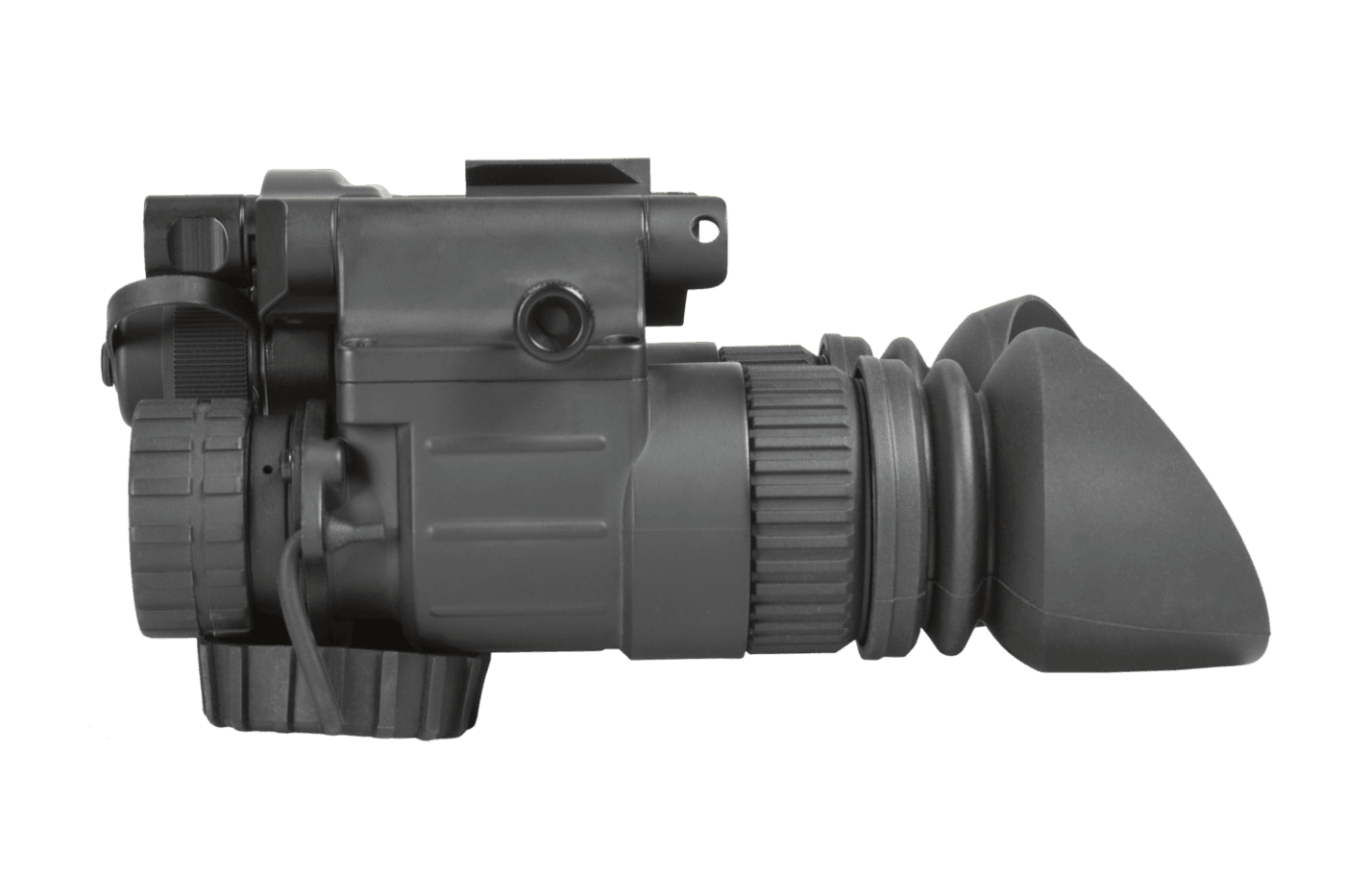

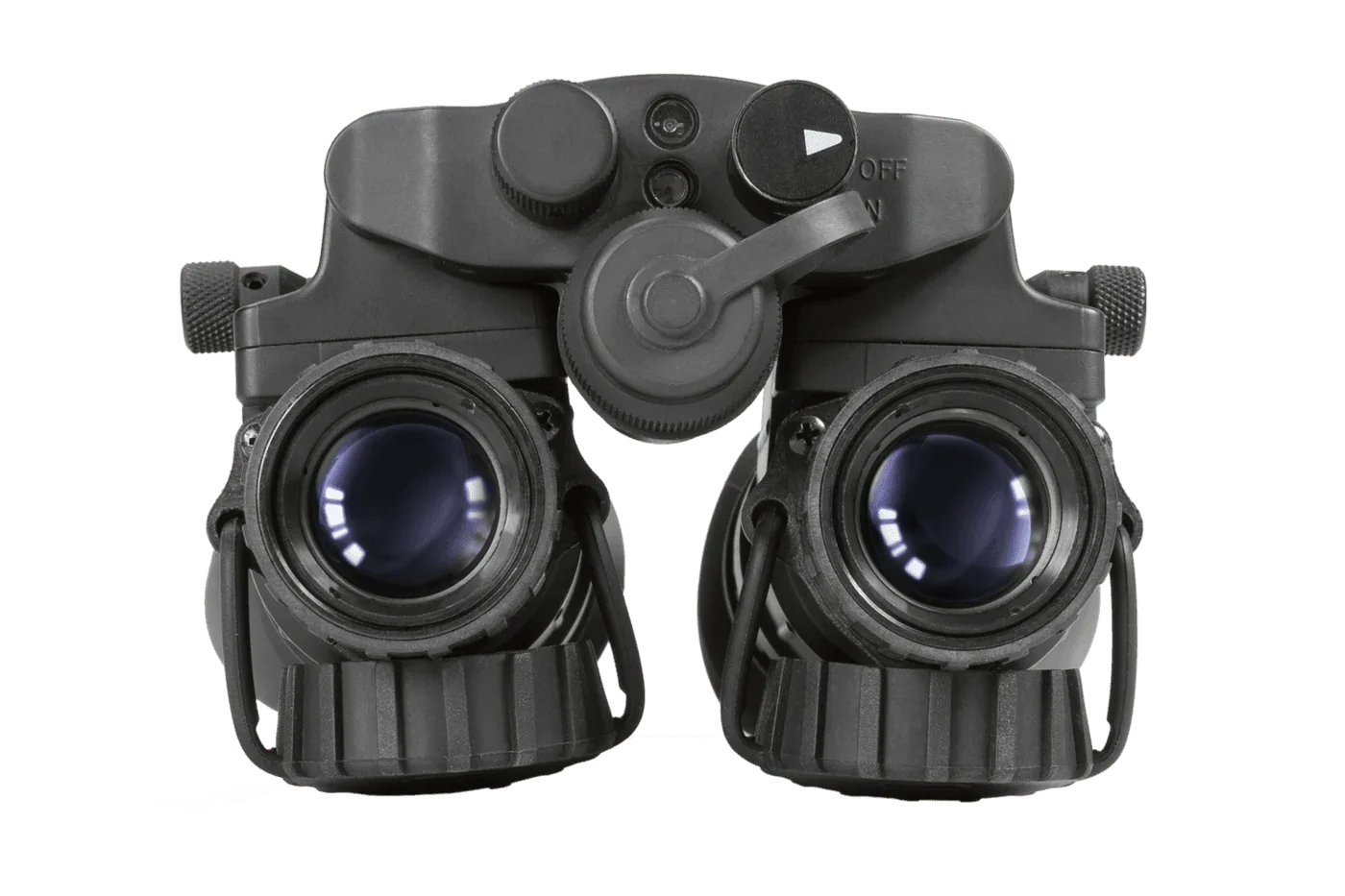

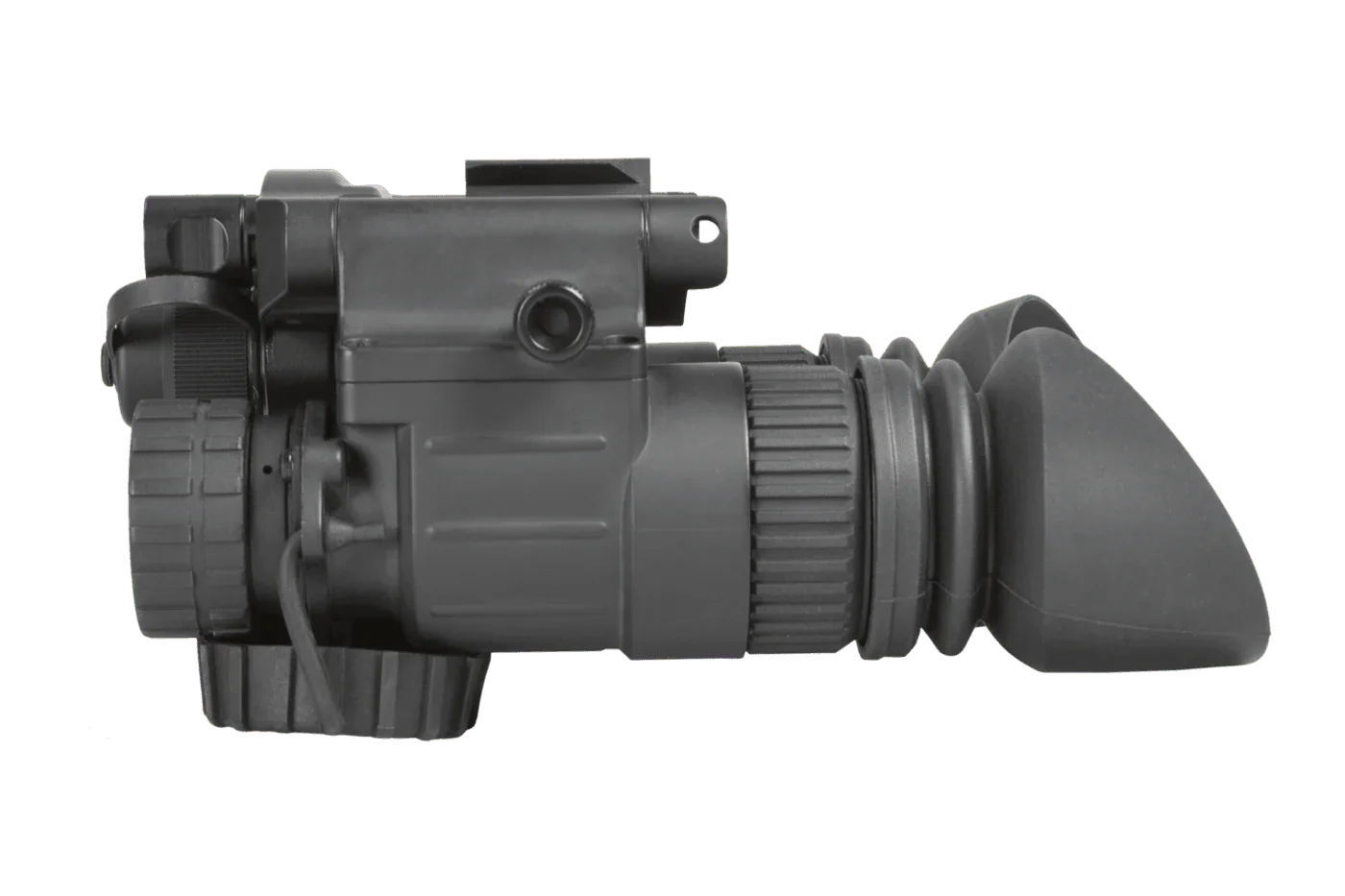

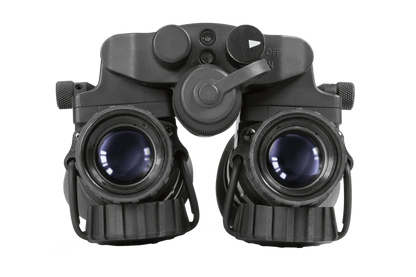

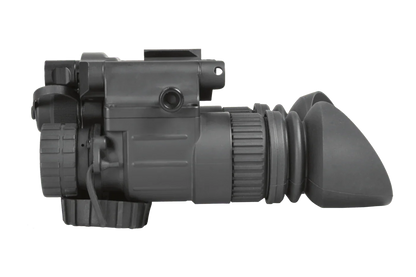

The AGM NVG-40 is a dual-channel night vision system housed in a compact, durable composite shell and equipped with advanced multi-coated optics. It offers the option of a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT) for enhanced image clarity. To protect the high-quality photocathode tube, the NVG includes a bright light cut-off feature.
With Manual Gain Control, users can adjust image brightness to achieve optimal quality, even in fluctuating light conditions. The NVG operates on either a single AA alkaline battery or a CR123A battery, offering up to 20 hours of continuous use. Additionally, it features a built-in infrared illuminator for reading or close-range tasks in complete darkness.

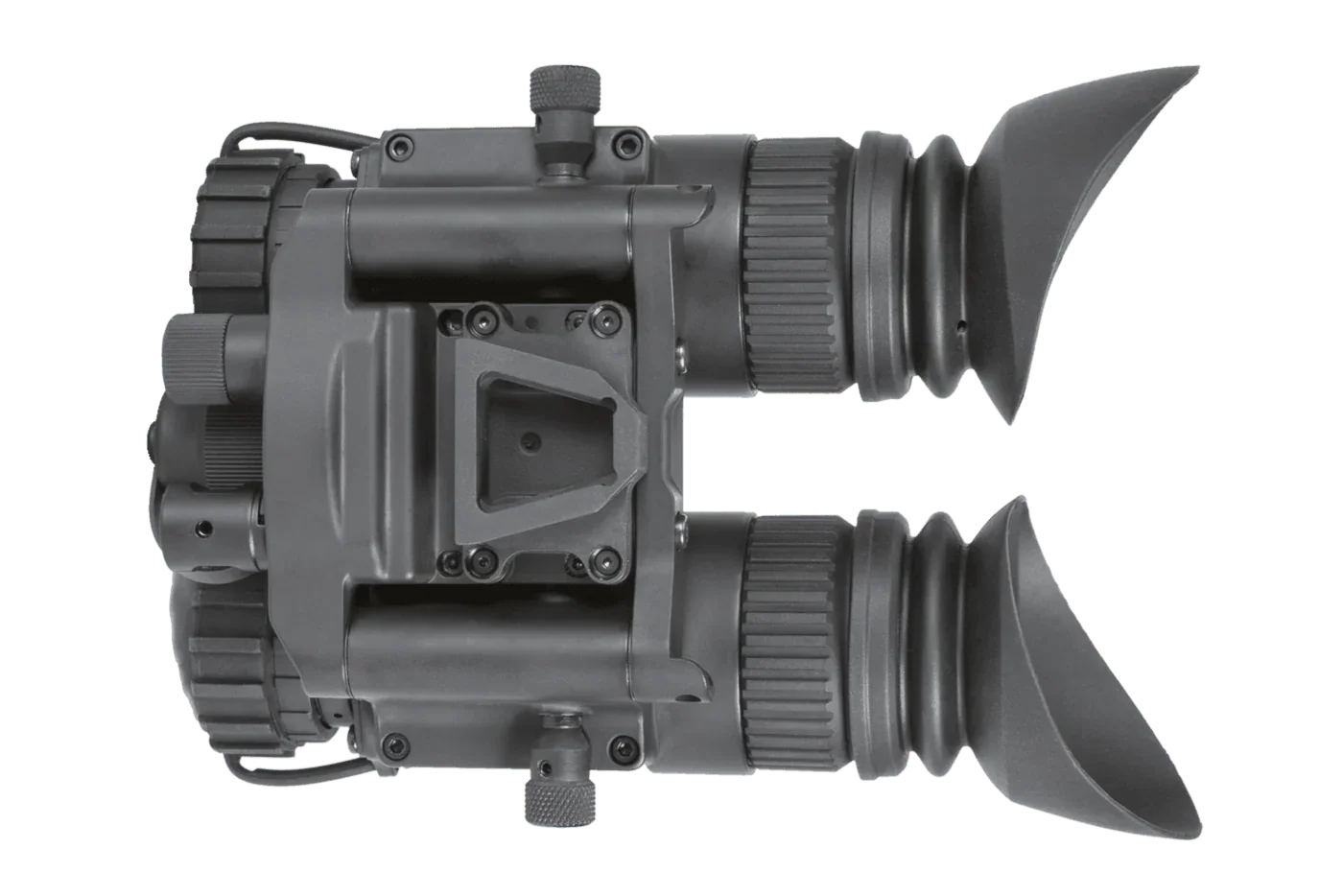

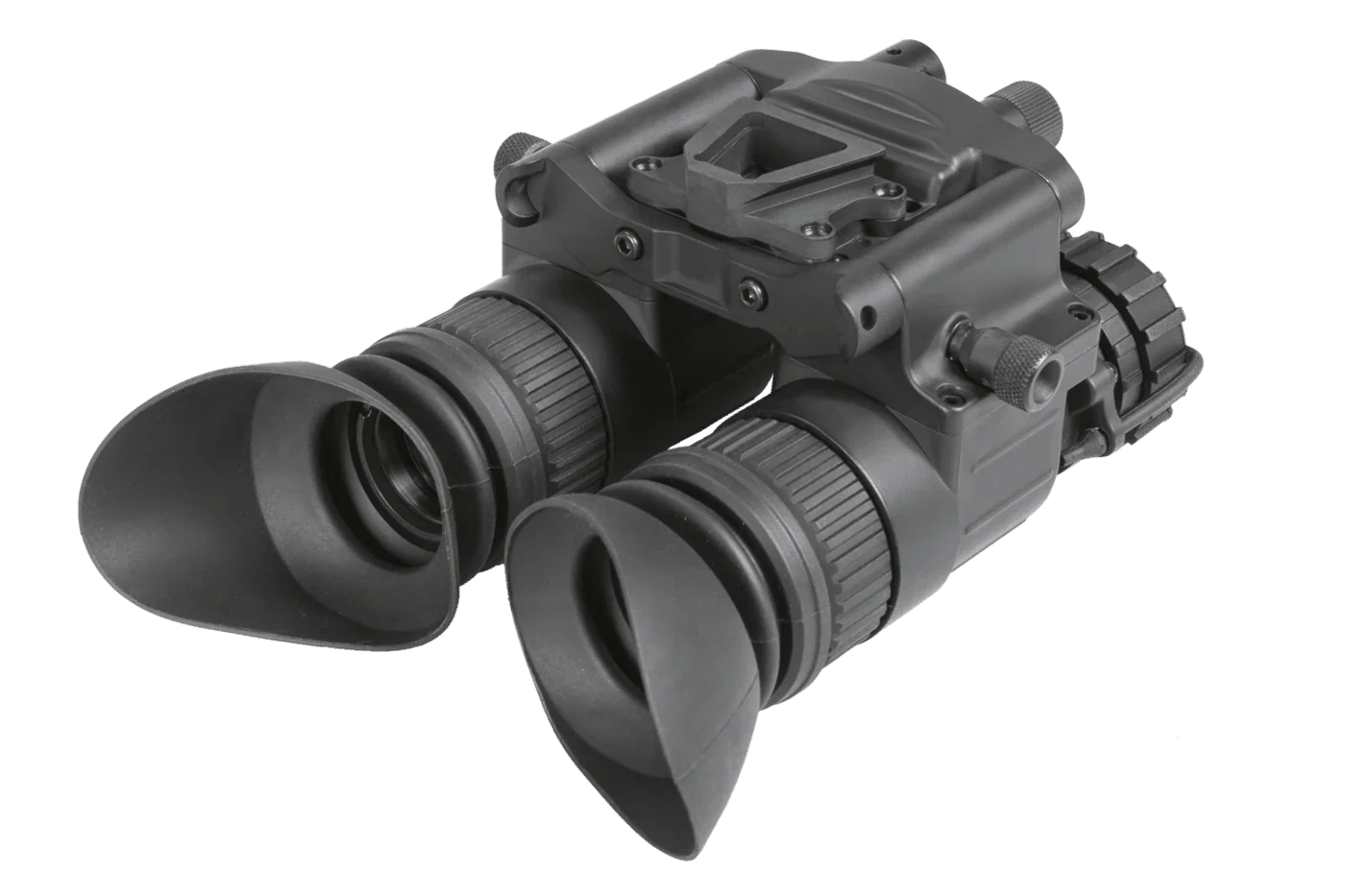

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.
NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount
AGM NVG-40 3APW Features:
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
AGM NVG-40 3APW Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated 3APW White Phosphor FOM 2000+
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm, F/1.3
FOV
40°
Focus Range
0.25 m to Infinity
Eye Relief
25 mm
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low Battery IR On Excessive Light Conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One CR123A (3V) or AA (1.5 V)
Battery Life (Operating)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
645 g (1.42 lbs)
Overall Dimensions
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
Package Includes
Night Vision Goggles, Soft Carrying Case, Lens Cloth, Battery Adapter, User Manual
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
