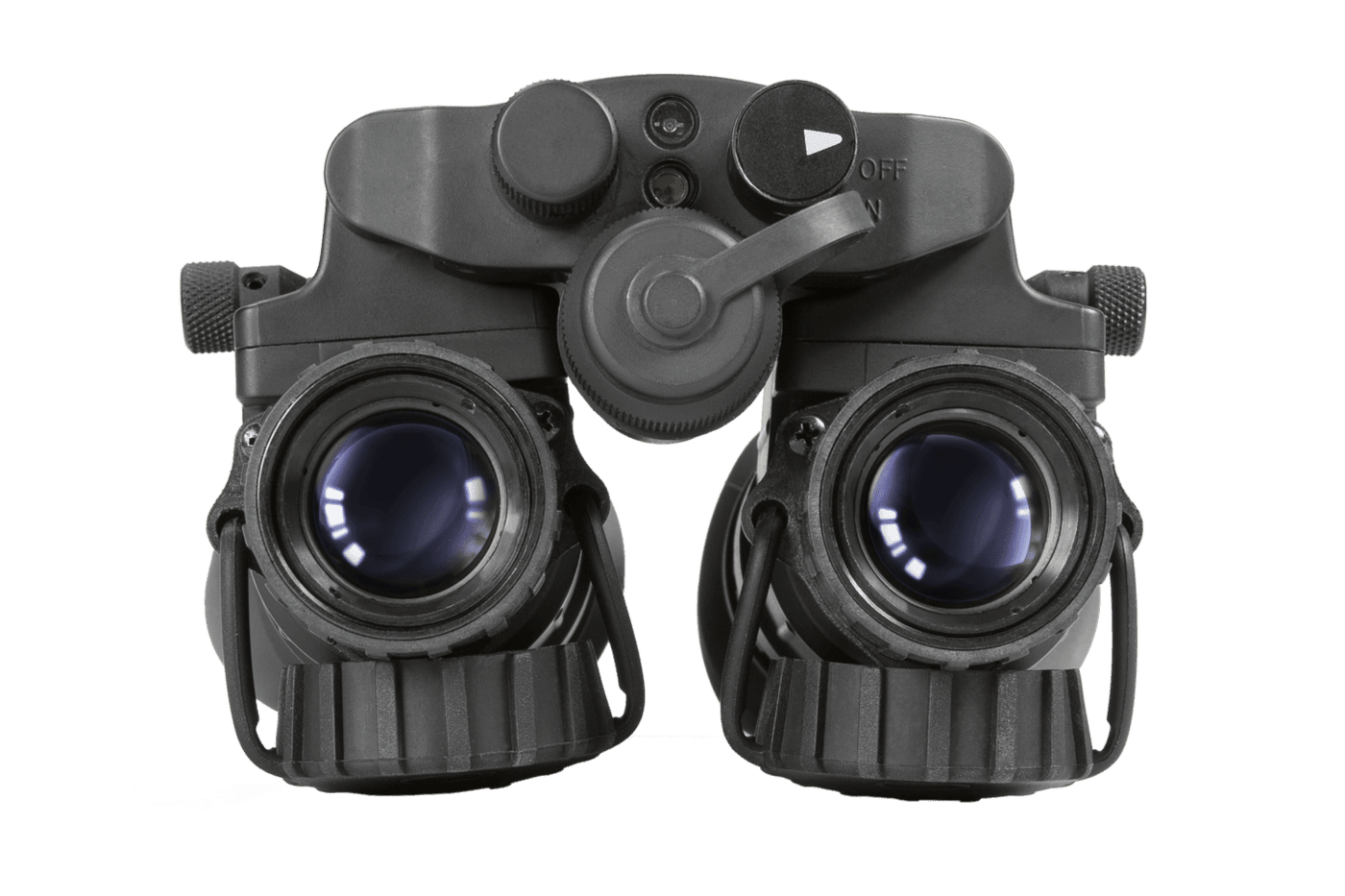

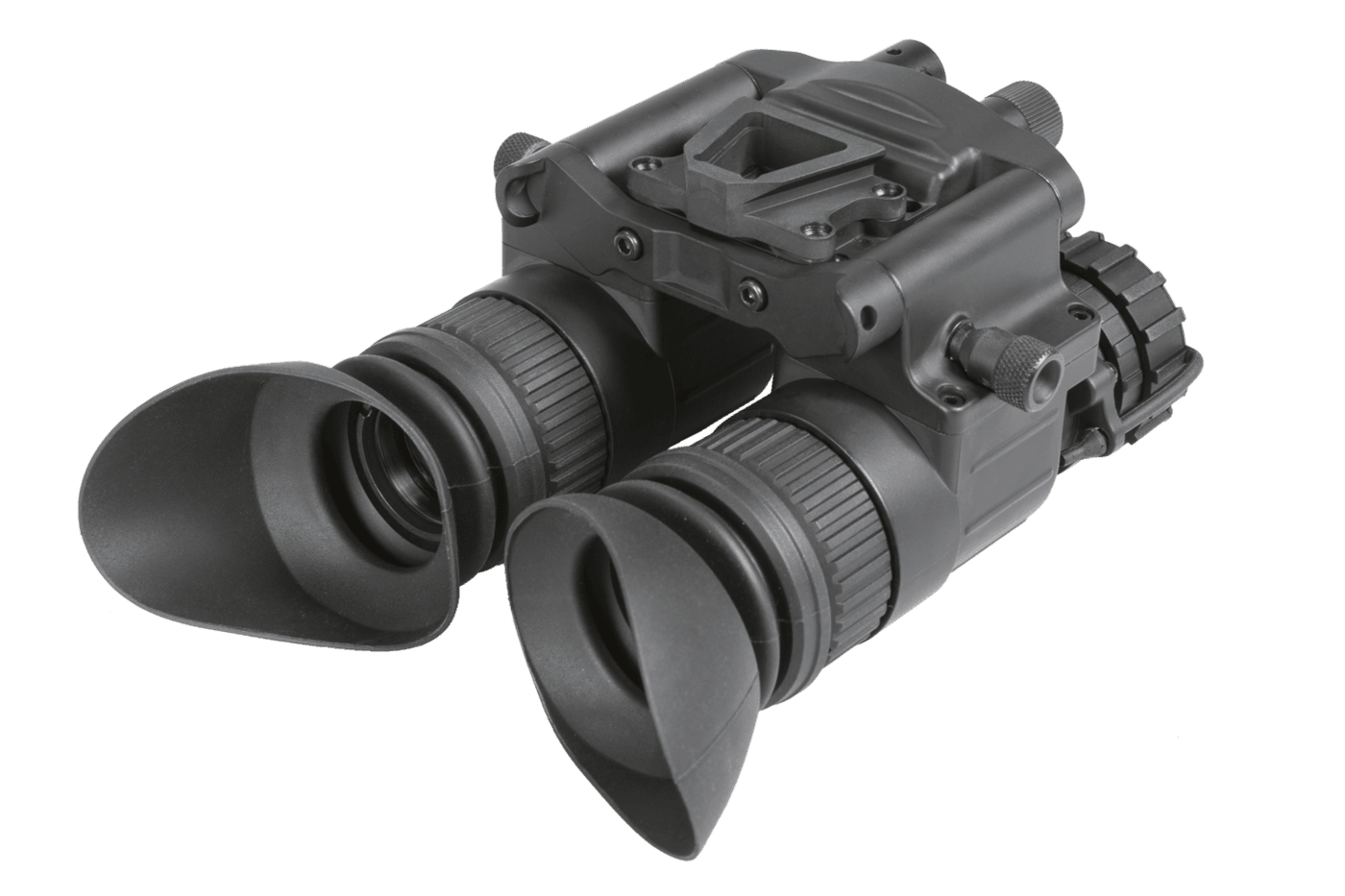

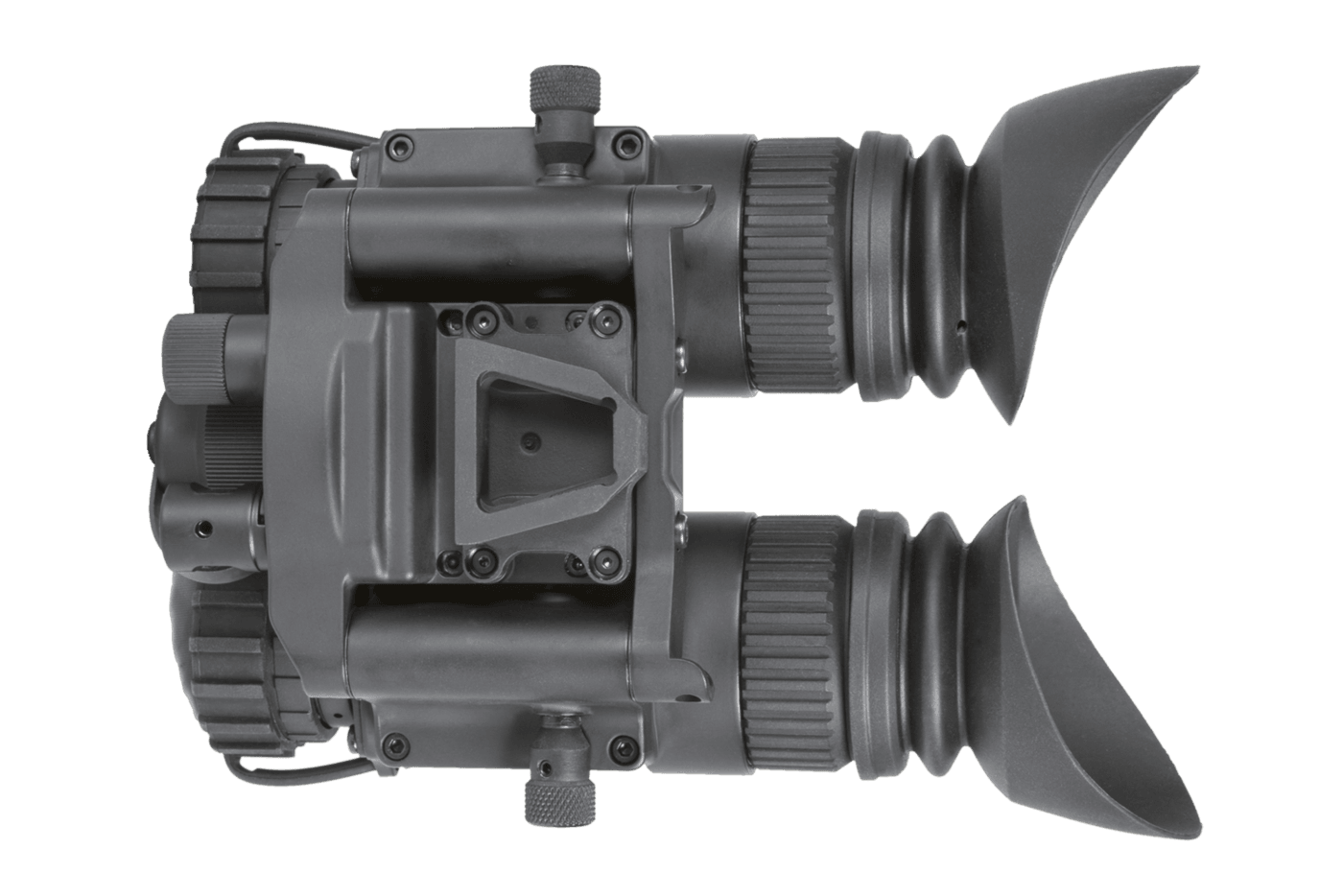

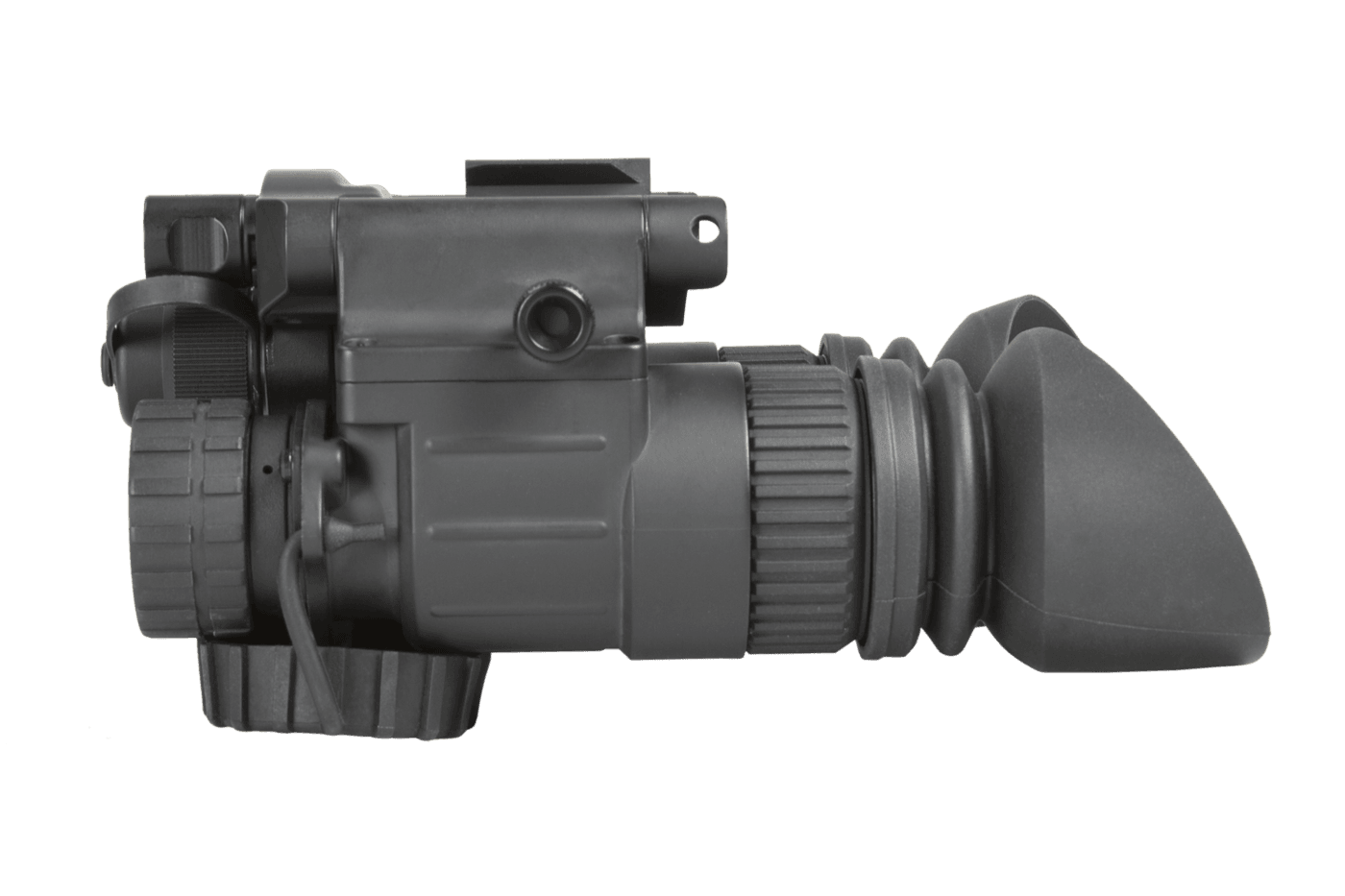

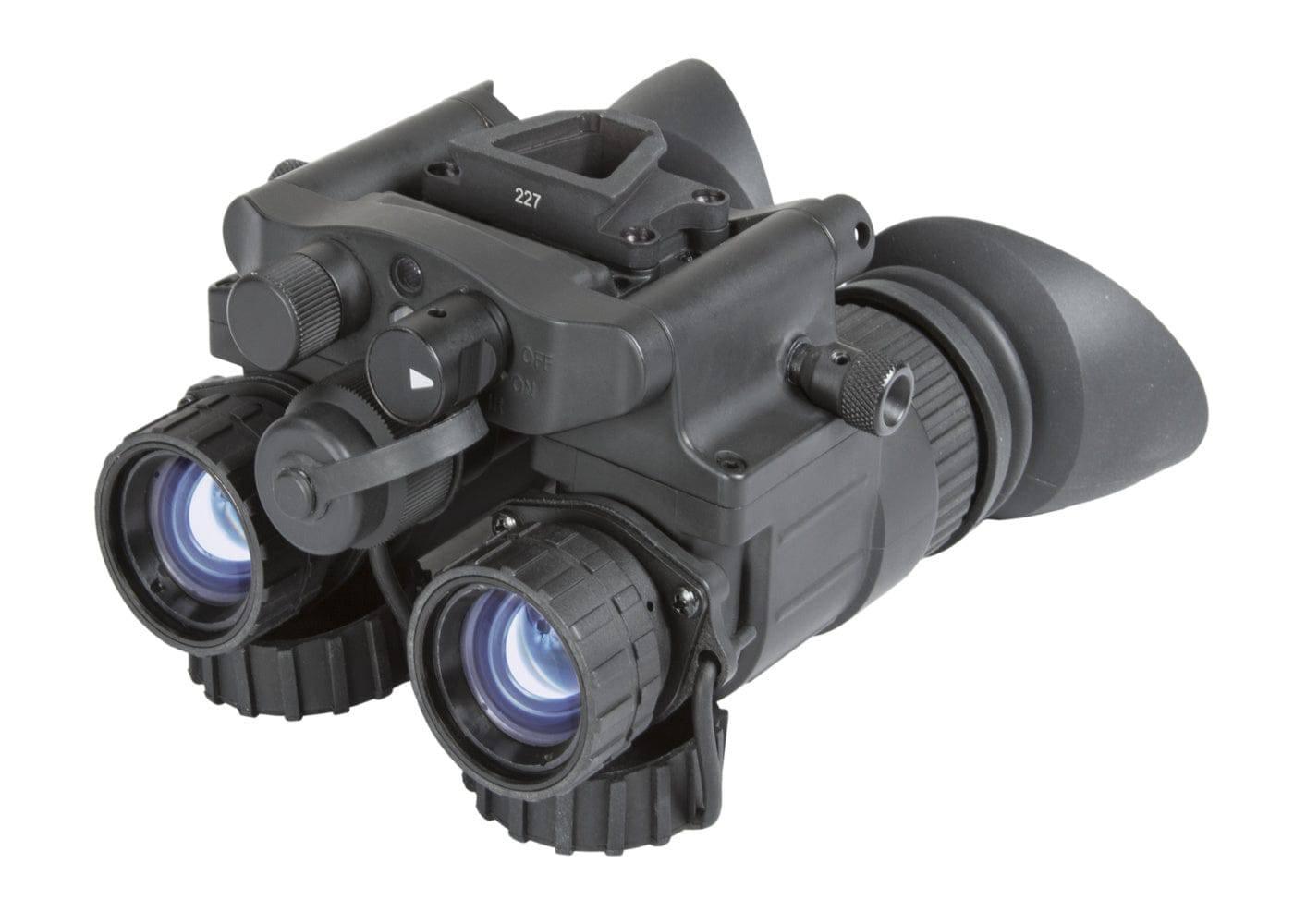

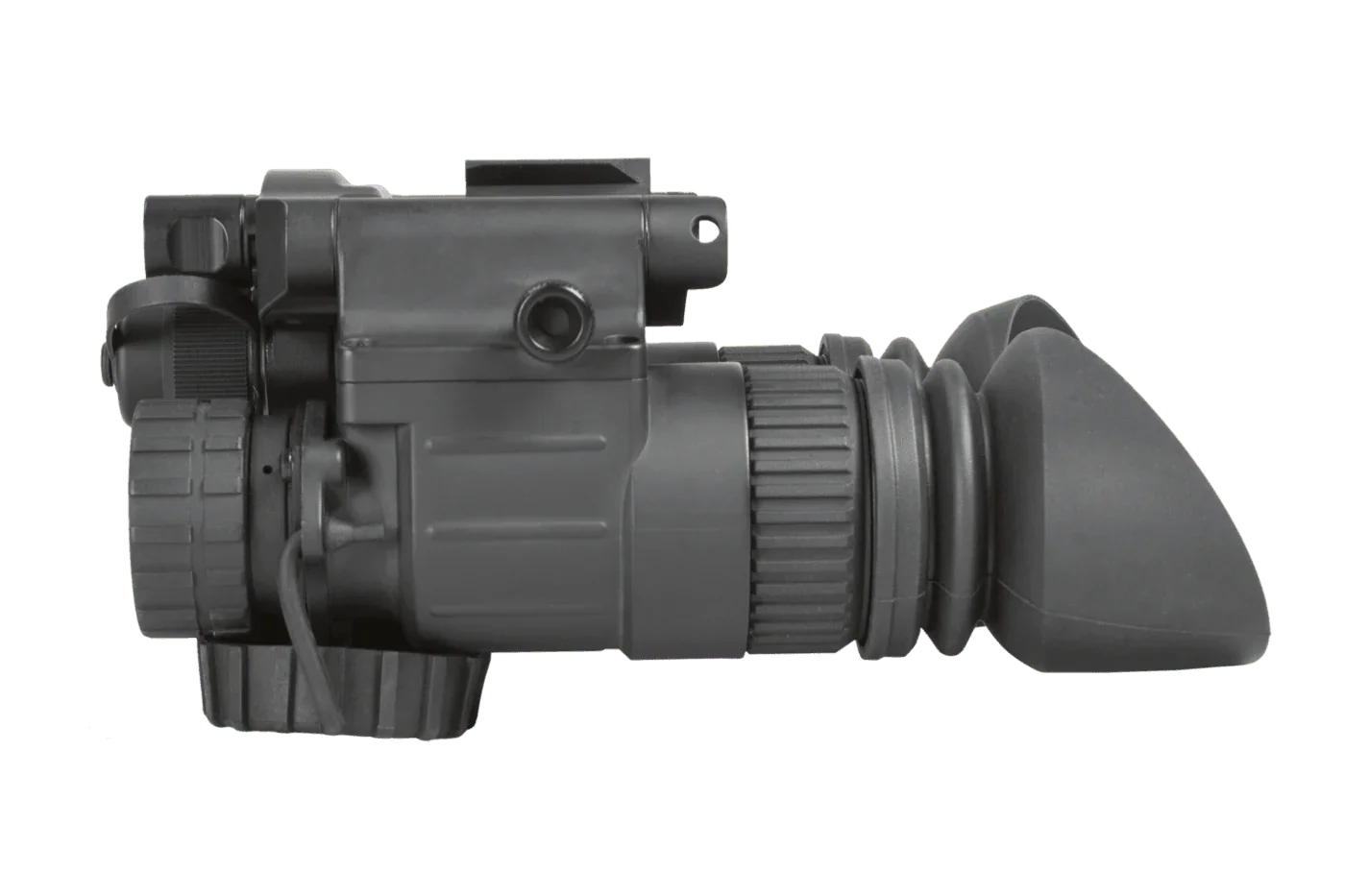

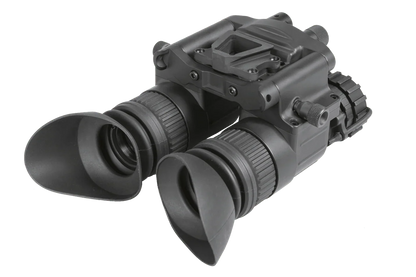

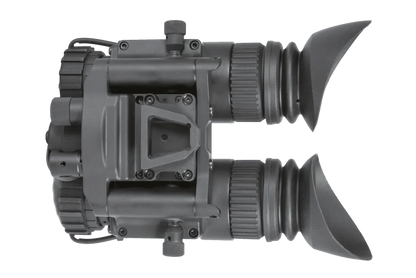

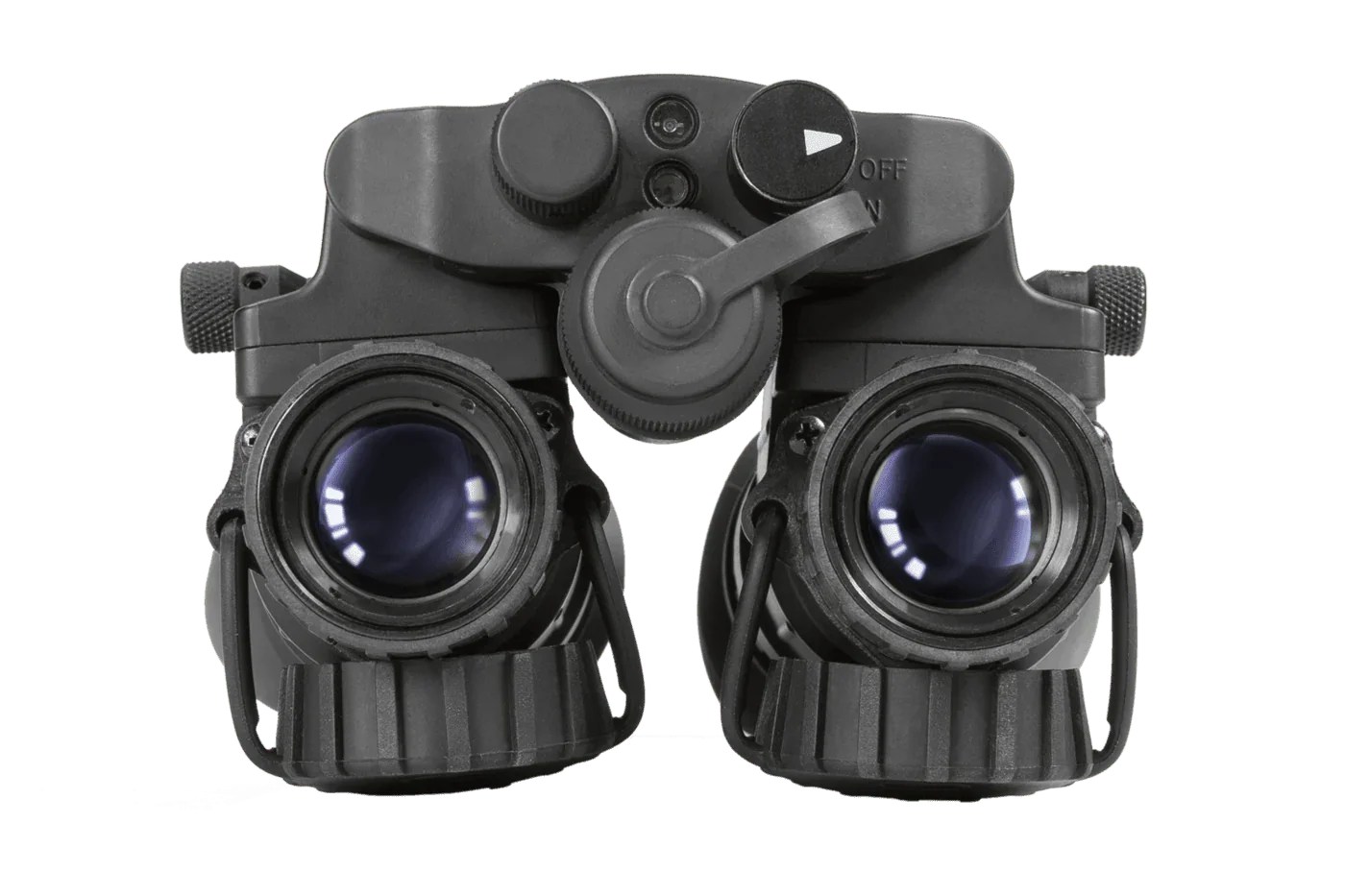

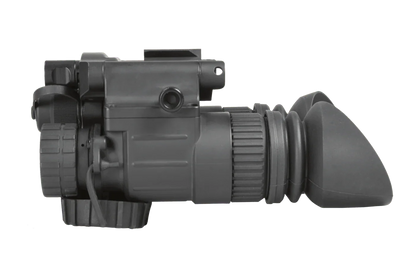

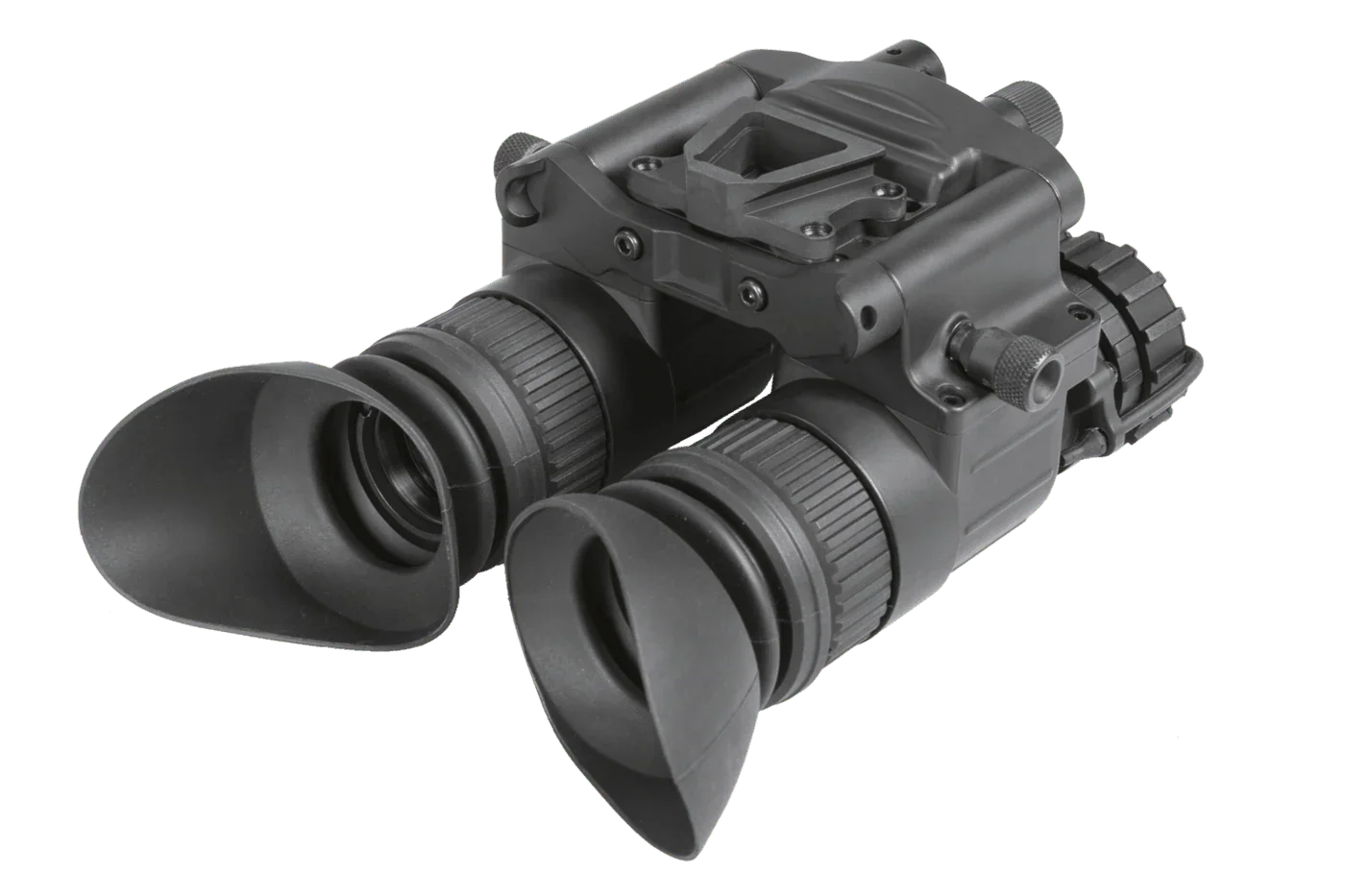

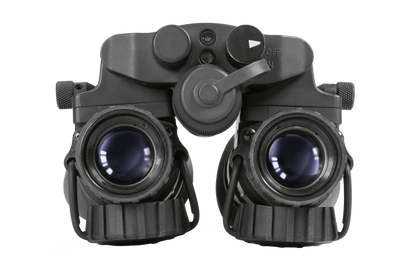

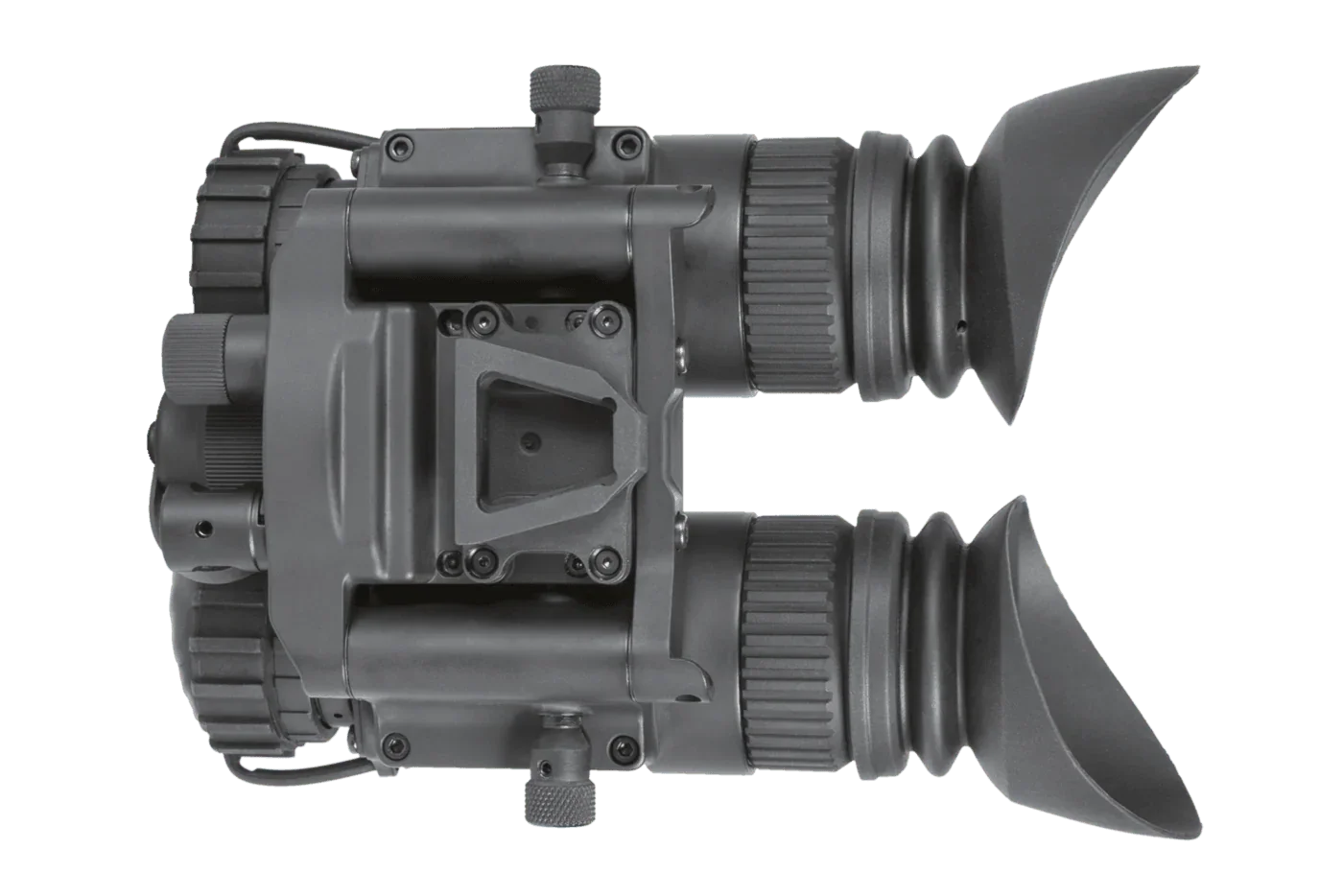

AGM NVG-40 3AW1 Night Vision Goggles/Binocular Dual Tube Gen 3 "White Phosphor Level 1" 14NV4123414111
Authorized Dealer
The AGM NVG-40 3AW1 offers a large, 40° field of view with dual-channel night vision. Optics are multi-coated to maximize clarity and are housed in a sturdy composite body. Powered by a single AA alkaline or CR123A battery, the NVG-40 runs for up to 20 hours. For total darkness operations, an integral infrared illuminator delivers the necessary light. The NVG-40 is fit for a variety of mounts including AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, AN/PVS-18, as well as mini-rail mounts.
Features:
- Redundant dual-tube design
- True stereoscopic vision
- Lightweight & compact
- Head or helmet mountable for hands-free operation
- Bright light cut-off
- Ergonomic, simple, easy to operate controls
- Built-in Infrared illuminator and flood lens
- Utilizes single CR123A lithium or AA battery
- Limited 3-year warranty
| Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
| Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
| >.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
| >.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
| >.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
| >.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
| .003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
| *Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
| **Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
| Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
| >.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
| >.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
| >.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
| >.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
| .003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
| *Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
| **Spot Size (in.) |
|
|
|
|
|
|
|
|
|
Specifications:
Gen 3 Auto-Gated "White Phosphor Level 1"
Field of view cleanness by zone
Gen 3 IIT 3AW1 is offered with high quality and practically no visible spots in Zone 1.
Low Battery IR On Excessive Light Conditions
Automatic Shut-Off System
One CR123A (3V) or AA (1.5 V)
Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
115 × 118 × 74 mm (4.5 × 4.6 × 2.9 in)
- NVG Interface Shoe
- Bayonet/Horn Interface Shoe
- Demist Shield (2)
- Sacrificial Window
- Soft Carrying Case
- Lens Tissue
- Packing Box
- Battery Adapter
- User Manual
