AGM NVG-40 NL1 Night Vision Goggles/Binocular Dual Tube Gen 2+ "Level 1" 14NV4122483011

Authorized Dealer

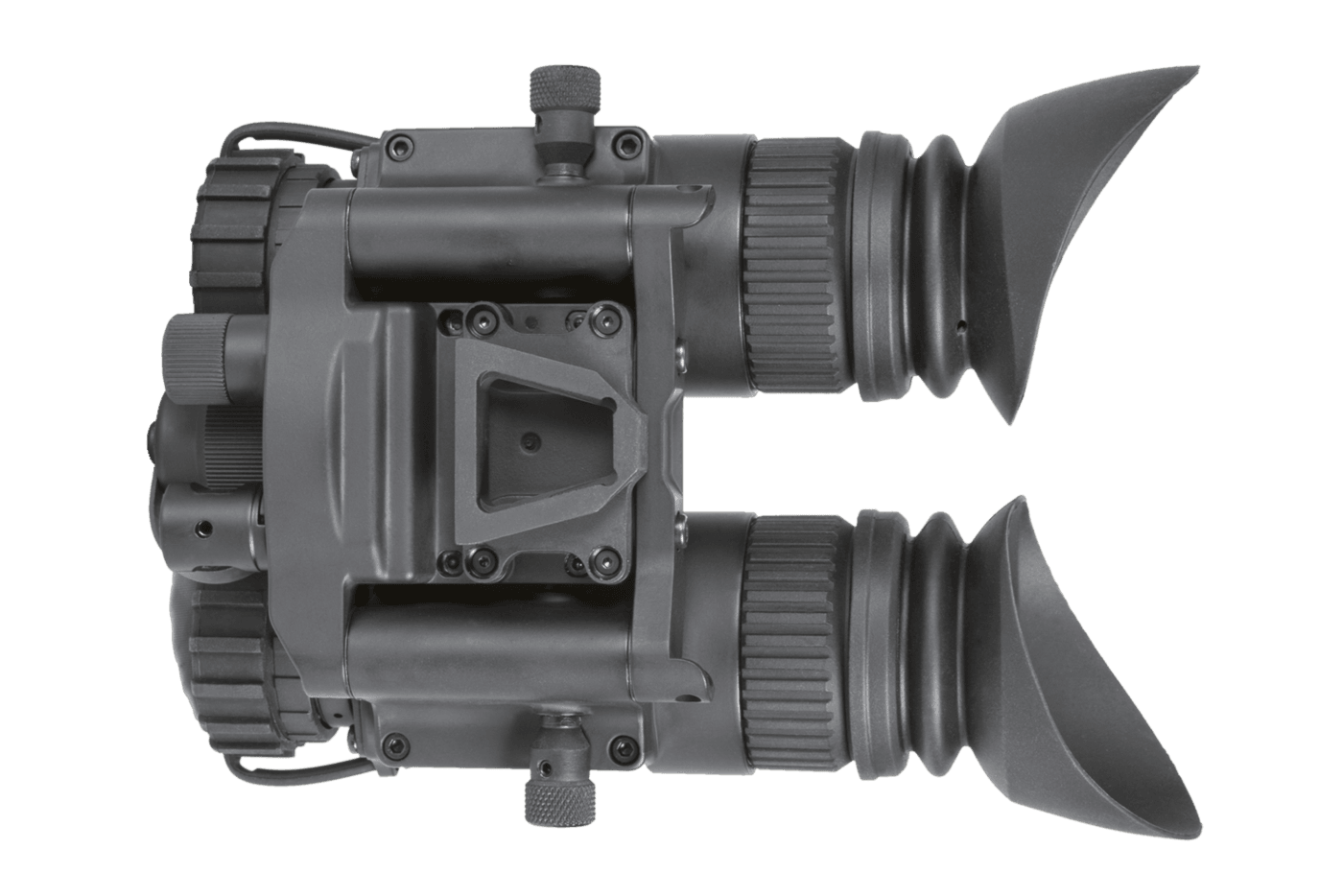

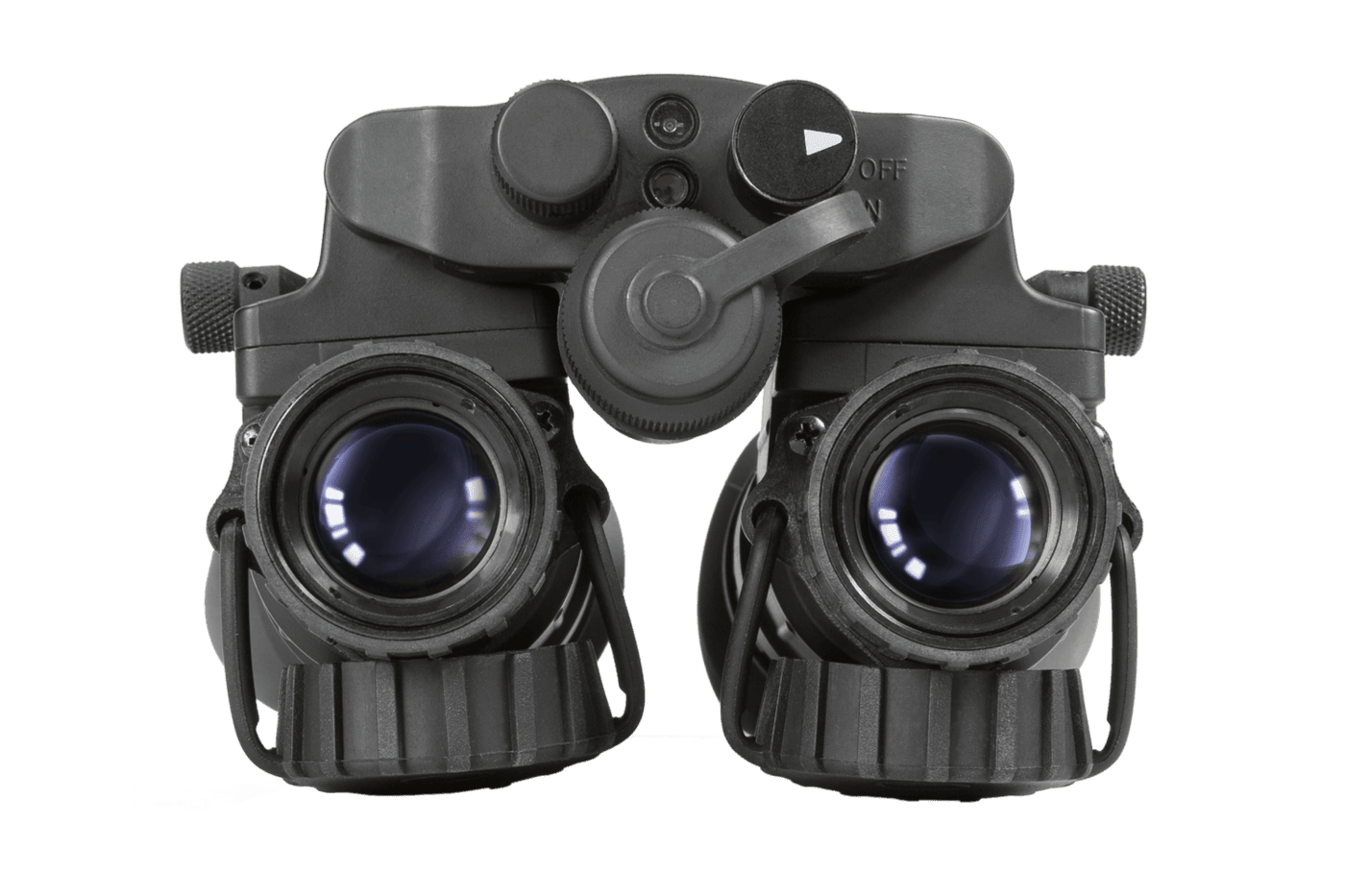

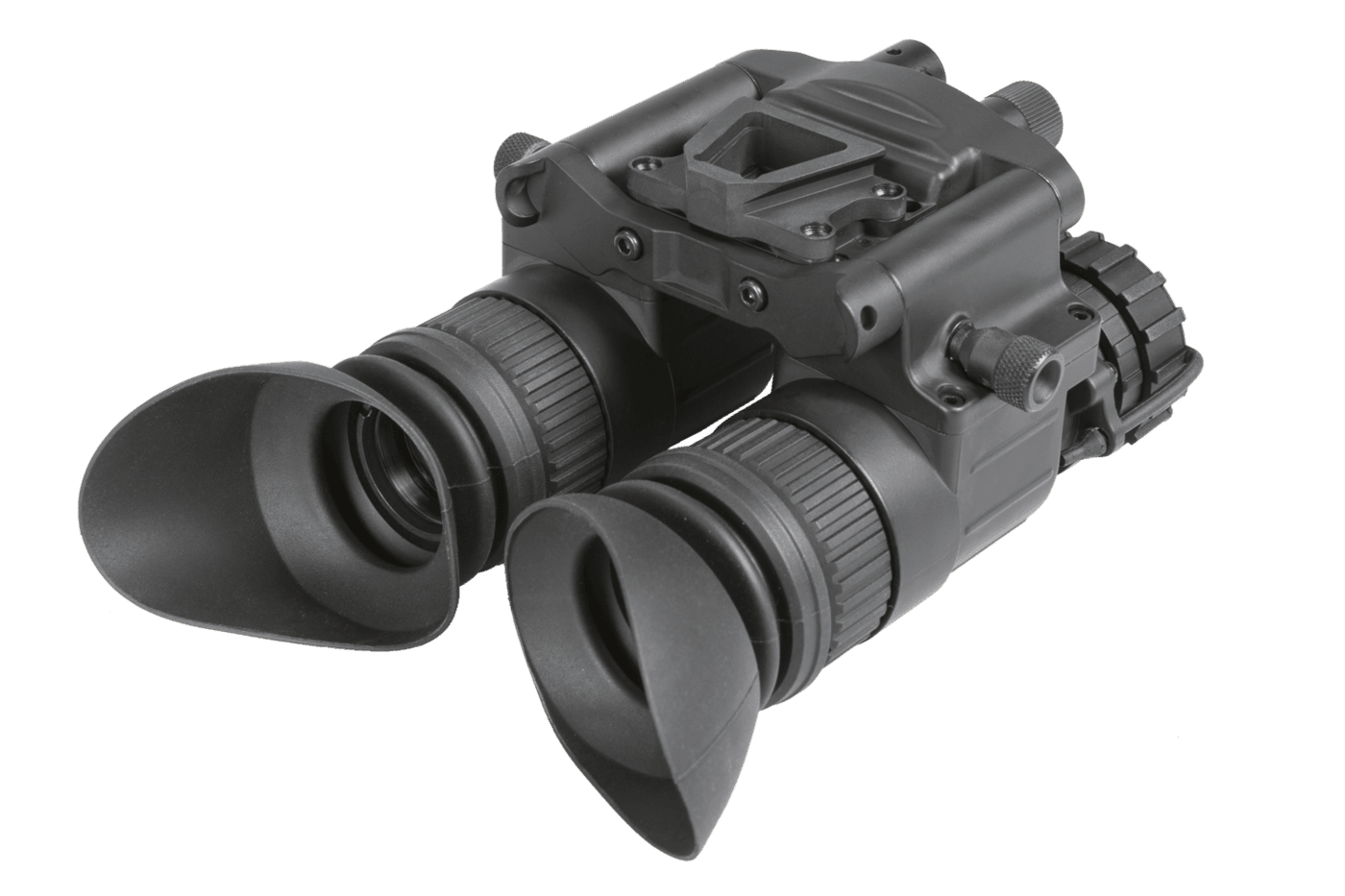

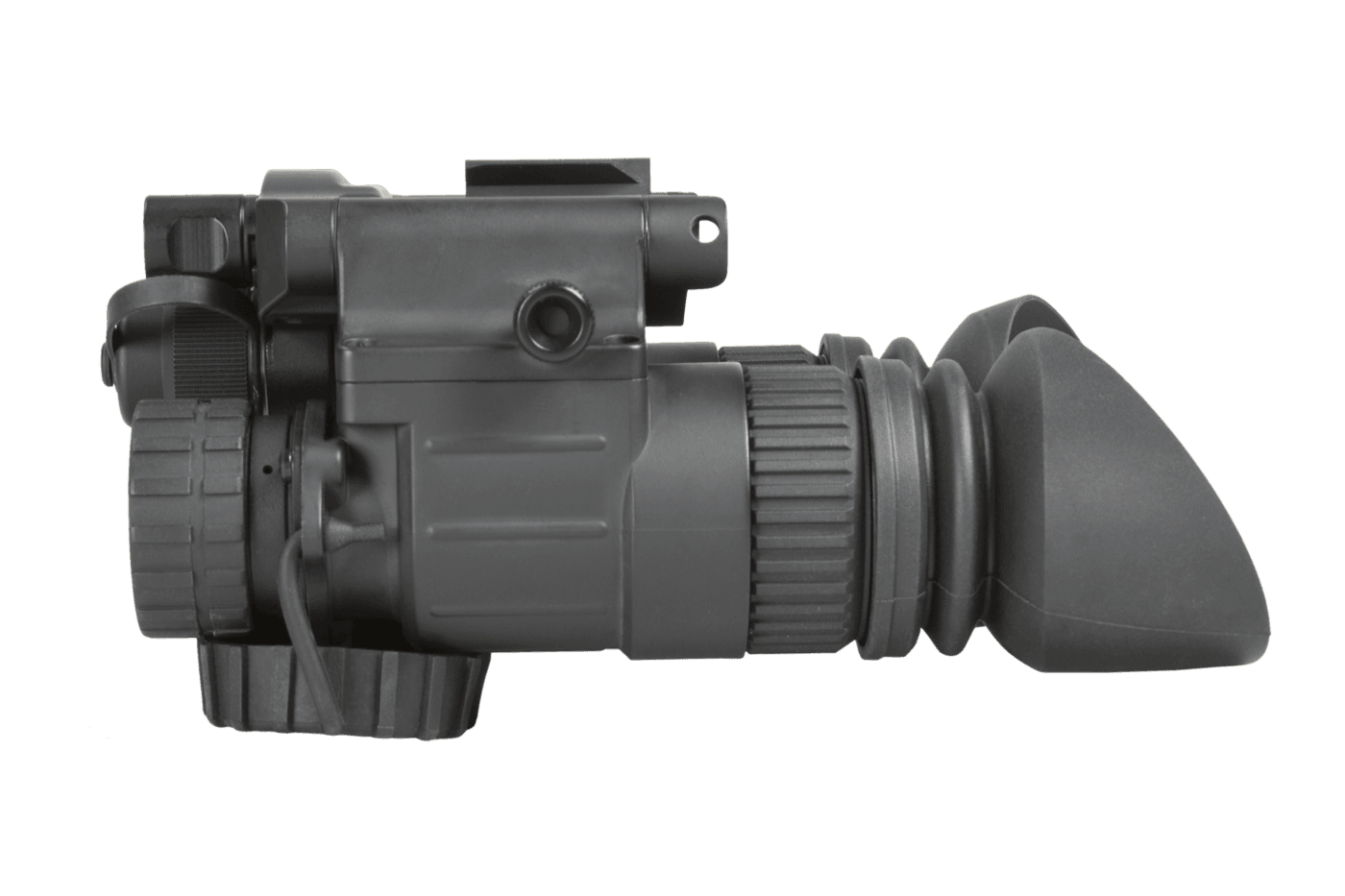

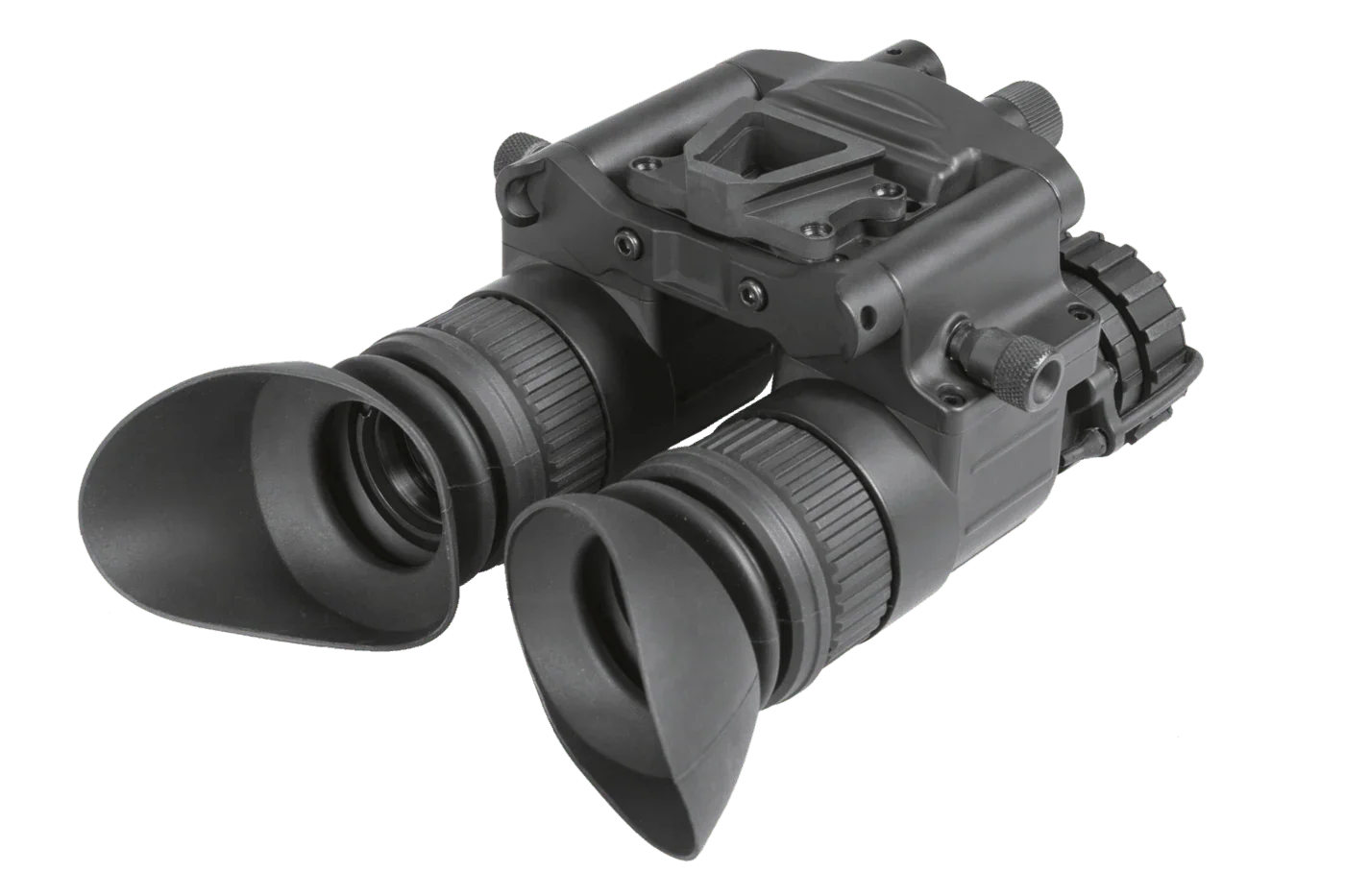

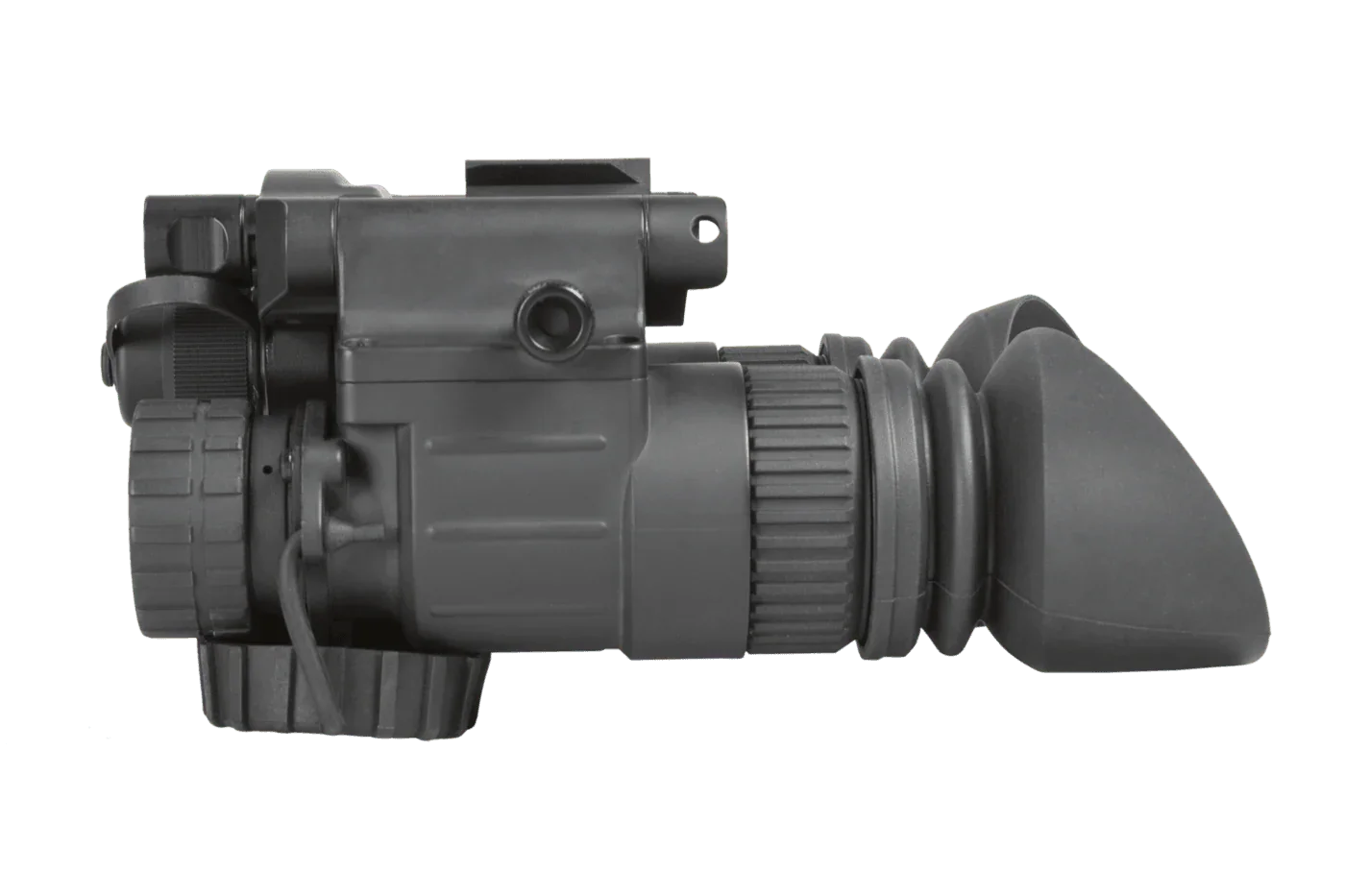

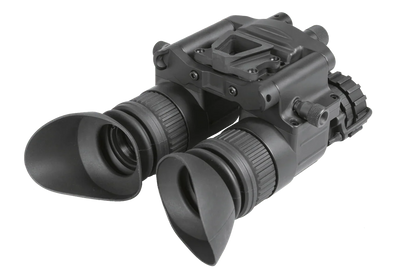

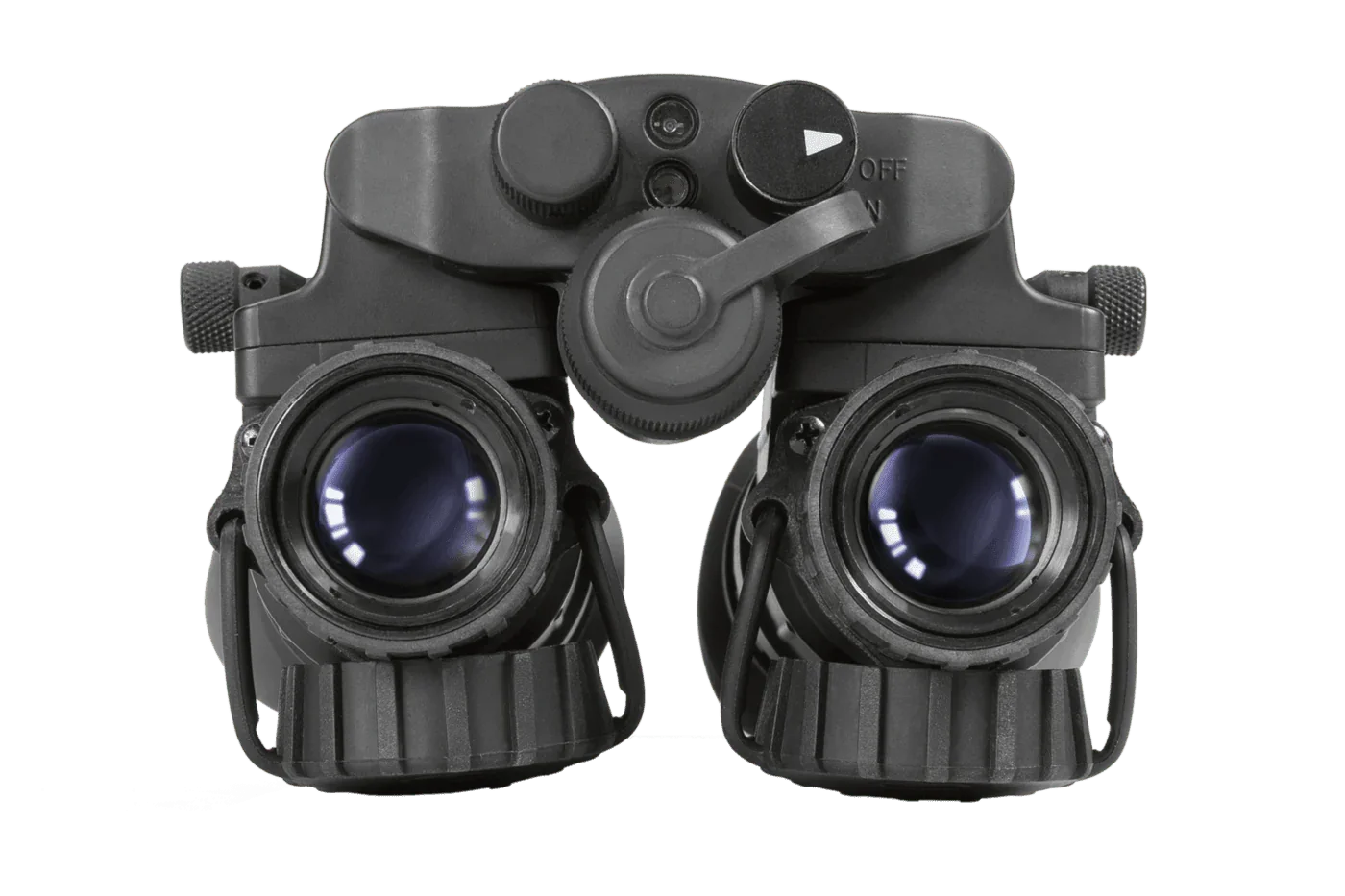

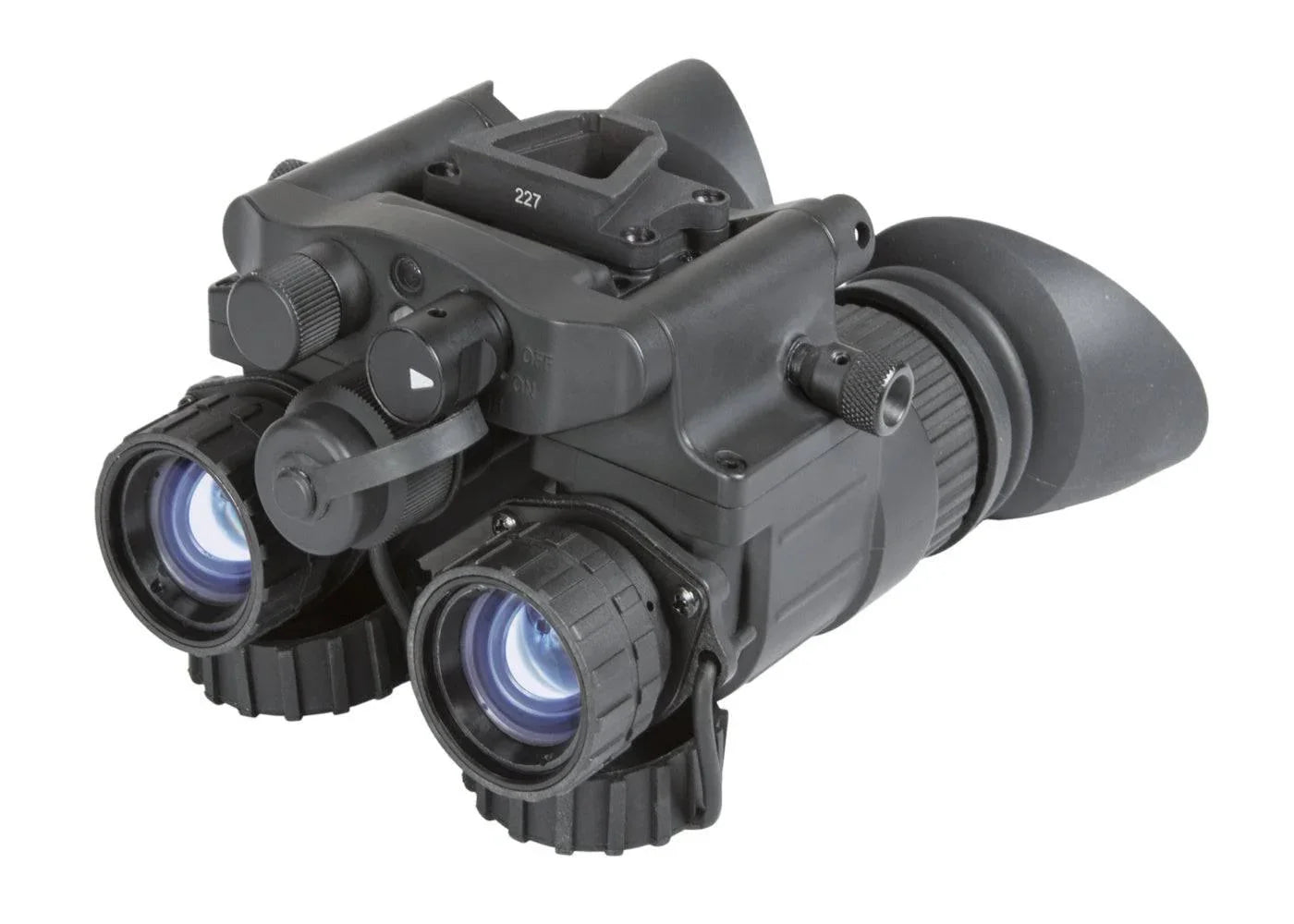

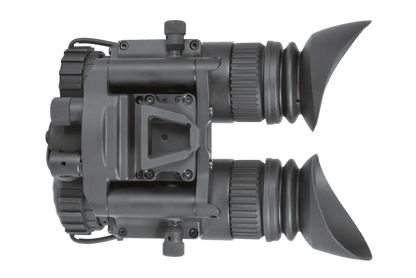

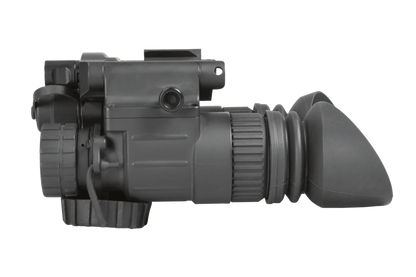

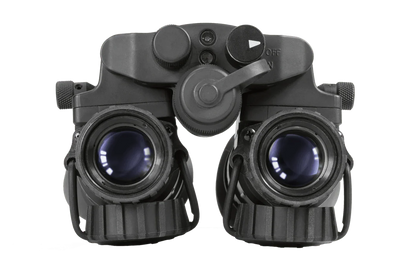

The AGM NVG-40 NL1 Gen 2+ is an advanced, dual-channel night vision system featuring multi-coated optics and a durable composite housing. This unit comes with a 40° field of view and 20-hour max runtime on 1 AA alkaline or CR123A battery. Additionally, an integral IR illuminator is integrated for night-time reading. With its compact size and various compatible mounts, the NVG-40 can be affixed to AN/PVS-7D, AN/PVS-14, AN/PVS-7A/C, AN/PVS-15, and AN/PVS-18 mounts, as well as mounts with a mini-rail interface.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.
Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

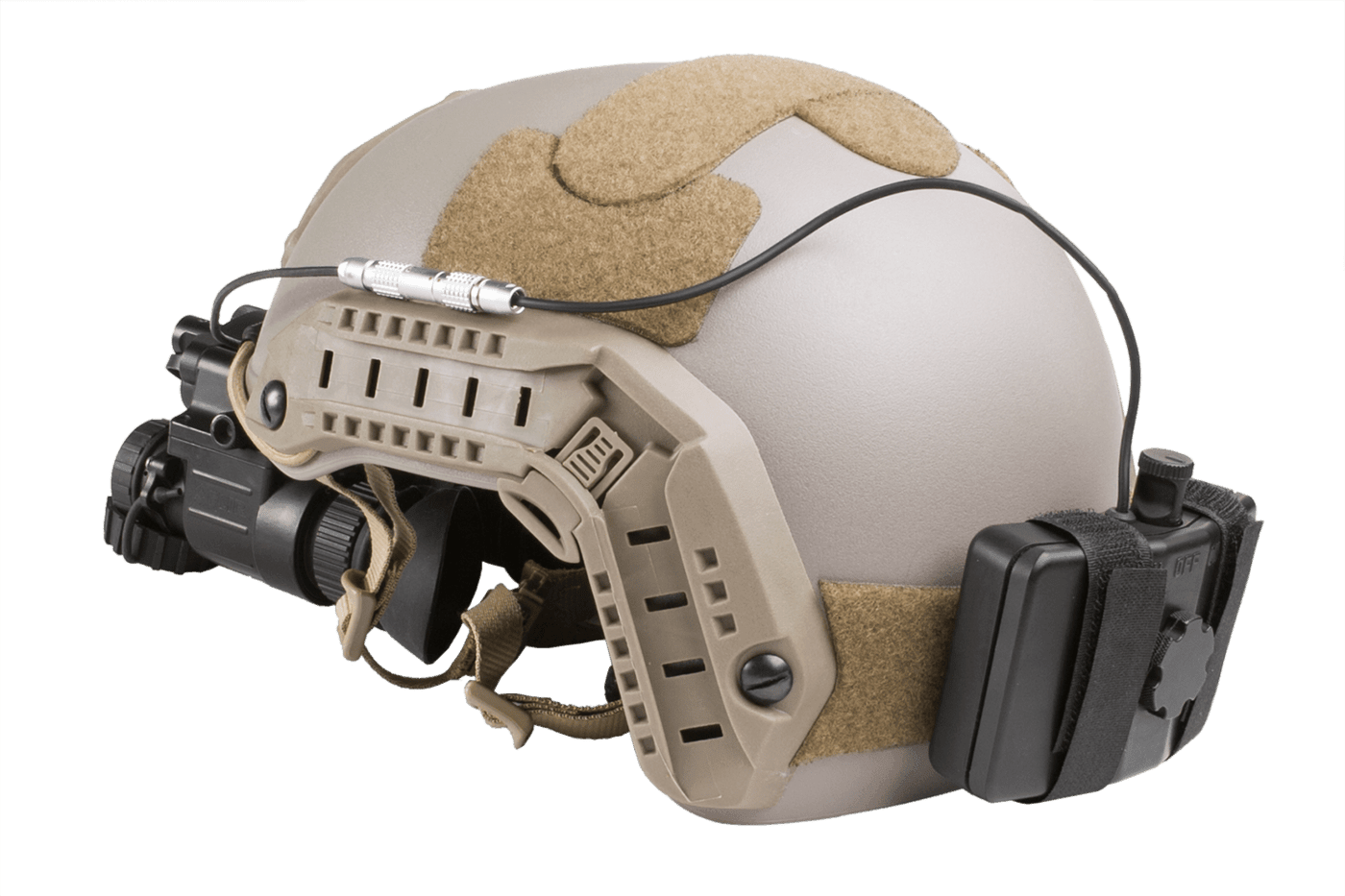

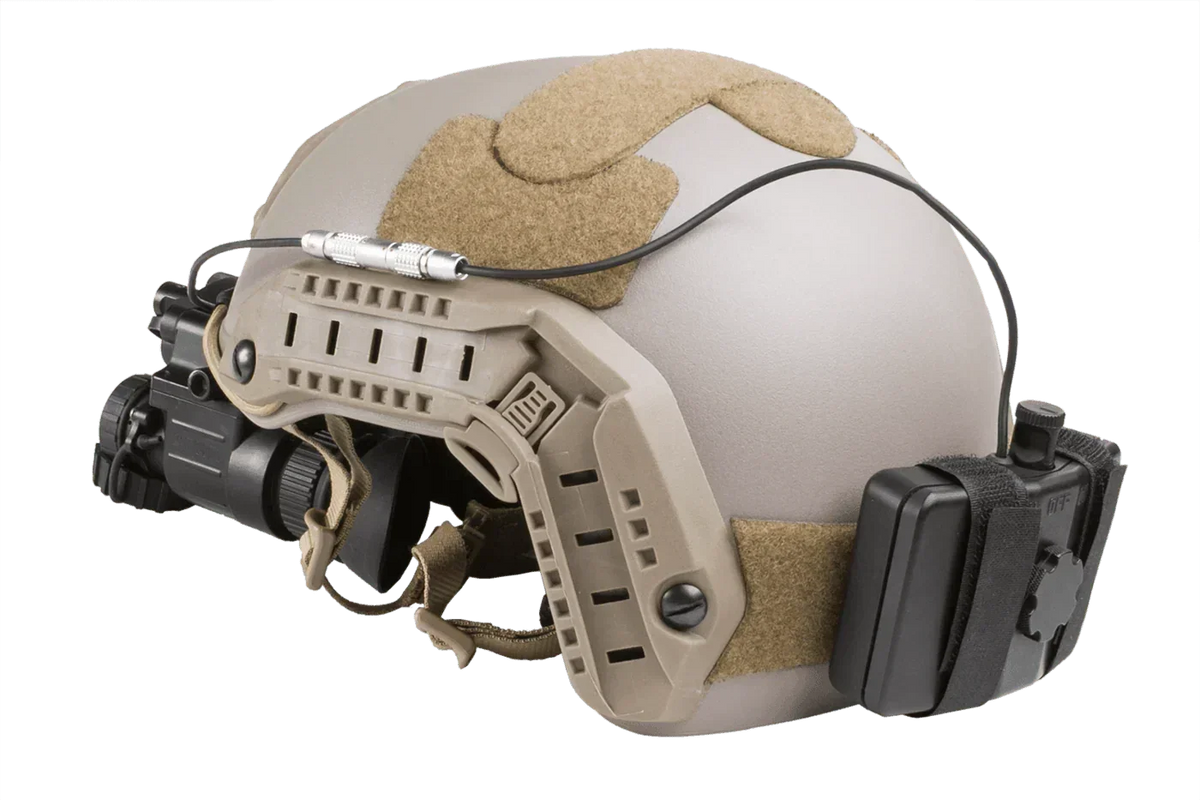

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.
Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount

Features:

Redundant dual-tube design
True stereoscopic vision
Lightweight & compact

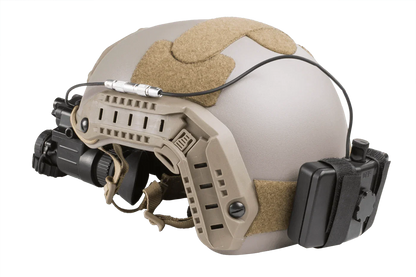

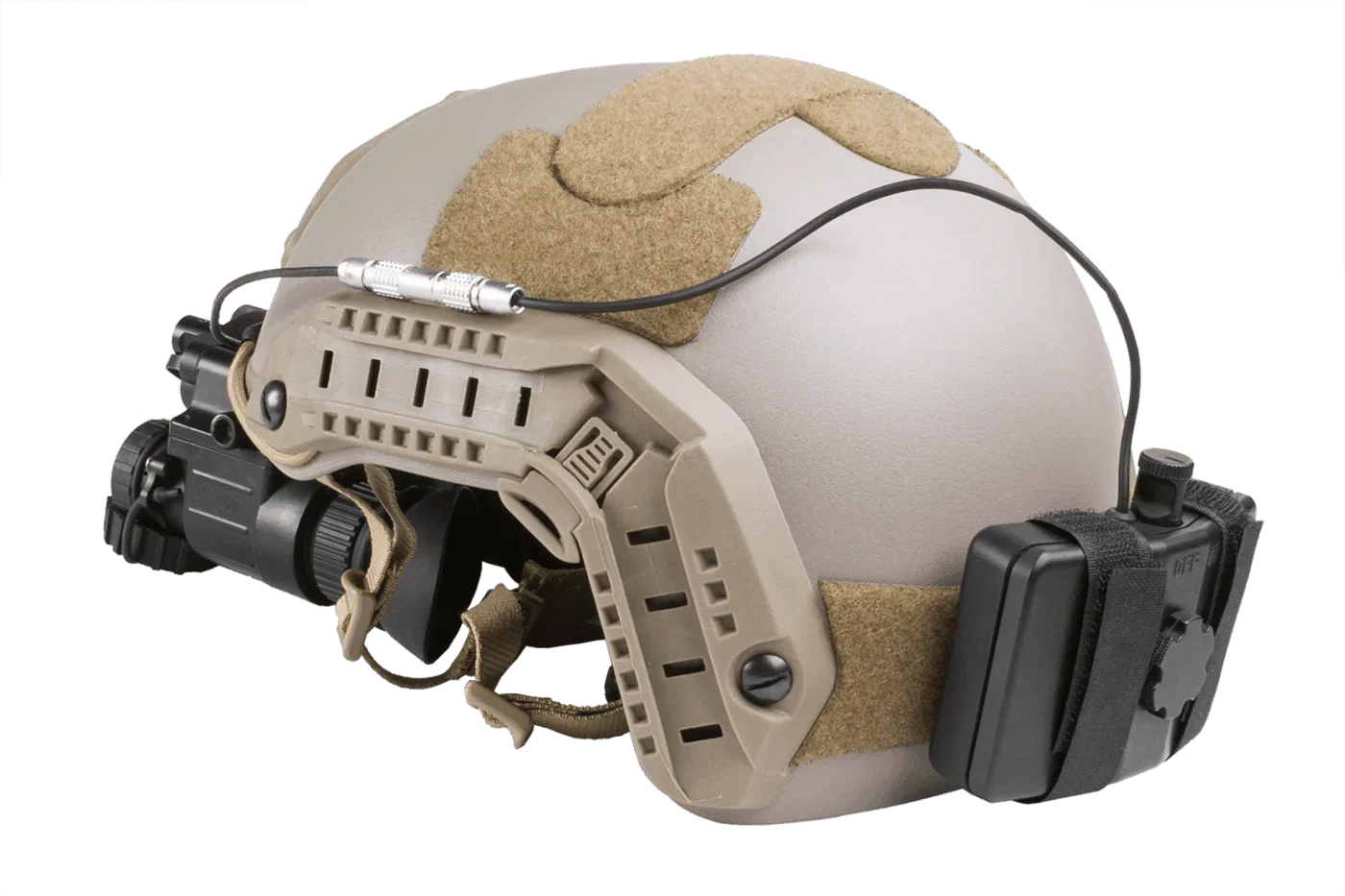

Head or helmet mountable for hands-free operation
Bright light cut-off
Ergonomic, simple, easy to operate controls
Built-in Infrared illuminator and flood lens
Utilizes single CR123A lithium or AA battery
Limited 3-year warranty

Gen2+ Lvls	NL1/NW1 - Gen2+ Lvl1			NL2/NW2 - Gen2+ Lvl2			NL3 - Gen2+ Lvl3
Zone	1	2	3	1	2	3	1	2	3
>.015 or larger	0	0	0	0	0	0	0	0	1
>.012 - .015	0	0	0	0	0	1	0	1	1
>.009 - .012	0	1	1	0	2	2	1	2	2
>.006 - .009	0	1	2	1	2	2	1	2	2
.003 - .006	1	2	3	2	3	3	2	3	3
*Qty indicates Max Spots Allowed in Each Zone
**Spot Size (in.)

Gen3 Lvls	3NL1/3AW1 - Gen3 Lvl1			3NL2/3AW2 - Gen3 Lvl2			3NL3/3AW3 - Gen3 Lvl3
Zone	1	2	3	1	2	3	1	2	3
>.015 or larger	0	0	0	0	0	0	0	0	1
>.012 - .015	0	0	0	0	0	1	0	1	1
>.009 - .012	0	1	1	0	2	2	1	2	2
>.006 - .009	0	1	2	1	2	2	1	2	2
.003 - .006	1	2	3	2	3	3	2	3	3
*Qty indicates Max Spots Allowed in Each Zone
**Spot Size (in.)
