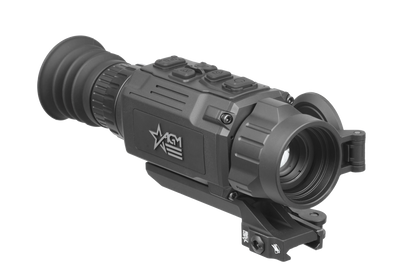

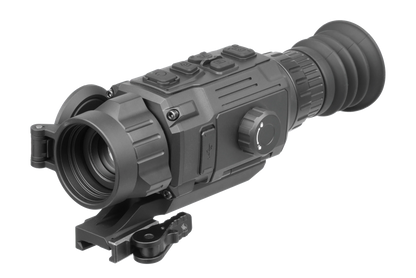

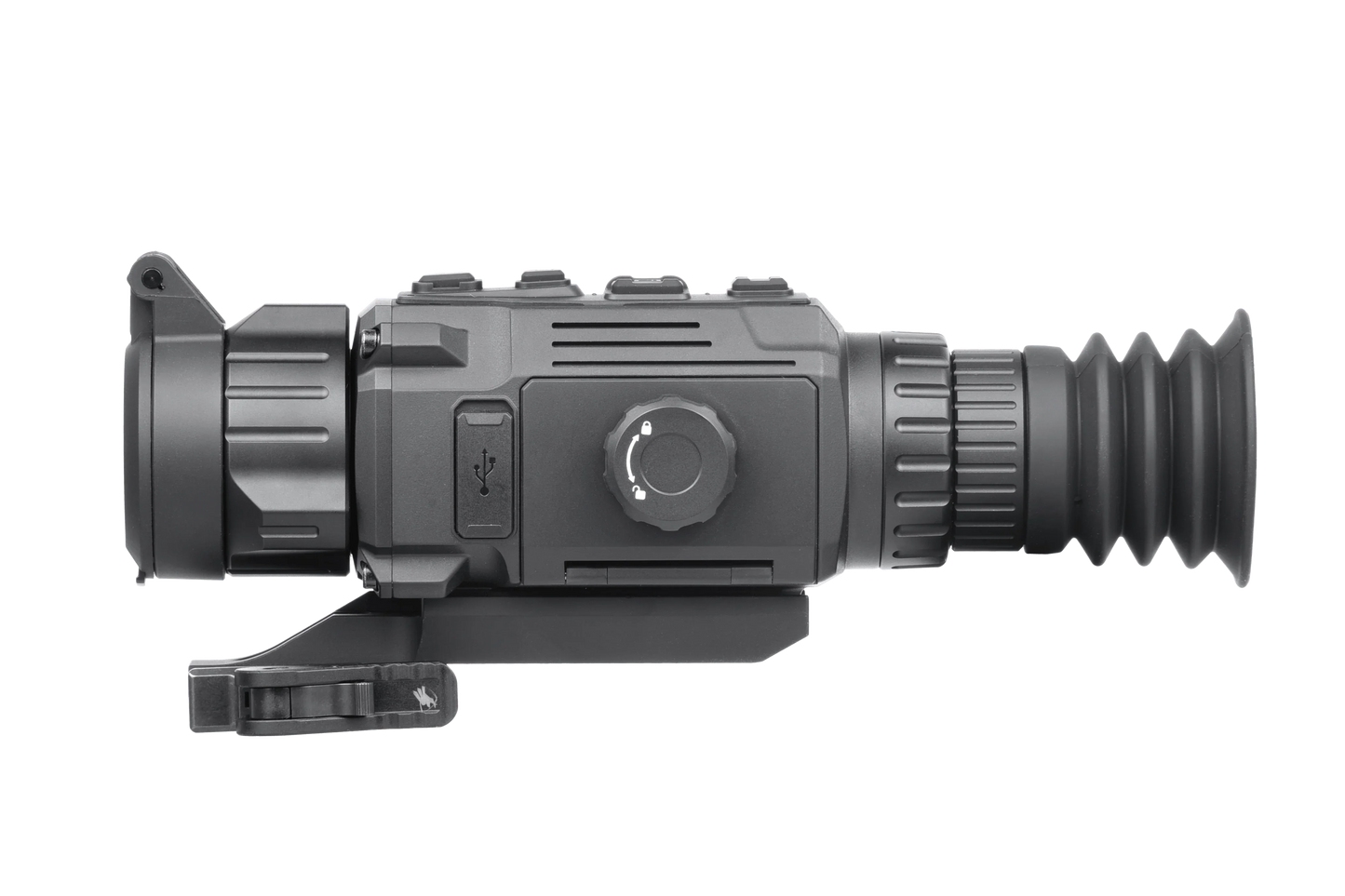

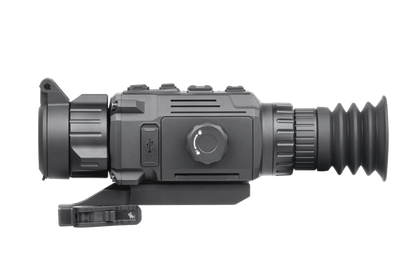

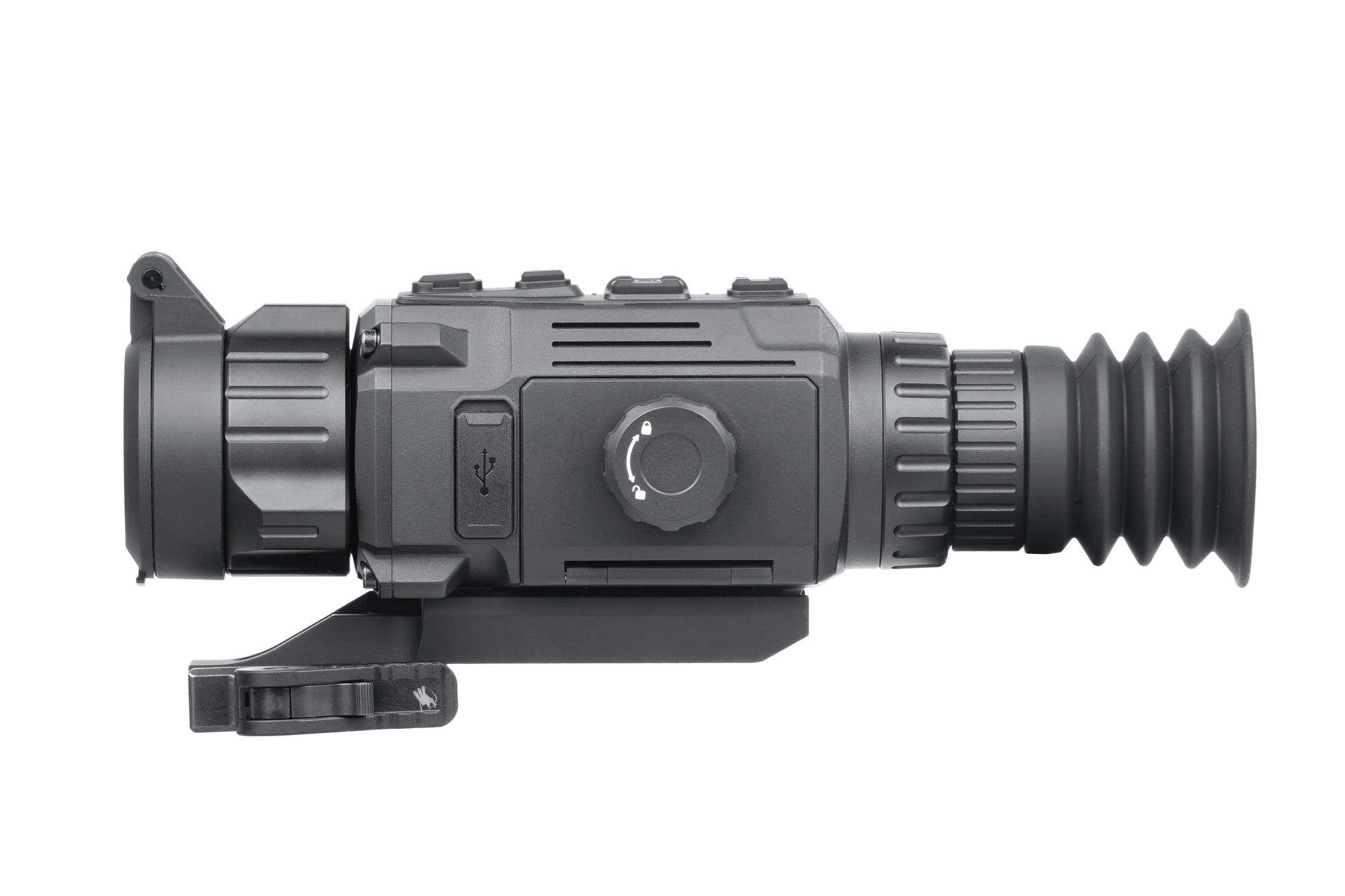

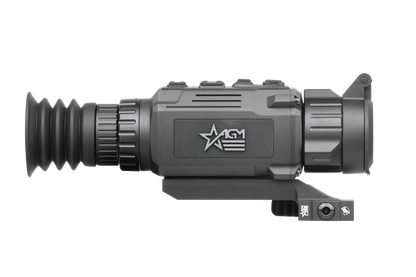

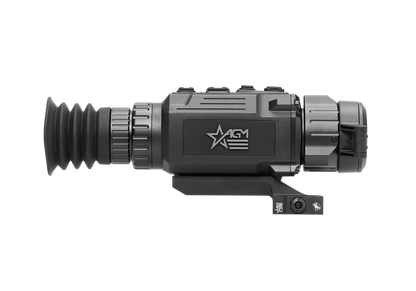

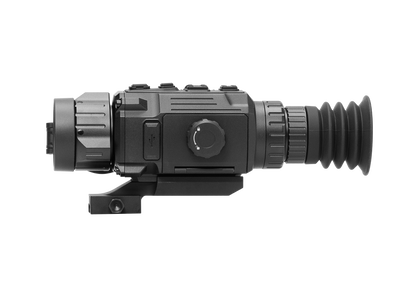

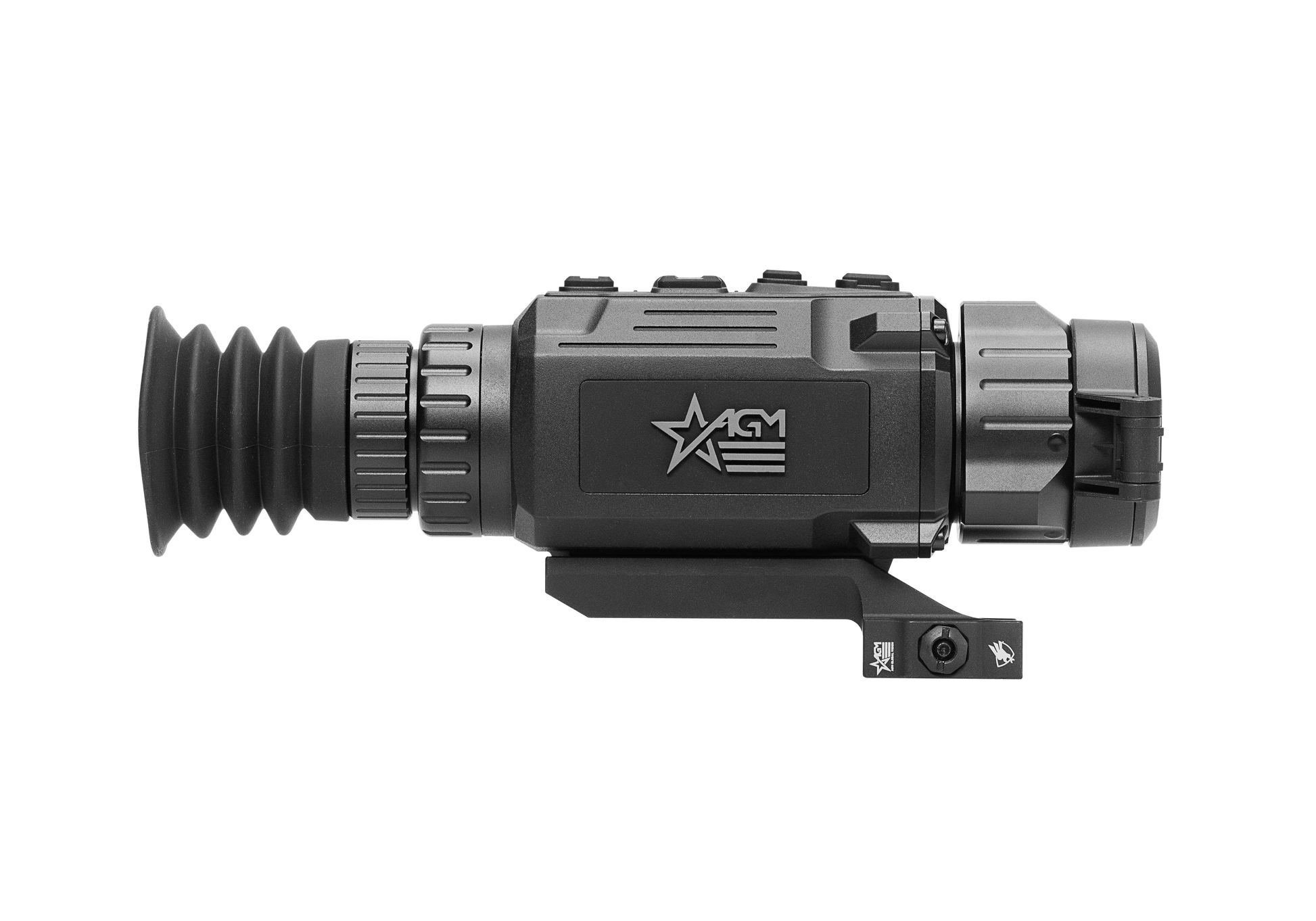

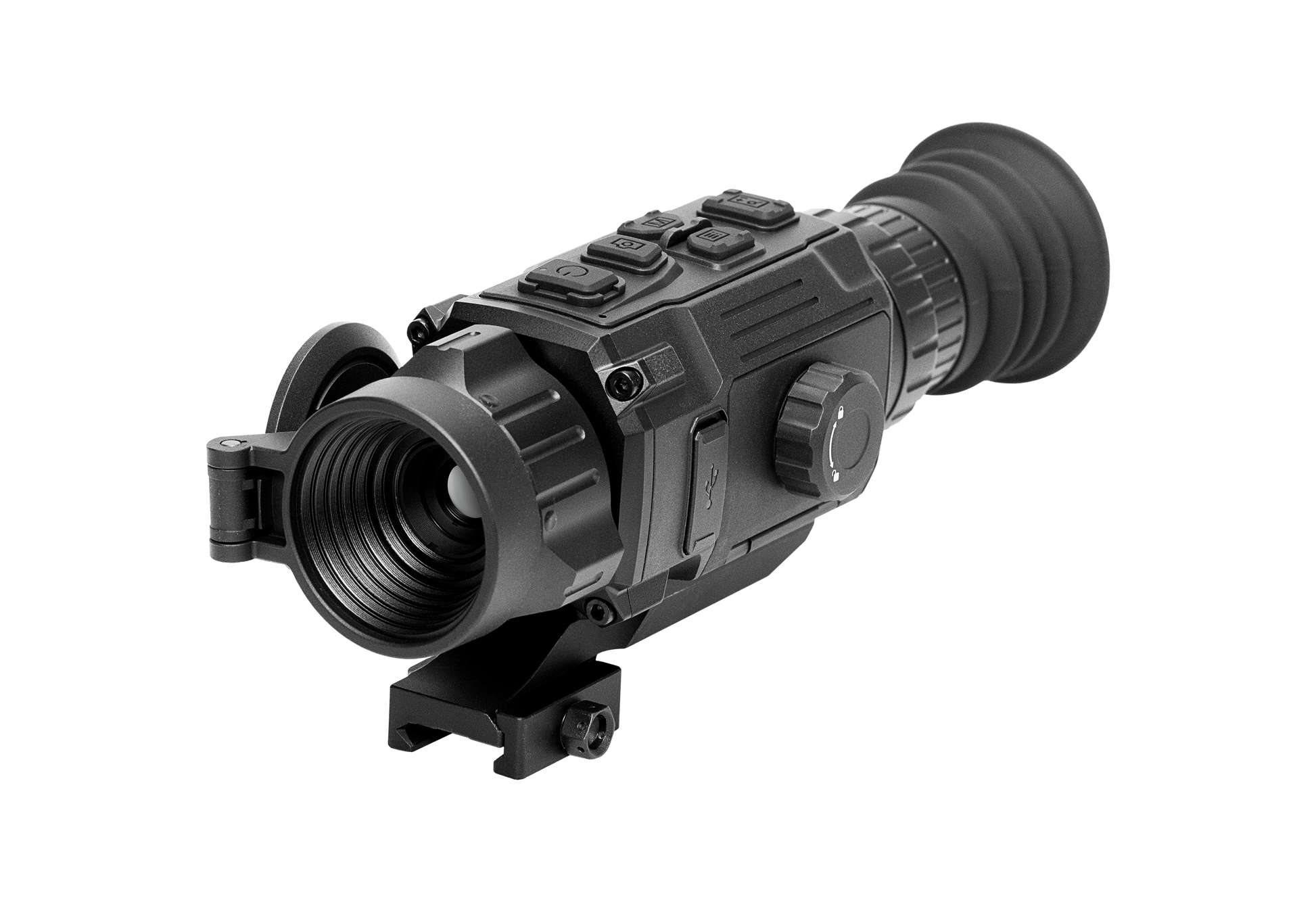

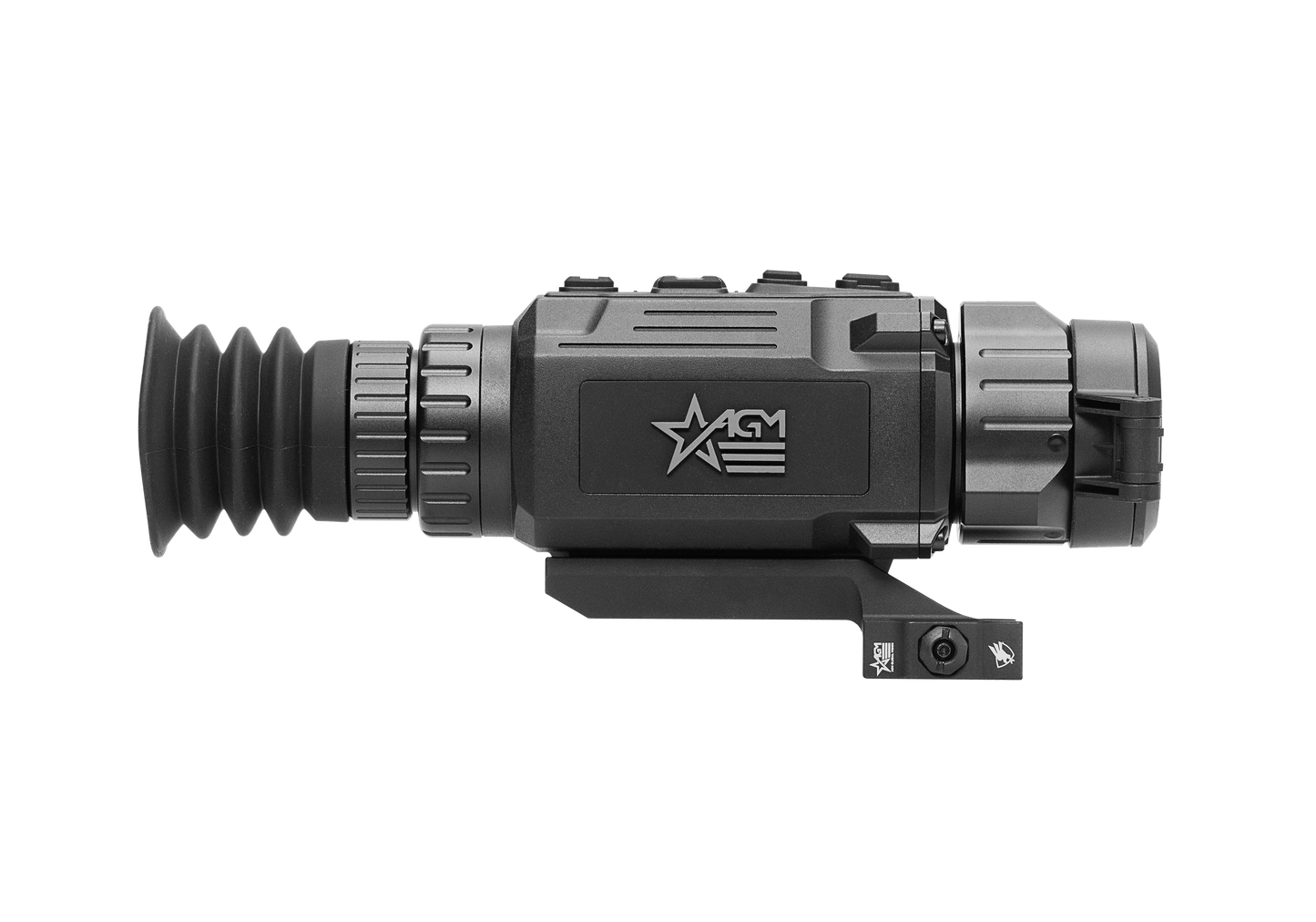

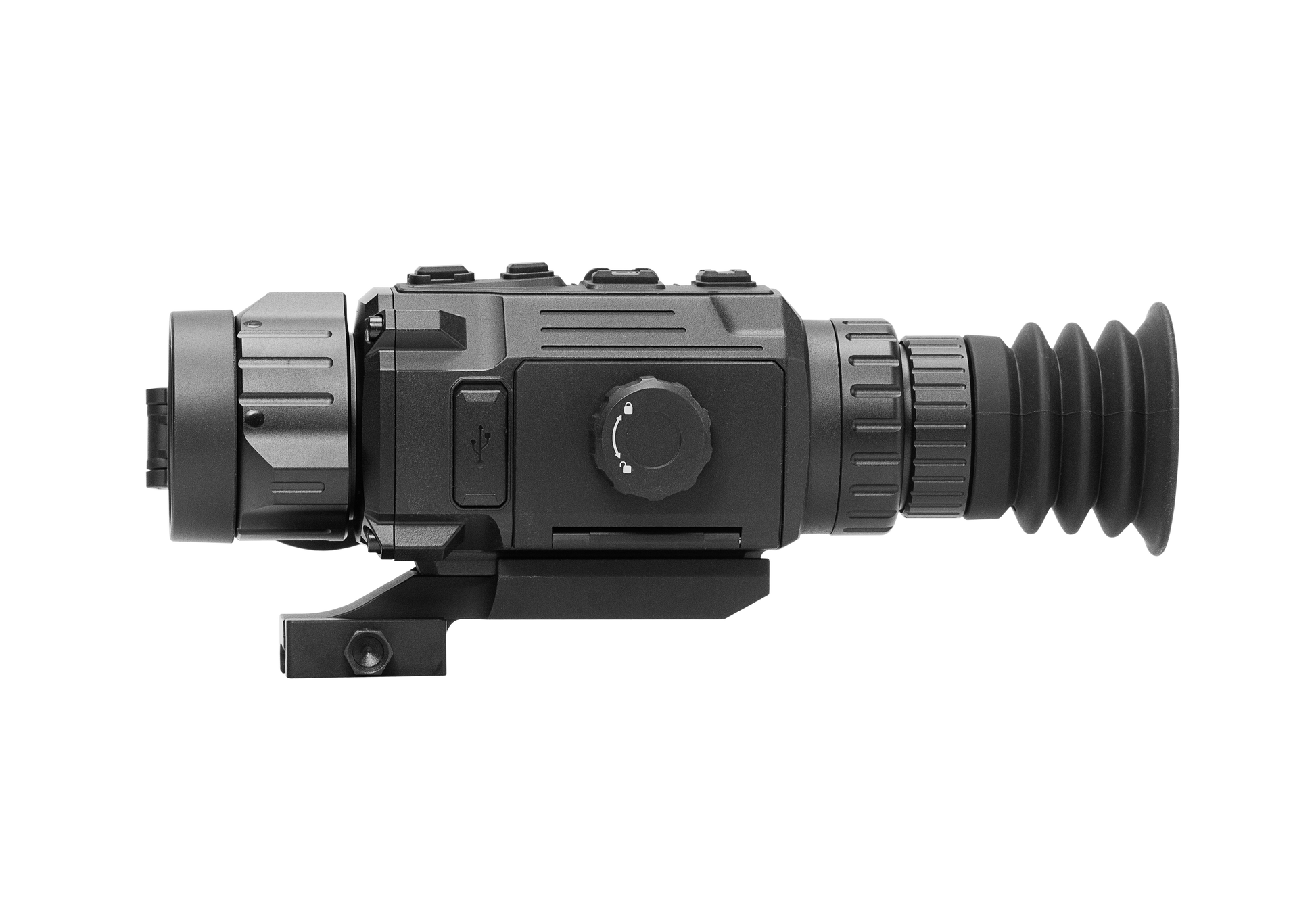

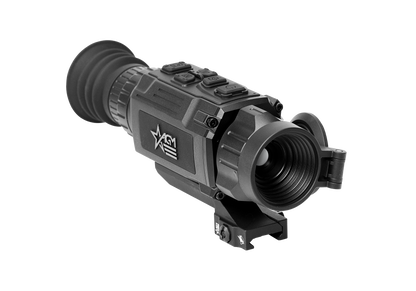

AGM Rattler V2 19-256 Thermal Rifle Scope Weapon Sight 256x192 (50Hz) 19mm (314218550203R921)

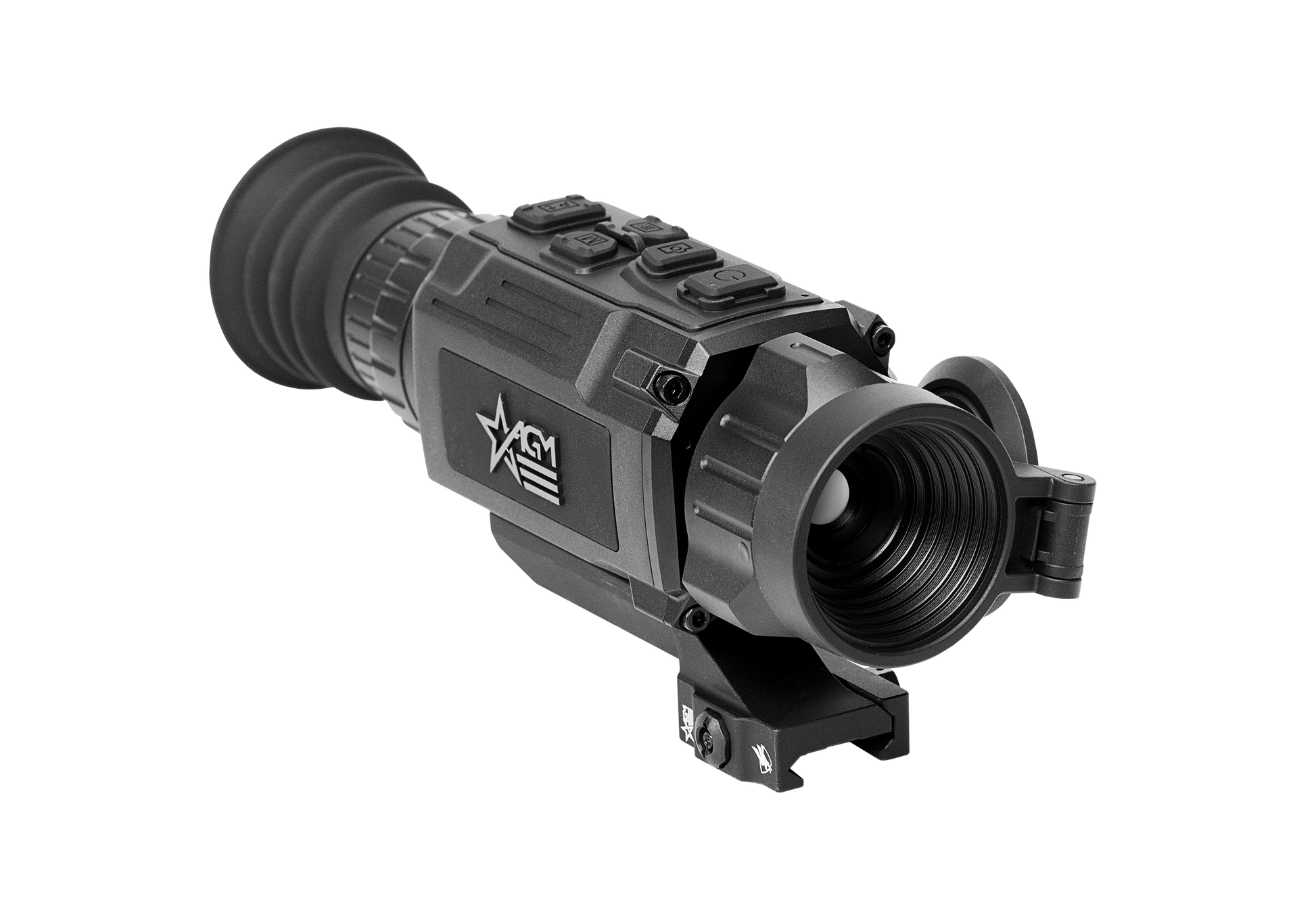

The RattlerV2 19-256, an upgraded version of the Rattler TS19-256, is an excellent choice for close-range night hunting, beginners in thermal hunting, or as a secondary "buddy" scope. It features a 19mm Germanium lens, a 256x192 resolution thermal sensor, and a 2.5x base magnification, with a detection range extending up to 950 yards. Its wide Field of View (9.3° × 6.9°, or 49 feet at 100 yards) enables comprehensive area coverage during scanning. The RattlerV2 also improves upon its predecessor by upgrading the refresh rate from 25 Hz to 50 Hz, ensuring smoother and more responsive scanning.

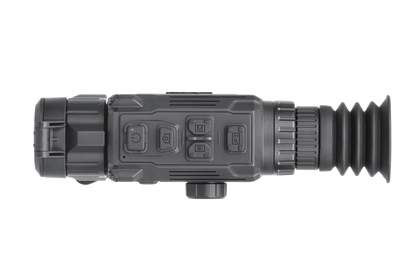

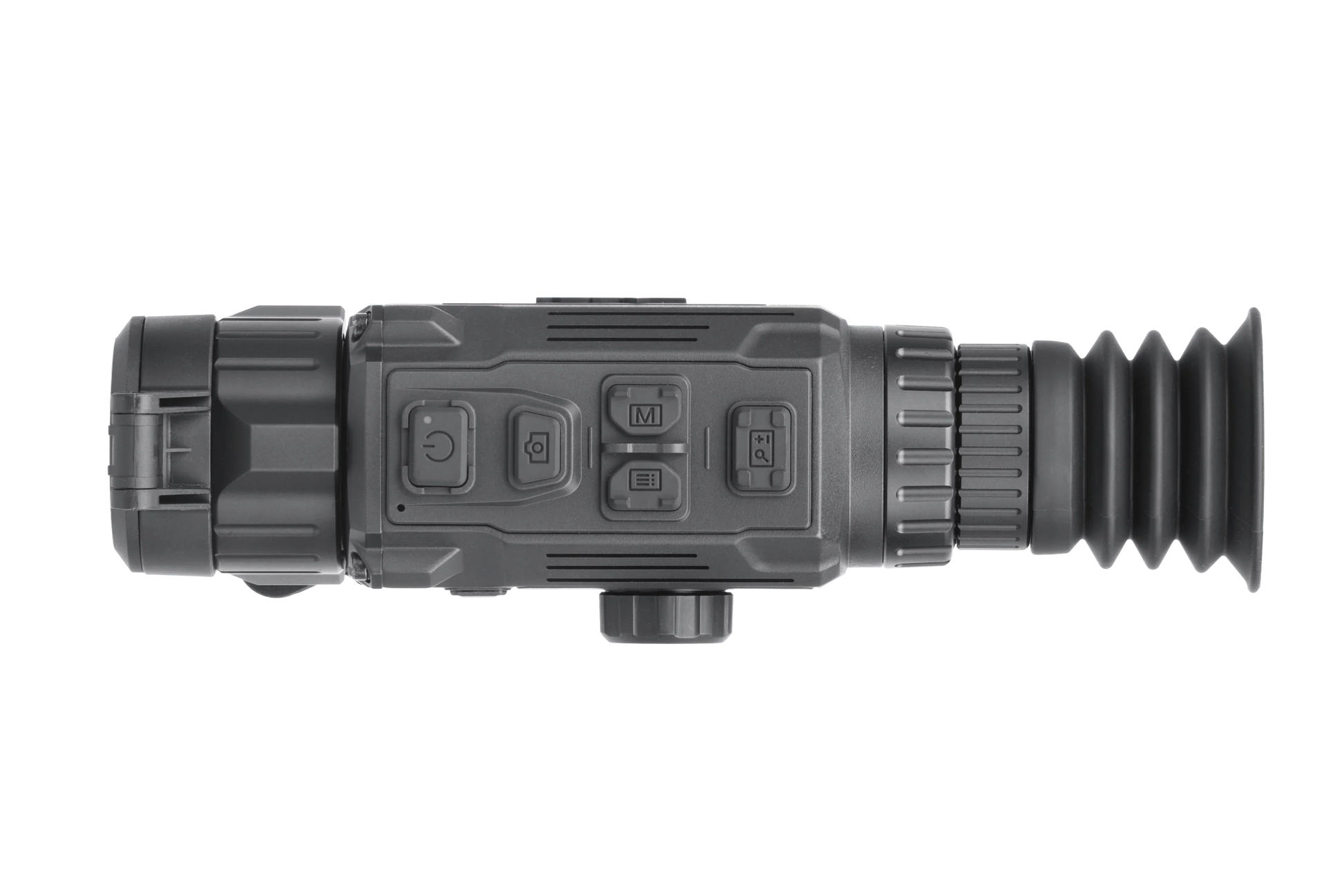

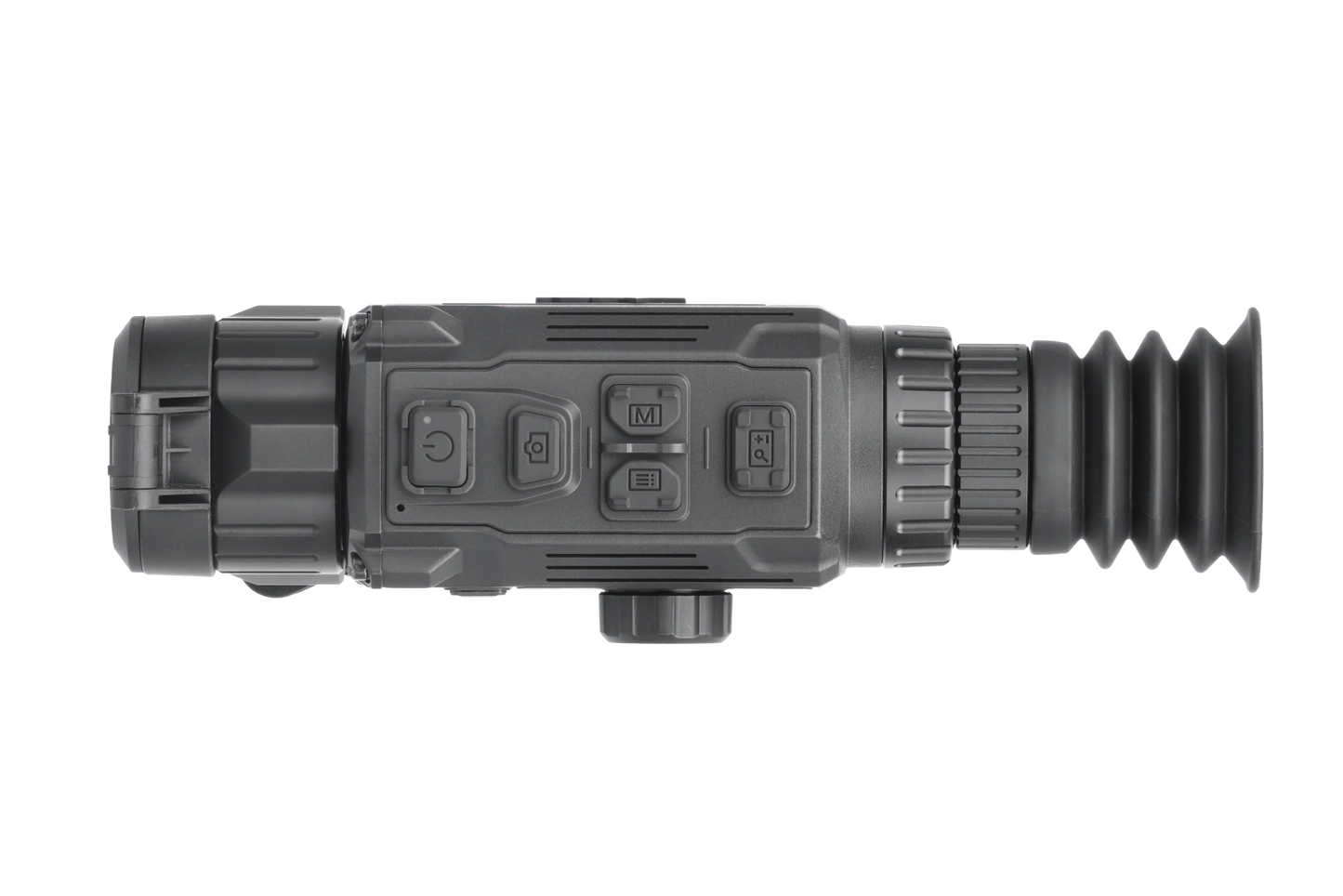

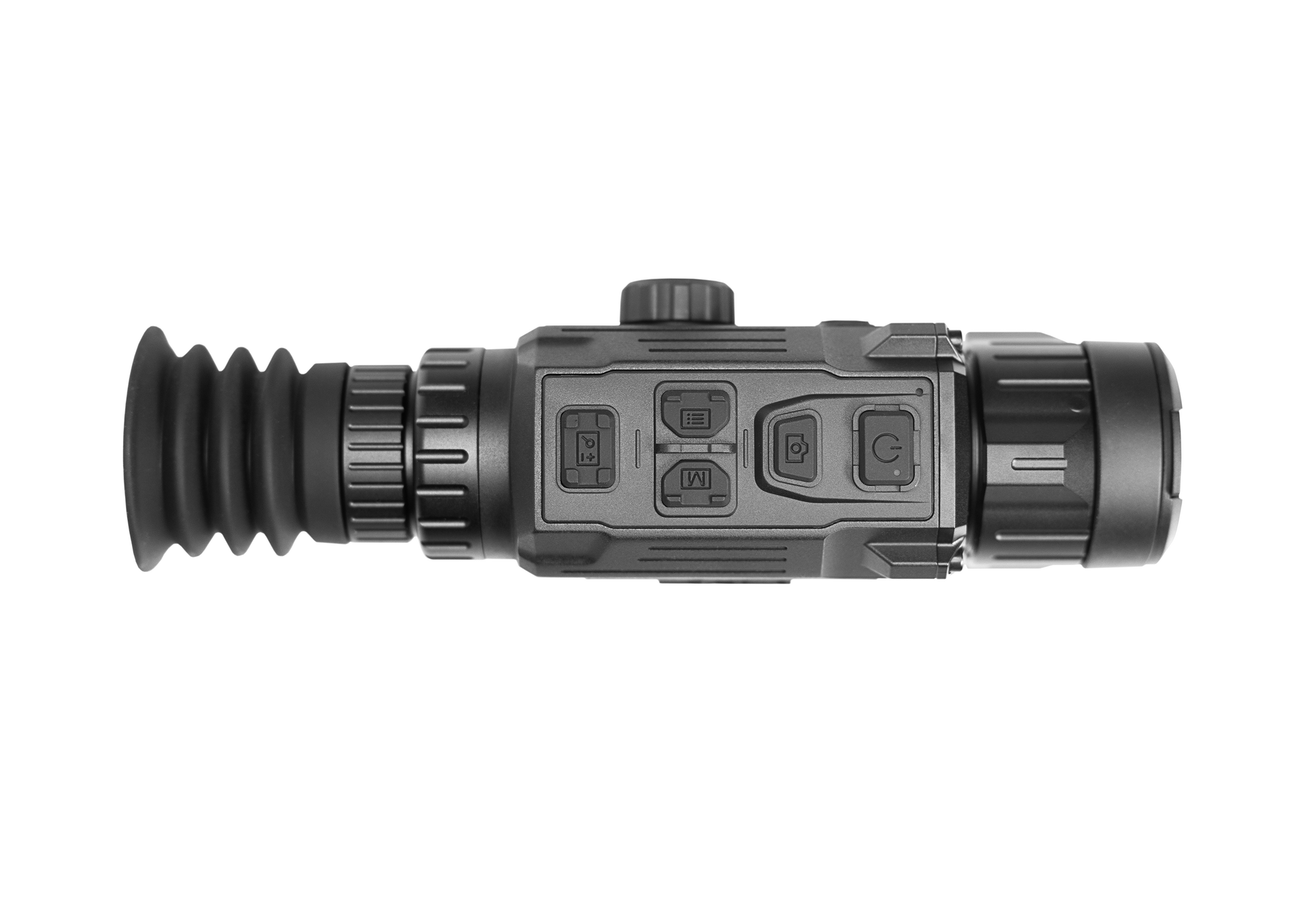

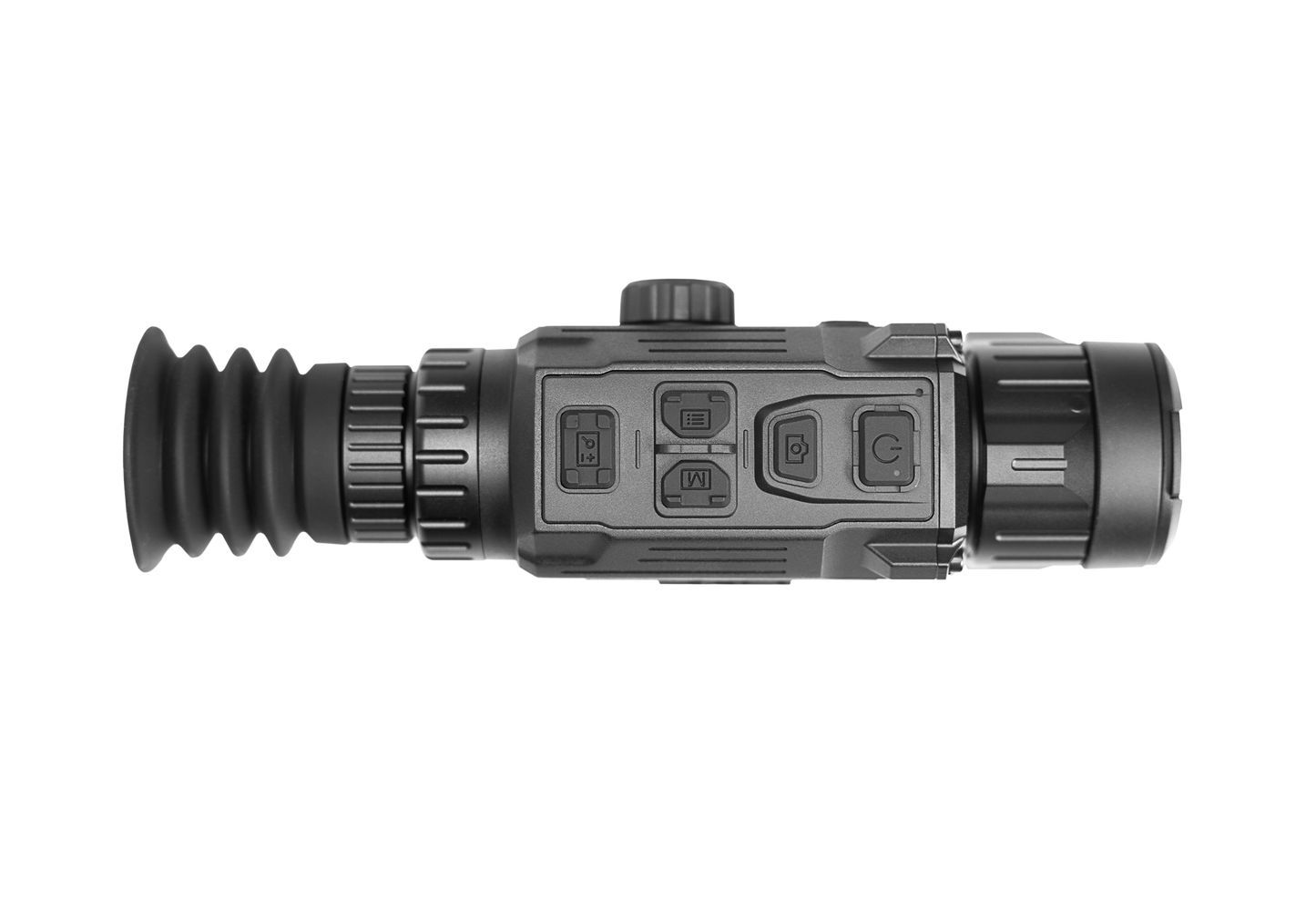

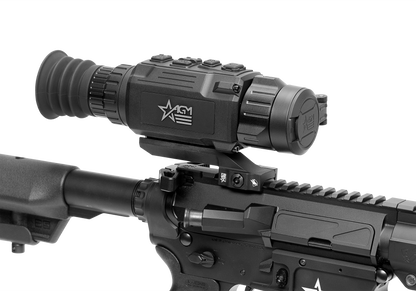

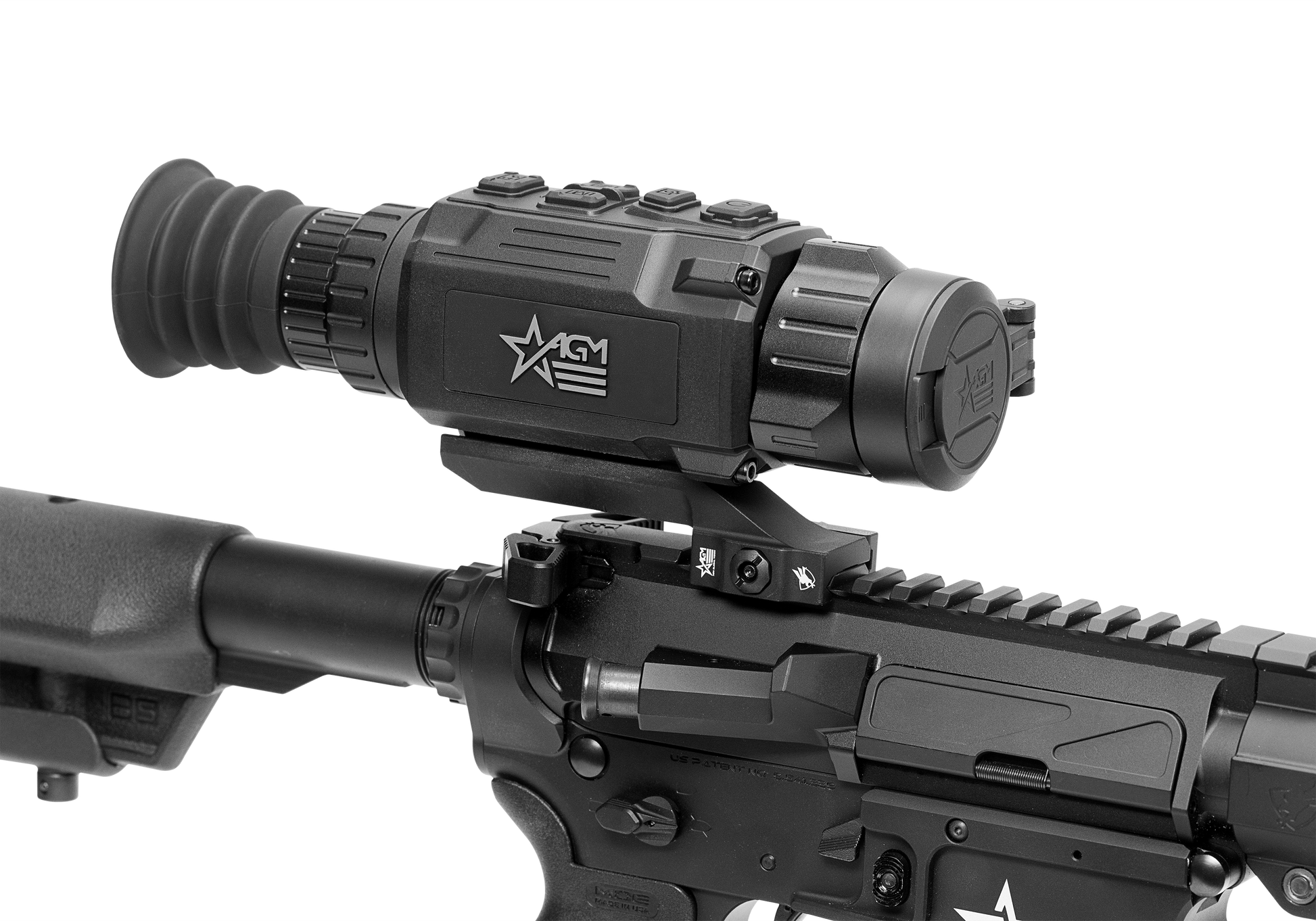

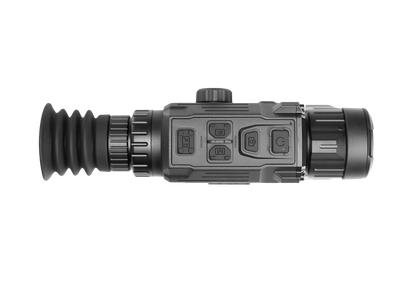

Familiar to AGM Rattler users, the RattlerV2 19-256 brings some exciting new enhancements. Its battery compartment now supports a rechargeable battery, extending operation time to 11.5 hours. Key features include Shot Activated Recording, a simplified menu interface, and 10 reticle options with multiple zeroing profiles for various rifles and calibers. The scope also comes with a custom ADM QD mount for easy detachment and reattachment, Wi-Fi hotspot capability via the AGM app, and a raised 5-button control layout designed for easy use, even with gloves.
AGM Rattler V2 19-256 Features:
256×192 resolution with 12-micron sensor
High-sensitivity thermal detector
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
Up to 11.5 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
AGM Rattler V2 19-256 Specifications:
|
|
|
|
Detector
|
12μm VOx Uncooled Focal Plane Array
|
|
|
Resolution
|
256 × 192
|
|
|
NETD
|
Less than 35 mK (25°C, F# = 1.0)
|
|
|
Refresh Rate
|
50 Hz
|
|
|
Lens System
|
19 mm; F/1.0
|
|
|
Magnification
|
2.5× - 20×
|
|
|
Field of View
|
9.3° × 6.9°
|
|
|
Diopter Adjustment
|
-5 to +5 diopters
|
|
|
Focus Range
|
0.5 m to infinity
|
|
|
Exit Pupil
|
6 mm
|
|
|
Eye Relief
|
45 mm
|
|
|
Digital Zoom
|
1×, 2×, 4×, 8×
|
|
|
Detection Range (6’ object)
|
950 m/yd
|
|
|
Display
|
0.39-inch, OLED, 1024×768
|
|
|
Palettes
|
Black hot, White hot, Red hot, Fusion
|
|
|
Flat Field Correction
|
Auto, Manual, External Correction
|
|
|
Scene Mode
|
Cold, Warm
|
|
|
Boresight Adjustment
|
Digital Controlled
|
|
|
Video/Audio Recording
|
Yes
|
|
|
Image Capture
|
Yes
|
|
|
Standby Mode
|
Yes
|
|
|
Storage
|
Built-in EMMC (16 GB)
|
|
|
PIP
|
Yes
|
|
|
Defective Pixel Correction
|
Yes
|
|
|
WiFi Hotspot
|
Yes
|
|
|
Hot Track
|
Yes
|
|
|
Reticle
|
10 types, 4 colors, on/off
|
|
|
Distance Measurement
|
Yes (Stadiametric)
|
|
|
Shot Activated Recording (SAR)
|
Yes
|
|
|
Battery Type
|
Replaceable and Rechargeable Li-ion Battery
|
|
|
Battery Life (Operating, 20°C)
|
Up to 11.5 hours (25°C, with hotspot off)
|
|
|
External Power Supply
|
5 VDC, 2 A, USB Type-C
|
|
|
Operating Temperature Range
|
-30°C to +55°C (-22°F to 131°F)
|
|
|
Protection Level
|
IP67
|
|
|
Max. Recoil
|
1000 g/0.4 ms
|
|
|
Weight (w/o mount and battery)
|
0.48 kg (1.06 lb)
|
|
|
Dimensions (w/o mount)
|
219 × 68 × 67 mm (8.5 × 2.7 × 2.6 in)
|
|
|
|
|
|
Data Sheet
PACKAGE INCLUDES
Thermal Imaging Rifle Scope
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
