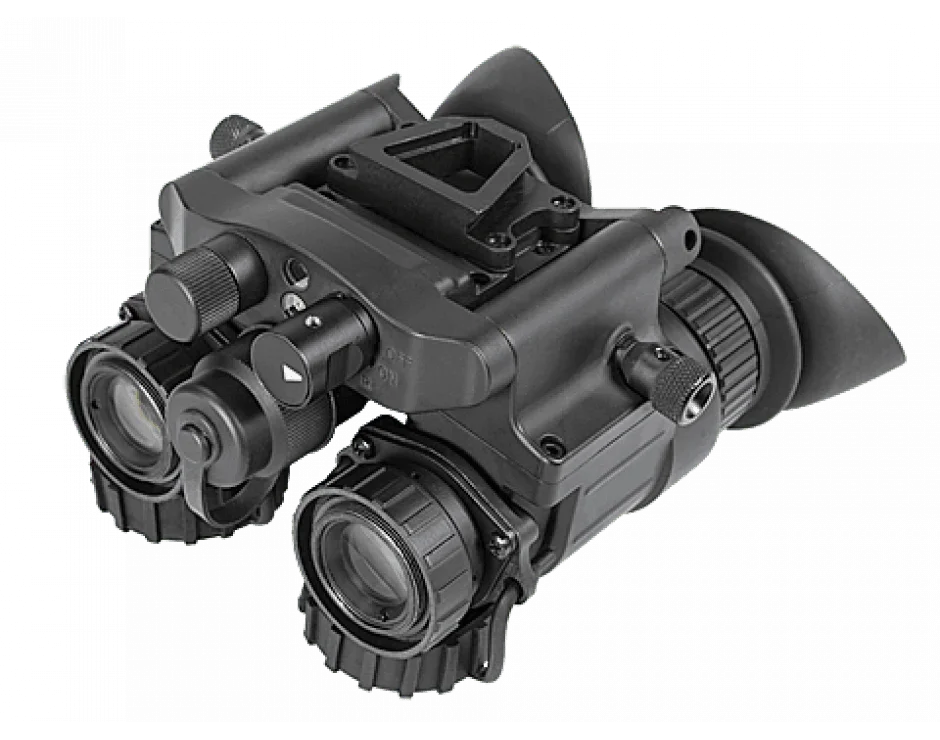

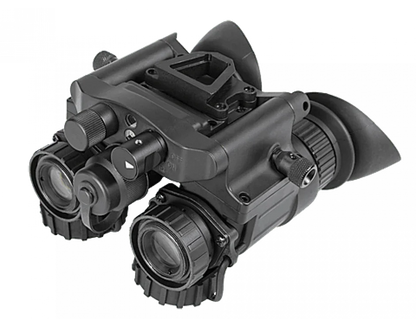

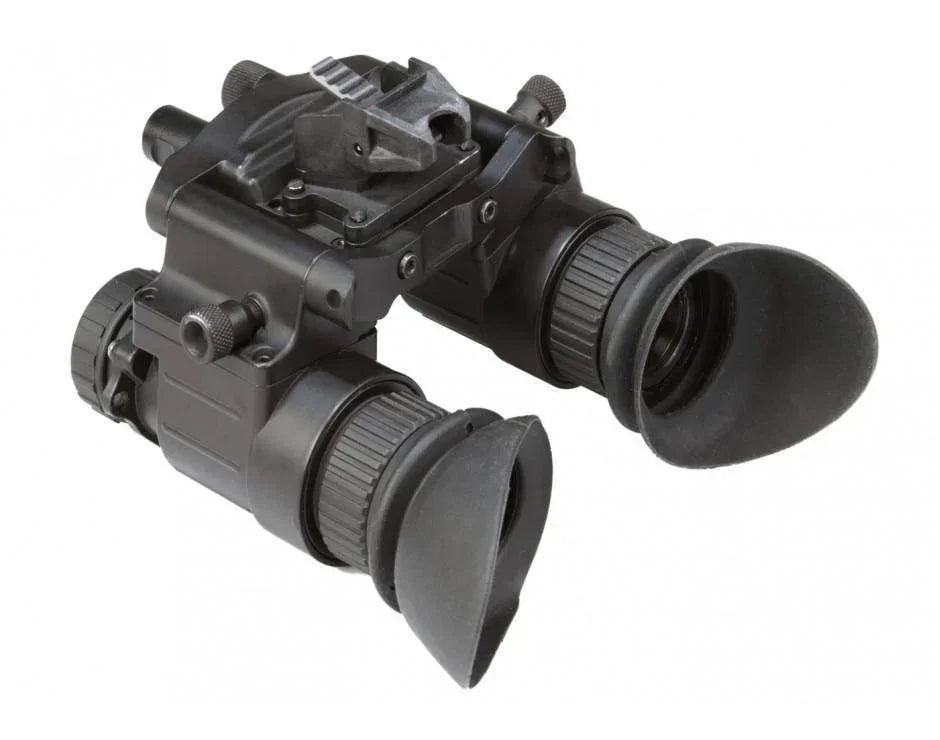

AGM NVG-50 3APW Night Vision Binocular Gen 3

AGM NVG-50 3APW Night Vision Goggles/Binocular Dual Tube Gen 3 "White Phosphor" 14NV5123474111



The AGM NVG-50 is a dual-channel night vision system designed with optics that provide a wider 51° field of view, though with slightly reduced eye relief. Constructed with a durable, compact composite housing, it features advanced multi-coated optics for enhanced performance. The device can be equipped with either a Gen 2+ or Gen 3 high-performance image intensifier tube (IIT), while a bright light cut-off feature protects the high-quality photocathode tube from damage.

The NVG-50 is also fitted with Manual Gain Control, allowing users to adjust image brightness for optimal quality in varying light conditions. Powered by a single AA alkaline battery or a CR123A battery, it can operate for up to 20 hours. Additionally, it includes a built-in infrared illuminator for reading or close-range activities in complete darkness.

NVG Interface Shoe (preinstalled) is used for installing the NVG to a either standard dovetail type headset and helmet mount.

Bayonet/Horn Interface Shoe (included) is used for installing the NVG to a either standard bayonet/horn type headset and helmet mount.

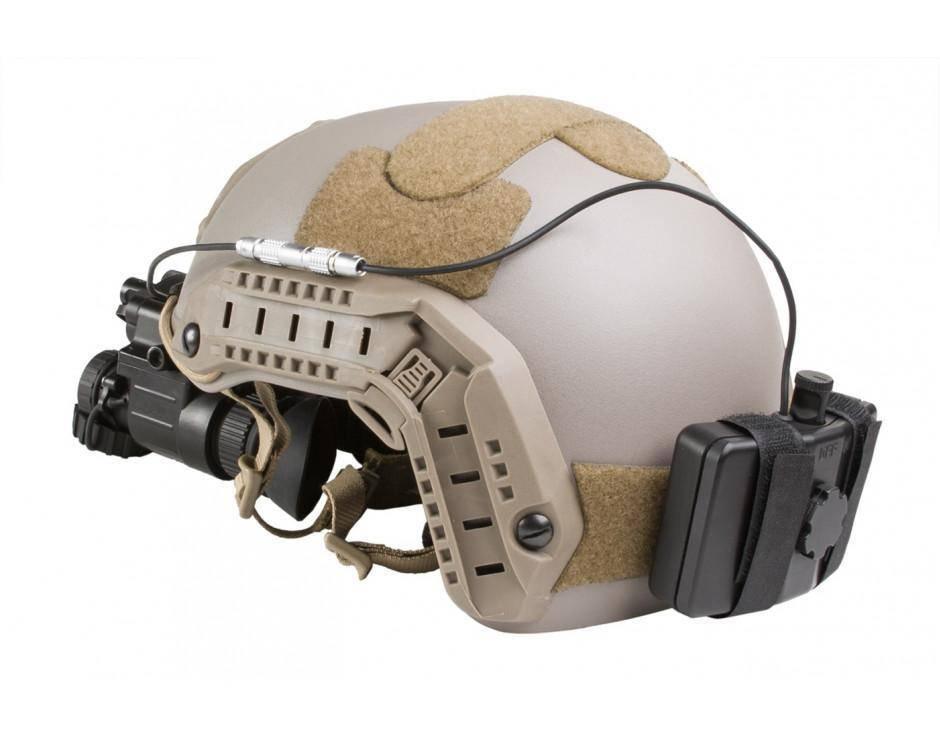

NVG Interface Shoe with Connector (optional) is used for installing the NVG-40/NVG-50 to either standard dovetail type headset and helmet mounts and connecting the Battery Pack.

Mini-Rail Interface Shoe is used for installing the NVG to the mounts with mini-rail interface. Mini-Rail Interface Shoe is included to the optional AGM Goggle Kit W and AGM Helmet Mount





AGM NVG-50 3APW Features:



• Redundant dual-tube design
• True stereoscopic vision
• Wide 51° field of view
• Lightweight & compact

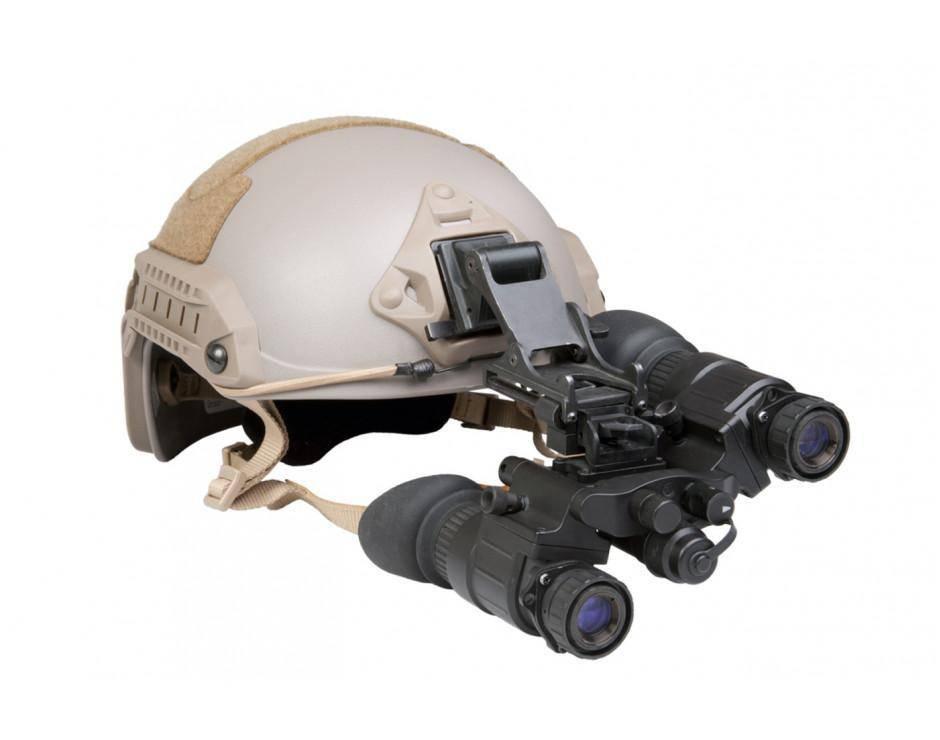

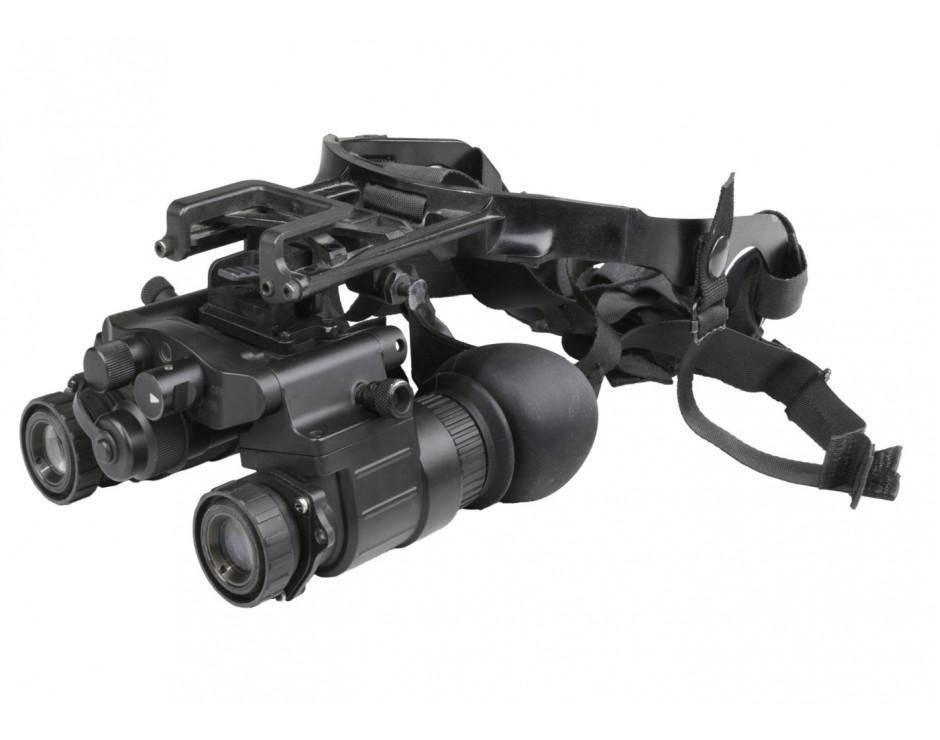

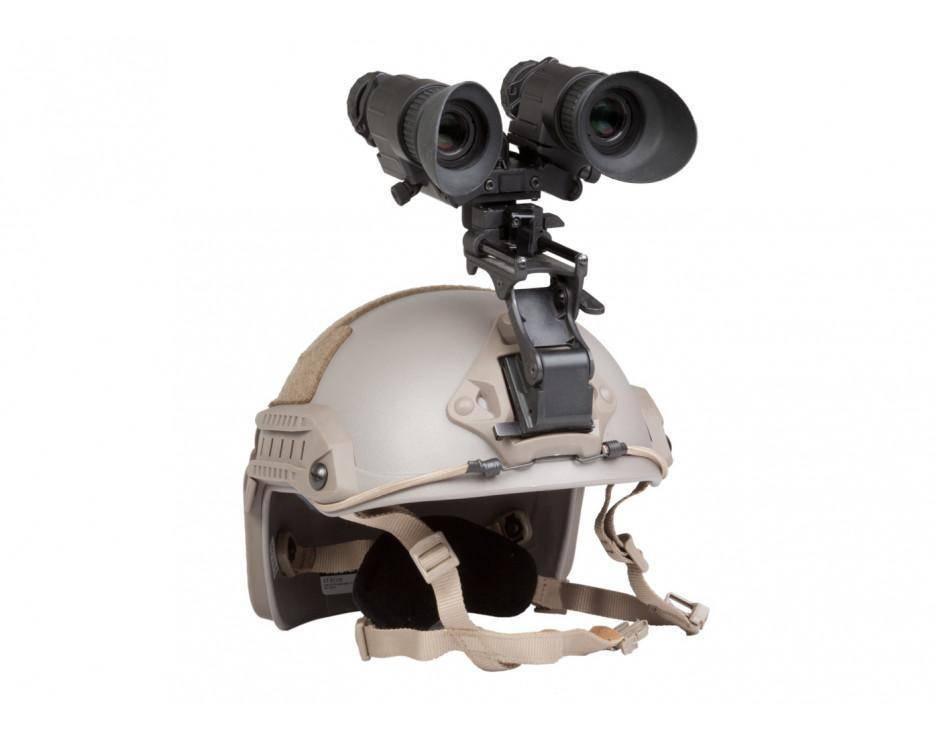

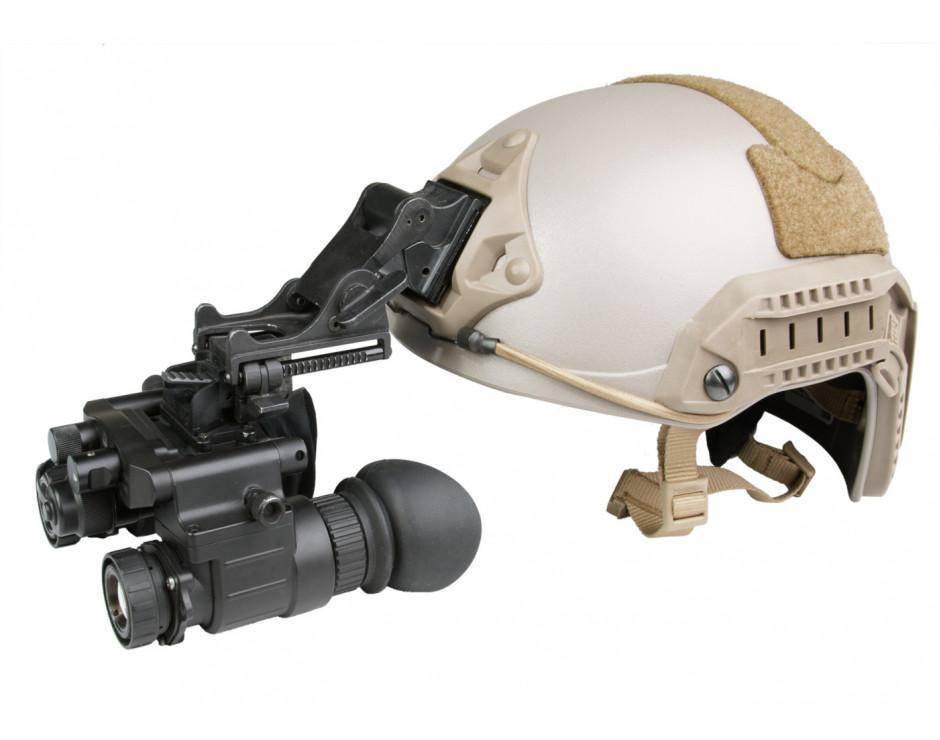

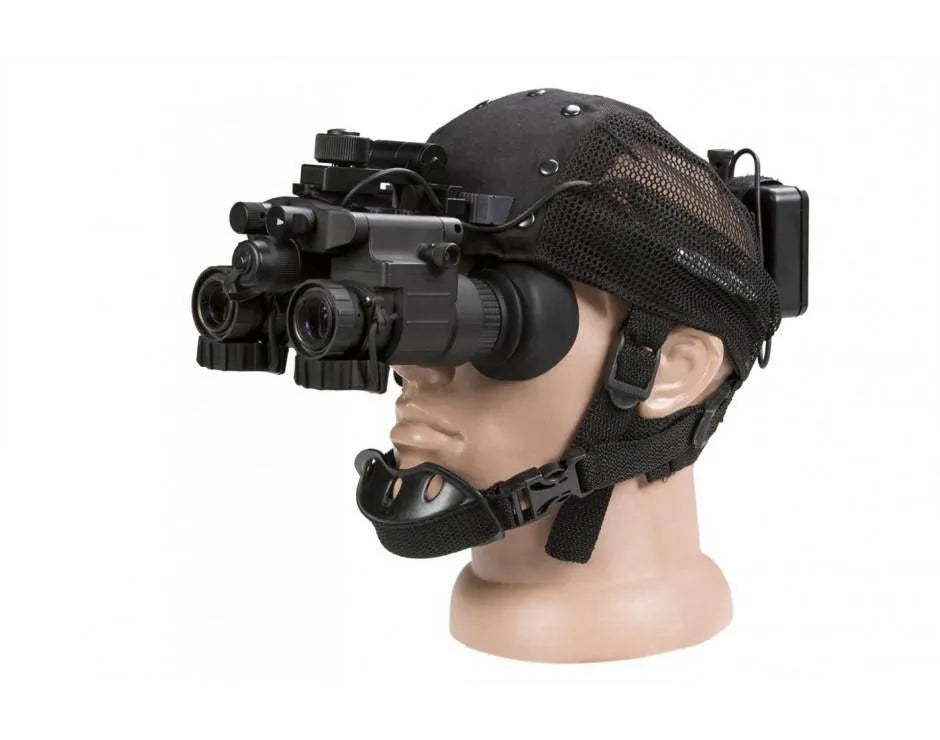

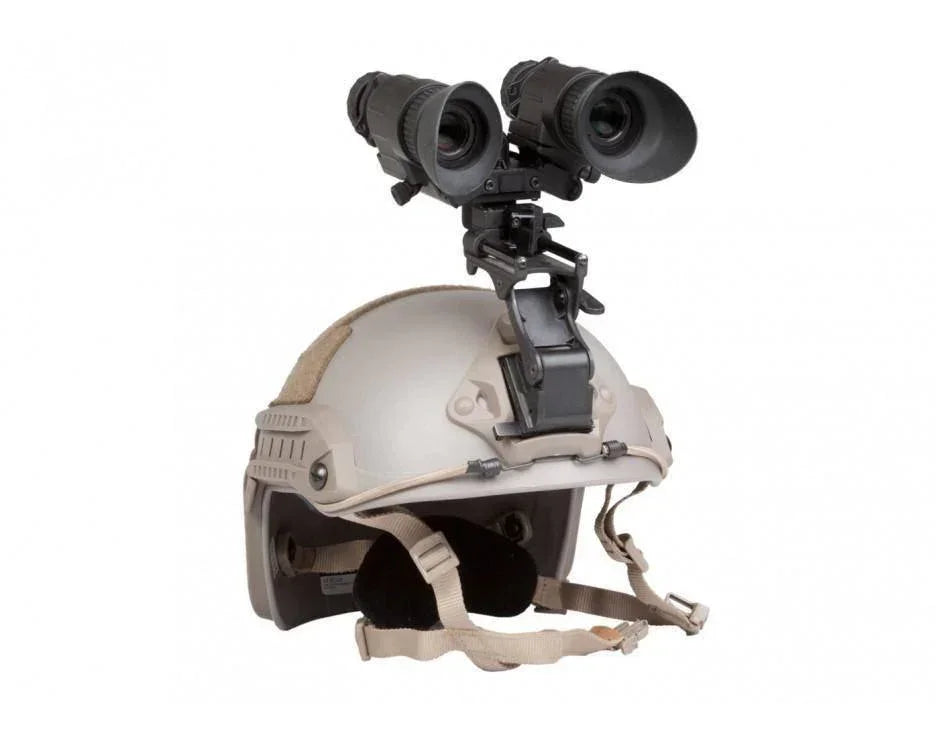

• Head or helmet mountable for hands-free operation
• Bright light cut-off
• Ergonomic, simple, easy to operate controls
• Built-in Infrared illuminator and flood lens
• Utilizes single CR123A lithium or AA battery
• Limited 3-year warranty





AGM NVG-50 3APW Specifications:

Image Intensifier Tube

Gen 3 Auto-Gated 3APW White Phosphor FOM 2000+

Resolution

64-72 lp/mm

Field of view cleanness by zone

Gen 3 IIT 3APW is offered with high quality and practically no visible spots in Zone 1.

Magnification

1x (3x optional)

Lens System

19 mm; F/1.26

FOV

51°

Focus Range

0.25 m to infinity

Eye Relief

17 mm

Diopter Adjustment

-6 to +2 dpt

Led Indicators

Low battery; IR on; Excessive light conditions

Infrared Illuminator

Yes

Manual Gain Control

Yes

Bright Light Cut-Off

Yes

Automatic Shut-Off System

Yes

Battery Type

One CR123A (3V) or AA (1.5 V)

Battery Life (Operating)

Up to 20 hours at 20°C (up to 80 hrs with optional battery pack)

Operating Temperature Range

-40°C to +50°C (-40°F to +122°F)

Storage Temperature Range

-50°C to +50°C (-58°F to +122°F)

Weight

615 g (1.35 lbs)

Overall Dimensions

112 × 118 × 74 mm (4.4 × 4.6 × 2.9 in)

Package Includes:

• NVG Interface Shoe
• Bayonet/Horn Interface Shoe
• Demist Shield (2)
• Sacrificial Window
• Soft Carrying Case
• Lens Tissue
• Packing Box
• Battery Adapter
• User Manual





EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
