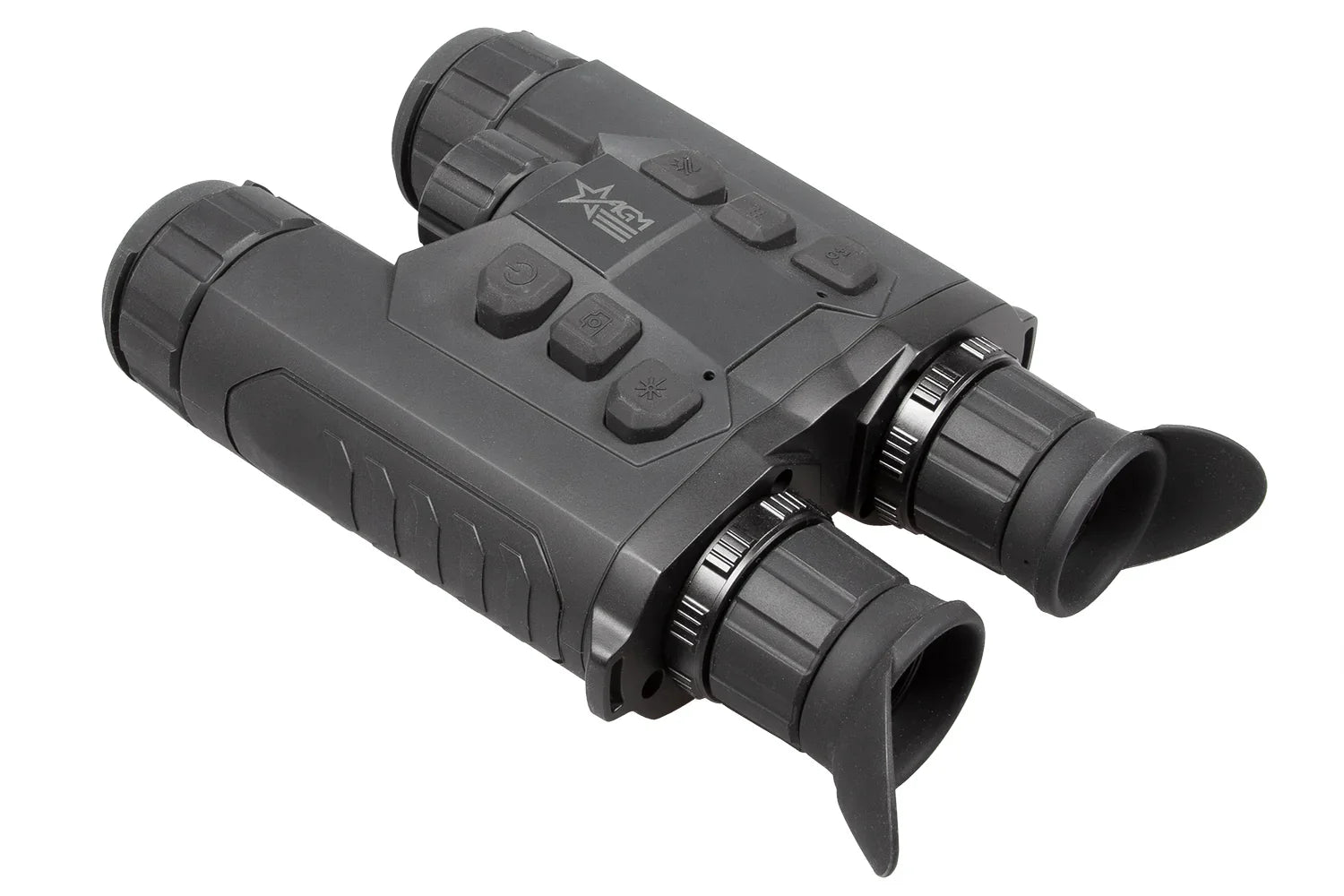

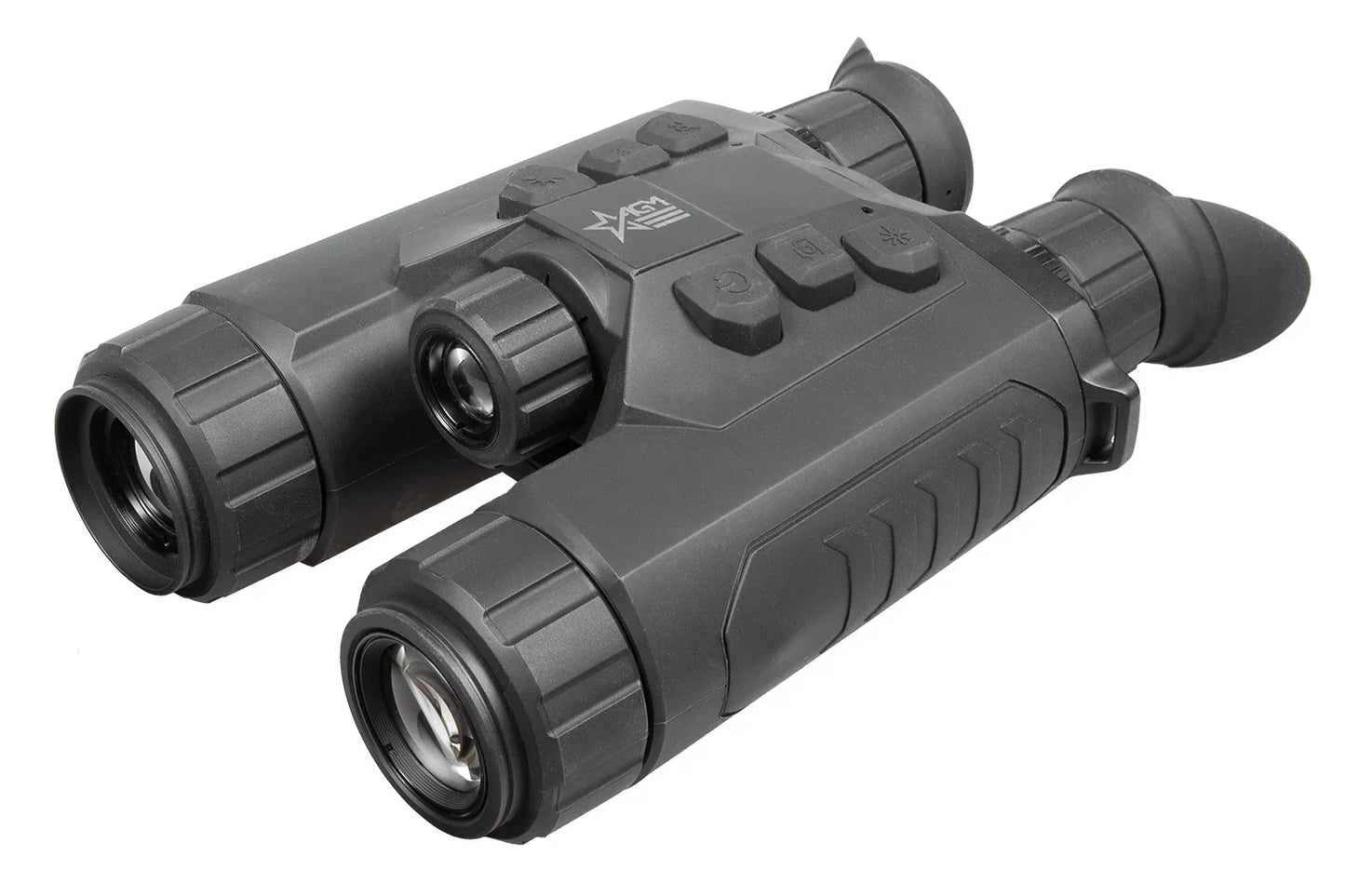

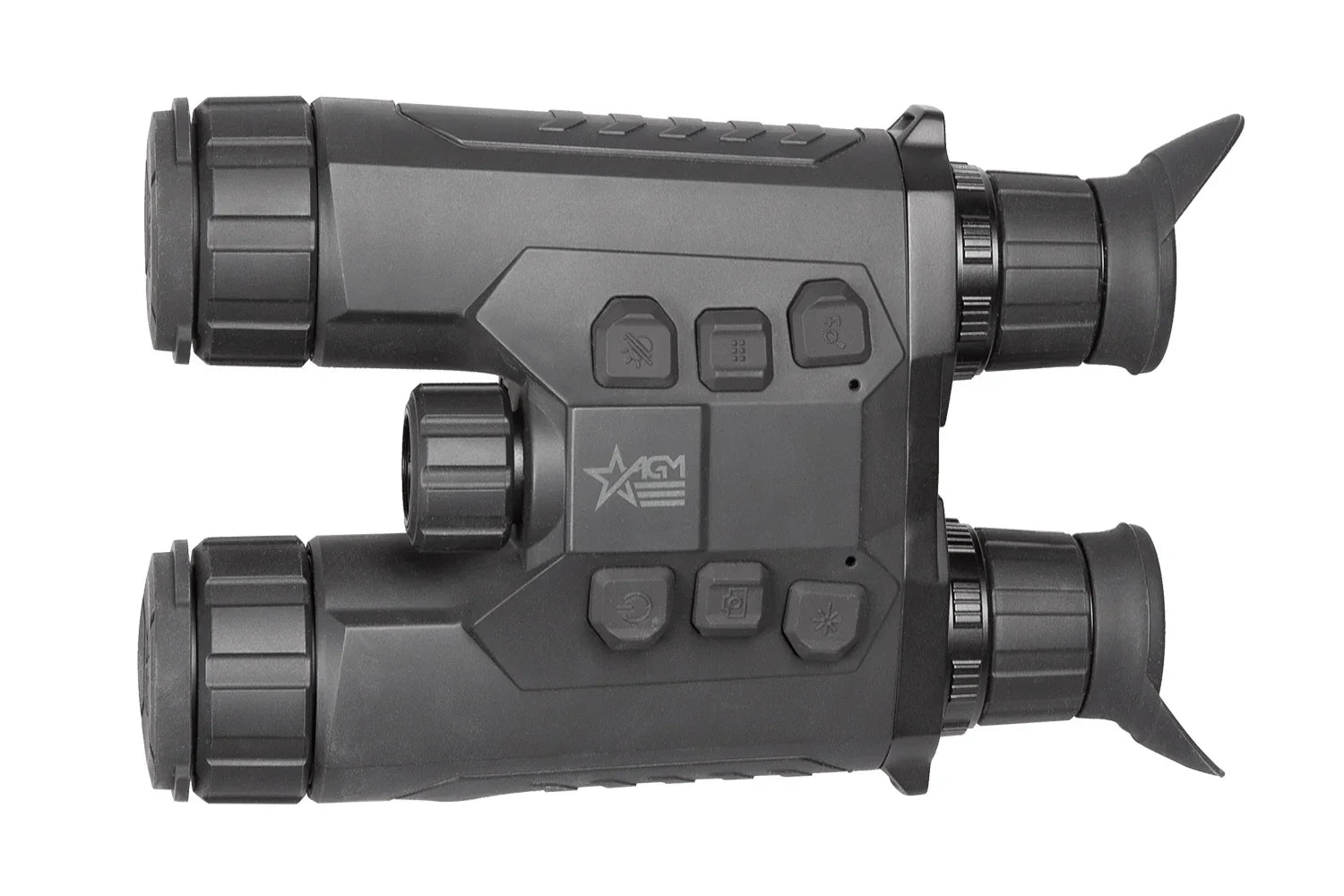

AGM ObservIR LRF 25-256 Fusion Thermal Imaging & CMOS Binocular with built-in Laser Range Finder, 12 Micron 256x192 (25 Hz), 4K, 25 mm lens (OBSE25-256-LRF)
The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is one of the most advanced and feature-rich optics available today. Its core functionality comes from the main thermal viewing channel, which boasts a high-sensitivity 12-micron detector. Unlike many other thermal binoculars, the ObservIR LRF includes an additional digital day/night channel, making it especially useful for identifying targets first detected by the thermal channel. The built-in 1,000-meter laser rangefinder elevates its capabilities even further, complemented by 64GB of internal storage and Wi-Fi compatibility.
The ObservIR LRF binocular model also integrates extensive software enhancements and a suite of features that are now standard in AGM's thermal lineup. These include a high-sensitivity thermal detector, a 25mm Germanium lens with a 1.0 aperture, a 3840x2160 ultra-low light CMOS sensor, multiple viewing modes, diverse color palettes, up to 4X digital zoom, picture-in-picture mode, a built-in laser rangefinder, GPS module, long-range IR illuminator, and up to 8 hours of battery life using removable, rechargeable 18650 batteries. Additional features include a USB Type-C port for external power, an IP67 waterproof rating, and a package that comes with four 18650 batteries, a wrist strap, and a charger.
AGM ObservIR LRF 25-256 Features:
Dual-spectrum thermal and digital day/night system
12μm high-sensitivity thermal sensor
256x192 thermal resolution
1x, 2x, 4x digital zoom
Digital image processing technology
Ultra-low illumination optical channel
3840×2160 optical resolution
Built-in IR illuminator
Eye-safe 1,000 m laser rangefinder
1920×1080 resolution, 0.49-inch OLED display
Digital Magnetic Compass
Built-in GPS module
Video/audio recording and snapshot capture
Built-in 64 GB EMMC storage
Wi-Fi hotspot
Standby mode
8-hour continuous operation on a single charge
Auto screen-off function to saving energy
External power supply capability
Rugged housing with rubber overmolding
Waterproof and dustproof
3 year warranty
AGM ObservIR LRF 25-256 Specifications:
|
Thermal Detector
|
12μm VOx Uncooled Focal Plane Array
|
|
Thermal Resolution
|
256 × 192
|
|
Refresh Rate
|
50 Hz
|
|
NETD
|
Less than 35 mK (25°C, F#=1.0)
|
|
Thermal Channel Lens System
|
25 mm; F1.0
|
|
Thermal Channel Field of View
|
7.0° × 5.3°
|
|
Thermal Channel Magnification
|
4.5x – 18x
|
|
Digital Zoom
|
1x, 2x, 4x
|
|
Diopter Adjustment
|
-5 to +3
|
|
Detection Range (6’ object)
|
1,200 m
|
|
Monitor
|
1920×1080, 0.49 inch, OLED, 50 FPS
|
|
FFC (Flat Field Correction)
|
Auto, Manual, External Correction
|
|
Palettes
|
Black Hot, White Hot, Red Hot, Fusion
|
|
Highest Temperature Spot Tracking
|
Yes
|
|
Scene Mode
|
Jungle, Recognition
|
|
Optical Digital Sensor
|
3840×2160, 1/88” Progressive Scan CMOS
|
|
Optical Channel Magnification
|
5.5x – 22x
|
|
Optical Channel Field of View
|
6.9° × 4.1°
|
|
Optical Module Lens System
|
60 mm, F2.2
|
|
Display Mode
|
Day, Night, Auto
|
|
Distance Measurement
|
Laser Rangefinder: up to 1,000 m, ±1 m accuracy
|
|
Laser Wavelength
|
905 nm
|
|
Laser Safety Class
|
Class 1
|
|
Infrared Light
|
Built-in 850nm Smart IR.Power and beam angle adjustment.
|
|
Viewing Range at Night
|
400 m
|
|
Wi-Fi Hotspot
|
Yes
|
|
Sleep Mode
|
Yes
|
|
Built-in Storage
|
64 GB EMMC
|
|
Video/Audio Recording
|
Yes / Yes
|
|
Image Capture
|
Yes
|
|
Interpupillary Adjustment Range
|
60 mm to 74 mm
|
|
Battery Type
|
Two 18650 rechargeable battery (removable)
|
|
Battery Life
|
Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off)
|
|
Power
|
5 VDC/2 A, USB Type-C interface. Supports external power supply.
|
|
Working Temperature
|
-20°C to 55°C (-4°F to 131°F)
|
|
Protection Level
|
IP67 (Waterproof)
|
|
Dimensions
|
221×142×71 mm (8.7×5.6×2.8 in)
|
|
Weight (w/o batteries)
|
0.89 kg (1.96 Ib)
|
Data Sheet
Included:
- 4x 18650 Rechargeable Battery
- Battery Charger
- USB Cable
- Power Adapter
- Tripod Adapter
- Quick Start Guide
- User Manual
- Lens Cloth
- Neck Strap
