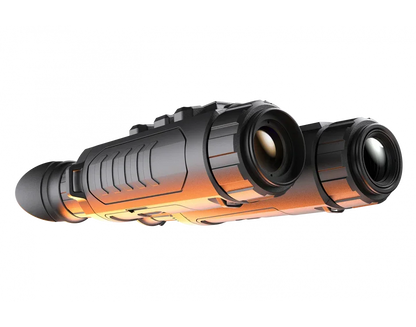

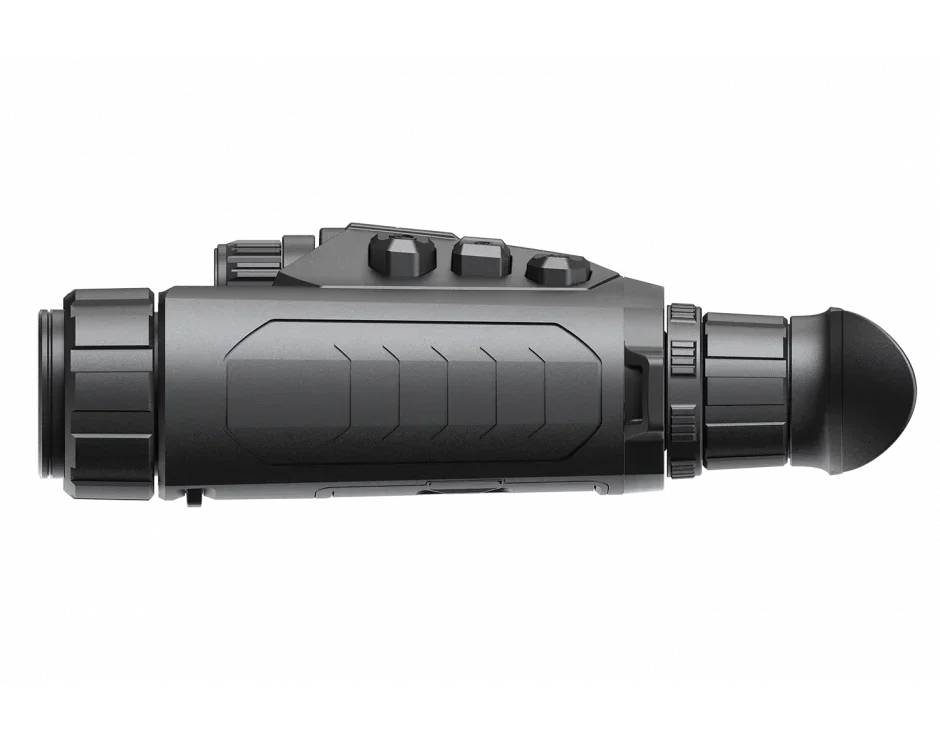

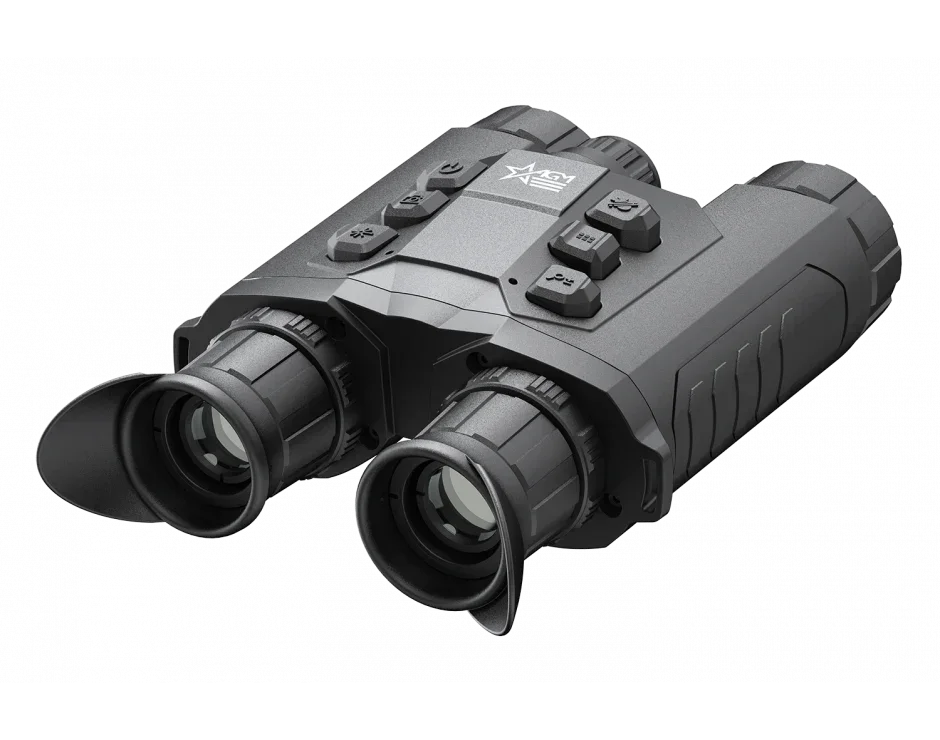

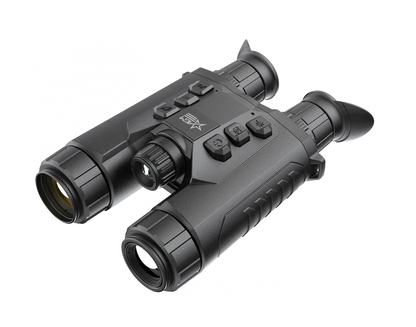

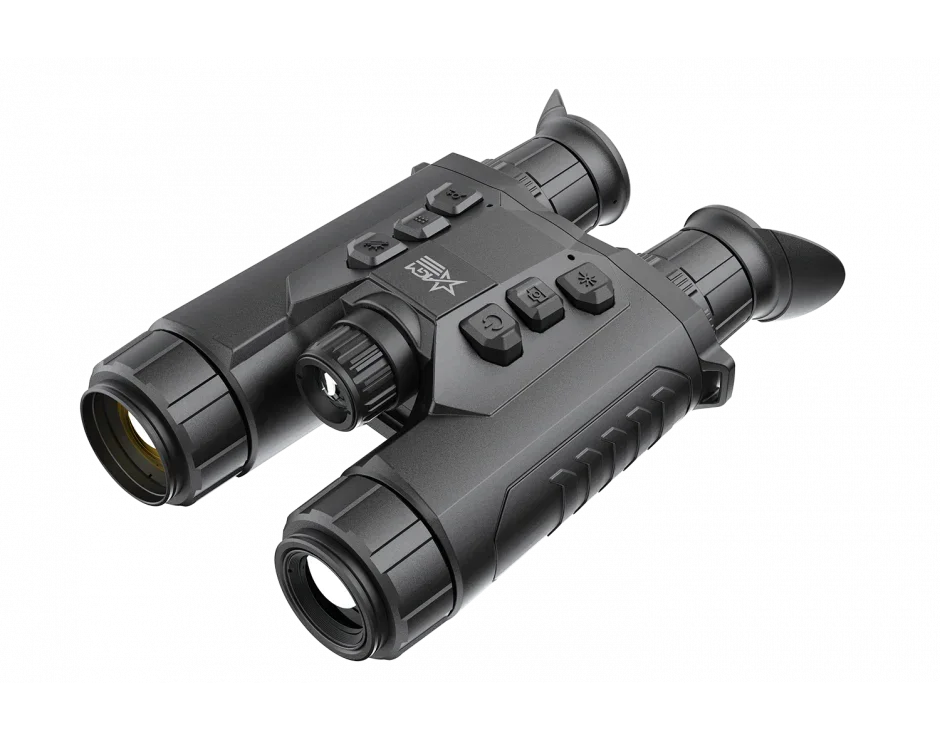

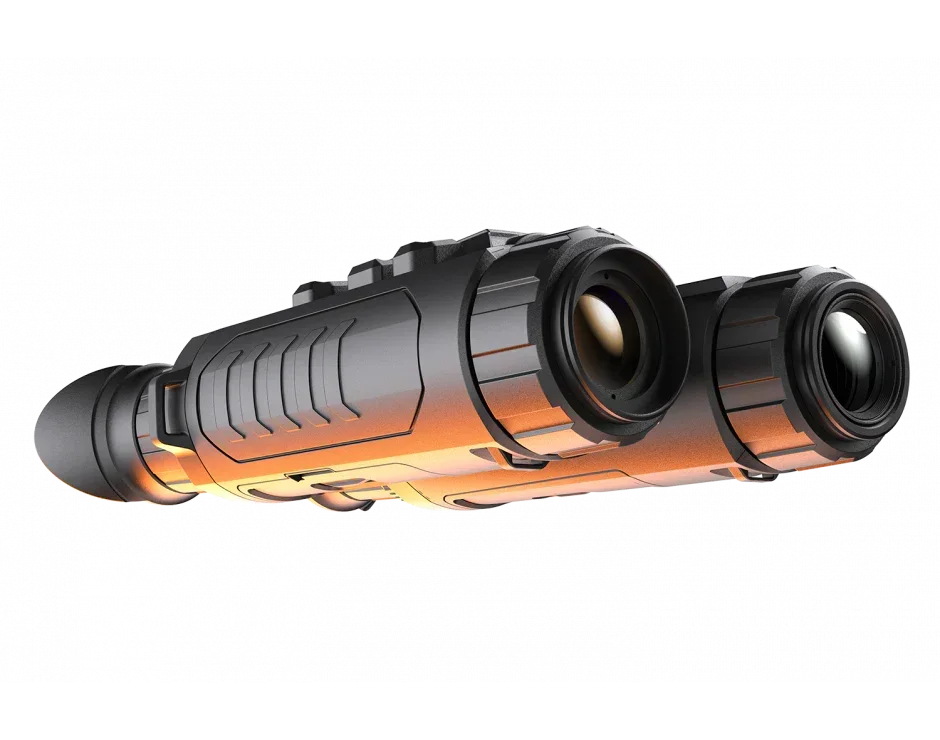

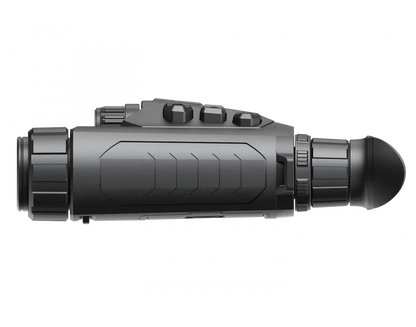

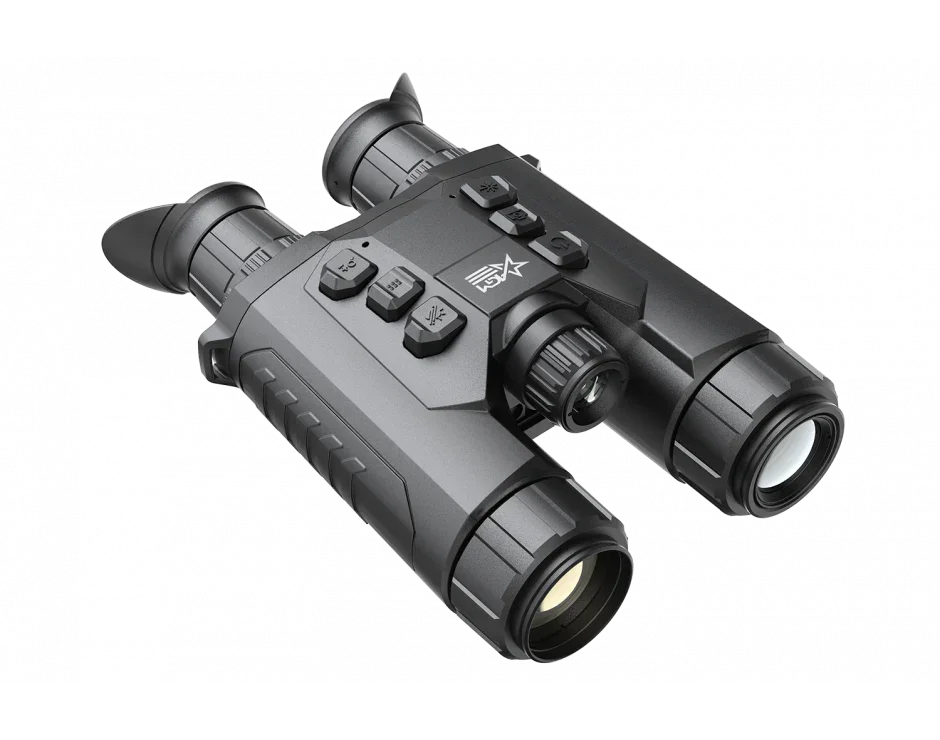

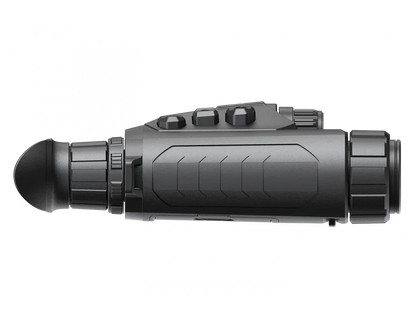

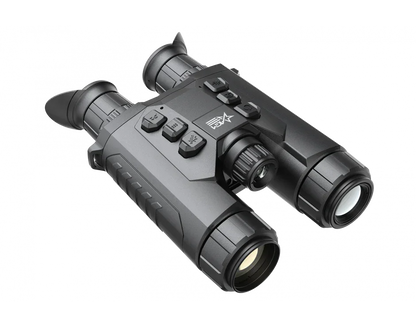

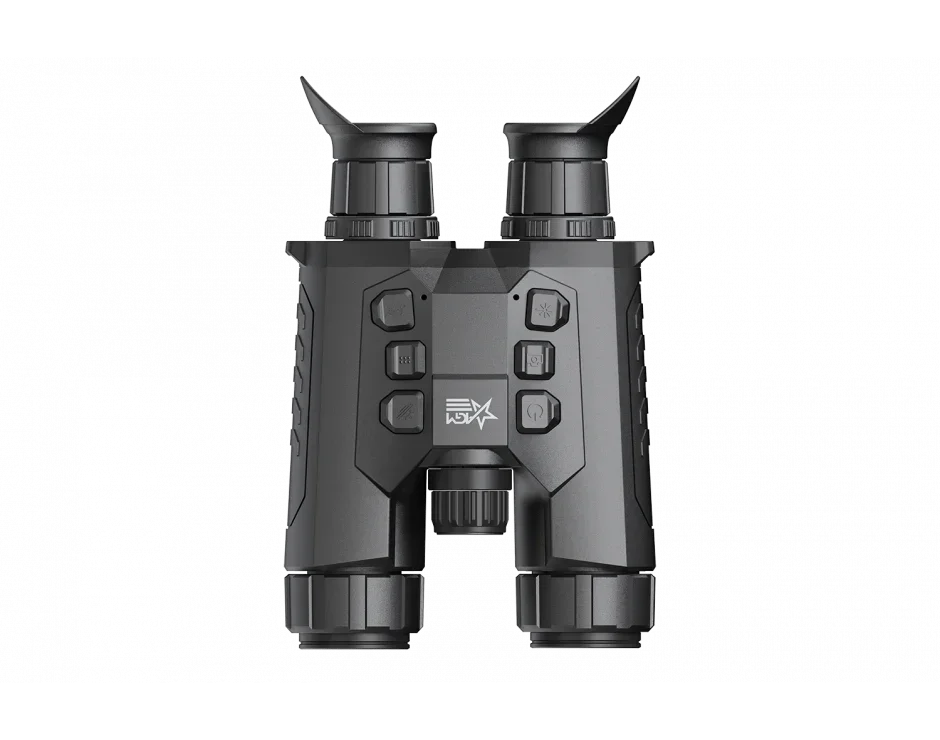

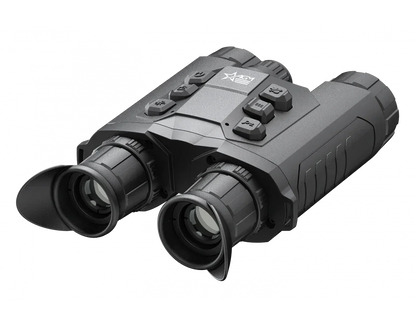

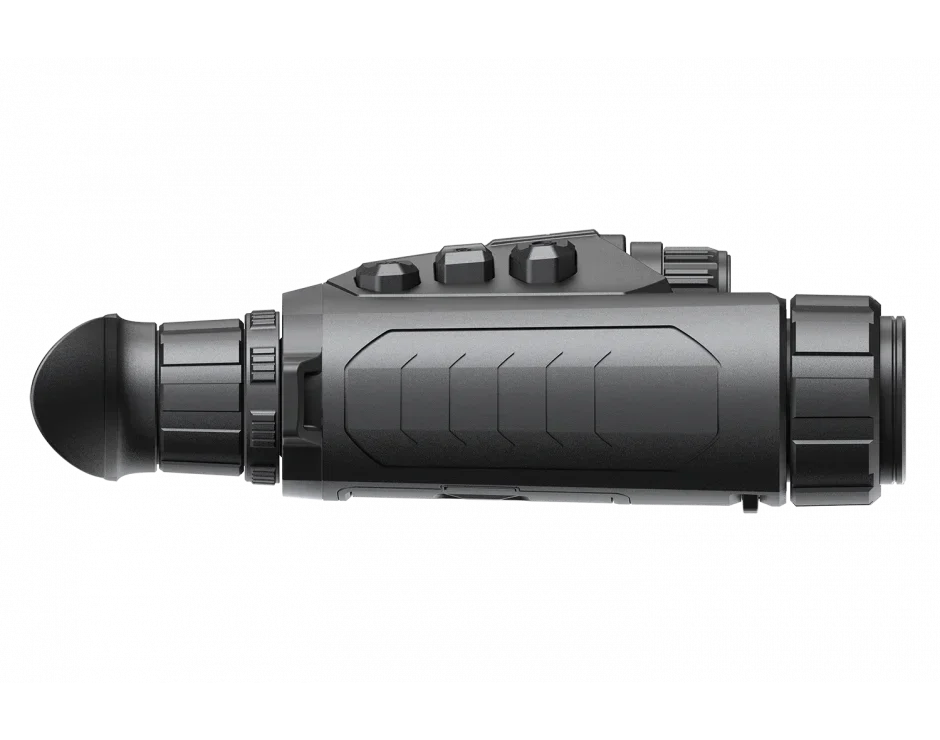

AGM ObservIR LRF 35-640 Fusion Thermal Imaging & CMOS Binocular with built-in Laser Range Finder, 12 Micron 640x512 (50 Hz), 4K, 35 mm lens (OBSE35-640-LRF)
The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is one of the most advanced and feature-rich optics available today. Its core functionality comes from the main thermal viewing channel, which boasts a high-sensitivity 12-micron detector. Unlike many other thermal binoculars, the ObservIR LRF includes an additional digital day/night channel, making it especially useful for identifying targets first detected by the thermal channel. The built-in 1,000-meter laser rangefinder elevates its capabilities even further, complemented by 64GB of internal storage and Wi-Fi compatibility.
The ObservIR LRF binocular model also integrates extensive software enhancements and a suite of features that are now standard in AGM's thermal lineup. These include a high-sensitivity thermal detector, a 25mm Germanium lens with a 1.0 aperture, a 3840x2160 ultra-low light CMOS sensor, multiple viewing modes, diverse color palettes, up to 4X digital zoom, picture-in-picture mode, a built-in laser rangefinder, GPS module, long-range IR illuminator, and up to 8 hours of battery life using removable, rechargeable 18650 batteries. Additional features include a USB Type-C port for external power, an IP67 waterproof rating, and a package that comes with four 18650 batteries, a wrist strap, and a charger.
AGM ObservIR LRF 35-640 Features:
- Dual-spectrum thermal and digital day/night system
- 12μm high-sensitivity thermal sensor
- 640x512 thermal resolution
- 3x – 22x thermal magnification
- Digital image processing technology
- Ultra-low illumination optical channel
- 3840×2160 optical resolution
- Built-in IR illuminator
- Eye-safe 1,000 m laser rangefinder
- 1920×1080 resolution, 0.49-inch OLED display
- Digital Magnetic Compass
- Built-in GPS module
- Video/audio recording and snapshot capture
- Built-in 64 GB EMMC storage
- Wi-Fi hotspot
- Standby mode
- 8-hour continuous operation on a single charge
- Auto screen-off function to saving energy
- External power supply capability
- Rugged housing with rubber overmolding
- Waterproof and dustproof
- 5 Year Warranty
AGM ObservIR LRF 35-640 Specifications:
Interpupillary Distance
60 mm to 74 mm
Safety Class for Laser
Class 1
Palettes
Black Hot, White Hot, Red Hot, Fusion
Dimensions
221×142×71 mm (8.7×5.6×2.8 in)
Infrared Illuminator
Built-in 850nm Smart IR.Power and beam angle adjustment.
Distance Measurement
Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Scene Mode
Jungle, Recognition
Video Recording
Yes
Audio Recording
Yes
Magnification
Thermal Channel - 3.0x – 22x / Optical Channel - 5.5x – 22x
Detector type
Thermal Detector - 12μm VOx Uncooled Focal Plane Array / Digital Sensor - 3840×2160, 1/88” Progressive Scan CMOS
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Laser Wavelength
905 nm
Detection Range (6' object)
1,800 m
Snapshot
Yes
Lens system
Thermal Channel - 35 mm; F1.0 / Optical Channel - 60 mm, F2.2
NETD
Less than 15 mK (25°C, F#=1.0)
Field of view (H × X)
Thermal Channel - 12.5° × 10.1° / Optical Channel - 6.9° × 4.1°
Diopter adjustment range
-5 to +3
Monitor
1920×1080, 0.49 inch, OLED, 50 FPS
Display
Day, Night, Auto
Storage
64 GB EMMC
Battery Type
Two 18650 rechargeable battery (removable)
Wi-Fi
Yes
Battery Life (Operating)
Up to 8 hours continuous running (@25°C, WiFi, IR and LRF off)
Power supply
5 VDC/2 A, USB Type-C interface. Supports external power supply.
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
0.91 kg (2.01 Ib)
Protection Level
IP67 (Waterproof)
Data Sheet
Included:
- 4x 18650 Rechargeable Battery
- Battery Charger
- USB Cable
- Power Adapter
- Tripod Adapter
- Quick Start Guide
- User Manual
- Lens Cloth
- Neck Strap
