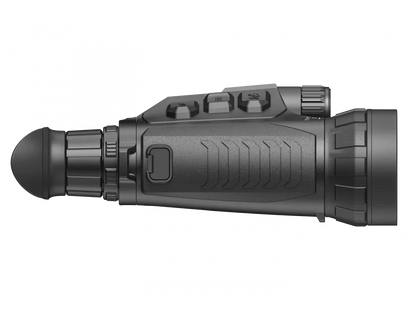

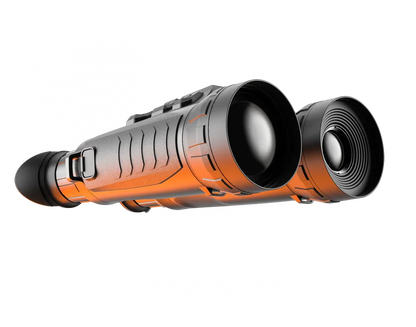

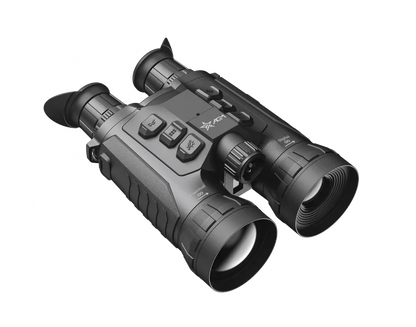

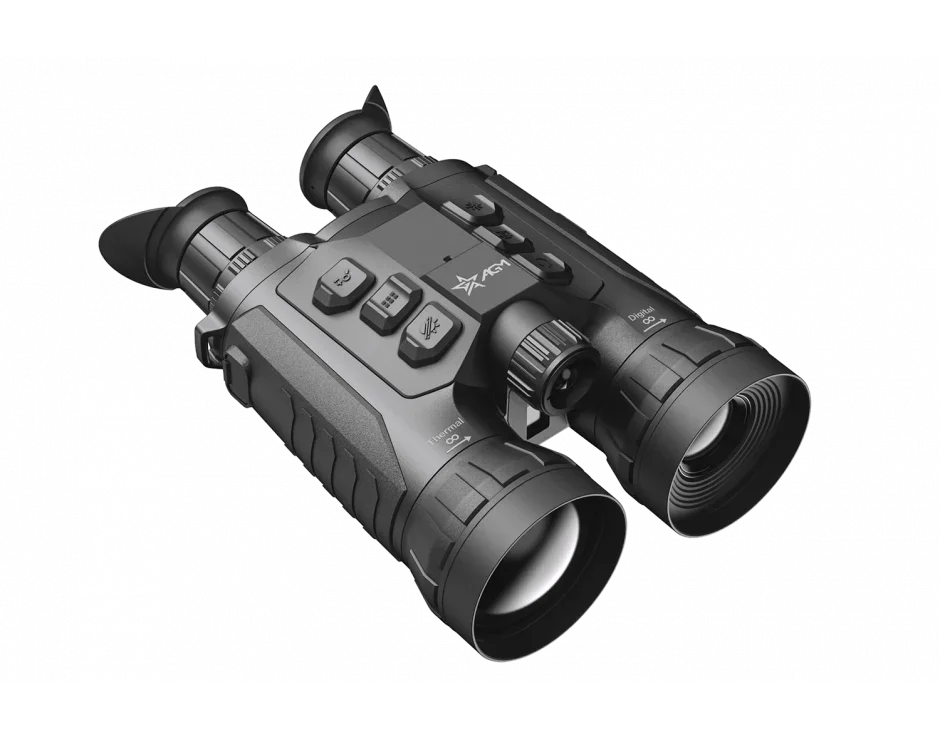

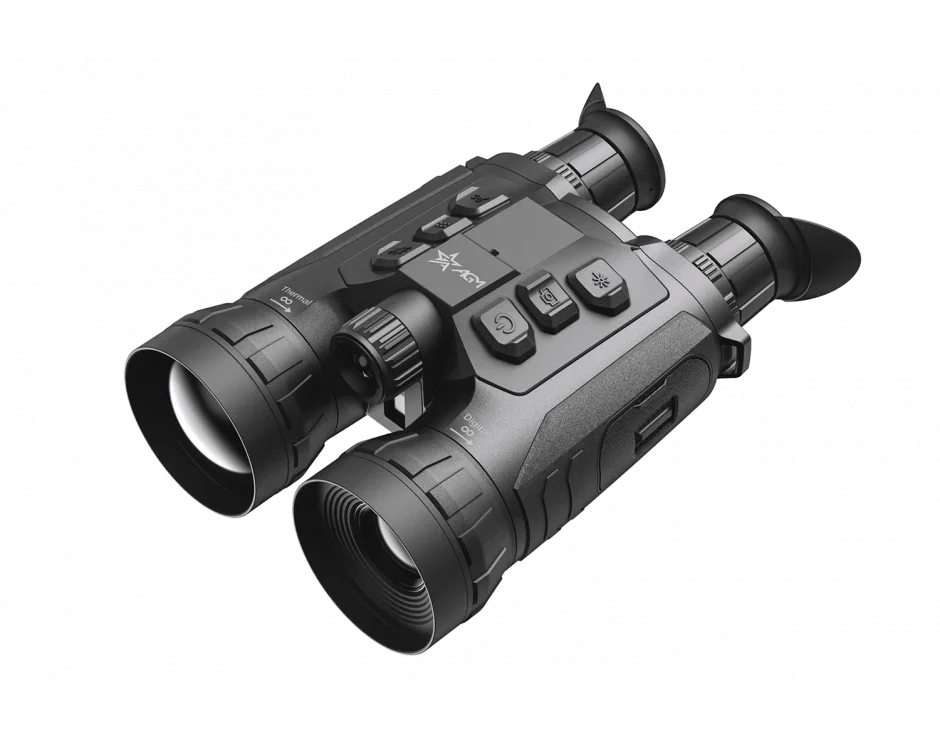

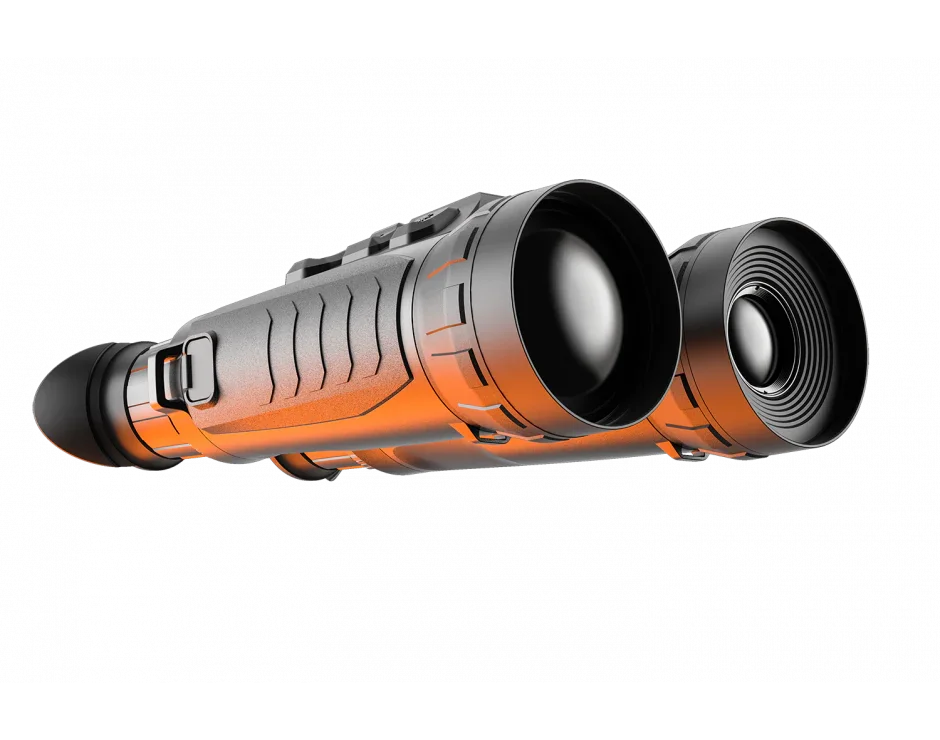

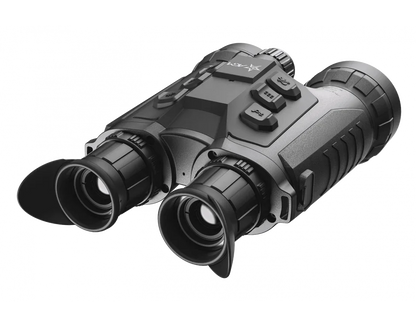

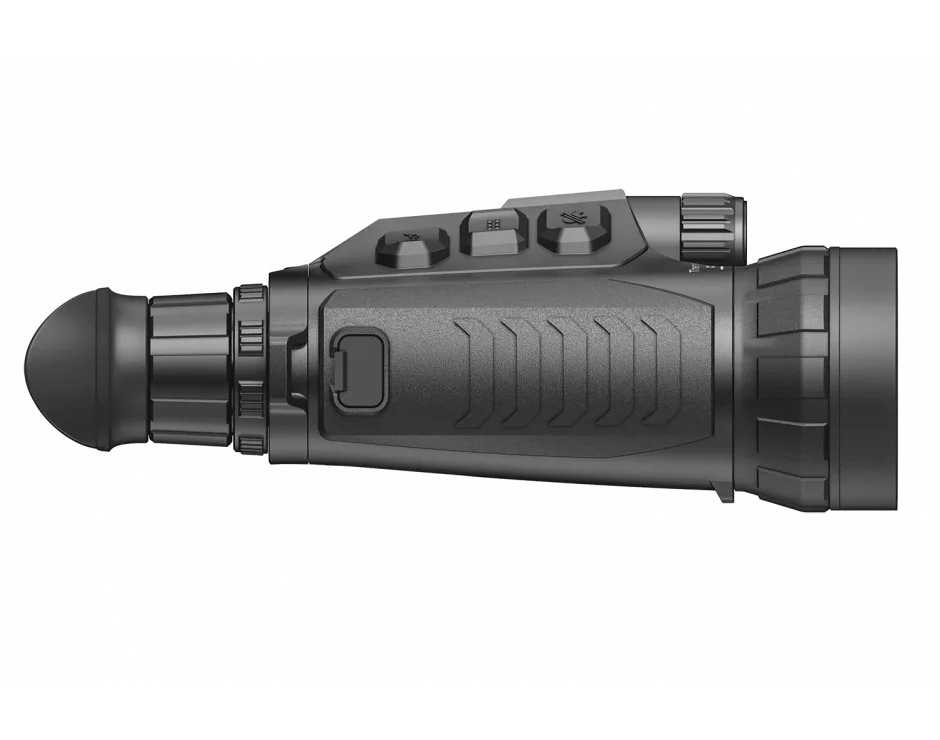

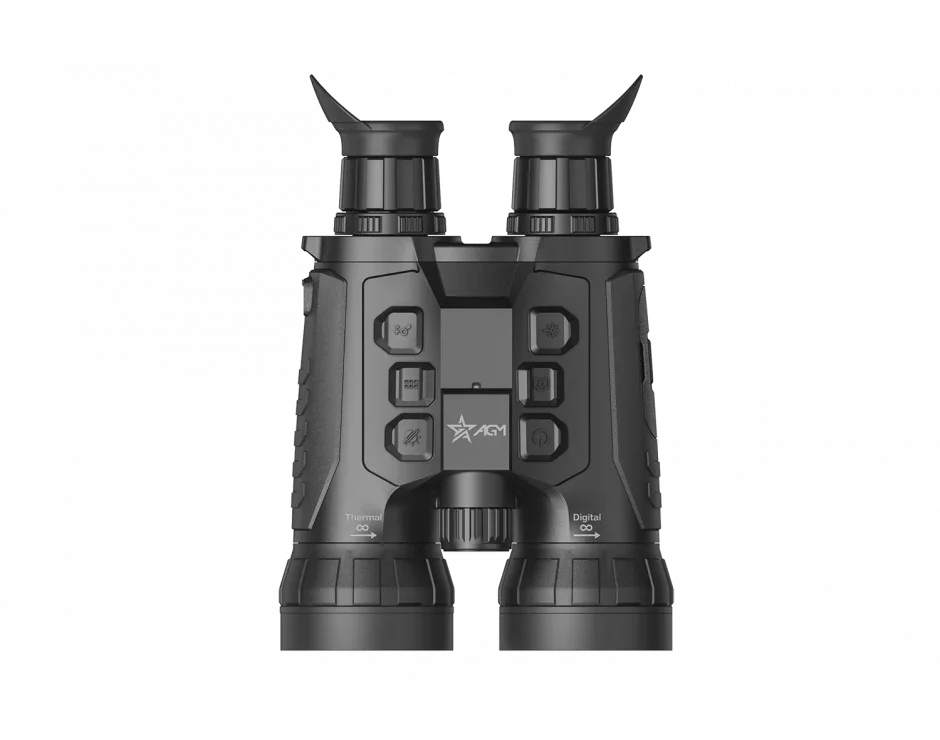

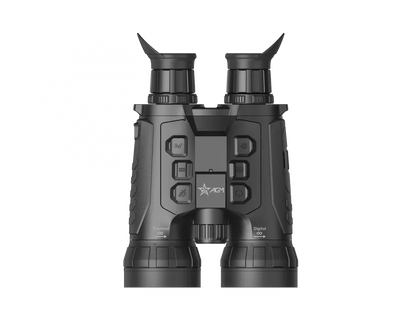

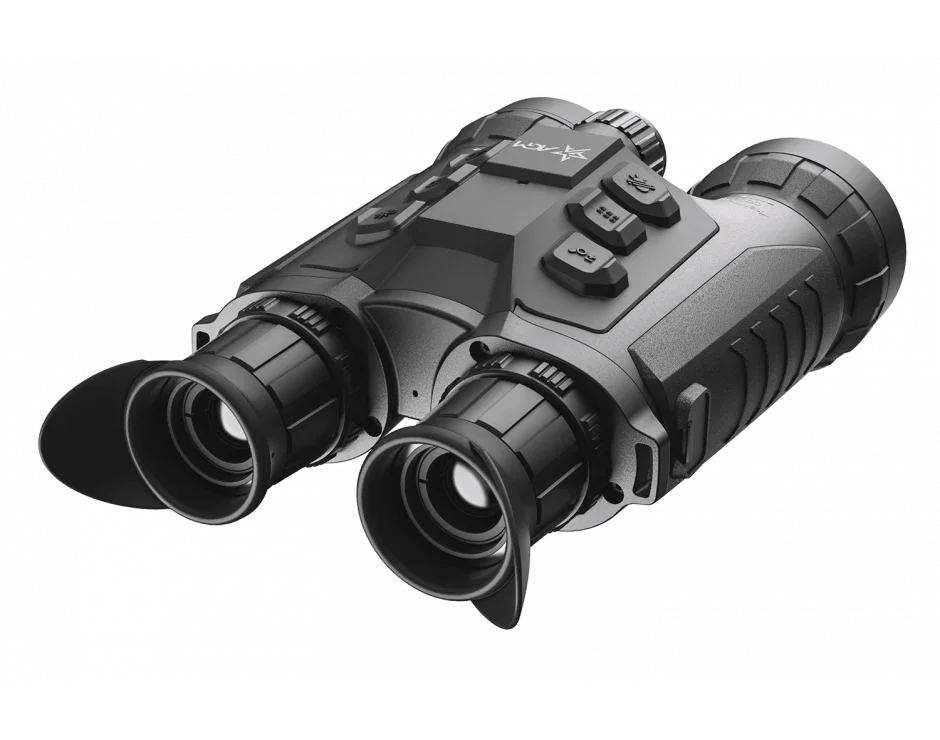

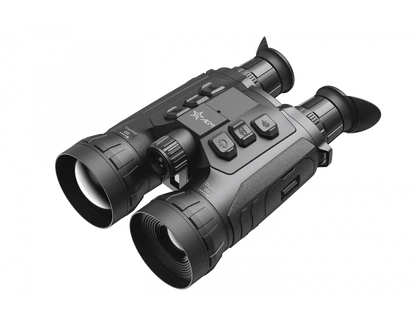

AGM ObservIR LRF 60-1280 12um Fusion Thermal Binocular 60mm

SKU:OBSE60-1280

Regular price $ 6,995.00
Sale Sold out
Free ground shipping available. Expedited shipping options are available at checkout.
Quantity

AGM ObservIR LRF 60-1280 Fusion Thermal Imaging & CMOS Binocular with built-in Laser Range Finder, 12 Micron 1280x1024 (50 Hz), 4K, 60mm lens (OBSE60-1280)

The AGM ObservIR LRF Thermal & Digital Day/Night Vision binocular is one of the most advanced and feature-rich optics available today. Its core functionality comes from the main thermal viewing channel, which boasts a high-sensitivity 12-micron detector. Unlike many other thermal binoculars, the ObservIR LRF includes an additional digital day/night channel, making it especially useful for identifying targets first detected by the thermal channel. The built-in 1,000-meter laser rangefinder elevates its capabilities even further, complemented by 64GB of internal storage and Wi-Fi compatibility.

The ObservIR LRF binocular model also integrates extensive software enhancements and a suite of features that are now standard in AGM's thermal lineup. These include a high-sensitivity thermal detector, a 25mm Germanium lens with a 1.0 aperture, a 3840x2160 ultra-low light CMOS sensor, multiple viewing modes, diverse color palettes, up to 4X digital zoom, picture-in-picture mode, a built-in laser rangefinder, GPS module, long-range IR illuminator, and up to 8 hours of battery life using removable, rechargeable 18650 batteries. Additional features include a USB Type-C port for external power, an IP67 waterproof rating, and a package that comes with four 18650 batteries, a wrist strap, and a charger.

AGM ObservIR LRF 60-1280 Features:

  • Dual-spectrum thermal and digital day/night system
  • 12μm high-sensitivity thermal sensor
  • 1280x1024 thermal resolution
  • 2.5x – 28x thermal magnification
  • Digital image processing technology
  • Ultra-low illumination optical channel
  • 3840×2160 optical resolution
  • Built-in IR illuminator
  • Eye-safe 1,000 m laser rangefinder
  • 1920×1080 resolution, 0.49-inch OLED display
  • Digital Magnetic Compass
  • Built-in GPS module
  • Video/audio recording and snapshot capture
  • Built-in 64 GB EMMC storage
  • Wi-Fi hotspot
  • Standby mode
  • 8-hour continuous operation on a single charge
  • Auto screen-off function to saving energy
  • External power supply capability
  • Rugged housing with rubber overmolding
  • Waterproof and dustproof
  • 5 Year Warranty

AGM ObservIR LRF 60-1280 Specifications:

Interpupillary Distance
60 mm to 74 mm
Safety Class for Laser
Class 1
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome Image Modes: Day, Night, Green, Yellow, Auto
Dimensions
230 x 153 x 83 mm / 9.1 x 6.0 x 3.3 in
Infrared Illuminator
Built-in 850nm Smart IR.Power and beam angle adjustment.
Distance Measurement
Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Scene Mode
Jungle, Recognition
Video Recording
Yes
Audio Recording
Yes
Magnification
Thermal Channel - 2.5x - 20x / Optical Channel - 5.5x – 22x
Detector type
Thermal Detector - 12μm VOx Uncooled Focal Plane Array / Digital Sensor - 3840×2160, 1/1.8” Progressive Scan CMOS
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
1280 × 1024
Laser Wavelength
905 nm
Detection Range (6' object)
3,100 m
Snapshot
Yes
Lens system
Thermal Channel - 60 mm; F1.0 / Optical Channel - 60 mm, F2.2
NETD
Less than 18 mK (25°C, F#=1.0)
Field of view (H × X)
Thermal Channel - 14.6 x 8.8 / Optical Channel - 6.9° × 4.1°
Diopter adjustment range
-5 to +3
Monitor
1920×1080, 0.49 inch, OLED, 50 FPS
Display
Day, Night, Auto
Storage
64 GB EMMC
Battery Type
One Replaceable and Rechargeable NE-7255 Li-ion Battery 7.18 V/5400 mAh (Two NE-7255 Li-ion Batteries 7.18 V/5400 mAh included)
Wi-Fi
Yes
Battery Life (Operating)
6 hours
Power supply
5 VDC/2 A, USB Type-C interface. Supports external power supply.
Operating Temperature Range
-20°C to 55°C (-4°F to 131°F)
Weight
0.89 kg / 1.97 lb
Protection Level
IP67 (Waterproof)


Included:

  • 4x 18650 Rechargeable Battery
  • Battery Charger
  • USB Cable
  • Power Adapter
  • Tripod Adapter
  • Quick Start Guide
  • User Manual
  • Lens Cloth
  • Neck Strap

U.S. Export Restrictions (ITAR/EAR)

This product is available for U.S. sale only and may be subject to ITAR and/or EAR export-control regulations. Please review our ITAR/EAR Compliance Policy before purchasing.
