AGM PVS-14 3AL1 Multi-Purpose Night Vision Monocular Gen 3 "Level 1" Auto Gated 11P14123483111

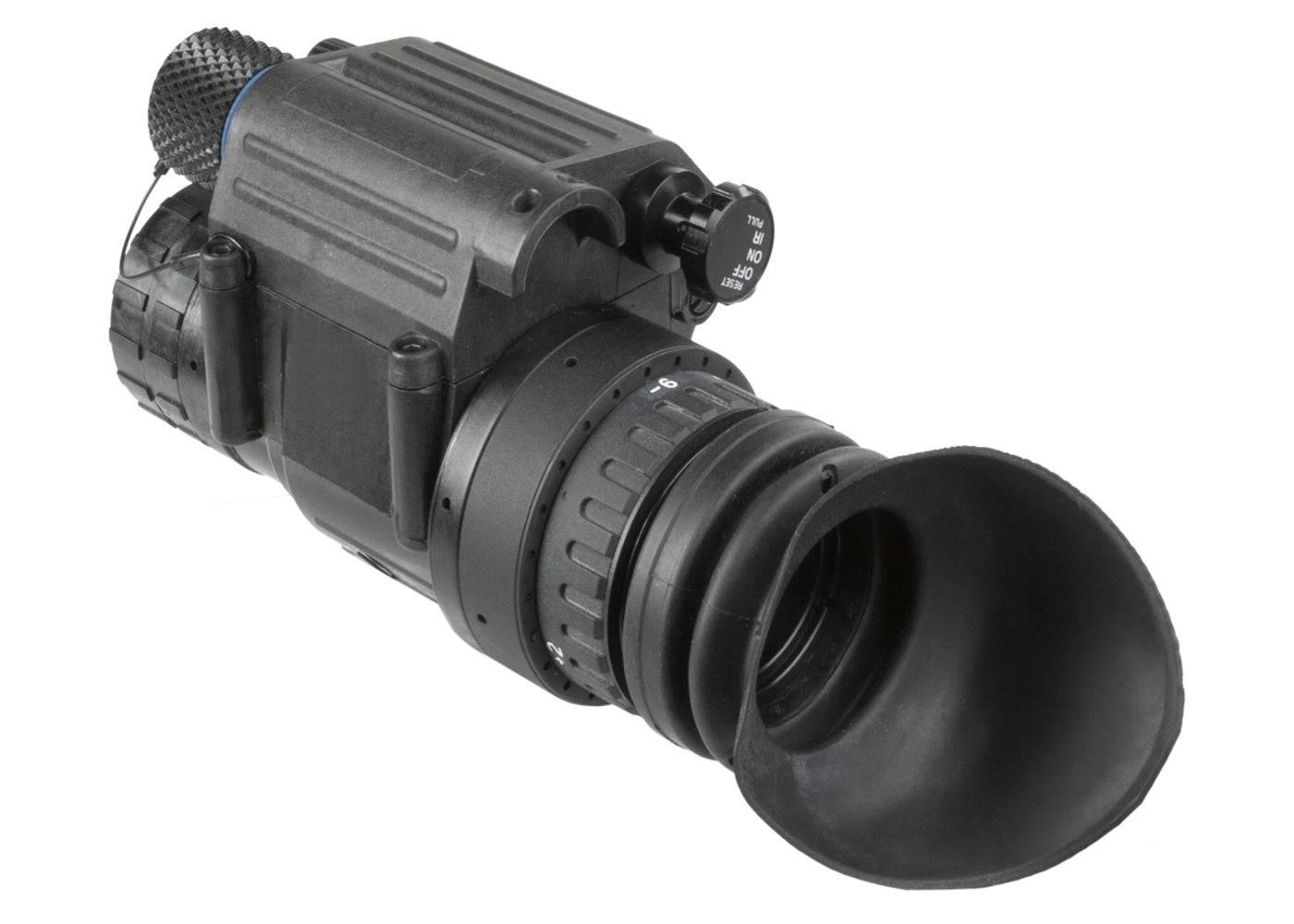

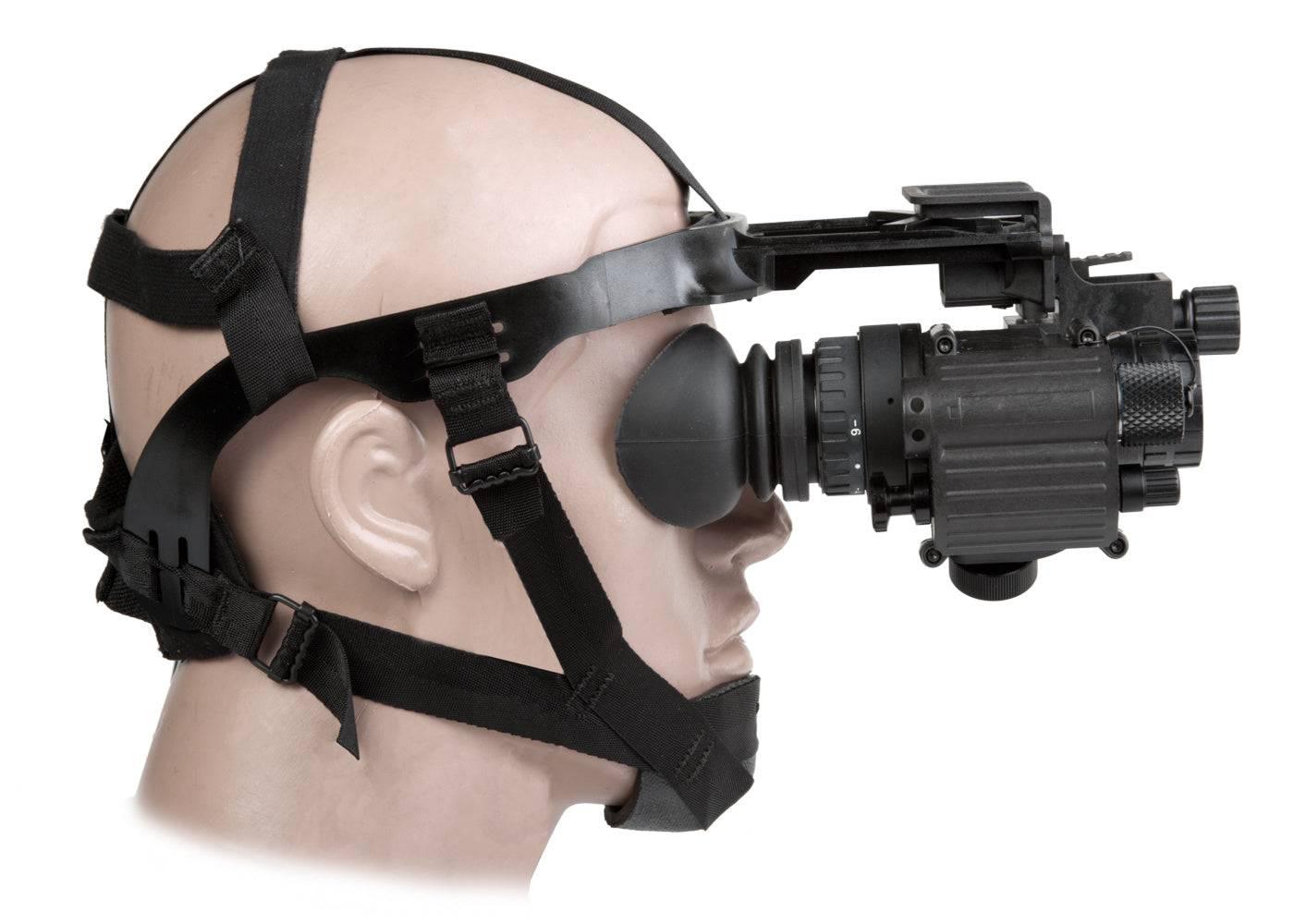

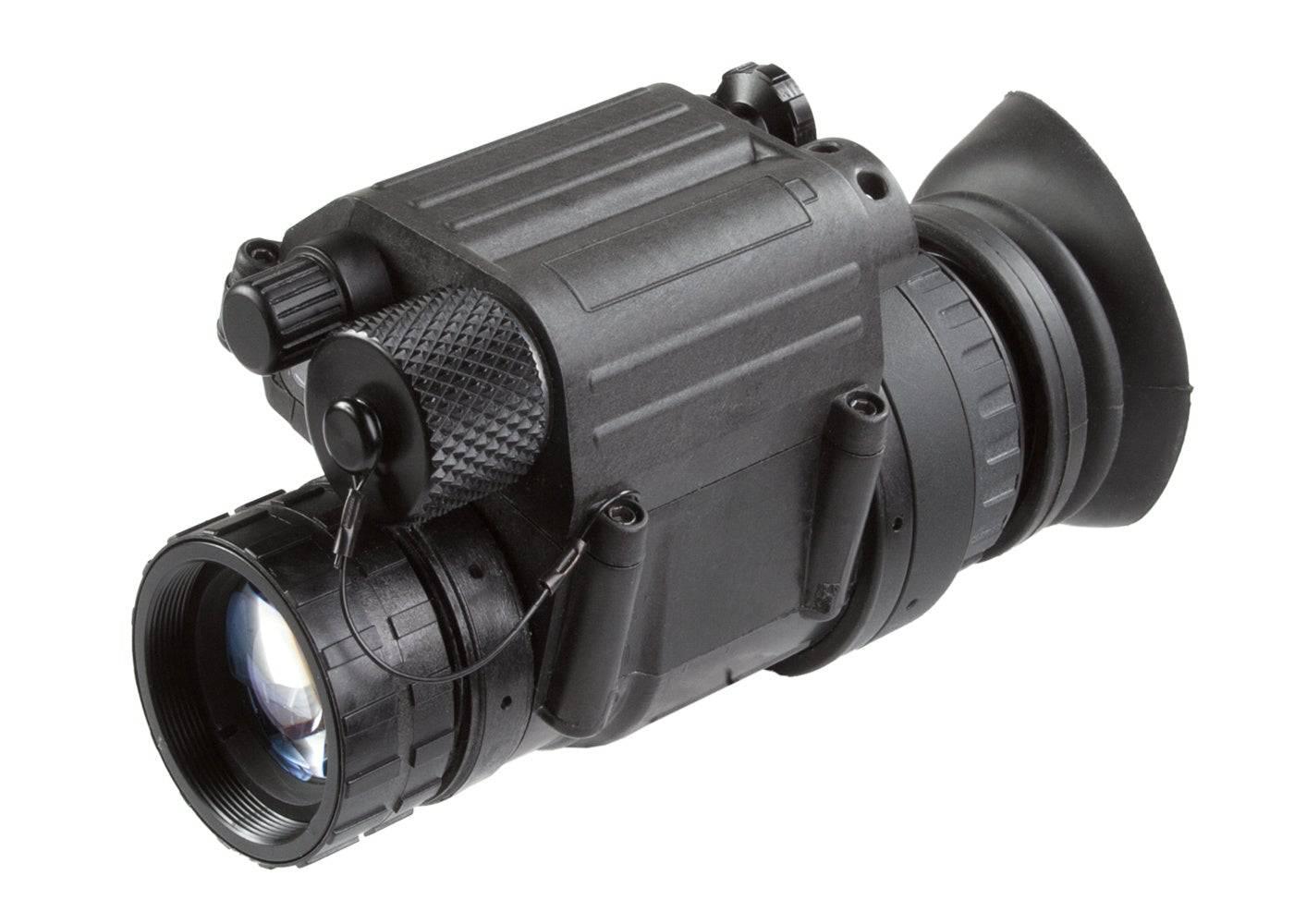

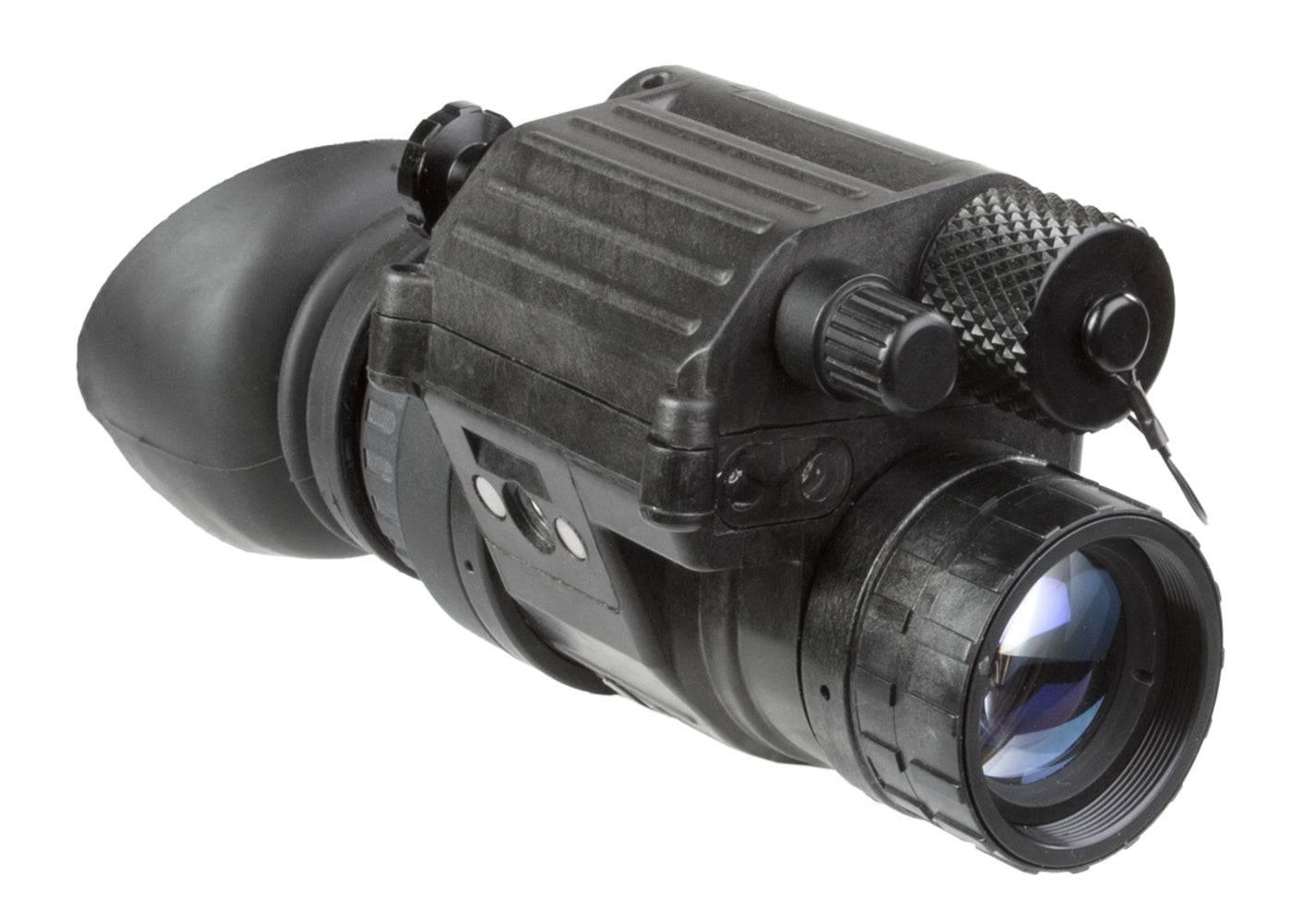

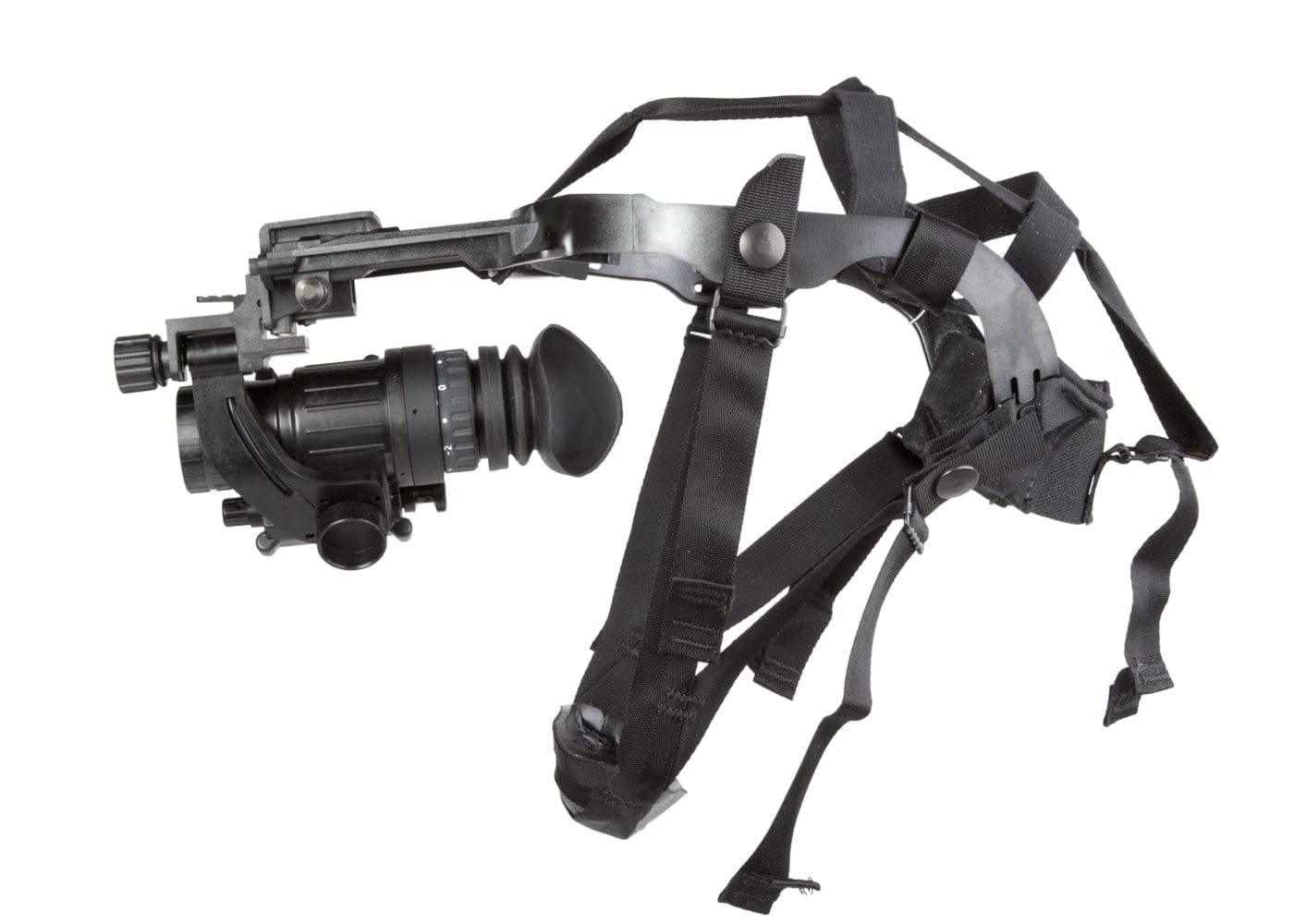

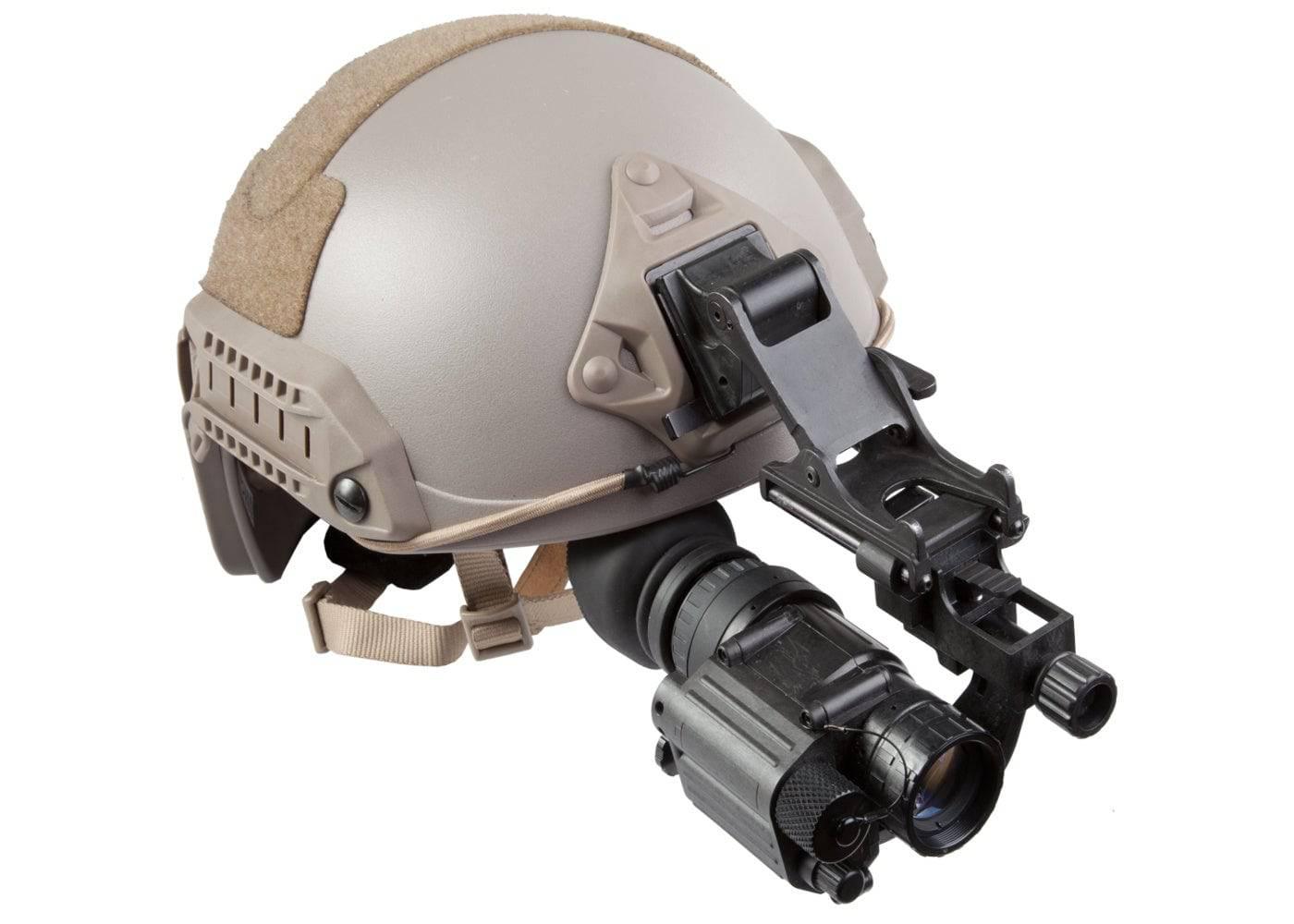

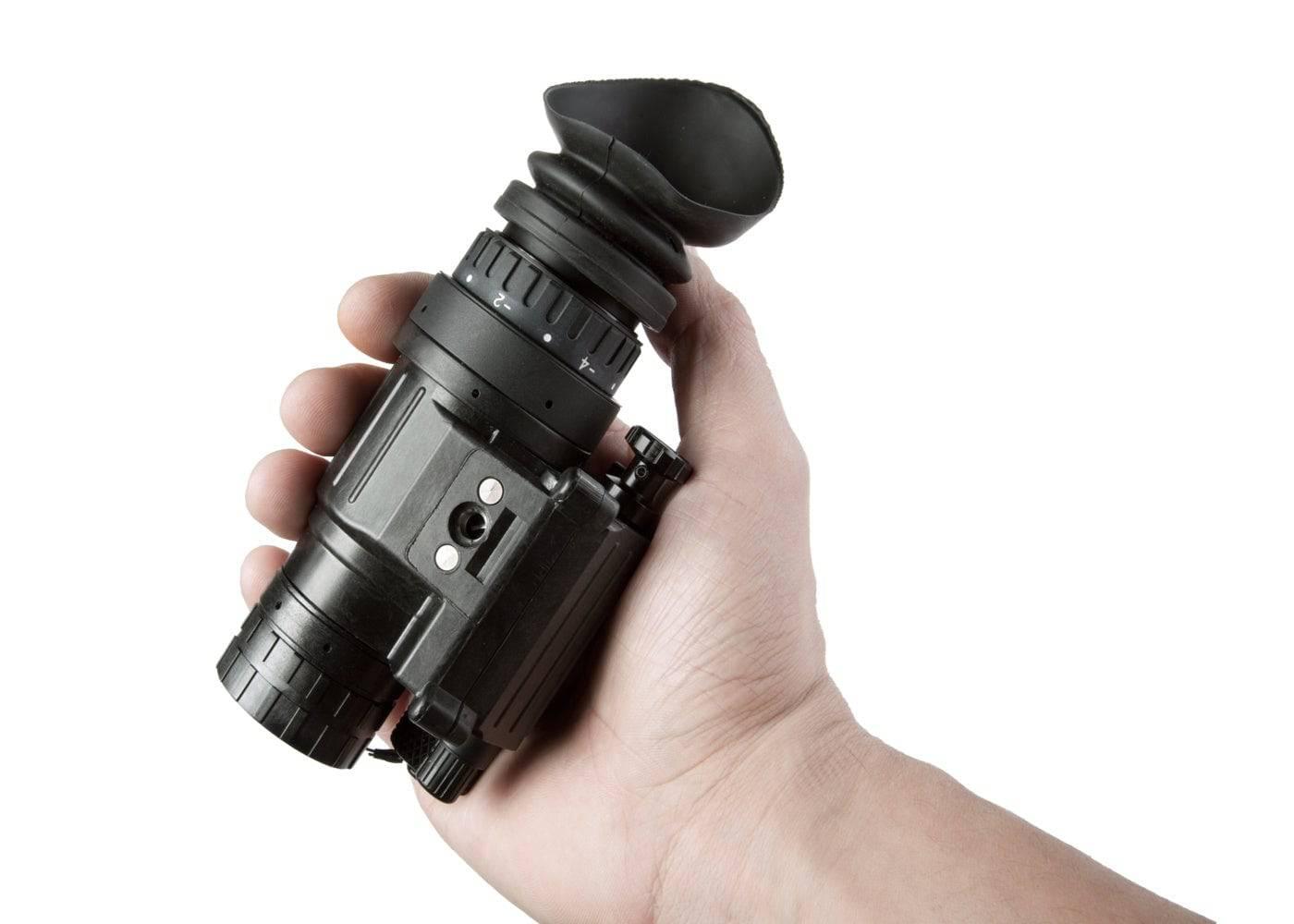

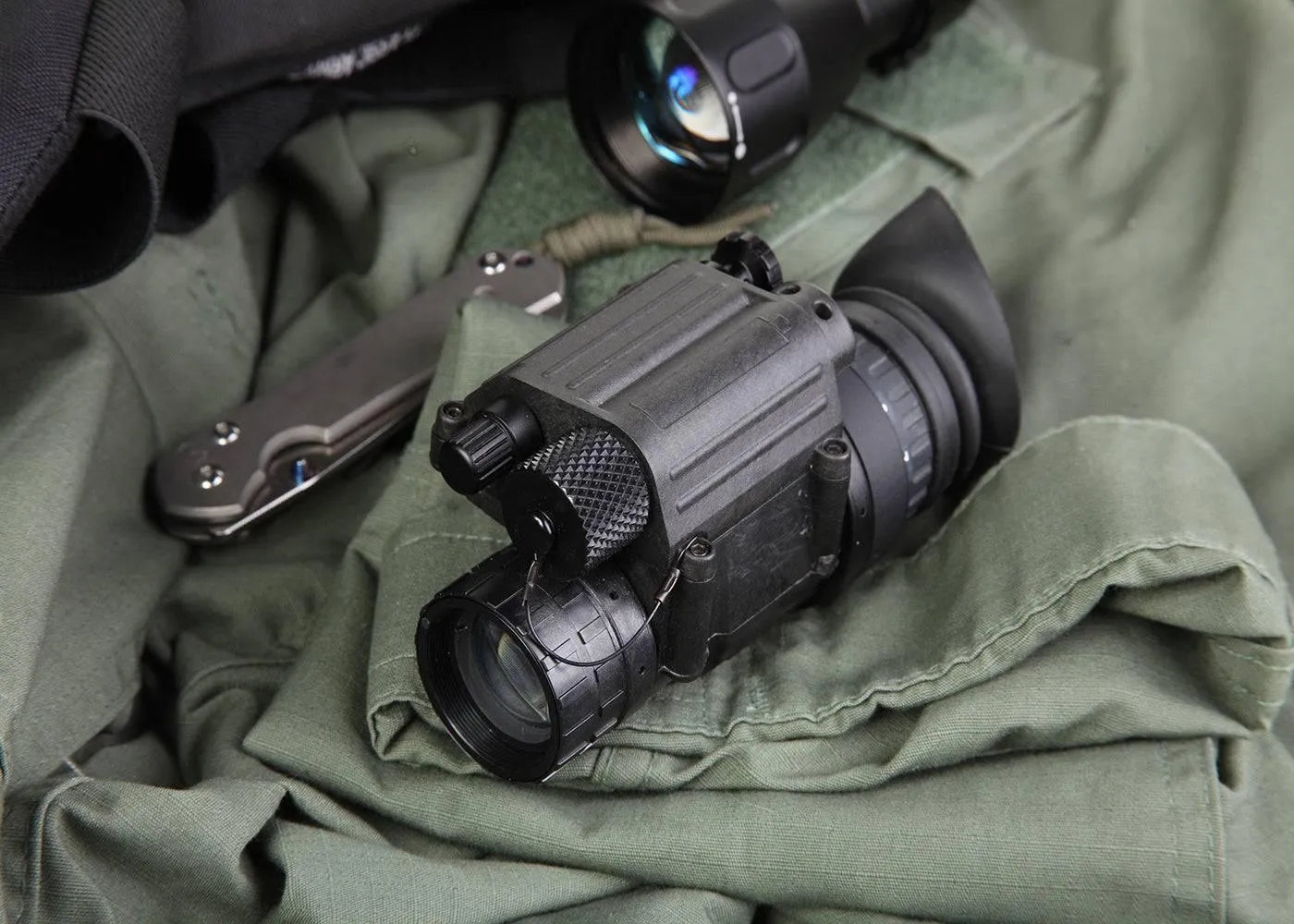

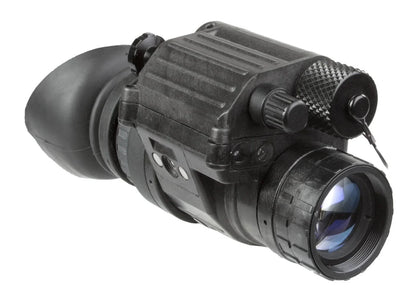

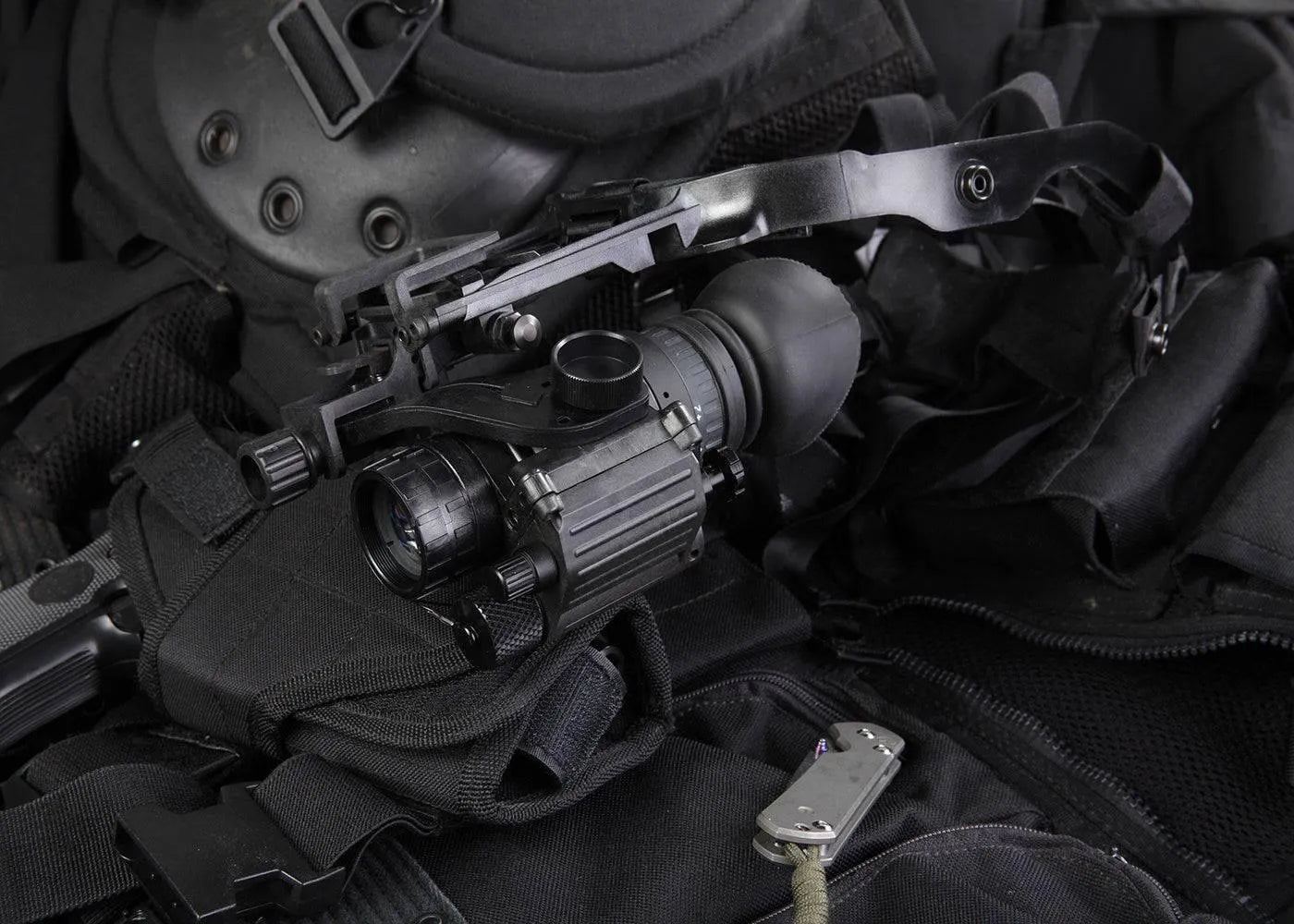

The AGM PVS-14 Night Vision Monocular is a rugged, lightweight, and versatile night vision device that has proven its reliability in combat. Originally designed for the U.S. Military to support nighttime operations, it is now used worldwide in some of the harshest environments. The PVS-14 can function as a handheld device or be mounted using the included head harness. With the right accessories, it can also be attached to combat helmets, offering night vision capabilities for daytime optical sights.
Built to meet 810G Military standards, the PVS-14 ensures top-tier durability and performance. Weighing less than 12.4 ounces (350 grams), this monocular includes manual gain control, an automatic bright light shut-off to protect the photocathode tube, and a built-in infrared (IR) illuminator for enhanced performance in complete darkness. AGM's PVS-14 also offers a variety of optional accessories, making it adaptable to nearly any operational need.
AGM PVS-14 3AL1 Features:
- Compact, rugged design
- Waterproof
- Weapon mountable

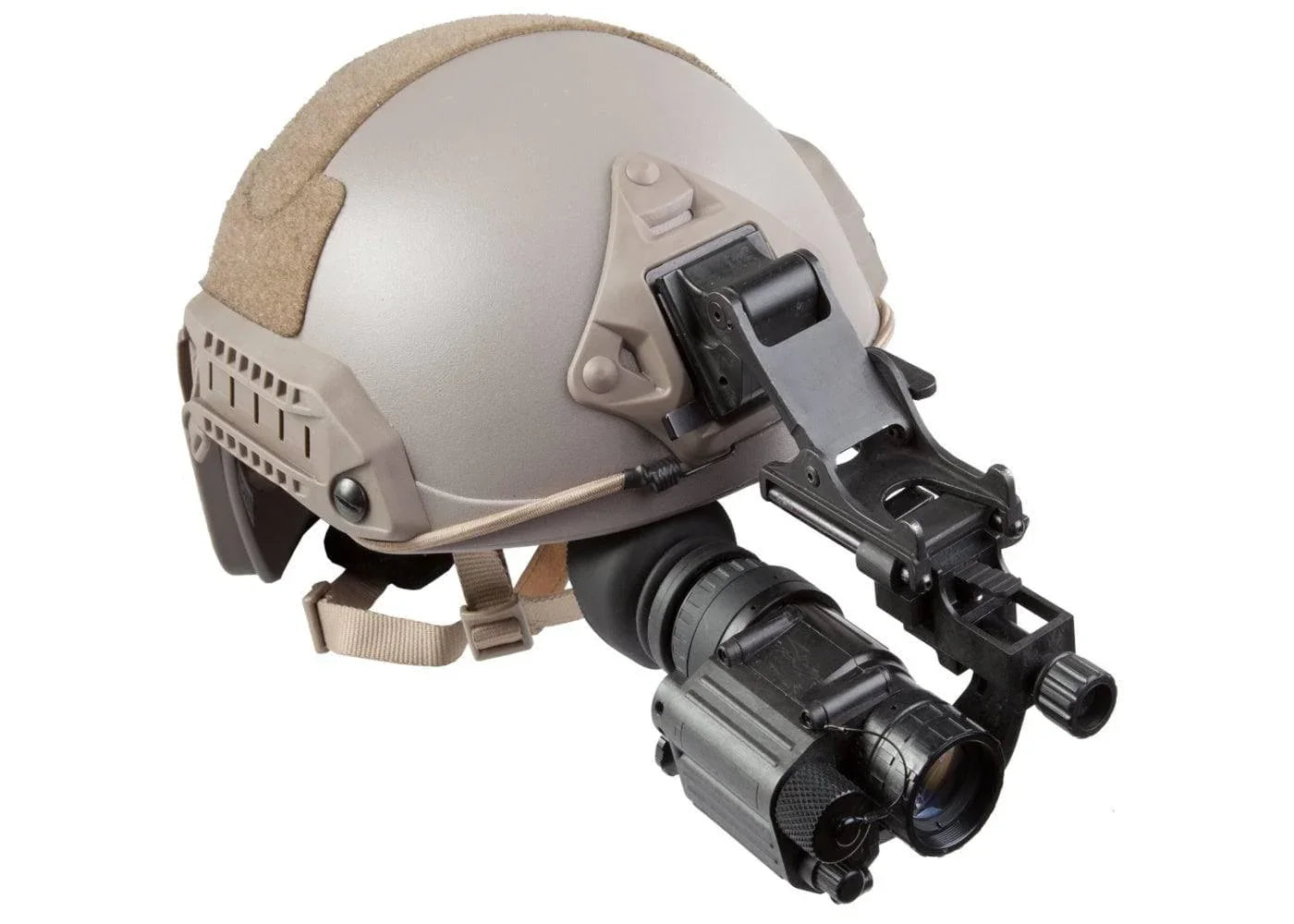

- Head or helmet-mountable for hands-free usage
- Manual gain control
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited three-year warranty
Tube Level Info:
|
Gen2+ Lvls
|
NL1/NW1 - Gen2+ Lvl1
|
NL2/NW2 - Gen2+ Lvl2
|
NL3 - Gen2+ Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls
|
3NL1/3AW1 - Gen3 Lvl1
|
3NL2/3AW2 - Gen3 Lvl2
|
3NL3/3AW3 - Gen3 Lvl3
|
|
Zone
|
1
|
2
|
3
|
1
|
2
|
3
|
1
|
2
|
3
|
|
>.015 or larger
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
0
|
1
|
|
>.012 - .015
|
0
|
0
|
0
|
0
|
0
|
1
|
0
|
1
|
1
|
|
>.009 - .012
|
0
|
1
|
1
|
0
|
2
|
2
|
1
|
2
|
2
|
|
>.006 - .009
|
0
|
1
|
2
|
1
|
2
|
2
|
1
|
2
|
2
|
|
.003 - .006
|
1
|
2
|
3
|
2
|
3
|
3
|
2
|
3
|
3
|
|
*Qty indicates Max Spots Allowed in Each Zone
|
|
|
|
|
|
|
|
**Spot Size (in.)
|
AGM PVS-14 3AL1 Specifications:
Image Intensifier Tube
Gen 3 Auto-Gated "Level 1"
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3AL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification

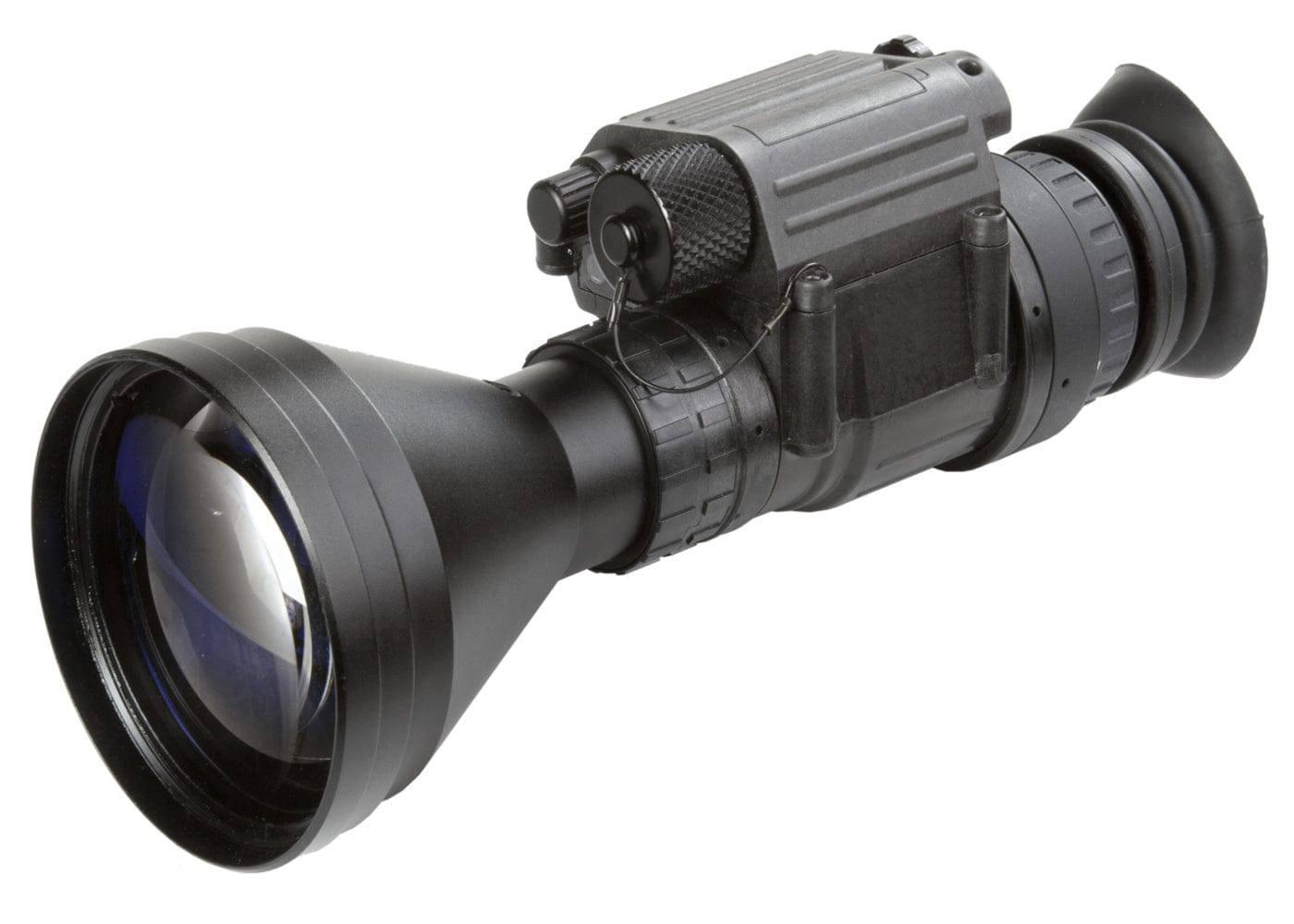

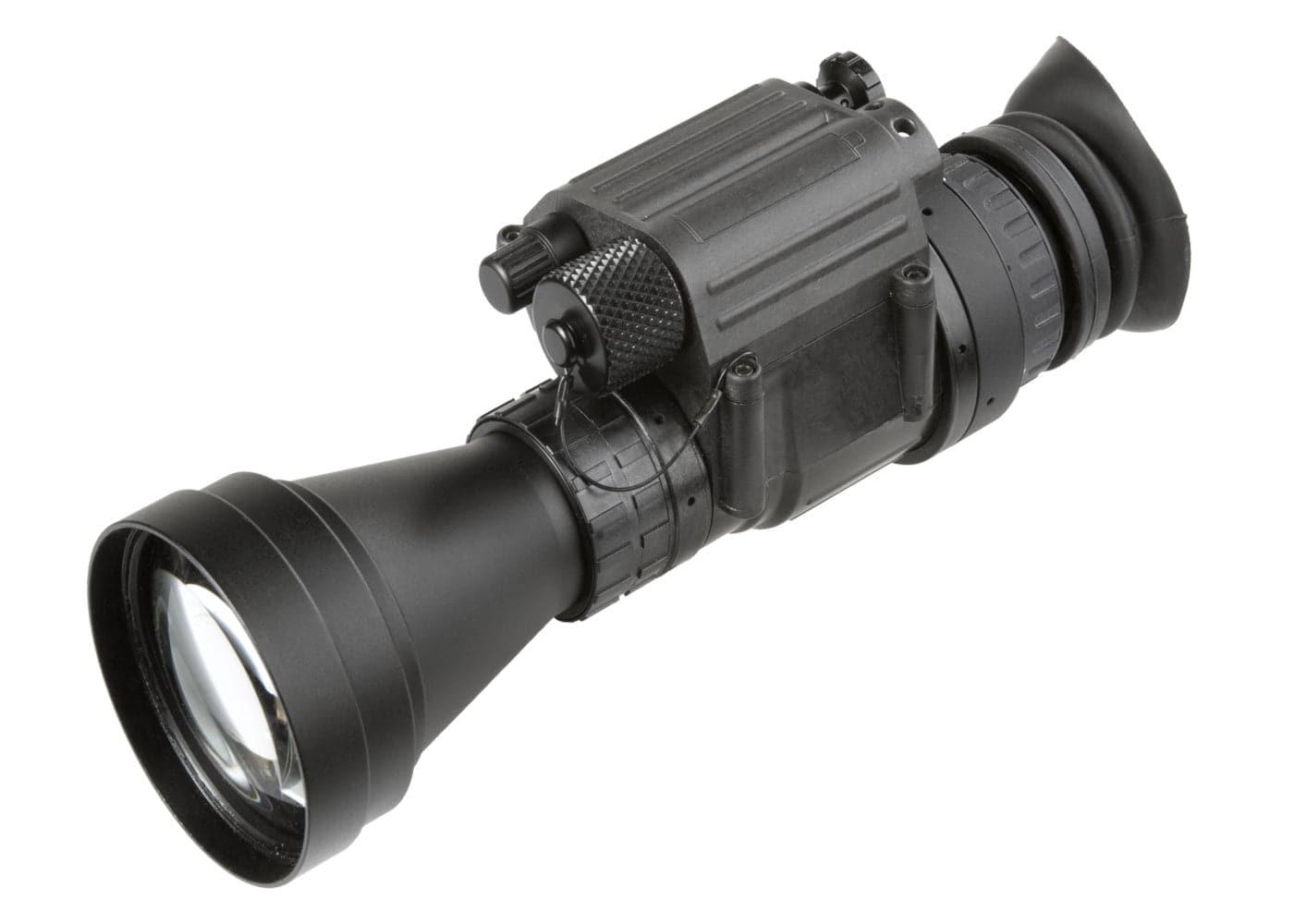

1x (3x and 5x optional)
Lens System
26 mm; F/1.2
FOV
40°
Focus Range
0.25 m to infinity
Diopter Adjustment
-6 to +4 dpt
Led Indicators
Low battery; IR On; Excessive light conditions
Infrared Illuminator
Yes
Manual Gain Control
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
One AA Alkaline
Battery Life (Operating)
Up to 50 hours at 20°C
Operating Temperature Range
-51° C to +49° C (-60° F to 120° F)
Storage Temperature Range
-51° C to +85° C (-60° F to 185° F)
Weight
0.32 kg (12.4 oz)
Overall Dimensions
114 x 63x 69 mm (4,5 x 2,5 x 2,7 in)
Package Includes

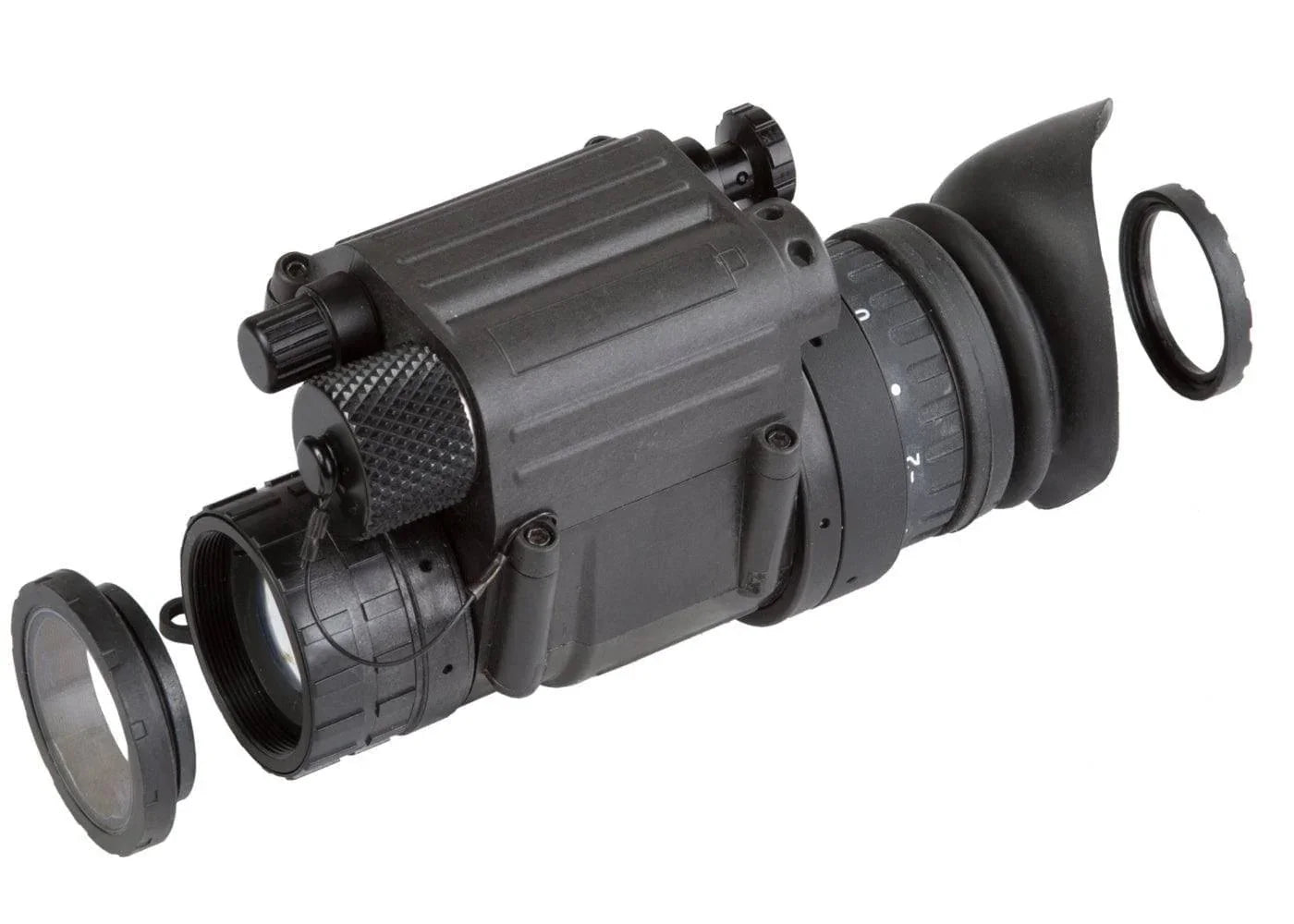

Head Mount Assembly, Brow Pad, Eye Cup, Helmet/ Head Mount Adapter, System Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Diopter Lens Cap, Sacrificial Window, Demist Shields, Operator’s Manual, Battery
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
