AGM PVS-7 3AL1 Night Vision Goggle Gen 3
AGM PVS-7 3AL1 Night Vision Goggle Gen 3
SKU:12PV7123283111
Couldn't load pickup availability
AGM PVS-7 3AL1 Night Vision Goggle Gen 3 "Level 1" Auto Gated 12PV7123283111
Authorized Dealer

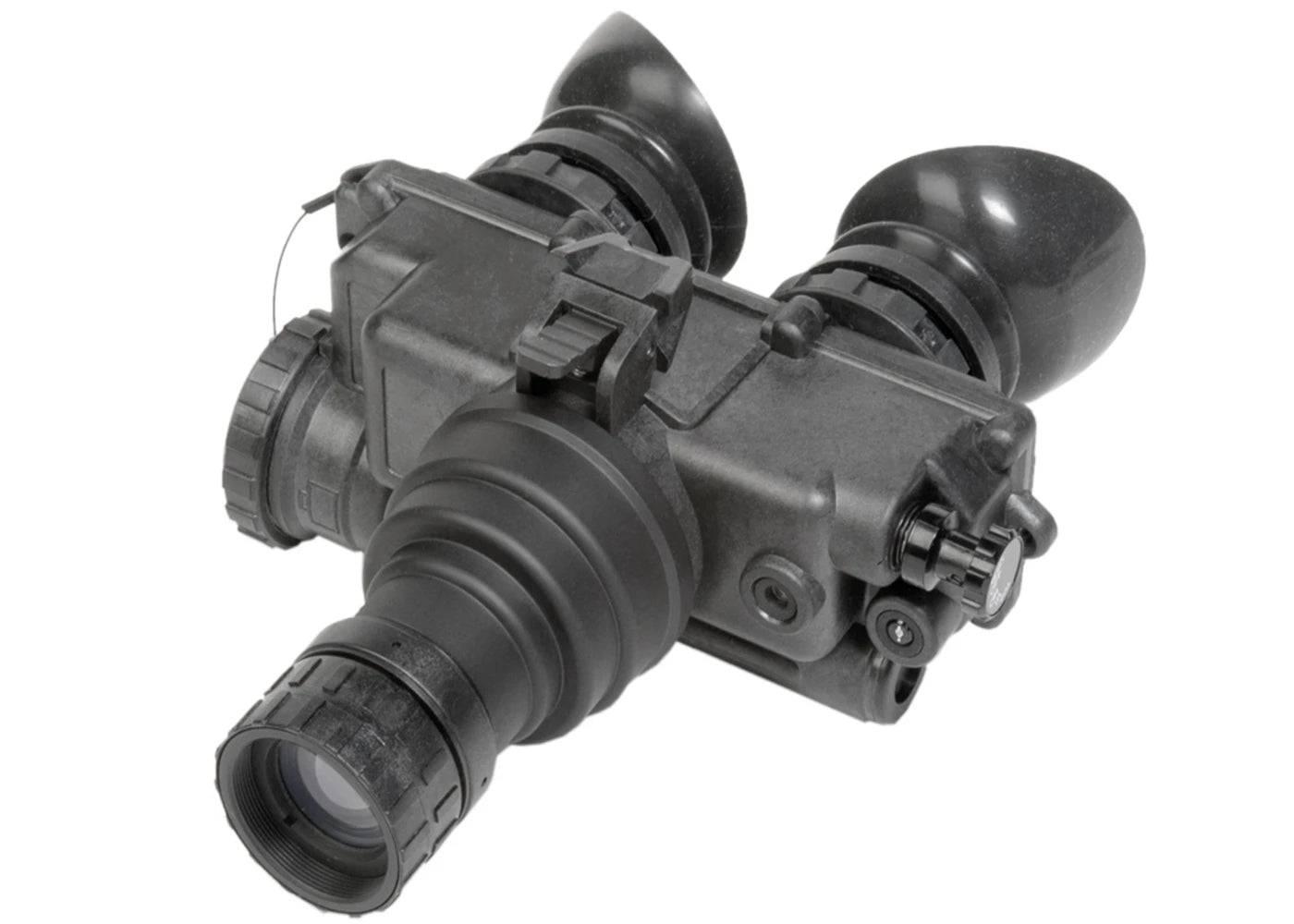

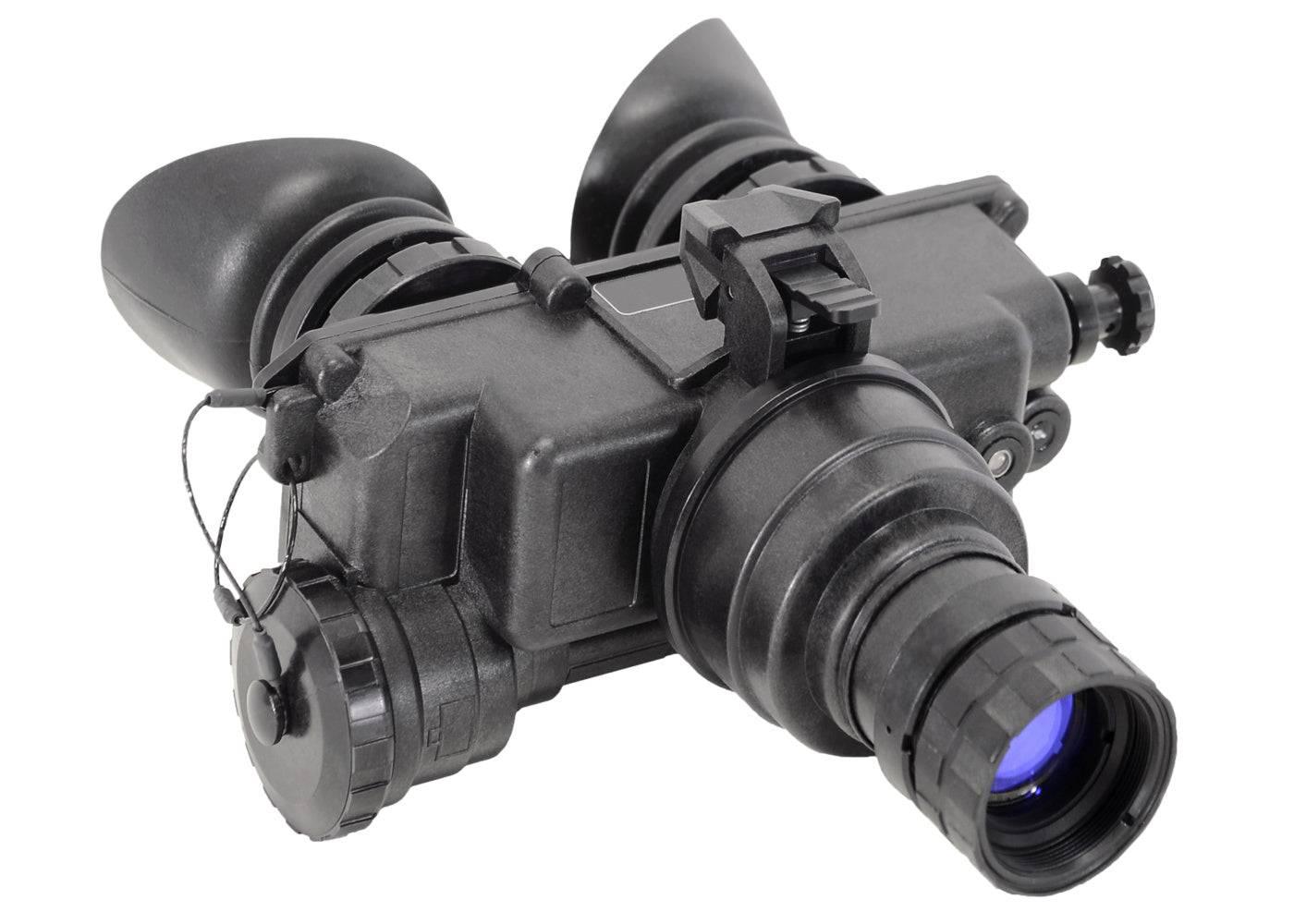

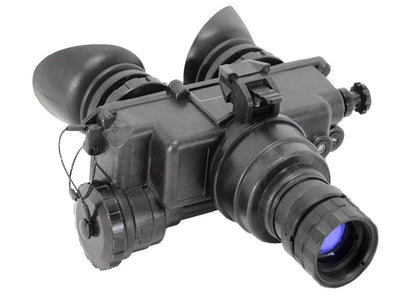

Widely renowned for consistent reliability and ergonomic design, the PVS-7 is a U.S. military-grade night vision goggle system renowned for use in combat situations. It is the finest AN/PVS-7 B/D system offered on the market. The PVS-7 can be configured with advanced Gen 2+ and Gen 3 image intensifier tubes in Green phosphor or P45 white phosphor variants. An integrated Automatic Brightness Control (ABC) adjusts image brightness in varying light conditions to retain high image resolution. Plus, a built-in infrared illuminator ensures the user remains undetectable while navigating complete darkness.
Featuring a bright light cutoff feature to protect the image tube, a flip-up shutter, two LED indicators, and optional helmet mount system compatibility, the PVS-7 is lightweight, durable, and can be handheld or head-mounted. Moreover, it is capable of supporting afocal magnifier lenses for enhanced long-distance viewing.
AGM PVS-7 3AL1 Features:
- Compact, rugged design
- Waterproof

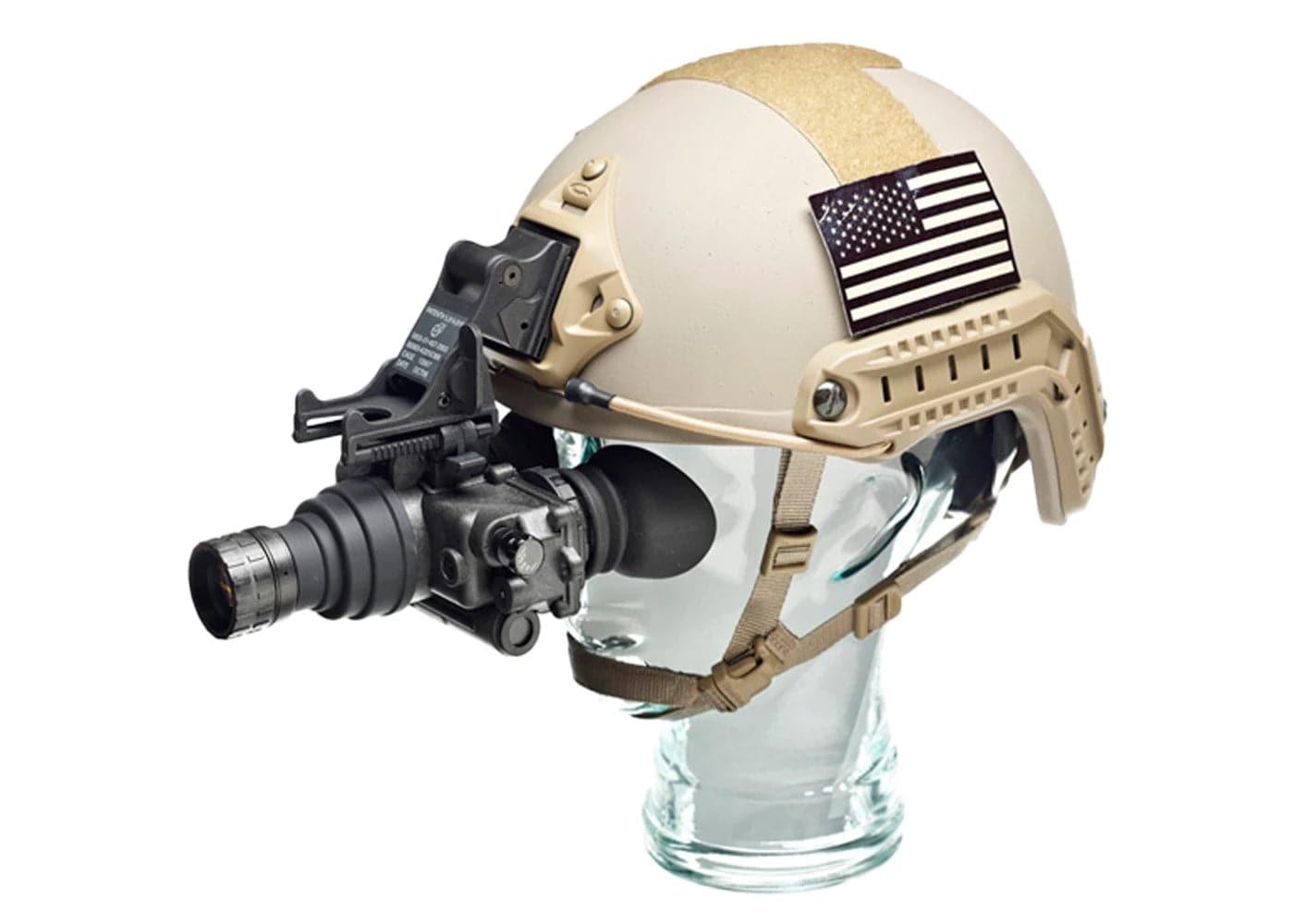

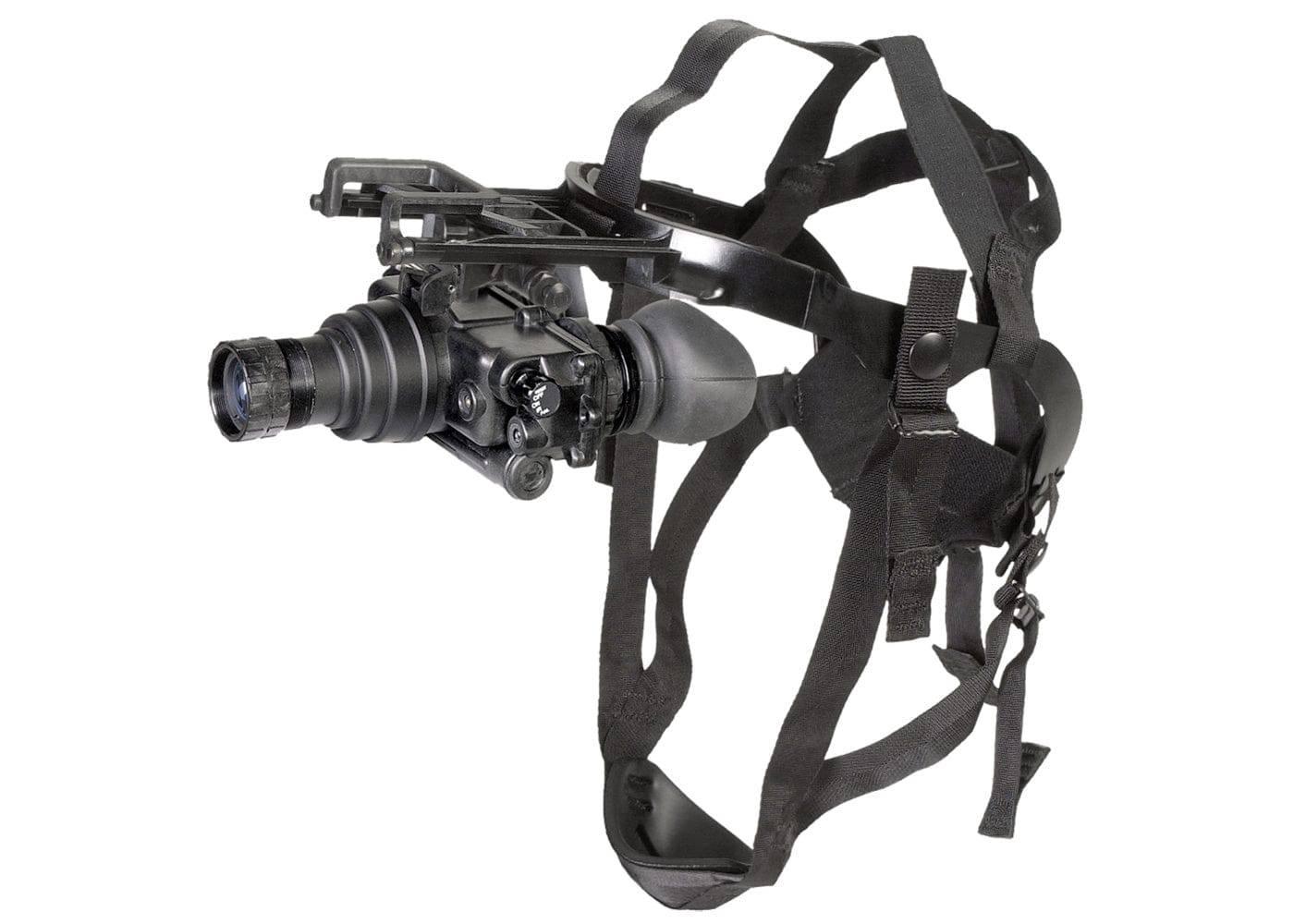

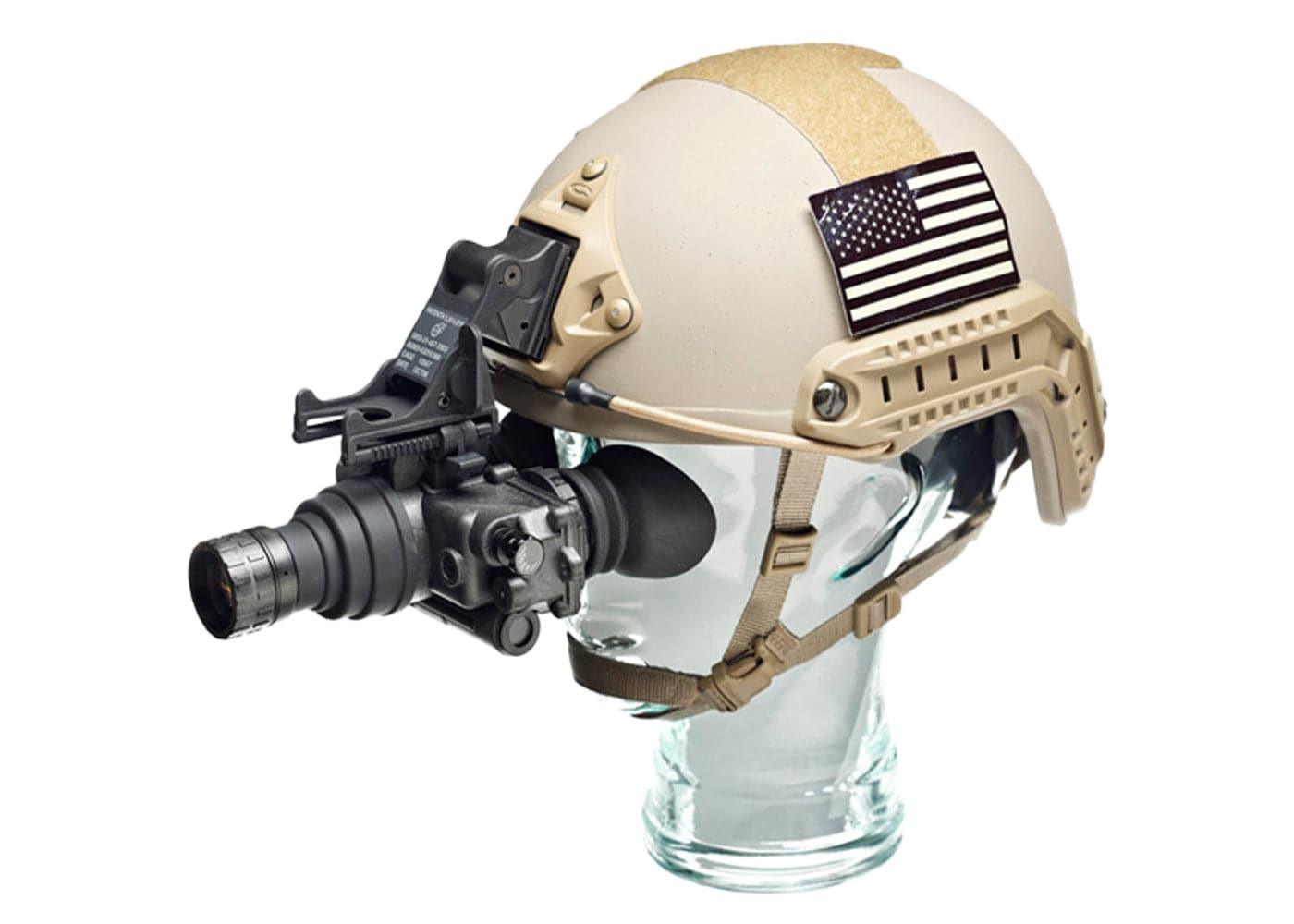

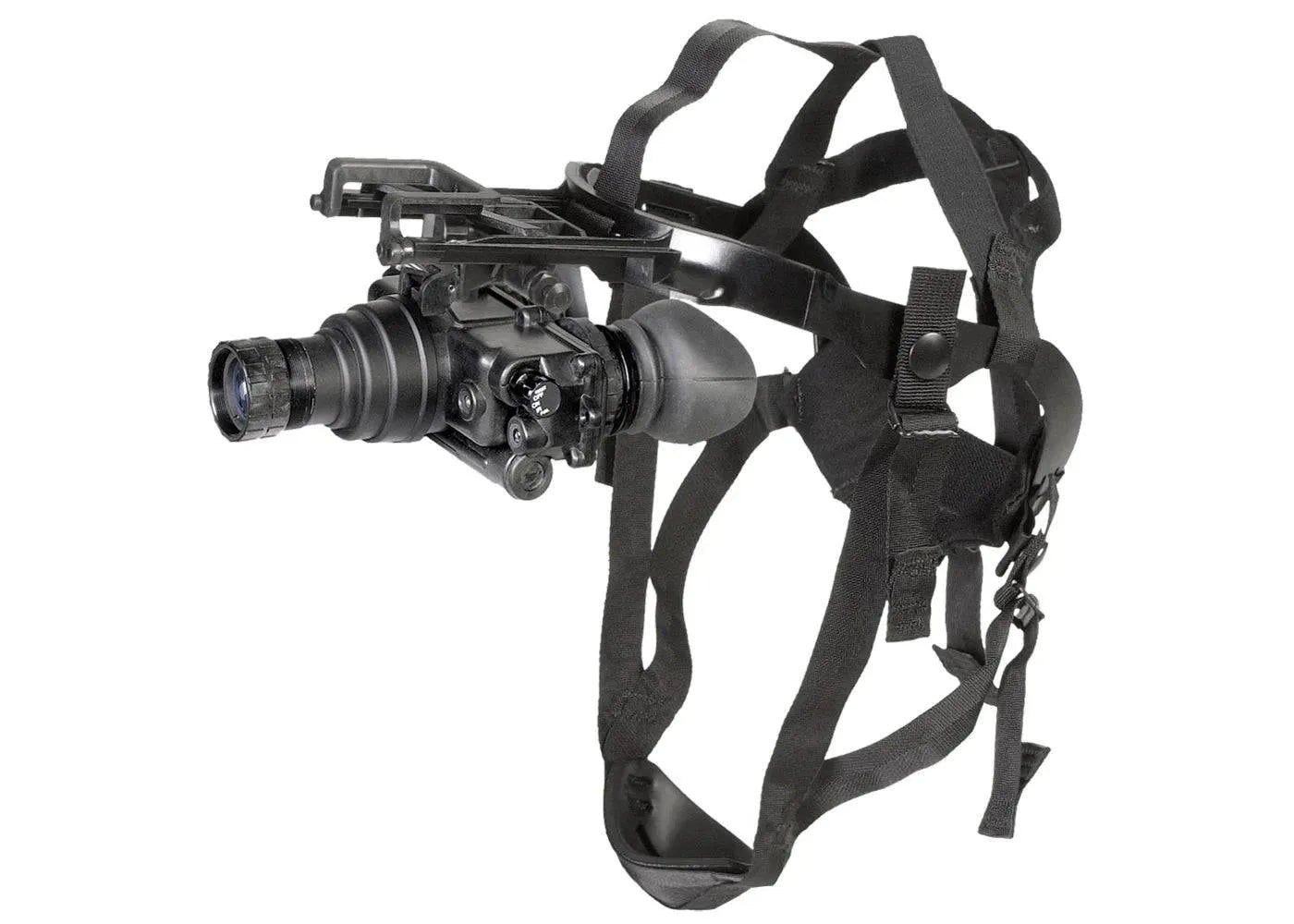

- Head or helmet-mountable for hands-free operation
- Ergonomic, simple, easy-to-operate controls
- Built-in Infrared illuminator and flood lens
- Limited 3-Year Warranty
|
Gen2+ Lvls |
NL1/NW1 - Gen2+ Lvl1 |
NL2/NW2 - Gen2+ Lvl2 |
NL3 - Gen2+ Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Gen3 Lvls |
3NL1/3AW1 - Gen3 Lvl1 |
3NL2/3AW2 - Gen3 Lvl2 |
3NL3/3AW3 - Gen3 Lvl3 |
||||||
|
Zone |
1 |
2 |
3 |
1 |
2 |
3 |
1 |
2 |
3 |
|
>.015 or larger |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
0 |
1 |
|
>.012 - .015 |
0 |
0 |
0 |
0 |
0 |
1 |
0 |
1 |
1 |
|
>.009 - .012 |
0 |
1 |
1 |
0 |
2 |
2 |
1 |
2 |
2 |
|
>.006 - .009 |
0 |
1 |
2 |
1 |
2 |
2 |
1 |
2 |
2 |
|
.003 - .006 |
1 |
2 |
3 |
2 |
3 |
3 |
2 |
3 |
3 |
|
*Qty indicates Max Spots Allowed in Each Zone |
|
|
|
|
|
|
|||
|
**Spot Size (in.) |
|
|
|
|
|
|
|
|
|
AGM PVS-7 3AL1 Specifications:
Image Intensifier Tube
Gen 3 "Level 1"
Resolution
64-72 lp/mm
Field of view cleanness by zone
Gen 3 IIT 3NL1 is the highest resolution and the cleanest offered by AGM. There are practically no visible spots in Zone 1.
Magnification
1x
Lens System
27 mm; F/ 1.2
FOV
40°
Focus Range
0.2 m to infinity
Diopter Adjustment
-6 to +2 dpt
Led Indicators
Low battery; IR On; Excessive light conditions
Automatic Brightness Control
Yes
Infrared Illuminator
Yes
Bright Light Cut-Off
Yes
Automatic Shut-Off System
Yes
Battery Type
2 AA Alkaline or 1 Lithium (BA-5567/ U)
Battery Life (Operating)
Up to 60 hours at 20°C
Operating Temperature Range
-40°C to +50°C (-40°F to +122°F)
Storage Temperature Range
-50°C to +70°C (-58°F to +158°F)
Weight
0.68 kg (1.5 lbs)
Overall Dimensions
162 × 152 × 76 mm (6.4 × 6.0 × 3.0 in)
Package Includes
Head Mount Assembly, Medium & Thick Brow Pads, Eye Cups, Soft Carrying Case, Daylight Filter, Shoulder Strap, Lens Paper, Sacrificial Window, Demist Shields, Operator’s Manual
|
Warranty |
3 Years |
Optional Equipment:
AGM Afocal Magnifier Lens Assembly, 3X
8x Lens for PVS-7
AGM Afocal Magnifier Lens Assembly, 5X
Norotos PASGT Helmet Mount Assembly (PVS-7, PVS-14)
Norotos MICH Helmet Mount Assembly (PVS-7, PVS-14)
Sioux850 Long Range Infrared Illuminator with Mount, Dovetail to Weaver Transfer Piece, Rechargeable Battery, and Charger
Hard Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
