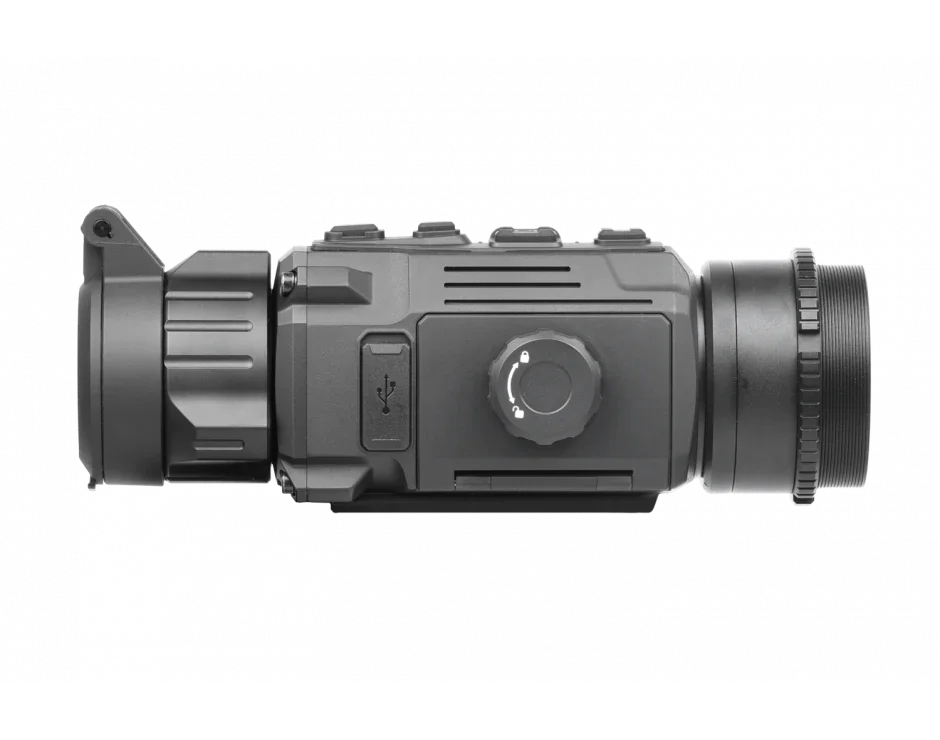

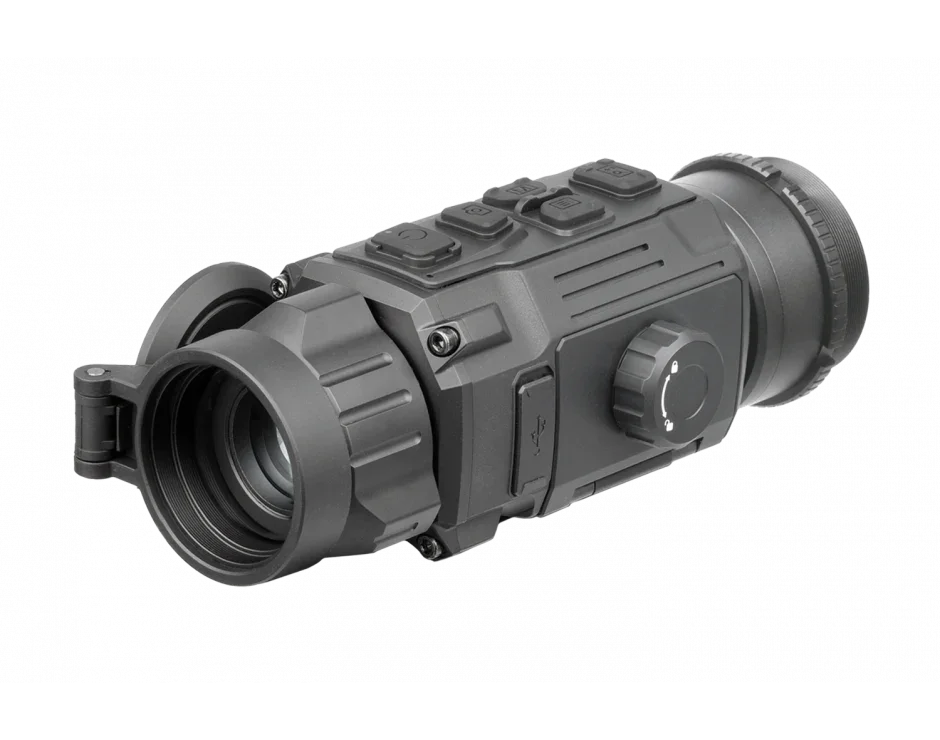

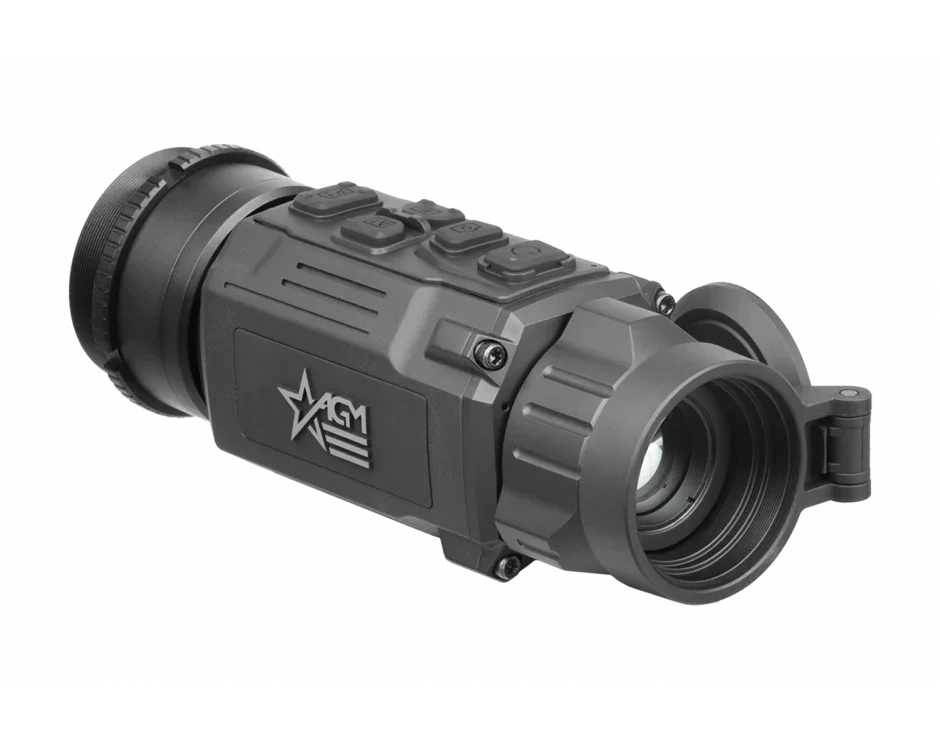

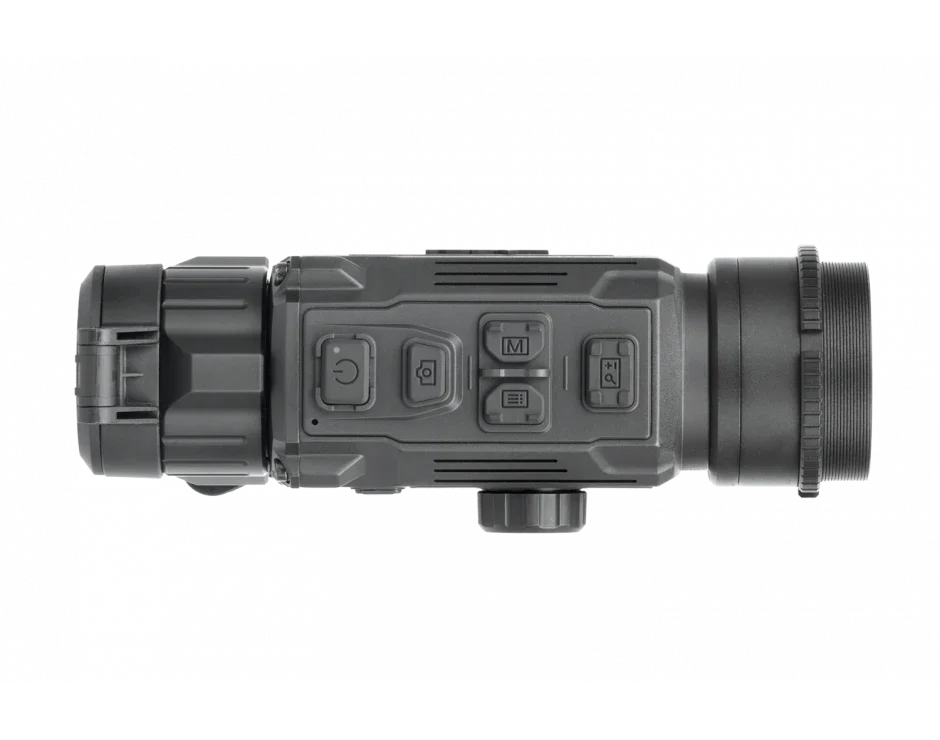

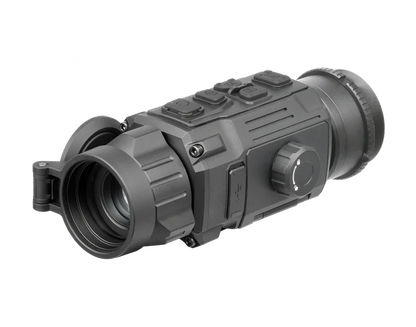

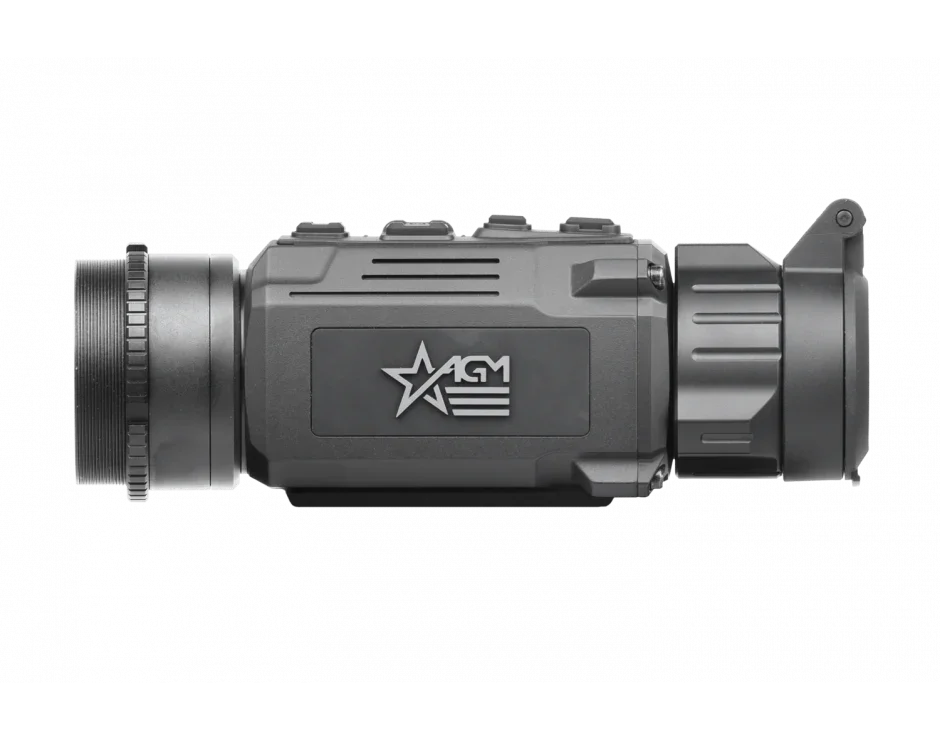

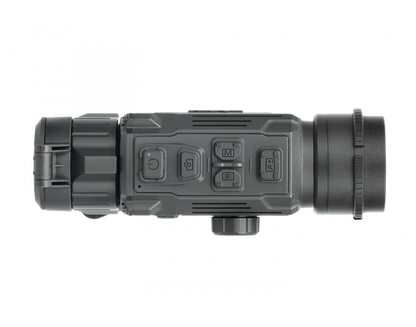

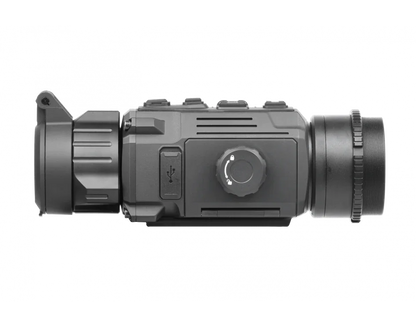

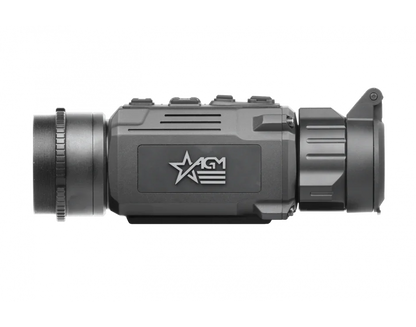

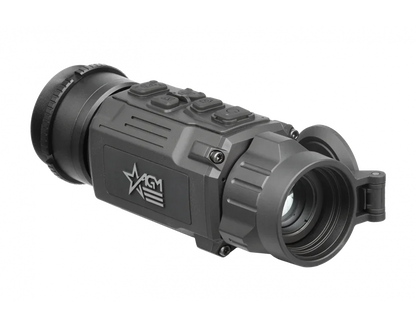

AGM Rattler-C V2 19-256 Thermal Clip-on Scope 19mm

AGM Rattler-C V2 19-256 Thermal Clip-on Scope 19mm 256x192 12um (50Hz) (314208560103R921)



Authorized Dealer



The NEW AGM Rattler-C V2 series of thermal clip-ons boasts a industryleading 12 micron, sub-20mk thermal detectors (NETD <20mK for 384 and 640 models). These physical attributes provide users with some of the best image quality AGM has produced to date with potential detection ranges up to 2600 yards. The Rattler-C V2 thermal clip-ons have a high-sensitivity sensor, which provides a clear image under harsh environment conditions like darkness, fog, smoke, dust, rain, snow, wood, camouflage, etc. The Rattler-C V2 clip-on The Rattler TC can easily be attached in front of day scopes to quickly convert a day optic into a thermal imaging device without any special tools or equipment required. Powered replaceable and rechargeable Li-ion battery the AGM Rattler-C V2 provides up to 11 hours of continuous battery life on a single charge (2 batteries included). An external 5V power bank (battery pack) can be easily connected via a USB-C connector for a significant increase of operating time. Onboard Wi-Fi module is also available for live video streaming and video/images recording via mobile application.



AGM Rattler-C V2 19-256 Features:

• Quick conversion of daytime optics into thermal imaging scope
• 12μm high-sensitivity thermal detector, NETD < 20mK
• Fast 50Hz imaging
• High resolution OLED display
• Adjustable color palettes
• On-board video/audio recording and image capture
• Built-in EMMC storage (16 GB)
• Shot Activated Recording (SAR)
• Wi-Fi data transmission
• Stadiametric rangefinder
• Standby mode
• 9 - 11 hours battery life (depending on model)
• External power supply compatibility
• Waterproof & shockproof
• 3-year warranty



AGM Rattler-C V2 19-256 Specifications:

Shot-Activated Recording

Yes

Max. Recoil

1000 g/0.4 ms

Dimensions

184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)

Flat Field Correction (FFC)

Auto, Manual, External Correction

Palettes

Black hot, White hot, Red hot, Fusion

Exit Pupil Diameter

22 mm

Distance Measurement

Yes (Stadiametric

Scene Mode

Cold, Warm

Video Recording

Yes

Defective Pixels Correction (DPC)

Yes

Audio Recording

Yes

Detector type

12μm VOx Uncooled Focal Plane Array

Standby Mode

Yes

Refresh rate

50 Hz

Resolution

256 × 192

Detection Range (6' object)

1000 m/yd

Snapshot

Yes

Lens system

19 mm; F/1.0

NETD

Less than 35 mK (25°C, F# = 1.0)

Optical magnification

1×

Field of view (H × X)

9.3° × 6.9°

Hot Track

Yes

Eye relief

10 mm

Display

0.39-inch, OLED, 1024×768

Storage

Built-in EMMC (16 GB)

Battery Type

4400mAh Replaceable and Rechargeable Li-ion Battery

Wi-Fi

Yes

Battery Life (Operating)

11.5 h (25°C, with hotspot off)

External power supply

5 VDC, 2 A, USB Type-C

Operating Temperature Range

-30°C to +55°C (-22°F to 131°F)

Weight

0.5 kg (1.10 lb)

Protection Level

IP67

Focus Range

0.5 m to infinity



Package Includes:

Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
