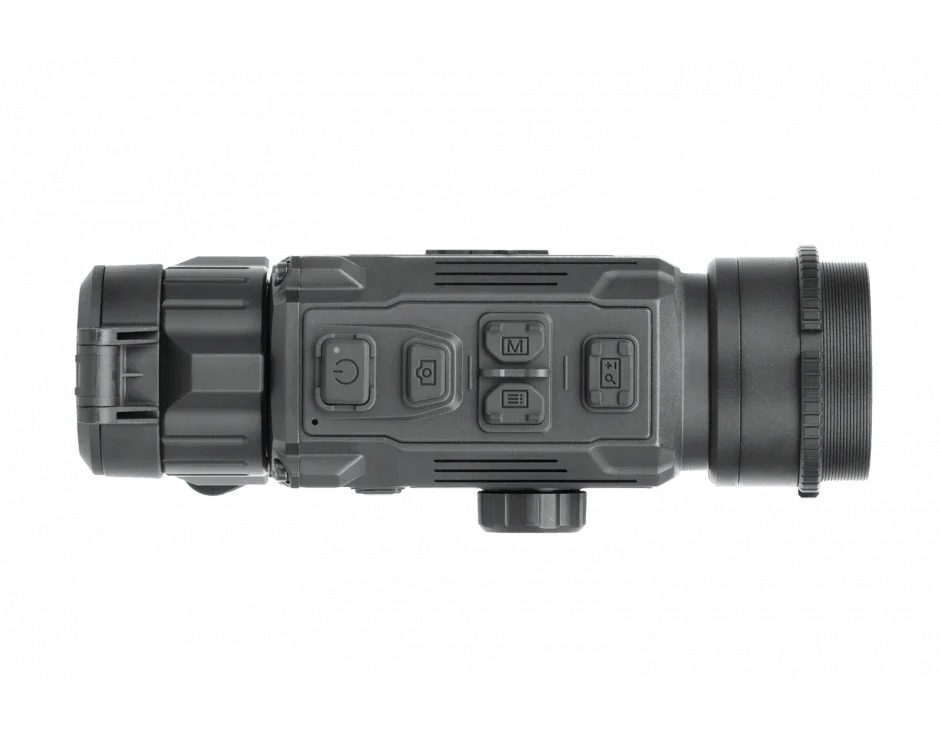

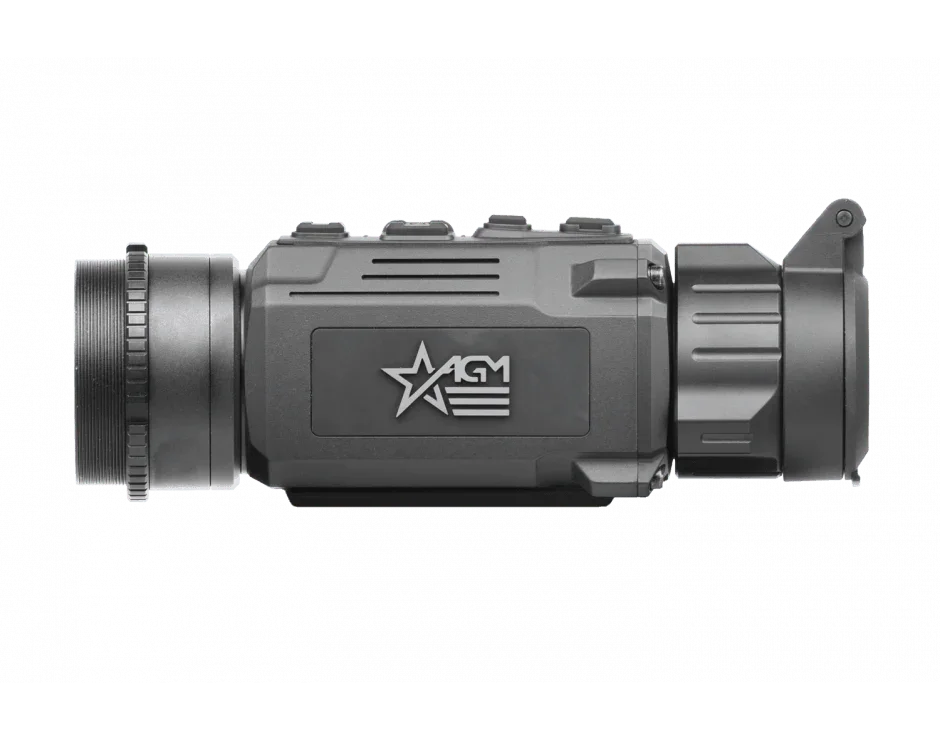

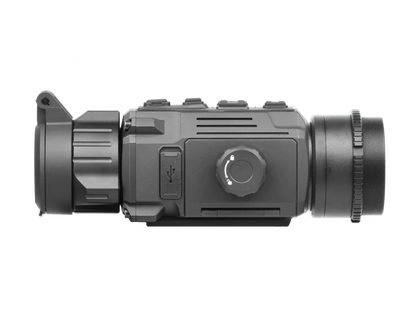

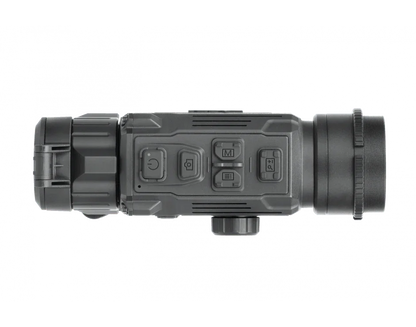

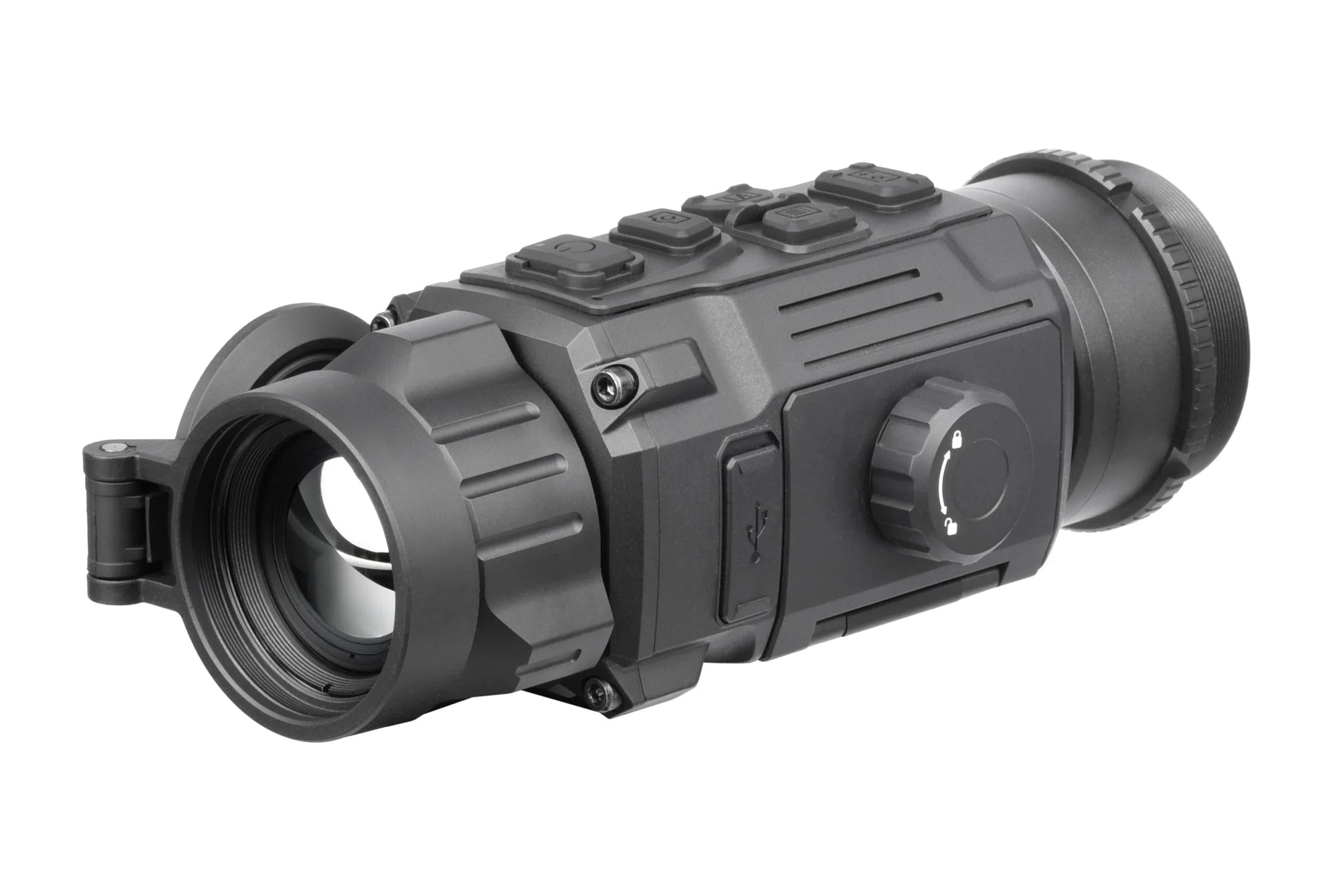

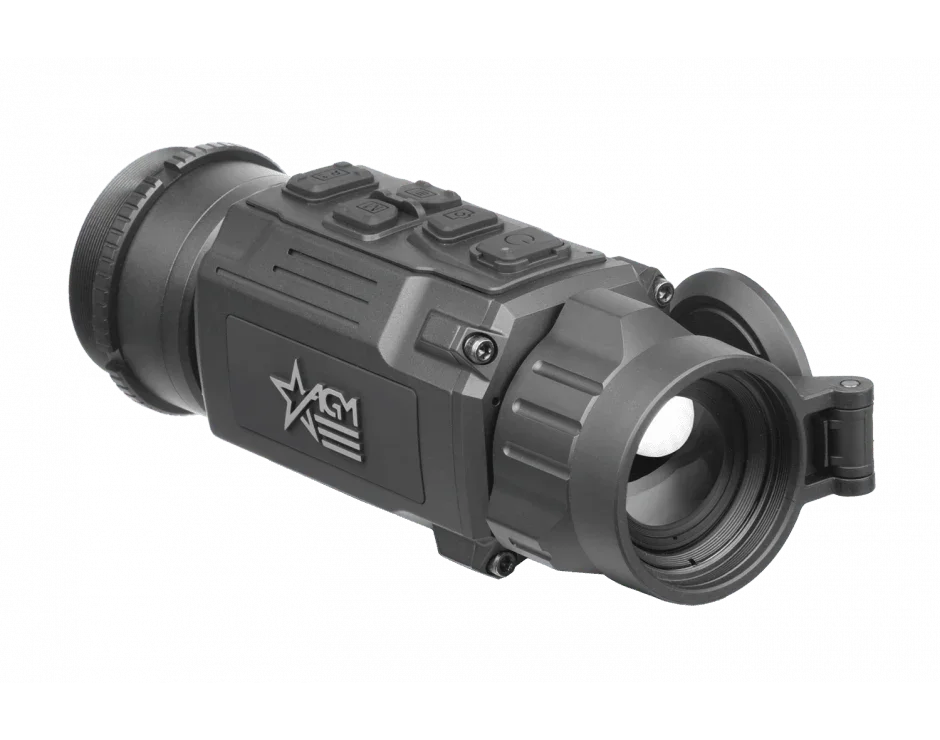

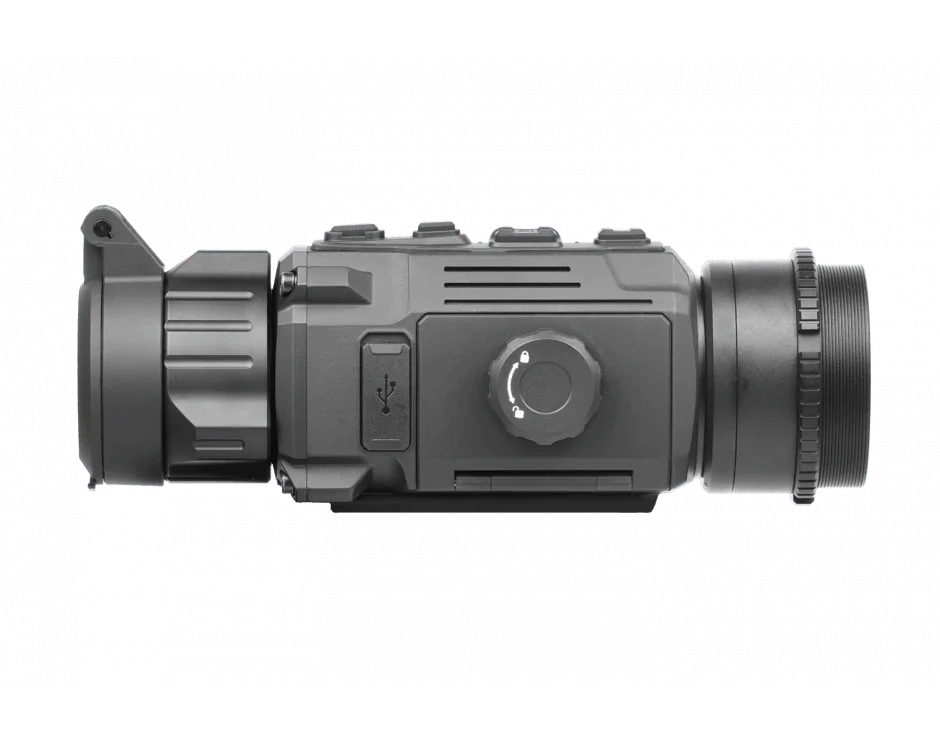

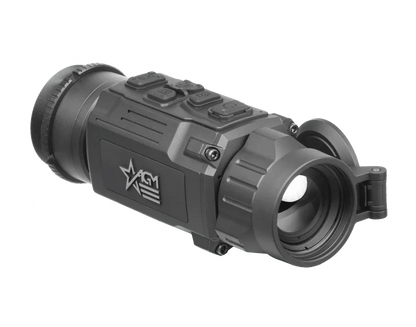

AGM Rattler-C V2 35-384 Thermal Clip-on Scope 35mm 384x288 12um (50Hz) (314205560205R561)
The new AGM Rattler-C V2 35-384 thermal clip-on features an industry-leading 12-micron, high-sensitivity sub-20mk thermal detector, delivering some of the best image quality AGM has ever produced. With a detection range of up to 1800 yards, this clip-on ensures a sharp and clear image even in challenging environmental conditions like darkness, fog, smoke, dust, rain, snow, and through wood or camouflage.
The Rattler-C V2 35-384 easily mounts in front of day scopes, instantly converting them into thermal imaging devices without the need for special tools. Powered by replaceable and rechargeable Li-ion batteries, it offers up to 11 hours of continuous use on a single charge, with two batteries included. For extended operation, a 5V power bank can be connected via a USB-C port to further increase runtime.
The device also includes an onboard Wi-Fi module for live video streaming and recording of videos and images through a mobile app, making the Rattler-C V2 a versatile and user-friendly thermal solution for various applications.
AGM Rattler-C V2 35-384 Features:
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high-sensitivity thermal detector, NETD < 20mK
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- 9 - 11 hours battery life (depending on model)
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
AGM Rattler-C V2 35-384 Specifications:
Dimensions
184 × 68 × 67 mm (7.2 × 2.7 × 2.6 in)
Flat Field Correction (FFC)
Auto, Manual, External Correction
Palettes
Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter
22 mm
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Video Recording
Yes
Audio Recording
Yes
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
384 × 288
Detection Range (6' object)
1800 m/yd
Lens system
35 mm; F/1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Optical magnification
1×
Field of view (H × X)
7.5° × 5.6°
Hot Track
Yes
Eye relief
10 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Wi-Fi
Yes
Battery Life (Operating)
11 h (25°C, with hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.54 kg (1.19 lb)
Protection Level
IP67
Focus Range
2 m to infinity
Data Sheet
Package Includes:
Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
