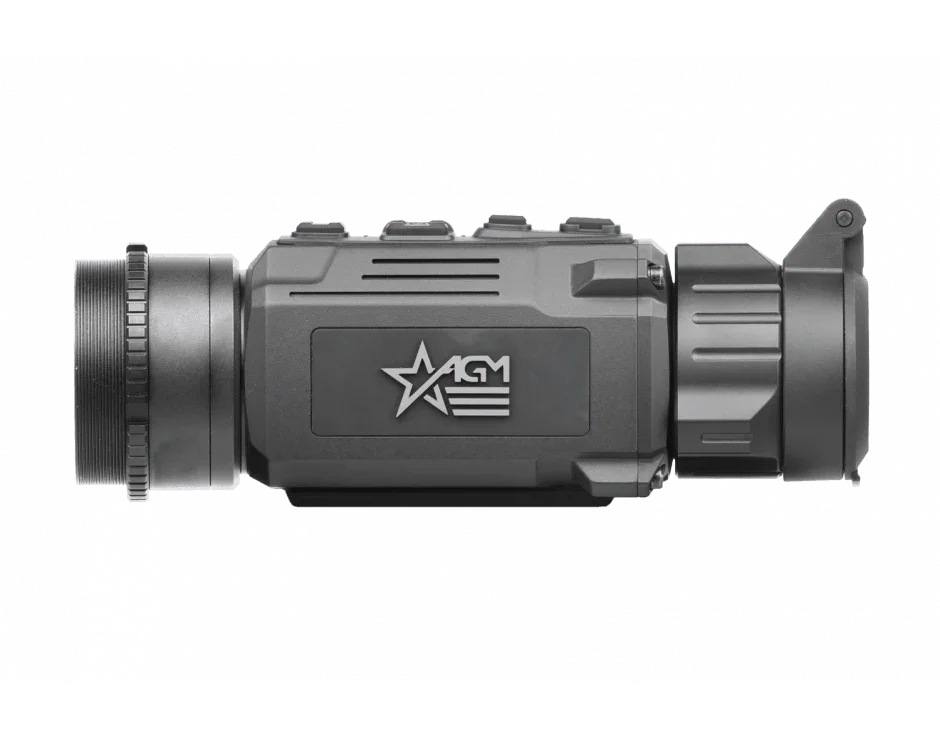

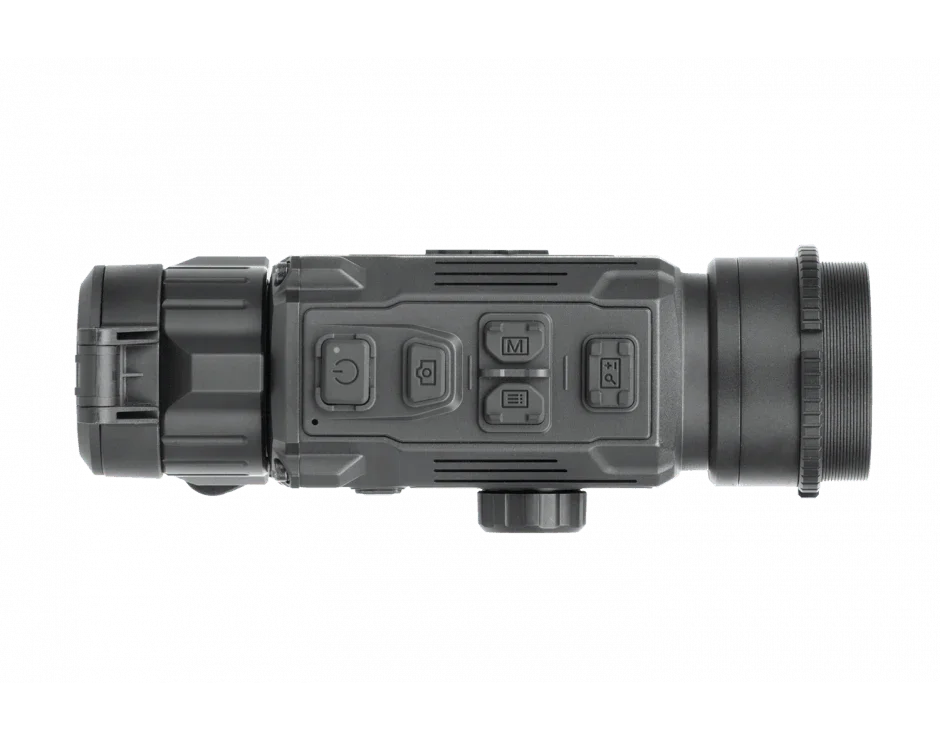

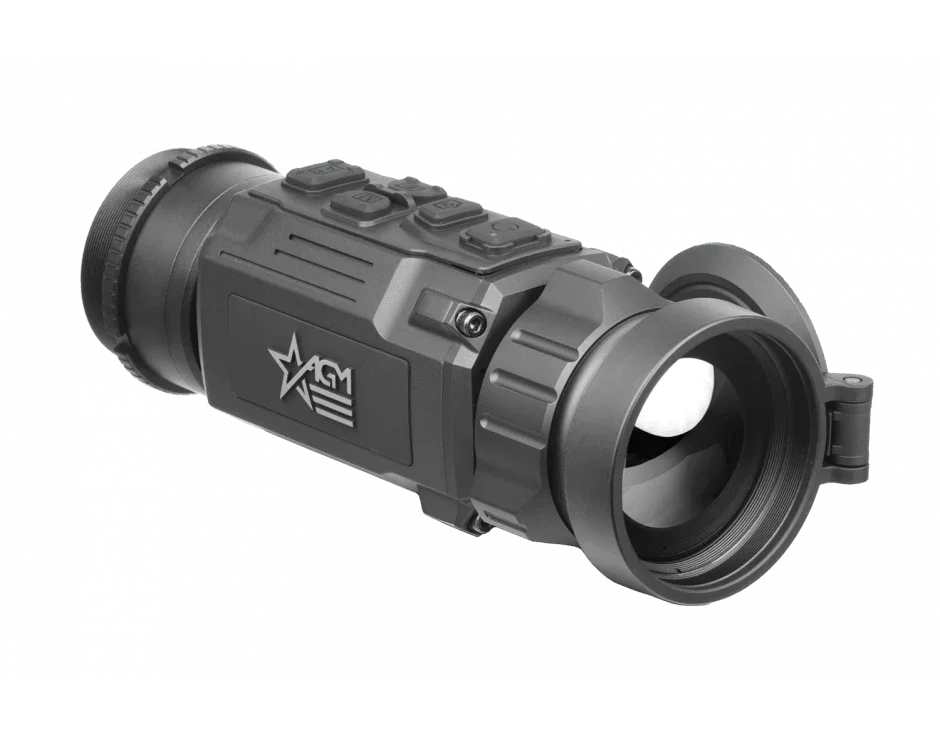

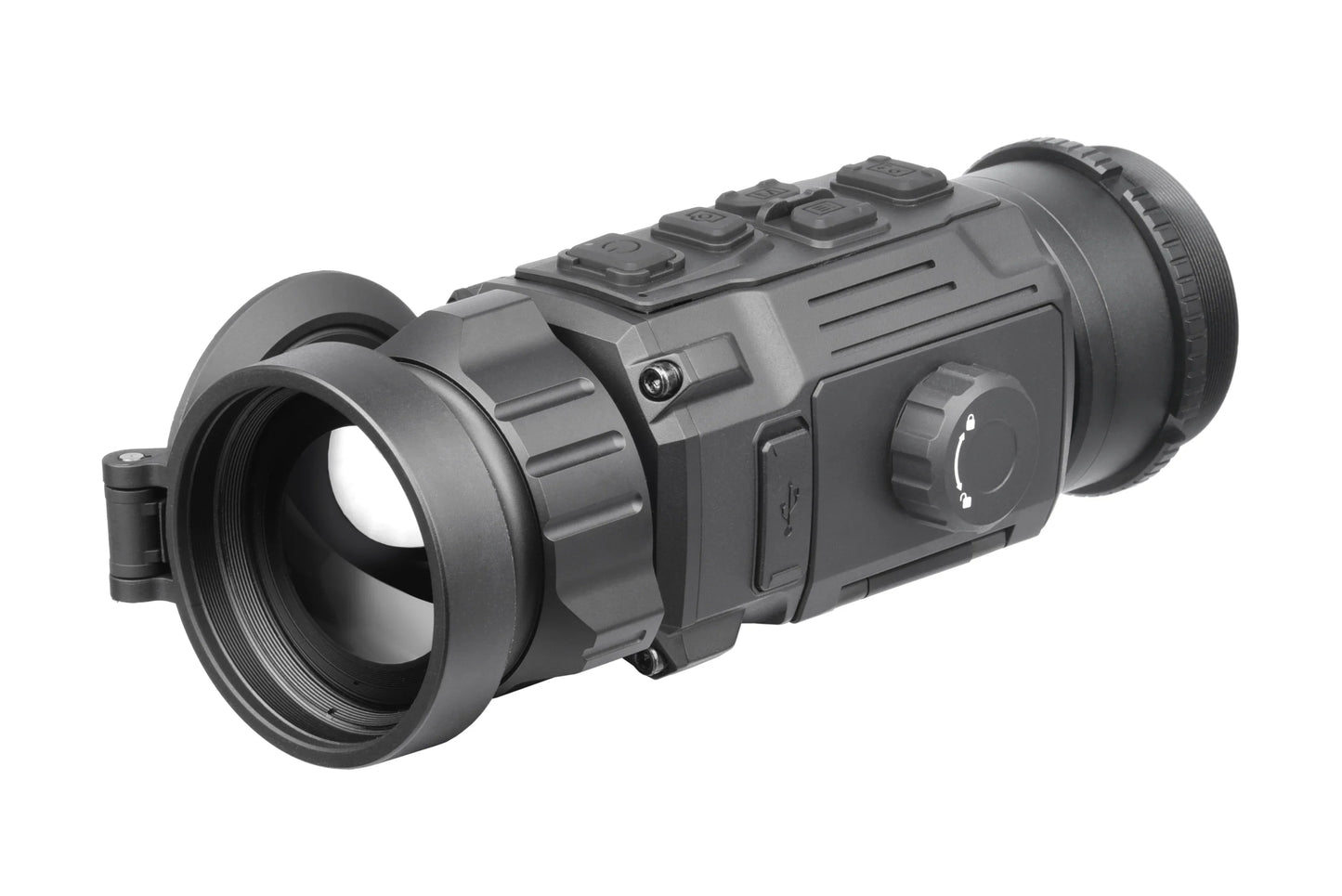

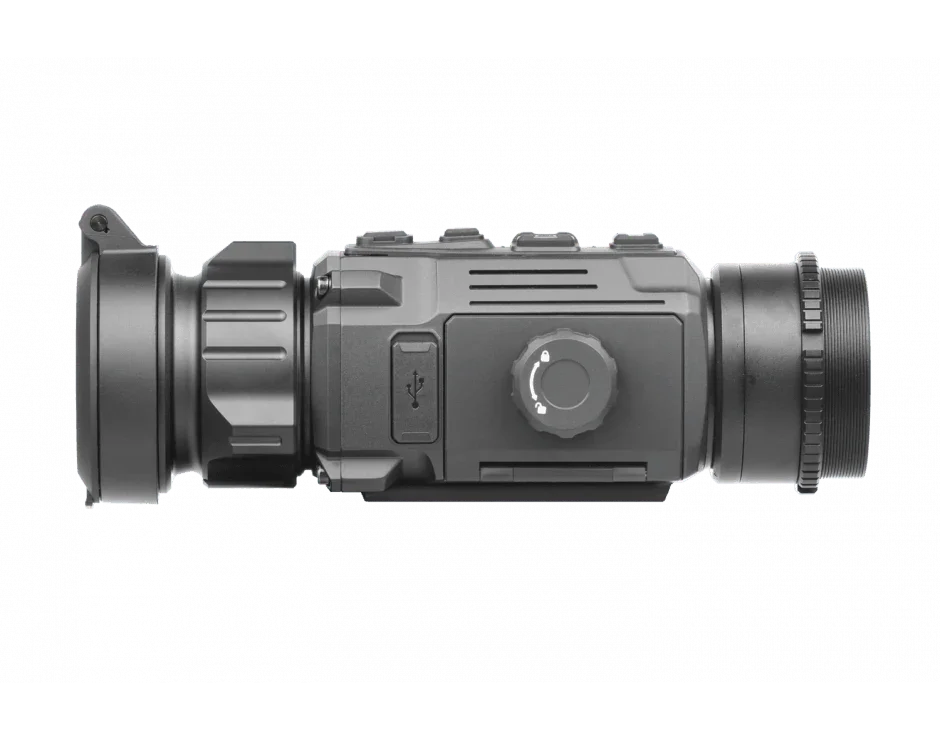

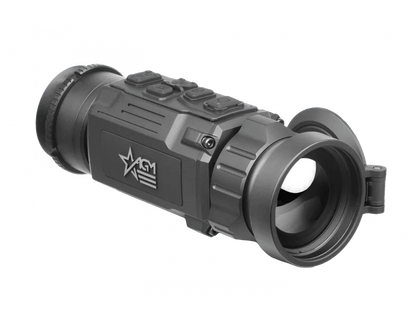

AGM Rattler-C V2 50-640 Thermal Clip-on Scope 50mm 640x512 12um (50Hz) (314205560206R561)
The new AGM Rattler-C V2 50-640 thermal clip-on is equipped with industry-leading 12-micron, high-sensitivity sub-20mk thermal detectors, offering some of the finest image quality AGM has produced to date. With a detection range of up to 2600 yards, this clip-on provides clear thermal imaging even in challenging conditions such as darkness, fog, smoke, dust, rain, snow, wood, and camouflage.
Easily attachable in front of day scopes, the Rattler-C V2 50-640 quickly transforms standard optics into thermal imaging devices without requiring any special tools. Powered by replaceable and rechargeable Li-ion batteries, it offers up to 9 hours of continuous operation on a single charge, with two batteries included. For extended use, a 5V power bank can be connected via the USB-C port.
The unit also features an onboard Wi-Fi module, allowing for live video streaming and video or image recording through a mobile app, making it a highly versatile and user-friendly thermal solution for a wide range of applications.
AGM Rattler-C V2 50-640 Features:
- Quick conversion of daytime optics into thermal imaging scope
- 12μm high-sensitivity thermal detector, NETD < 20mK
- Fast 50Hz imaging
- High resolution OLED display
- Adjustable color palettes
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Shot Activated Recording (SAR)
- Wi-Fi data transmission
- Stadiametric rangefinder
- Standby mode
- 9 - 11 hours battery life (depending on model)
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
AGM Rattler-C V2 50-640 Specifications:
Dimensions
196 × 73 × 68 mm (7.7 × 2.9 × 2.7 in)
Flat Field Correction (FFC)
Auto, Manual, External Correction
Palettes
Black hot, White hot, Red hot, Fusion
Exit Pupil Diameter
22 mm
Distance Measurement
Yes (Stadiametric)
Scene Mode
Cold, Warm
Video Recording
Yes
Audio Recording
Yes
Detector type
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Detection Range (6' object)
2600 m/yd
Lens system
50 mm; F/1.0
NETD
Less than 20 mK (25°C, F# = 1.0)
Optical magnification
1×
Field of view (H × X)
8.8° × 7.0°
Hot Track
Yes
Eye relief
10 mm
Display
0.39-inch, OLED, 1024×768
Storage
Built-in EMMC (16 GB)
Capture Snapshot
Yes
Battery Type
Replaceable and Rechargeable Li-ion Battery
Wi-Fi
Yes
Battery Life (Operating)
9 h (25°C, with hotspot off)
External power supply
5 VDC, 2 A, USB Type-C
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Weight
0.55 kg (1.2 lb)
Protection Level
IP67
Focus Range
10 m to infinity
Data Sheet
Package Includes:
Thermal Imaging Clip-On, Mount, Two Rechargeable Battery, Charger, USB Cable, Lens Cloth, Manual, Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
