AGM Rattler V2 50-640 Thermal Rifle Scope Weapon Sight 640x512 (50Hz) 50mm (314205550206R561)

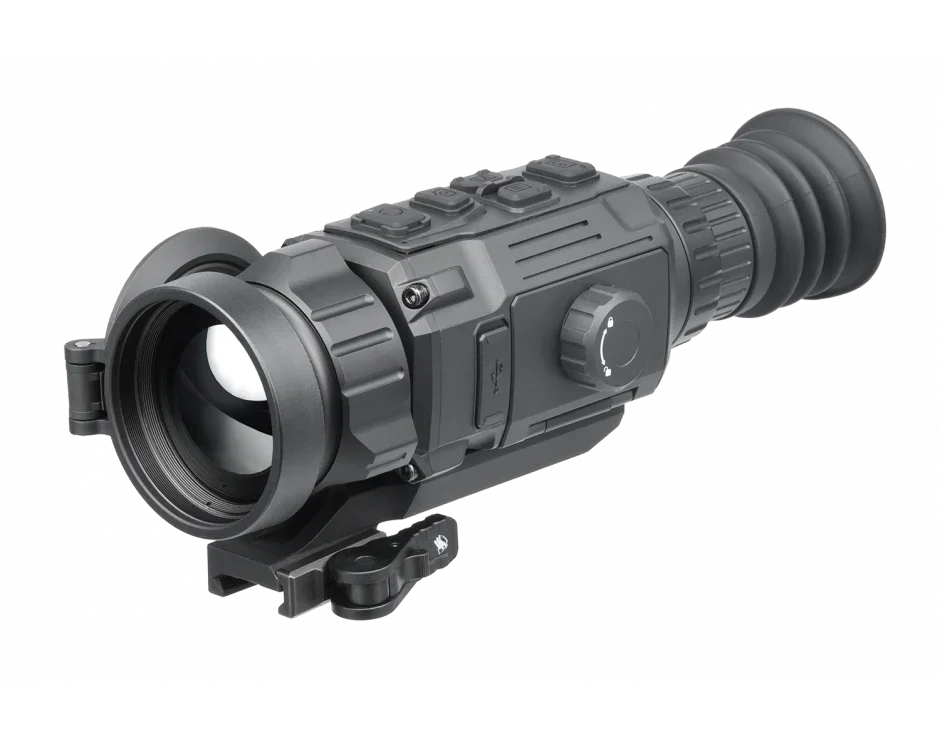

Our premium Rattler thermal scopes just got even better! Introducing the AGM RattlerV2 50-640.
This thermal scope is equipped with a 50mm Germanium lens, a 640 × 512 resolution thermal sensor, and a 2.5x base magnification, offering a detection range of up to 2600 meters/yards. Of the two premium 640-resolution models, the RattlerV2 50-640 provides a higher base magnification and a slightly narrower Field of View (8.8° × 7.0°, or 46 feet at 100 yards), giving you a balance of scanning coverage and enhanced identification capabilities at greater distances.
In addition to familiar AGM Rattler features, this model introduces game-changing upgrades. It boasts an improved battery compartment that supports a rechargeable battery, extending operation time to 9 hours, and incorporates a cutting-edge 12-micron thermal sensor with the highest sensitivity rating on the market (sub-20 mk) for exceptional image clarity.

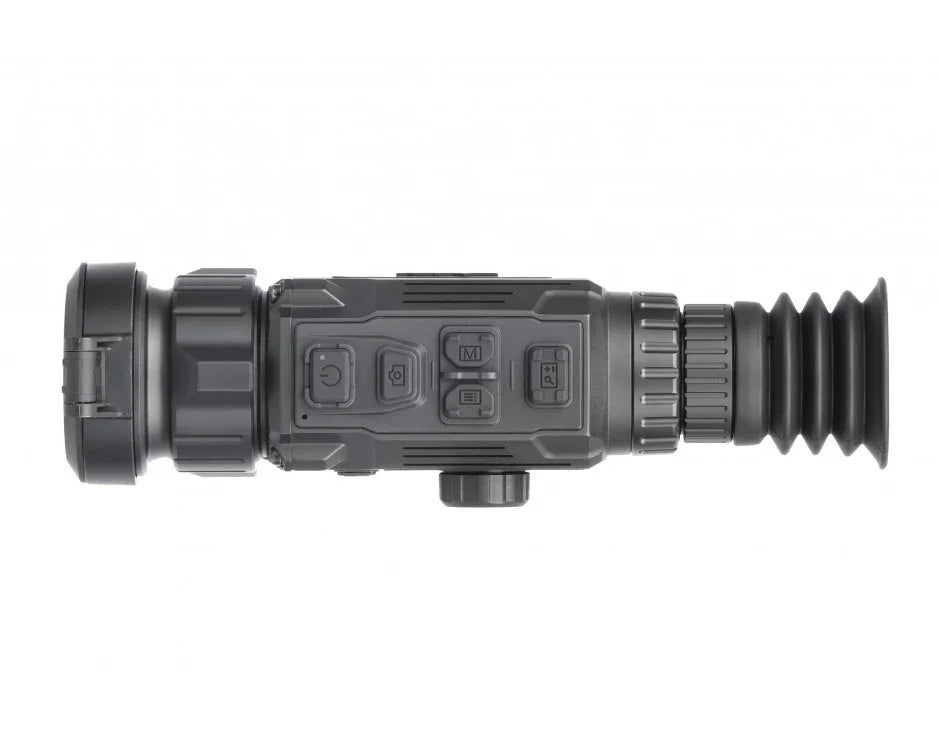

Key features include Shot Activated Recording, a streamlined menu system, and 10 reticle options with multiple zeroing profiles for different calibers and rifles. The scope also comes with a custom ADM QD mount for quick attachment and removal, Wi-Fi hotspot connectivity via the AGM app, and a user-friendly raised 5-button layout designed for easy navigation, even when wearing gloves.
AGM Rattler V2 50-640 Features:
Superior sub-20 milikelvin thermal sensitivity
640×512 resolution with 12-micron sensor
Fast 50Hz imaging
High resolution OLED display
Adjustable color palettes
Various reticle types and colors
1x, 2x, 4x, 8x digital zoom
On-board video/audio recording and image capture
Built-in EMMC storage (16 GB)
Shot Activated Recording (SAR)
Wi-Fi data transmission
Stadiametric rangefinder
Standby mode
Up to 9 hours battery life
External power supply compatibility
Waterproof & shockproof
5-year warranty
AGM Rattler V2 50-640 Specifications:
|
Detector
|
12μm VOx Uncooled Focal Plane Array
|
|
|
Resolution
|
640 × 512
|
|
|
NETD
|
Less than 20 mK (25°C, F# = 1.0)
|
|
|
Refresh Rate
|
50 Hz
|
|
|
Lens System
|
50 mm; F/1.0
|
|
|
Magnification
|
2.5× - 20×
|
|
|
Field of View
|
|
8.8° × 7.0°
|
|
|
|
Diopter Adjustment
|
-5 to +5 diopters
|
|
|
Focus Range
|
2 m to infinity
|
|
|
Exit Pupil
|
6 mm
|
|
|
Eye Relief
|
45 mm
|
|
|
Digital Zoom
|
1×, 2×, 4×, 8×
|
|
|
Detection Range (6’ object)
|
2600 m/yd
|
|
|
Display
|
0.39-inch, OLED, 1024×768
|
|
|
Palettes
|
Black hot, White hot, Red hot, Fusion
|
|
|
Flat Field Correction
|
Auto, Manual, External Correction
|
|
|
Scene Mode
|
Cold, Warm
|
|
|
Boresight Adjustment
|
Digital Controlled
|
|
|
Video/Audio Recording
|
Yes
|
|
|
Image Capture
|
Yes
|
|
|
Standby Mode
|
Yes
|
|
|
Storage
|
Built-in EMMC (16 GB)
|
|
|
PIP
|
Yes
|
|
|
Defective Pixel Correction
|
Yes
|
|
|
WiFi Hotspot
|
Yes
|
|
|
Hot Track
|
Yes
|
|
|
Reticle
|
10 types, 4 colors, on/off
|
|
|
Distance Measurement
|
Yes (Stadiametric)
|
|
|
Shot Activated Recording (SAR)
|
Yes
|
|
|
Battery Type
|
Replaceable and Rechargeable Li-ion Battery
|
|
|
Battery Life (Operating, 20°C)
|
Up to 9 hours (25°C, with hotspot off)
|
|
|
External Power Supply
|
5 VDC, 2 A, USB Type-C
|
|
|
Operating Temperature Range
|
-30°C to +55°C (-22°F to 131°F)
|
|
|
Protection Level
|
IP67
|
|
|
Max. Recoil
|
1000 g/0.4 ms
|
|
|
Weight (w/o mount and battery)
|
0.51 kg (1.13 lb)
|
|
|
Dimensions (w/o mount)
|
|
230 × 73 × 68 mm (9.0 × 2.9 × 2.7 in)
|
|
|
Data Sheet
PACKAGE INCLUDES
Thermal Imaging Rifle Scope
Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
