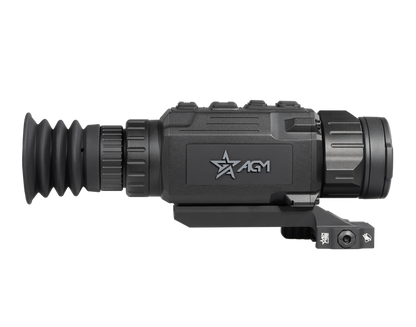

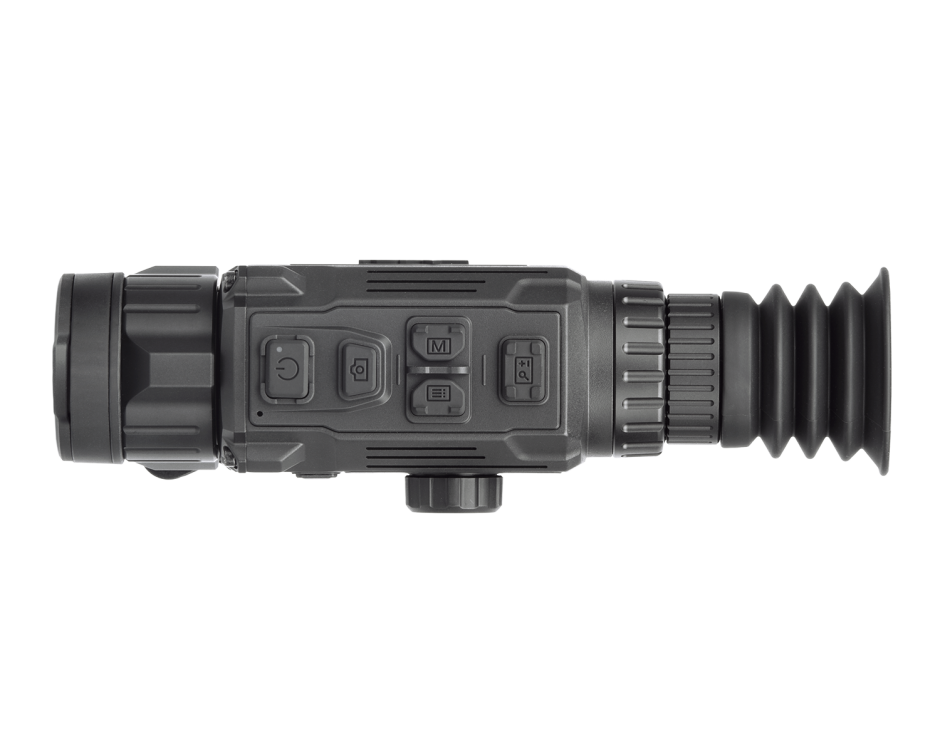

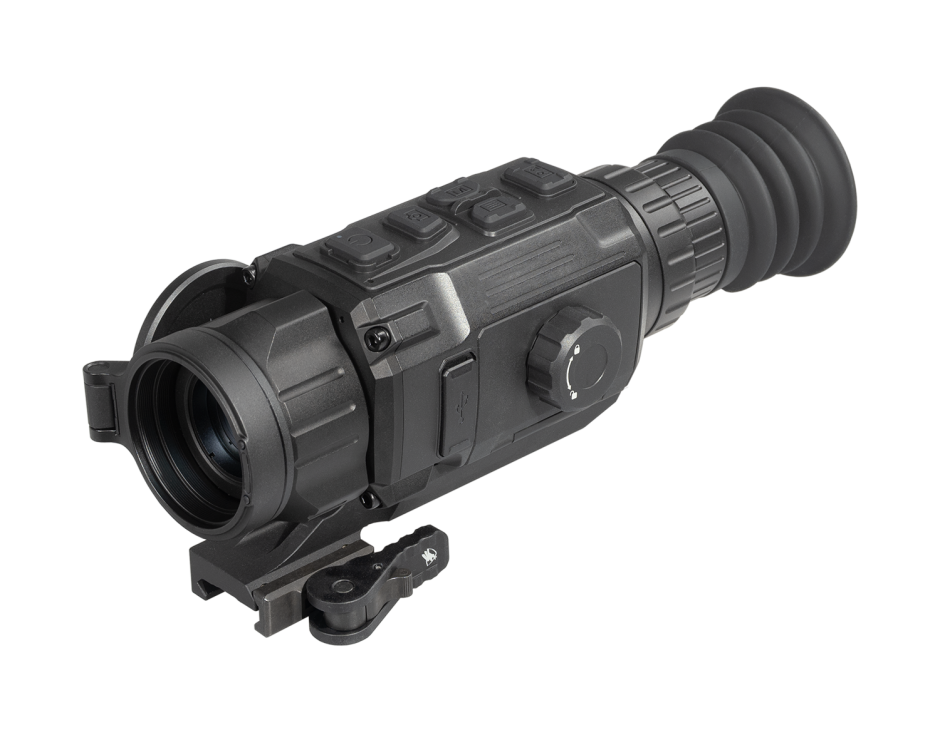

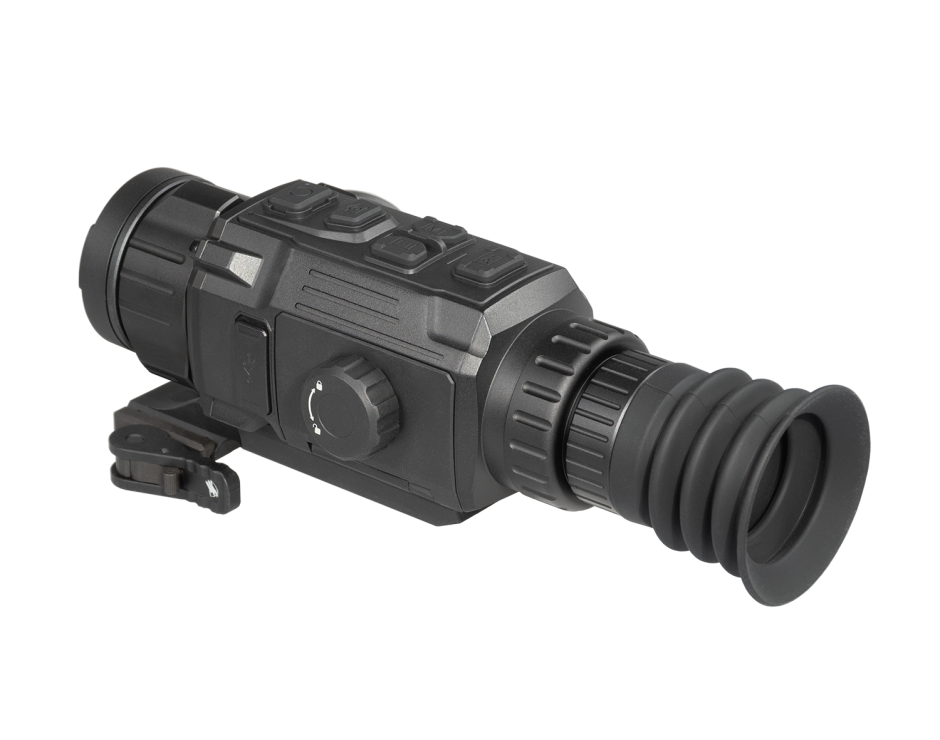

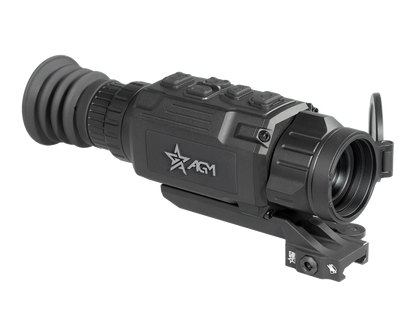

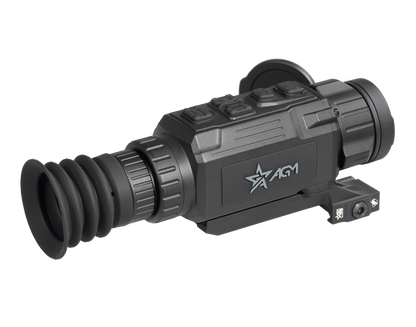

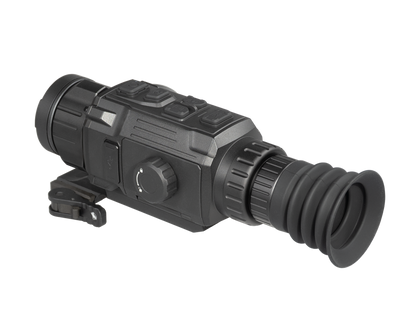

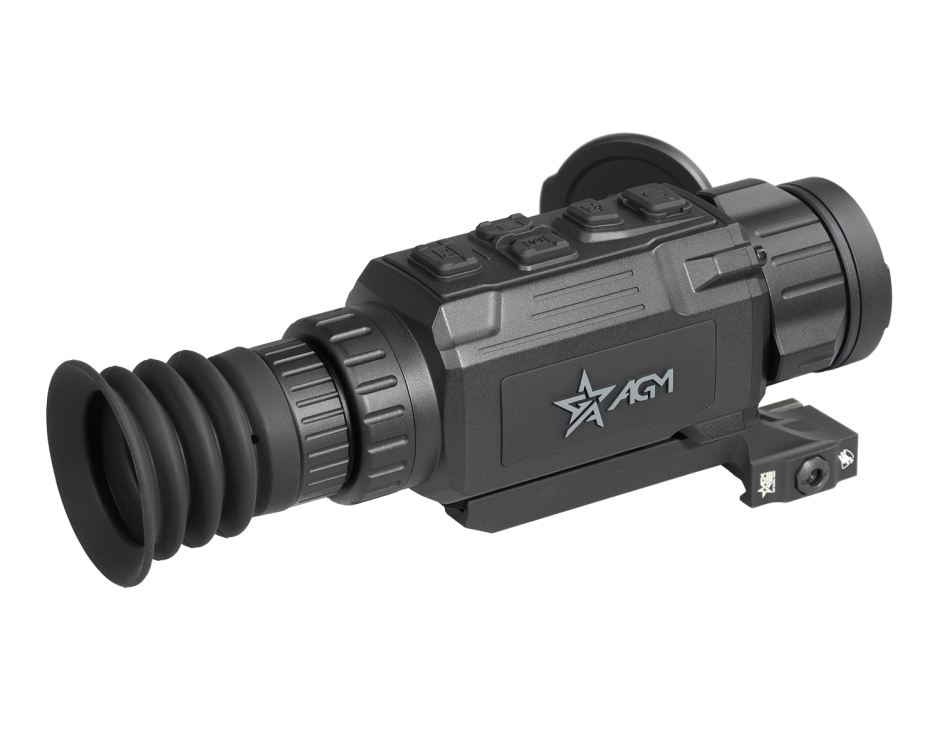

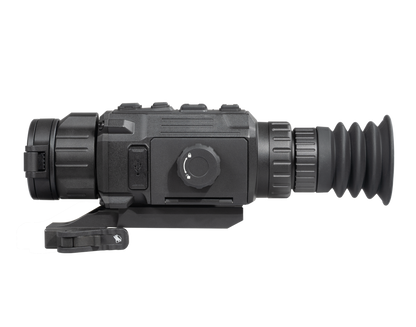

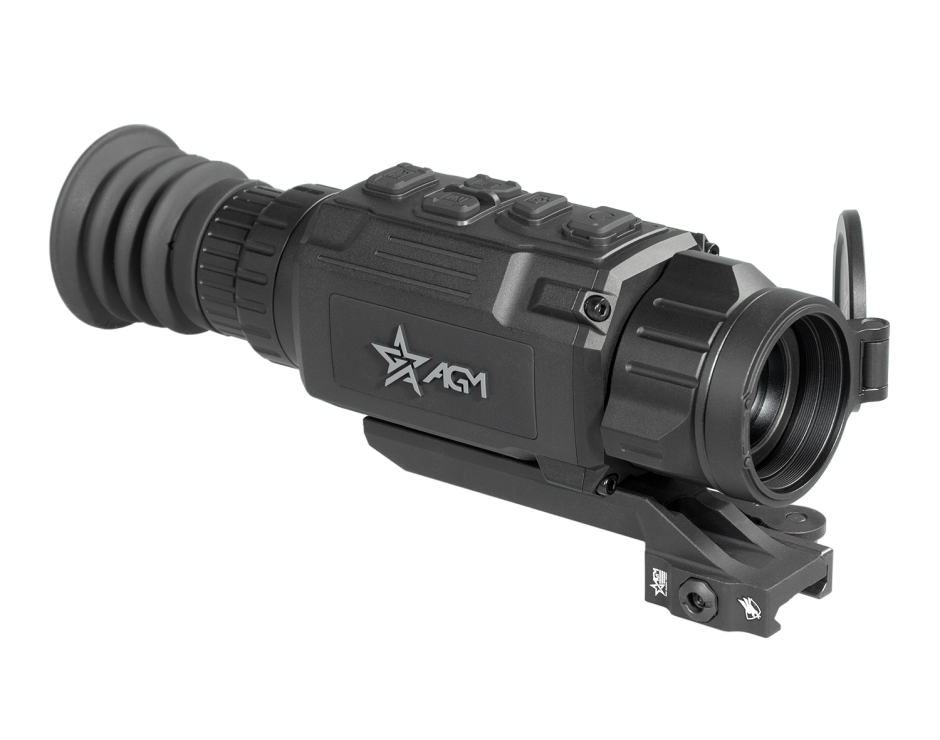

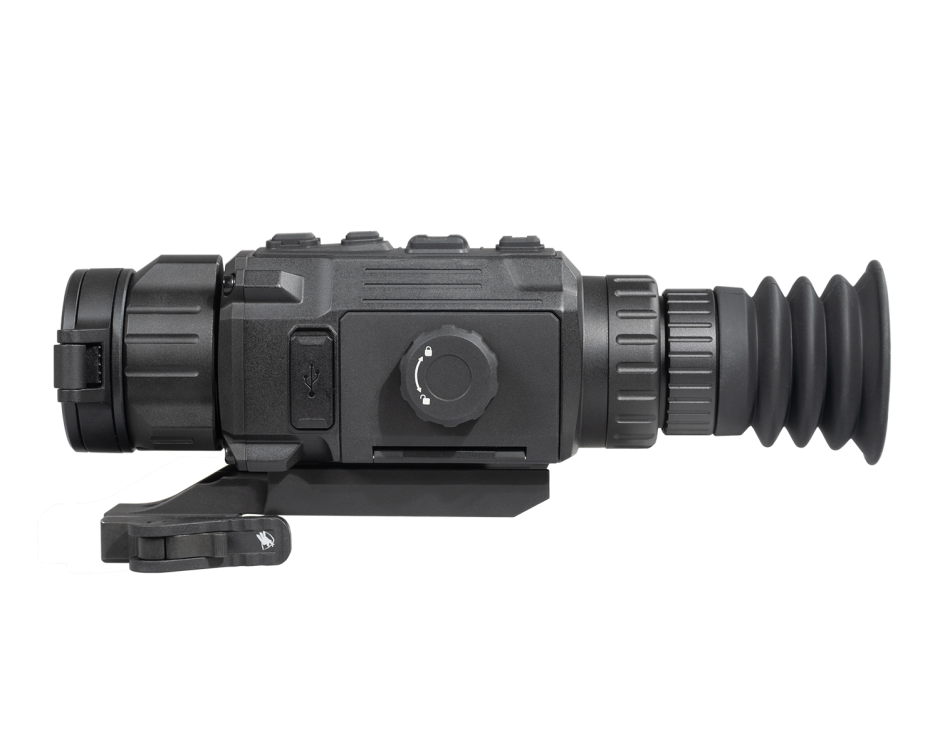

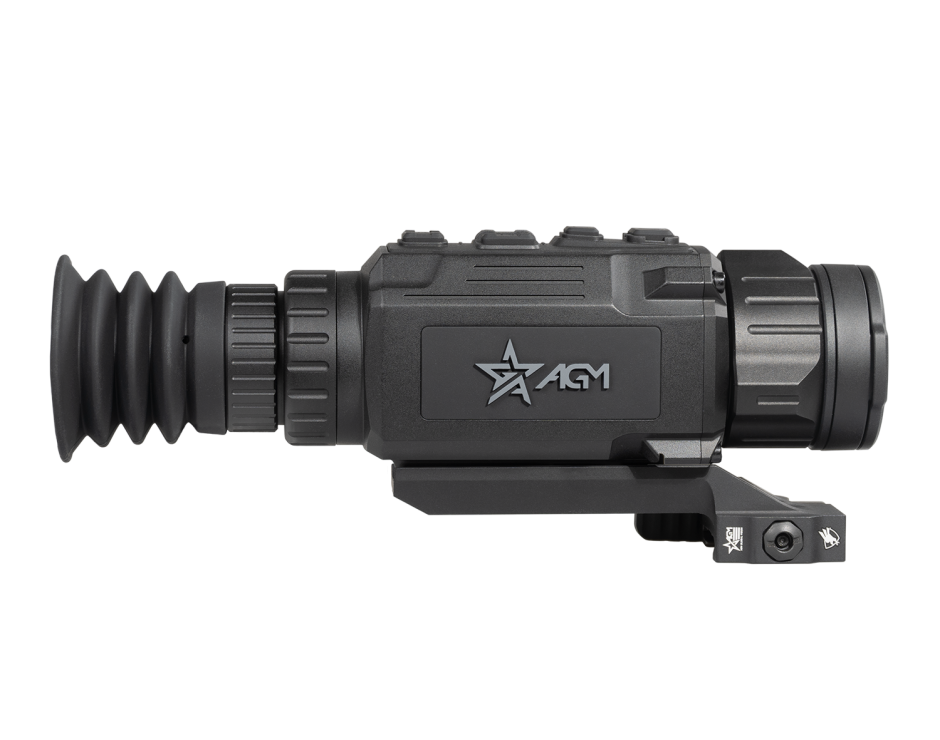

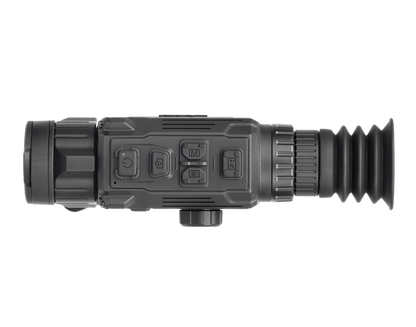

AGM Rattler V3 25-384 Thermal Rifle Scope Weapon Sight 384x288 12um (50Hz) 25mm (RATT25-384-V3)
Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 testifies to the fact that evolution never stops. The RattlerV3 25-384 pairs a 25 mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 1920x1080 high resolution display, which combines to produce the best 384 resolution thermal image. These technical parameters work together to produce a detection range 1.1 miles. The RattlerV3 25-384 has a base magnification of 2.5X, making it an optimal option for predator hunters in wide-open terrain. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm. Large, sturdy buttons and a manual focus ring were designed to aid gloved fingers in cold winter weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market. The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes, picture in picture, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair and hotspot locator. Also included is an Americanmade ADM mounting system.
AGM Rattler V3 25-384 Features:
- Superior sub-15 milikelvin thermal sensitivity
- 384×288 resolution with 12-micron sensor
- Large OLED display with 1920x1080 resolution
- Shutterless technology
- Various reticle types and colors
- 2.5x to 20x magnification
- On-board video/audio recording and image capture
- Built-in EMMC storage (64 GB)
- Shot-Activated Recording (SAR)
- Wi-Fi data transmission
- Standby mode
- Over 7 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
AGM Rattler V3 25-384 Specifications:
Shot-Activated Recording
Yes
Max. Recoil
1000 g/0.4 ms
Frame Rate
50 Hz
Flat Field Correction (FFC)
Yes
Dimensions
219 × 68 × 67 mm (8.6 × 2.7 × 2.6 in)
Weight (w/o batteries)
0.49 kg (1.1 lb)
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Distance Measurement
Yes (Stadiametric)
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes (1920 × 1080)
Defective Pixels Correction (DPC)
Yes
Audio Recording
Yes
Magnification
2.5x - 20x
Image sensor
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Resolution
384×288
Detection Range (6' object)
1770 m (1936 yd)
Snapshot
Yes (1920 × 1080)
Lens system
25 mm; F/1.0
NETD
Less than 15 mK (@25°C, F# = 1.0)
Field of view (H × X)
10.5° × 6.3° (18.4 × 11.0 @ 100 m)
Diopter adjustment range
-4 D to 3 D
Focusing range
3 m
Hot Track
Yes
Eye relief
45 mm
Display
1920×1080, 0.49 inch, OLED
Storage
Built-in EMMC (64 GB)
Battery Type
Replacable and Rechargeable Li-ion Battery pack NE-4400
Wi-Fi
Yes
Battery Life (Operating)
≥7h (25 °C, hotspot off)
External power supply
5V DC/2 A, USB Type-C interface
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Protection Level
IP67
Data Sheet
Included:
Rattler V3 Thermal Riflescope
QD Mount
Two Rechargeable Battery
Charger
USB Cable
Lens Cloth
Manual
Carrying Case
