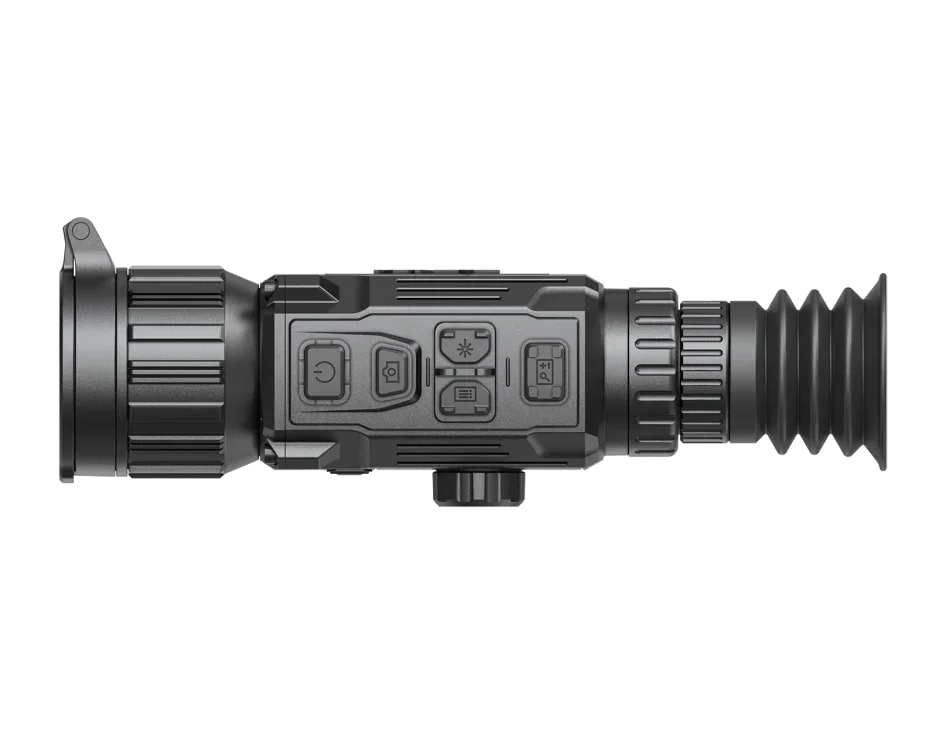

AGM Rattler V3 35-384 LRF Thermal Scope 35mm

AGM Rattler V3 35-384 LRF Thermal Scope 35mm

SKU:RATT35-384-V3

Regular price $ 2,995.00
Regular price $ 0.00 Sale price $ 2,995.00
Sale Sold out
Shipping calculated at checkout.
Quantity

AGM Rattler V3 35-384 LRF Thermal Rifle Scope Weapon Sight 384x288 12um (50Hz) 35mm (RATT35-384-V3)



Although it seems like just yesterday the celebrated AGM Rattler thermal riflescope family got upgraded with the introduction of the RattlerV2’s, the NEW RattlerV3 LRF testifies to the fact that evolution never stops. The RattlerV3 LRF 35-384 pairs a 35 mm Germanium lens with an industry-leading sub-15mK thermal sensor and a new 1920x1080 high resolution display, which combines to produce the best 384 resolution thermal image. These technical parameters work together to produce a detection range 1.5 miles. The RattlerV3 LRF also brings the once inconceivable new in-lens LRF technology to the compact Rattler series. A fully integrated 1,000m laser rangefinder is paired with a new on-board ballistic calculator. The RattlerV3 LRF 35-384 has a base magnification of 3.5X, making it an optimal option for predator hunters in wide-open terrain, which entices longer range engagements. Its also the first Rattler ever to come with a shutterless NUC and AGM’s powerful new Image Boost 2.0 imaging algorithm. Large sturdy buttons were designed to aid gloved fingers in cold winter
weather, while the removable rechargeable NE-4400 battery offers one of the most robust and easy to install battery systems on the market. The firmware package allows users an amazing level of customization: on-board pitch scale, 10 brightness and contrast settings, warm & cold viewing modes, multiple color palettes, picture in picture, ballistic calculation, on-board video recording with sound, WiFi hotspot, multiple zeroing profiles, shot activated video recording, defective pixel repair, hotspot locator and multiple laser range finding modes. Also included is an American-made ADM mounting system.

AGM Rattler V3 35-384 LRF Features:

  • Superior sub-15 milikelvin thermal sensitivity
  • 384×288 resolution with 12-micron sensor
  • Built-in 1,000m laser rangefinder in the lens
  • Integrated ballistic calculator
  • Large OLED display with 1920x1080 resolution
  • Shutterless technology
  • Various reticle types and colors
  • 3.5x to 28x magnification
  • On-board video/audio recording and image capture
  • Built-in EMMC storage (64 GB)
  • Shot-Activated Recording (SAR)
  • Wi-Fi data transmission
  • Standby mode
  • Over 7 hours battery life
  • External power supply compatibility
  • Waterproof & shockproof
  • 5-year warranty

 AGM Rattler V3 35-384 LRF Specifications:

Shot-Activated Recording
Yes
Max. Recoil
1000 g/0.4 ms
Frame Rate
50 Hz
Ballistic calculator
Yes
Flat Field Correction (FFC)
Semi-Auto, Manual
Dimensions
229 × 66 × 67 mm (9.0 × 2.6 × 2.6 in)
Weight (w/o batteries)
0.68 kg (1.5 lb)
Palettes
Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Distance Measurement
Built-In Laser Rangefinder (10 m to 1000 m, ±1 m accuracy)
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes (1920 × 1080)
Defective Pixels Correction (DPC)
Yes
Audio Recording
Yes
Magnification
3.5x - 28x
Image sensor
12μm VOx Uncooled Focal Plane Array
Standby Mode
Yes
Resolution
384×288
Detection Range (6' object)
2480 m (2710 yd)
Snapshot
Yes (1920 × 1080)
Lens system
35 mm; F/1.0
NETD
Less than 15 mK (@25°C, F# = 1.0)
Field of view (H × X)
7.5° × 4.5° (13.2 × 7.9 @ 100 m)
Diopter adjustment range
-4 D to 3 D
Focusing range
10 m
Hot Track
Yes
Eye relief
45 mm
Display
1920×1080, 0.49 inch, OLED
Storage
Built-in EMMC (64 GB)
Battery Type
Replacable and Rechargeable Li-ion Battery pack NE-4400
Wi-Fi
Yes
Battery Life (Operating)
≥7h (25 °C, with hotspot off) External Power Suppl
External power supply
5V DC/2 A
Operating Temperature Range
-30°C to +55°C (-22°F to 131°F)
Protection Level
IP67


Data Sheet

Included:

Rattler V3 Thermal Riflescope

QD Mount

Two Rechargeable Battery

Charger

USB Cable

Lens Cloth

Manual

Carrying Case



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
