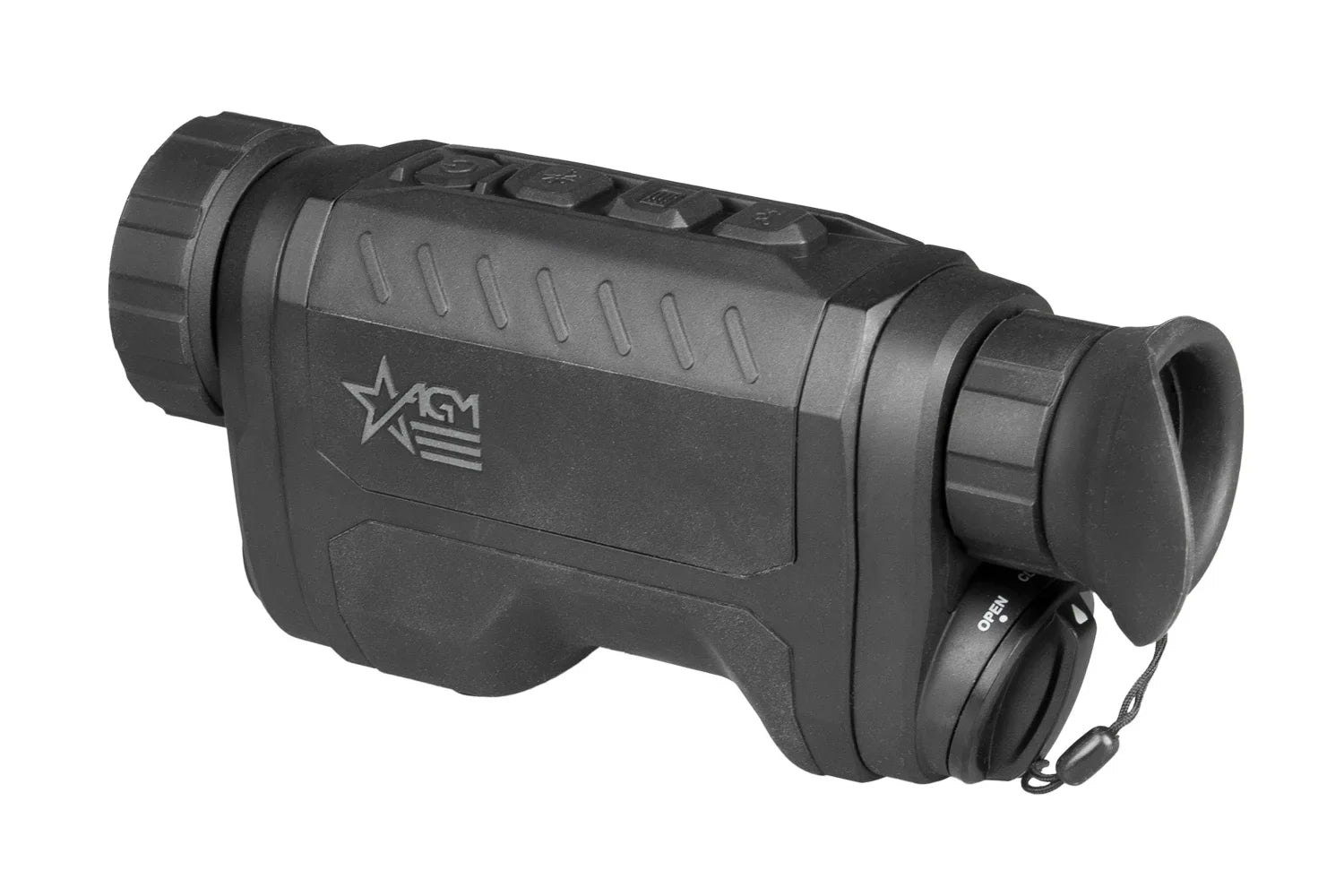

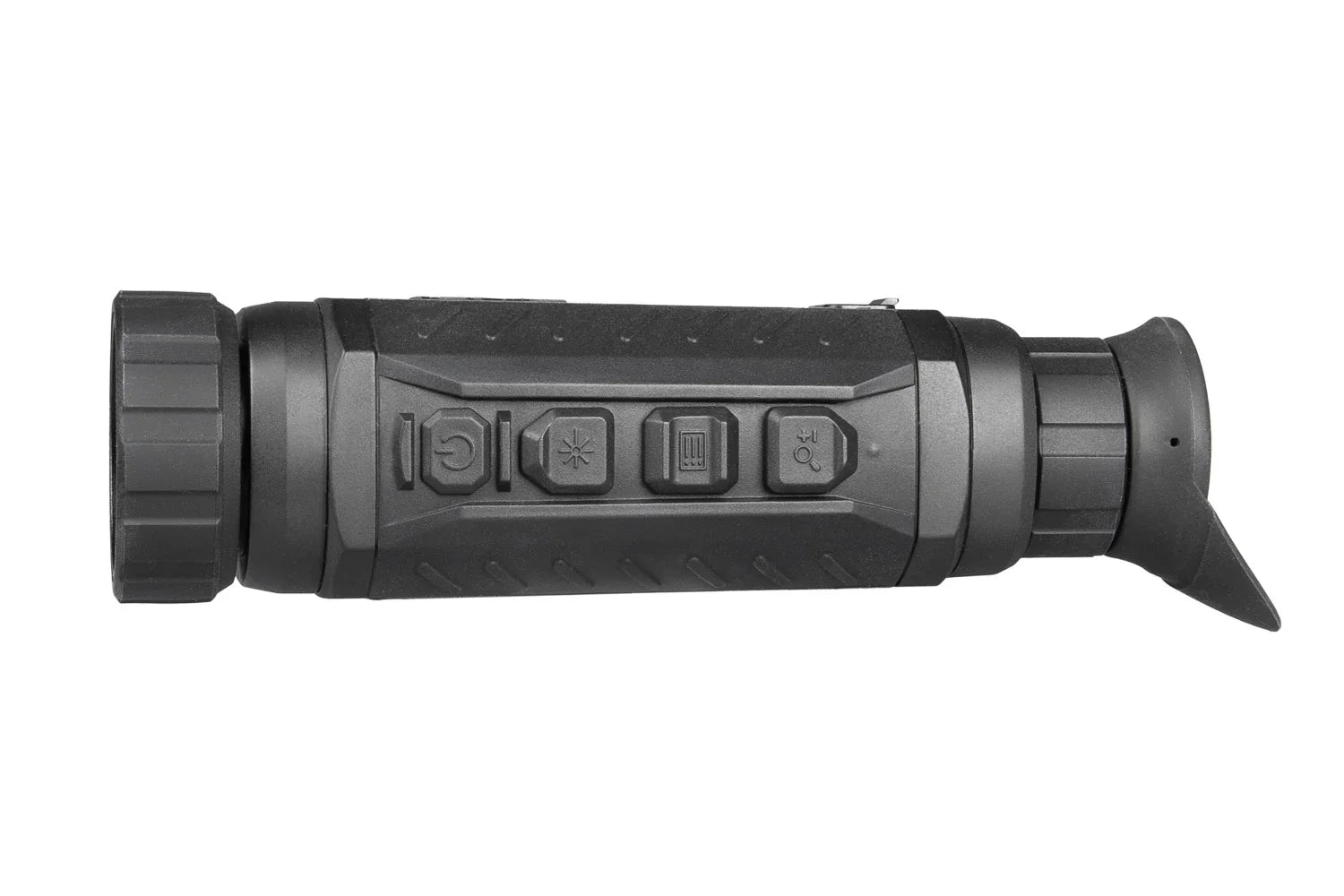

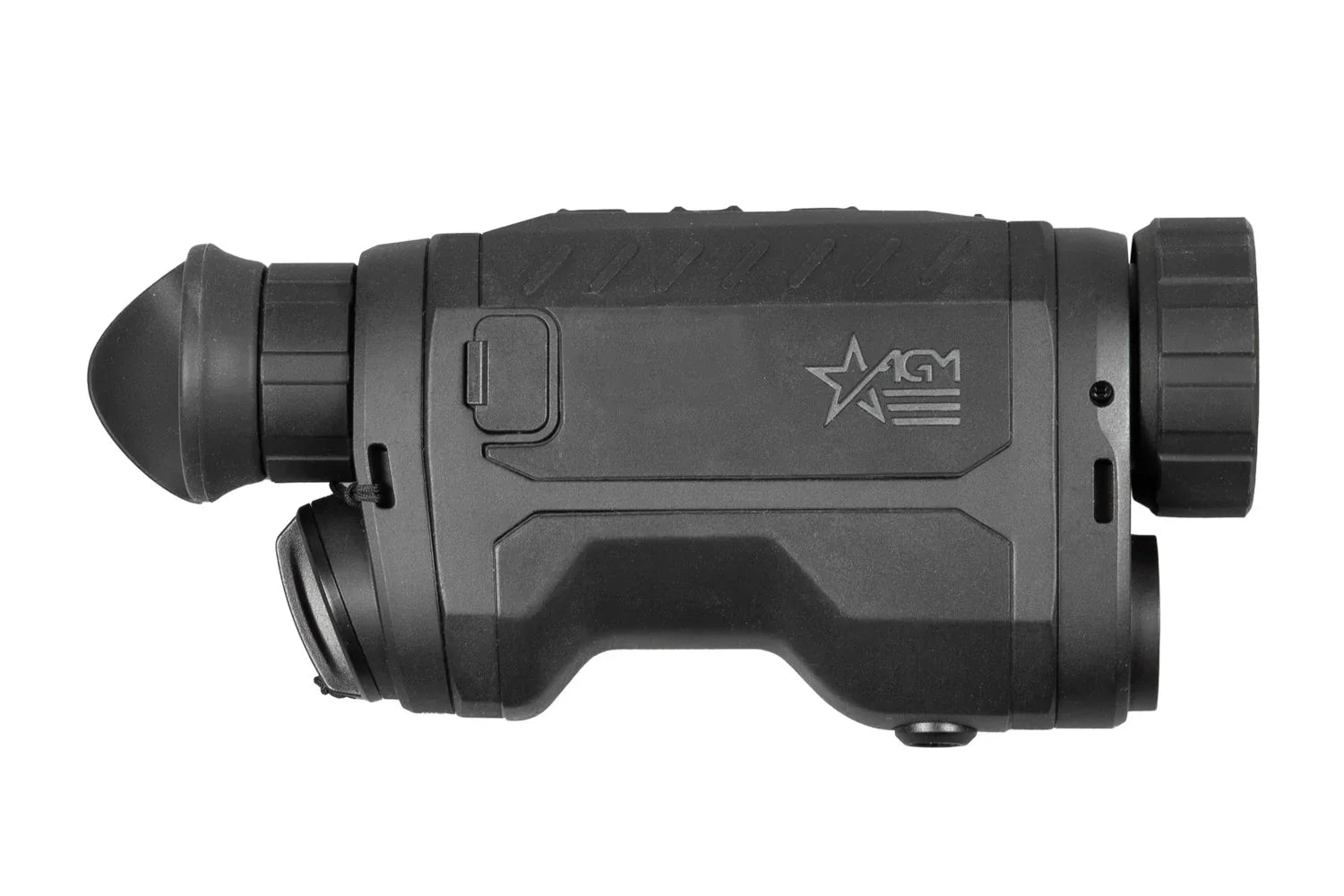

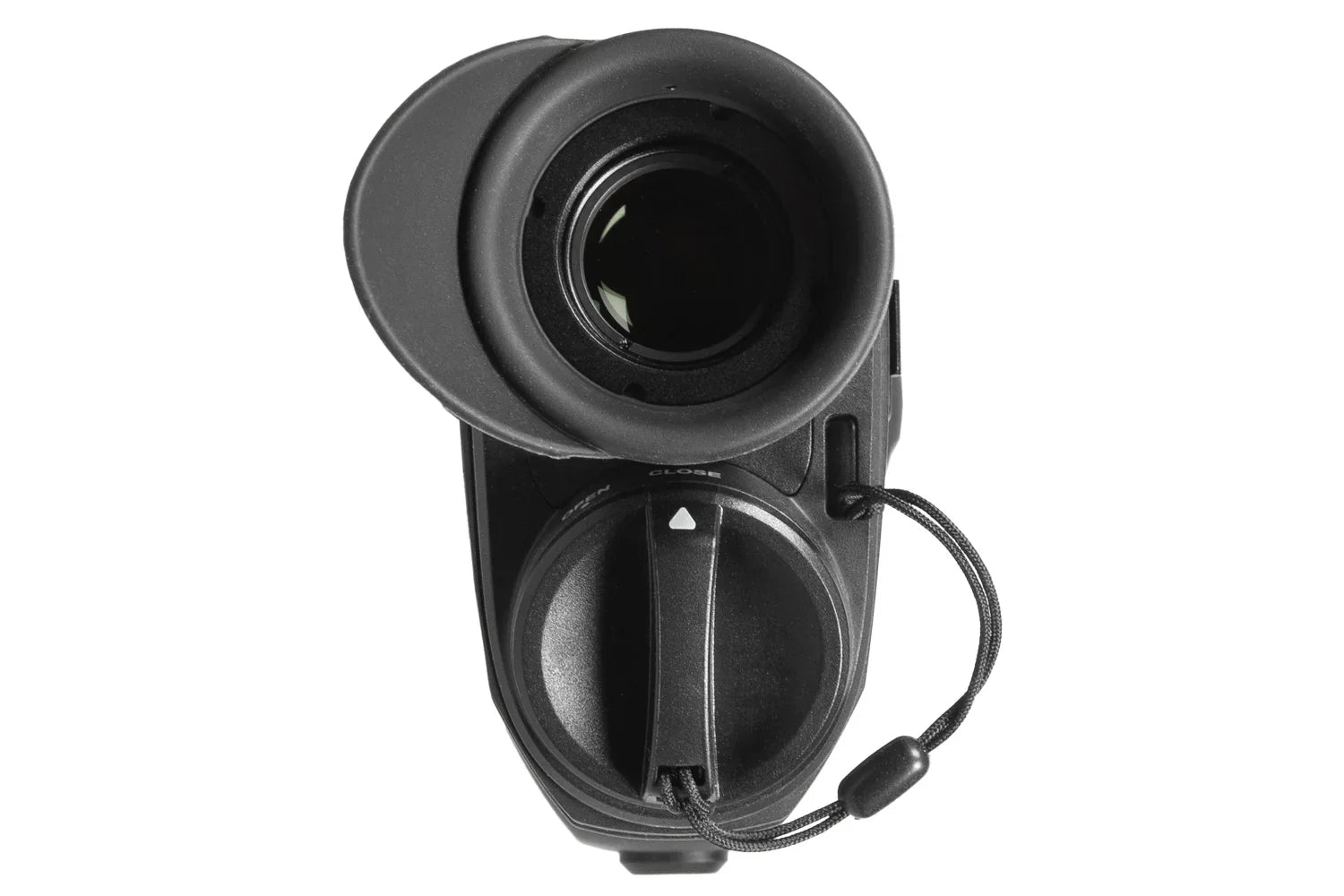

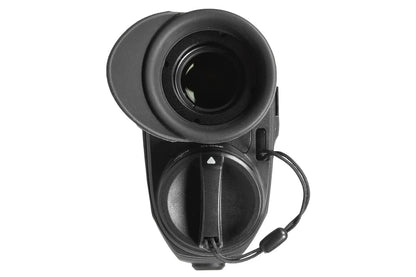

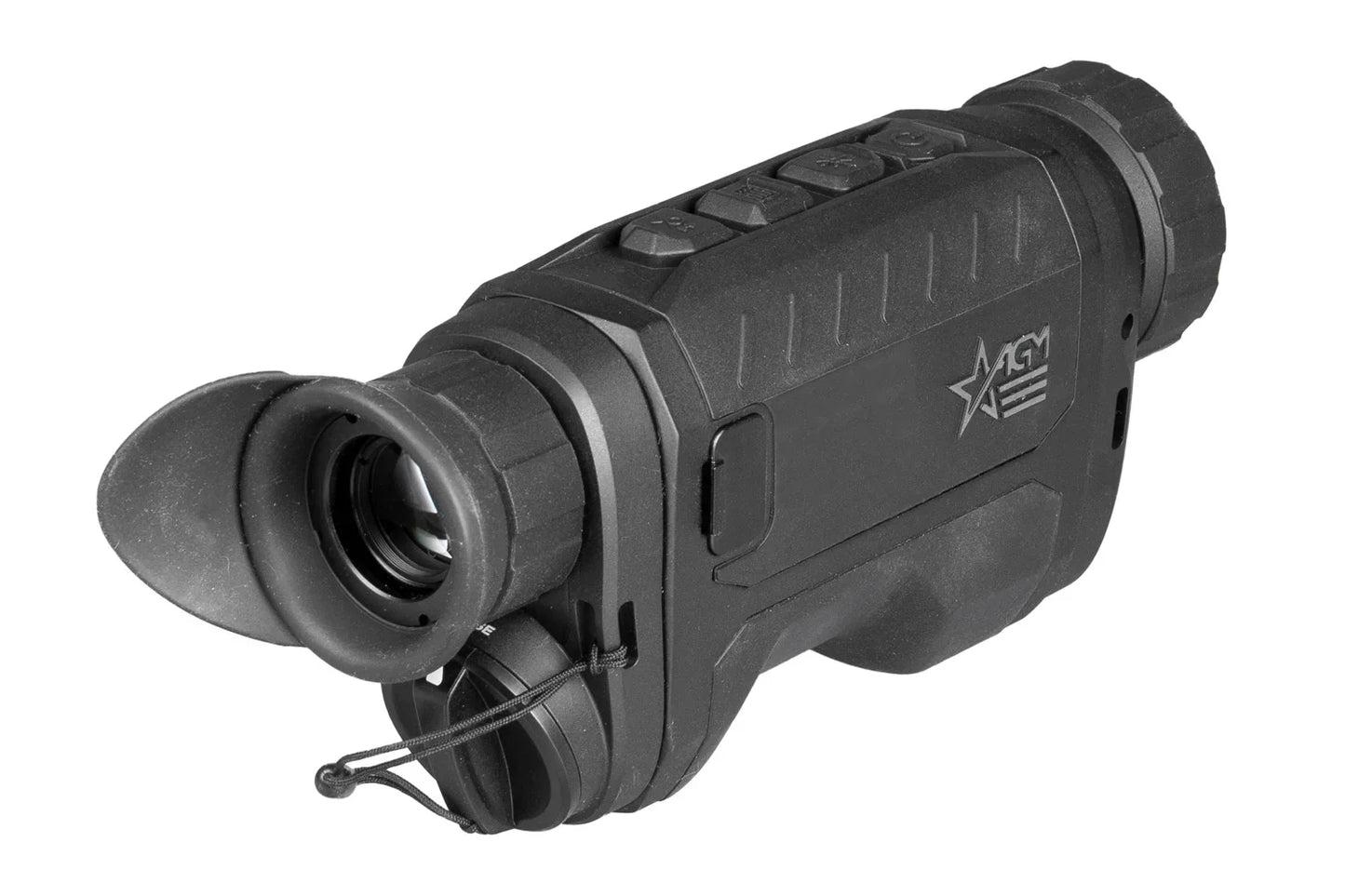

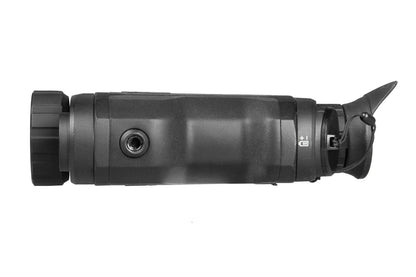

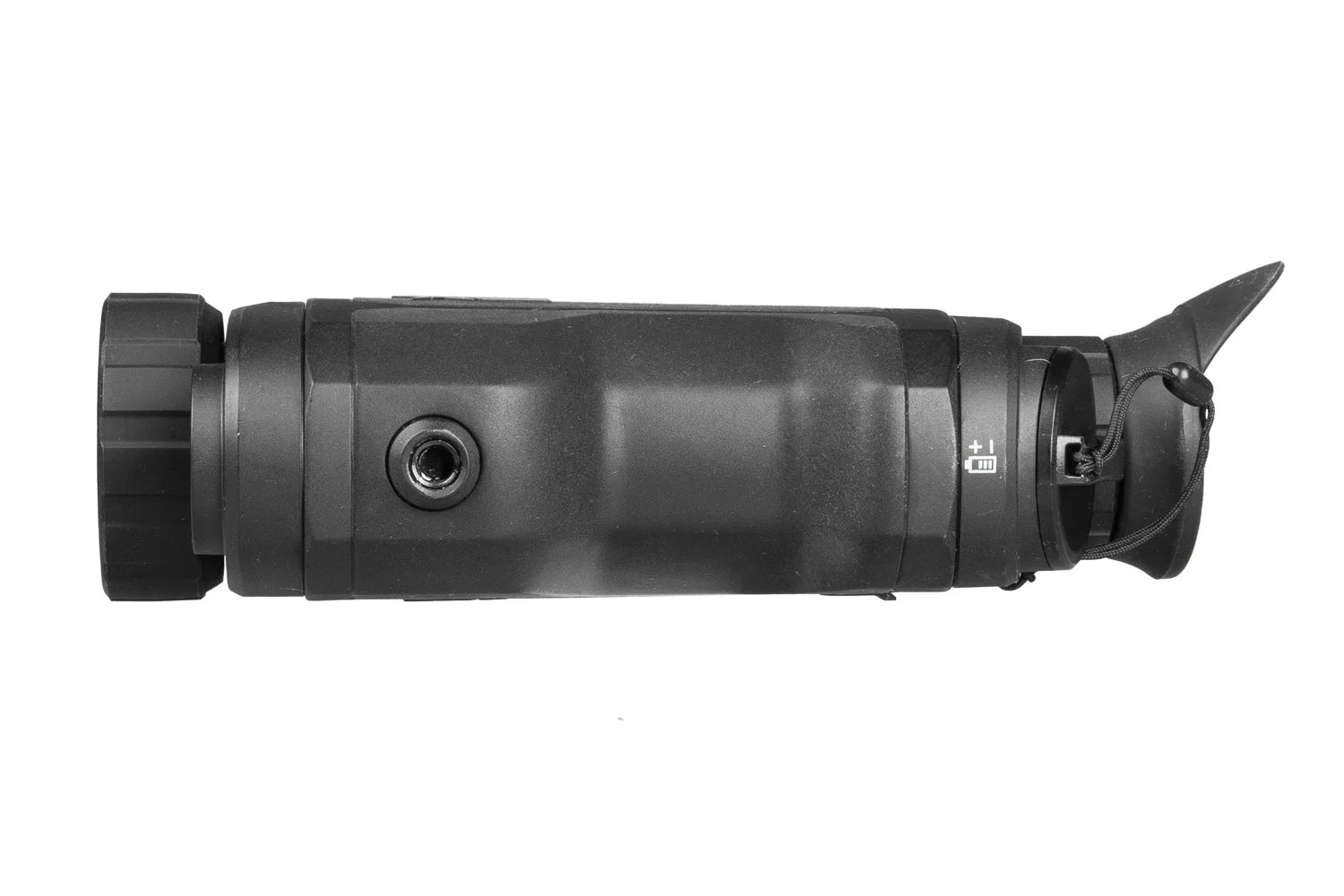

AGM ReachIR LRF 25-384 Thermal Monocular 384x288 / 12um (50Hz) 25mm w/Recording (REAC25-384-LRF)
Authorized Dealer
The ReachIR is new premium handheld observational thermal monocular series. All models come equipped with twelve micron infrared detector and a 1024×768 OLED display, for improved color rendering. The ReachIR thermal sensors also come equipped with the most sensitive temperature ratings in its class, coming in at sub-20 millikelvin across the entire product family. Other important options include a 1,000-meter integrated laser rangefinder (LRF), robust body and a removable, rechargeable 18650 battery. These units also boast an impressive waterproof rating, which ensures users have peace of mind while utilizing these under the vast majority of weather conditions.
New optimized image processing algorithms give thermal monocular highly optimized images and remarkable details. The ReachIRs built- in 64 GB memory also sits at the top of its class on the market, with advanced software supporting both video/audio recording and image capture. The primary uses for these thermal monoculars include, but are not limited to: hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking and different marine applications.
AGM ReachIR LRF 25-384 CHARACTERISTICS:
■ 12μm, high-sensitivity thermal detector (NETD < 20mK)
■ 384x288 or 640x512 resolution
■ Fast 50 Hz imaging
■ Built-in 1,000-meter laser rangefinder
■ New optimized image processing algorithms
■ 1x, 2x, 4x, 8x digital zoom
■ 1024×768 resolution, 0.39-inch OLED display
■ Vide/audio recording and image capture
■ 64 GB built-in memory
■ Wi-Fi hotspot
■ Standby mode
■ Replaceable and rechargeable 18650 Lithium battery
■ Up to 4 hours continuous running
■ Auto screen-off function
■ Robust magnesium alloy housing
■ Waterproof
■ 5-Year Warranty
AGM ReachIR LRF 25-384 Specifications:
Detector Type: 12μm VOx Uncooled Focal Plane Array
Resolution: 384 × 288
Refresh Rate: 50 Hz
NETD: Less than 20 mK (25°C, F#=1.0)
Response Waveband: 8 μm to 14 μm
Lens System: 25 mm; F1.0
Field of View: (HxV) 10.5° × 7.9°
Magnification: 2.5x – 20x
Digital Zoom: 1x, 2x, 4x, 8x
Diopter Adjustment :-5 to +3
Detection Range (6’ object): 1,200 m
Monitor: 1024x768, 0.39 inch, OLED, 50 FPS
FFC (Flat Field Correction): Auto, Manual, External Correction
Palettes: Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking: Yes
Scene Mode: Jungle, Recognition
Distance Measurement Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Laser Wavelength: 905 nm
Laser Safety Class: Class 1
Hotspot: Yes
Sleep Mode: Yes
Built-in Storage: 64 GB EMMC
Video/Audio Recording: Yes / Yes
Image Capture: Yes
PIP: Yes
Battery Type: One 18650 rechargeable battery (removable)
Battery Life: 4.5 hours continuous running (@25°C, WiFi and LRF off)
Battery Capacity Display: Yes
External Power: 5 VDC/2 A, USB Type-C interface, Supports external power supply
Working Temperature: -30°C to 55°C (-22°F to 131°F)
Protection Level: IP67 (Waterproof)
Dimensions: 185 × 52 × 86 mm (7.3 × 2.0 × 3.4 in)
Weight: (w/o batteries) 424 g (0.93 Ib)
Data Sheet
Included:
- Battery Charger
- USB Cable
- Power Adapter (US and EU plugs included)
- 18650 Rechargeable Battery
- Lens Cloth
- Hand Strap
- User Manual
- Protective Bag
