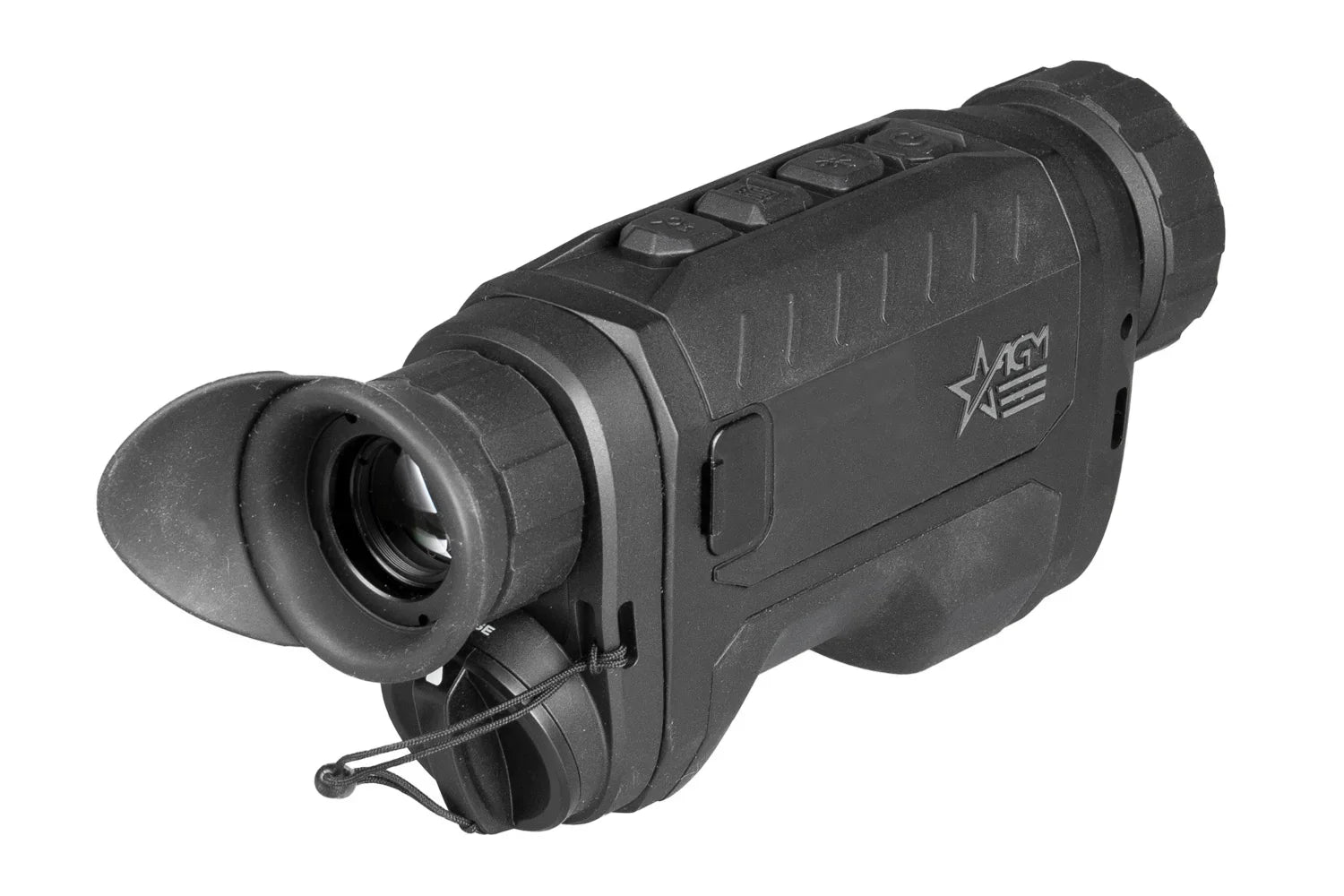

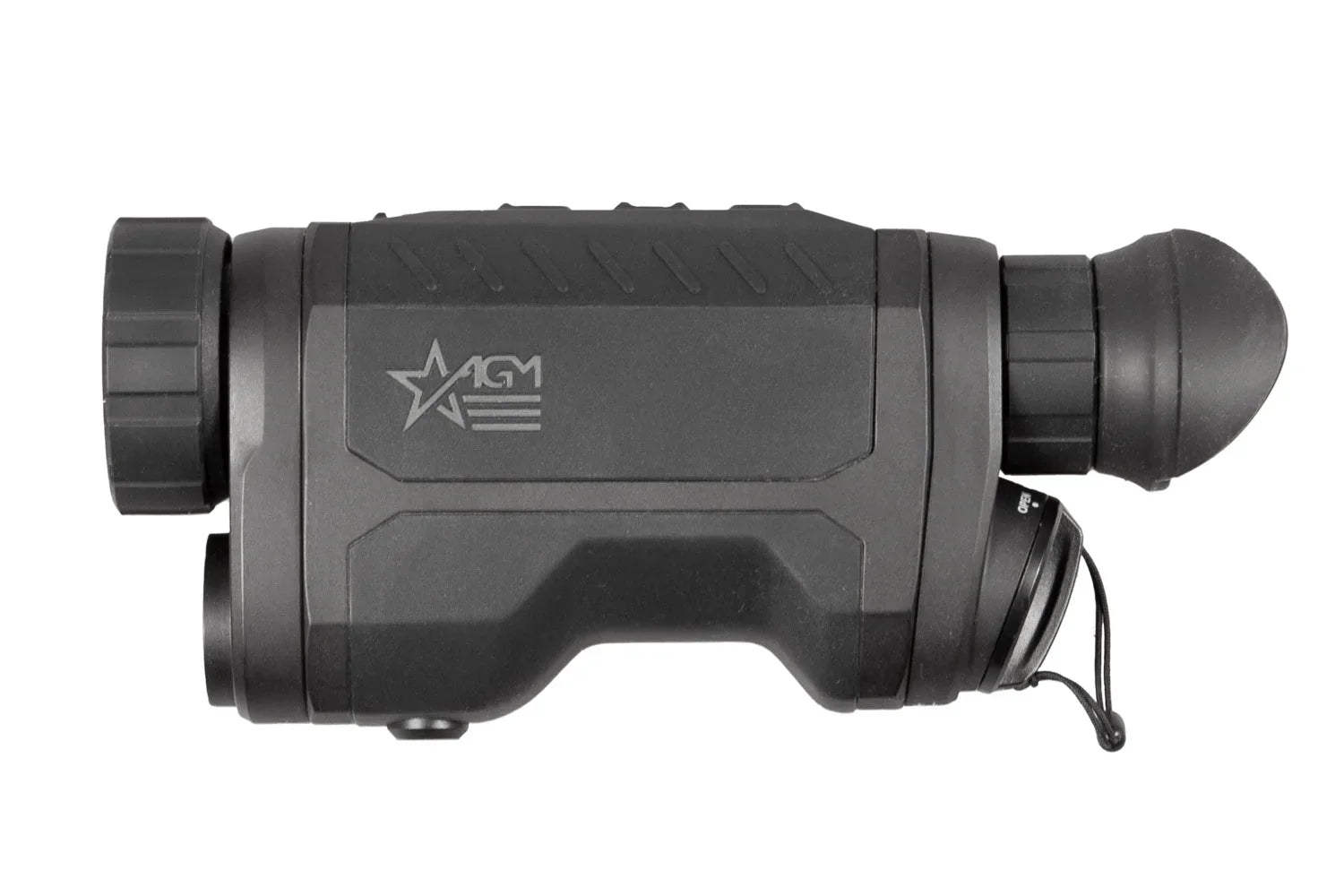

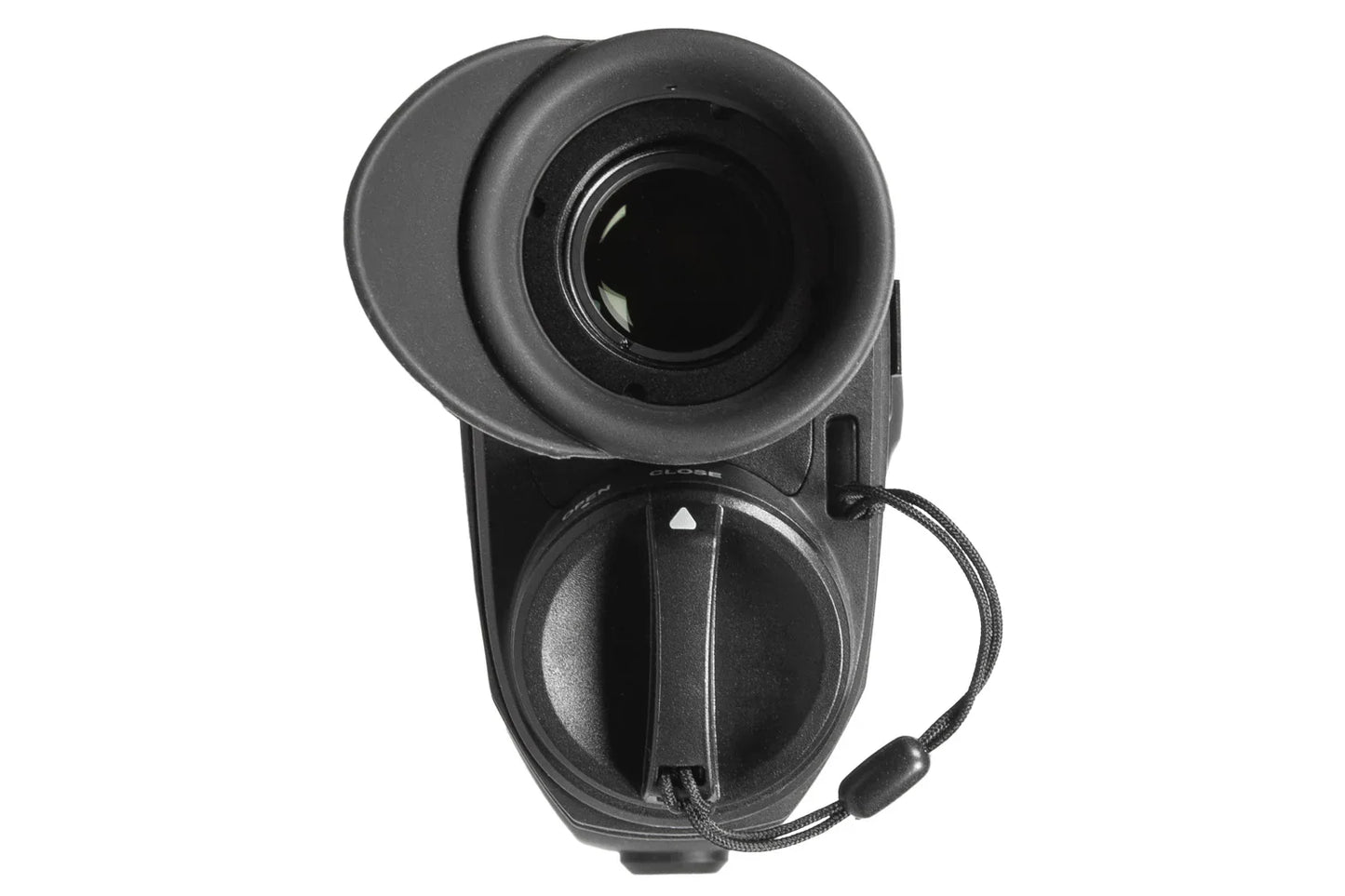

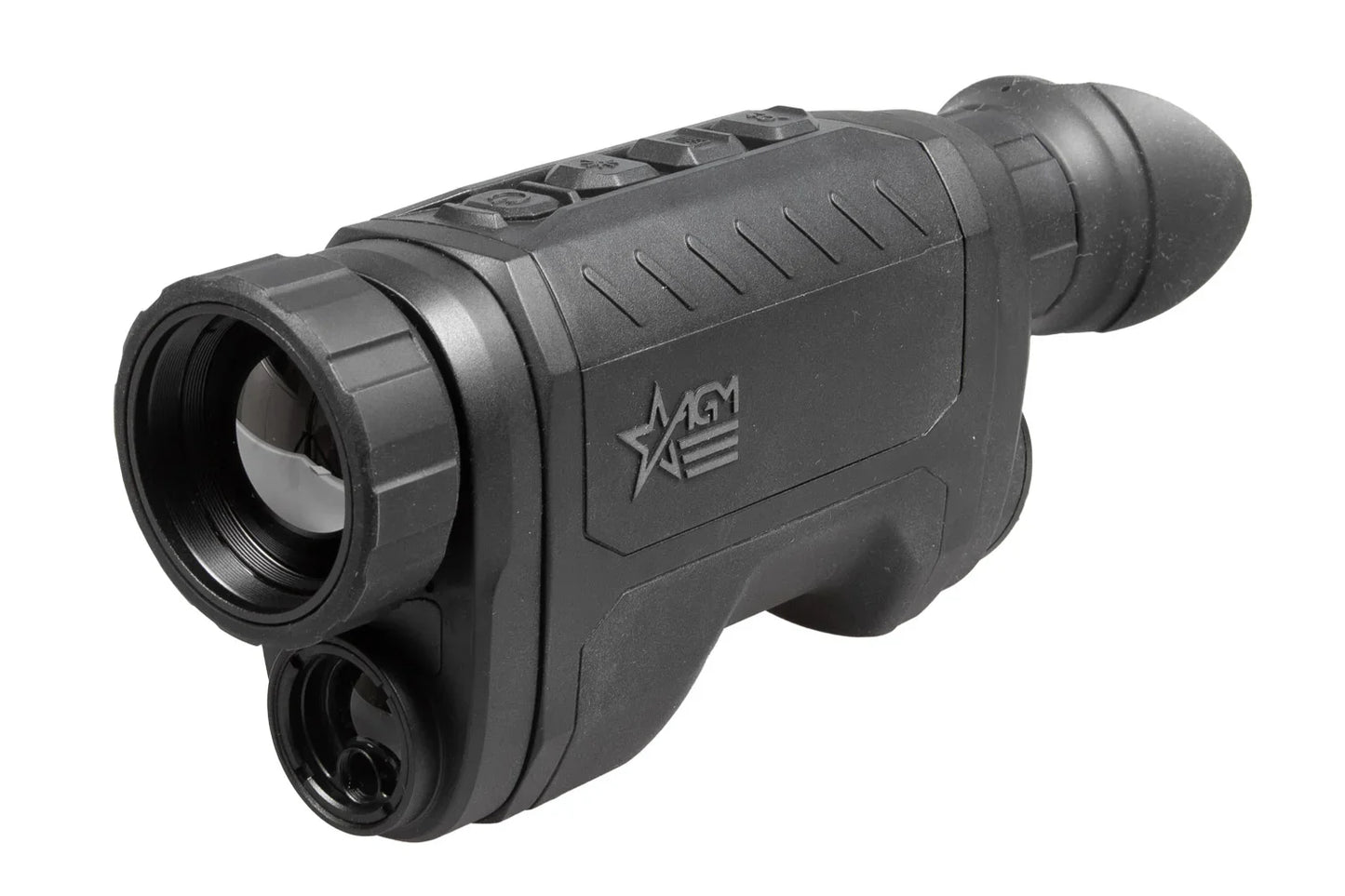

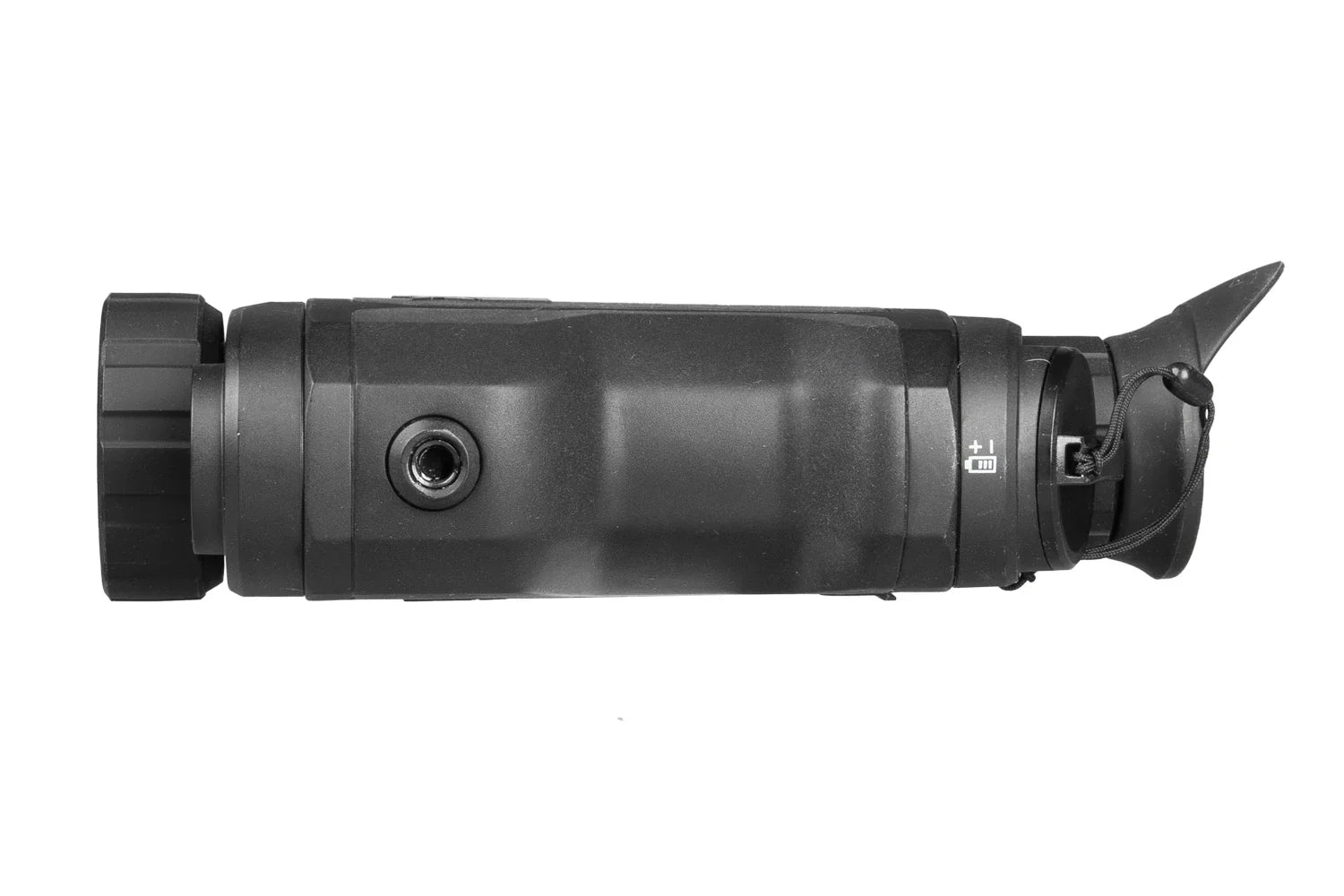

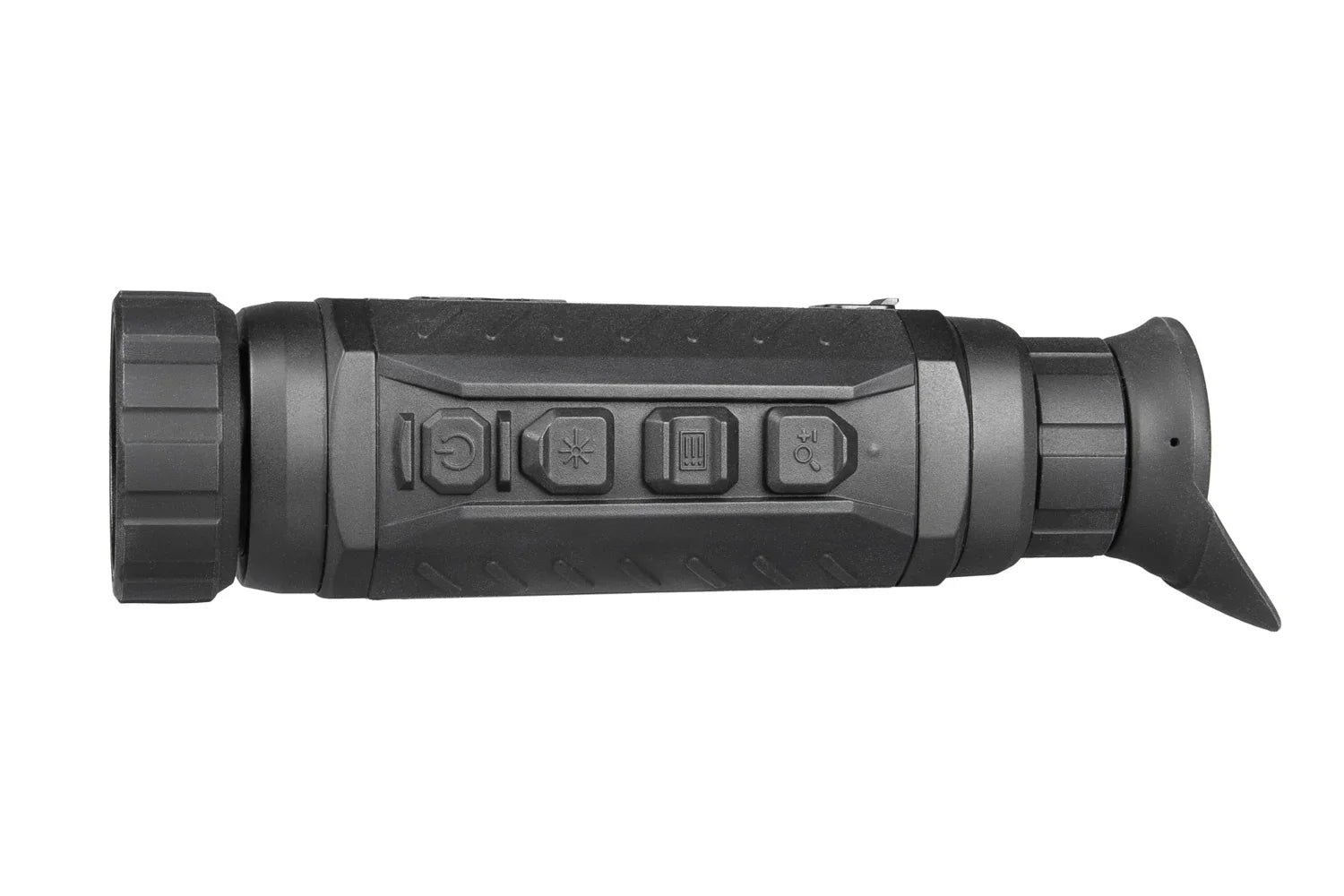

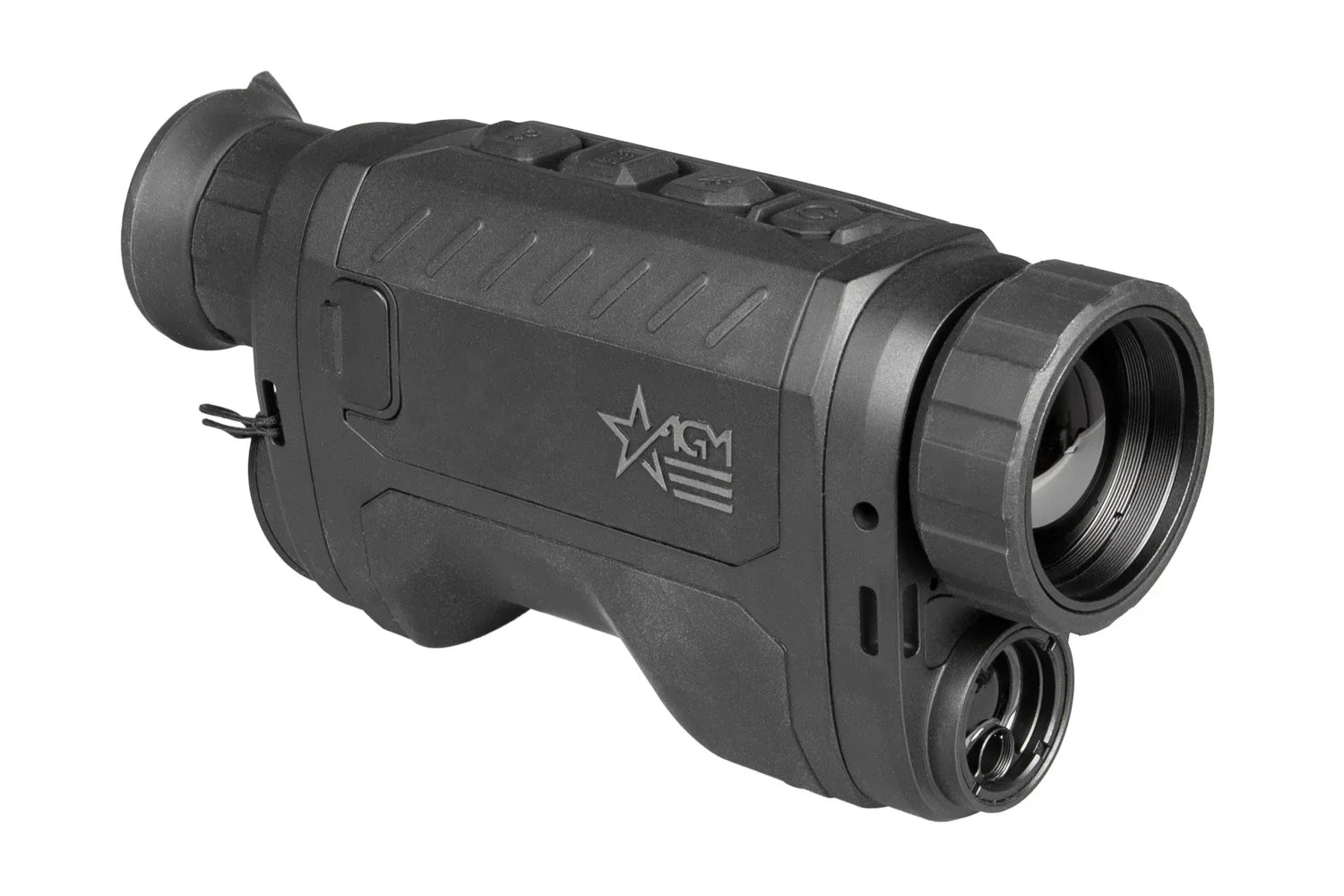

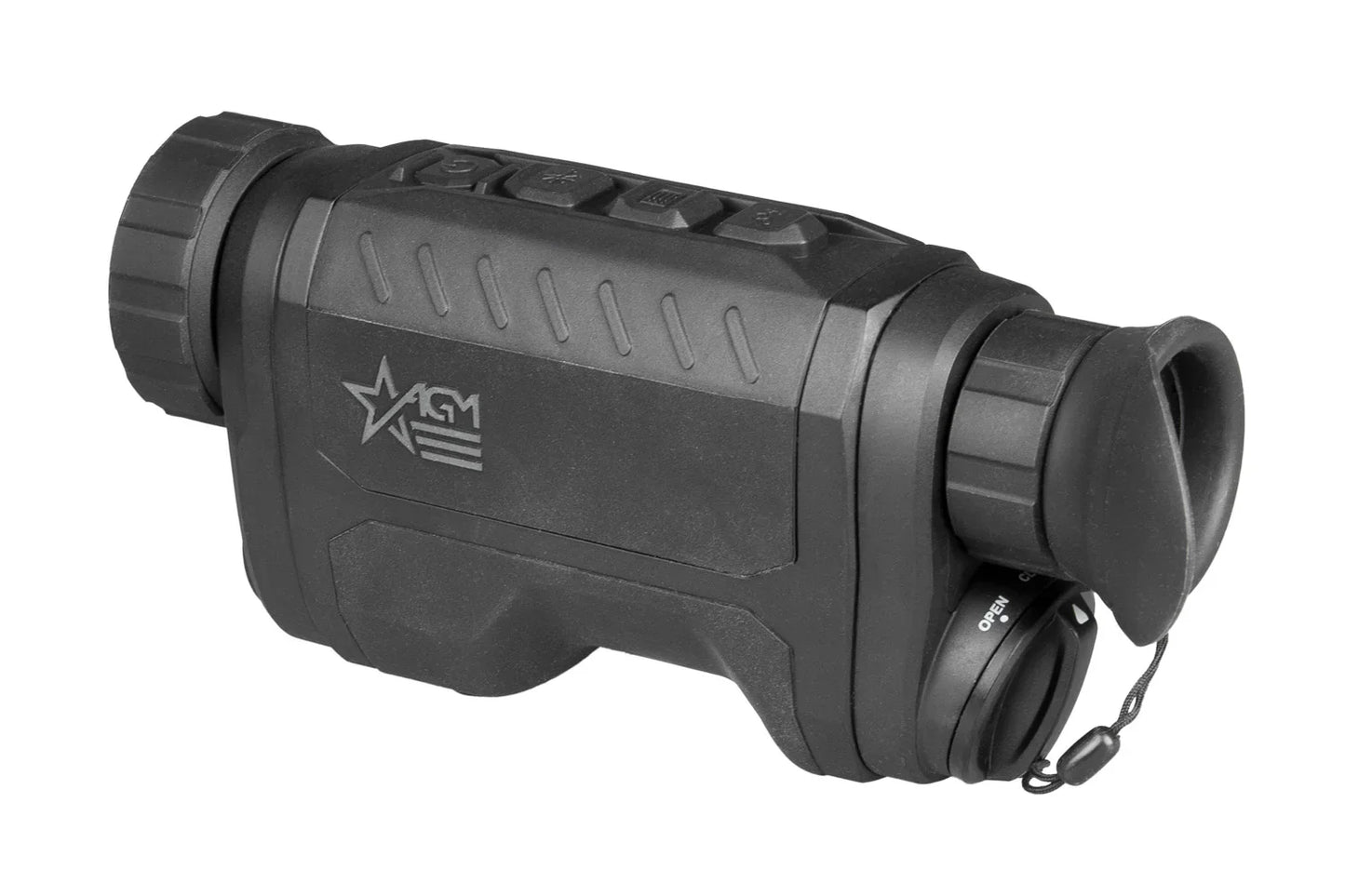

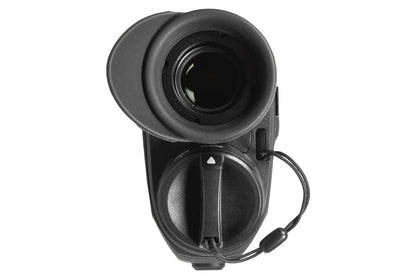

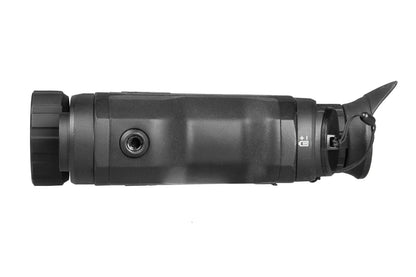

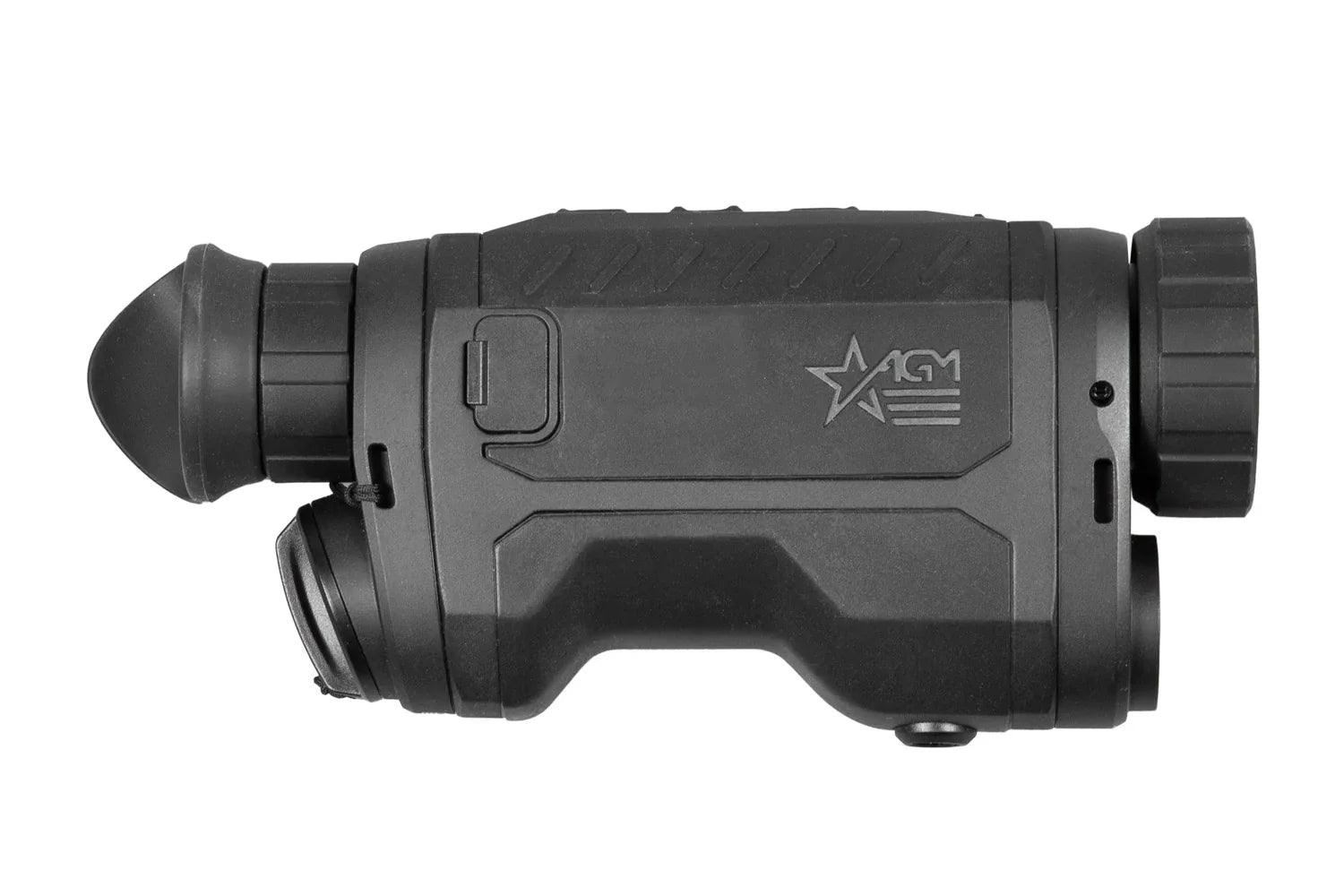

AGM ReachIR LRF 35-640 Thermal Monocular 35mm

AGM ReachIR LRF 35-640 Thermal Monocular 640x512 / 12um (50Hz) 35mm w/Recording (REAC35-640-LRF)

The ReachIR is a new premium series of handheld observational thermal monoculars. Each model is equipped with a 12-micron infrared detector and a 1024×768 OLED display, offering enhanced color rendering for superior image quality. The ReachIR thermal sensors also feature class-leading sensitivity, with sub-20 millikelvin ratings across the entire product line. Key features include a 1,000-meter integrated laser rangefinder (LRF), a durable, robust body, and a removable, rechargeable 18650 battery. These units are also waterproof, providing reliability and peace of mind in almost all weather conditions.

Optimized image processing algorithms ensure highly detailed, crisp thermal images. The ReachIR also comes with 64GB of built-in memory, making it one of the top models in its class, with advanced software supporting video/audio recording and image capture. Primary applications for these thermal monoculars include hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking, and various marine operations.

AGM ReachIR LRF 35-640 CHARACTERISTICS:

■ 12μm, high-sensitivity thermal detector (NETD < 20mK)

■ 384x288 or 640x512 resolution

■ Fast 50 Hz imaging

■ Built-in 1,000-meter laser rangefinder

■ New optimized image processing algorithms

■ 1x, 2x, 4x, 8x digital zoom

■ 1024×768 resolution, 0.39-inch OLED display

■ Vide/audio recording and image capture

■ 64 GB built-in memory

■ Wi-Fi hotspot

■ Standby mode

■ Replaceable and rechargeable 18650 Lithium battery

■ Up to 4 hours continuous running

■ Auto screen-off function

■ Robust magnesium alloy housing

■ Waterproof

■ 5-Year Warranty

AGM ReachIR LRF 35-640 Specifications:

Detector Type: 12μm VOx Uncooled Focal Plane Array

Resolution: 640 × 512

Refresh Rate: 50 Hz

NETD: Less than 20 mK (25°C, F#=1.0)

Response Waveband: 8 μm to 14 μm

Lens System: 35 mm; F1.0

Field of View: (HxV) 12.5° × 10.0°

Magnification: 2.0x – 16x

Digital Zoom: 1x, 2x, 4x, 8x

Diopter Adjustment :-5 to +3

Detection Range (6’ object): 1,800 m

Monitor: 1024x768, 0.39 inch, OLED, 50 FPS

FFC (Flat Field Correction): Auto, Manual, External Correction

Palettes: Black Hot, White Hot, Red Hot, Fusion

Highest Temperature Spot Tracking: Yes

Scene Mode: Jungle, Recognition

Distance Measurement Laser Rangefinder: up to 1,000 m, ±1 m accuracy

Laser Wavelength: 905 nm

Laser Safety Class: Class 1

Hotspot: Yes

Sleep Mode: Yes

Built-in Storage: 64 GB EMMC

Video/Audio Recording: Yes / Yes

Image Capture: Yes

PIP: Yes

Battery Type: One 18650 rechargeable battery (removable)

Battery Life: 4 hours continuous running (@25°C, WiFi and LRF off)

Battery Capacity Display: Yes

External Power: 5 VDC/2 A, USB Type-C interface, Supports external power supply

Working Temperature: -30°C to 55°C (-22°F to 131°F)

Protection Level: IP67 (Waterproof)

Dimensions: 190 × 52 × 86 mm (7.5 × 2.0 × 3.4 in)

Weight: (w/o batteries) 442 g (0.97 Ib)

Included:

• ReachIR Thermal Monocular
• (2) Rechargeable 18650 Batteries
• Battery Charger
• USB-C Cable
• Power Adapter
• Wrist Strap
• Lens Cloth
• Quick Start Guide
• User Manual
• Protective Carry Bag

U.S. Export Restrictions (ITAR/EAR)

This product is available for U.S. sale only and may be subject to ITAR and/or EAR export-control regulations. Please review our ITAR/EAR Compliance Policy before purchasing.
