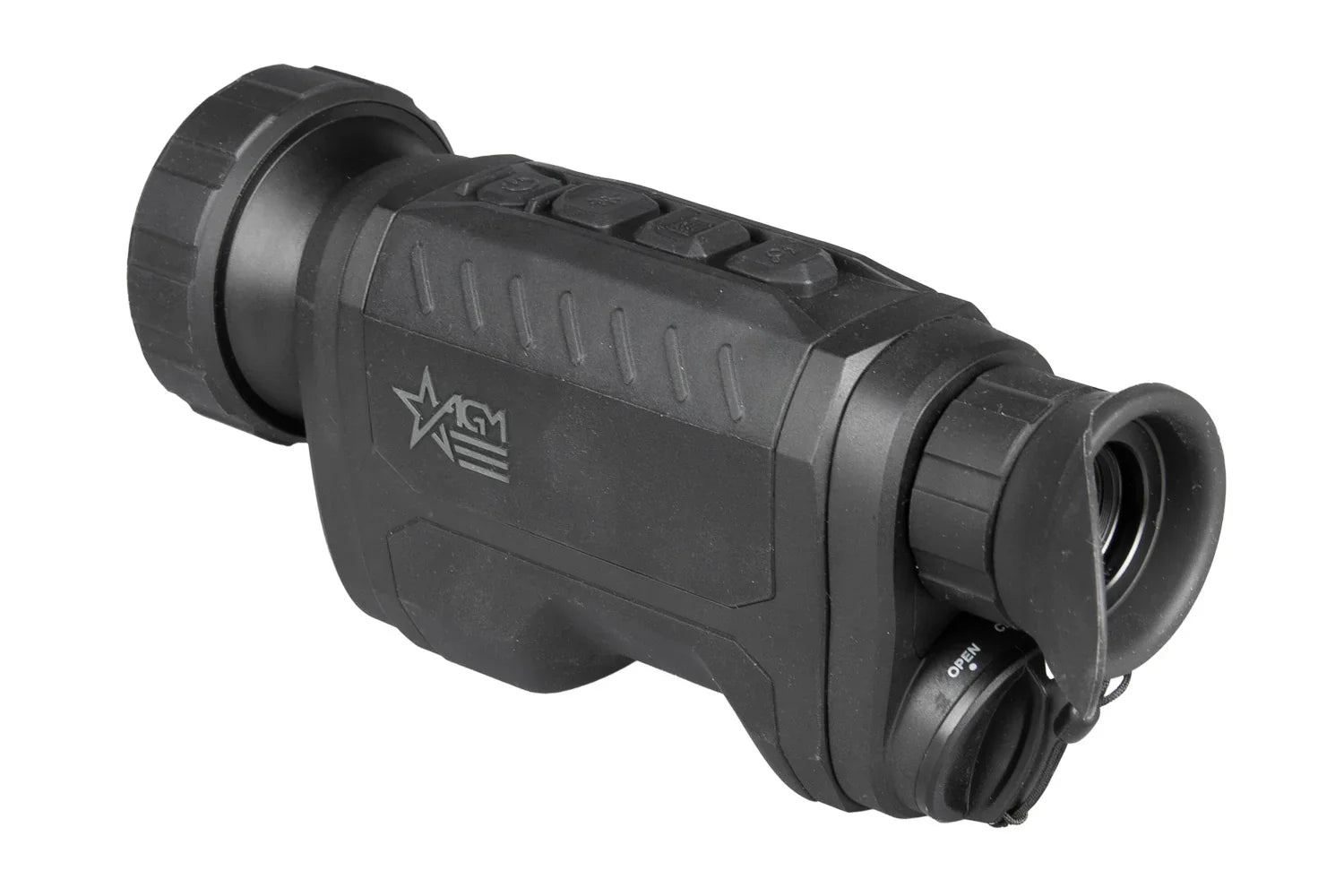

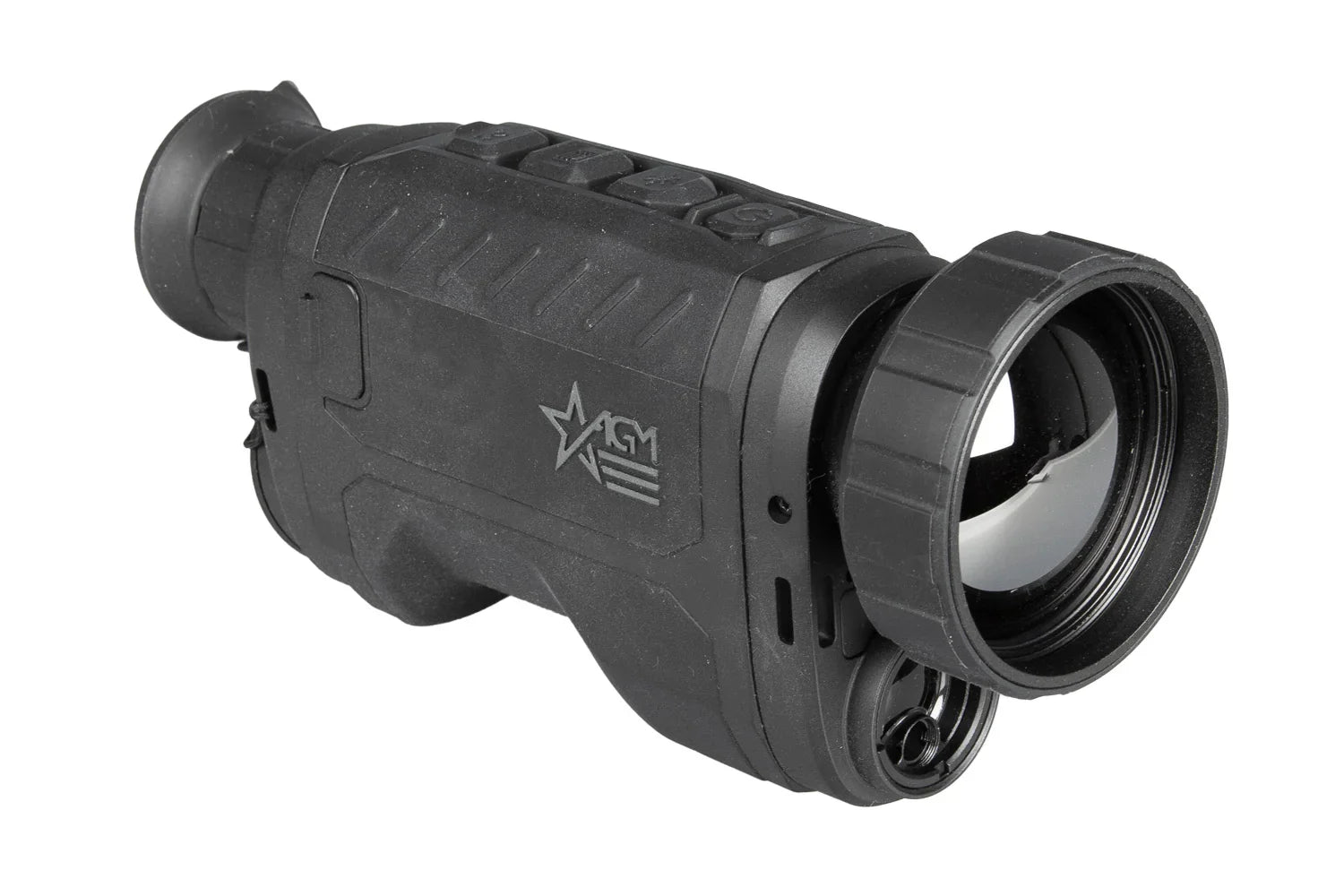

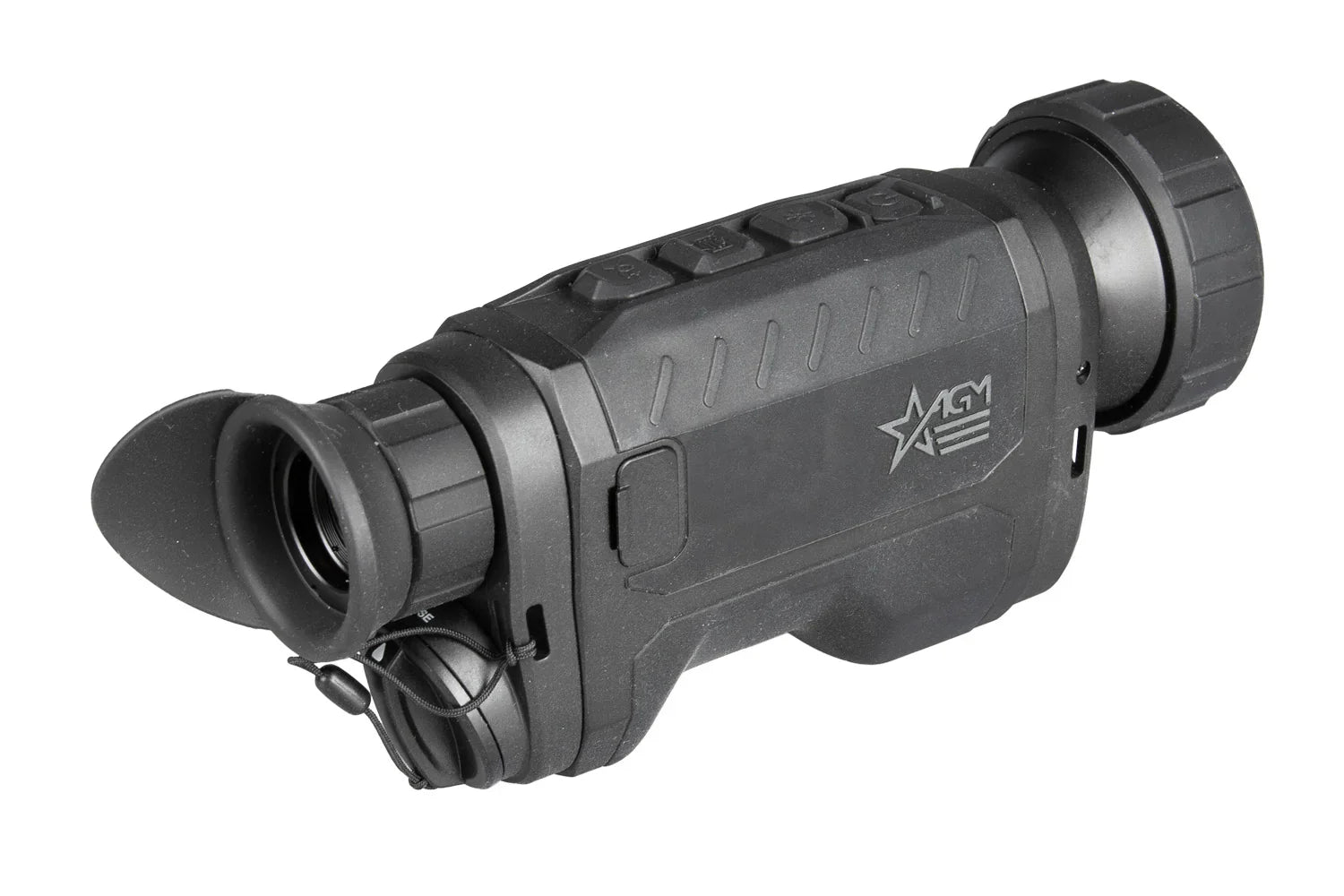

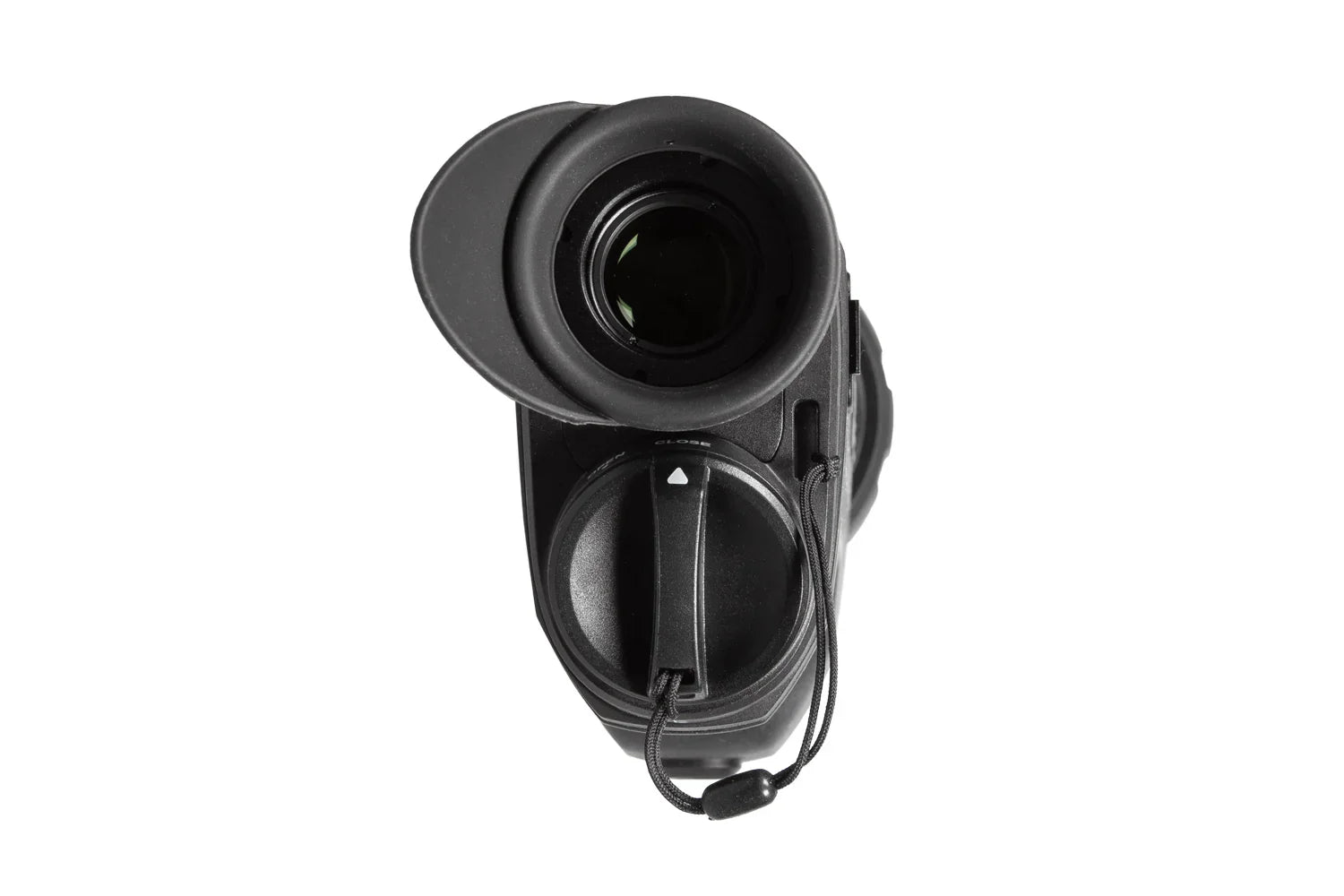

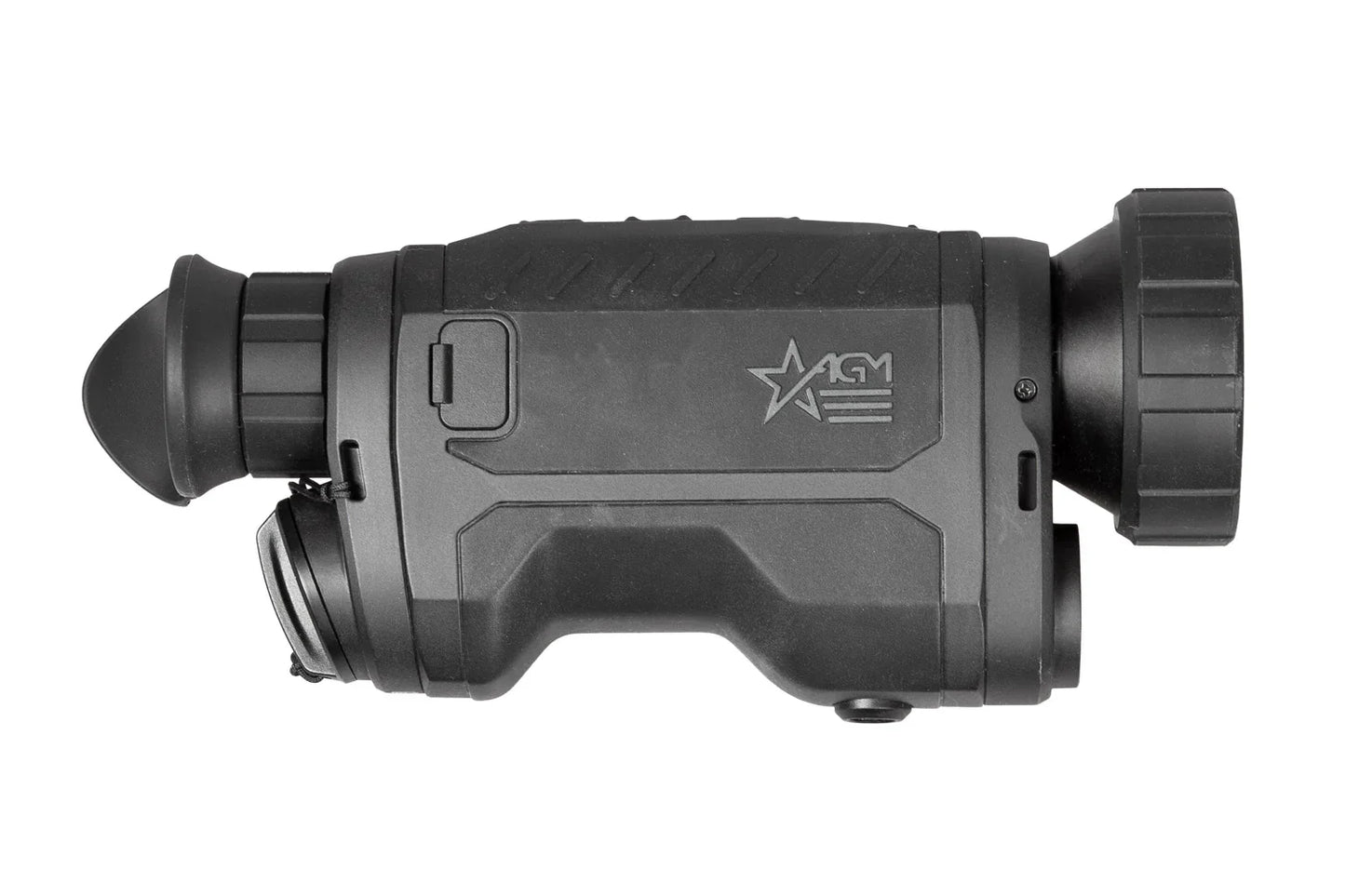

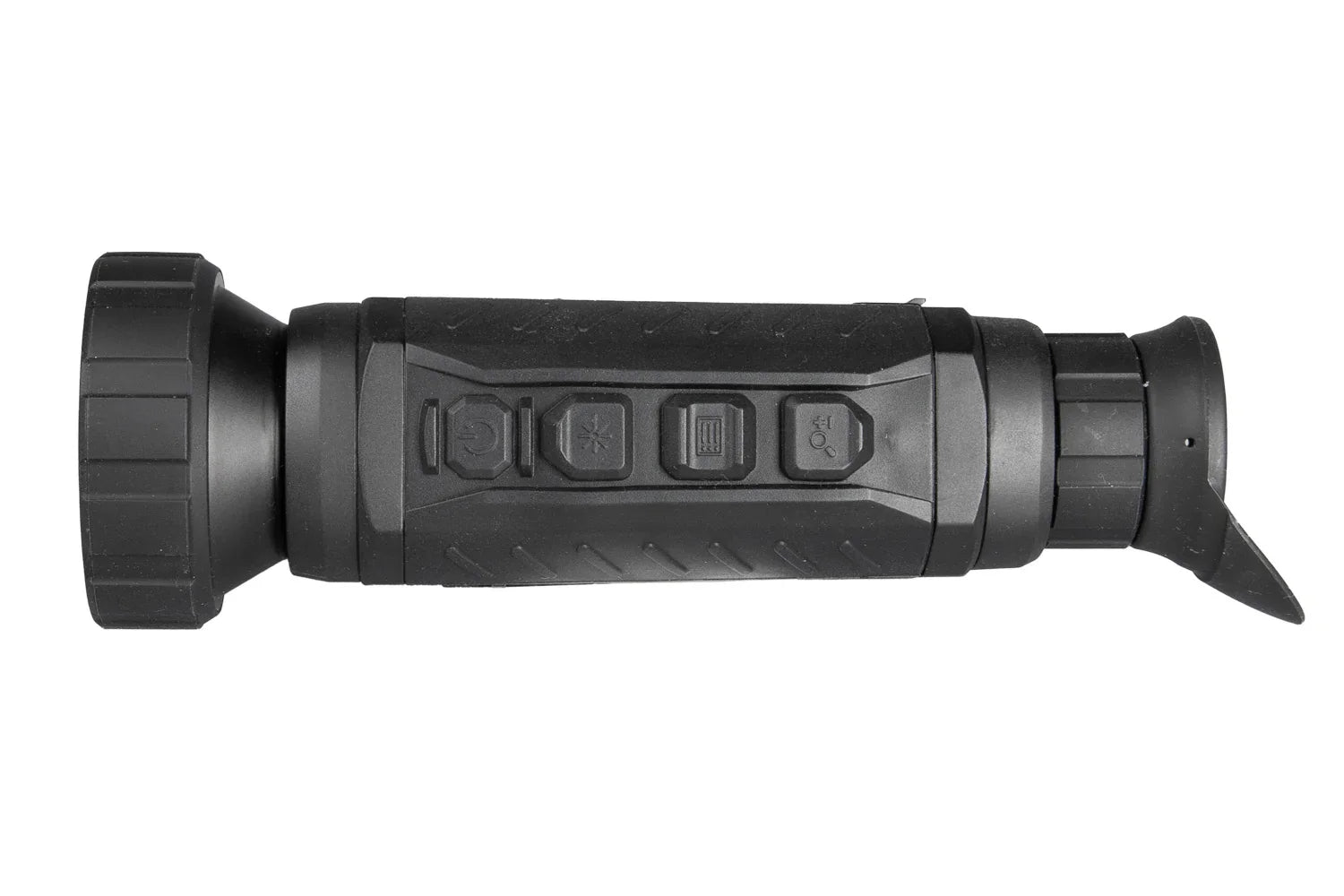

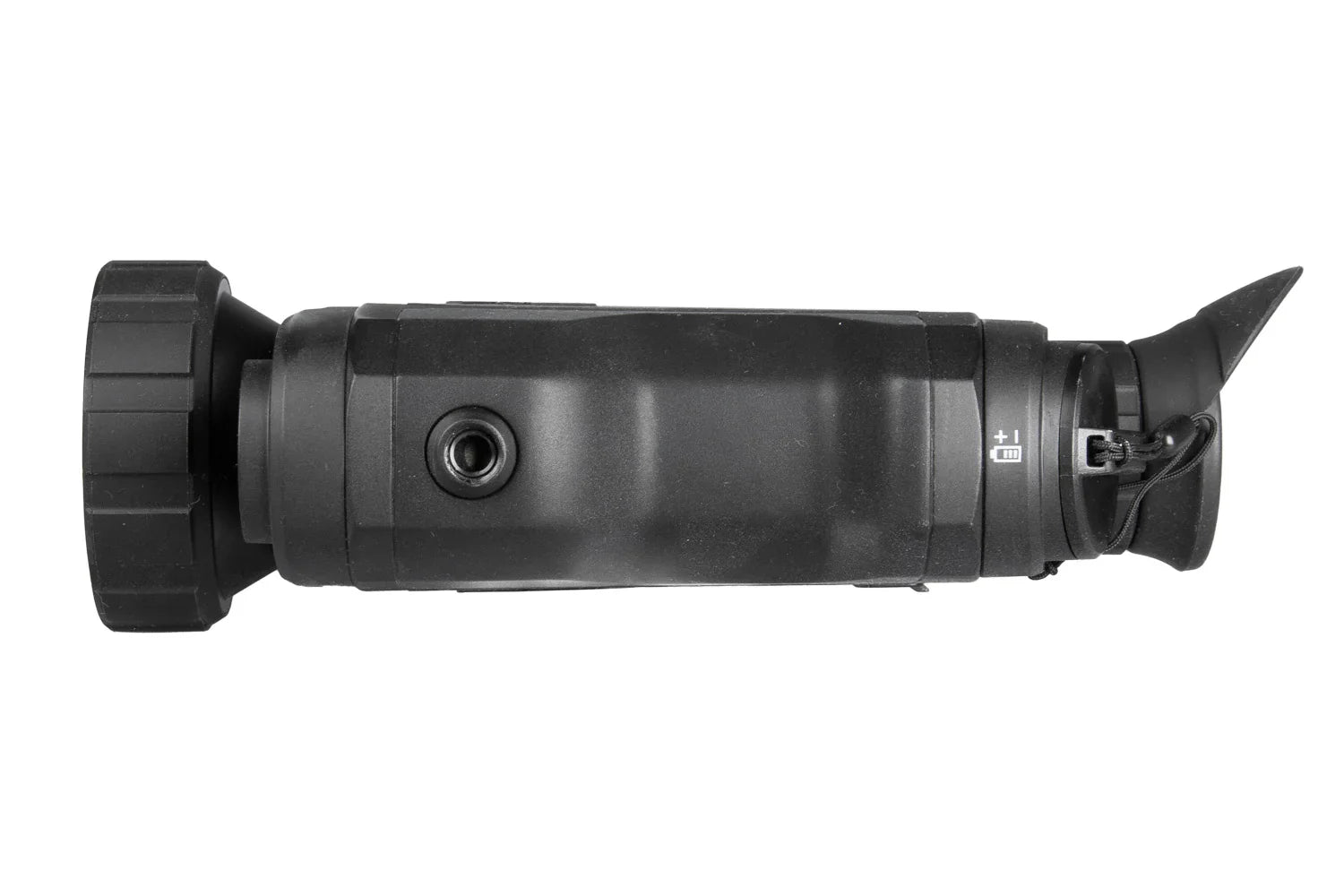

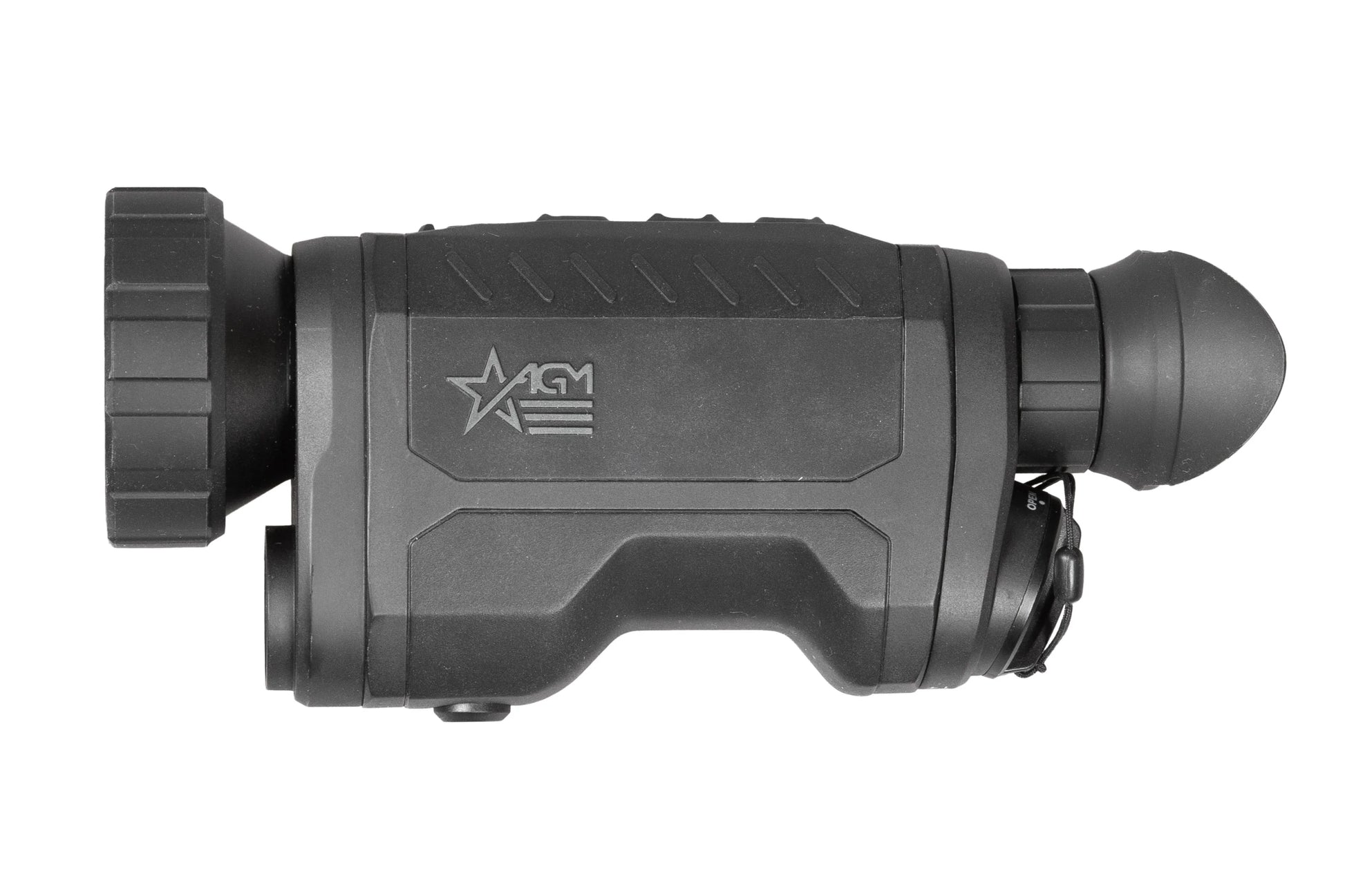

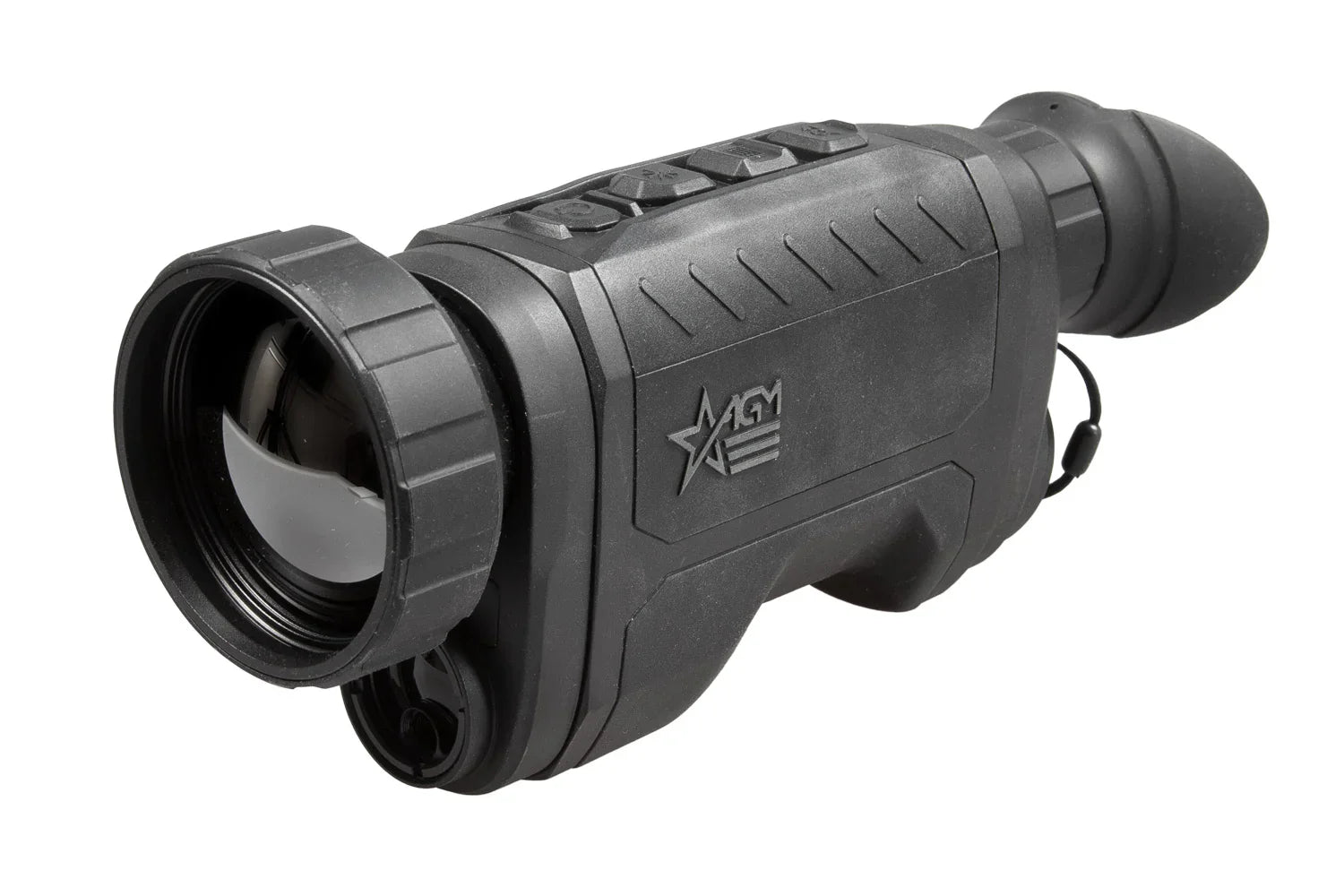

AGM ReachIR LRF 50-640 Thermal Monocular 640x512 / 12um (50Hz) 50mm w/Recording (REAC50-640-LRF)
The ReachIR is a new premium series of handheld observational thermal monoculars. Each model is equipped with a 12-micron infrared detector and a 1024×768 OLED display, offering enhanced color rendering for superior image quality. The ReachIR thermal sensors also feature class-leading sensitivity, with sub-20 millikelvin ratings across the entire product line. Key features include a 1,000-meter integrated laser rangefinder (LRF), a durable, robust body, and a removable, rechargeable 18650 battery. These units are also waterproof, providing reliability and peace of mind in almost all weather conditions.
Optimized image processing algorithms ensure highly detailed, crisp thermal images. The ReachIR also comes with 64GB of built-in memory, making it one of the top models in its class, with advanced software supporting video/audio recording and image capture. Primary applications for these thermal monoculars include hunting, law enforcement, search-and-rescue, personal security, conservation, anti-poaching, camping, hiking, and various marine operations.
AGM ReachIR LRF 50-640 CHARACTERISTICS:
■ 12μm, high-sensitivity thermal detector (NETD < 20mK)
■ 384x288 or 640x512 resolution
■ Fast 50 Hz imaging
■ Built-in 1,000-meter laser rangefinder
■ New optimized image processing algorithms
■ 1x, 2x, 4x, 8x digital zoom
■ 1024×768 resolution, 0.39-inch OLED display
■ Vide/audio recording and image capture
■ 64 GB built-in memory
■ Wi-Fi hotspot
■ Standby mode
■ Replaceable and rechargeable 18650 Lithium battery
■ Up to 4 hours continuous running
■ Auto screen-off function
■ Robust magnesium alloy housing
■ Waterproof
■ 5-Year Warranty
AGM ReachIR LRF 50-640 Specifications:
Detector Type: 12μm VOx Uncooled Focal Plane Array
Resolution: 640 × 512
Refresh Rate: 50 Hz
NETD: Less than 20 mK (25°C, F#=1.0)
Response Waveband: 8 μm to 14 μm
Lens System: 50 mm; F1.0
Field of View: (HxV) 8.7° × 7.0°
Magnification: 3.0x – 24x
Digital Zoom: 1x, 2x, 4x, 8x
Diopter Adjustment :-5 to +3
Detection Range (6’ object): 2,600 m
Monitor: 1024x768, 0.39 inch, OLED, 50 FPS
FFC (Flat Field Correction): Auto, Manual, External Correction
Palettes: Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking: Yes
Scene Mode: Jungle, Recognition
Distance Measurement Laser Rangefinder: up to 1,000 m, ±1 m accuracy
Laser Wavelength: 905 nm
Laser Safety Class: Class 1
Hotspot: Yes
Sleep Mode: Yes
Built-in Storage: 64 GB EMMC
Video/Audio Recording: Yes / Yes
Image Capture: Yes
PIP: Yes
Battery Type: One 18650 rechargeable battery (removable)
Battery Life: 4 hours continuous running (@25°C, WiFi and LRF off)
Battery Capacity Display: Yes
External Power: 5 VDC/2 A, USB Type-C interface, Supports external power supply
Working Temperature: -30°C to 55°C (-22°F to 131°F)
Protection Level: IP67 (Waterproof)
Dimensions: 202 × 61 × 91 mm (8.0 × 2.4 × 3.6 in)
Weight: (w/o batteries) 493 g (1.09 Ib)
Data Sheet
Included:
- Battery Charger
- USB Cable
- Power Adapter (US and EU plugs included)
- 18650 Rechargeable Battery
- Lens Cloth
- Hand Strap
- User Manual
- Protective Bag
