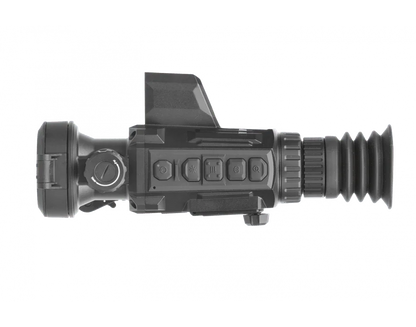

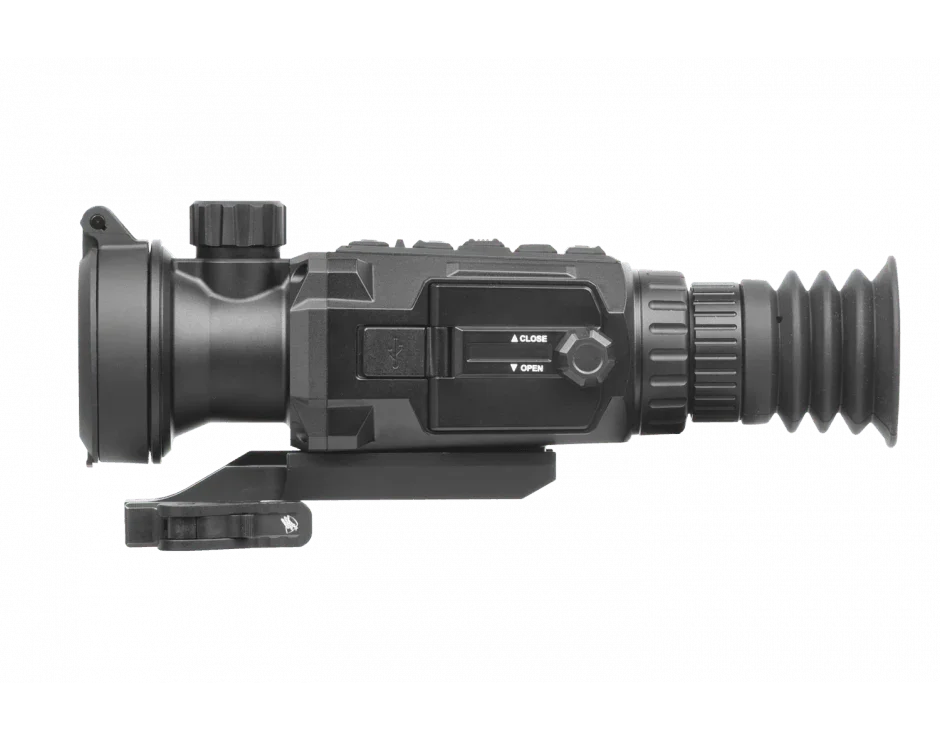

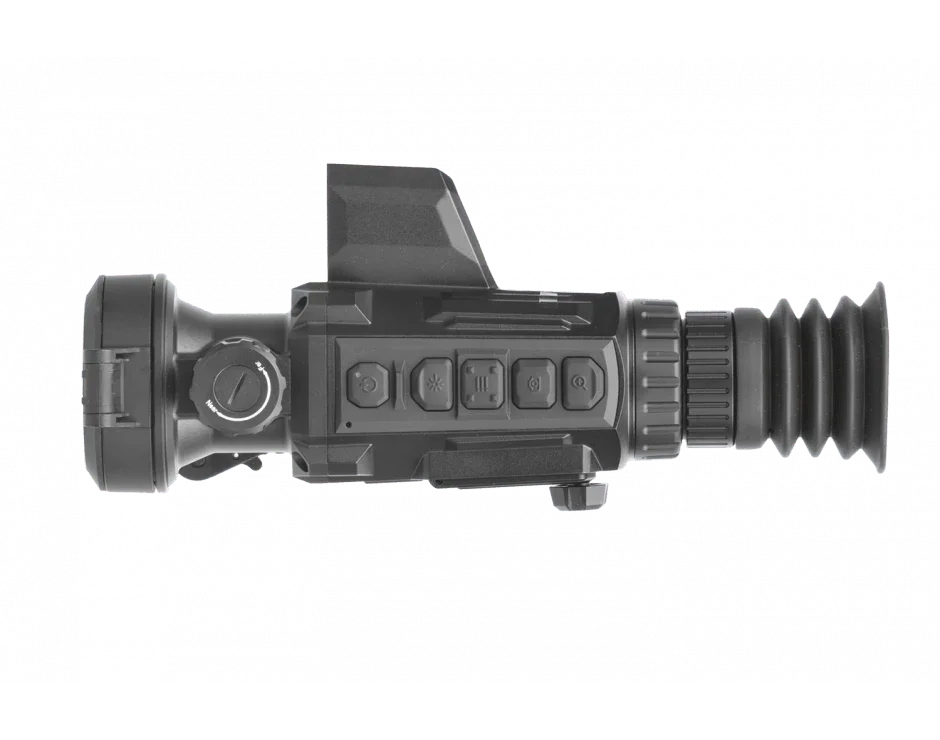

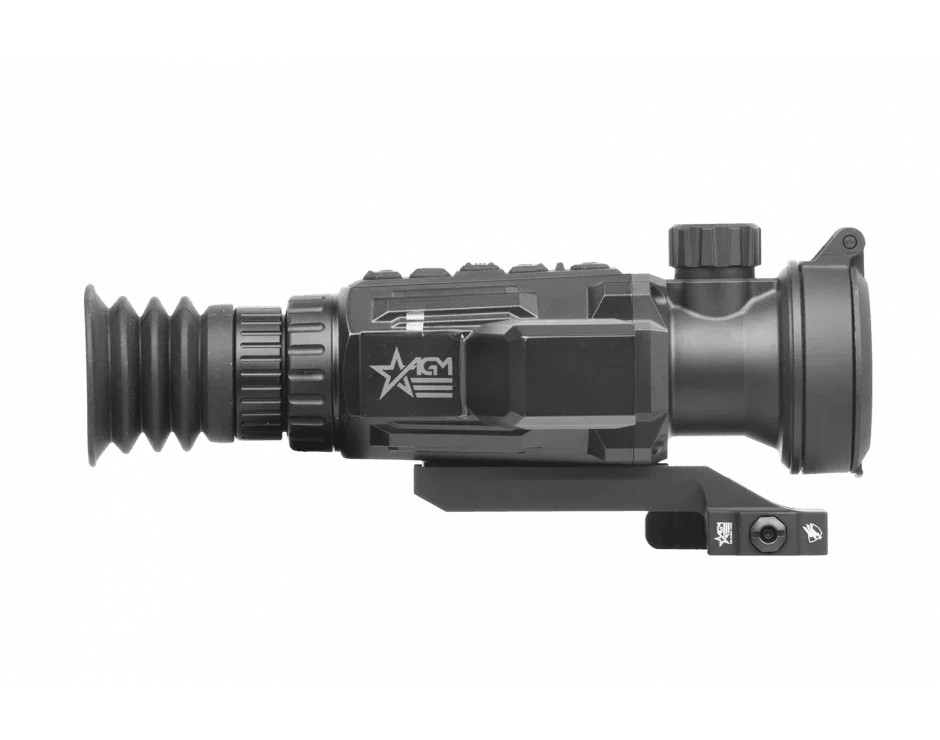

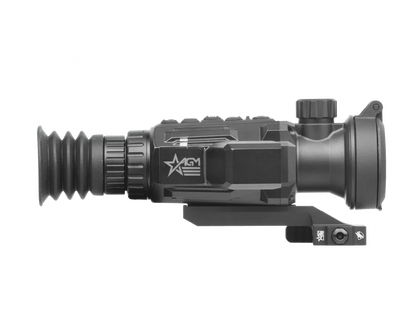

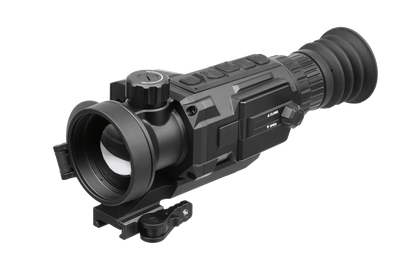

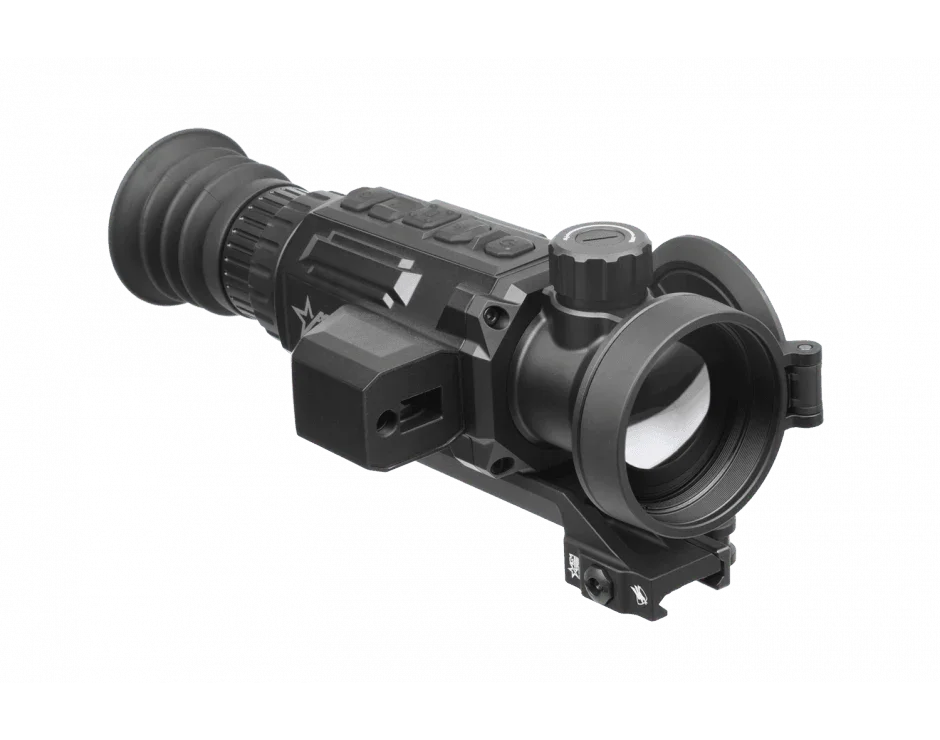

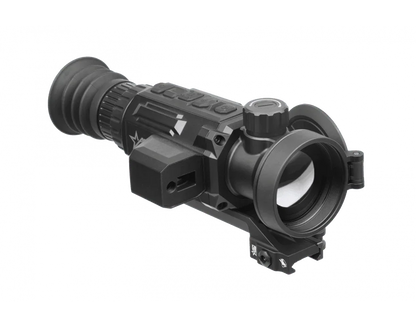

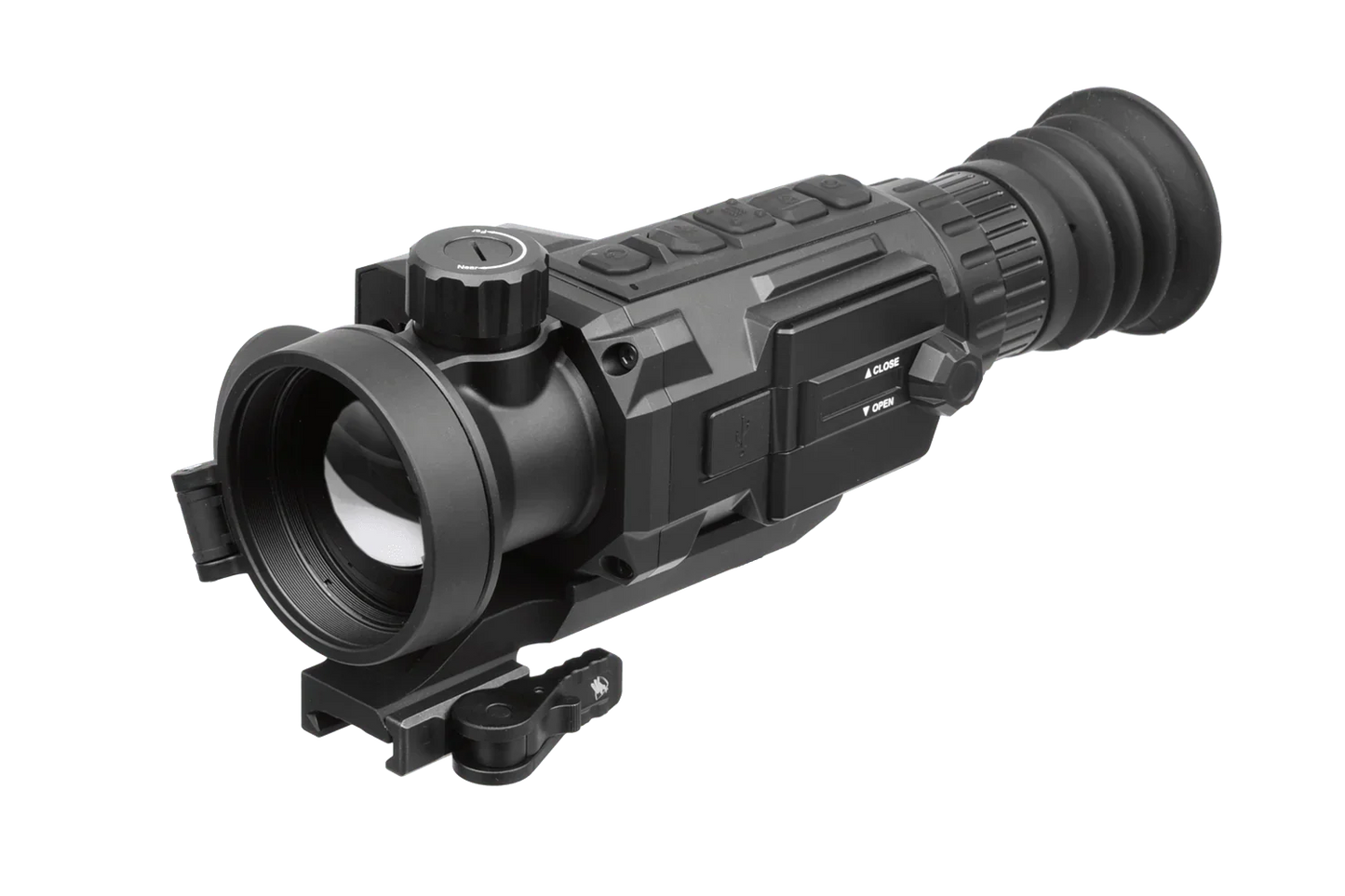

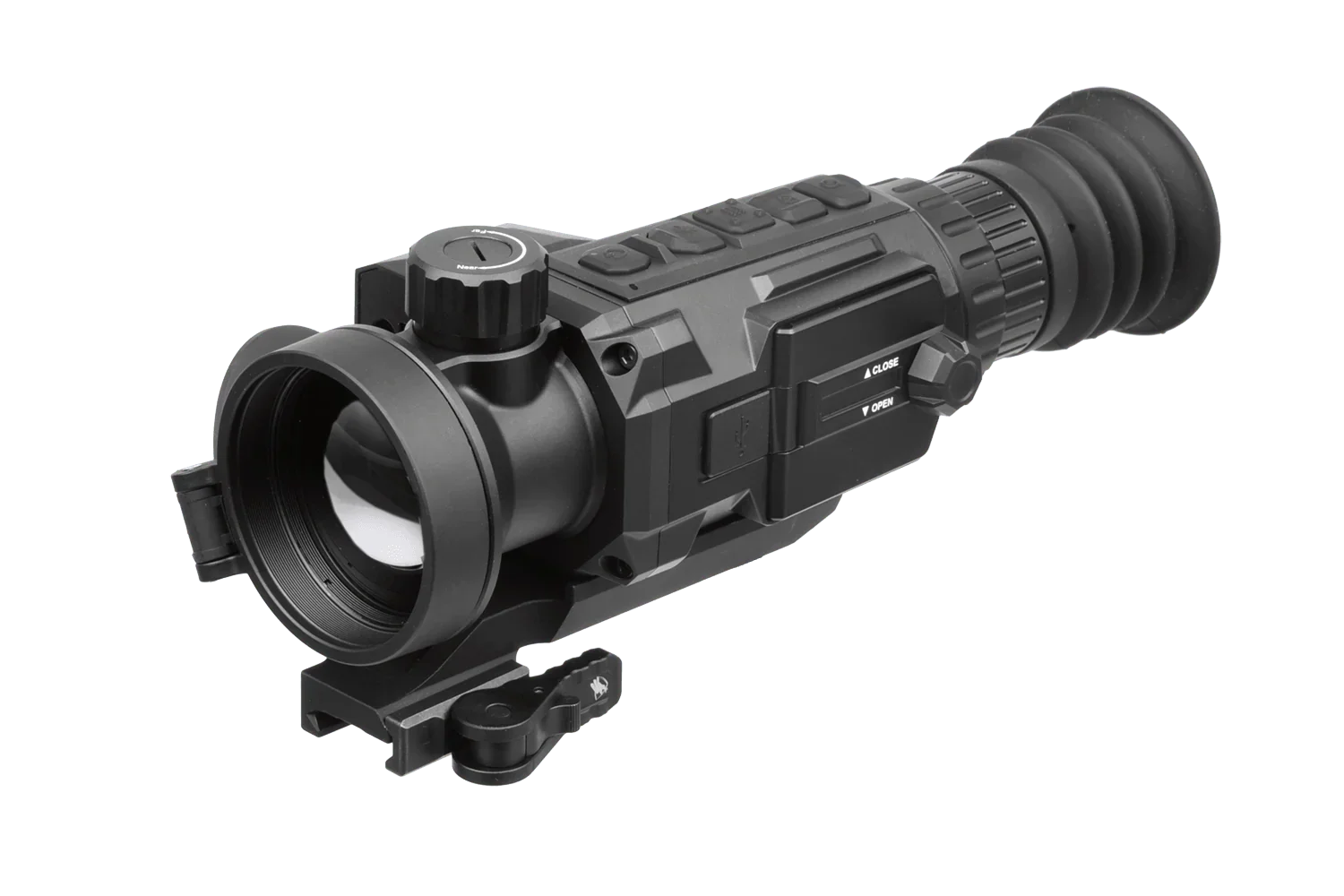

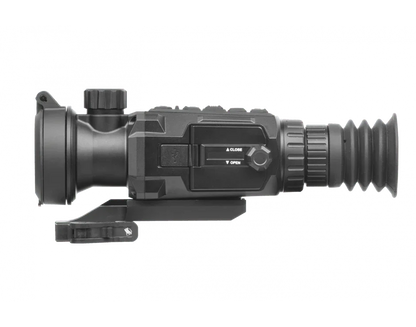

AGM Secutor LRF 50-640 Professional Grade Thermal Scope 50mm 640x512 12um (50Hz) (SECU50-640-LRF)
The NEW Secutor LRF’s were built to expand and diversify the line of rangefinder-equipped thermal riflescopes in the AGM assortment. Though the Secutor LRF series will utilize the same upgraded thermal sensors that can be found across the majority of AGM’s new products, the three primary differences include an upgraded 1000m laser rangefinder, a digital compass and utilization of a CR123A based power system. These differences, while primarily aimed at more noncommercial tactical applications, still offer both extended ranging and battery familiarity to commercial predator hunters as well. The extended range of the LRF, when paired with the non-proprietary CR123A power system, helps make the Secutor LRF’s a great option for different law enforcement and defense applications. Meanwhile, the integrated compass gives shooters an added layer of situational and positional awareness. The newly introduced sub-20 milikelvin thermal sensors will aid users in these tactical scenarios by increasing their ranging capabilities, as well as increase their ability to both detect and identify targets at longer distances. With both 50 and 75mm options, the Secutor LRF’s provide more authenticity than ever to the phrase: long range.
AGM Secutor LRF 50-640 Features:
- 12μm thermal detector
- High thermal sensitivity, NETD < 20mK
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- Various reticle types and colors
- 1x, 2x, 4x, 8x digital zoom
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- More than 6 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
AGM Secutor LRF 50-640 Specifications:
Dimensions
224 × 102 × 69 mm (8.8 × 4.0 × 2.7 in)
Palettes
Black Hot, White Hot, Red Hot, Fusion
Exit Pupil Diameter
6 mm
Reticle
10 types, 4 colors, on/off
Boresight Adjustment
Digital Controlled
Picture In Picture Mode (PIP)
Yes
Video Recording
Yes
Audio Recording
Yes
Magnification
2.5× – 20×
Detector type
12μm VOx Uncooled Focal Plane Array
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Laser Rangefinder
Up to 1000 m, ±4 m accuracy
Laser Wavelength
905 nm
Detection Range (6' object)
2,600 m/yd
Lens system
50 mm; F1.0
NETD
Less than 20 mK (@25°C), F#=1.0
Field of view (H × X)
8.8° × 7.0°
Digital zoom
1×, 2×, 4×, 8×
Diopter adjustment range
-5 to +5 dpt
Monitor
1024x768, 0.39 inch, OLED
Eye relief
45 mm
Storage
16 GB EMMC
Capture Snapshot
Yes
Battery Type
Four CR123A Lithium batteries
Wi-Fi
Yes
Battery Operating Time
Мore than 6 hours
External power supply
5 VDC/2 A, USB Type-C
Weight
0.66 kg (1.45 lb)
Protection Level
IP67
Operating Temperature Range
-30°C to 55°C (-22°F to 131°F)
Data Sheet
PACKAGE INCLUDES
Batteries - (4) CR123
Lens Tissue
QD Mount
USB Cable
User Manual
Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
