AGM Secutor LRF-C 50-640 Professional Grade Thermal Clip-on Scope 50mm

AGM Secutor LRF-C 50-640 Professional Grade Thermal Clip-on Scope 50mm 640x512 12um (50Hz) (SECU50-640C-LRF)

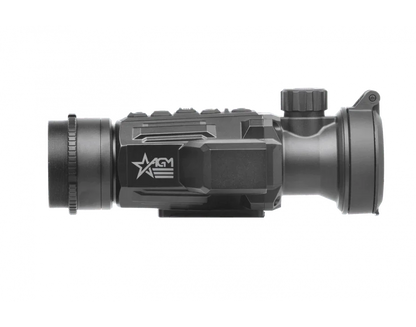

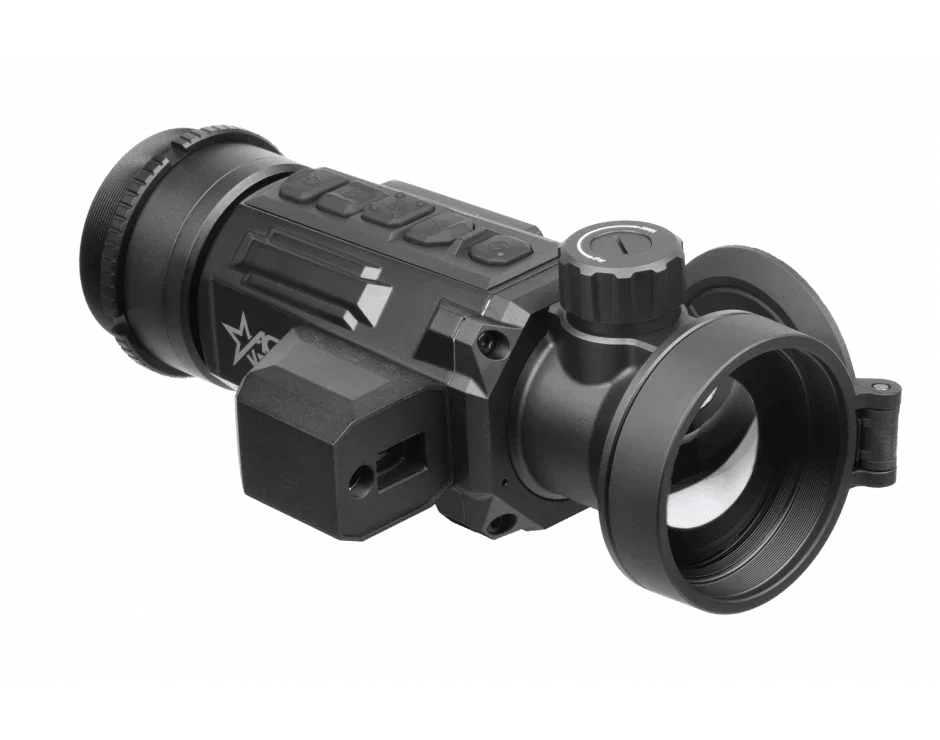

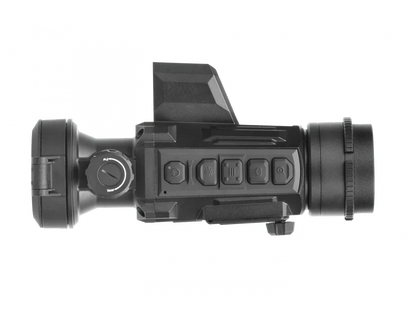

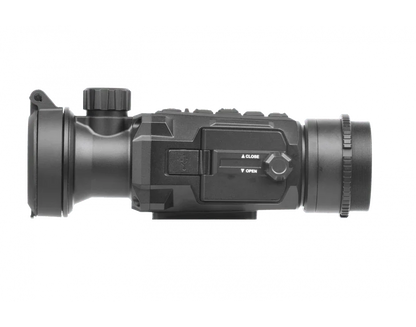

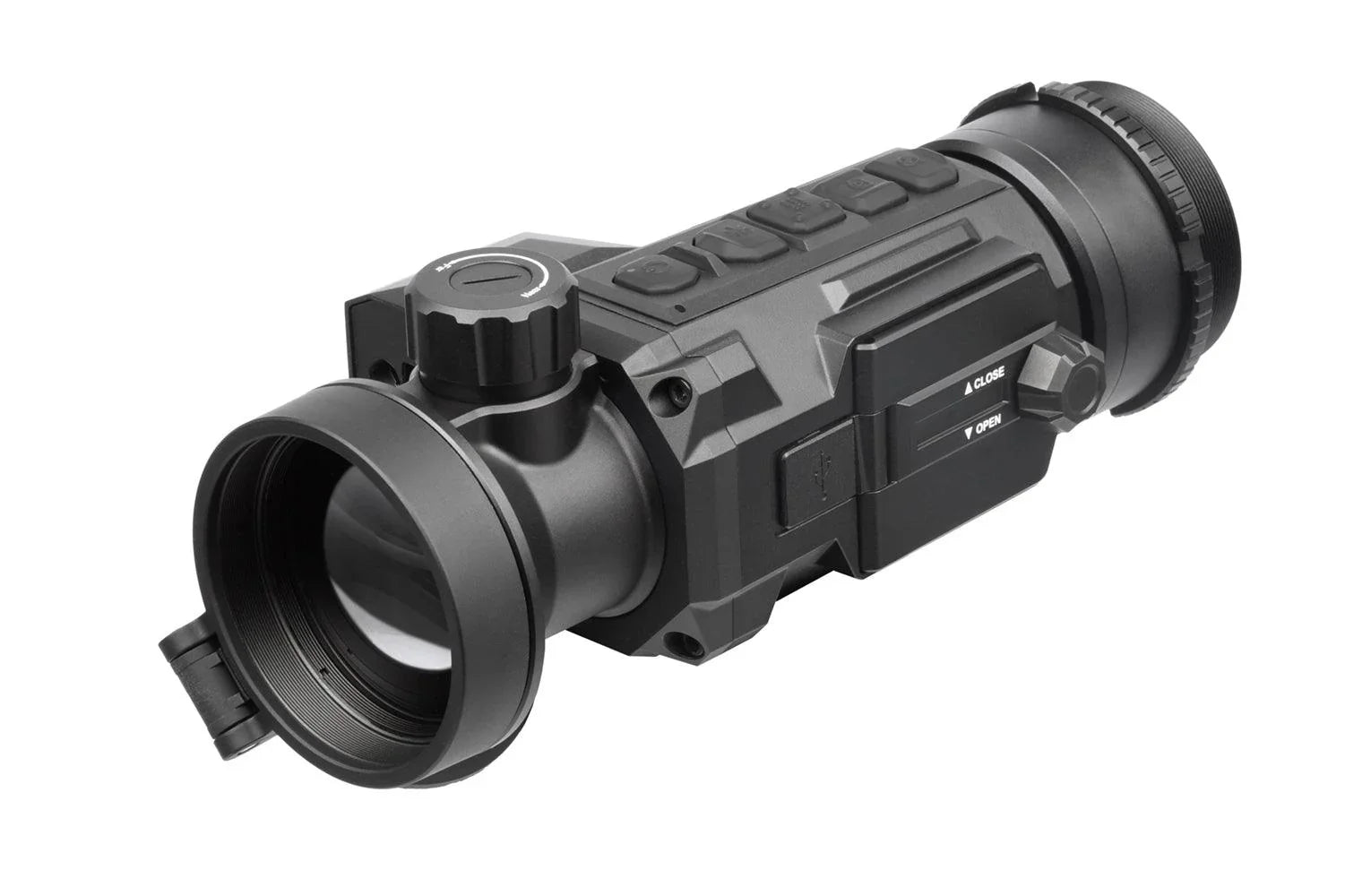

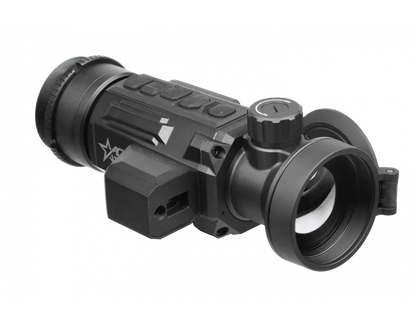

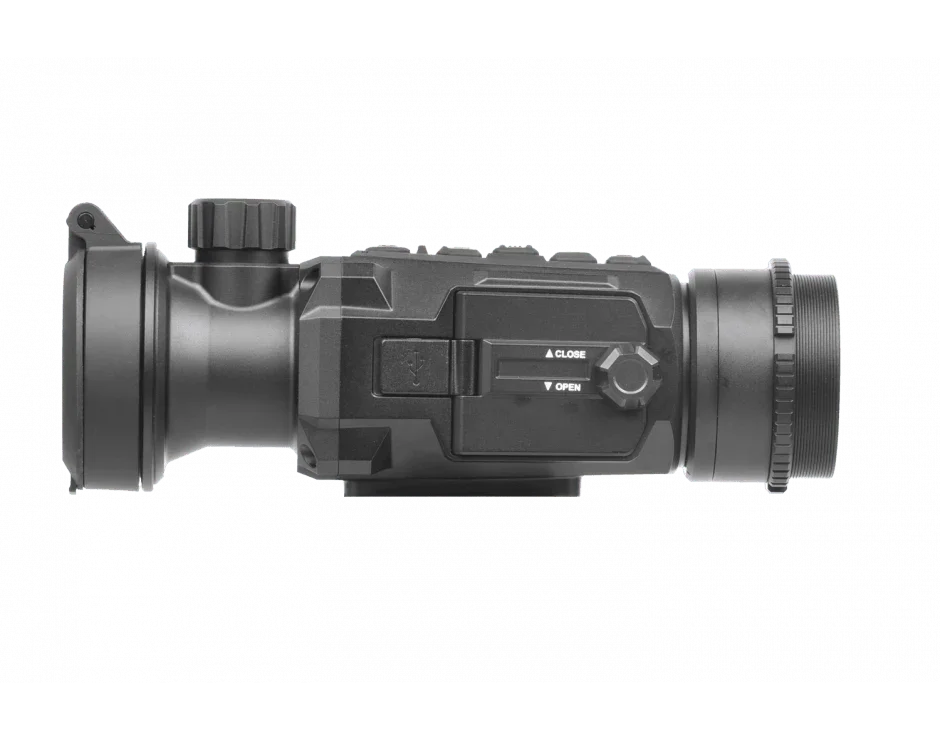

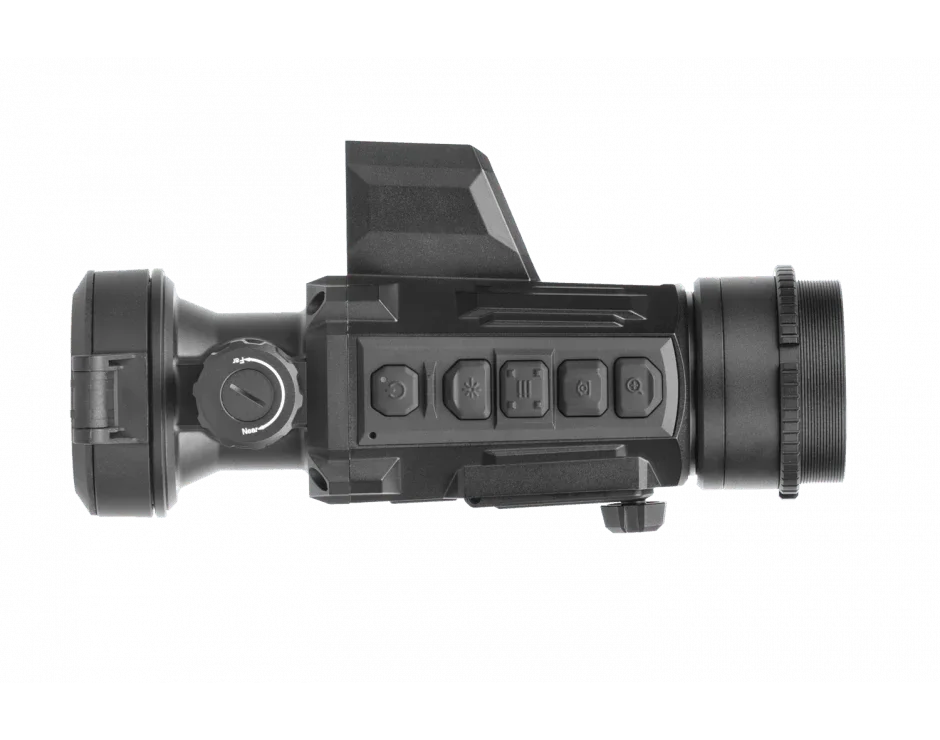

The Secutor LRF-C is a compact thermal imaging clip-on system with a built-in precision laser rangefinder, allowing for quick conversion of day optics into a thermal imaging device without the need for special tools. Featuring a highly sensitive 12μm thermal detector and a 1024×768 OLED display, the AGM Secutor LRF-C delivers clear imaging even in challenging environmental conditions such as darkness, fog, smoke, dust, rain, snow, brush, and camouflage. Its user-friendly interface and ergonomic controls make the device incredibly easy to operate.

The Secutor LRF-C attaches effortlessly in front of rifle scopes with up to 10x magnification, making it ideal for medium-range use. The integrated laser rangefinder provides precise distance measurements between the user and the target, displaying the results directly on the scope's monitor. Powered by four replaceable Li-Ion batteries, the device offers over 6 hours of continuous operation, with the option to extend this time by connecting an external 5V power bank via a USB-C connector.

Additionally, the Secutor LRF-C is equipped with fast EMMC storage for onboard video/audio recording and image capture. It also includes an onboard Wi-Fi module for live video streaming and media recording through mobile applications, enhancing its versatility and functionality.

AGM Secutor LRF-C 50-640 Features:

• Quick conversion of daytime optics into thermal imaging scope
• 12μm thermal detector
• High sensitivity (NETD less than 20 mK)
• Fast 50Hz imaging
• Built-in laser rangefinder
• Adjustable color palettes
• High resolution OLED display
• On-board video/audio recording and image capture
• Built-in EMMC storage (16 GB)
• Wi-Fi data transmission
• Standby mode
• More than 6 hours battery life
• External power supply compatibility
• Waterproof & shockproof
• 5-year warranty



AGM Secutor LRF-C 50-640 Specifications:



Palettes

Black Hot, White Hot, Red Hot, Fusion

Dimensions

190 × 102 × 69 mm (7.5 × 4.0 × 2.7 in)

Exit Pupil Diameter

22 mm

Video Recording

Yes

Audio Recording

Yes

Magnification

1x

Detector type

12μm VOx Uncooled Focal Plane Array

Response Waveband

8 μm to 14 μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

50 Hz

Resolution

640 × 512

Laser Rangefinder

Up to 1000 m, ±4 m accuracy

Laser Wavelength

905 nm

Detection Range (6' object)

2,600 m/yd

Lens system

50 mm; F1.0

NETD

Less than 20 mk (@25°C), F#=1.0

Field of view (H × X)

8.8° × 7.0°

Monitor

1024x768, 0.39 inch, OLED

Storage

16 GB EMMC

Capture Snapshot

Yes

Battery Type

Four CR123A Lithium Battery

Wi-Fi

Yes

Battery Operating Time

Мore than 6 hours

External power supply

5 VDC/2 A, USB Type-C

Operating Temperature Range

-30°C to 55°C (-22°F to 131°F)

Weight

0.68 kg (1.5 lb)

Protection Level

IP67

Data Sheet

PACKAGE INCLUDES



Batteries - (4) CR123

Lens Tissue

Picatinny QD Mount

Front Day Scope Mount

USB Cable

User Manual

Carrying Case
