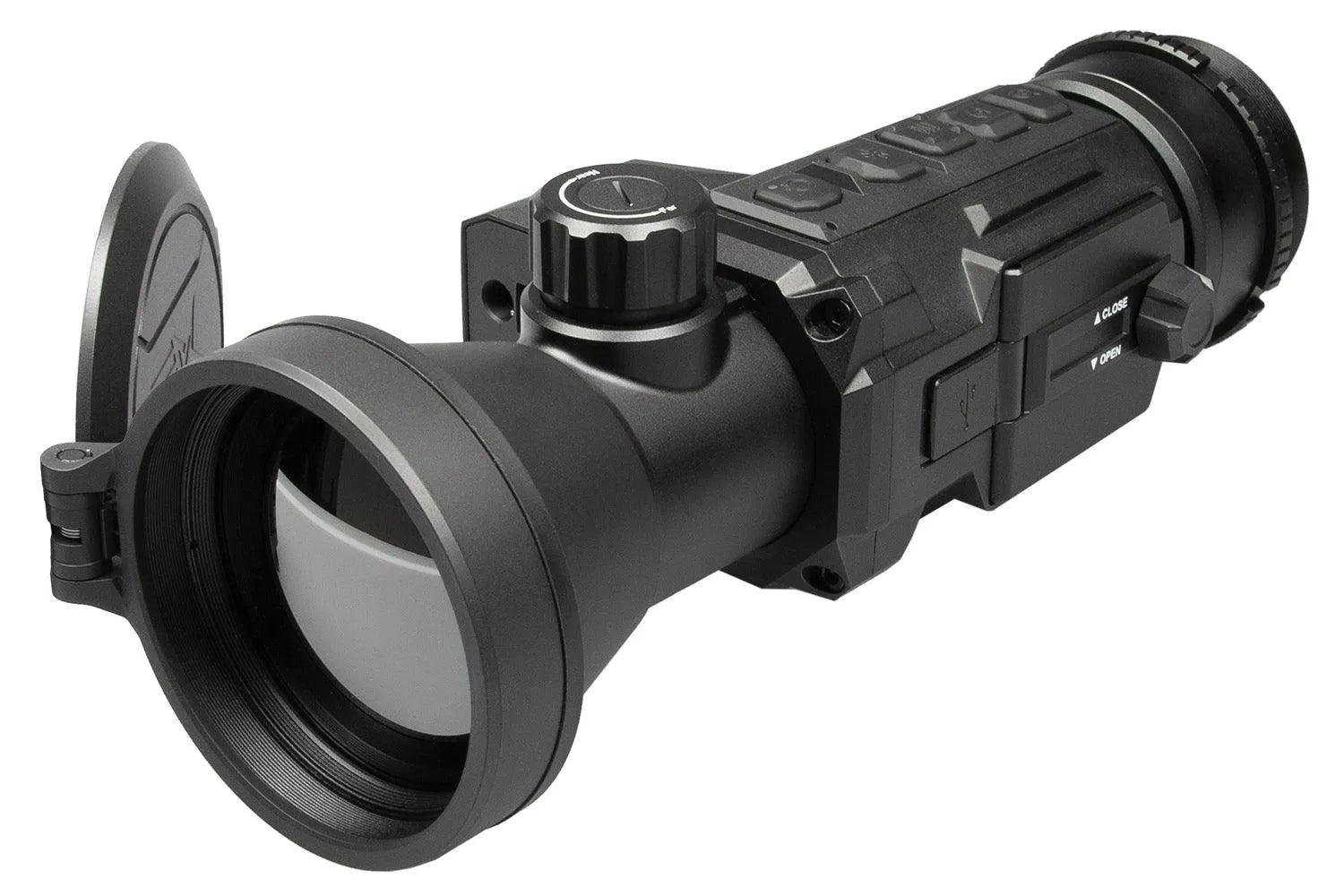

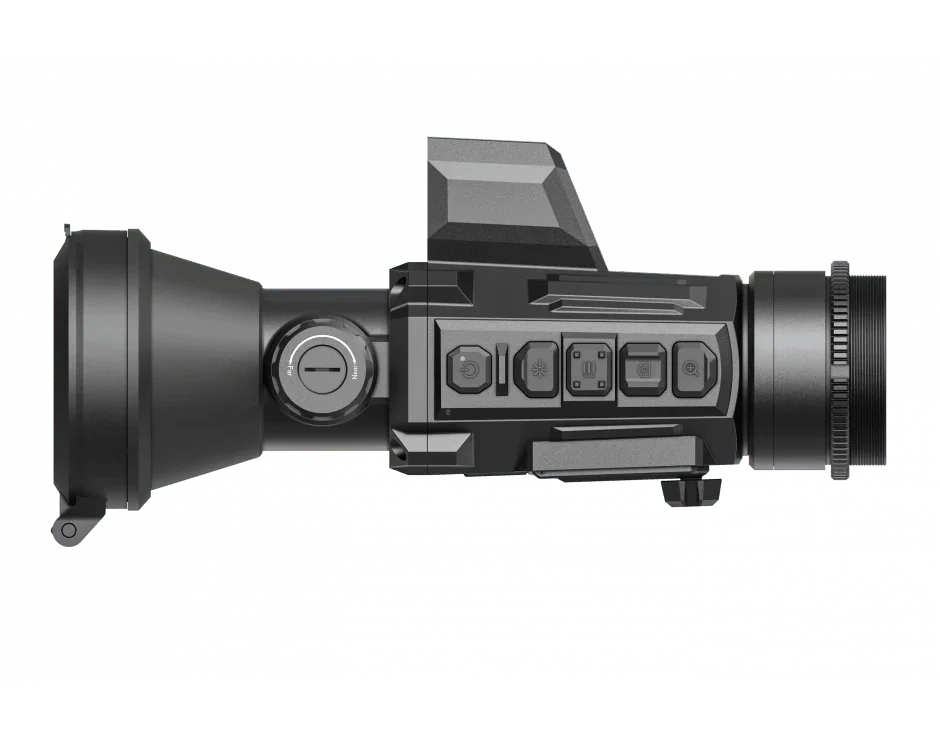

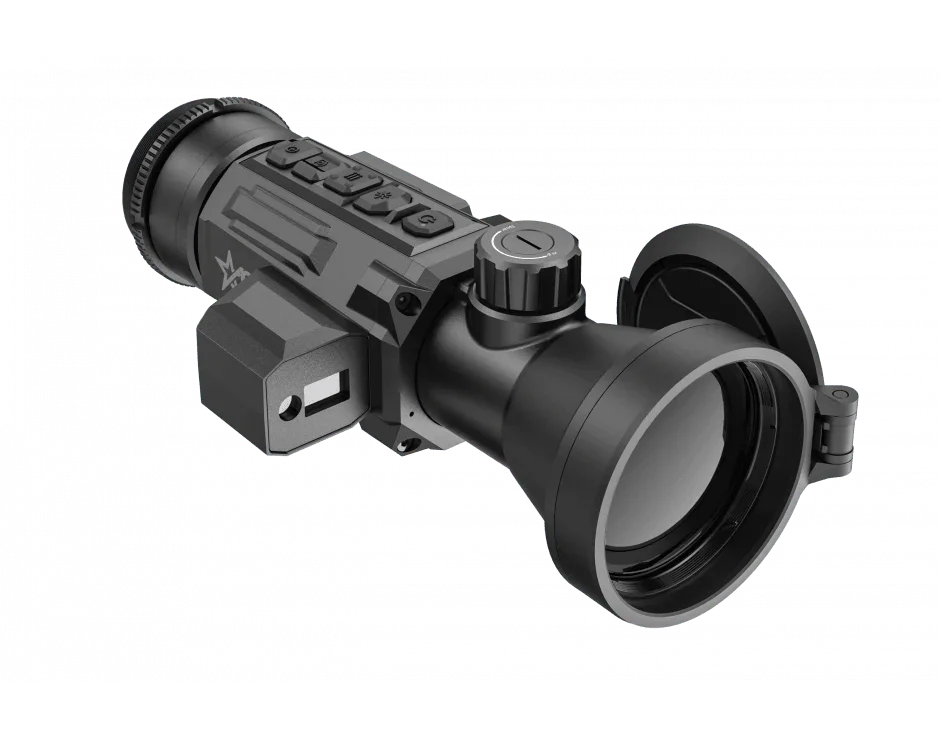

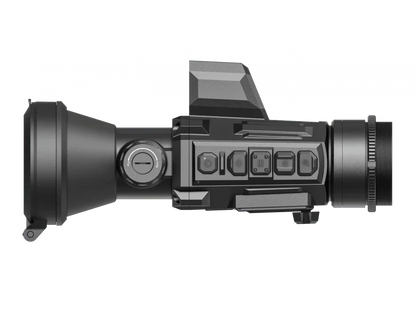

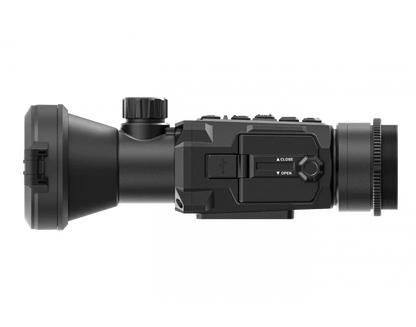

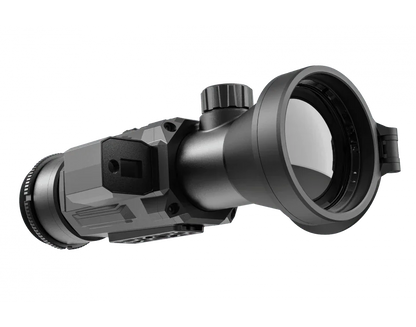

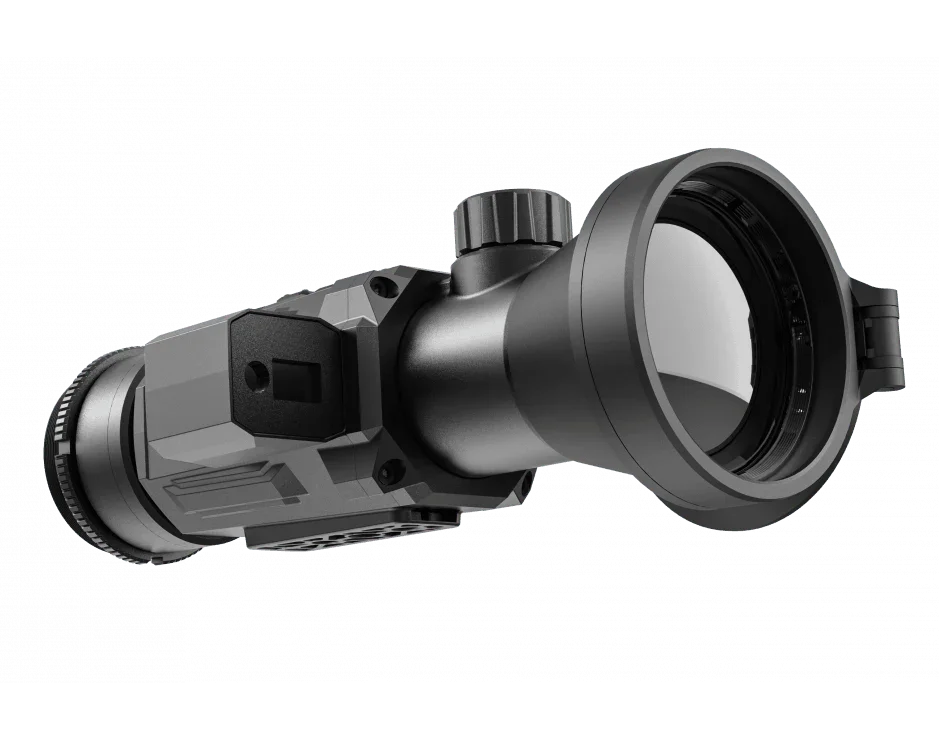

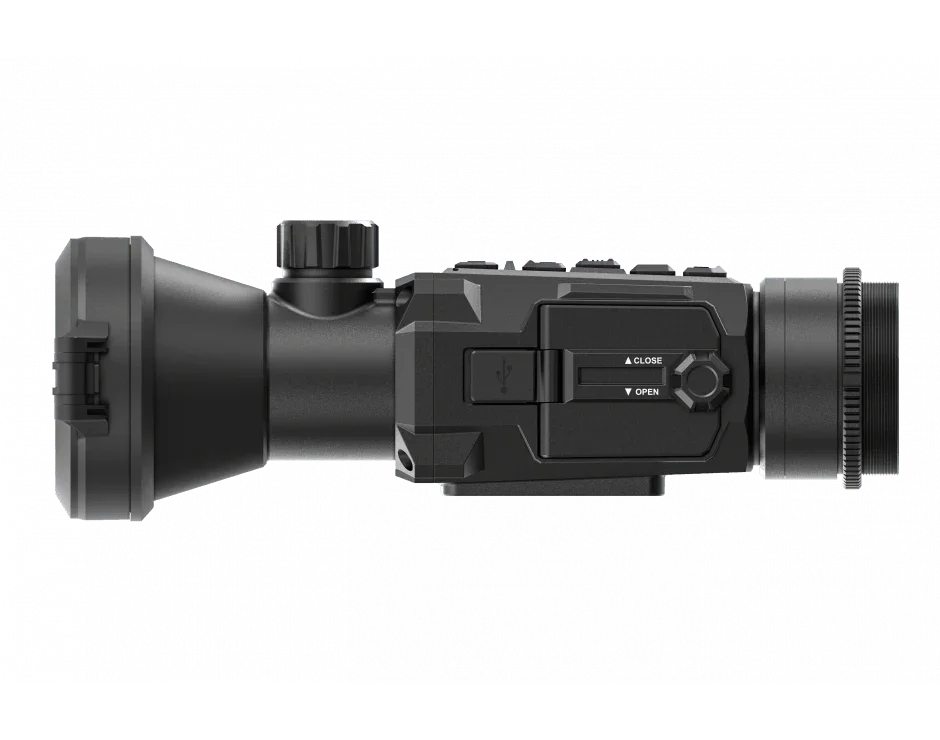

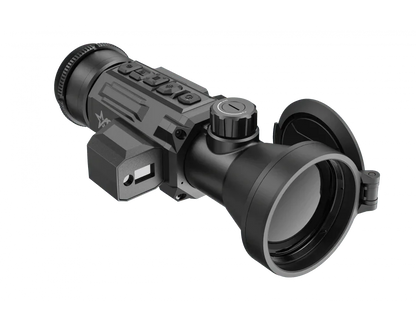

AGM Secutor LRF-C 75-640 Professional Grade Thermal Clip-on Scope 75mm 640x512 12um (50Hz) (SECU75-640C-LRF)
The Secutor LRF-C is a compact thermal imaging clip-on system with a built-in precision laser rangefinder, allowing for quick conversion of day optics into a thermal imaging device without the need for special tools. Featuring a highly sensitive 12μm thermal detector and a 1024×768 OLED display, the AGM Secutor LRF-C delivers clear imaging even in challenging environmental conditions such as darkness, fog, smoke, dust, rain, snow, brush, and camouflage. Its user-friendly interface and ergonomic controls make the device incredibly easy to operate.
The Secutor LRF-C attaches effortlessly in front of rifle scopes with up to 10x magnification, making it ideal for medium-range use. The integrated laser rangefinder provides precise distance measurements between the user and the target, displaying the results directly on the scope's monitor. Powered by four replaceable Li-Ion batteries, the device offers over 6 hours of continuous operation, with the option to extend this time by connecting an external 5V power bank via a USB-C connector.
Additionally, the Secutor LRF-C is equipped with fast EMMC storage for onboard video/audio recording and image capture. It also includes an onboard Wi-Fi module for live video streaming and media recording through mobile applications, enhancing its versatility and functionality.
AGM Secutor LRF-C 75-640 Features:
- Quick conversion of daytime optics into thermal imaging scope
- 12μm thermal detector
- High sensitivity (NETD less than 20 mK)
- Fast 50Hz imaging
- Built-in laser rangefinder
- Adjustable color palettes
- High resolution OLED display
- On-board video/audio recording and image capture
- Built-in EMMC storage (16 GB)
- Wi-Fi data transmission
- Standby mode
- More than 6 hours battery life
- External power supply compatibility
- Waterproof & shockproof
- 5-year warranty
AGM Secutor LRF-C 75-640 Specifications:
Palettes
Black Hot, White Hot, Red Hot, Fusion
Dimensions
216 × 110 × 78 mm (8.5 × 4.3 × 3.1 in)
Exit Pupil Diameter
22 mm
Video Recording
Yes
Audio Recording
Yes
Magnification
1x
Detector type
12μm VOx Uncooled Focal Plane Array
Response Waveband
8 μm to 14 μm
FFC (Flat Field Correction)
Auto, Manual, External Correction
Highest Temperature Spot Tracking
Yes
Standby Mode
Yes
Refresh rate
50 Hz
Resolution
640 × 512
Laser Rangefinder
Up to 1000 m, ±4 m accuracy
Laser Wavelength
905 nm
Detection Range (6' object)
3,200 m/yd
Lens system
75 mm; F1.2
NETD
Less than 20 mk (@25°C), F#=1.0
Field of view (H × X)
5.9° × 4.7°
Monitor
1024x768, 0.39 inch, OLED
Storage
16 GB EMMC
Capture Snapshot
Yes
Battery Type
Four CR123A Lithium Battery
Wi-Fi
Yes
Battery Operating Time
Мore than 6 hours
External power supply
5 VDC/2 A, USB Type-C
Operating Temperature Range
-30°C to 55°C (-22°F to 131°F)
Weight
0.75 kg (1.65 lb)
Protection Level
IP67
Data Sheet
PACKAGE INCLUDES
Batteries - (4) CR123
Lens Tissue
Picatinny QD Mount
Front Day Scope Mount
USB Cable
User Manual
Carrying Case
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
