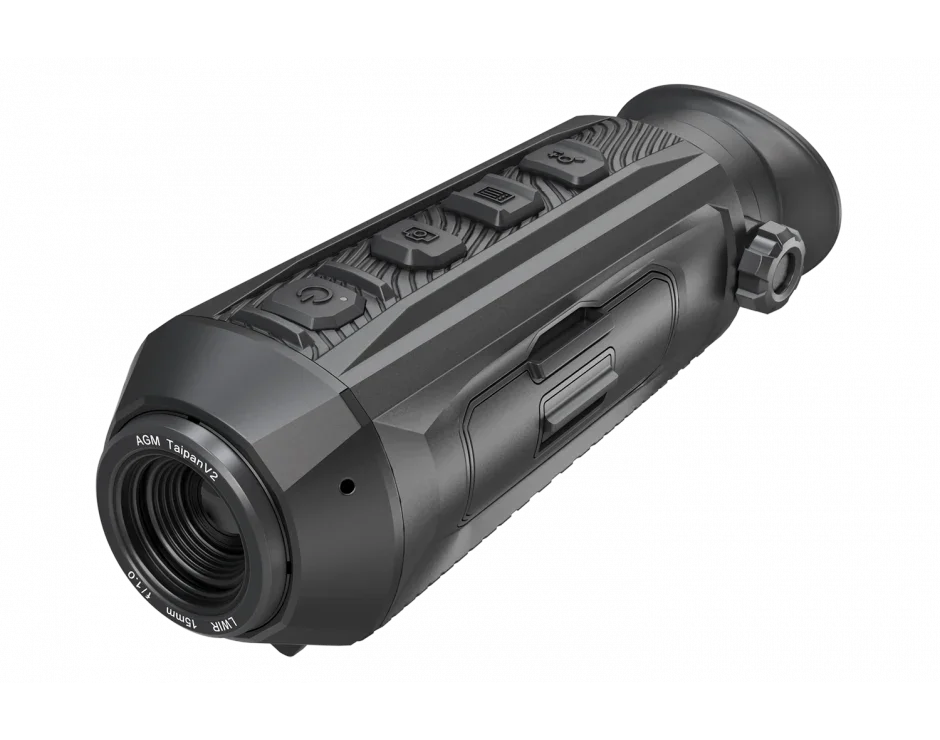

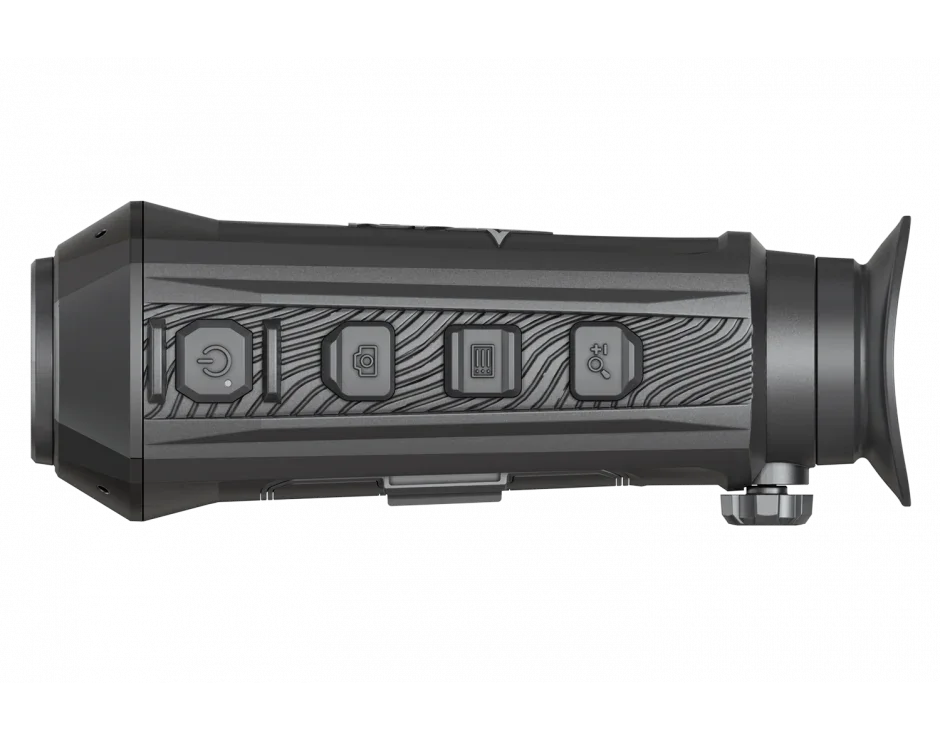

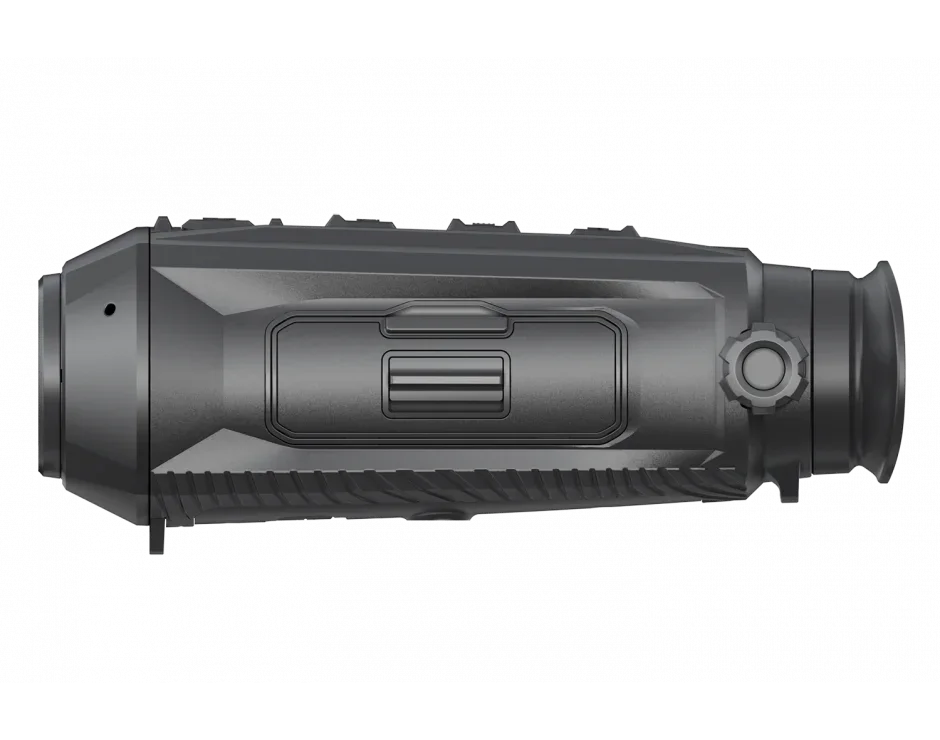

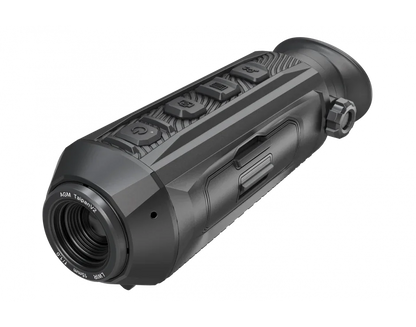

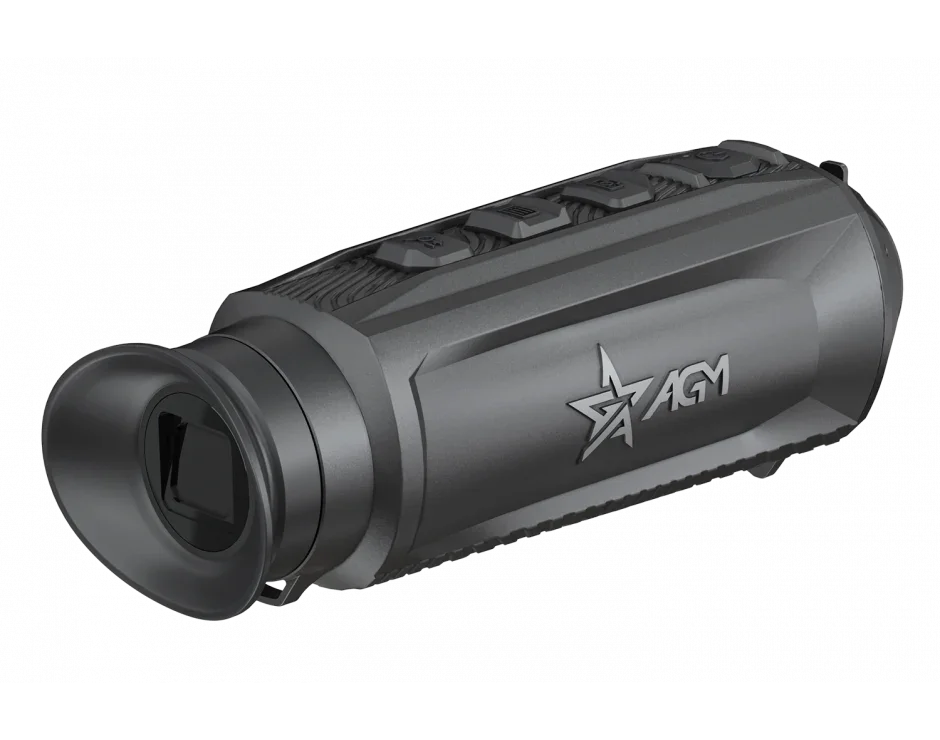

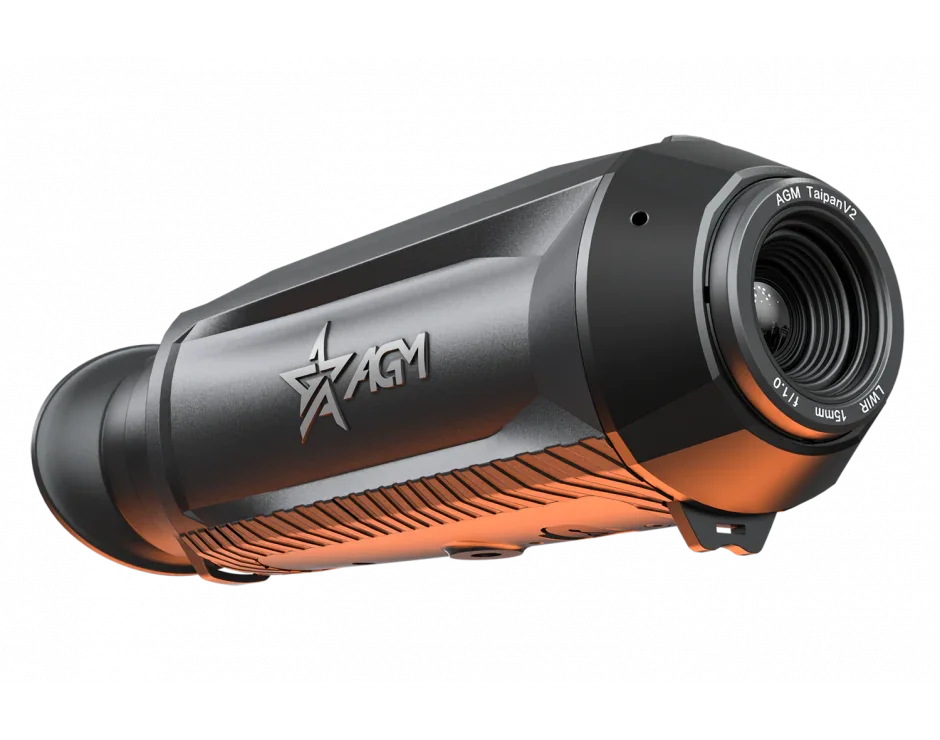

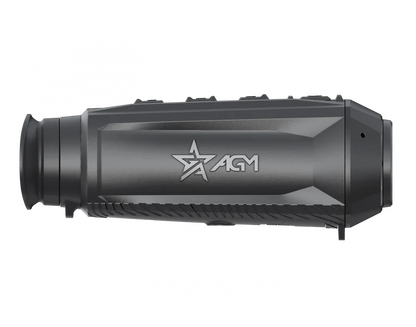

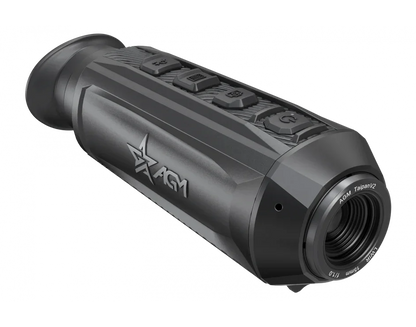

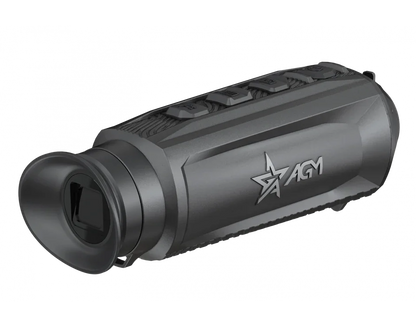

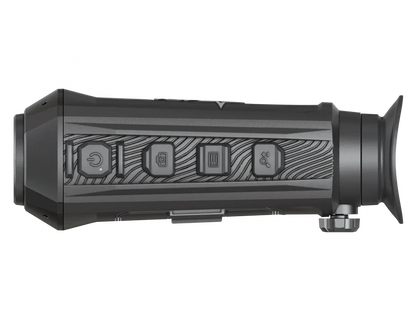

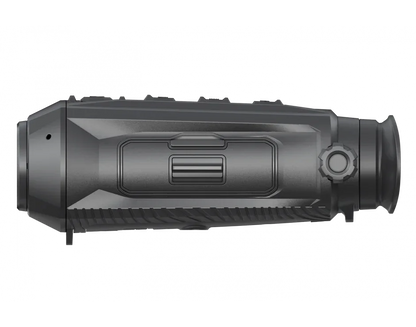

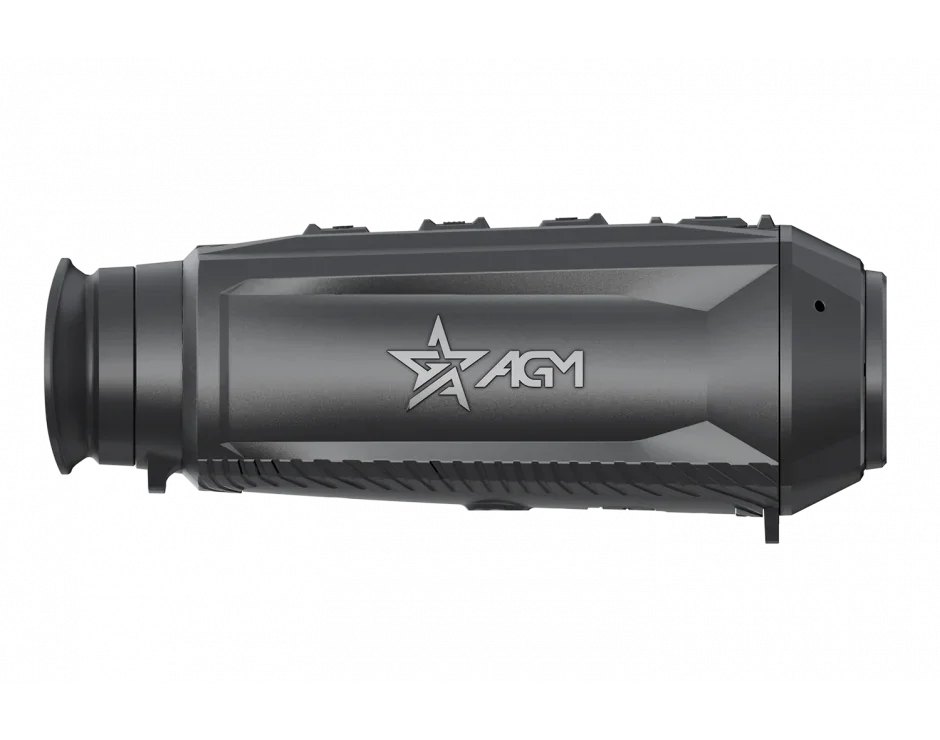

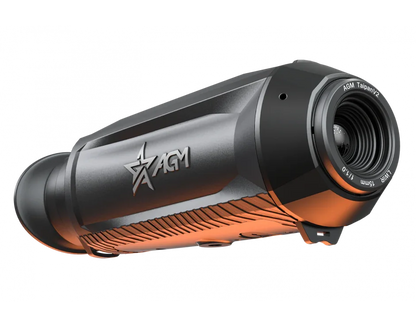

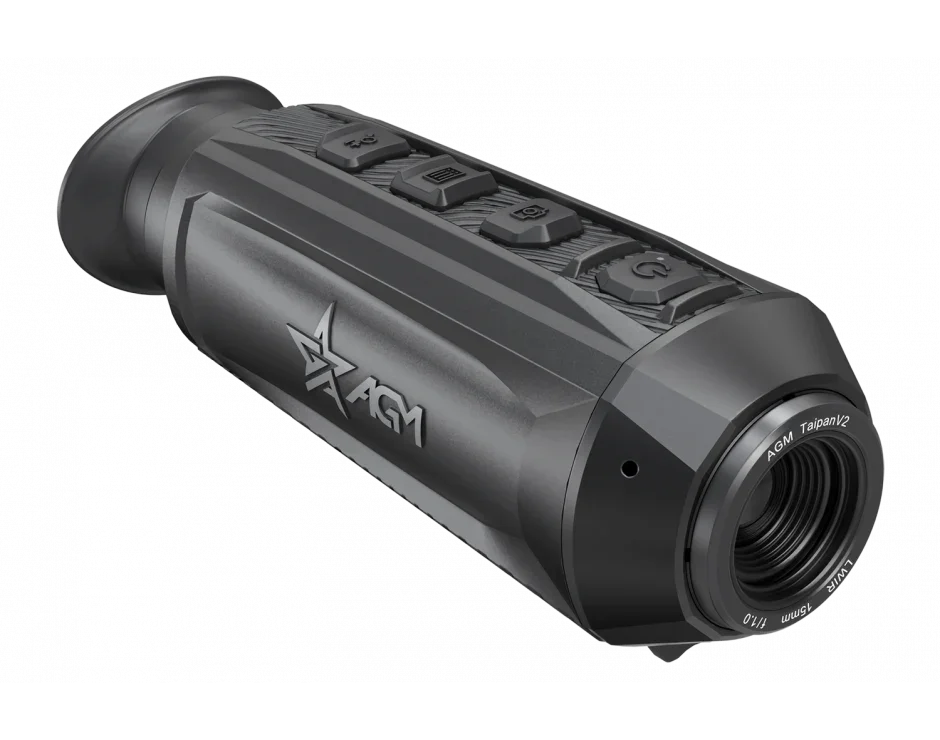

AGM Taipan V2 15-384 Thermal Monocular 15mm

AGM Taipan V2 15-384 Thermal Monocular 384x288 / 12um (50Hz) 15mm w/Recording (SEEK15-384)



The AGM Taipan V2 Thermal Monocular series is the latest addition to AGM’s extensive lineup of thermal products, offering significant advancements over the original Taipan monoculars. The Taipan V2 series features multiple Germanium lens sizes paired with an industry-leading 384 resolution, 12-micron, sub-20mK thermal detector, delivering exceptional performance. Key improvements include replacing the non-removable internal battery with a single removable rechargeable 18650 battery, integrating a new sub-20mK thermal sensor, and adding a 90-degree tilt sensor that powers off the display to conserve battery life.

The Taipan V2 series also boasts various software enhancements and retains many popular features from the AGM thermal product range, such as F1.0 aperture optics, a 50Hz refresh rate, 16GB of built-in memory, and Wi-Fi compatibility for use with the AGM Connect App. It also includes an IP67 waterproof rating, a USB Type-C port for external power, and four color palettes. The wider rubber eyepiece ensures comfort when viewing the 1024 OLED display for extended periods.

The Taipan V2 thermal monoculars are designed for versatile use, making them ideal for hunting, farming and herd protection, law enforcement, search and rescue, boating, camping, and other outdoor activities. All models come with AGM’s 5-year transferable warranty, ensuring durability and reliability.

AGM Taipan V2 15-384 CHARACTERISTICS:



• Upgraded sub-20mK 12 micron thermal detector
• 384×288 resolution
• 50 Hz image frame rate
• Advanced image processing
• 1024×768 resolution OLED display
• Built-in recording with sound
• 16 GB memory module
• Wi-Fi hotspot
• 1×, 2×, 4× and 8× digital zoom
• Auto screen off with tilt sensor
• Replaceable and rechargeable Li-Ion battery
• Over 6.5 hours of battery life
• External power supply capability
• Rugged housing with rubber overmolding
• Waterproof
• Compatible with AGM Connect App
• 5-year warranty



AGM Taipan V2 15-384 Specifications:

Dimensions

158 × 61 × 57 mm (6.23 × 2.4 × 2.2 in)

Palettes

Black Hot, White Hot, Red Hot, Fusion

Working Temperature

-30°C to 55°C (-22°F to 131°F)

Interface

USB Type-C

Distance Measurement

Yes (Stadiametric)

Picture In Picture Mode (PIP)

Yes

Video Recording

Yes

Audio Recording

Yes

Magnification

1.5× - 12×

Detector type

12μm Vanadium Oxide Uncooled Focal Plane Array

Response Waveband

8μm to 14μm

FFC (Flat Field Correction)

Auto, Manual, External Correction

Highest Temperature Spot Tracking

Yes

Standby Mode

Yes

Refresh rate

50 Hz

Resolution

384×288

Detection Range (6' object)

780 m

Snapshot

Yes

Lens system

15 mm; F1.0

NETD

≤ 20 mk (@25°C), F#=1.0

Field of view (H × X)

17.5° × 13.1°

Digital zoom

1×, 2×, 4×, 8×

Diopter adjustment range

-5 to +3 dpt

Monitor

1024×768, OLED

Storage

16 GB

Battery Type

One 18650 Replaceable rechargeable Lithium battery

Wi-Fi

Yes

Battery Life (Operating)

6.5 hours

Power supply

5 VDC/2 A, 1.75 W

Weight

0,3 kg (0.69 lb)

Protection Level

IP67

Data Sheet

Included:

• Battery Charger
• USB Cable
• Power Adapter (US and EU plugs included)
• 18650 Rechargeable Battery
• Lens Cloth
• Wrist Strap
• User Manual
• Protective Bag
