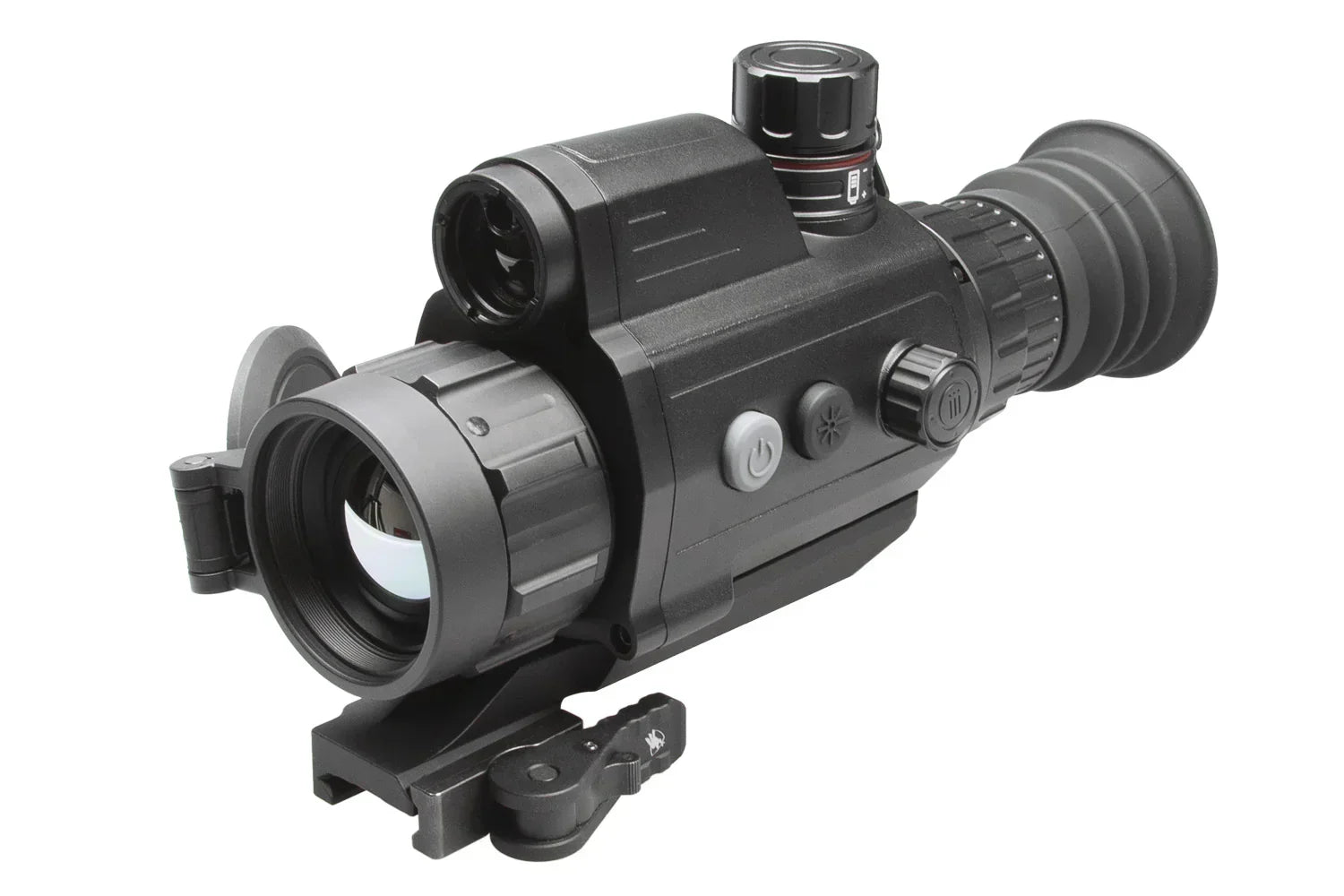

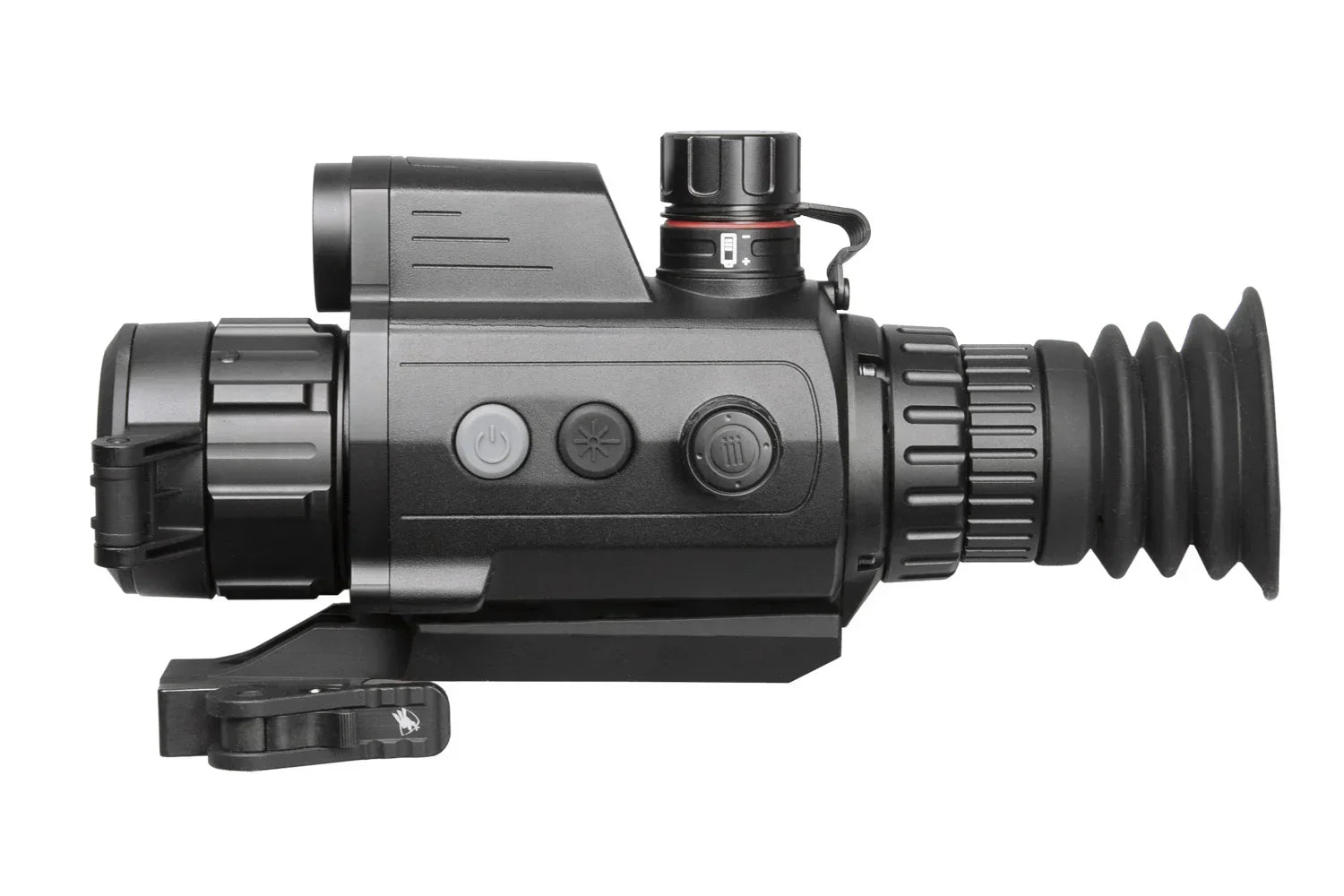

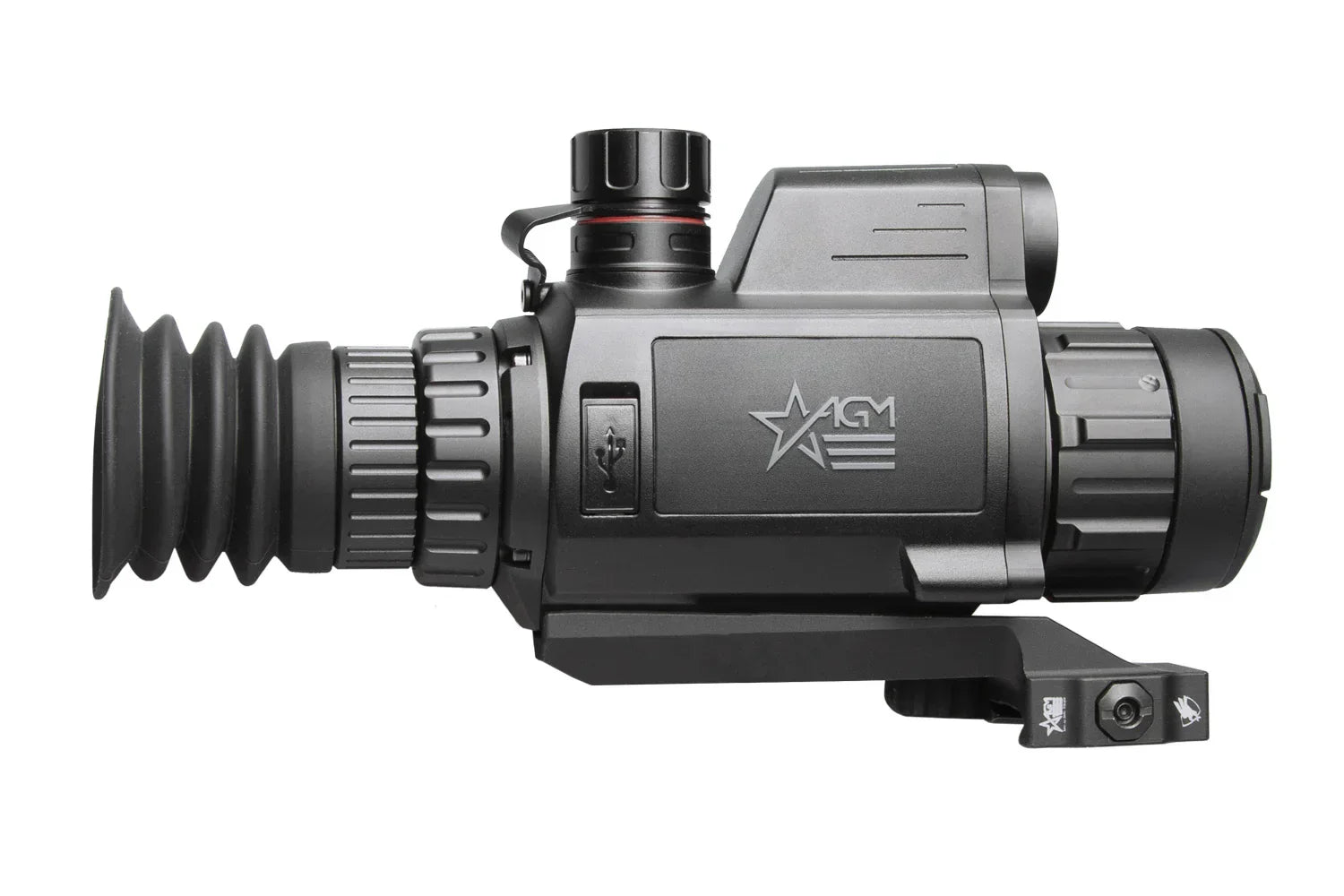

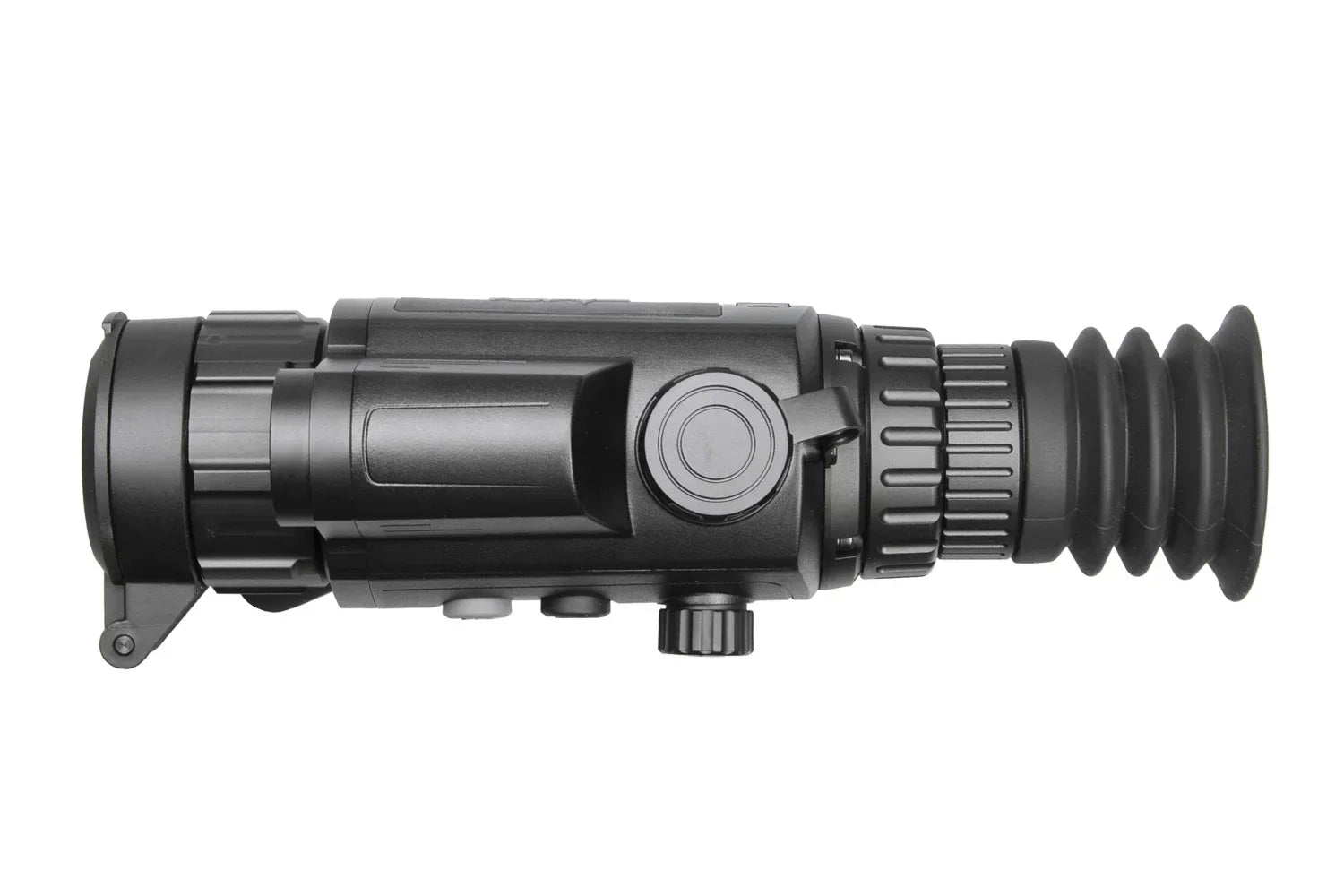

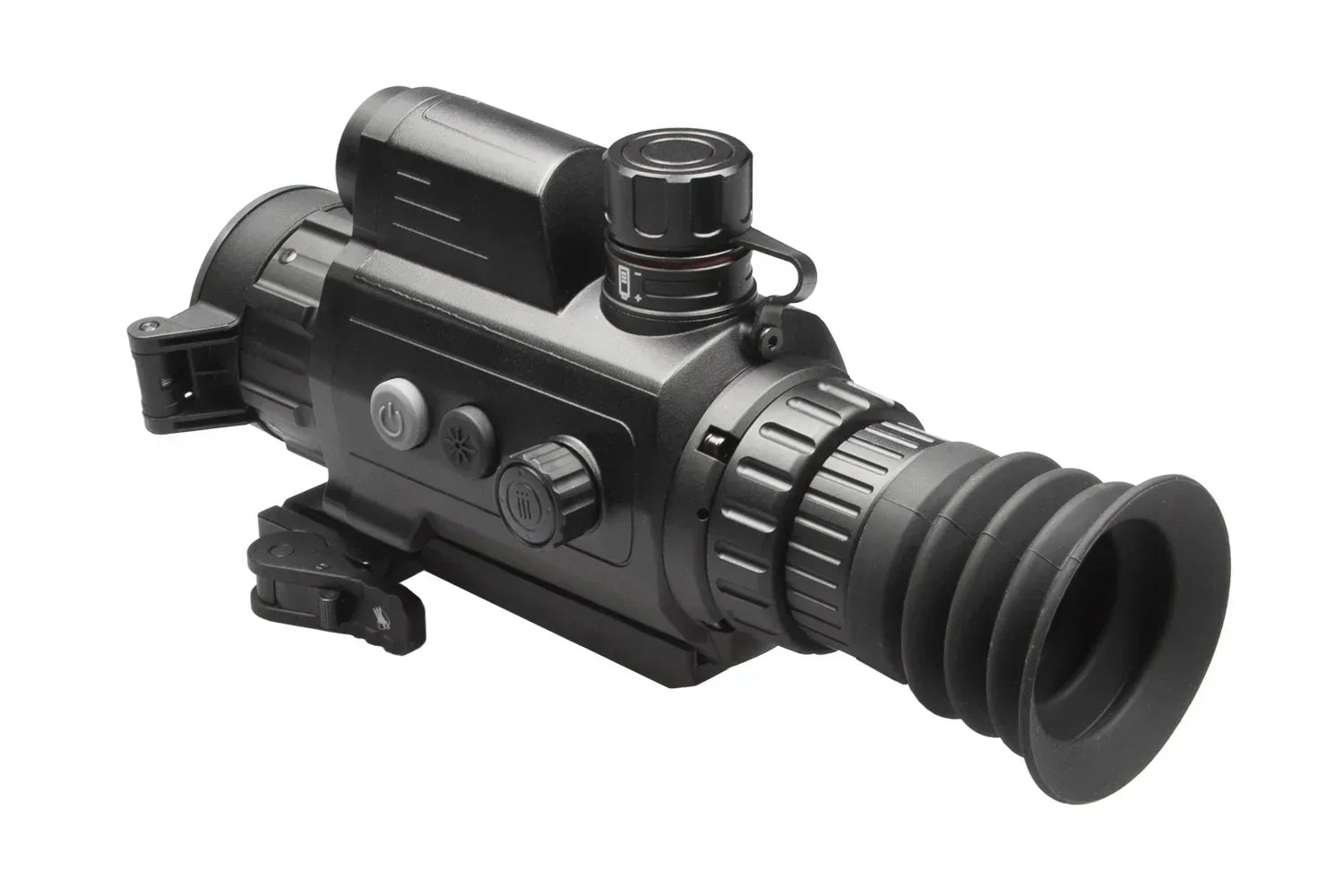

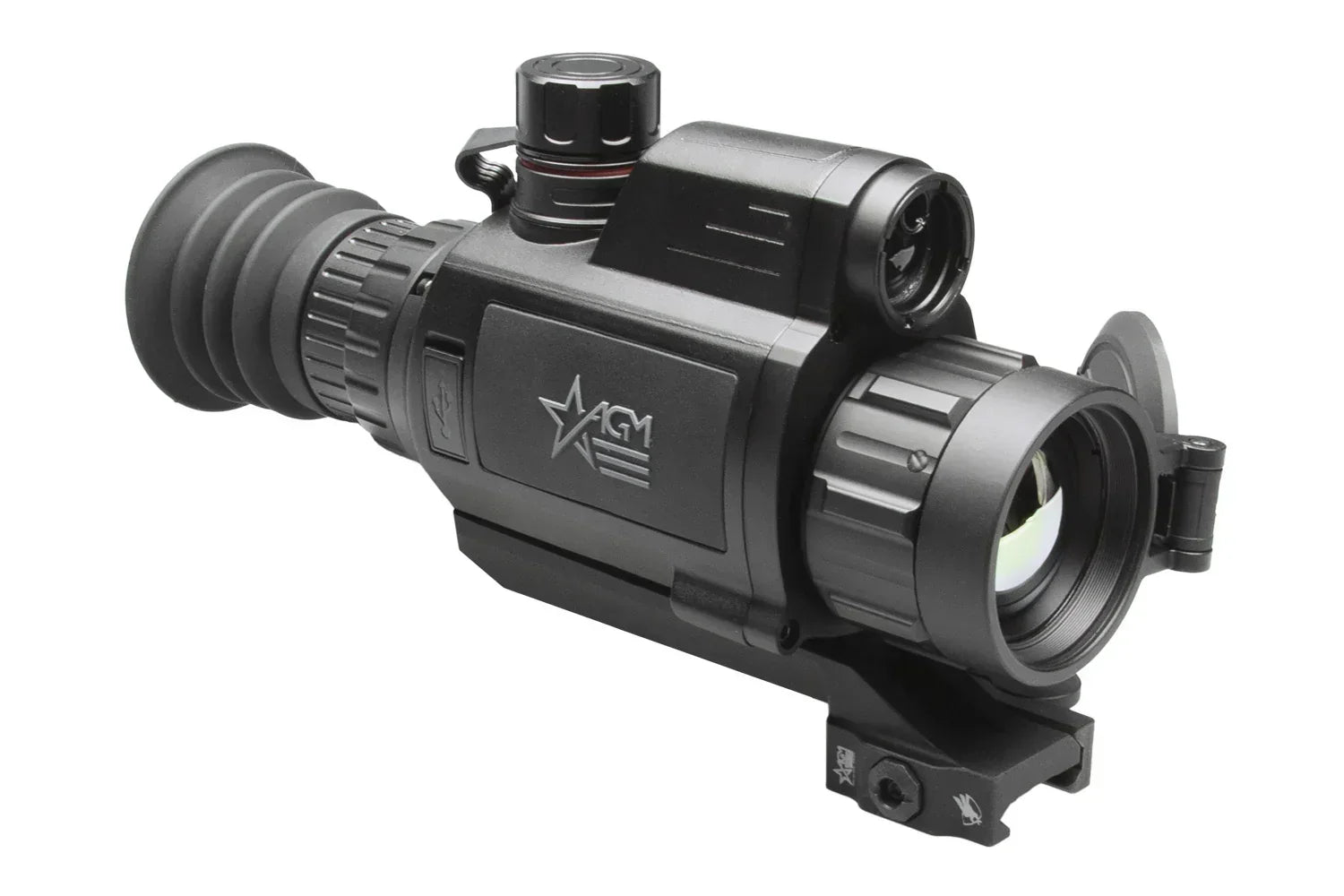

AGM Varmint V2 LRF 35-640 Thermal Rifle Scope Weapon Sight 640x512 12um (50Hz) 35mm (VARM35-640-2)
The AGM Varmint LRF series of thermal riflescopes builds on the popular features of the Rattler product family with one major upgrade: a 600-meter integrated laser rangefinder (LRF). This addition addresses a common issue in digital optics—lack of depth perception—by providing precise distance measurements. The Varmint LRF TS35-640 pairs this LRF functionality with a 12-micron 640x512 thermal detector and a high-quality 1024x768 OLED display, delivering clear and accurate thermal imaging.
Powered by a single, non-proprietary 18650 rechargeable battery, the Varmint LRF offers up to 4.5 hours of continuous use in the field. Its compact design allows for dual-use as a handheld monocular, making it versatile for surveying surroundings before beginning a hunt. This functionality is enhanced by a high-quality American Defense Manufacturing quick-detach mount, which allows for quick transitions between uses.
In addition to its physical features, the Varmint LRF offers built-in recording, Wi-Fi compatibility through the AGM Connect app, external power support via a mini USB port, multiple reticle and color palette options, and 16GB of internal storage. All these features make it one of the most versatile products in AGM's lineup. Backed by AGM’s 5-year transferable warranty, the Varmint LRF is a reliable and highly functional choice for hunters.
AGM Varmint V2 LRF 35-640 Features:
■ 12μm high-sensitivity thermal detector, NETD < 20mK
■ Fast 50 Hz imaging
■ 1x, 2x, 4x, 8x Digital zoom
■ Adjustable color palettes
■ Built-in precision eye-safe laser rangefinder
■ High resolution OLED display
■ Ballistic Calculator
■ Various reticle types and colors
■ Picture-in-Picture mode
■ On-board video recording and image capture
■ Built-in EMMC storage (16 GB)
■ Wi-Fi data transmission
■ Standby mode
■ 5- 6 hours battery life (depending on model)
■ External power supply compatibility
■ Waterproof & shockproof
■ 5-year warranty
AGM Varmint V2 LRF 35-640 Specifications:
Detector Type 12μm VOx Uncooled
Resolution 640 × 512
Refresh Rate 50 Hz
Response Waveband 8 μm to 14 μm
NETD Less than 20 mk (@25°C, F#=1.0)
Lens System 35 mm; F1.0
Field of View (H×V) 12.52° × 10.03°
Magnification 2× – 16×
Digital Zoom Miltiple 1×, 2×, 4×, 8× or Continuous
Detection Range (6’ object) 1,800 m/yd
Eye Relief 45 mm
Monitor 1024x768, 0.39 inch, OLED
FFC (Flat Field Correction) Auto, Manual, External Correction
Palettes Black Hot, White Hot, Red Hot, Fusion
Highest Temperature Spot Tracking
Scene Mode Jungle, Recognition
Reticle 10 types, 4 colors, on/off
Laser Range Finder Up to 600 m, ±1 m accuracy
Laser Wavelength 905 nm
Laser Safety Class Class 1
Boresight Adjustment Digital Controlled
Boresight Increment 0.13 mil / 0.44 MOA
Ballistic Calculator Yes
WiFi Hotspot Yes
Sleep Mode Yes
Picture In Picture Mode Yes
Burn Prevention Yes
Built-in Storage 16 GB EMMC
Video Recording On-board video recording
Image Capture Yes
CVBS Output Yes (via USB)
Battery Type One 18650 (3.7V) Lithium Rechargeable Batteries
Battery Operating Time (WiFi off) Over 6 hours
Battery Capacity Display Yes
External Power 5 VDC/2 A, USB Type-C
Working Temperature -20°C to 55°C (-4°F to 131°F)
Protection Level IP67
Drop Test Height 1.5 m (4.9 ft)
Dimensions (w/o mount) 214 × 67 × 87 mm (8.4 × 2.6 × 3.4 in)
Weight (w/o batteries) 518 g (1.14 lb)
Data Sheet
Included:
Varmint LRF Thermal Riflescope
QD Mount
(2) 18650 Rechargeable Battery
USB Cable
Power Adapter
Battery Charger
User Manual
Lens Cloth
Carrying Case
