AN/PVS-14 Gen 3 Night Vision Monocular White Phosphor Elbit FOM 2000 min.

AN/PVS-14 Gen 3 Night Vision Monocular White Phosphor Elbit FOM 2000 min.

SKU:AN/PVS-14-2000

Regular price $ 3,595.00
Regular price $ 3,995.00 Sale price $ 3,595.00
Sale Sold out
Shipping calculated at checkout.
Quantity

AN/PVS-14 Gen 3 Night Vision Monocular White Phosphor Thin Filmed Auto Gated Elbit FOM 2000 min. Made in the U.S.A.



This is a MIL-SPEC night vision system Kit. Designed for the most demanding nighttime applications, these Generation III Thin Filmed, auto gated systems can be used as a head mounted monocular for hands free viewing or hung from a lanyard around your neck. They also feature automatic brightness control, bright light protection and are equipped with manually adjustable gain to compensate for changes in light conditions. These use the Noctis Mil Spec housing. This AN/PVS-14 can also be weapon mounted with an optional weapon mount sold separately.

AN/PVS-14 Gen 3 FEATURES:

  • 10 year manufacturer warranty
  • Spec Sheet Included
  • Noctis Mil Spec housing
  • Durable and reliable
  • 40° field of view
  • Manual gain control
  • Infrared LED
  • LED indicator
  • Low battery indicator
  • Weighs under 12.4 oz (350 g)
  • Automatic bright light shut-off
  • Built-in infrared illuminator
  • Used by U.S. military and its allies worldwide
  • Advanced Generation 3 image intensifier tube
  • Superior resolution with high-definition imaging
  • Automatic brightness control
  • Effective in a variety of lighting conditions.

AN/PVS-14 Gen 3 Specifications:

Intensifier Tube Manufacturer: Elbit
Power Supply: Auto Gated
Signal to Noise Ratio: 28.0 min.
PHOTOCATHODE RESPONSE: 2200 min.
HALO: 0.9 max.
EBI: 2.0 max.
RESOLUTION: 64-72 lp/mm
FOM: 2000 min.

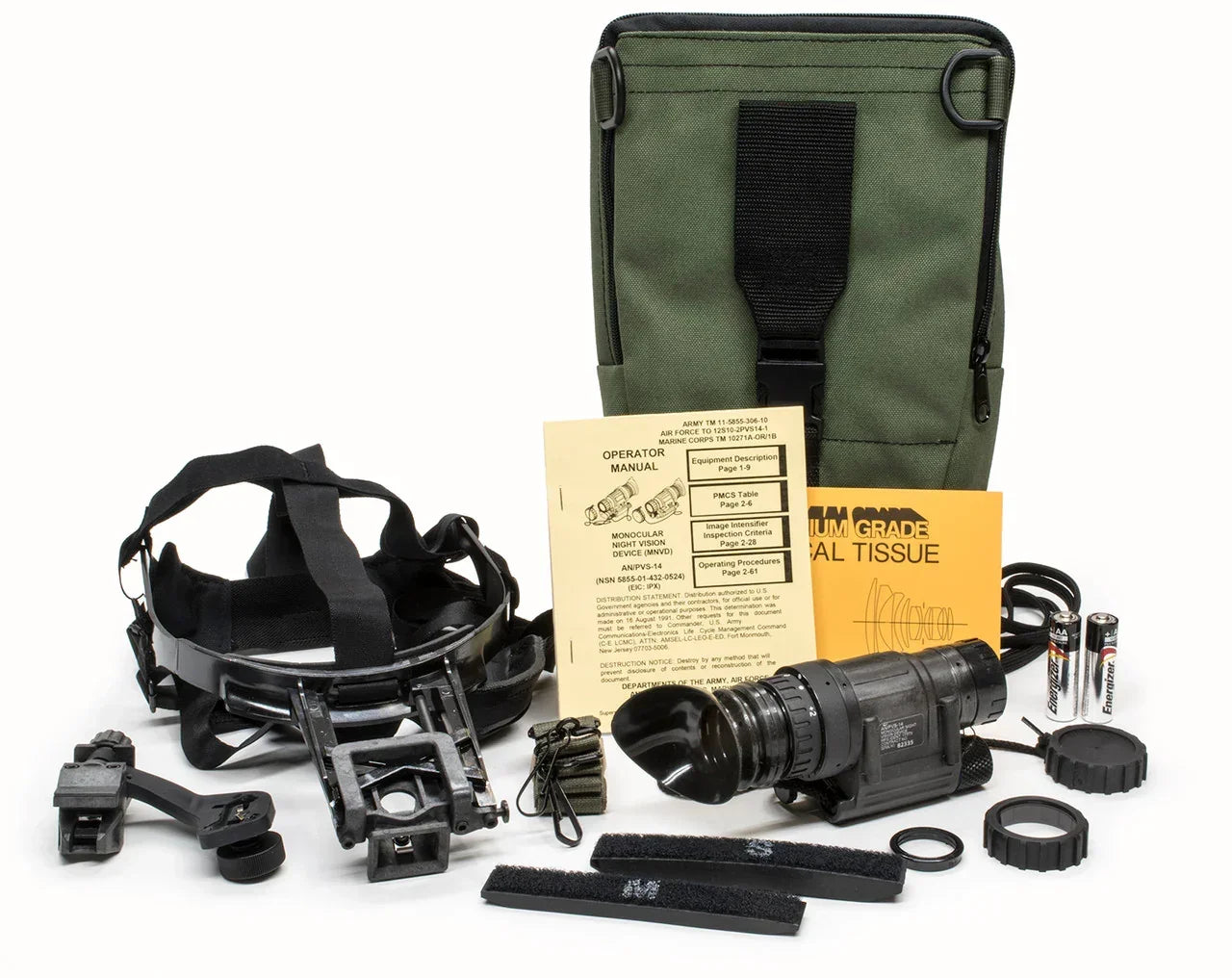

System includes: Monocular, Headset, Swing Arm Adapter, Demist Shield, Sacrificial Filter, Rubber Eye Cup, Daylight Filter, Neck Cord, Operators Manual, Shoulder Strap, Lens Cloth, Carry Bag.

Tube Characteristics:

Small dark spots = normal cosmetic characteristic

Defined in Elbit factory spec + U.S. Army PVS-14 manuals

Not damage / not a scratch / not evidence of use

Tube must pass zone-based spot limits to be accepted

Zone

Allowed Spots (Typical Spec)

Importance

Zone 1 (center)

0–1 very small

Critical viewing area

Zone 2 (mid ring)

1–2 small

Normal cosmetic location

Zone 3 (outer edge)

Relaxed limits

Edge of view / not critical

Manufacturers measure and count spots that are ≥ .003″ in size.

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
