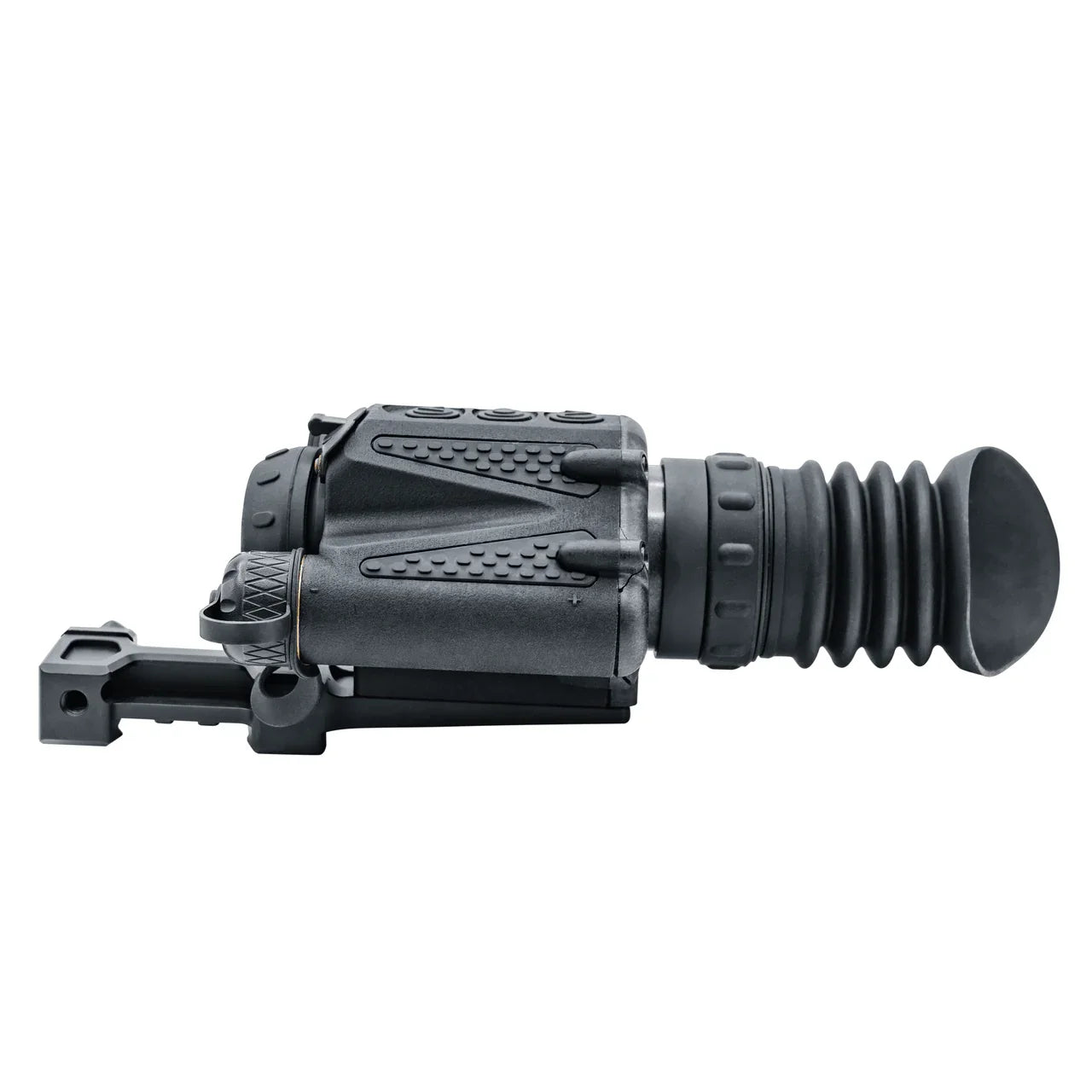

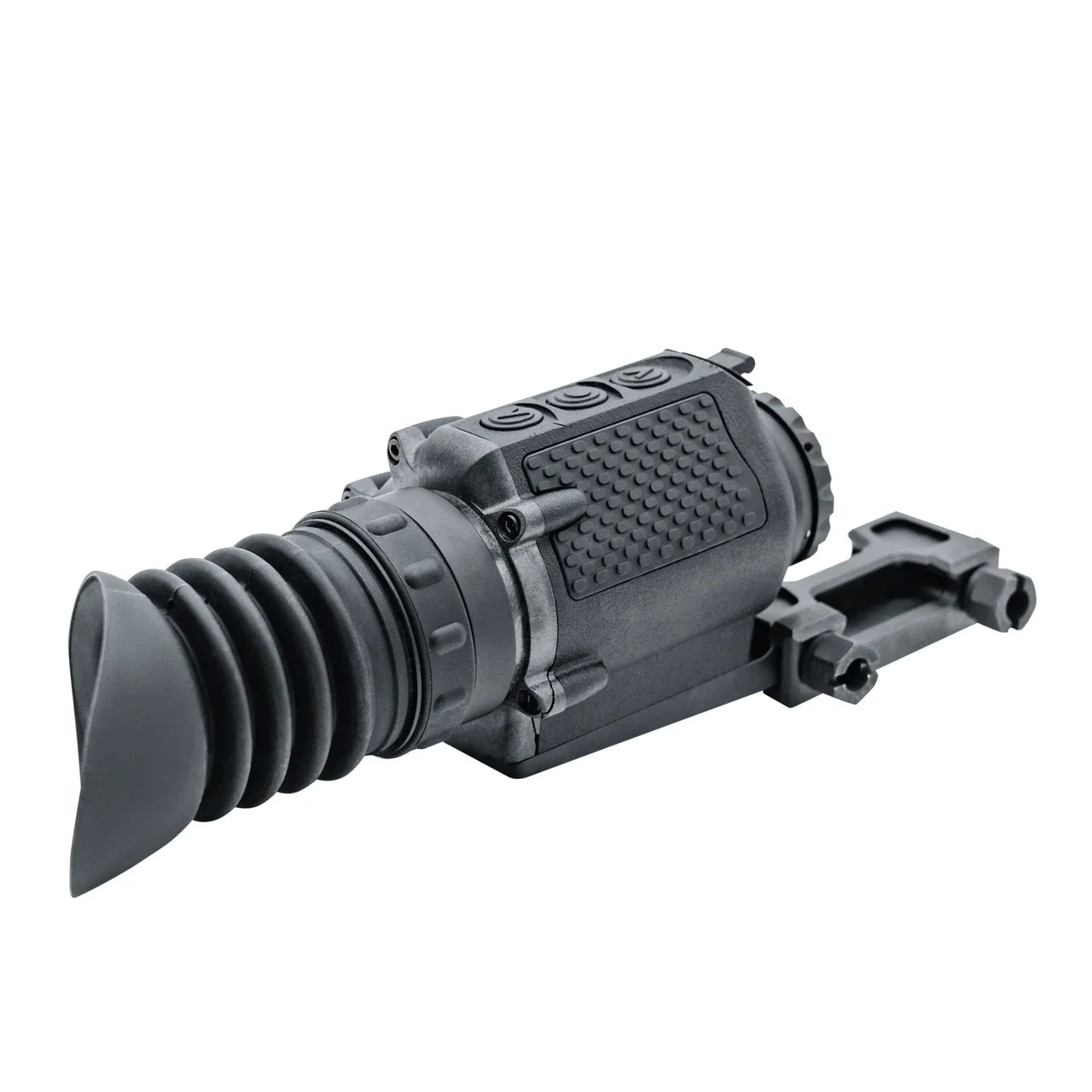

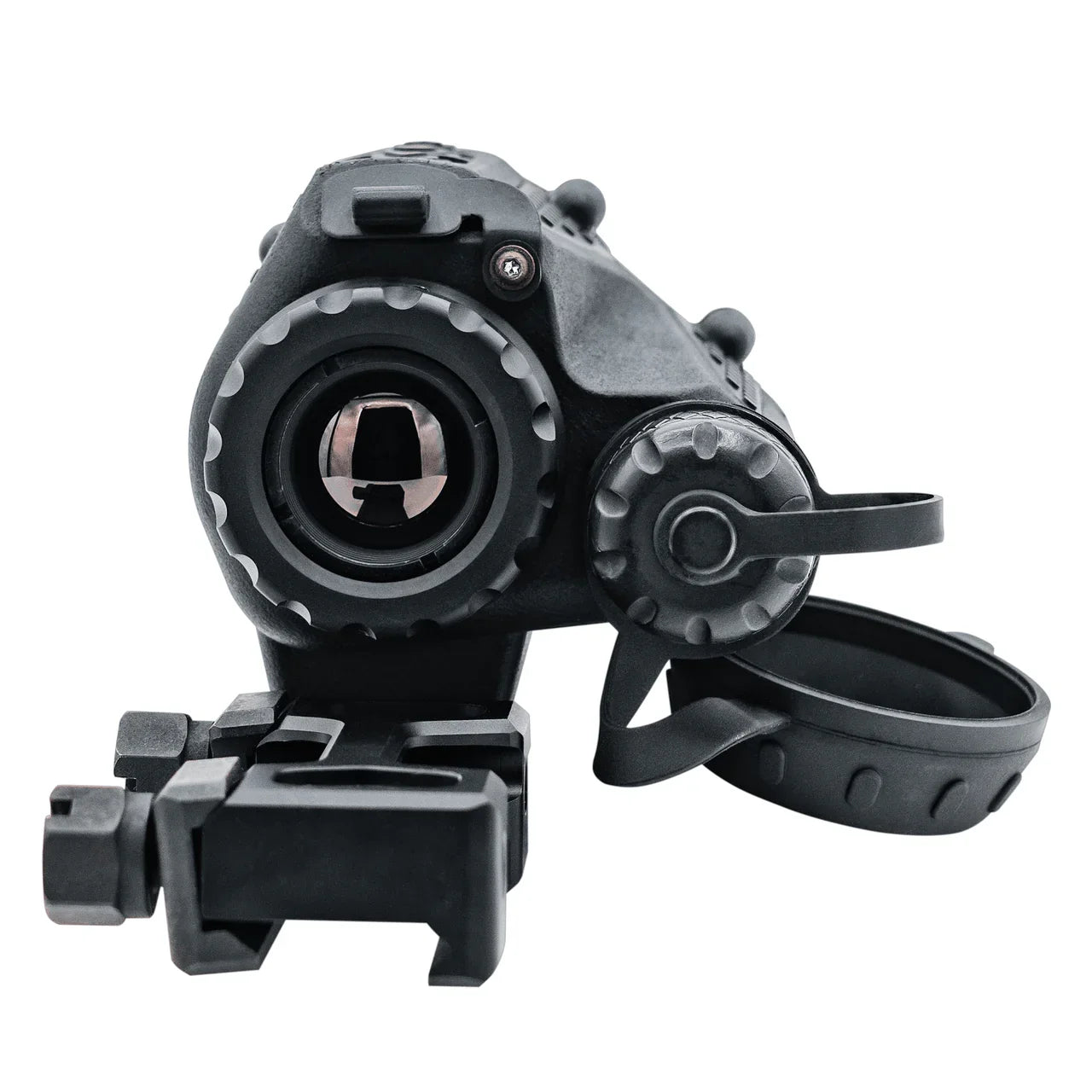

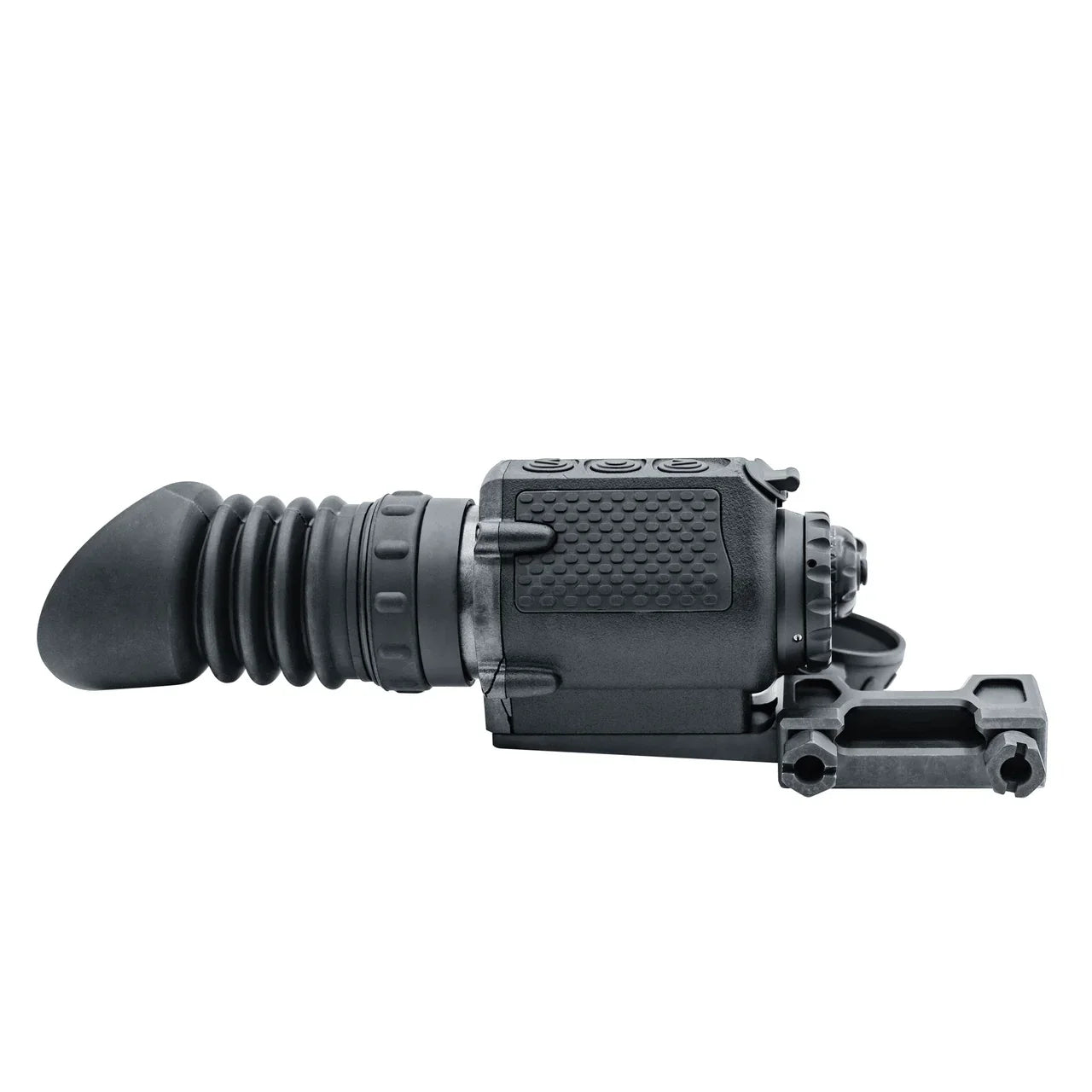

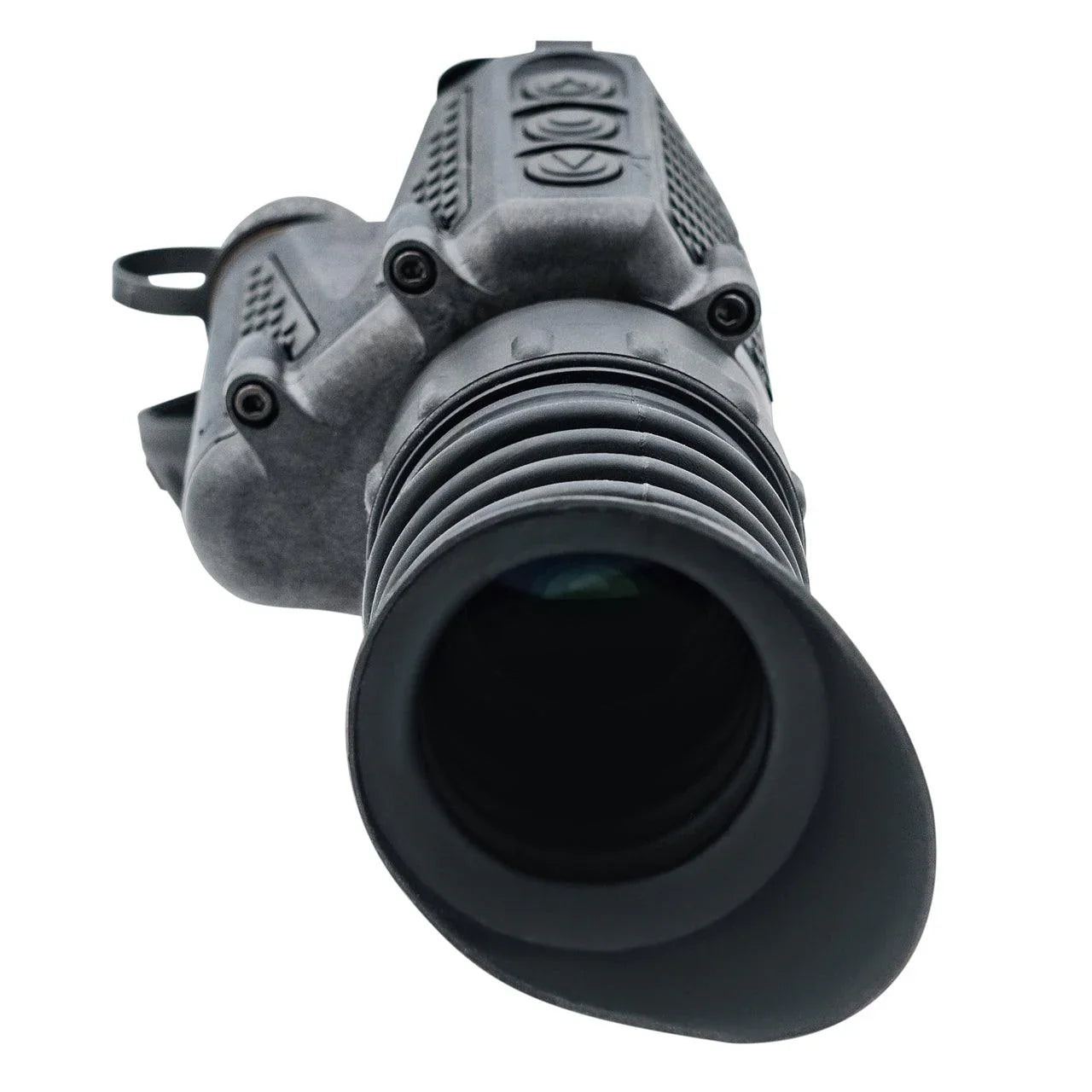

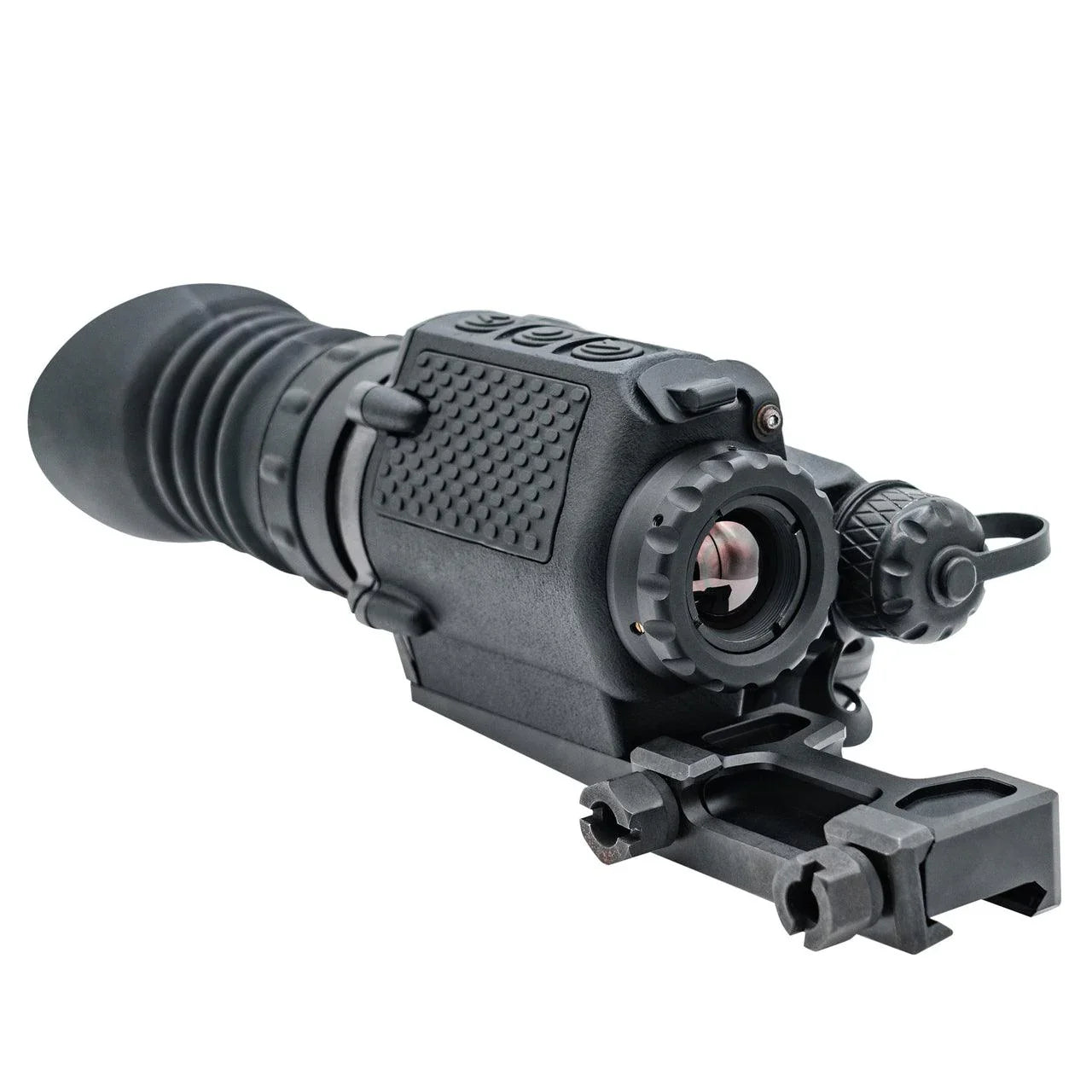

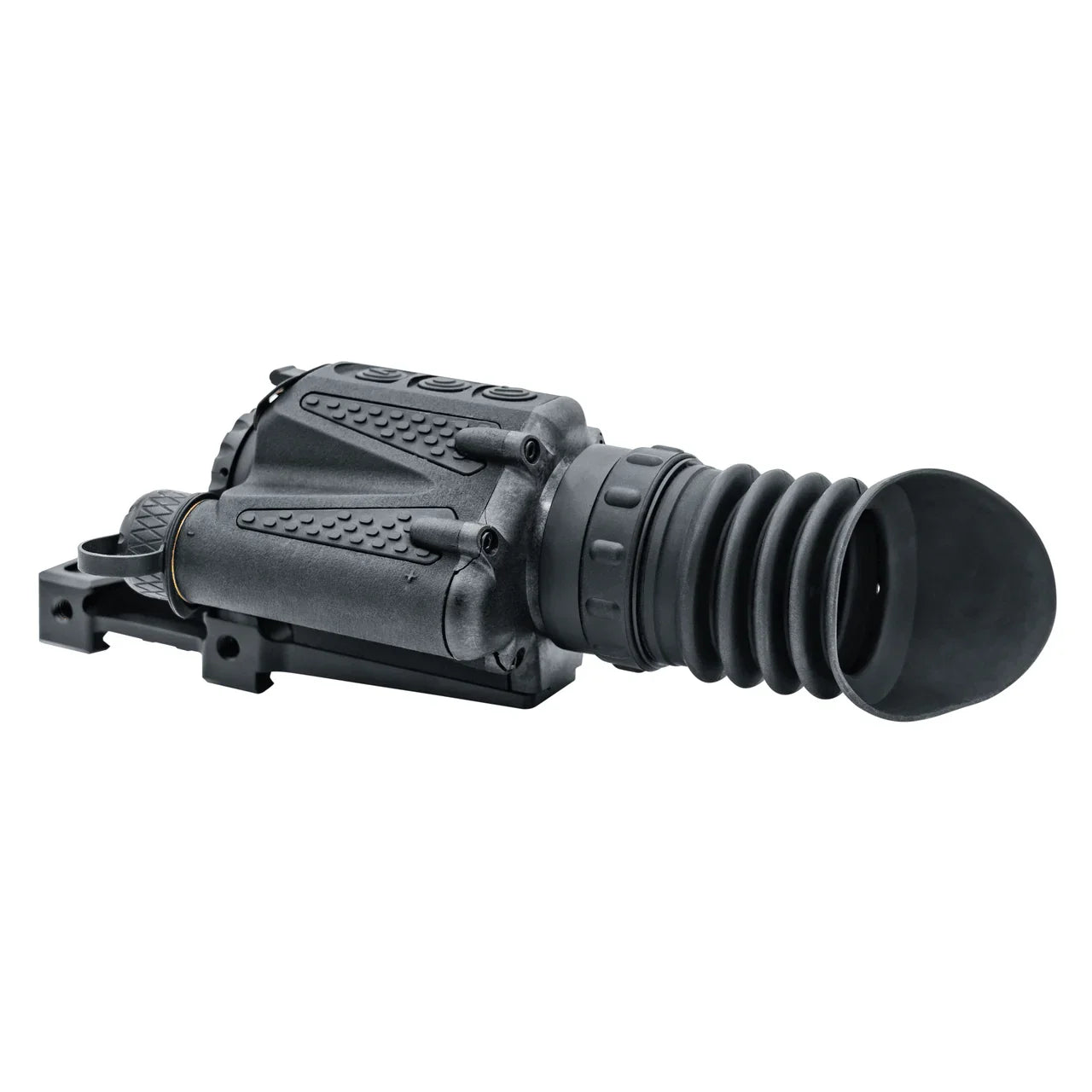

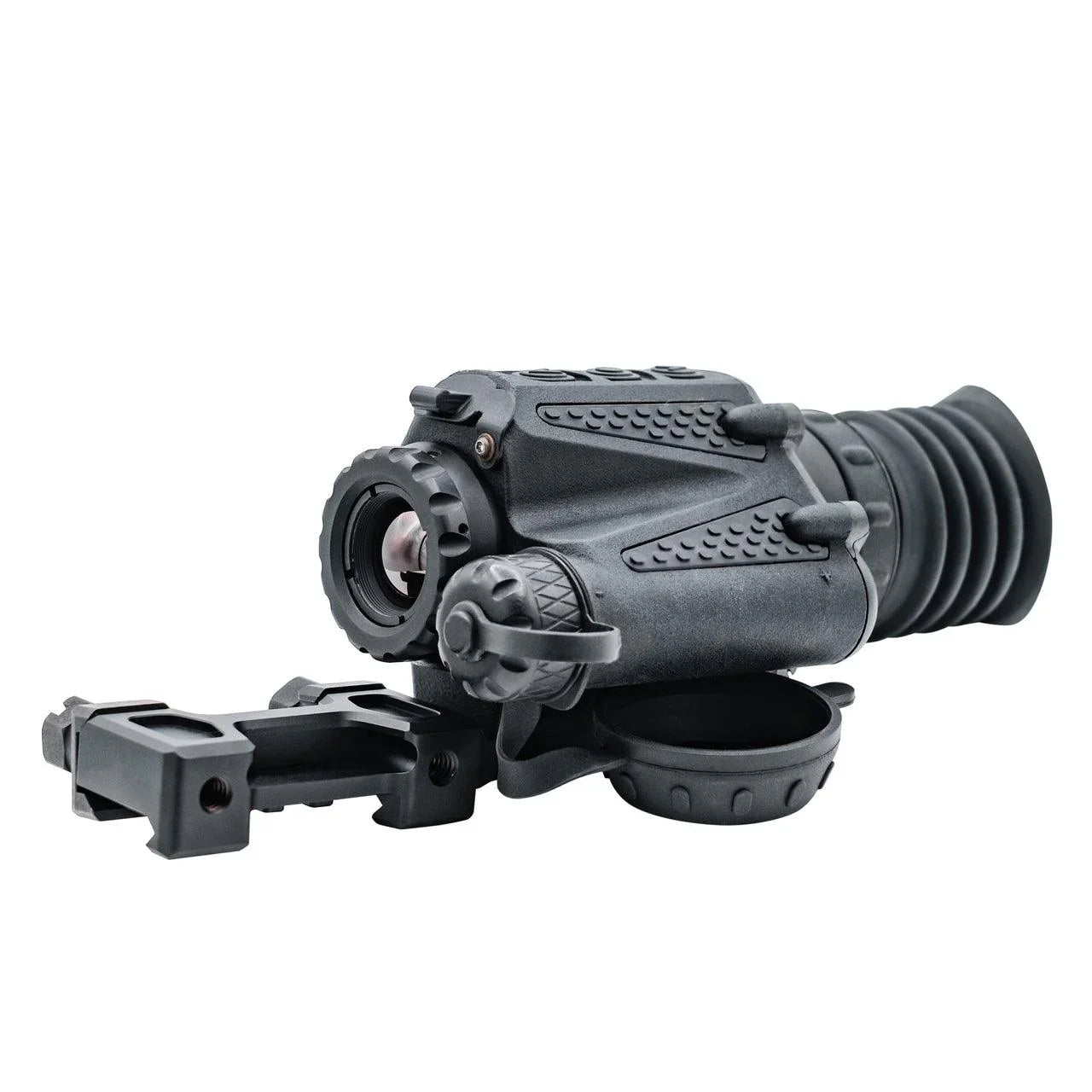

Armasight Collector Compact 320 Thermal Scope 19mm

Armasight Collector Compact 320 Thermal Scope 19mm


Regular price $ 2,199.00
Regular price Sale price $ 2,199.00
Sale Sold out
Shipping calculated at checkout.
Armasight Collector Compact 320 Thermal Scope 19mm 320x240/12um 60Hz Onboard Recording/WiFi (TAVT36WN9COLL102)
Authorized Dealer
Due to the nature of this optic, please check with me first for inventory status before ordering.
The Collector 320’s compact and lightweight design keeps your favorite .223/.556, rimfire, airgun, or crossbow nimble and responsive, and the Collector’s capabilities are optimized for use at the ranges these platforms are normally used. This unit boasts a fast 60Hz frame rate for smooth operation and industry-best, outstanding visual acuity, based on Armasight’s Iron Wolf thermal technology platform. An extensive suite of features includes video and image capture, USB video stream, USB-C interface for viewing your recordings and photos on external devices such as computers or televisions. The Collector 320 offers multiple color palettes, intuitive simple 3 button controls, multiple reticle types and colors, and long battery life.


  • Multiple Color Palettes
  • Intuitive 3-Button Controls
  • 8+ Reticle Types
  • Up to 4 Hour Runtime at 20° C
  • Image Detail Enhancement
  • 1/2MOA Boresight
  • Standard Picatinny Mount Included
  • Video Recording & Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Inclinometer
  • Levelometer
  • Angle Cosine Indicator
  • Reticle ON/OFF Selection
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Components



      Detector Type:ArmaCORE™ 320x240 12um Thermal Core
      Refresh Rate:60 Hz
      Thermal Sensitivity:NETD < 40mK
      Detection Range:708m on a Human Sized Target
      Recognition Range:177m on a Human Sized Target
      Identification Range:107m on a Human Sized Target
      Eye Relief:45mm
      Field of View:18.18° x 13.73°
      Optical Magnification:1.5x
      Digital Zoom:1x - 4x (1.5x - 6x total magnification)
      Display:XGA (1024 x 768) OLED
      Graphics:Active On-Screen Graphics and Iconology
      Recoil Rating:5.56cal
      Lens System:F/1.00; 19mm
      Diopter Adjustment:-5 to +5 dpt
      Power Supply:2 x CR123A (3V) or 1 x 16650 (3V)
      Battery Life:4 hours at 20° C
      Memory:4 Hours of Video
      Image Processing:Digital Enhancement
      Environmental Rating:IP67
      Operating Temperature:-40° C to +50° C (-40° F to + 122° F)
      Dimensions:171 x 68 x 66mm / 6.7 x 2.7 x 2.4in
      Weight:450g / 0.99lbs with mount
      Warranty:3 years w/ registration

      Package Includes

      • Collector 320 1.5-6x19 Compact Thermal Weapon Sight
      • Quick Detach Mount
      • USB-C Cable
      • Thermal Zeroing Target
      • 2 x CR123A Battery
      • USB Cable
      • Lens Cloth
      • Soft Case
      • Product Manual
