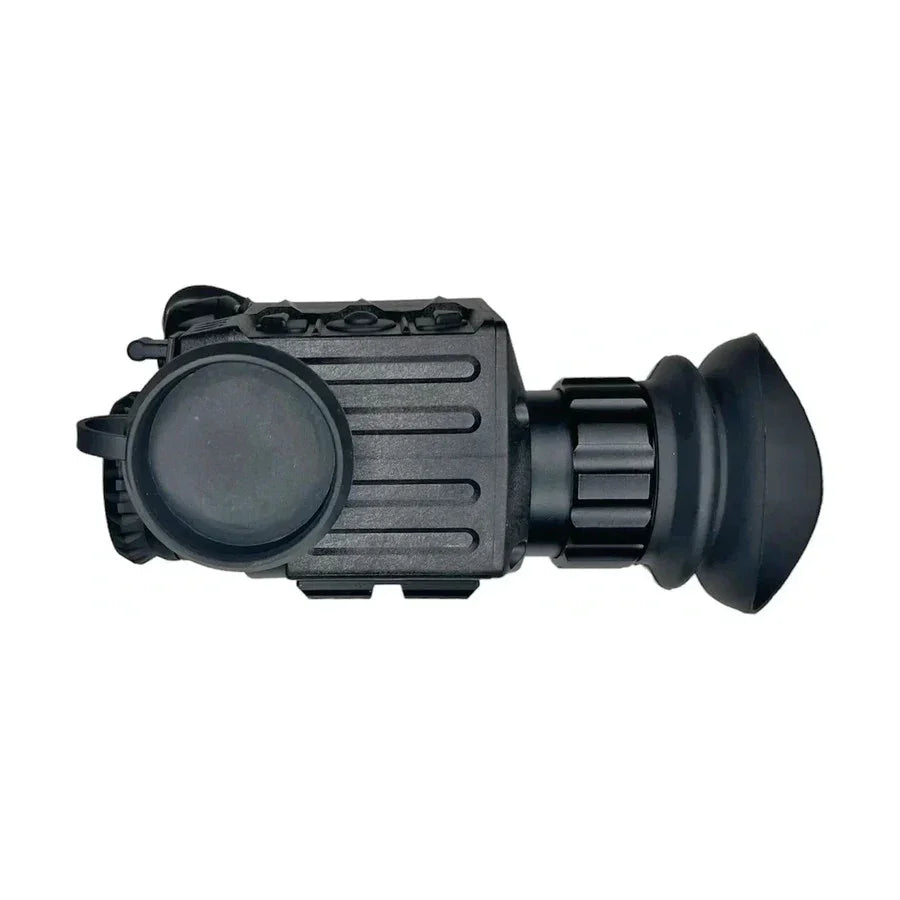

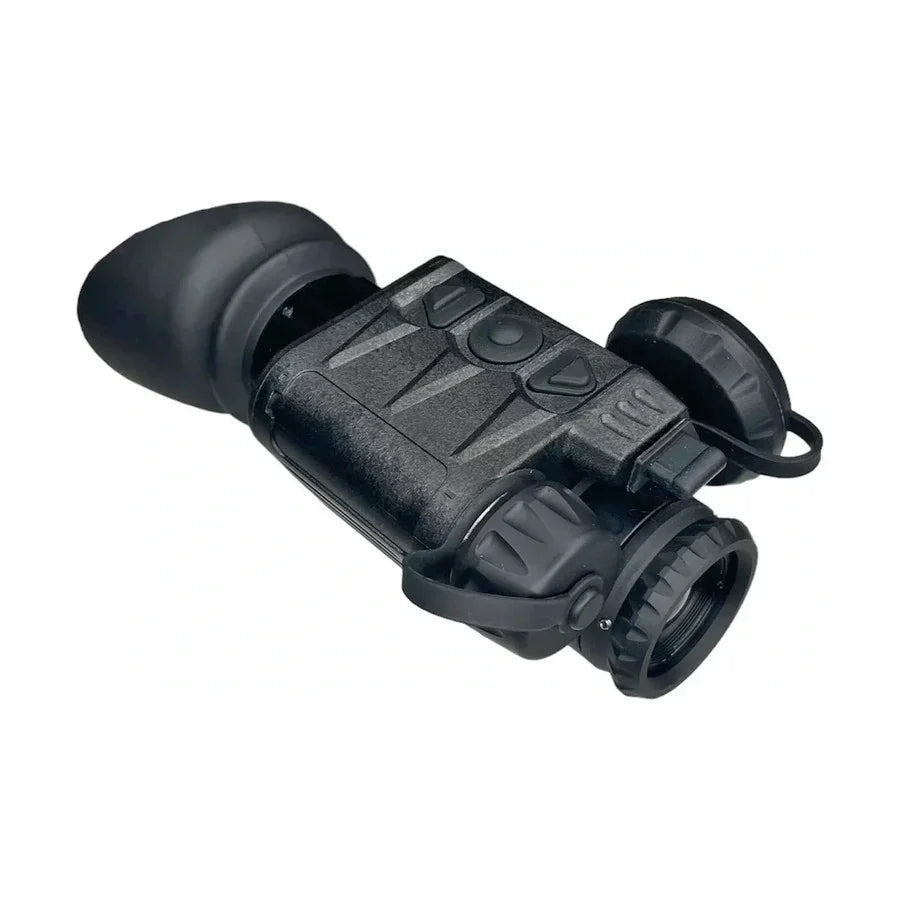

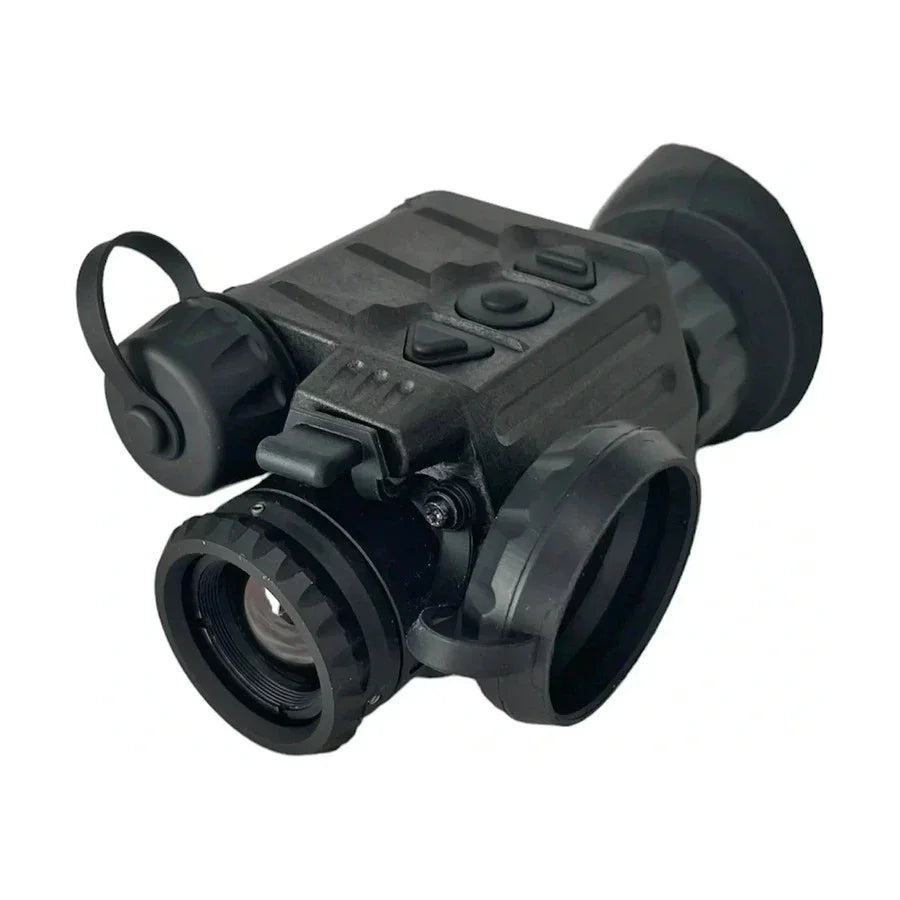

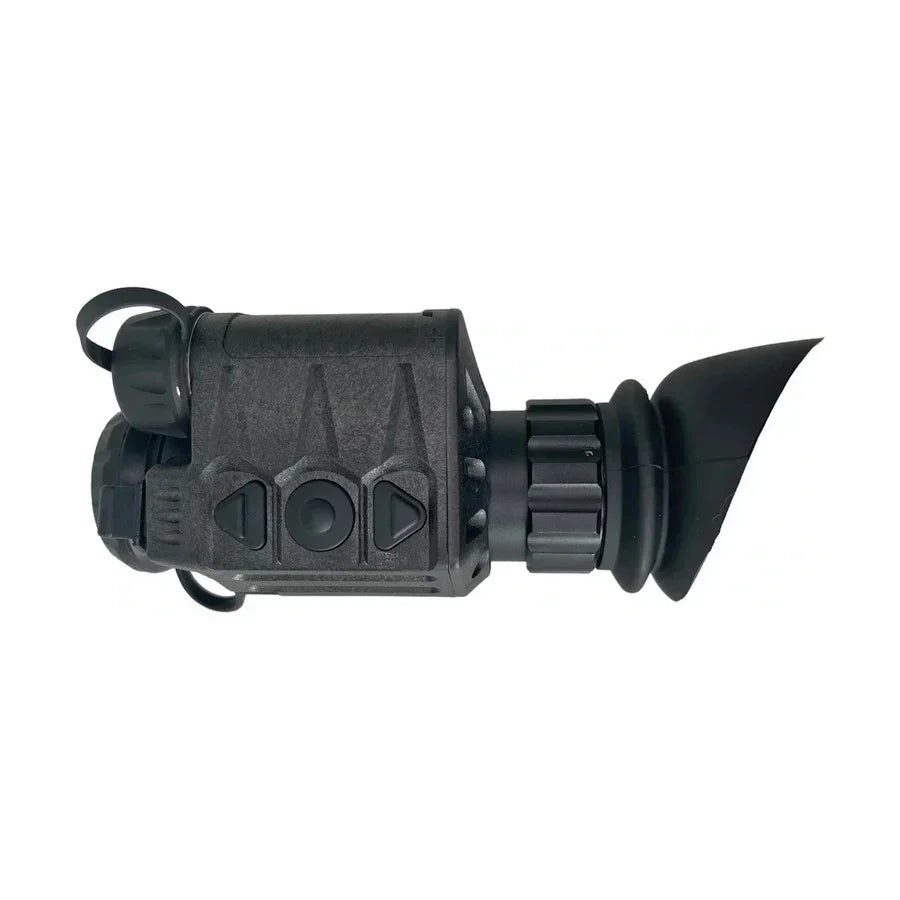

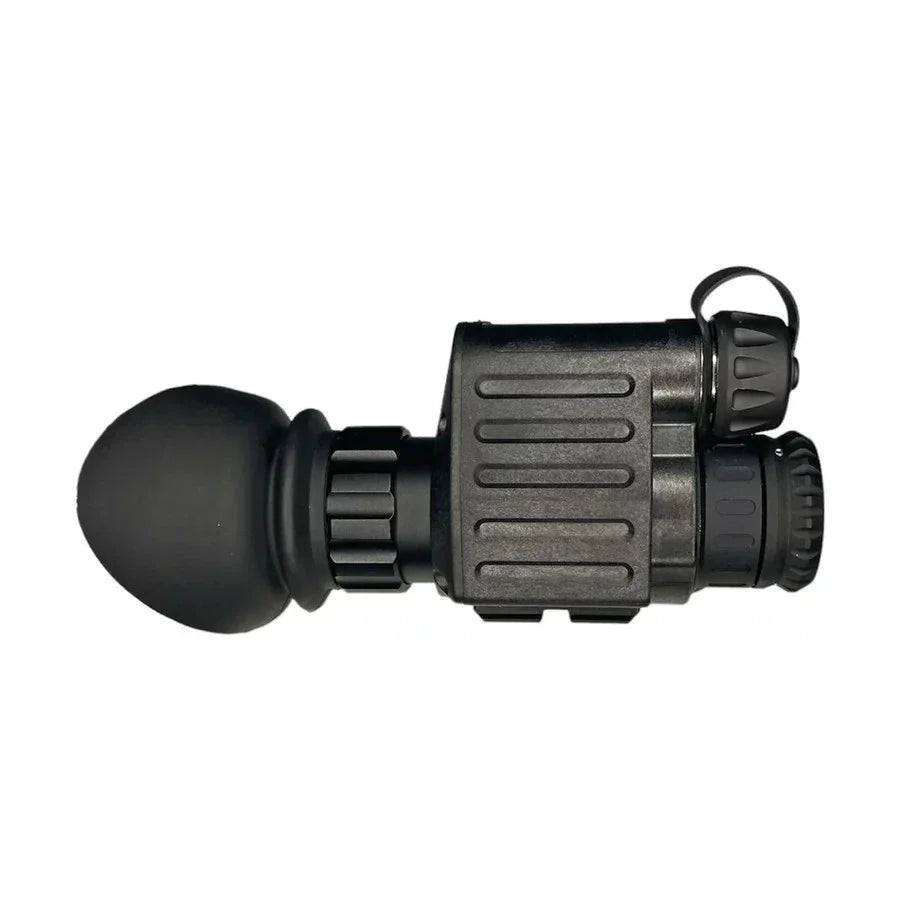

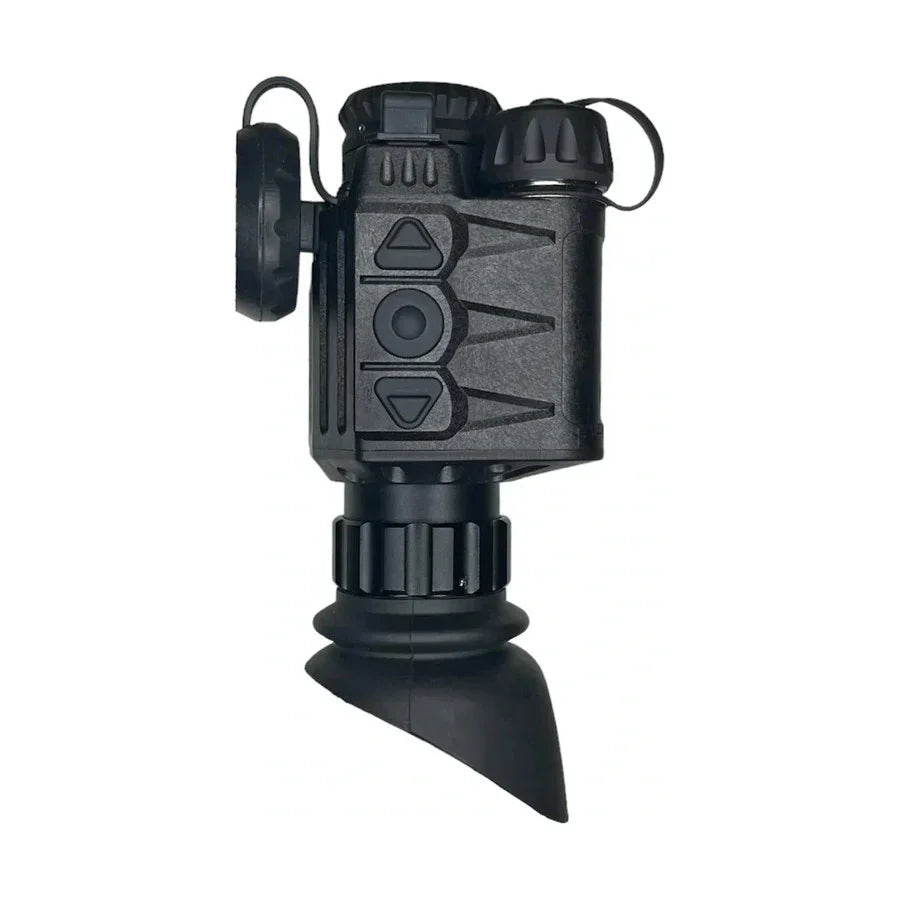

Armasight Sidekick Pro 640 1-4x19 Mini Thermal Monocular

Armasight Sidekick Pro 640 1-4x19 Mini Thermal Monocular

SKU:TAVT66MN9SIDE1P1

Regular price $ 2,999.00
Regular price Sale price $ 2,999.00
Sale Sold out
Shipping calculated at checkout.
Quantity

Armasight Sidekick Pro 640 1-4x19 Mini Thermal Monocular 640x480/12um 60Hz Onboard Recording (TAVT66MN9SIDE1P1)



The Sidekick Pro 640 is the smallest, fully multifunctional 12-micron thermal imaging monocular on the market, delivering professional-grade thermal performance in a compact, lightweight design. Powered by the ArmaCore 640 12-µm Gen 4 A-SWAP System and a 1.8 GHz Quad-Core GPU with integrated AI Neural Processing, it provides unmatched visual clarity, smooth 60Hz frame rates, and advanced thermal image processing for rapid target acquisition in any environment.

Weighing under 250 grams, the Sidekick Pro is ultra-portable and versatile—use it as a handheld mini-monocular or mount it on a helmet using the built-in mini rail for hands-free operation. The Full HD 1920x1080 HR/HC Active Matrix OLED display ensures a crisp, detailed image, while intuitive iconography provides at-a-glance system information.

Simplified three-button controls allow quick adjustments in the field, and one-touch in-unit video recording lets you capture every observation. Advanced features like Full HD video output with HDR, improved H265 compression, and integrated dynamic audio make sharing and reviewing your footage seamless.

Compact, lightweight, and built to perform, the Sidekick Pro 640 is ideal for tactical operations, hunting, surveillance, and outdoor adventures—giving you professional-grade thermal imaging anytime, anywhere.

Armasight Sidekick Pro 640 1x Features:

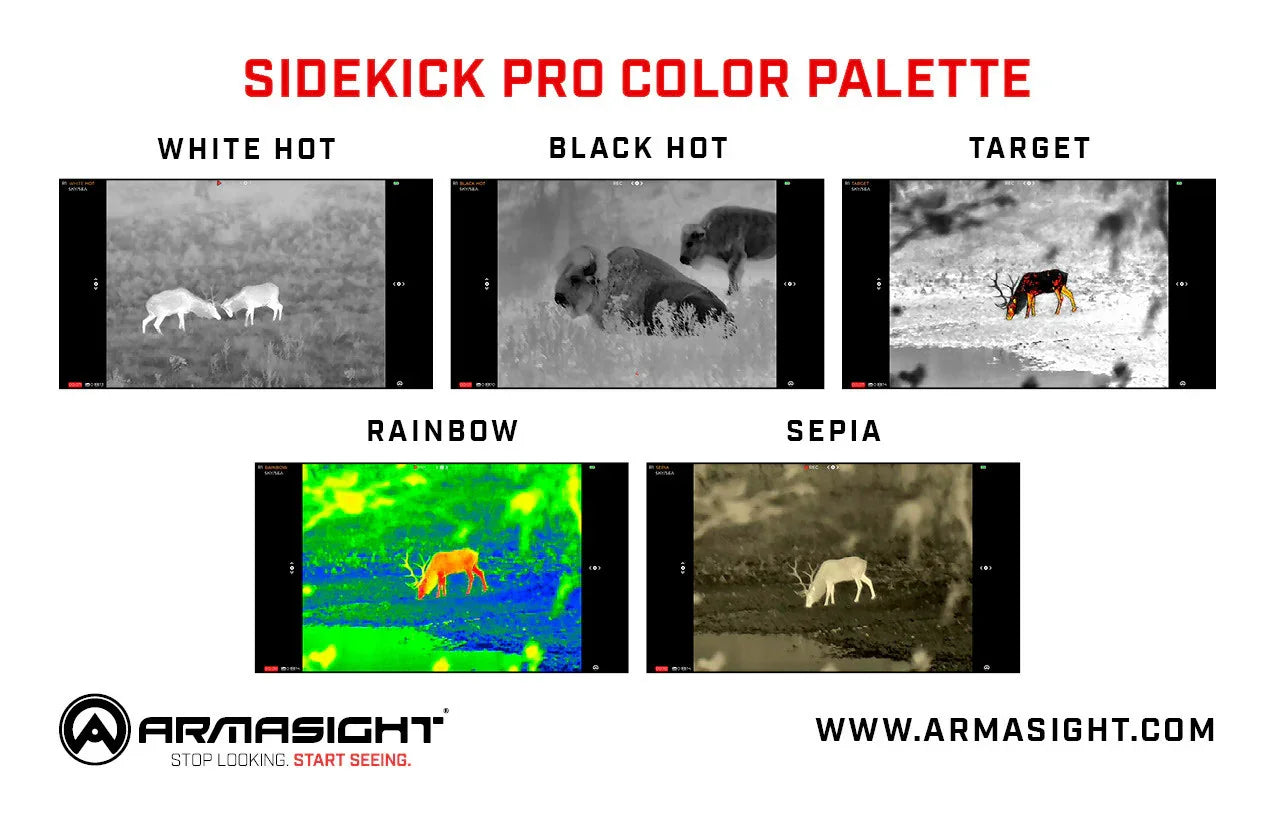

  • Multiple Color Palettes
  • Intuitive 3-Button Control
  • 1.5h Runtime on 1 x CR123A Battery, 5.5h on 2 Batteries with Included Battery Extender
  • Image Detail Enhancement
  • Dovetail Mini-Rail Included for Helmet Mounting (with Optional Mount)
  • Works with Rayvn Group Modular Bridge Mount for Helmet-Mounting with PVS-14, MNVD, or Second Sidekick (sold separately)
  • Ability to Shift Thermal Image to Collimate Sidekick Image with NVD when Bridged
  • Video Recording; Image Capture
  • USB Video Stream
  • USB-C Interface for External Devices
  • Compass
  • Battery Status Indicator
  • ULTEM Composite Body and Ergonomic Design
  • Designed and Assembled in the USA from U.S. and Global Component

Armasight Sidekick Pro 640 1x Specifications:

Detector Type: ArmaCORE™ 640 12um Gen 4 A-SWAP

System Refresh Rate: 60 Hz

Thermal Sensitivity: NETD < 20mK

Detection Range: 709m on a Human Sized Target

Eye Relief: 15mm

Field of View: 23.16°(H) x 17.37°(V) / 128.25ft x 91.50ft @ 100yrd

Optical Magnification: 1x

Digital Zoom: 1x - 4x

Display: 1920 x 1080 Full HD HR/HC Active Matrix OLED

Graphics ISP: 1.8 GHz Quad Core GPU with Integrated AI Neural Processing Unit

Lens System: F/1.00; 19mm

Diopter Adjustment: -5 to +5 dpt

Eye Piece: 25mm

Power Supply: 2 x CR123A (3V)

Battery Life: Up to 5.5h at 20°C (68°F)

Environmental Rating: IP67

Low Battery Indicator: Yes

Audio: Integrated Dynamic Audio

Video Output: Full HD 1920 x 1080 @ 60Hz with HDR

Operating Temperature: -40° C to +50° C (-40° F to + 122° F)

Dimensions: 105 x 65 x 60mm / 4.13 x 2.57 x 2.35in

Weight: 254g / 0.56lbs

Warranty: 3 years w/ registration

Color: Gray

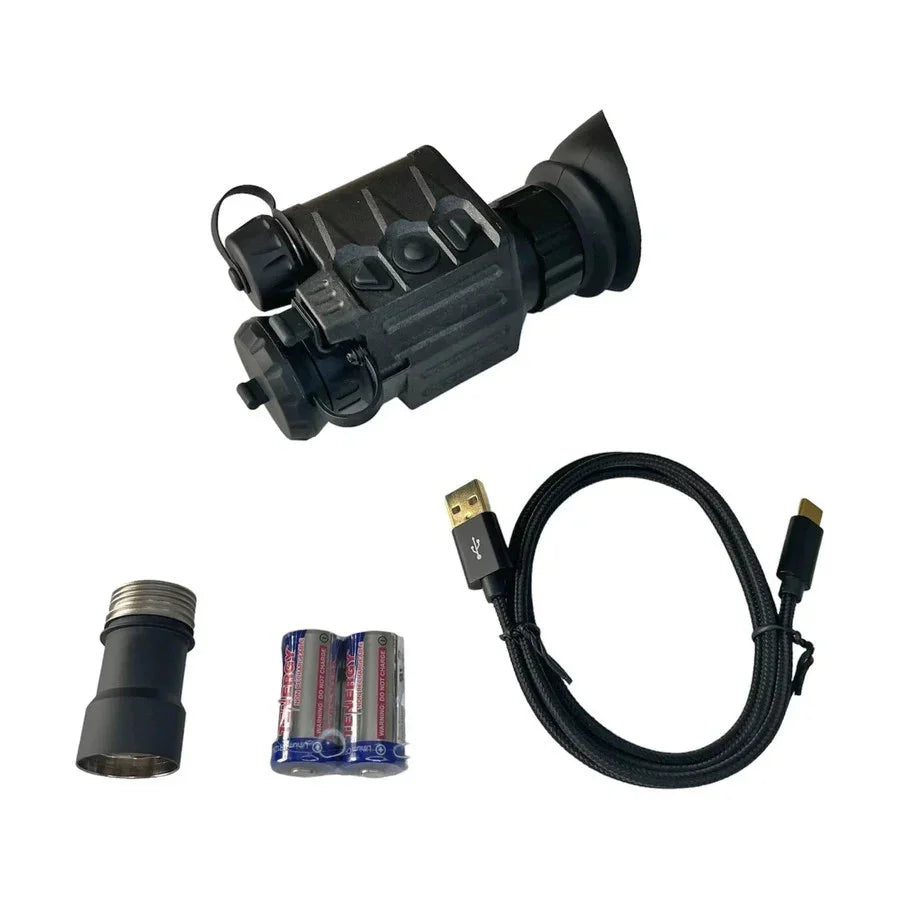

Package Includes:

  • Sidekick Pro Monocular
  • Battery Extender
  • USB-C Cable
  • 2 x CR123A Batteries
  • Lens Cloth
  • Soft Case
  • Product Manual



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
