ATN PS31-3 BNVD Gen 3 Green Phosphor 40 FOV Night Vision Binocular

ATN PS31-3 BNVD Gen 3 Green Phosphor 40 FOV Night Vision Goggles/Binoculars (NVGOPS31430)

Due to the nature of this item, please check with me for the lead time before ordering.

The PS-31 Binocular Night Vision Device (BNVD) is a compact, lightweight dual-tube goggle designed to replace the legacy PS-15. Among dual-tube night vision goggles, the PS-31 stands out as one of the smallest and lightest models available. It can be equipped with high-performance, U.S.-made Gen 3 image intensifier tubes. Developed with input from U.S. operators, the PS-31 is engineered to enhance system resolution, significantly reduce head-borne weight, improve center of gravity, and provide greater operational utility. It also boosts situational awareness with a 50-degree field of view (FOV) for maximum visibility in the field.

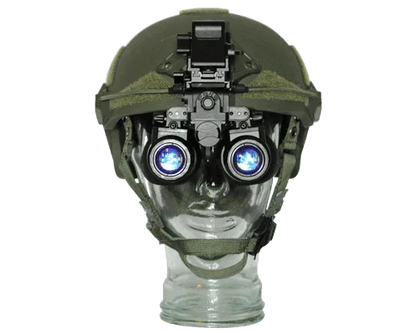

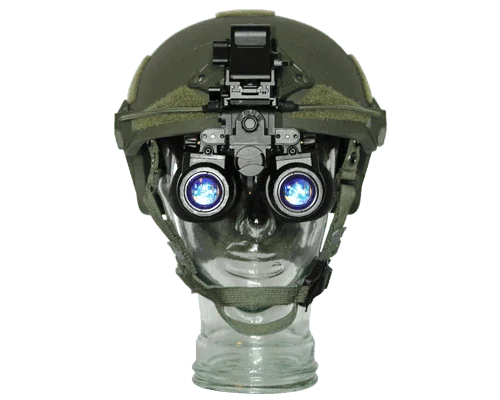

The tubes are auto-gain capable, allowing them to automatically adjust brightness based on ground conditions. The PS-31 features independently pivoting tube housings, enabling use in either binocular or monocular configurations. Utilizing both tubes offers depth perception and makes navigating terrain, using devices, and performing tasks like opening doors easier. The monocular setup, however, allows smoother transitions between different lighting conditions, such as switching between night vision and weapon-mounted optics. Additionally, the pivoting housings let users "flatten" the goggles against the helmet when stowed, lowering the profile to increase safety and prolong equipment life.

ATN PS31-3 BNVD Gen 3 Green Phosphor TECHNICAL SPECIFICATIONS

Generation - Gen 3, Green Phospher, Auto-Gated

Resolution - 58-60 lp/mm

Magnification - 1 X

Lens System - f/1.18

Proshield Lens Coating - Yes

FOV - 40 °

Range of Focus - - 0.25 yard/m to infinity

Diopter Adjustment - -5 to +5

Automatic Brightness Control - Yes

Bright Light Cut-off - Yes

Infrared Illuminator - Yes (Built-in with flood lens)

IR Indicator - Yes (in FOV)

Low Battery Indicator - Yes (in FOV)

Power Supply - 1 x 3V (CR123)

Battery Life - 60 h – standard/ 300 h – with Battery Pack (optional)

Environmental Rating - IP65

Finish - Matte Black, Corrosion Resistant, Fibre re-enforces polycarbonate body

Operating Temperature - -59°F to 120°F / -51°C to 49°C

Storage Temperature - -59°F to 185°F / -51°C to 85°C

Dimensions - 4.4" x 4.15" x 3.4"/112 mm x 105 mm x 86 mm

Weight - 1.28 lbs / 0.58 kg

Country of Origin - USA

Available for Export - No

Warranty - 3 years

Whats in box

Instruction Manual

Lens Tissue

Soft Carrying Case

Helmet Mount

One Lithium Battery (CR123)

EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
