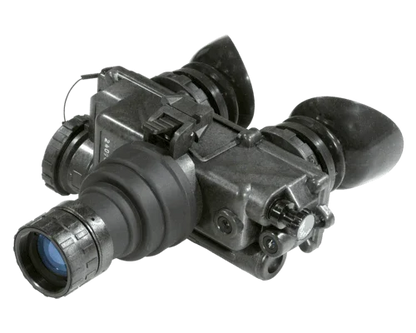

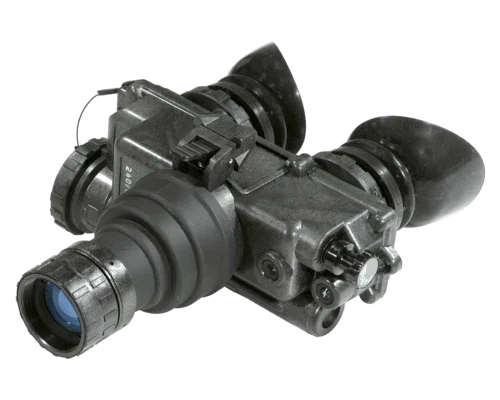

ATN PVS-7-WPT 57-60lp/mm White Phosphor Night Vision Goggles

ATN PVS-7-WPT White Phosphor Night Vision Goggles (NVGOPVS7W0)

This U.S. Military-grade night vision goggle system has repeatedly proven its worth in combat, and is the highest-quality PVS7 system on the market. The PVS7 can be outfitted with high-performance Gen 2 and US made Gen 3 image intensifier tubes. These goggles made a name for themselves as standard issue United States army goggles through their durability. They are waterproof, rugged, and reliable by being made of top quality military grade materials. ATN's PVS7 goggles provide a high quality night vision experience at any time, in pitch black conditions, in wet or dirty conditions, and in situations when your hands are busy. The PVS7s have a built-in infrared illuminator which creates "invisible" light, allowing your goggles to see in completely lightless situations. These goggles ship with included accessories to make these goggles ready to operate right out of the box like a full U.S. Mil-Spec body with Goggles assembly, a case, batteries, a head mount assembly, and many more! The PVS7 is equipped with Automatic Brightness Control to adjust image brightness in changing light conditions to maintain image definition and clarity. Additionally, the PVS7 has a bright light cut-off feature to protect the image tube from sources of intense light, and a flip-up shut-off feature that can be used with the optional helmet mount system. The PVS7 night vision goggles have proven themselves as a high performance NV device in detection, rescue and surveillance missions in extreme low-light conditions. This versatile system can be used as a handheld or hands-free goggles, or with an optional long-range Mil Spec Afocal Lens or compatible objective lenses that allow converting the PVS7 goggles into a powerful NV viewer with 3.0x, or 5.0x, magnification, depending on the lens the device is paired with. Additional features include IR on and low battery indicators, automatic brightness control and auto-shut off function that shuts down the device within seconds when accidentally exposed to bright light, and an integrated IR illuminator for use in extremely low light conditions.

ATN PVS-7-WPT Features:

Multi-purpose: Handheld, head-mounted, helmet-mounted

Equipped with momentary or continuous IR switch

Internal low battery and IR indicators

US Military design

Lightweight, water and fog resistant

Limited Three-Year Warranty

Data Sheet

ATN PVS-7-WPT TECHNICAL SPECIFICATIONS

Generation White Phosphor Technology

Resolution 64 lp/mm

Magnification 1 X

FOV 40°


Total Darkness IR System Yes


Lens System f/1.2, 27mm


Proshield Lens Coating Yes


Range of Focus 0.25 yard/m to infinity


Diopter Adjustment -2 to +6


Automatic Brightness Control Yes


Bright Light Cut-off Yes


Infrared Illuminator Built-in


IR Indicator Yes


Low Battery Indicator Yes


Power Supply 2 x 1.5V (AA type battery)


Battery Life 50 hours


Environmental Rating Water resistant


Operating Temperature -40°F to 122°F/-40°C to 50°C


Storage Temperature -58°F to 158°F/-50°C to 70°C


Dimensions 6.4" x 3" x 6"/162 mm x 76 mm x 152 mm


Weight 1.5 lbs / 0.68 kg

Warranty 3 Years

Whats in box

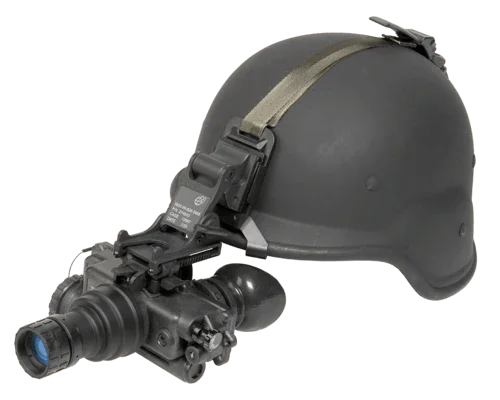

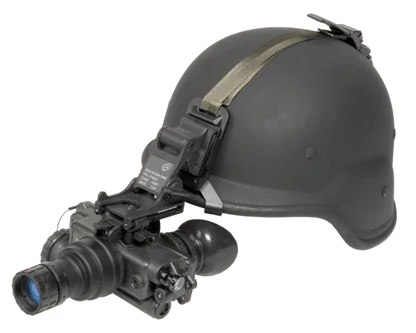

Flip-up Head Mount Assembly — Allows for hands-free operation

Medium & Thick Brow Pads — Changeable pads for secure head mount fit

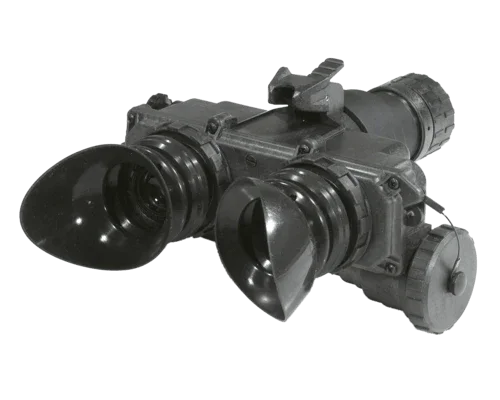

Eye Cups — Prevents the emission of stray light or facial reflections

Soft Carrying Case — Provides convenient storage

Shoulder Strap — Attached to the PVS-7 carrying case for easy portability

Lens Paper — Used to safely clean the objective and eyepiece glass surfaces

Day Light Filter — Filters excessive light. Protects objective lens from the elements

Sacrificial Window — Shields the optics from sand, air particles, or anything that may scratch the lens

Demist Shields — Snaps onto the eyepiece to prevent condensation from forming on the optics

Operator’s Manual — Instructional user’s guide

Batteries — Two (2) AA
