| Product Modification |
HOGSTER 384x288
|
| Product SKU# |
BE43142D
|
| Optical Magnification in the Clip-on mode, x |
1.0x
|
| Optical Magnification in the Thermal Viewer mode, x |
3.0x, 6.0x, 12.0x
|
| Objective lens system |
42mmF/1.1
|
|
Angular FOV at 1.0x (horizontal x vertical), degree
|
9° x 6.7°
|
|
|
Core resolution, pxl
|
384x288
|
| Pixel pitch, µm |
17
|
|
Image refresh rate, Hz
|
50
|
| Thermal Sensitivity (NETD), mK |
< 50
|
|
Display type and resolution, pxl
|
LCOS 1280x960
|
|
Start-up time, min., sec.
|
5
|
| Object type and size, approx., ft² / m² |
8 / 0.75
|
25.8 / 2.4
|
| Detection, approx., yds / m |
1000 / 900
|
2000 / 1800
|
|
Recognition, approx., yds / m
|
300 / 270
|
700 / 640
|
| Identification, approx., yds / m |
150 / 130
|
440 / 400
|
|

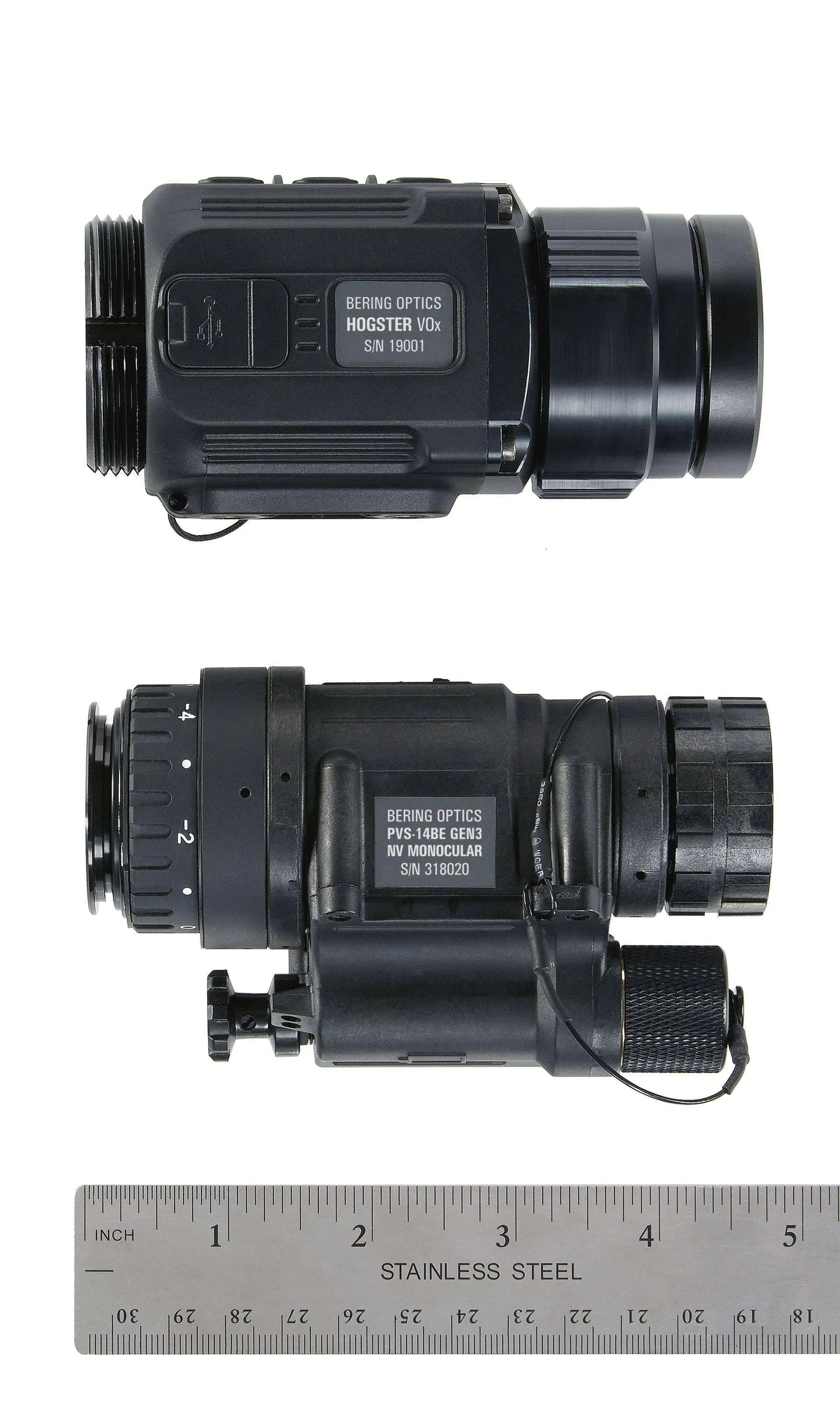

Dimensions, in / mm
|
4.52"x2.36"x2.25" / 115x60x57
|
| Weight, approx., oz/g |
11.1 / 315
|
|
Power supply standard
|
CR123 (two)
|
| Estimated battery life, hour |
Up to 4
|
| Operating temperature, °F/°С |
-40° to +122° / -20° to +50°
|
| Water intrusion |
IPX67
|
| Humidity, % |
Up to 98%
|
|
