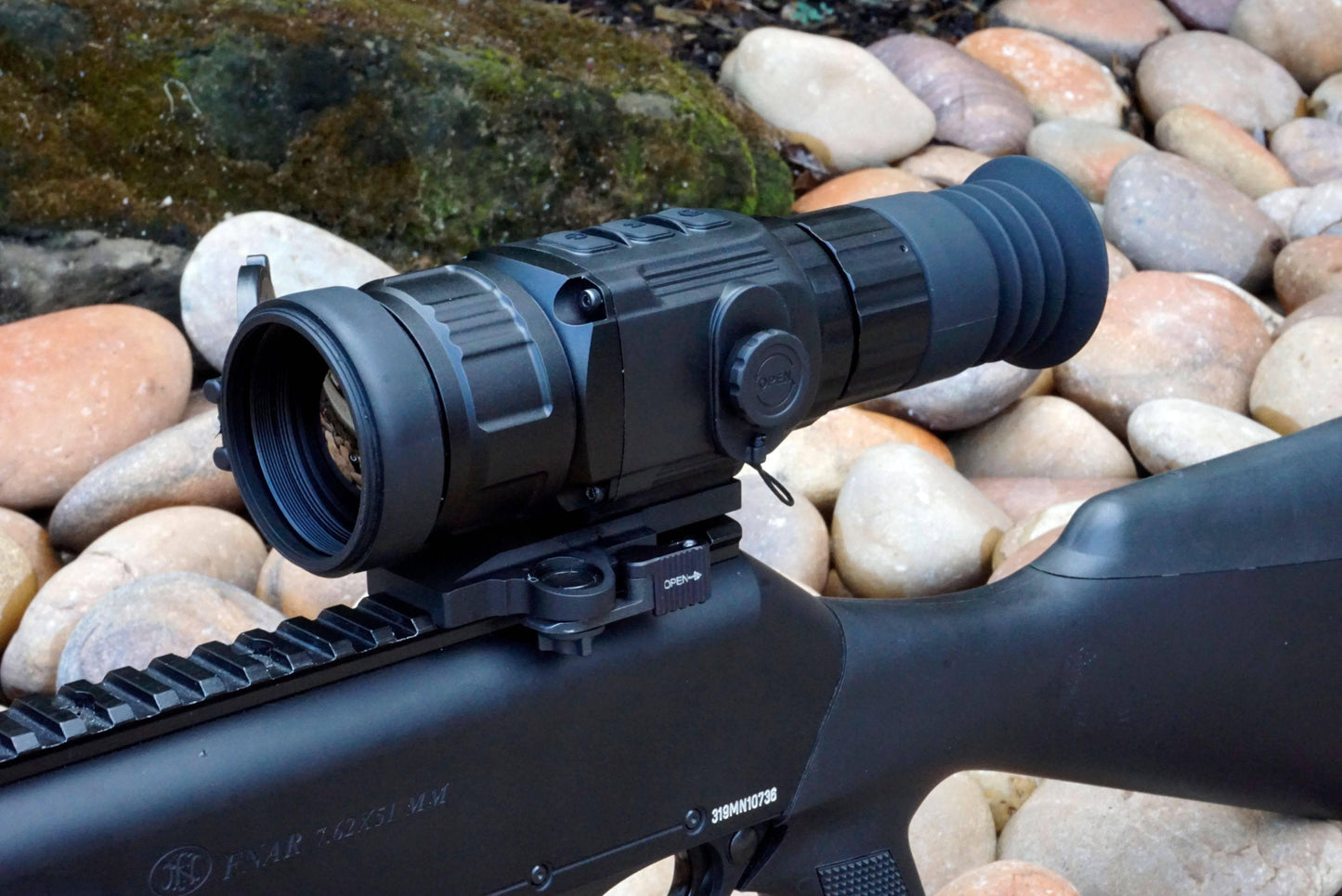

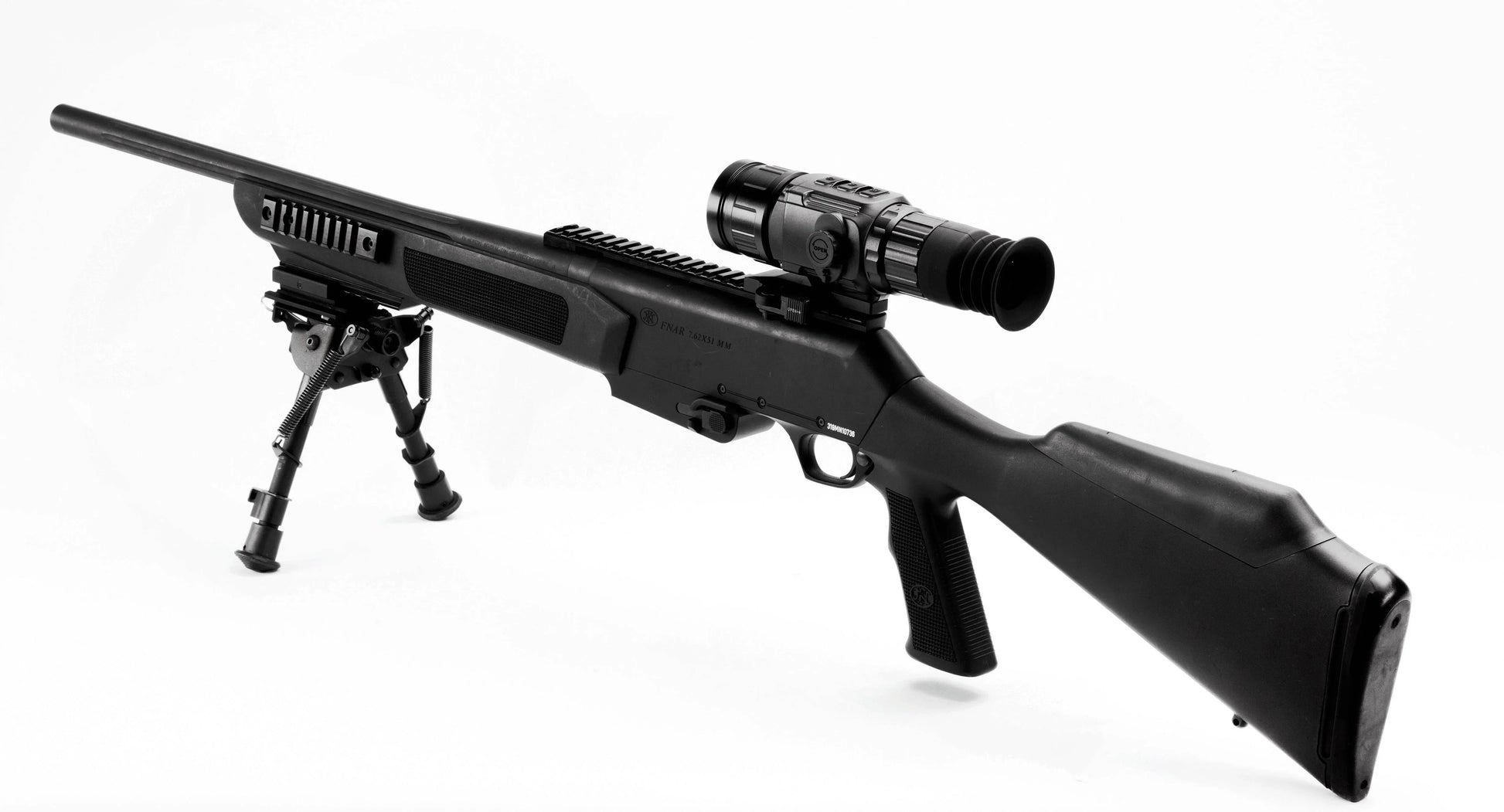

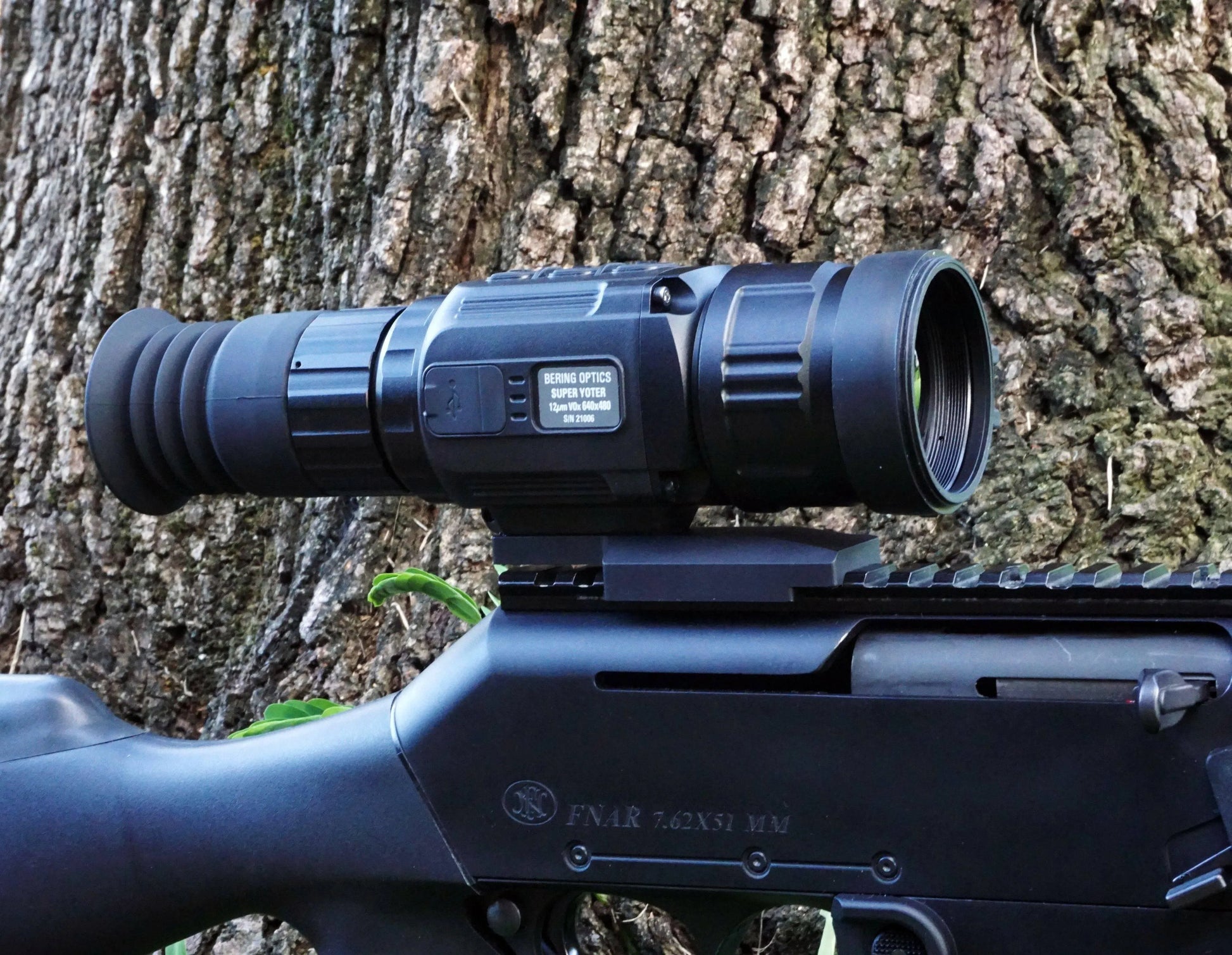

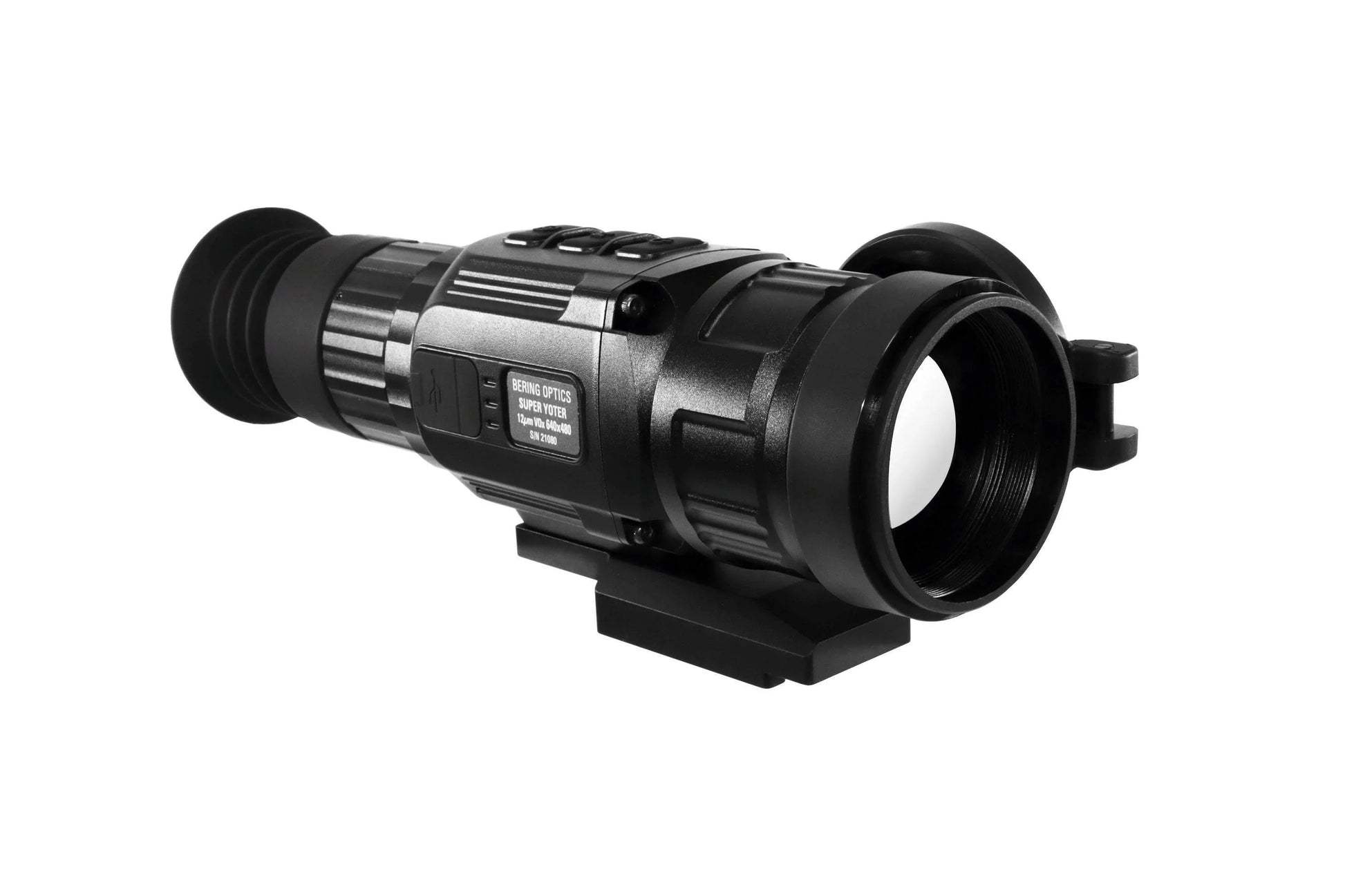

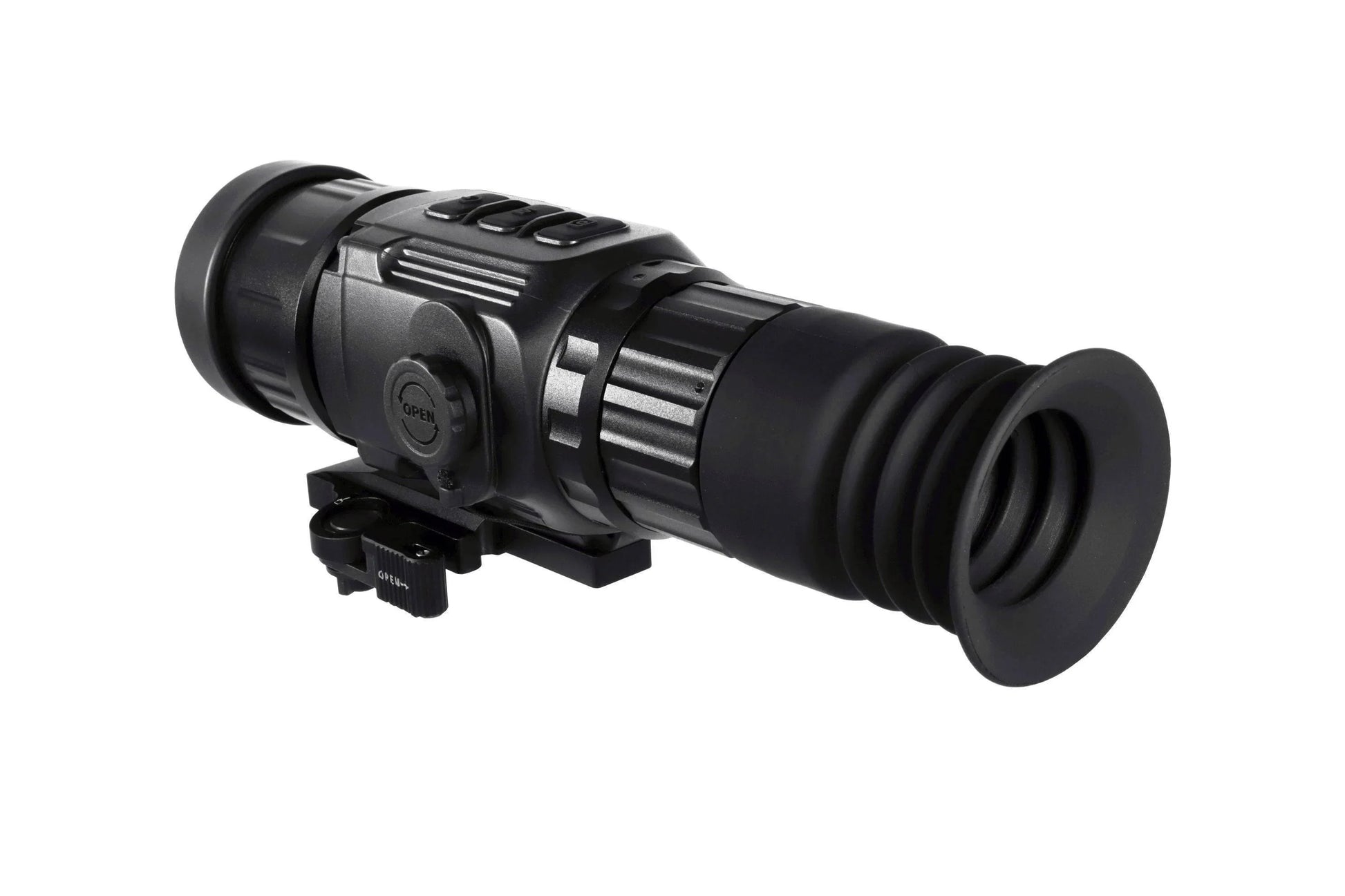

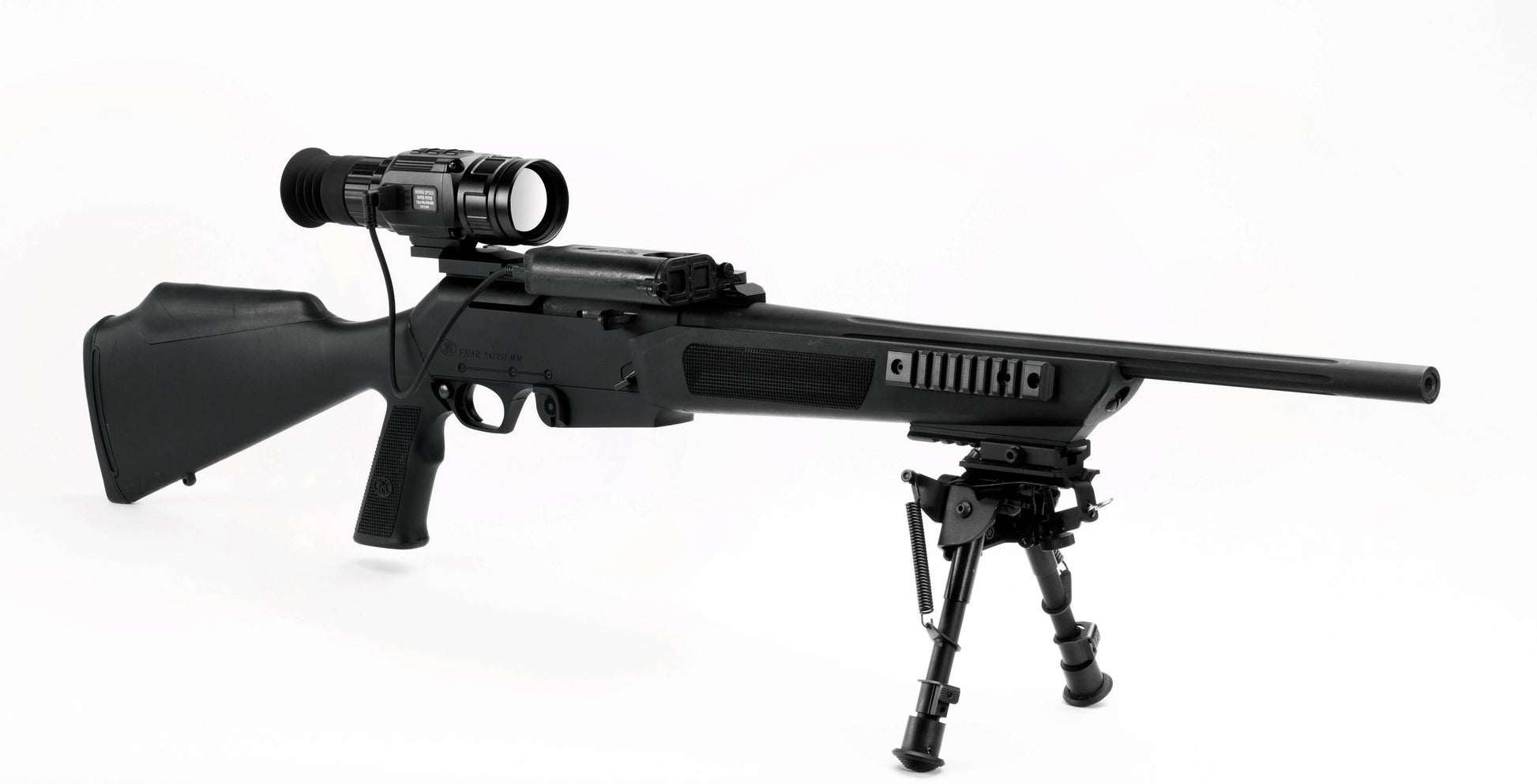

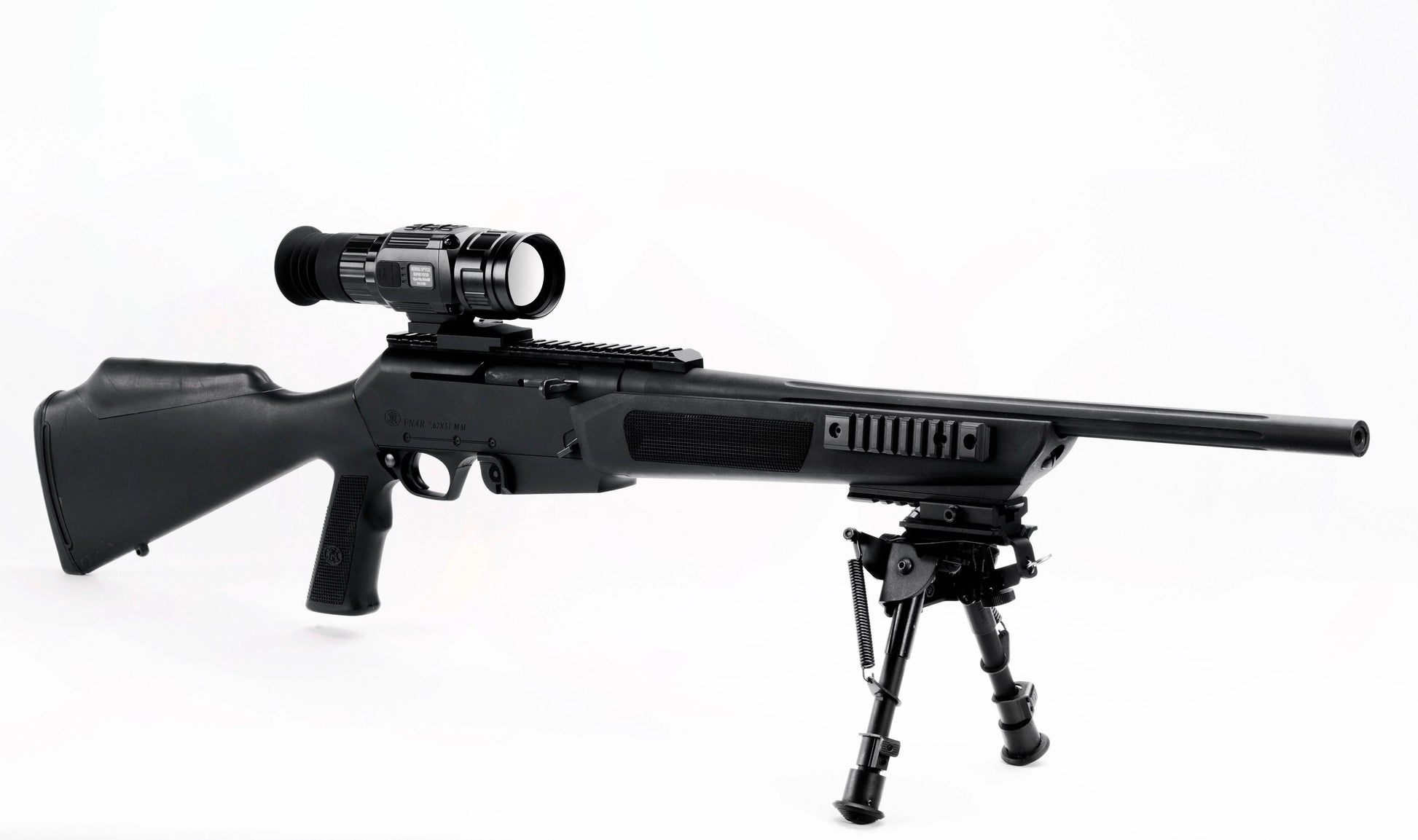

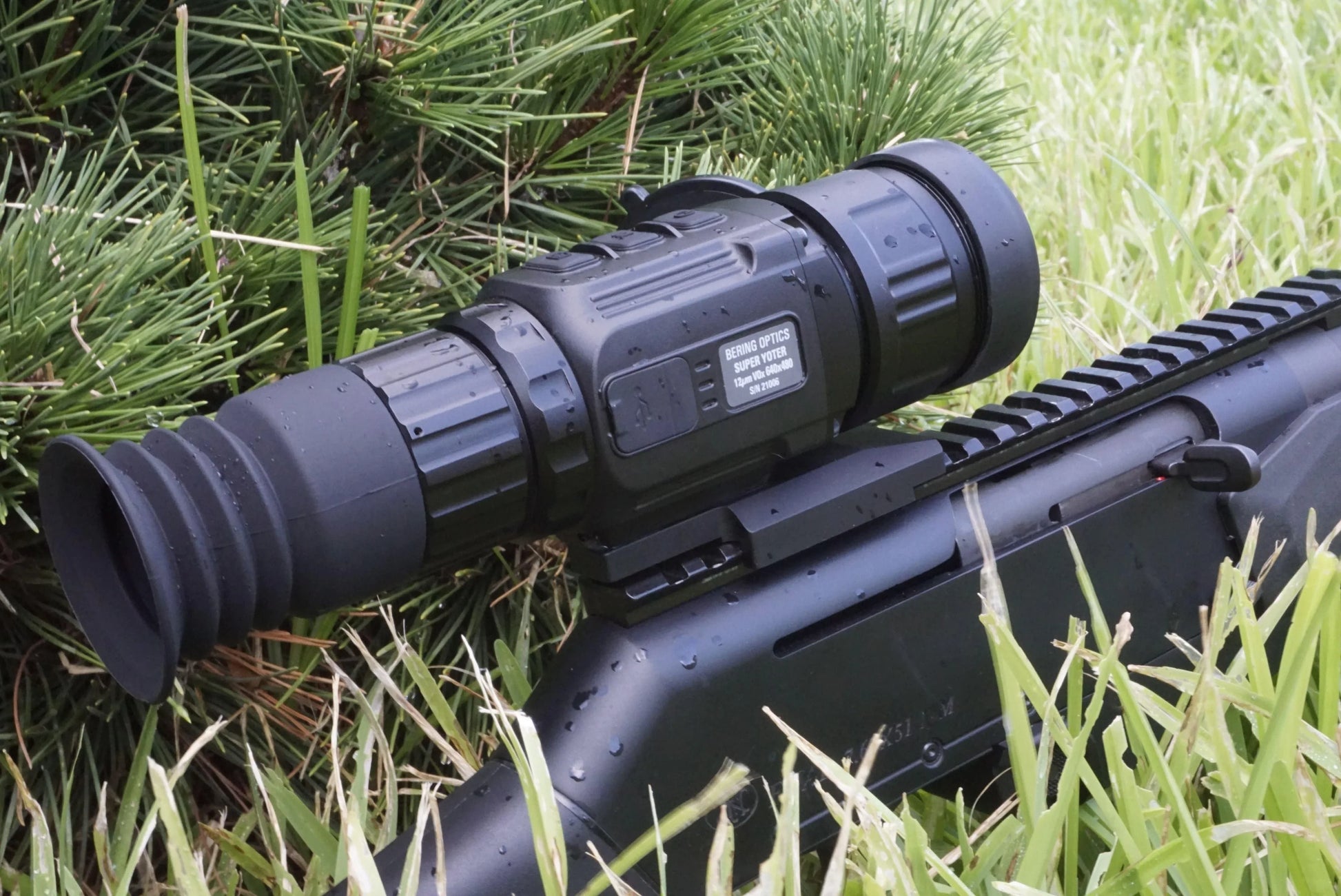

Bering Optics SUPER YOTER-R 1.5-6x25mm Ultra-Compact Thermal Scope 640x480/12um 50Hz w/QD Mount & Onboard Recording, WiFi

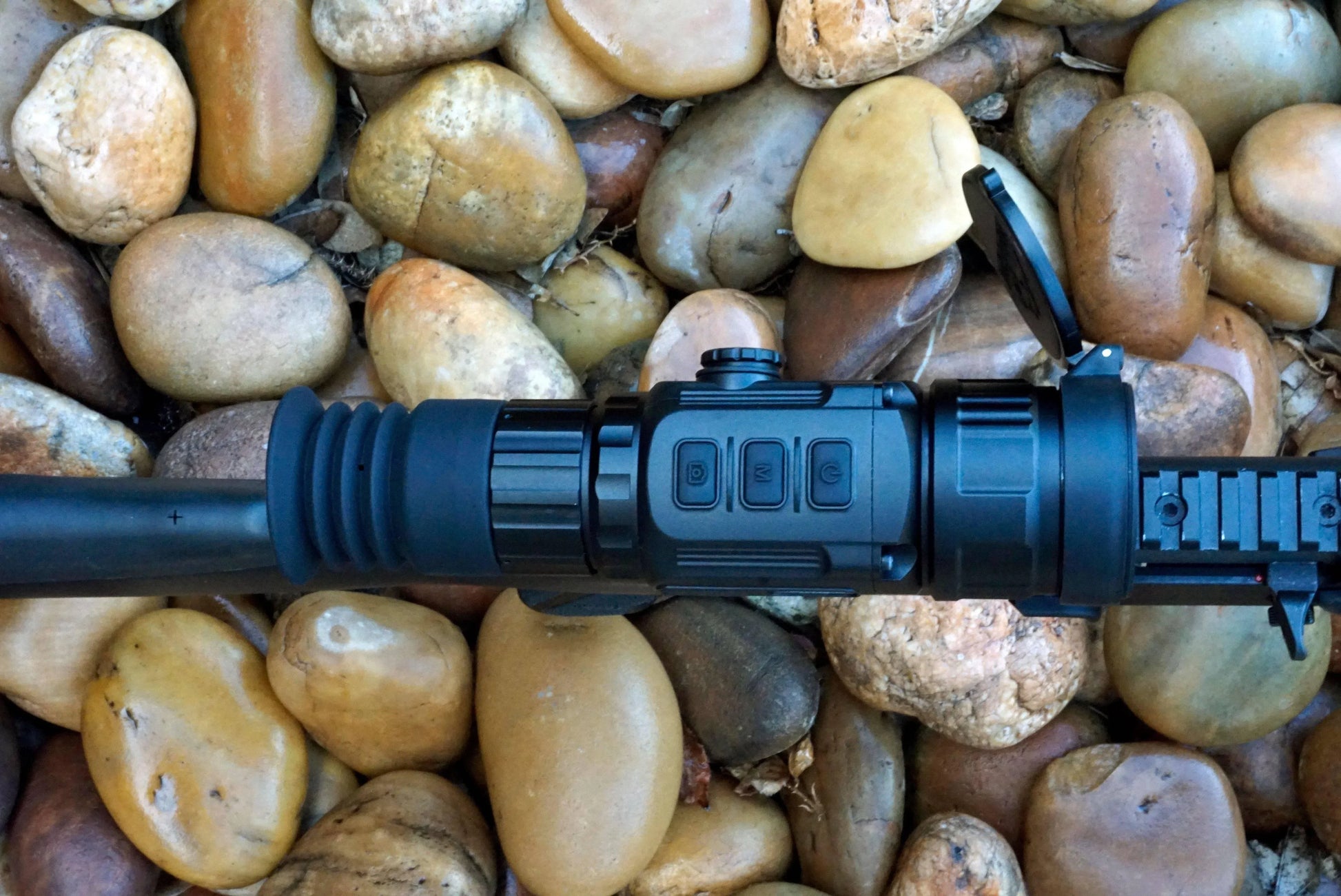

The Bering Optics SUPER YOTER R™ Thermal Weapon Sight is equipped with a 12μm Vanadium Oxide (VOx) 640x480 thermal core resolution and a 50Hz refresh rate, making it an ideal choice for long-range predator control. This thermal scope comes in three configurations: BE46050L with 3.0x native magnification, BE46035/BE46035L with 2.0x native magnification, and BE46025/BE46025L with 1.5x native magnification, each offering 2X and 4X digital zoom. It provides a customizable experience with 8 reticle patterns and 4 color options for each reticle, allowing users to tailor the scope to their preferences. Its simple three-button operation makes selecting options and controlling settings straightforward.
The SUPER YOTER R™ features an adjustable Stradiametric Rangefinder, which can be fine-tuned to the size of the target, enhancing its practical use in the field. It also offers a wide range of image configuration options, background adjustments, and calibration settings. Nitrogen-purged and built to withstand water, dust, and shocks, the scope is shock-tested for powerful calibers like .338 Win Mag and .30-06 Spring Mag, ensuring it performs reliably in tough conditions. Whether in low light or challenging environments with smoke, dust, or haze, the SUPER YOTER R™ excels in any setting.
Bering Optics SUPER YOTER-R 25mm FEATURES:
• Superior for predator control at medium- and long-range distances
• Excellent performer in high humidity conditions
• Picture-in-Picture function- 2X multiplied image on a top of the display
• Automatic shatter based thermal VOx core with Auto- or Manual calibration
• Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot
• 8 reticle patterns including 3 BDC reticles
• 4 color options for each reticle pattern
• Precise W/E adjustment increments is 0.54” at 1X (native magnification) and just 0.14” at 4X multiplied image for the BE46050L model
• Manual control of the image sharpness and screen brightness
• Manual control of the contrast
• Manual control of the image background balance of white (Cool or Warm)
• Ability to save 4 profiles of zeroing calibration data
• Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target’s height
• A precise lens focusing mechanism
• 5V DC external power supply option via a Type-C USB port
• Blind Pixel repair tool
• Standby mode
• Digital Compass
• Inclinometer
• Battery status indicator
• Nitrogen purged
• Video out
• 32Gb internal memory
• Built-in internal recording function in .mp4 (video) and .jpeg (image) formats
• Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)
• Quick-Detach (QD) Picatinny mount (BE46025/BE46035)

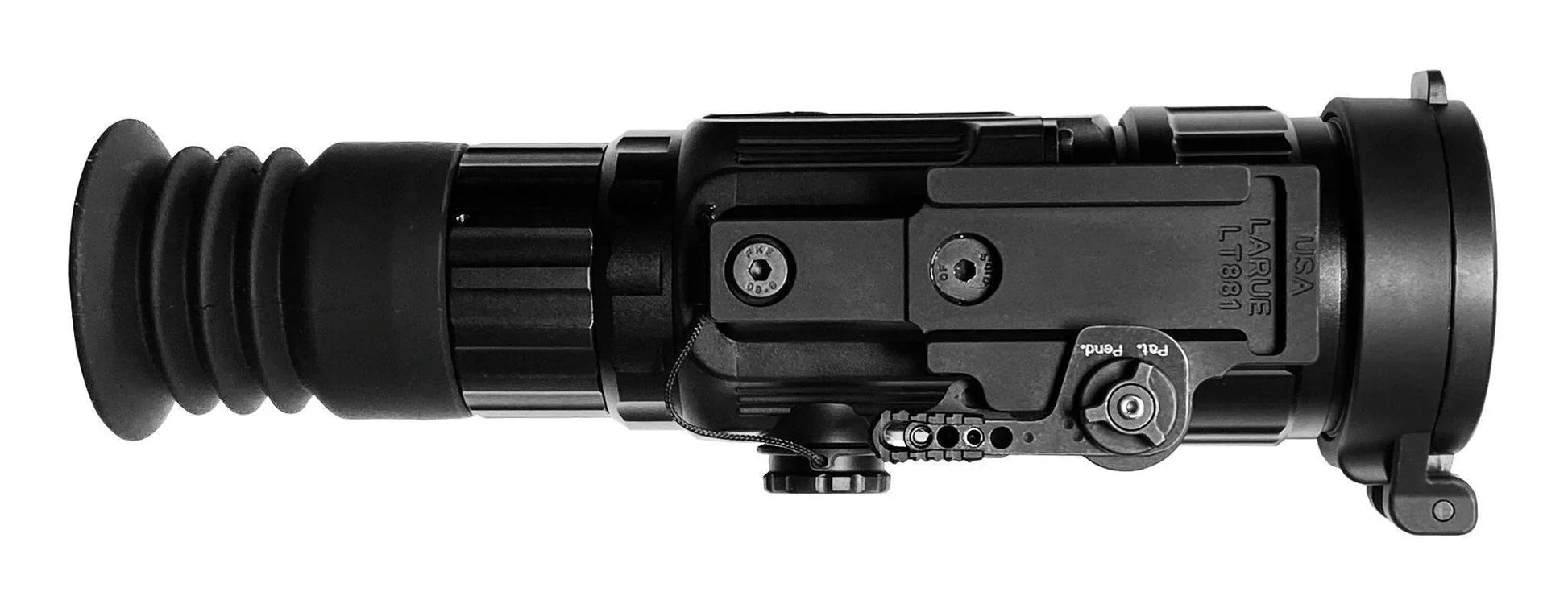

• LaRue Tactical® Quick-Detach (QD) lockable mount (BE46025L/BE46035L/BE46050L)
• 4 years warranty on parts and labor
Bering Optics SUPER YOTER-R 25mm SPECIFICATIONS:
|
Product Modification
|
SUPER YOTER R
|
|
Product SKU#
|
BE46025 / BE46025L
|
BE46035 / BE46035L
|
BE46050L
|
|
Optical Magnification, x
|
1.5x
|
2.0x
|
3.0x
|
|
Digital Multiplication, X
|
2X, 4X
|
|
Objective lens system
|
25mmF/1.0
|
35mmF/1.0
|
50mmF/1.0
|
|
Angular FOV at 1.0x (horizontal x vertical), degree
|
18° x 13°
|
11° x 8°
|
8.5° x 6.4°
|
|
Eye relief, mm
|
46
|
|
Focus range, yard
|
1 to infinity
|
|
Diopter Adjustment, D
|
-5: +5
|
|
1.34” @1X
(1.5x magnification)
|
0.96” @1X
(2.0x magnification)
|
0.54” @1X
(3.0x magnification)
|
|
Core resolution, pxl
|
640x480
|
|
Pixel pitch, μm
|
12
|
|
Image refresh rate, Hz
|
50
|
|
Thermal Sensitivity (NETD), mK
|
≤ 40
|
|
Display type and resolution, pxl
|
OLED 1024x768
|
|
Start-up time, typical, sec.
|
20
|
|
Object type and size, approx., ft² / m²
|
Hog 7.5 / 0.7
|
Coyote 5.5 / 0.5
|
Hog 7.5 / 0.7
|
Coyote 5.5 / 0.5
|
Hog 7.5 / 0.7
|
Coyote
5.5 / 0.5
|
|
Detection, approx., yds / m
|
900 /800
|
700 /630
|
1100 /1000
|
900 /800
|
1650/1500
|
1200/1100
|
|
Recognition, approx., yds / m
|
450 /400
|
350 /325
|
660 /600
|
550 /500
|
990 /900
|
770 /700
|
|
Dimensions with QR mount, approx., in / mm
|
7.5 x 2. 83 x 2. 36 / 190x72x60
|
7.8 x 2. 83 x 2. 36 / 200x72x60
|
8.46 x 3.15 x 2.36 / 215x80x60
|
|
Weight w/out batteries, approx., oz/g
|
17.5 / 497
|
18 / 510
|
20 / 570
|
|
Power supply
|
3V CR123 (two) or 3.7V rechargeable 16650 (two) or
5V DC USB C-type
|
|
Estimated battery life with two Lithium 3V CR123, hour
|
3.5
|
|
Operating temperature, typical, °F/°С
|
4° to +122° / -15° to +50°
|
|
Water intrusion
|
IP66
|
|
Humidity, %
|
up to 98%
|
KIT INCLUDES:
SUPER YOTER R™ 640x480 Thermal Weapon Sight
Standard QD mount or Larue Tactical QD mount
Front lens protective cap
Rubber eye guard
2 CR123 batteries
Type-C USB cable
Soft Carrying Case with a shoulder strap
Lens Cleaning Cloth
Instructions manual
OPTIONAL ACCESSORIES
Focus Ring Cattail by ZRTS (BE80980) for HOGSTER VIBE with 35mm Lens (BE43335 / BE43335L)
Tactical Rubber Eye Guard (BE80030)
Extended Battery Cap (BE80008)
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
