SKU:DFOV4-T265-C10
Couldn't load pickup availability

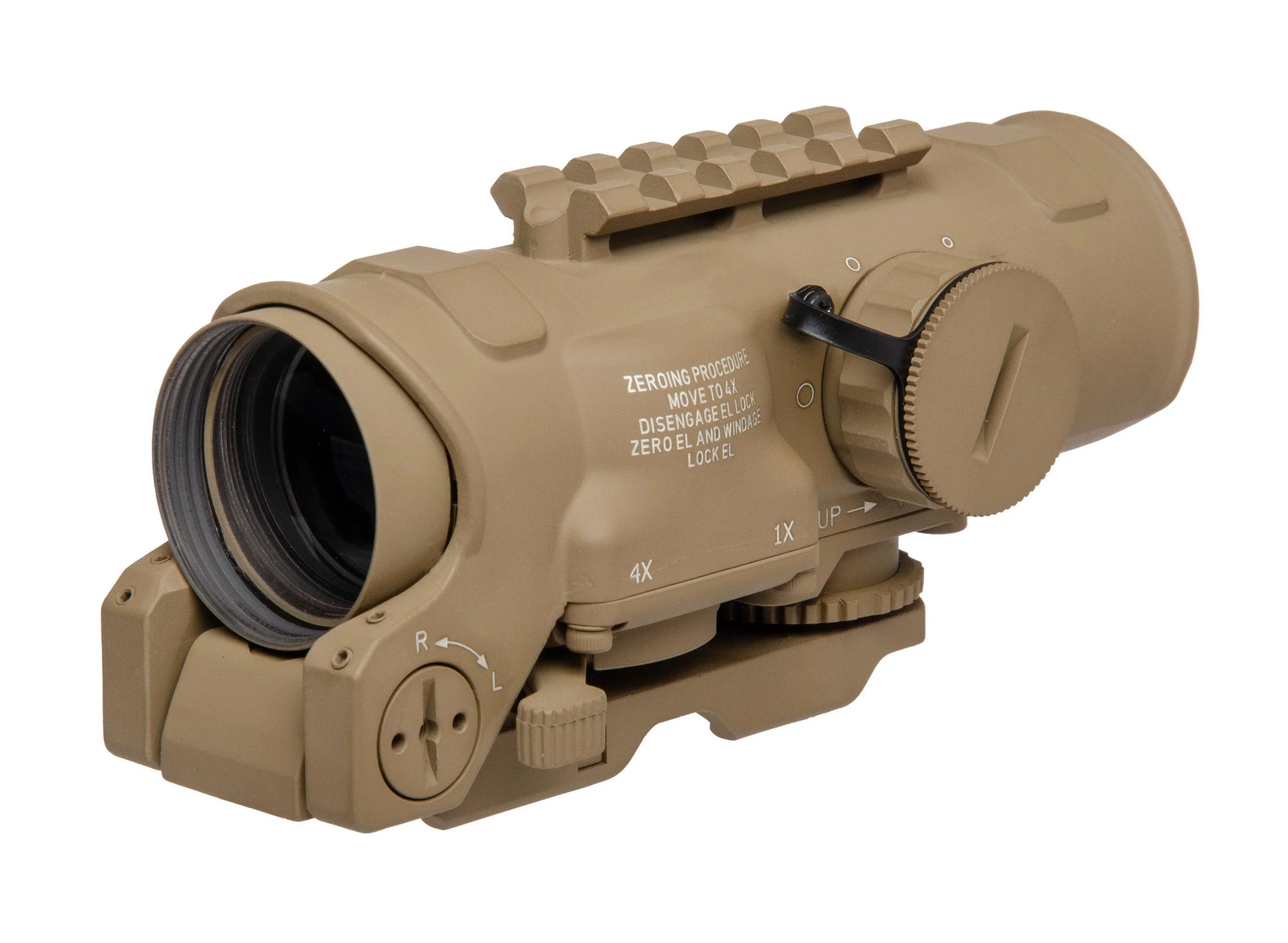

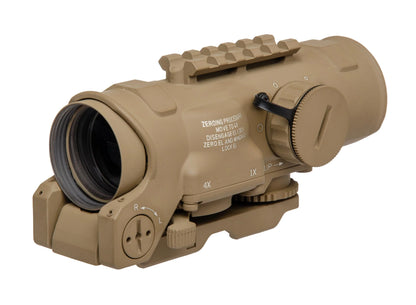

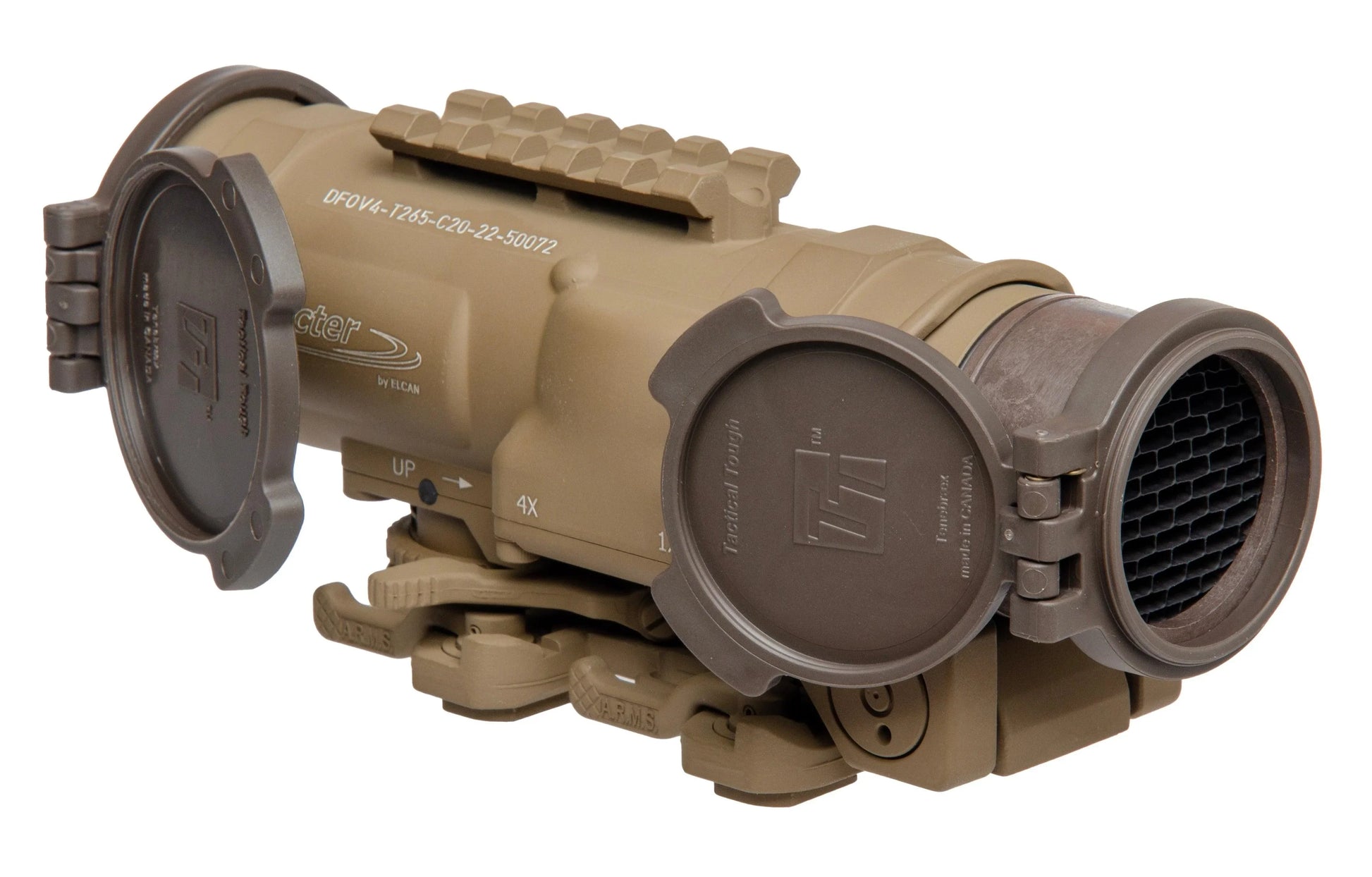

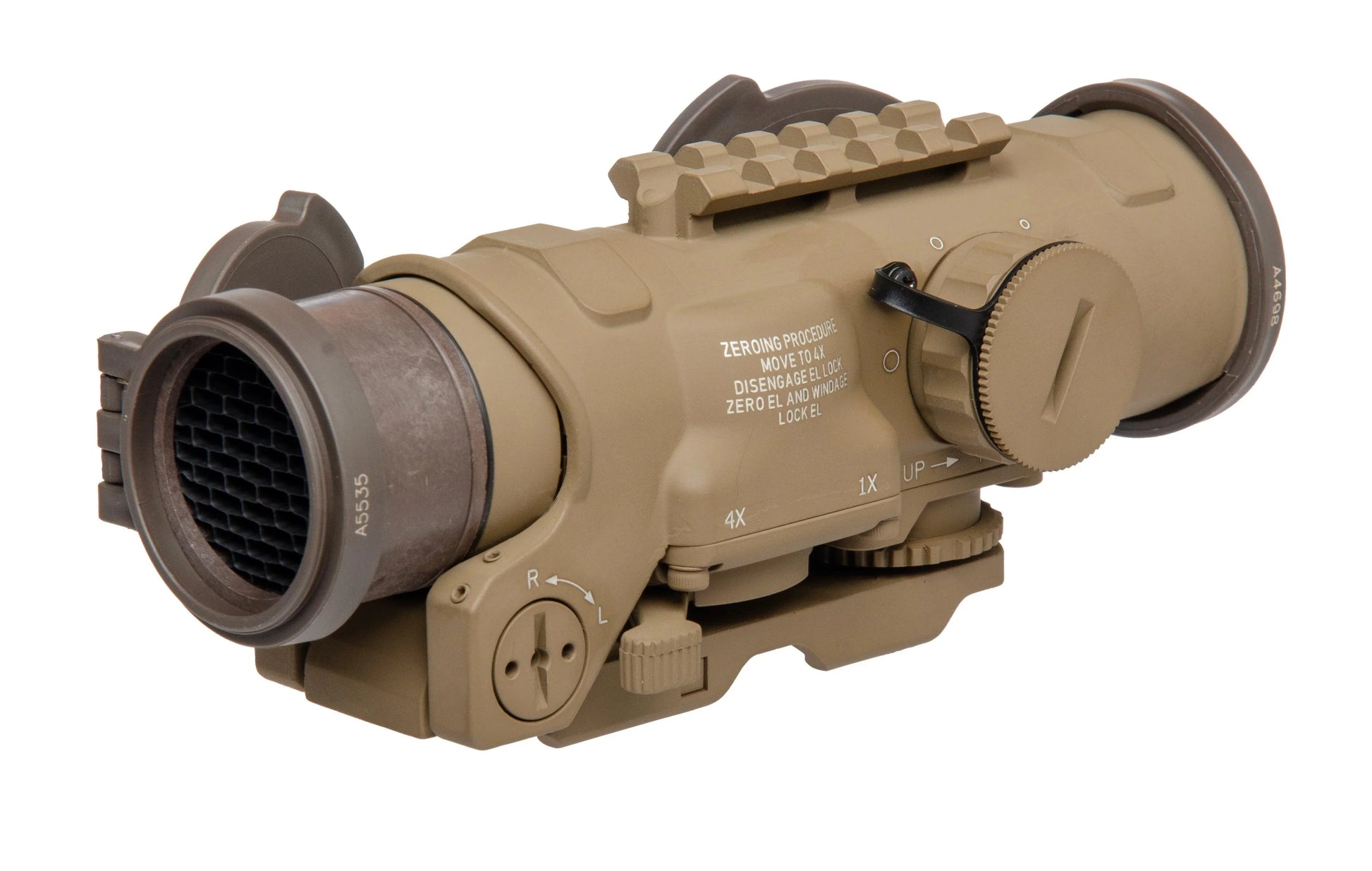

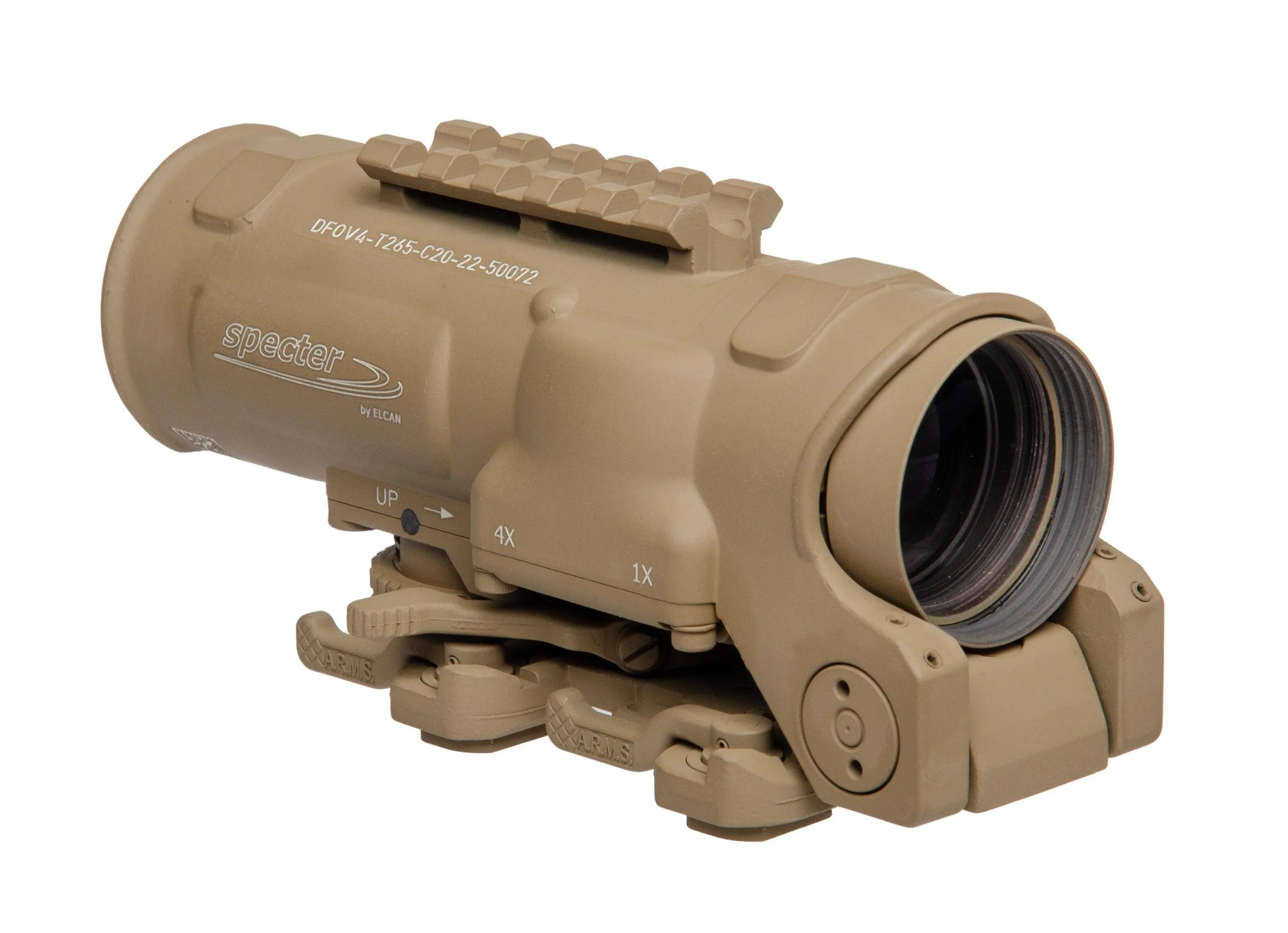

The ELCAN SpecterDR 1x/4x is a cutting-edge dual-role optical sight designed with integrated Picatinny rails, ambidextrous magnification throw levers, enhanced battery covers, and durable CERAKOTE® performance finishes in Black or Flat Dark Earth (FDE).
As the world’s first true dual-field-of-view combat optical sight, the SpecterDR 1-4x allows users to switch seamlessly from a 4x magnified sight to a 1x CQB sight with a simple throw of a lever. Unlike traditional zoom optics, it offers an optimized optical path and maintains identical eye relief in both magnification modes.
Users can choose between illuminating the full crosshair or just a bright red dot in the center, depending on the scenario. In 1x mode, the SpecterDR boasts the largest field of view in the industry for close-quarter engagements. In 4x mode, it provides a generous field of view, long eye relief, and the ELCAN reputation for crystal-clear image quality.
Designed to meet the demands of modern professional use, the SpecterDR 1-4x is the ultimate single solution for both medium-range and CQB engagements.

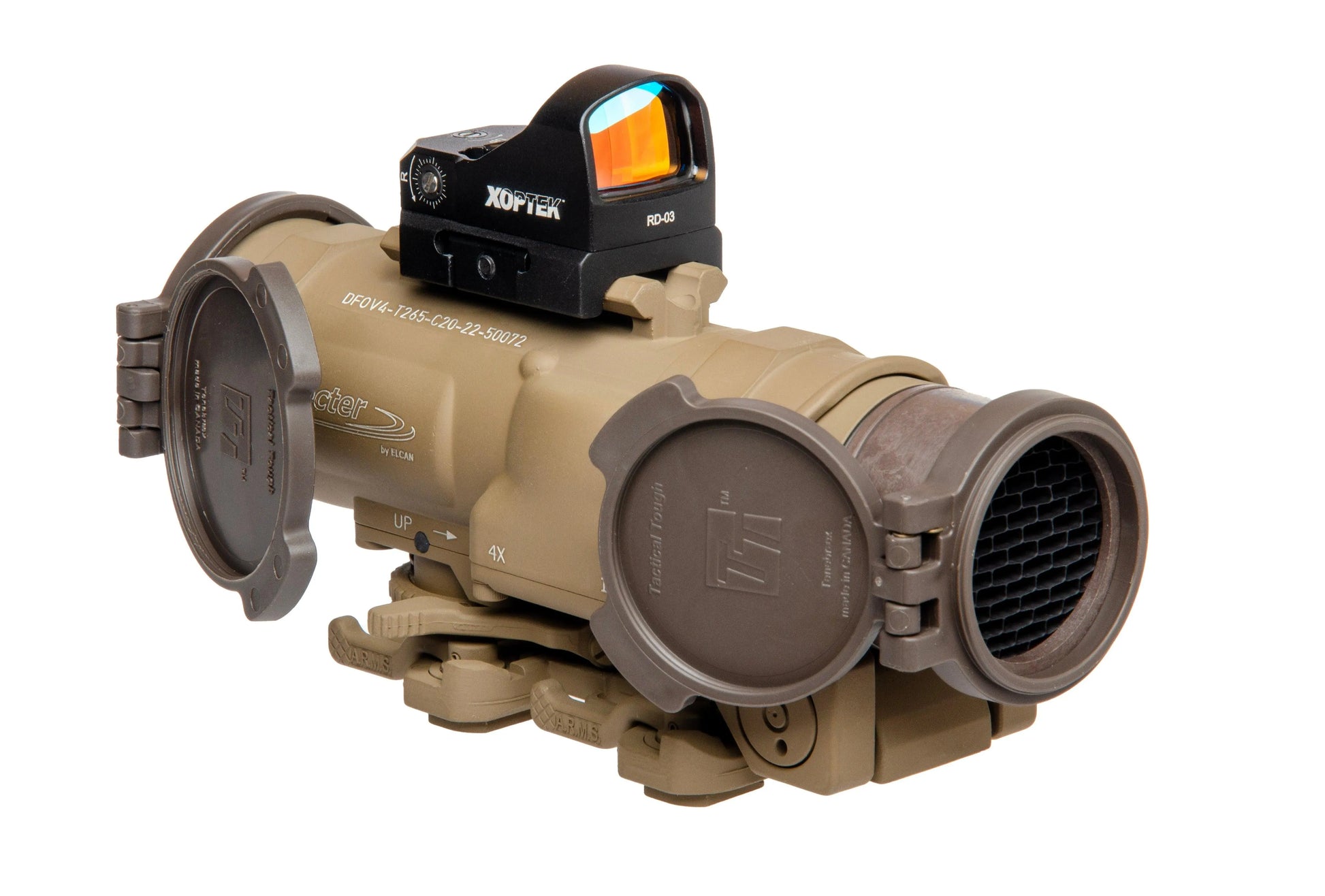

Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1-4. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
ELCAN SpecterDR Specifications:
Feature |
Specification |
Magnification |
4x / 1x |
Length |
153mm nominal |
Width |
68mm nominal |
Height |
72mm nominal |
Weight |
655g nominal |
Reticle |
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
Aiming Dot diameter |
1.5 MoA @ 4x, 6 MoA @ 1x |
Ballistic correction: |
Dual-thickness ballistic crosshair with user-selectable red dot, VSOR rangefinder, and area fire circles. |
DFOV14-C1: |

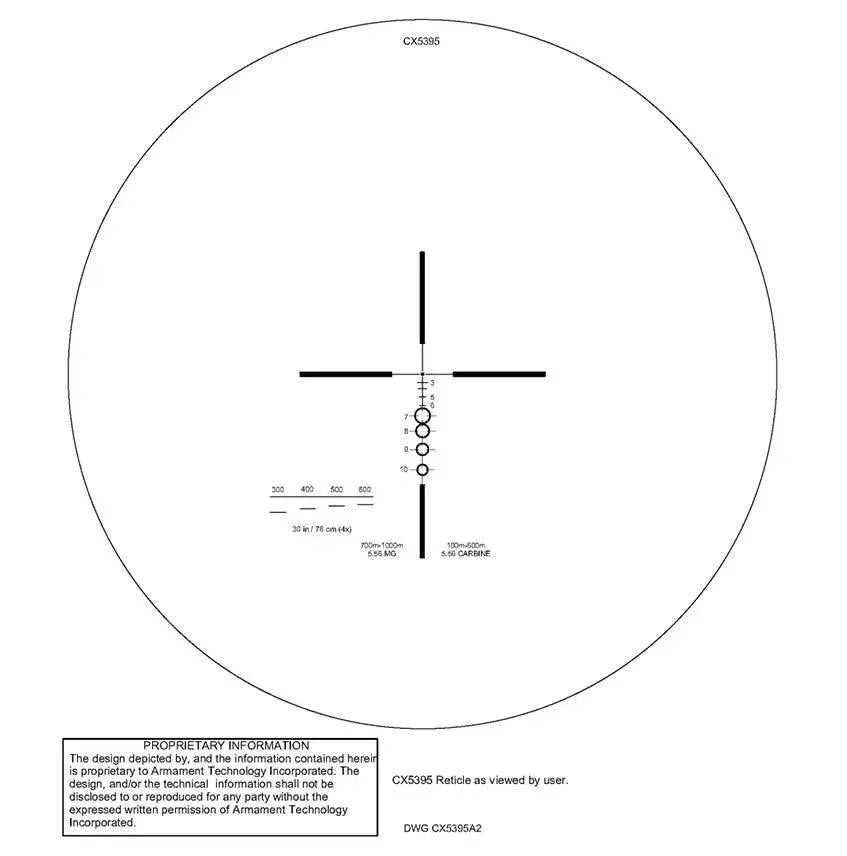

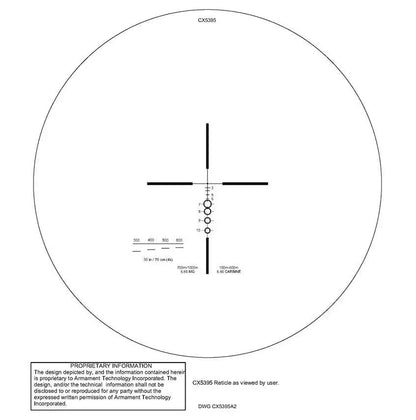

CX5395 reticle: 100-600m for 5.56 carbine,700-1000m for 5.56mm LMG |
DFOV14-C2: |
CX5396 reticle: 100-600m for 7.62 rifle, 700-1000m for 7.62mm LMG |
CQB offset |
<44mm @ 60m |
Field of View |
26 deg @ 1x, 6.5 deg @ 4x |
FoV @4x |
11.4 m @ 100 m (34.2 ft @ 100 yds) |
FoV @1x |
48.8 m @ 100 m (146.3 ft @ 100 yds) |
Illumination source |
Battery-powered LED |
Crosshair illumination |
5 settings, AN/PVS-22 compatible |
Red Dot illumination |
5 settings, AN/PVS-22 compatible |
Eye Relief |
70mm |
Entrance pupil |
32mm |
Exit pupil |
8mm |
Nominal focus |
150m @ 4x, 70m @ 1x |
Fixed focus range |
20m to infinity |
Battery type |
CR2032 (3v Lithium) |
Battery life |
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting |
Exterior finish |
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE) |
Adjustment resolution |
0.5 minute of angle |
Adjustment range |
120 minutes of angle |
Base requirement |
Mil-Std-1913 ‘Picatinny Rail’ |
Attachment |
A.R.M.S. Levers |
Shockproof: |
450 g’s |
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
