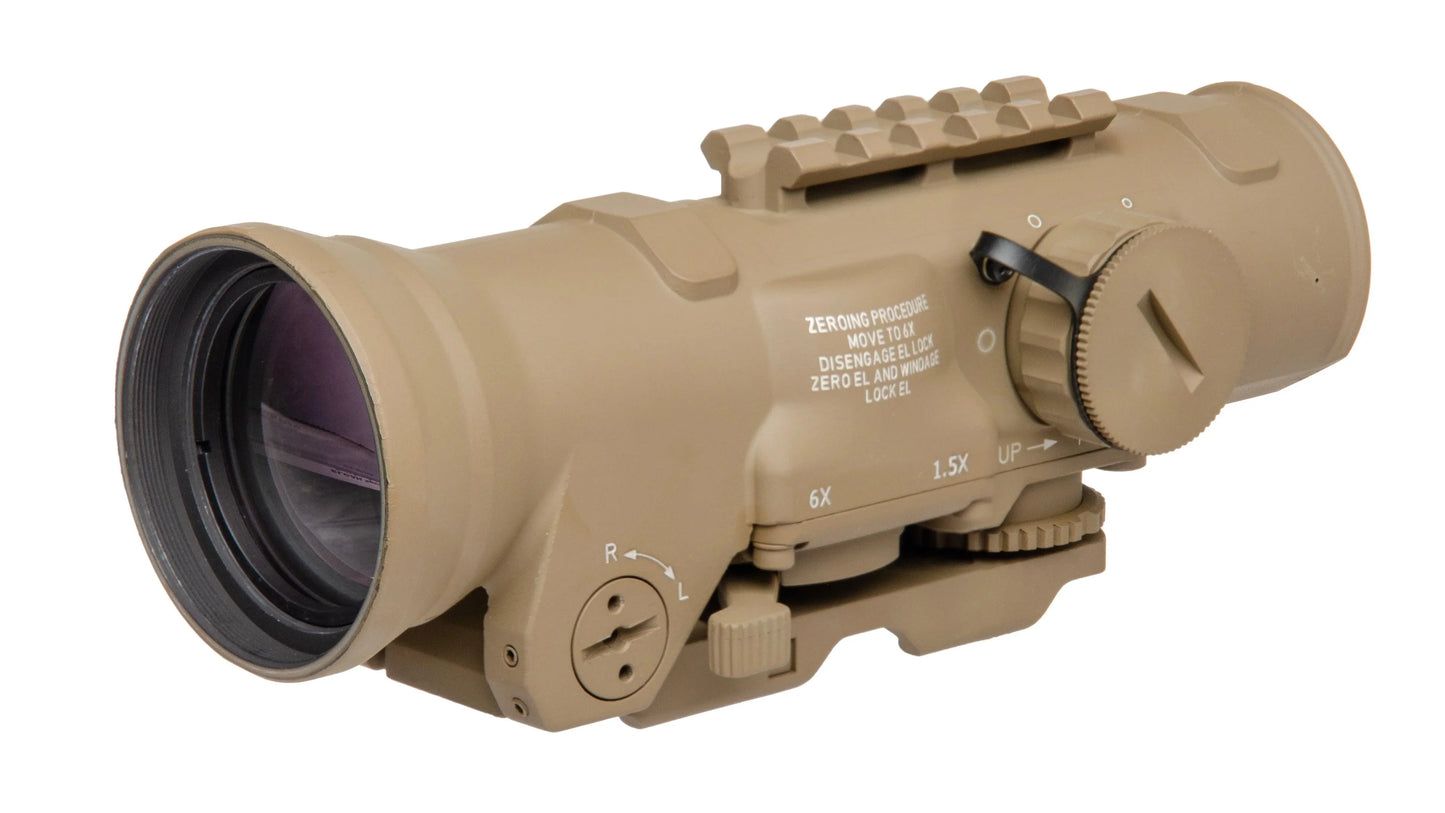

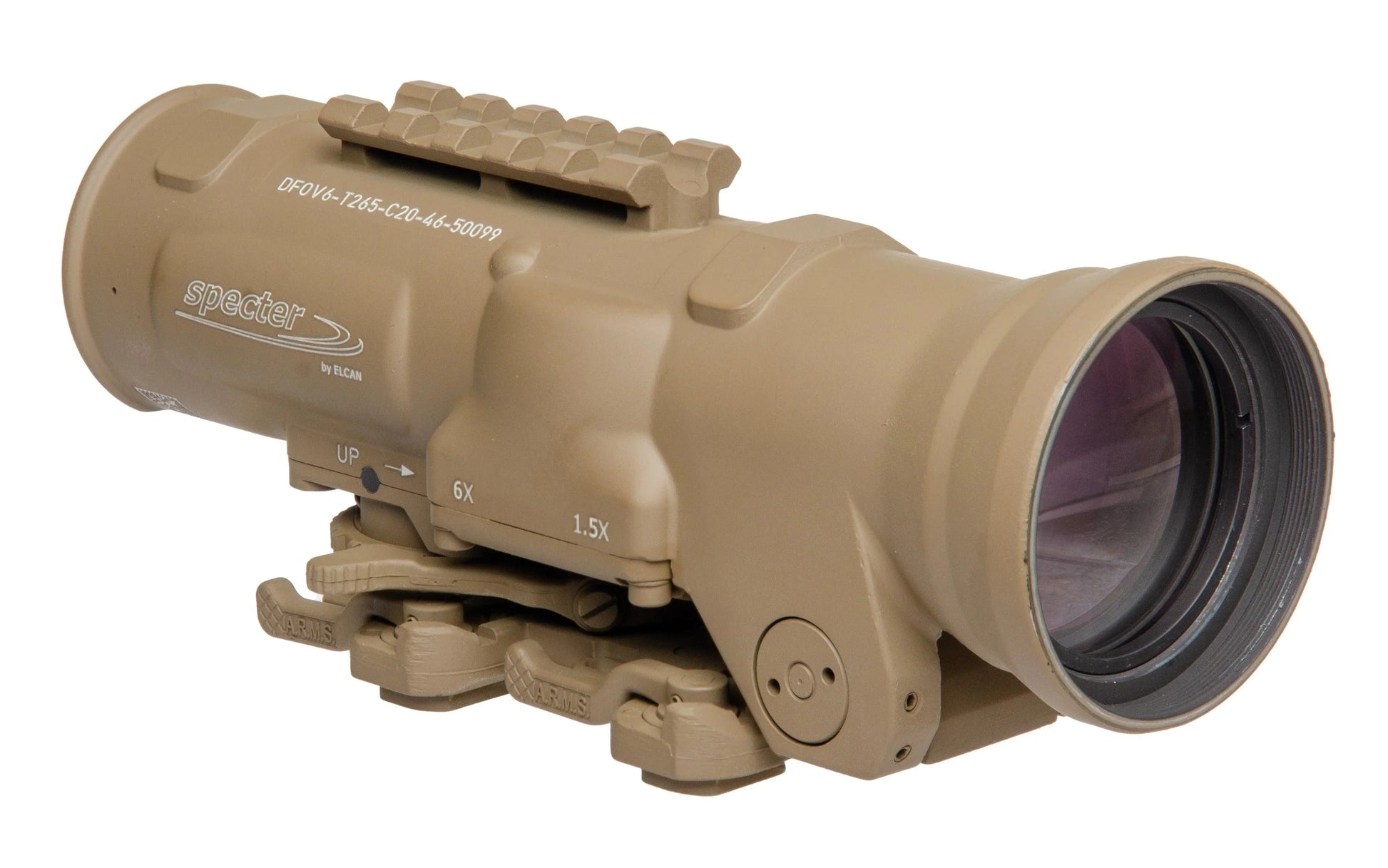

ELCAN SpecterDR Rifle Scope 1.5-6X TAN (7.62) CX5456 Reticle, ARMS Mnt, ARD, FC DFOV6-T265-C20
The ELCAN SpecterDR 1x/4x is a revolutionary dual-role optical sight that comes equipped with integrated Picatinny rails, ambidextrous magnification throw levers, enhanced battery covers, and durable CERAKOTE® finishes in Black or Flat Dark Earth (FDE).
As the world’s first true dual field-of-view combat optical sight, the SpecterDR 1-4x seamlessly switches from a 4x magnified sight to a 1x CQB sight with a simple throw of a lever. Unlike traditional zoom optics, it maintains an optimized optical path and provides identical eye relief in both magnifications.
The user can choose to illuminate either the full crosshair or just a brilliant red dot in the center, depending on the situation. In 1x mode, the SpecterDR offers the largest field of view in the industry for close-quarter engagements, while in 4x mode, it provides a generous field of view, long eye relief, and ELCAN’s legendary crystal-clear image quality.
The SpecterDR 1-4x is the ideal single solution for both medium-range and CQB scenarios, built to endure the demands of modern professional use.
Optional XOPTEK™ Micro Reflex Sight
Now add the XOPTEK™ Micro Reflex Sight as an included option on your SpecterDR 1x/4x. The XOPTEK™ Micro Reflex Sight is designed as a lightweight rapid aiming device for pistols and carbines and as an auxiliary sight for long-range magnified optical sights. In operation, the sight projects a brilliantly illuminated red dot into the user's field of view to act as a precise aiming point for close to mid-range targets.
The SpecterDR family offers the best single solution for Long Range and CQB engagements and is designed to withstand the rigors of modern professional use.
ELCAN SpecterDR Specifications:
|
Feature
|
Specification
|
|
Magnification
|
6x / 1.5x
|
|
Length
|
183mm nominal
|
|
Width
|
69mm nominal
|
|
Height
|
73mm nominal
|
|
Weight
|
715g nominal
|
|

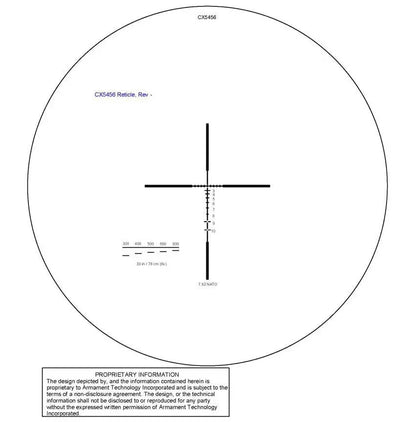

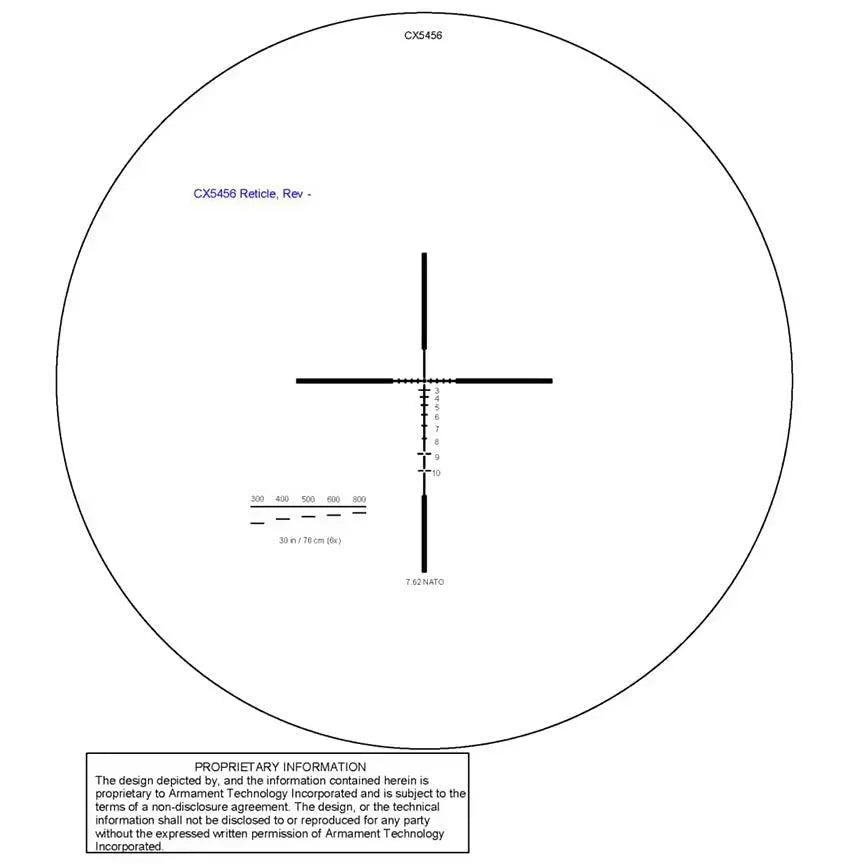

Reticle
|
Dual-thickness ballistic crosshair with user-selectable red dot and VSOR rangefinder
|
|
Aiming Dot diameter
|
1.5 MoA @ 6x, 6 MoA @ 1.5x
|
|
Ballistic correction:
|
|
|
DFOV156-C1:
|
CX5455 reticle: 100-1000m for 5.56 NATO
|
|
DFOV156-C2:
|
CX5456 reticle: 100-1000m for 7.62 NATO
|
|
CQB offset
|
<44mm @ 60m
|
|
Field of View
|
16 deg @ 1.5x, 4 deg @ 6x
|
|
FoV @ 6x
|
7 m @ 100 m (21 ft @ 100 yds)
|
|
FoV @ 1.5x
|
28.7 m @ 100 m (86 ft @ 100 yds)
|
|
Illumination source
|
Battery-powered LED
|
|
Crosshair illumination
|
5 settings, AN/PVS-22 night vision compatible
|
|
Red Dot illumination
|
5 settings, AN/PVS-22 night vision compatible
|
|
Eye Relief
|
70 mm
|
|
Entrance pupil
|
42mm
|
|
Exit pupil
|
7mm
|
|
Nominal focus
|
300m @ 6x, 105m @ 1.5x
|
|
Fixed focus range
|
20m to infinity
|
|
Battery type
|
CR2032 (3v Lithium)
|
|
Battery life
|
382hrs on max RD/reticle setting, 1730hrs on second highest RD setting, 1208 hrs on second highest reticle setting
|
|
Exterior finish
|
CERAKOTE® performance finish in Black or Flat Dark Earth (FDE)
|
|
Adjustment resolution
|
0.5 minute of angle
|
|
Adjustment range
|
120 minutes of angle
|
|
Base requirement
|
Mil-Std-1913 ?Picatinny Rail? (Weaver compatible)
|
|
Attachment
|
ARMS Levers
|
|
Shockproof:
|
450 g's
|
|
Available accessorys
|

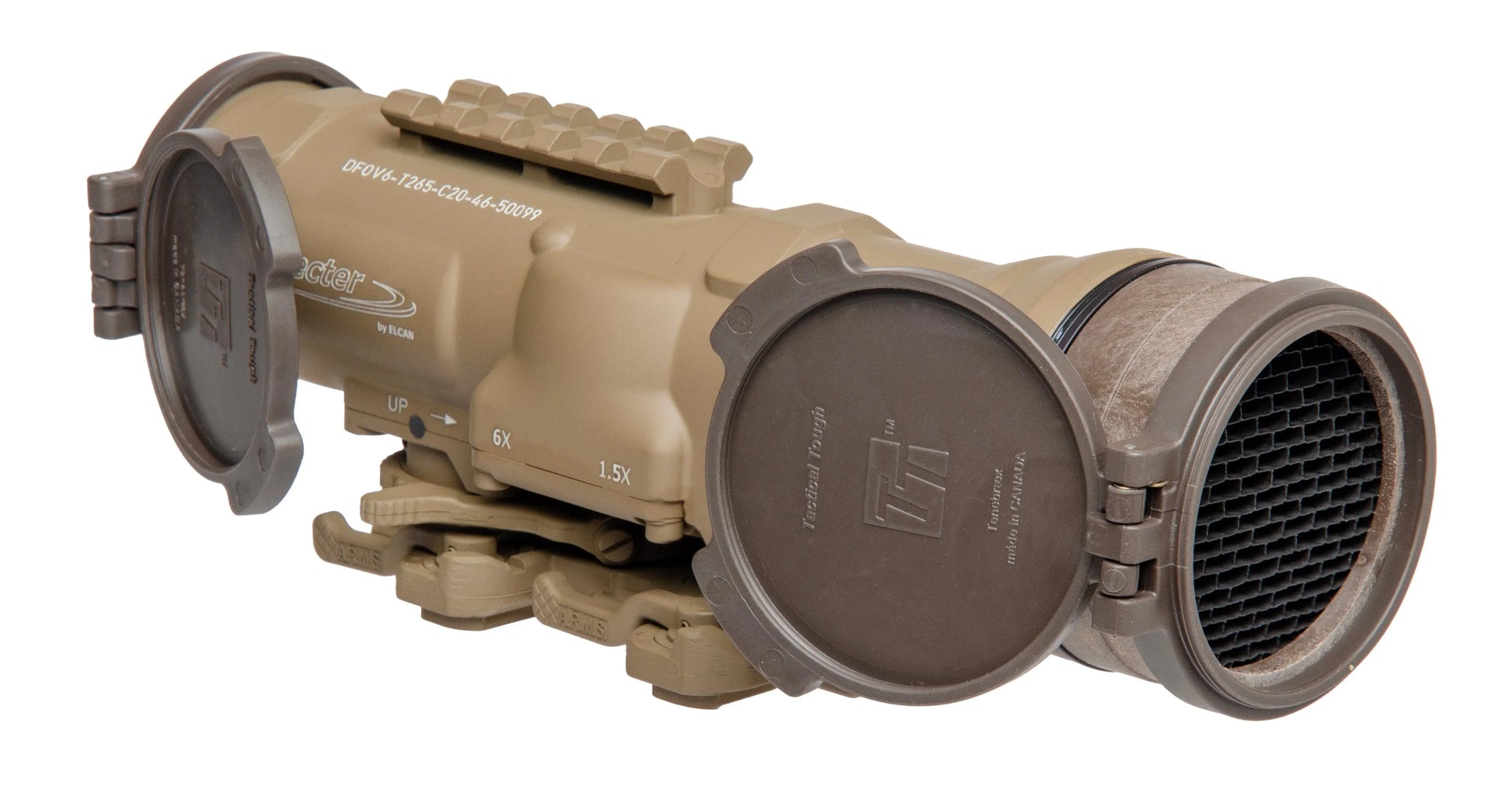

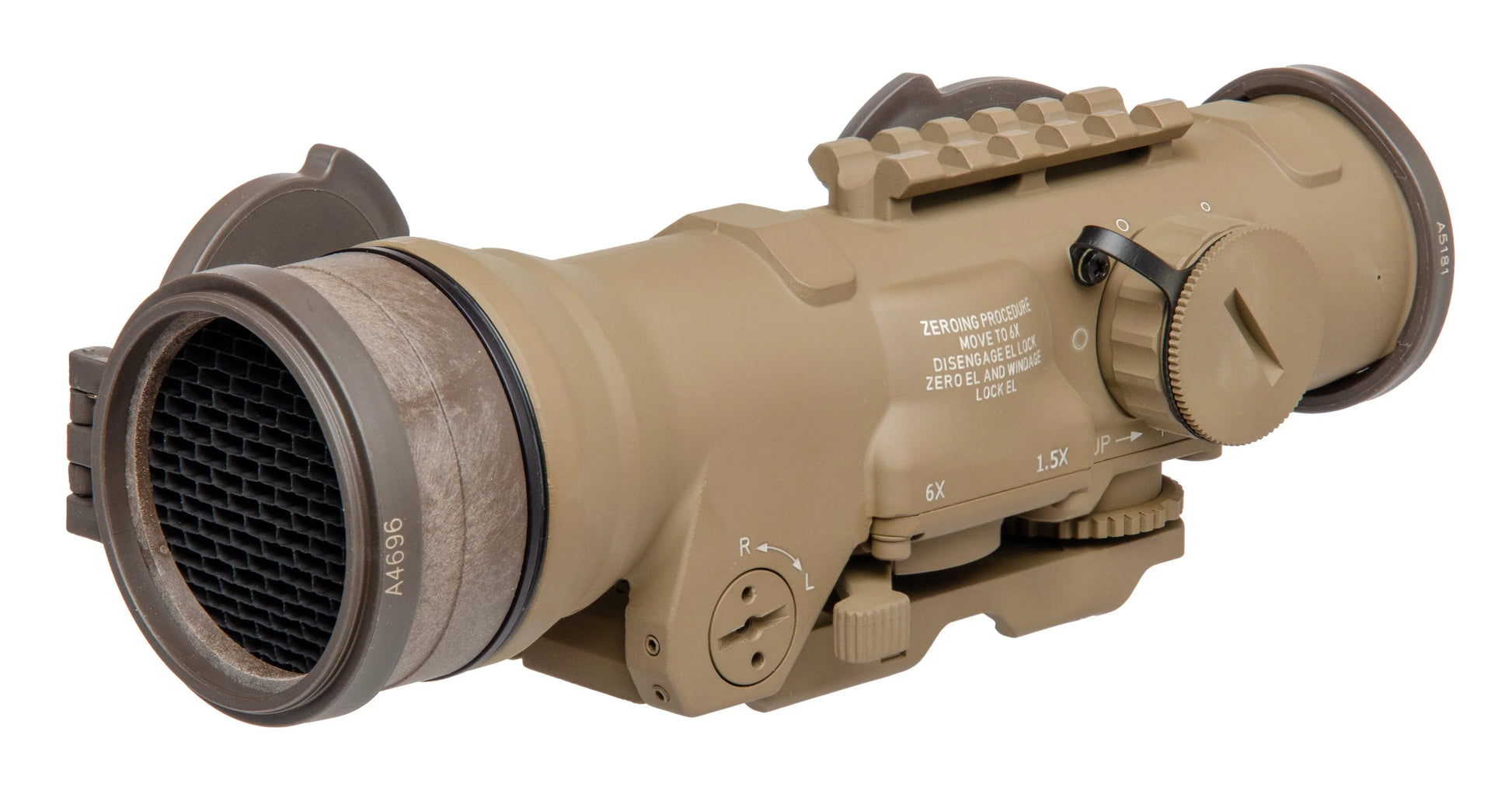

ARD (Anti-Reflection Device) Flip Covers
|
