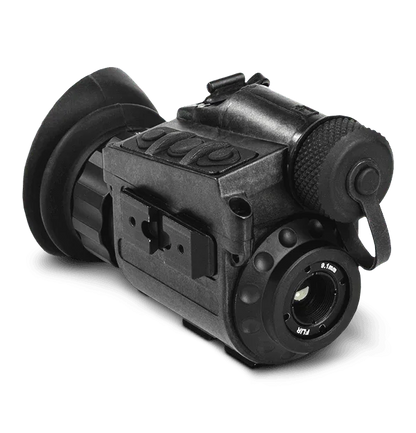

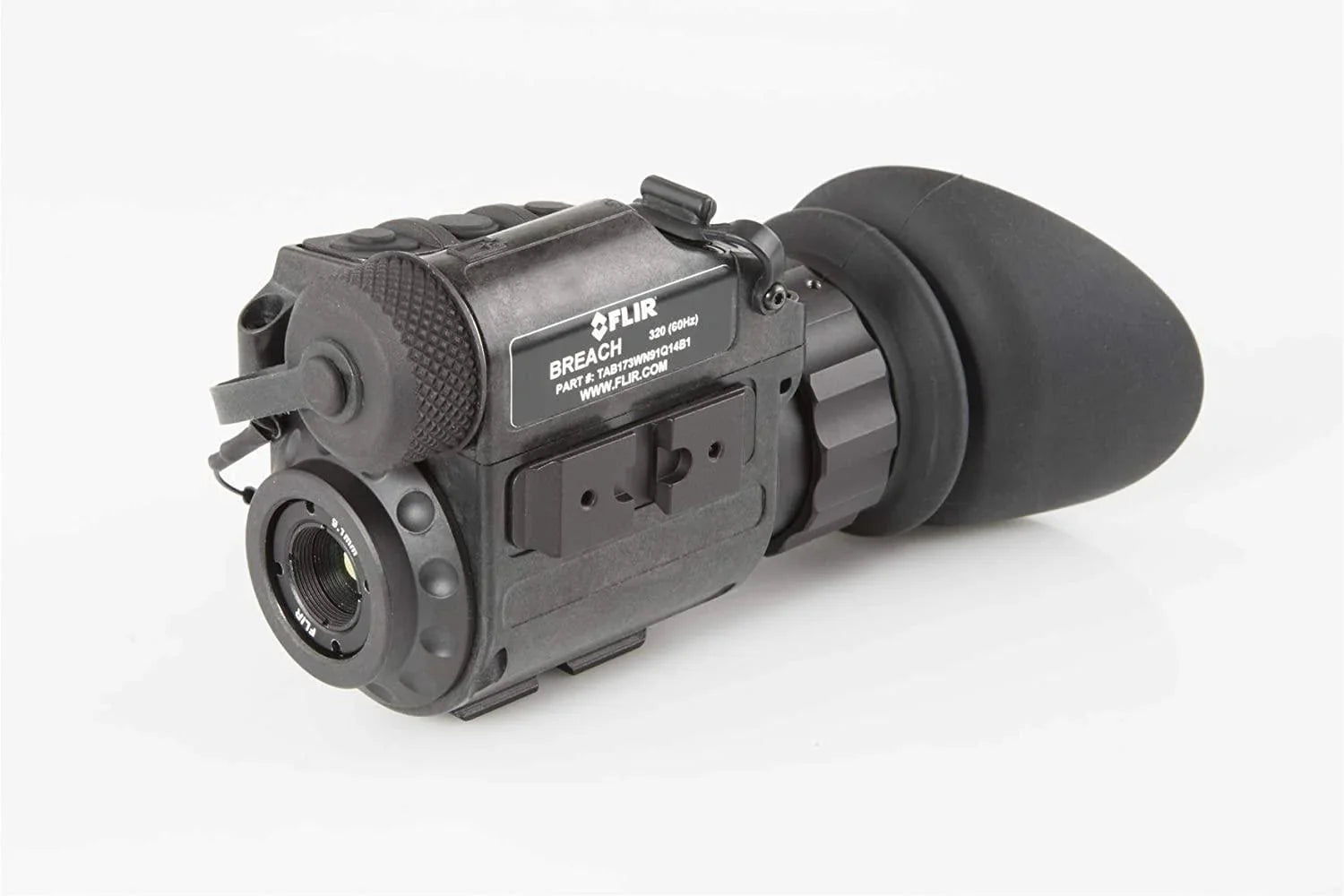

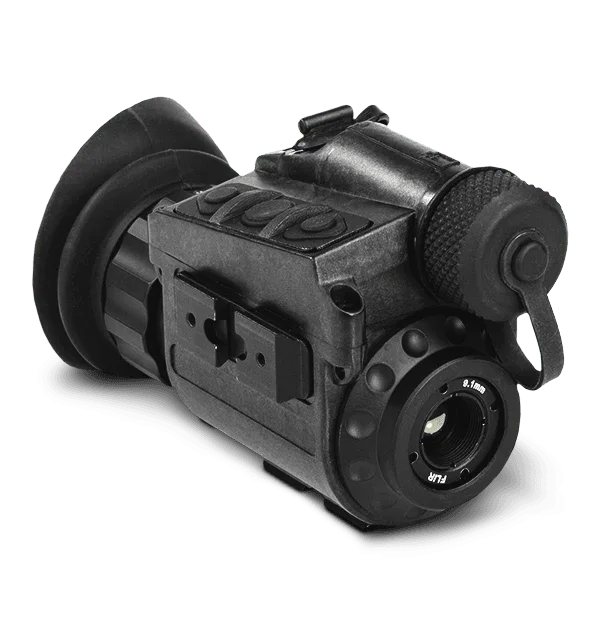

FLIR Breach PTQ136 320 Thermal Multi-Purpose Monocular

FLIR Breach PTQ136 Thermal Imaging Multi-Purpose Monocular, FLIR Boson 320x256 (12μm) 60Hz Core



The FLIR Breach PTQ136 Thermal Multi-Purpose Monocular is specifically engineered to meet the rigorous demands of law enforcement. Powered by the FLIR Boson core and weighing just 7.4 ounces (210 grams), this ultra-lightweight device offers enhanced tactical capabilities and portability. Its mini-rail feature allows for easy helmet mounting, making it ideal for hands-free use in dynamic situations. With onboard recording and seven color palettes, the FLIR Breach PTQ136 simplifies suspect and evidence identification in any lighting condition.



EXCEPTIONAL VISION

• • The advanced image processing of the internal FLIR Boson thermal core and a bright high definition display create excellent image clarity and provide better detection and classification, day or night

CONVENIENT HANDS-FREE OPERATION

• • For hands-free operation, Breach PTQ136 has multiple mini-rail mounting points designed to allow for a wide variety of head mounts, helmet mounts, and to install additional equipment.

SUPERIOR VALUE

• • Document operations with on-board video recording and image capture. Choose from multiple palettes to perfect viewing during varied situations. Enhance situational awareness with a digital compass/inclinometer





FLIR Breach PTQ136 SPECIFICATION

Internal Memory

Up to 1,000 images and 2.5 hours of video on internal memory

Battery Life (Operating)

Up to 90 minutes at 20°C

Refresh Rate

60 Hz

SENSOR & OPTICAL

Detector Type

320 × 256 VOx Microbolometer

Diopter Adjustment Range

-5 to +5 dpt

Eye Relief

16 mm

Field of View [H x V]

24° × 19°

Image Processing

FLIR Proprietary Digital Detail Enhancement™

Lens System

9.1 mm; F/1.04

Optical Magnification

1×

Refresh Rate

60 Hz

Start up

< 1.5 seconds

ENVIRONMENTAL & APPROVALS

Operating Temperature Range

-20°C to +50°C (-4°F to +122°F)

Storage Temperature Range

-40°C to +60°C (-40°F to +140°F)

POWER

Battery Life (Operating)

Up to 90 minutes at 20°C

Battery Type

One CR123A 3V Lithium battery

FILE STORAGE & COMMUNICATION

Internal Memory

Up to 1,000 images and 2.5 hours of video on internal memory

Video Output

Digital Video

UI-UX

Control Panel Buttons

Configures Operational Settings: Unit On/ Off, Display Brightness Control, Image Palette Control, Digital Zoom Control, On-Screen Menu Navigation, NUC.

Display

Quad-VGA (1280 × 960) FLCOS

SYSTEM OVERVIEW

Digital Zoom

1× - 4× continuous

Package Includes

Thermal Monocular, CR123A Battery, Lens Cloth

Size

139 × 70 × 49 mm (5.5 × 2.7 × 1.9 in)

Warranty

2 years standard, 3 years with product registration

PHYSICAL

Weight

210 g (0.46 lbs)



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
