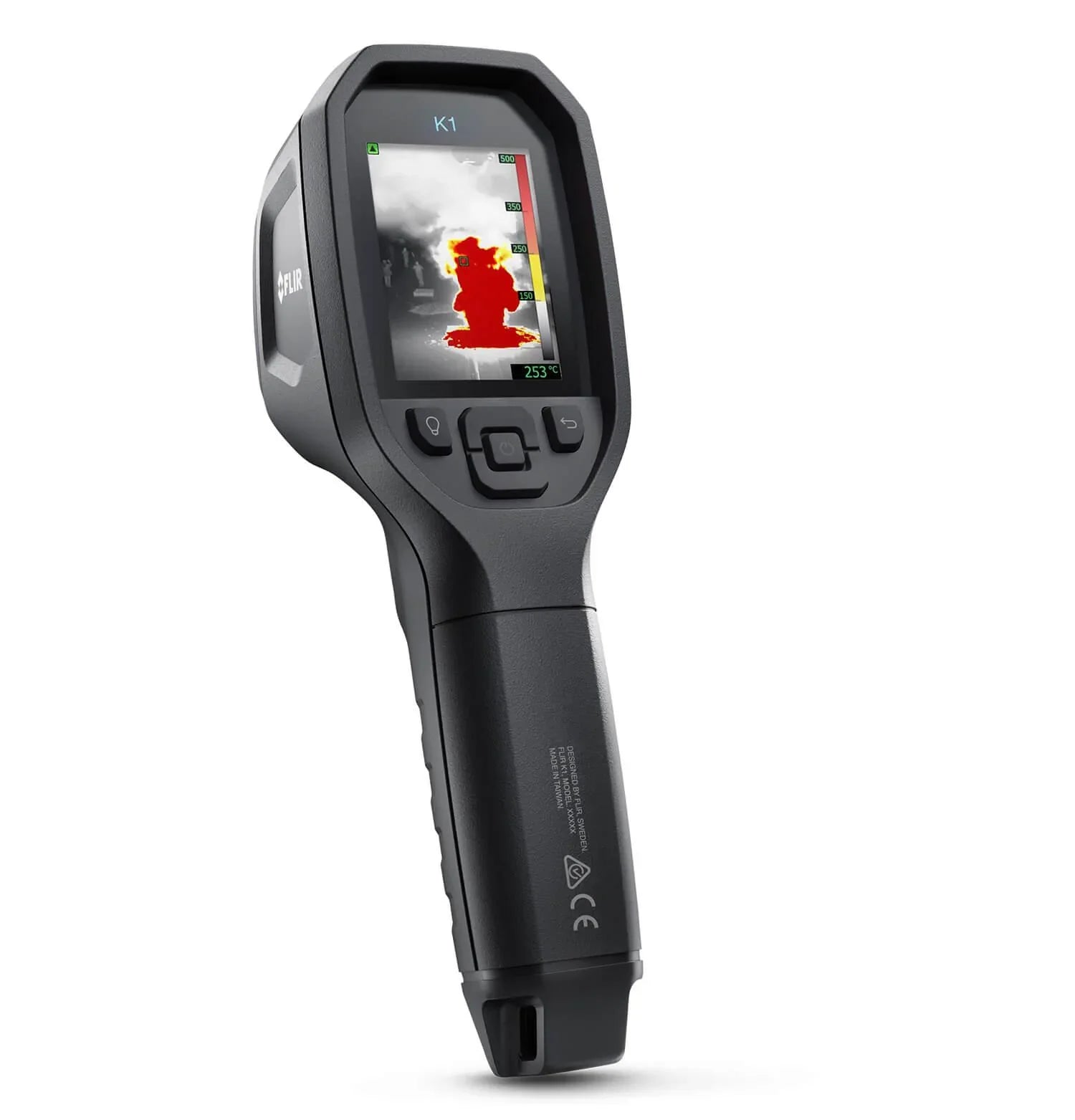

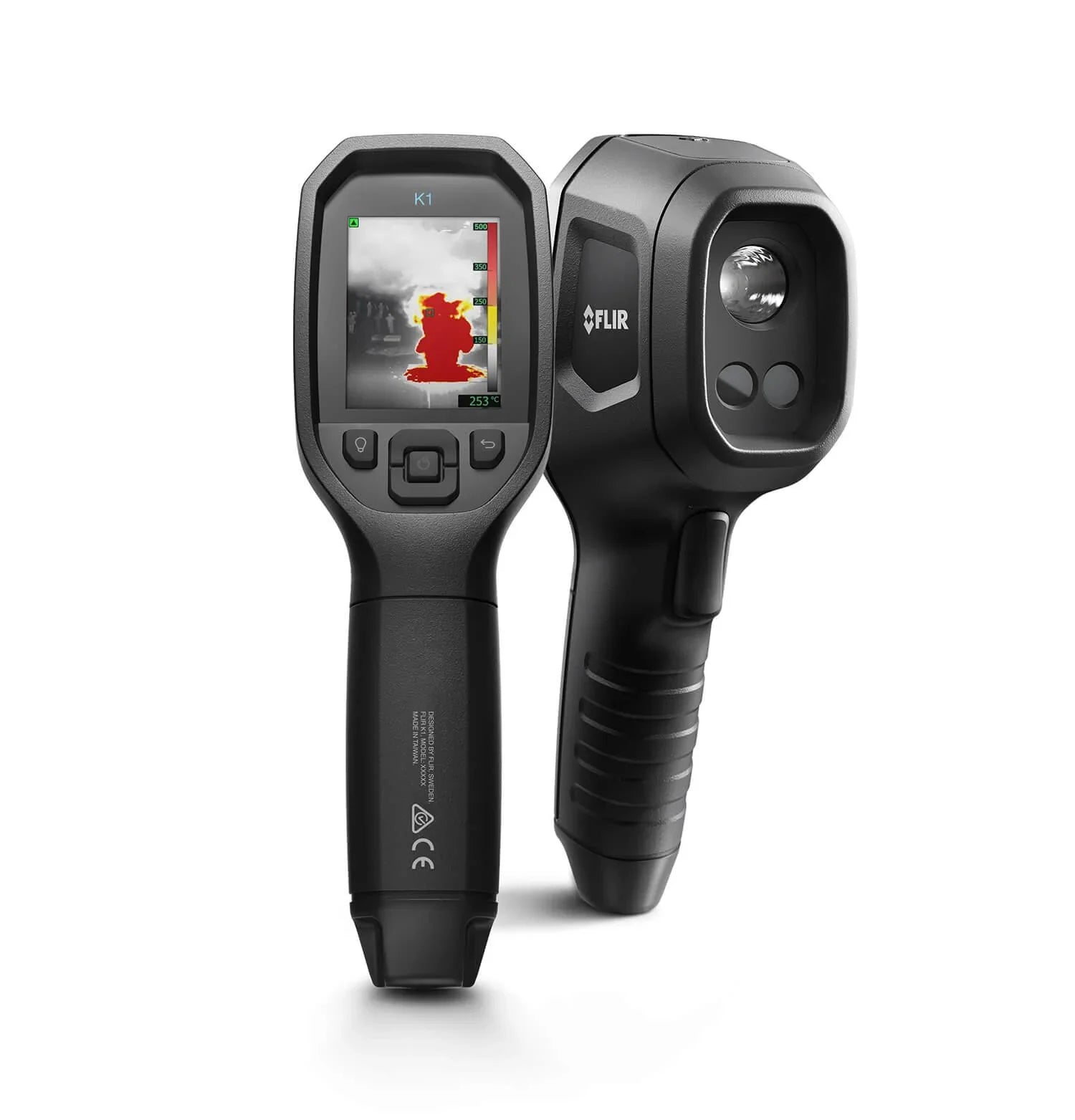

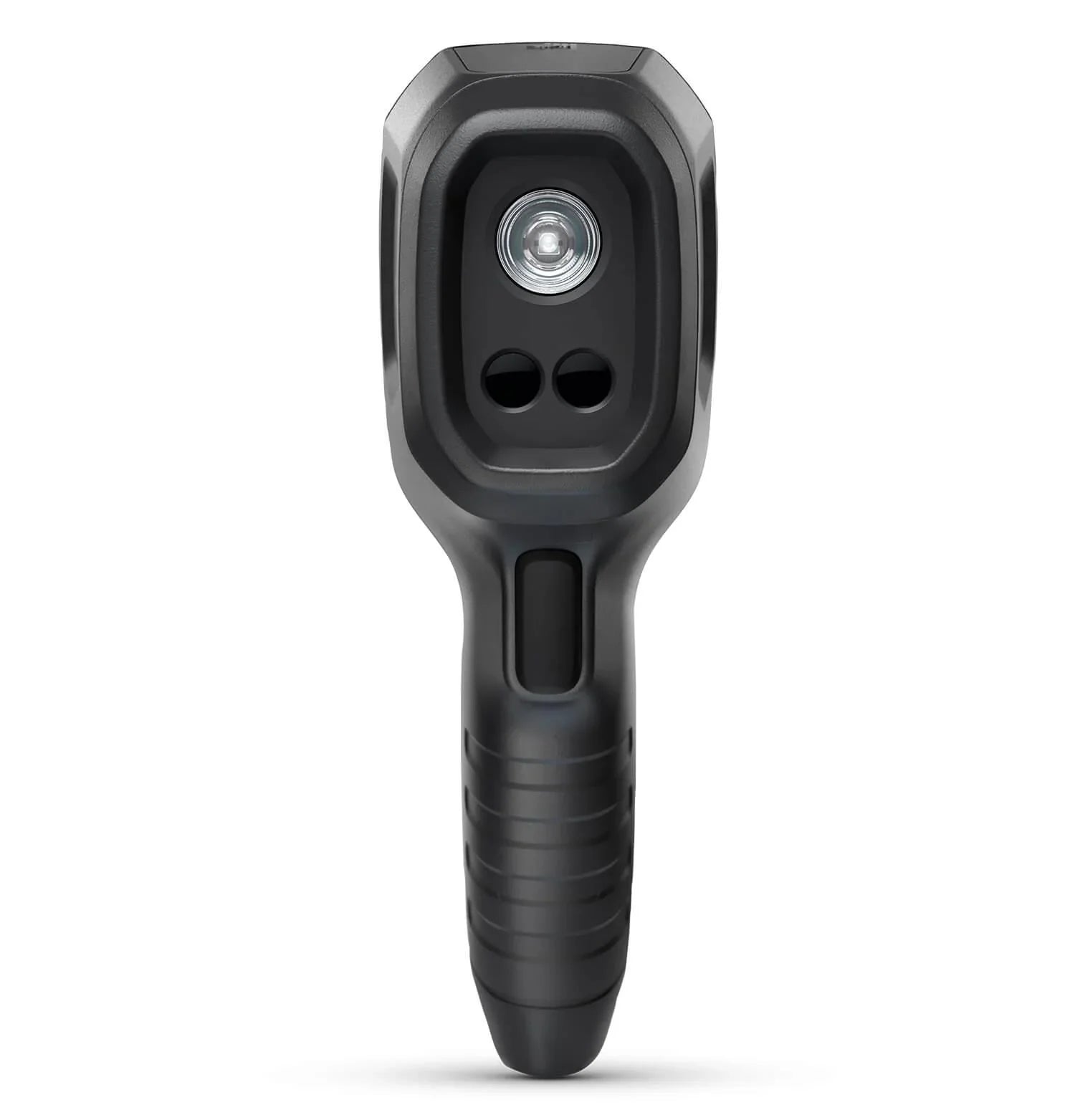

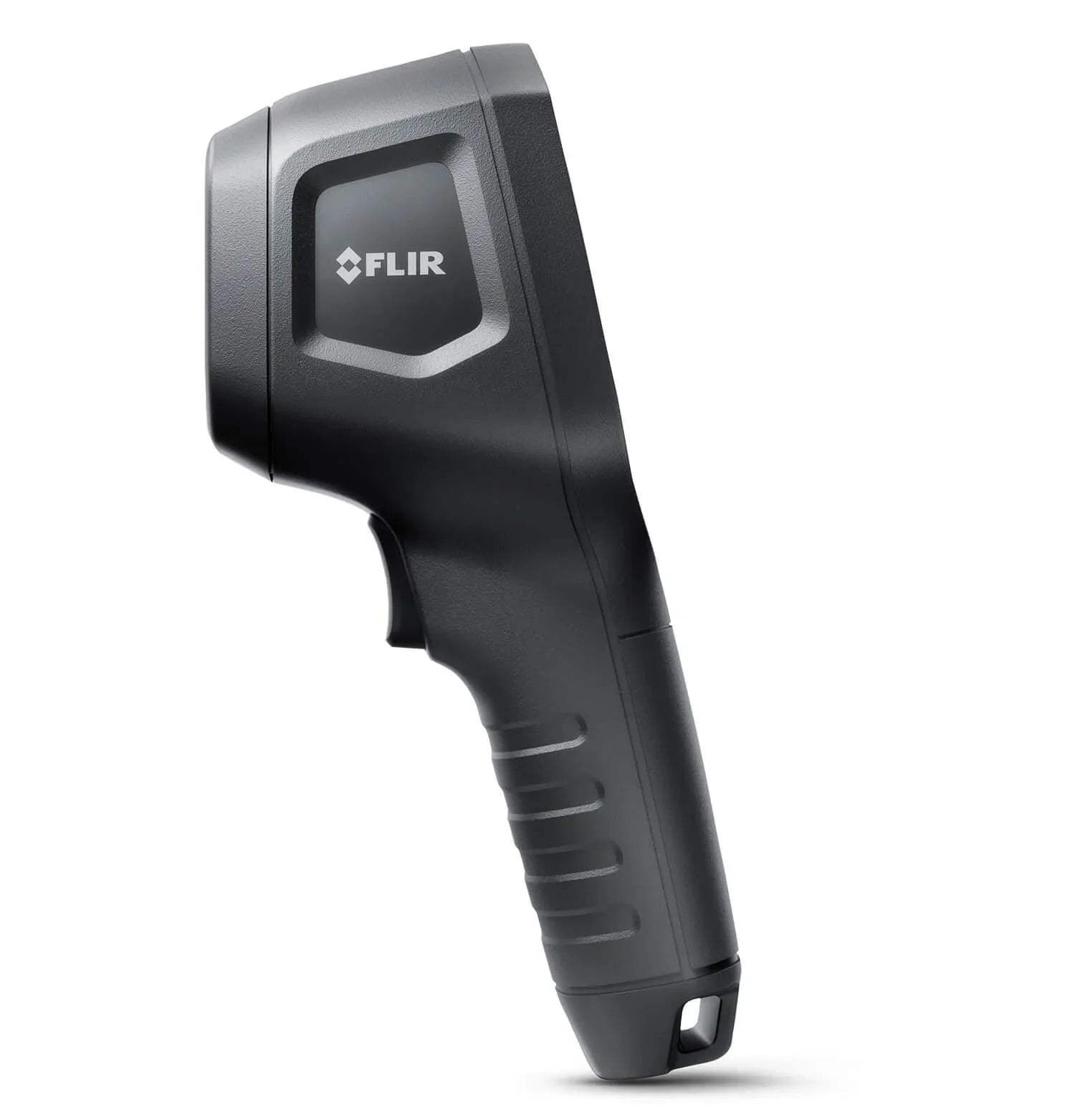

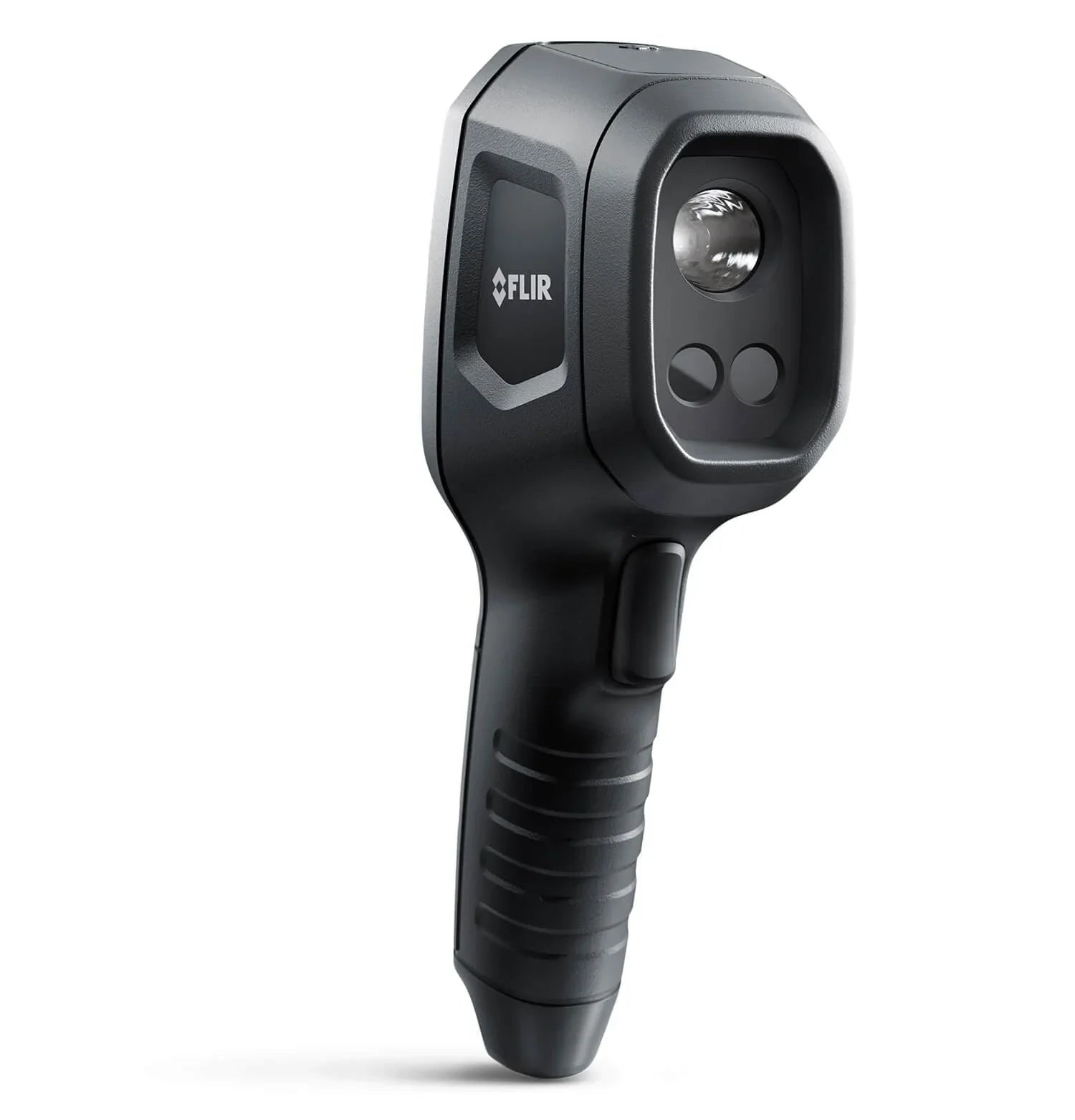

FLIR K1 160x120 9hz Thermal Situational Awareness Camera Kit 88701-0101
NOTE: These are special ordered items, please check with me for lead time before purchasing.
The FLIR K1 is a resilient, conveniently-sized thermal camera aiding personnel in gaining a full view of the scene in total darkness and through smoke. Featuring an integrated flashlight, the camera provides a bright view of the area to help in directing the crew. Additionally, the K1 offers 160 × 120 pixel thermal images, granting personnel with enhanced context not perceivable by the naked eye.
- ENHANCE SITUATIONAL AWARENESSQuickly assess the scene in total darkness, through smoke, and never lose line of sight.
- DOCUMENT FINDINGS CONVENIENTLYGather compelling evidence and save up to 10,000 sets of radiometric thermal and visual images for simple reporting.
- RUGGED AND EASY TO USEThe water-resistant K1 withstands a 2-meter drop onto concrete, and is lightweight enough to attach to gear.
FLIR K1 SPECIFICATIONS
IR Resolution
160 × 120 pixels
Display
2.4 in. backlit LCD, 320 × 240 pixels
Object Temperature Range
High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
Image Modes
• TI Basic (White-hot with isotherm) • White-hot • Iron
Camera weight incl battery
0.41 kg (0.90 lb.)
Camera size (L x W x H)
208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
IMAGING & OPTICAL
Built-in Digital Camera
320 × 240 pixels
Depth of Field
0.1 m (0.33 ft.), infinity
Detector Type
Focal plane array, uncooled microbolometer
Digital Camera FOV
71° × 56°, adapts to the IR lens
Field of view (FOV)
57° × 44°
f-number
1.1
Focal Length
1.9 mm (0.075 in.)
Focus
Fixed
Image Frequency
8.7 Hz
Image Modes
• TI Basic (White-hot with isotherm) • White-hot • Iron
IR Resolution
160 × 120 pixels
Multi Spectral Dynamic Imaging (MSX)
Yes
Pitch
12 µm
Spatial resolution (IFOV)
6.22 mrad
Spectral Range
8–13 µm
Storage Capacity
Approx. 10,000 images
Thermal Sensitivity/NETD
<100 mK @ 30°C (86°F)
ENVIRONMENTAL & CERTIFICATIONS
Corrosion
NA
Drop
2 m (6.6 ft.)
EMC
EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC Title 47 part 15, subpart B
Encapsulation
IP 67 (IEC 60529)
Humidity (Operating and Storage)
0–90% RH (0°C–37°C / 32°F– 98.6°F); 0–65% RH (37°C–45°C / 98.6°F–113°F); 0–45% RH (45°C–55°C / 113°F–131°F)
Magnetic fields
EN 61 000-4-8 Class 3
Operating Temperature Range
Up to 10 min. with flashlight on, -10°C to 90°C (14°F to 194°F) Up to 2 min. with flashlight on, -10°C to 115°C (14°F to 239°F)
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
–30°C to 55°C (–22°F to 131°F)
Tripod Mounting
UNC 1/4"-20
Vibration
2 g (IEC 60068-2-6)
POWER
Battery capacity
3000 mAh
Battery operating time
Approximately 5.5 hours in MSX mode; 3.8 hours with torchlight only
Battery Type
Li ion
Battery voltage
3.7 V
Battery weight
NA
Charging system
Battery is charged inside the camera
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
4 hours to 90%, 6 hours to 100%
Power Management
Adjustable
Safety [power supply]
Camera: IEC/EN 61010-1 Power supply: UL, CSA, CE, PSE, CCC, and SAA
Start Up Time
15 s
Start-up time from sleep mode
TBD
MEASUREMENT & ANALYSIS
Accuracy
±5°C (±9°F) or ±5% in High Gain Mode, or ±10°C (±18°F) or ±10% in Low Gain Mode, for ambient temperatures of 10–35°C (50–95°F)
Auto Range
NA
Automatic Hot Detection
NA
Camera size (L x W x H)
208 × 85 × 65 mm (8.19 × 3.3 × 2.6 in)
Camera weight incl battery
0.41 kg (0.90 lb.)
Isotherm
• Yellow coloring 150°C to 250°C • Orange coloring 250°C to 350°C • Red coloring >350°C
Object Temperature Range
High Gain Mode: –10°C to 140°C (14°F to 284°F) Low Gain Mode: –10°C to 400°C (14°F to 752°F) (at room temperature)
Spot Meter
Center spot
GENERAL
Beam Angle
20°
Compatible with FLIR software
FLIR Tools
Flashlight
Bright LED flashlight
LED CCT
5700K
LED CRI
70
Light Output
300 lumens
Material
PPSU Silicon rubber Aluminium, cast
Packaging Size
283 × 148 × 103 mm (11.1 × 5.83 × 4.06 in)
USER INTERFACE
Display
2.4 in. backlit LCD, 320 × 240 pixels
COMMUNICATION & DATA STORAGE
Image Storage
JPEG files
Image Storage Capacity
4 GB
Image Storage Mode
FLIR radiometric JPEGs, visual JPEGs
Interface
Update from PC devices over USB
Storage Media
Internal memory (3.9 GB)
USB
USB Type-C
Included Accessories:
K1 camera, printed documentation, wrist strap lanyard, USB-C to USB-A cable, tactical pouch
Warranty:
2 years on parts and labor, 10 year on detector after registration. Must be registered within 60 days.
PRODUCT REGISTRATION:
To qualify for the full Warranty Period of FLIR’s 2-10 Limited Warranty, the Purchaser must fully register the Qualifying Product directly with FLIR online at www.flir.com WITHIN SIXTY (60) DAYS of the date the Product was originally purchased (the “Purchase Date”).
