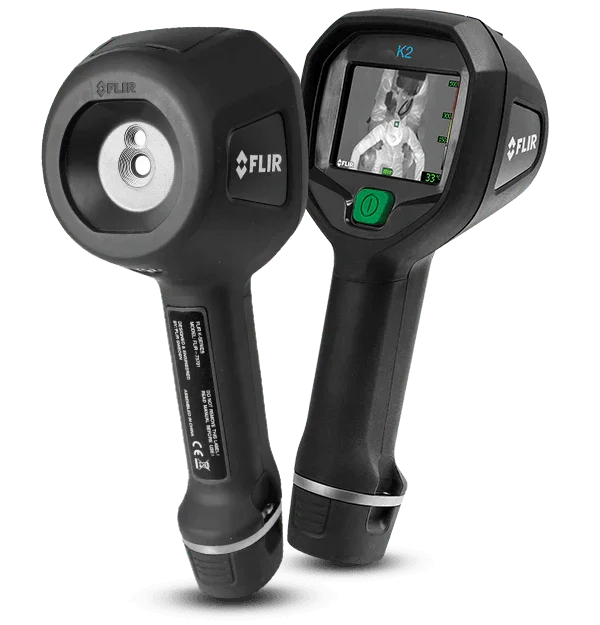

FLIR K2 Thermal Situational Awareness Camera

FLIR K2 160x120 9hz Thermal Camera Kit for Firefighting 73701-0101

AUTHORIZED DEALER

NOTE: These are special ordered items, please check with me for lead time before purchasing.

The FLIR K2 Thermal Situational Awareness Camera is a reliable and affordable tool to equip fire crews with high quality thermal imaging capabilities. The K2 features Multi-Spectral Dynamic Imaging (MSX®) and operability in temperatures up to 500°F, making it an ideal choice for fire safety. With its user-friendly buttons and trusted FLIR quality, the K2 can help save lives and protect property.



• POWERFUL YET AFFORDABLEThe K2 makes high-quality thermal imaging more accessible so more first responders can help save lives and protect property.
• COMPACT AND EASY TO USEThis lightweight camera attaches easily to turnouts, and offers simplified, single-button controls that can be used with heavy gloves.
• RUGGED AND RELIABLE The K2 withstands a 2-meter drop onto concrete, is water resistant (IP67) and is fully operational up to 500°F (3 minutes).





FLIR K2 SPECIFICATIONS

IR Resolution

160 × 120 pixels

Display

3 in. LCD, 320 × 240 pixels, backlit

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 500°C (32°F to 932°F)

Image Modes

Basic fire-fighting mode (default) Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Cold detection mode Building analysis mode

Camera weight incl battery

0.7 kg (1.54 lb.)

Camera size (L x W x H)

250 mm x 105 mm x 90 mm (9.8 in. x 4.1 in. x 3.5 in.)

IMAGING & OPTICAL

Built-in Digital Camera

640 × 480 pixels

Depth of Field

0.1 m (0.33 ft.), infinity

Detector Type

Focal plane array, uncooled microbolometer

Digital Camera FOV

73° × 61°, adapts to the IR lens

Field of view (FOV)

47° × 35°

f-number

1.1

Focal Length

1.9 mm (0.075 in.)

Focus

Fixed

Image Frequency

9 Hz

Image Modes

Basic fire-fighting mode (default) Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Cold detection mode Building analysis mode

IR Resolution

160 × 120 pixels

Multi Spectral Dynamic Imaging (MSX)

Yes

Pitch

12 µm

Spatial resolution (IFOV)

6.22 mrad

Spectral Range

7.5–13 µm

Thermal Sensitivity/NETD

<100 mK @ 30°C (86°F)

ENVIRONMENTAL & CERTIFICATIONS

Corrosion

ASTM B117, salt spray, 5% saline solution in 48 hours and 35°C

Drop

2 m (6.6 ft.)

EMC

EN 61000-6-2:2005 (immunity) EN 61000-6-3:2011 (emission) FCC 47 CFR Part 15 B (emission)

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30, 24 hours, 95% relative humidity, 25–40°C (77–104°F), 2 cycles

Magnetic fields

EN 61 000-4-8, test level 5 for continuous field (severe industrial environment)

Operating Temperature Range

–10°C to 55°C (14°F to 131°F): infinity 85°C (185°F): 15 minutes 150°C (302°F): 10 minutes 260°C (500°F): 3 minutes

Relative Humidity

95% relative humidity, 25–40°C (77–104°F), non-condensing

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 70°C (–40°F to 158°F)

Tripod Mounting

UNC 1/4"-20

Vibration

2 g (IEC 60068-2-6)

POWER

Battery capacity

2.6 Ah at 20–25°C (68–77°F)

Battery operating time

Approximately 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type

Li ion

Battery voltage

3.6 V

Battery weight

0.119 kg (0.26 lb.)

Charging system

Battery is charged inside the camera or in a dedicated charger

Charging Temperature

0–45°C (32–113°F)

Charging Time

2.5 h to 90% capacity, charging status indicated by LEDs

Power Management

Automatic shutdown and sleep mode

Safety [power supply]

CE/EN/UL/CSA/PSE 60950-1

Start Up Time

30 seconds

Start-up time from sleep mode

10 seconds

MEASUREMENT & ANALYSIS

Accuracy

±4°C (±7.2°F) or ±4% for ambient temperatures of 10–35°C (50–95°F)

Auto Range

Auto, non-selectable

Automatic Hot Detection

Heat detection mode (the hottest 20% of the of scene is colorized)

Camera size (L x W x H)

250 mm x 105 mm x 90 mm (9.8 in. x 4.1 in. x 3.5 in.)

Camera weight incl battery

0.7 kg (1.54 lb.)

Isotherm

Yes

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 500°C (32°F to 932°F)

Spot Meter

1.0

GENERAL

Compatible with FLIR software

FLIR Tools®

Material

PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy

Packaging Size

323 × 325 × 110 mm (12.7 × 12.8 × 4.3 in.)

USER INTERFACE

Display

3 in. LCD, 320 × 240 pixels, backlit

COMMUNICATION & DATA STORAGE

Image Storage

NA

Image Storage Capacity

NA

Image Storage Mode

NA

Interface

Update from PC devices

USB

USB Micro-B

Included Accessories:

K2 camera, printed documentation, wrist strap lanyard, USB-C to USB-A cable, tactical pouch

Warranty:

2 years on parts and labor, 10 year on detector after registration. Must be registered within 60 days.

PRODUCT REGISTRATION:

To qualify for the full Warranty Period of FLIR’s 2-10 Limited Warranty, the Purchaser must fully register the Qualifying Product directly with FLIR online at www.flir.com WITHIN SIXTY (60) DAYS of the date the Product was originally purchased (the “Purchase Date”).
