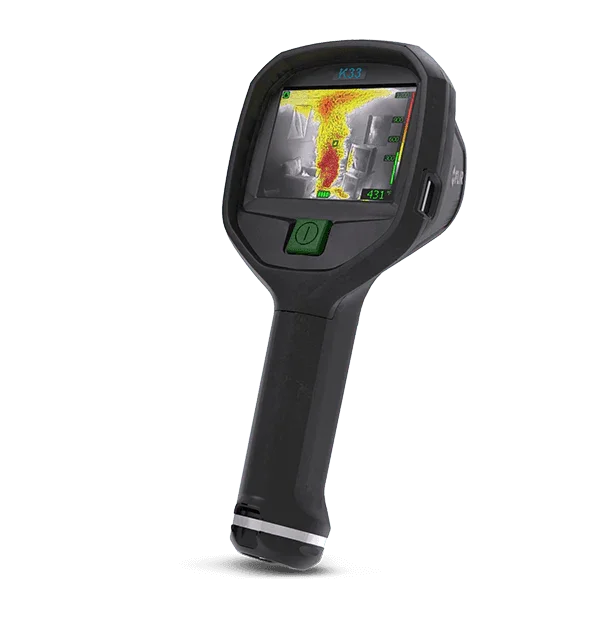

FLIR K33 High-Performance Thermal Imaging Camera Kit for Firefighters 240x180 60hz 72203-0411
NOTE: These are special ordered items, please check with me for lead time before purchasing.
Experience reliable clarity and performance with the FLIR K33 High-Performance Thermal Imaging Camera. Its FSX™ Flexible Scene Enhancement intensifies structural and textural details in thermal images, to improve awareness and safety. Boost your mission performance with this low-cost, easy-to-use TIC.
- FIREPOWER SIMPLIFIEDOne glove-friendly button starts the K33 in TI-Basic mode, while pulling and holding the trigger freezes the image.
- UNCOMPROMISING VISUAL QUALITY240 × 180 resolution, a 60 Hz frame rate, and a bright 4" LCD all help you see more in smokey conditions.
- AFFORDABILITY REDEFINEDThe K33's affordable price helps fire and rescue departments get essential tools into the hands of those who could use them most.
FLIR K33 SPECIFICATIONS
IR Resolution
240 × 180 pixels
Display
4 in. LCD, 320 × 240 pixels, backlit
Object Temperature Range
–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
Image Modes
TI Basic fire-fighting mode
Camera weight incl battery
1.1 ±0.05 kg (2.4 ±0.1 lb.)
Camera size (L x W x H)
120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
IMAGING & OPTICAL
Contrast optimization
Digital image enhancement using FSX
Depth of Field
0.84 m to infinity (33 in. to infinity)
Detector Type
Focal plane array (FPA), uncooled microbolometer
Field of view (FOV)
51° × 38°
f-number
1.25
Focal Length
9 mm (0.35 in.)
Focus
Fixed
Image Frequency
60 Hz
Image Modes
TI Basic fire-fighting mode
IR Resolution
240 × 180 pixels
Non-radiometric IR video streaming
Uncompressed colorized video using USB
Pitch
25 µm
Spatial resolution (IFOV)
3.6 mrad
Spectral Range
7.5–13 µm
Thermal Sensitivity/NETD
<40 mK @ 30°C (86°F)
ENVIRONMENTAL & CERTIFICATIONS
Directives
Designed to meet NFPA 1801:2013 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability
Drop
2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
EMC
EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)
Encapsulation
IP 67 (IEC 60529)
Humidity (Operating and Storage)
IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C (+77°F to +104°F) / 2 cycles
Magnetic fields
EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
Operating Temperature Range
–20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.
Relative Humidity
95% relative humidity +25°C to 40°C (77°F to 104°F) non-condensing
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
–40°C to 85°C (–40°F to 185°F)
Tripod Mounting
UNC ¼"-20 (adapter needed)
Vibration
2 g (IEC 60068-2-6)
POWER
Battery capacity
4.4 Ah, at 20°C to 25°C (68°F to 77°F)
Battery operating time
Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type
Li Ion
Battery voltage
3.6 V
Battery weight
0.152 kg (0.3 lb.)
Charging system
Battery is charged inside the camera 2-bay charger Optional In-truck charger
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
2 h to 85% capacity, charging status indicated by LEDs
Power Management
Automatic shutdown and sleep mode
Safety [power supply]
CE/EN/UL/CSA/PSE 60950-1
Start Up Time
<17 s. (IR image, no GUI)
Start-up time from sleep mode
<4 s.
MEASUREMENT & ANALYSIS
Accuracy
±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
Auto Range
Yes, selectable on/off using FLIR Tools®
Camera size (L x W x H)
120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
Camera weight incl battery
1.1 ±0.05 kg (2.4 ±0.1 lb.)
Isotherm
Yes
Languages
English
Object Temperature Range
–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
Set-up Commands
Local adaptation of units, date and time formats
Spot Meter
1.0
GENERAL
Compatible with FLIR software
FLIR Tools®
Material
PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy
Packaging Size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
USER INTERFACE
Display
4 in. LCD, 320 × 240 pixels, backlit
COMMUNICATION & DATA STORAGE
Image Storage
No JPEG storage; Image freeze: configurable
Image Storage Capacity
NA
Interface
Update from PC devices Data transfer to and from PC
USB
USB Mini-B
Included Accessories:
K33, 2 batteries, battery charger, hard transport case, lanyard strap, neck strap, power supply, printed documentation, retractable lanyard, USB cable.
Warranty:
2 years on parts and labor, 10 year on detector after registration. Must be registered within 60 days.
