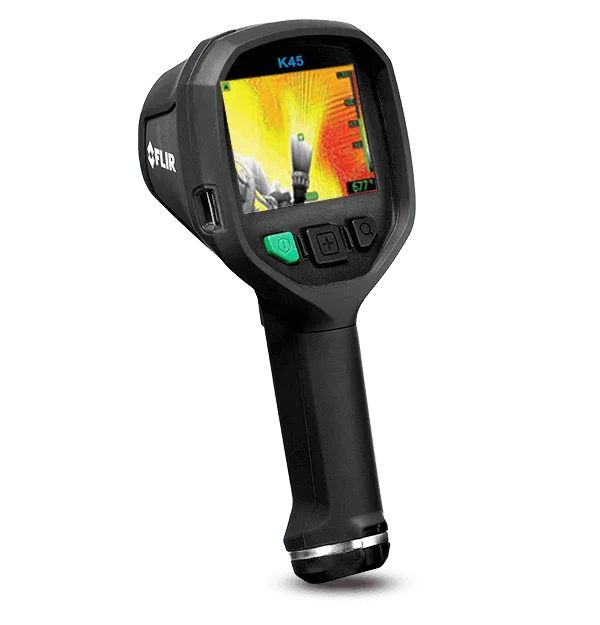

FLIR K45 High-Performance Thermal Imaging Camera Kit (3 Button) for Firefighters 240x180 60hz 72201-0106
NOTE: These are special ordered items, please check with me for lead time before purchasing.
The FLIR K45 is an affordable thermal imaging camera designed to help firefighters find victims in the darkest, smokiest environments. With a high-resolution 240 x 180 pixel display and an enhanced focus on structural and textural details, the K45 provides firefighters with clear images and accurate decision-making—helping them find victims faster.
- CRISP, CLEAR IMAGERYThe maintenance-free sensor produces detail-rich 240 x 180 pixels thermal images to help you navigate easier in smokey conditions.
- RUGGED AND RELIABLE The K45 withstands a 2-meter drop onto concrete, is water resistant (IP67), and fully operational up to 500°F (5 minutes).
- EXPANDED WARRANTYK45 cameras are protected by FLIR's 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector.
FLIR K45 SPECIFICATIONS
IR Resolution
240 × 180 pixels
Display
4 in. LCD, 320 × 240 pixels, backlit
Object Temperature Range
–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
Image Modes
IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
Camera weight incl battery
1.1 ±0.05 kg (2.4 ±0.1 lb.)
Camera size (L x W x H)
120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
IMAGING & OPTICAL
Contrast optimization
Digital image enhancement using FSX
Depth of Field
0.84 m to infinity(33 in. to infinity)
Detector Type
Focal plane array (FPA), uncooled microbolometer
Field of view (FOV)
51° × 38°
f-number
1.25
Focal Length
9 mm (0.35 in.)
Focus
Fixed
Image Frequency
60 Hz
Image Modes
IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery
IR Resolution
240 × 180 pixels
Non-radiometric IR video recording
-
Non-radiometric IR video streaming
Uncompressed colorized video using USB
Pitch
25 µm
Spatial resolution (IFOV)
3.6 mrad
Spectral Range
7.5–13 µm
Storage Capacity
Up to 200 images
Thermal Sensitivity/NETD
<40 mK @ 30°C(86°F)
Zoom
2× digital zoom
ENVIRONMENTAL & CERTIFICATIONS
Compliance
-
Directives
Designed to meet NFPA 1801:2018 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability
Drop
2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)
EMC
EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)
Encapsulation
IP 67 (IEC 60529)
Humidity (Operating and Storage)
IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles
Magnetic fields
EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)
Operating Temperature Range
–20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.
Relative Humidity
95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing.
Shock
25 g (IEC 60068-2-27)
Storage Temperature Range
–40°C to 85°C (–40°F to 185°F)
Tripod Mounting
UNC ¼"-20 (adapter needed)
Vibration
2 g (IEC 60068-2-6)
POWER
Battery capacity
4.4 Ah, at 20°C to 25°C (68°F to 77°F)
Battery operating time
Approx. 4 hours at 25°C (77°F) ambient temperature and typical use
Battery Type
Li Ion
Battery voltage
3.6 V
Battery weight
0.152 kg (0.3 lb.)
Charging system
Battery is charged inside the camera 2-bay charger Optional In-truck charger
Charging Temperature
0°C to 45°C (32°F to 113°F)
Charging Time
2 h to 85% capacity, charging status indicated by LEDs
Power Management
Automatic shutdown and sleep mode
Safety [power supply]
CE/EN/UL/CSA/PSE 60950-1
Start Up Time
<17 s. (IR image, no GUI)
Start-up time from sleep mode
<4 s.
MEASUREMENT & ANALYSIS
Accuracy
±4°C(±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)
Auto Range
Yes, selectable on/off using FLIR Tools®
Automatic Hot Detection
Heat detection mode (the hottest 20% of the of scene is colorized)
Camera size (L x W x H)
120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)
Camera weight incl battery
1.1 ±0.05 kg (2.4 ±0.1 lb.)
Isotherm
Yes
Languages
English
Object Temperature Range
–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)
Set-up Commands
Local adaptation of units, date and time formats
Spot Meter
1.0
GENERAL
Compatible with FLIR software
FLIR Tools®
Material
PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy
Packaging Size
500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)
USER INTERFACE
Display
4 in. LCD, 320 × 240 pixels, backlit
Report Generation
Separate software (FLIR Tools)
COMMUNICATION & DATA STORAGE
File Formats
Standard JPEG
Image Storage
Standard JPEG; Image freeze: configurable
Image Storage Capacity
200 images
Image Storage Mode
IR only
Interface
Update from PC devices Data transfer to and from PC
Storage Media
Internal flash memory
USB
USB Mini-B
Included Accessories:
K45, 2 batteries, battery charger, hard transport case, lanyard strap, neck strap, power supply, printed documentation, retractable lanyard, USB cable.
Warranty:
2 years on parts and labor, 10 year on detector after registration. Must be registered within 60 days.
EXPORT RESTRICTION
Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
