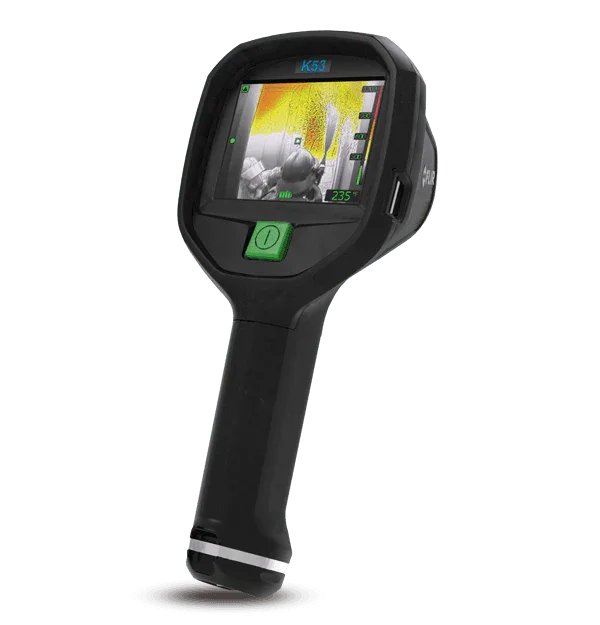

FLIR K53 High-Performance Thermal Imaging Camera 320

FLIR K53 High-Performance Thermal Imaging Camera Kit for Firefighters 320x240 60hz 72203-0511



NOTE: These are special ordered items, please check with me for lead time before purchasing.

The FLIR K53 thermal imaging camera exceeds expectations in even the smokiest fire environments. Its FSX™ Flexible Scene Enhancement technology sharpens structural and textural details in thermal images for improved scene orientation and situational awareness, providing firefighters with enhanced safety and confidence.



• FIREPOWER SIMPLIFIEDOne glove-friendly button starts the K53 in TI-Basic mode, while one trigger-pull captures stills or records video.
• UNCOMPROMISING VISUAL QUALITY320 × 240 resolution, a 60 Hz frame rate, and a bright 4" LCD all help you see more in smokey conditions.
• AFFORDABILITY REDEFINEDThe K53's affordable price helps fire and rescue departments get essential tools into the hands of those who could use them most.

FLIR K53 SPECIFICATIONS

IR Resolution

320 × 240 pixels

Display

4 in. LCD, 320 × 240 pixels, backlit

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Camera weight incl battery

1.1 ±0.05 kg (2.4 ±0.1 lb.)

Camera size (L x W x H)

120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)

IMAGING & OPTICAL

Contrast optimization

Digital image enhancement using FSX

Depth of Field

0.84 m to infinity (33 in. to infinity)

Detector Type

Focal plane array (FPA), uncooled microbolometer

Field of view (FOV)

51° × 38°

f-number

1.25

Focal Length

9 mm (0.35 in.)

Focus

Fixed

Image Frequency

60 Hz

IR Resolution

320 × 240 pixels

Non-radiometric IR video recording

MPEG-4 to internal flash memory

Non-radiometric IR video streaming

Uncompressed colorized video using USB

Pitch

25 µm

Spatial resolution (IFOV)

2.8 mrad

Spectral Range

7.5–13 µm

Storage Capacity

200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images.

Thermal Sensitivity/NETD

<30 mK @ 30°C (86°F)

ENVIRONMENTAL & CERTIFICATIONS

Directives

Designed to meet NFPA 1801:2013 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability

Drop

2 m (6.6 ft.) on concrete floor (IEC 60068-2-31)

EMC

EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission)

Encapsulation

IP 67 (IEC 60529)

Humidity (Operating and Storage)

IEC 60068-2-30/24 h 95% relative humidity 25°C to 40°C (77°F to 104°F) / 2 cycles

Magnetic fields

EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment)

Operating Temperature Range

–20°C to 85°C (–4°F to 185°F) 150°C (302°F): 15 min. 260°C (500°F): 5 min.

Relative Humidity

95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing

Shock

25 g (IEC 60068-2-27)

Storage Temperature Range

–40°C to 85°C (–40°F to 185°F)

Tripod Mounting

UNC ¼"-20 (adapter needed)

Vibration

2 g (IEC 60068-2-6)

POWER

Battery capacity

4.4 Ah, at 20°C to 25°C (68°F to 77°F)

Battery operating time

Approx. 4 hours at 25°C (77°F) ambient temperature and typical use

Battery Type

Li Ion

Battery voltage

3.6 V

Battery weight

0.152 kg (0.3 lb.)

Charging system

Battery is charged inside the camera 2-bay charger Optional In-truck charger

Charging Temperature

0°C to 45°C (32°F to 113°F)

Charging Time

2 h to 85% capacity, charging status indicated by LEDs

Power Management

Automatic shutdown and sleep mode

Safety [power supply]

CE/EN/UL/CSA/PSE 60950-1

Start Up Time

<17 s. (IR image, no GUI)

Start-up time from sleep mode

<4 s.

MEASUREMENT & ANALYSIS

Accuracy

±4°C (±7.2°F) or ±4% of reading, for ambient temperature 10°C to 35°C (50°F to 95°F)

Auto Range

Yes, selectable on/off using FLIR Tools®

Camera size (L x W x H)

120 × 125 × 280 mm (4.7 × 4.9 × 11 in.)

Camera weight incl battery

1.1 ±0.05 kg (2.4 ±0.1 lb.)

Isotherm

Yes

Languages

English

Object Temperature Range

–20°C to 150°C (–4°F to 302°F) 0°C to 650°C (32°F to 1202°F)

Set-up Commands

Local adaptation of units, date and time formats

Spot Meter

1.0

GENERAL

Compatible with FLIR software

FLIR Tools®

Material

PPSU Silicon rubber Aluminium, cast Flame-resistant magnesium alloy

Packaging Size

500 × 190 × 370 mm (19.7 × 7.5 × 14.6 in.)

USER INTERFACE

Display

4 in. LCD, 320 × 240 pixels, backlit

Report Generation

Separate software (FLIR Tools)

COMMUNICATION & DATA STORAGE

File Formats

Standard JPEG

Image Storage

Standard JPEG; Image freeze: configurable

Image Storage Capacity

200 files in total the total number of files is co-dependent on the number of saved video clips.

Image Storage Mode

IR only

Interface

Update from PC devices Data transfer to and from PC

Storage Media

Internal flash memory

USB

USB Mini-B



Included Accessories:

K53, 2 batteries, battery charger, hard transport case, lanyard strap, neck strap, power supply, printed documentation, retractable lanyard, USB cable.

Warranty:

2 years on parts and labor, 10 year on detector after registration. Must be registered within 60 days.



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
