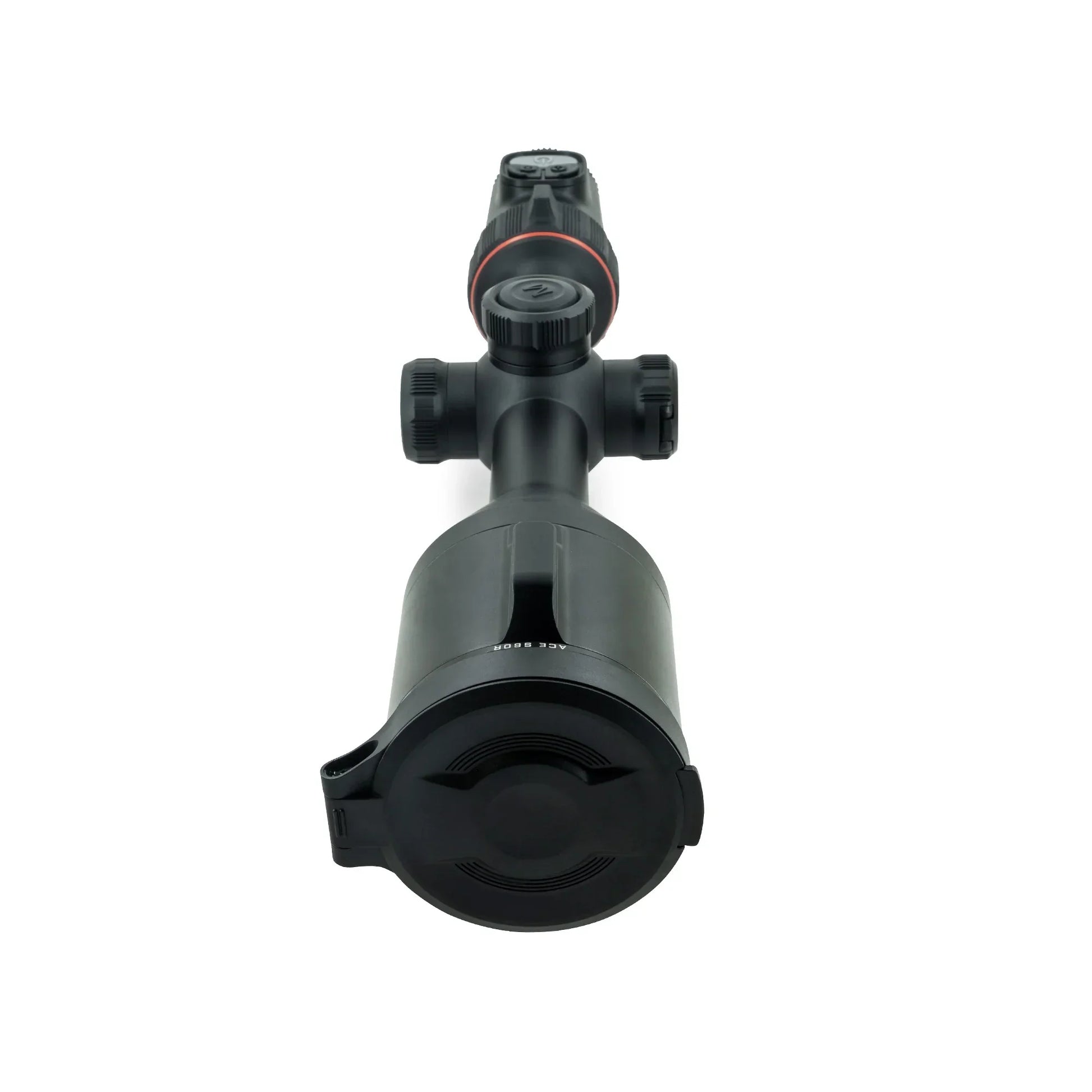

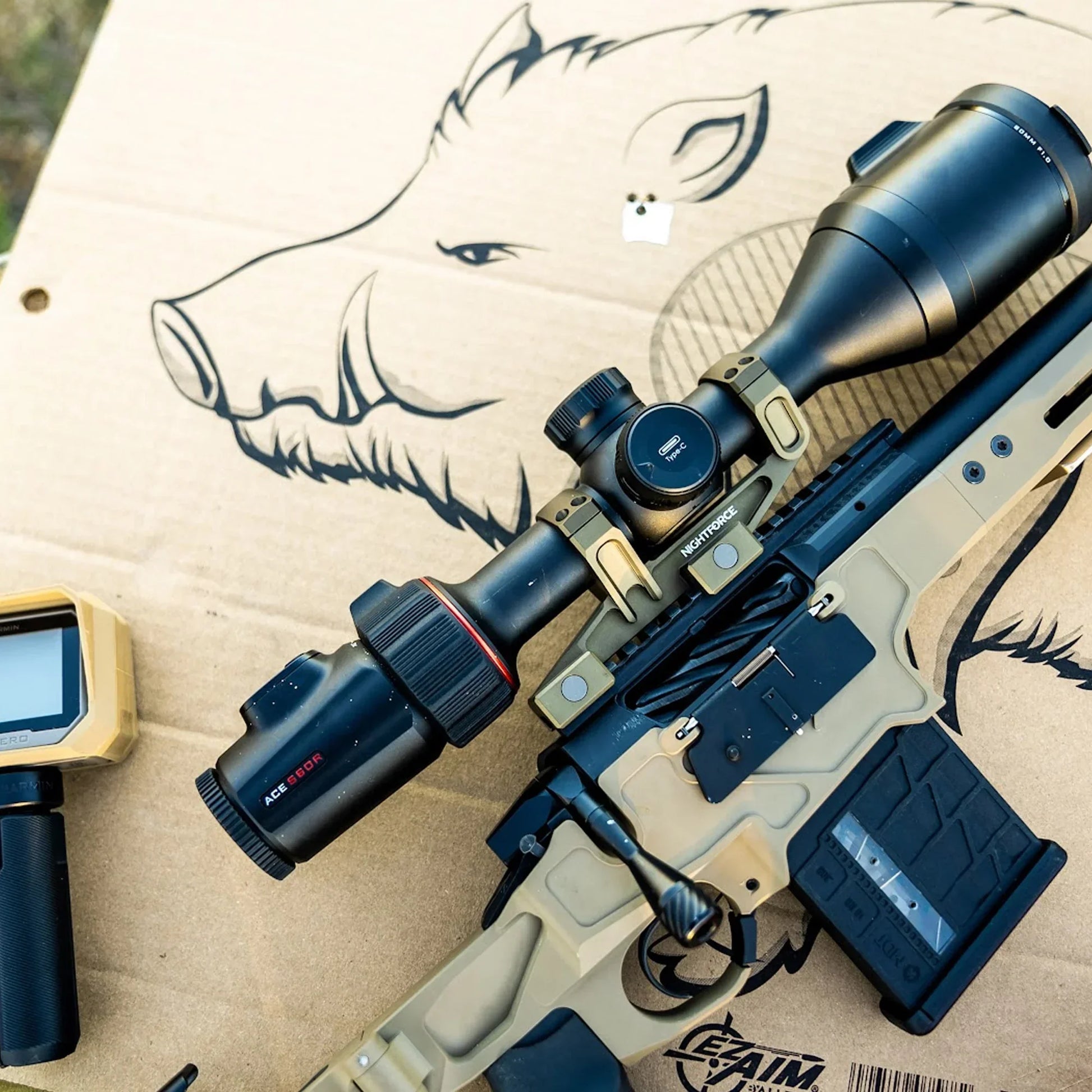

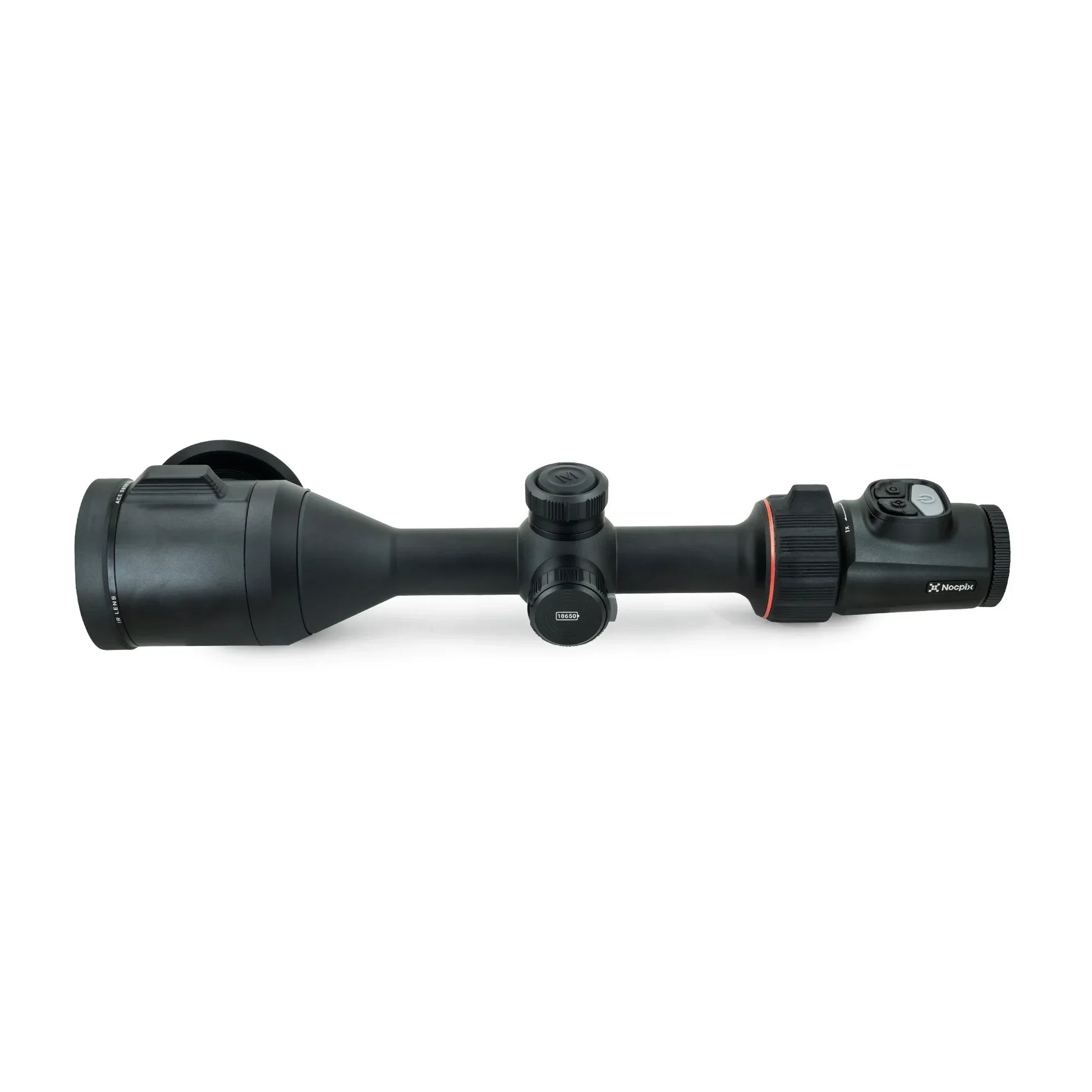

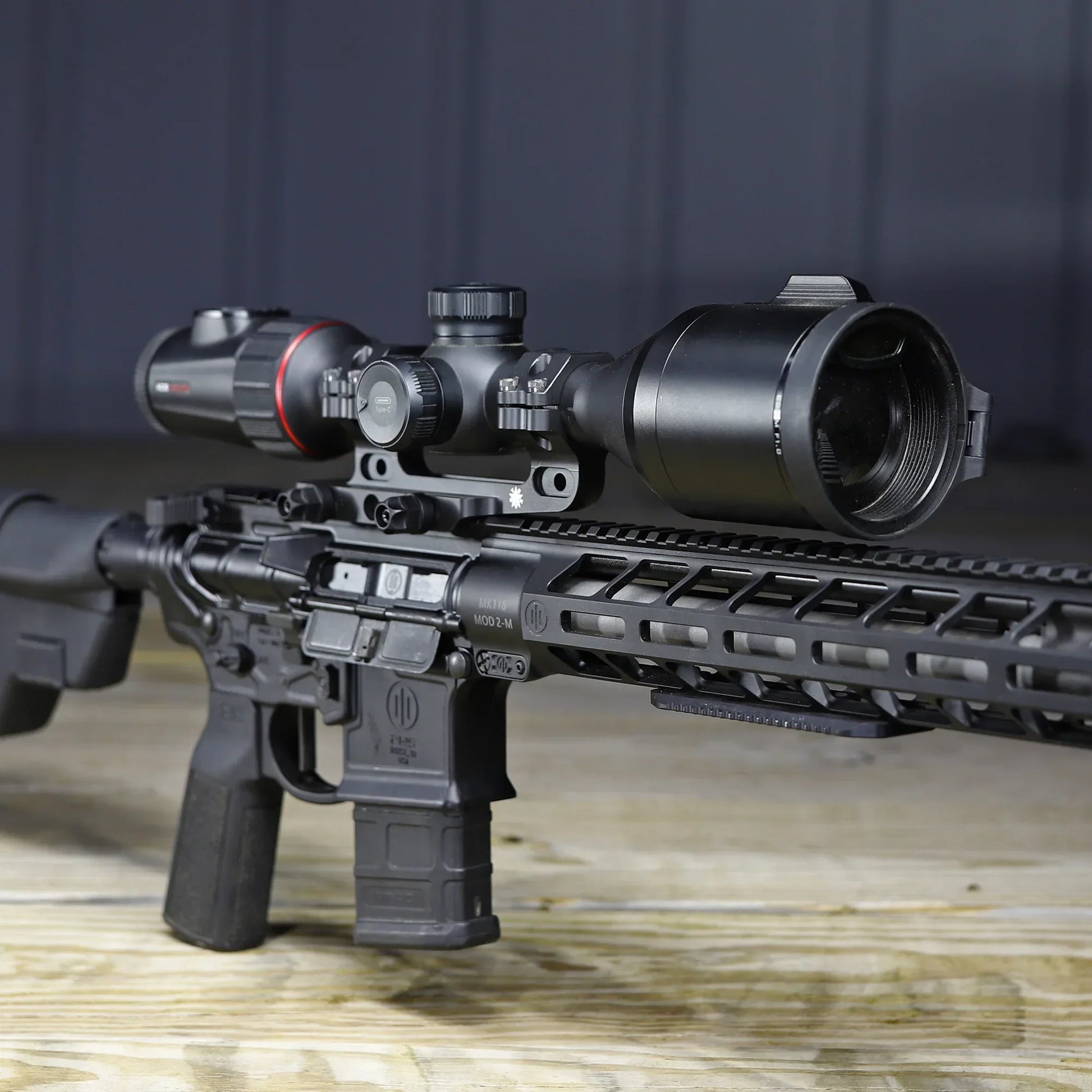

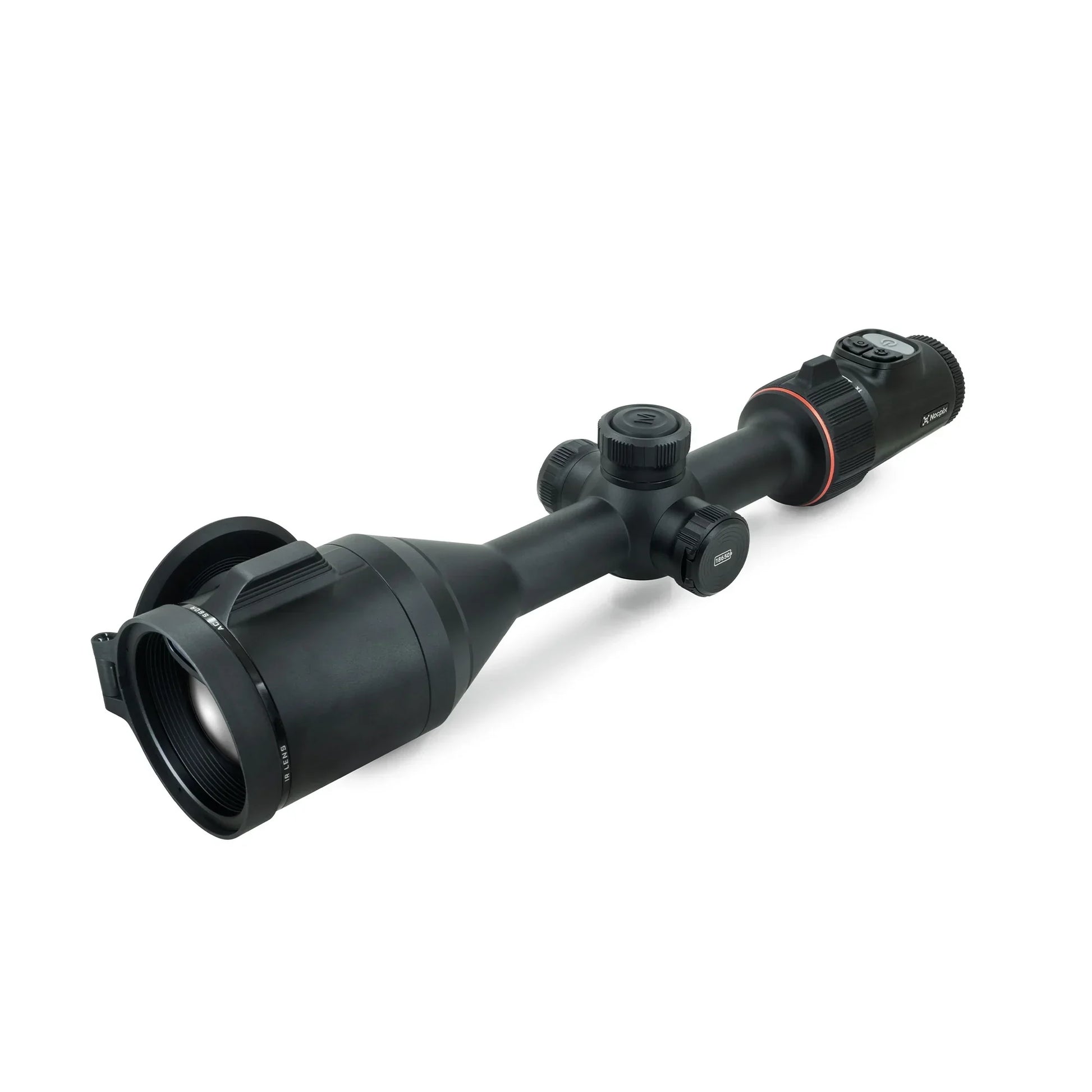

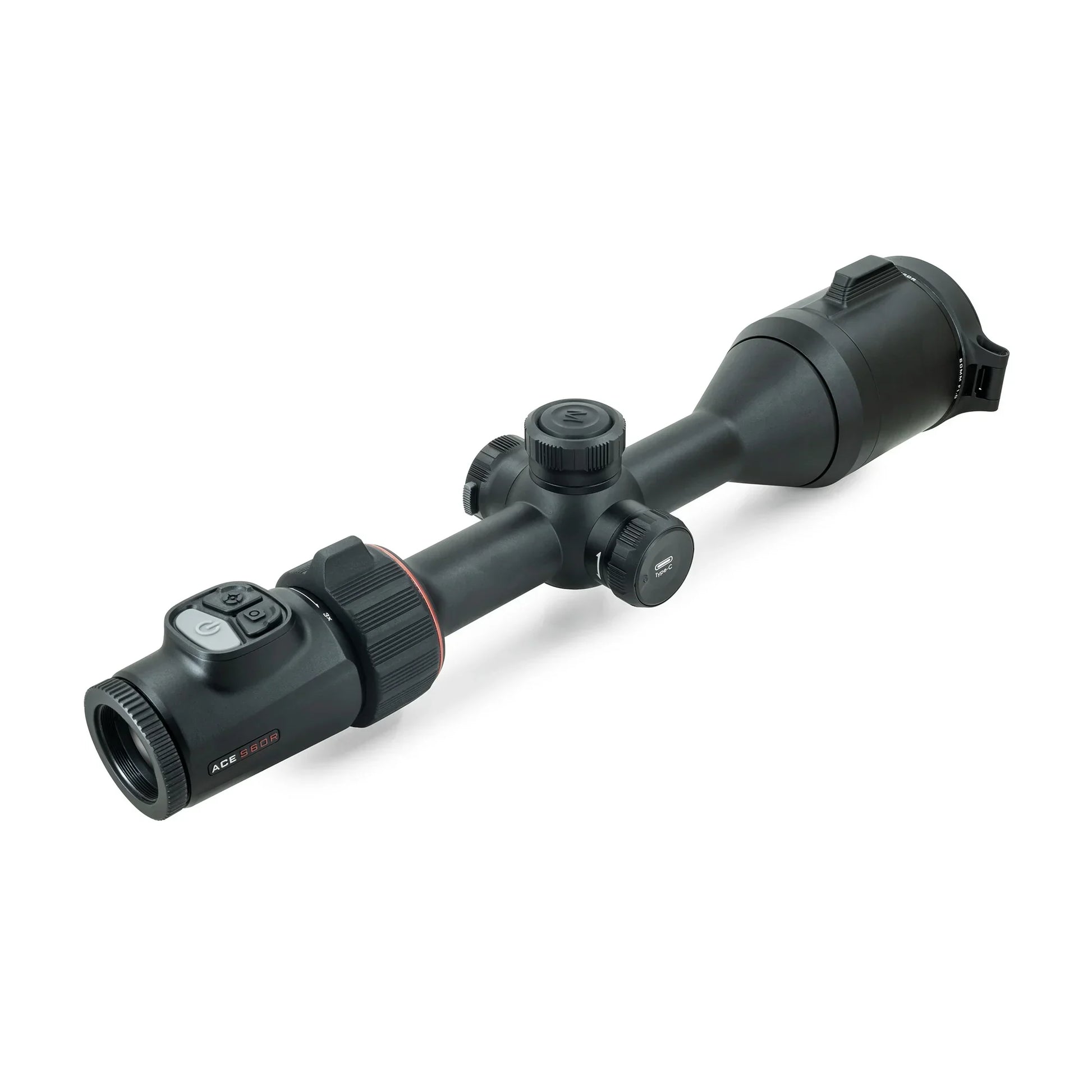

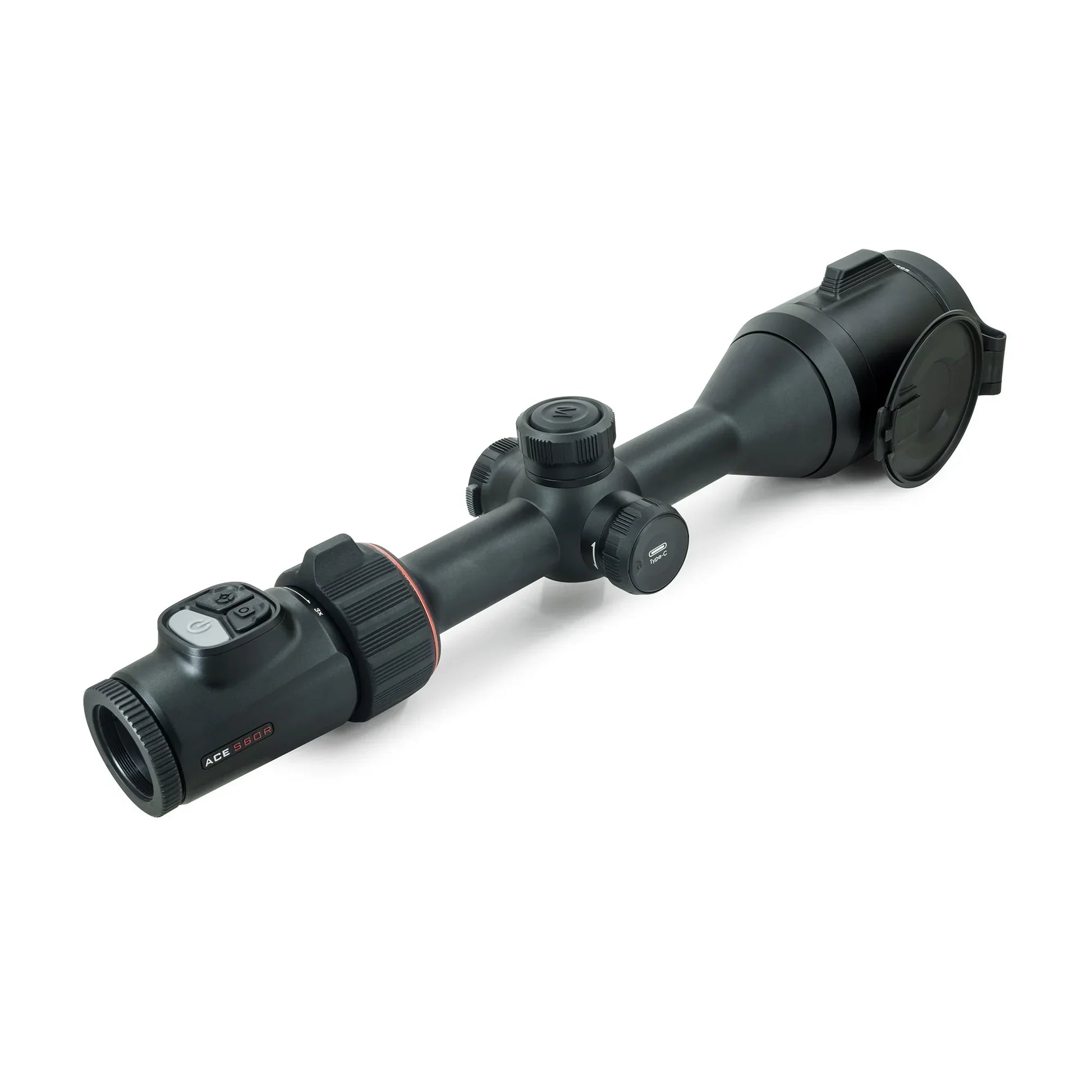

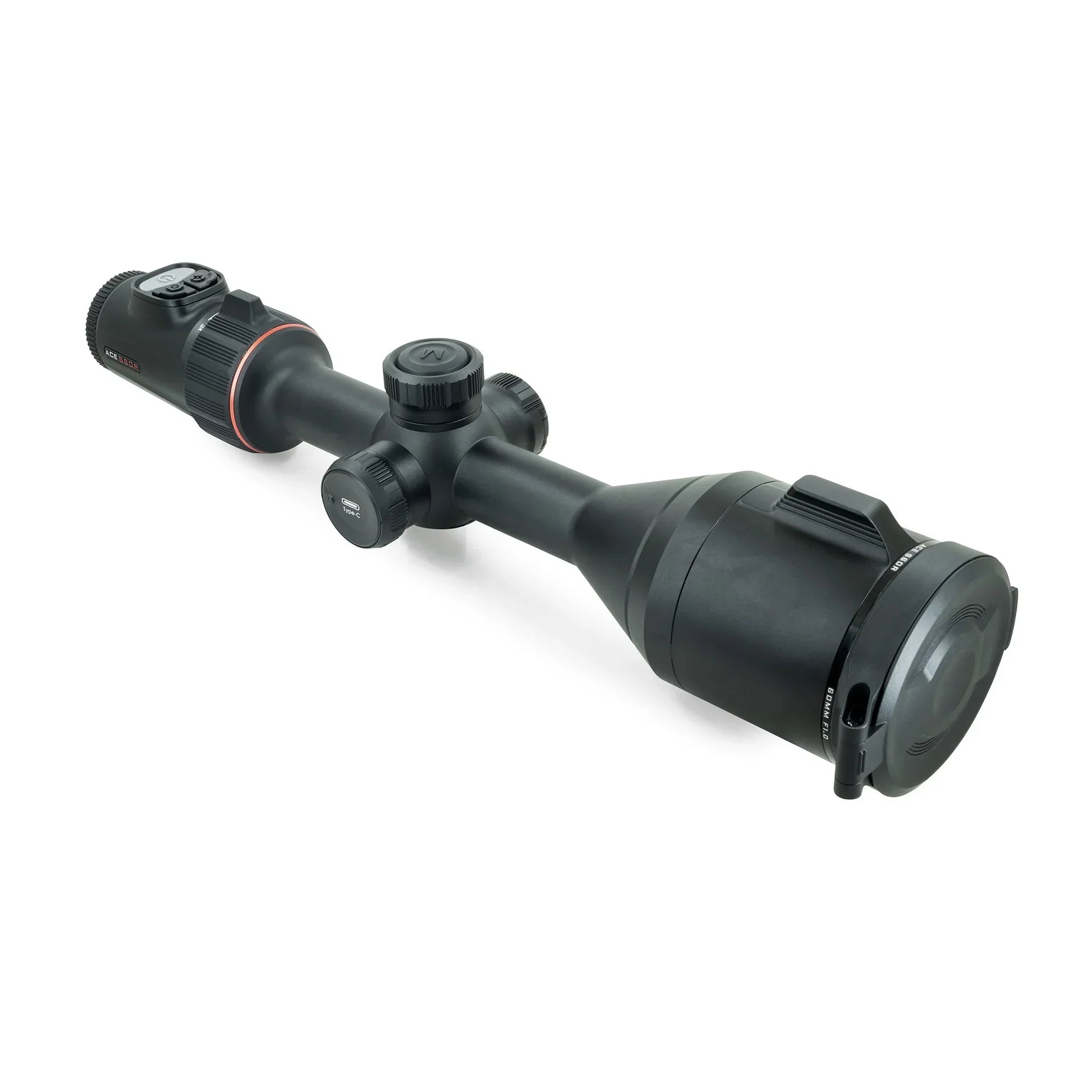

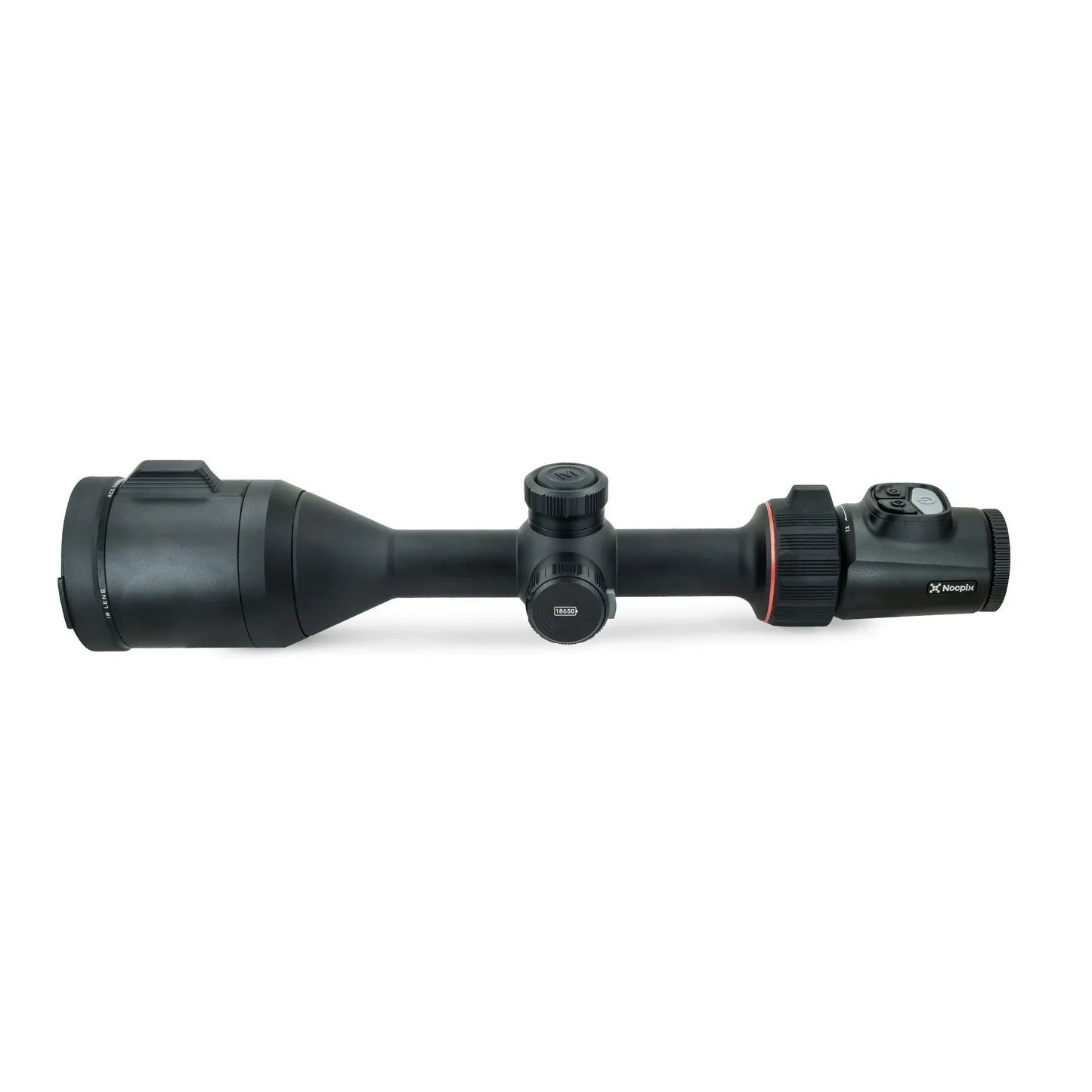

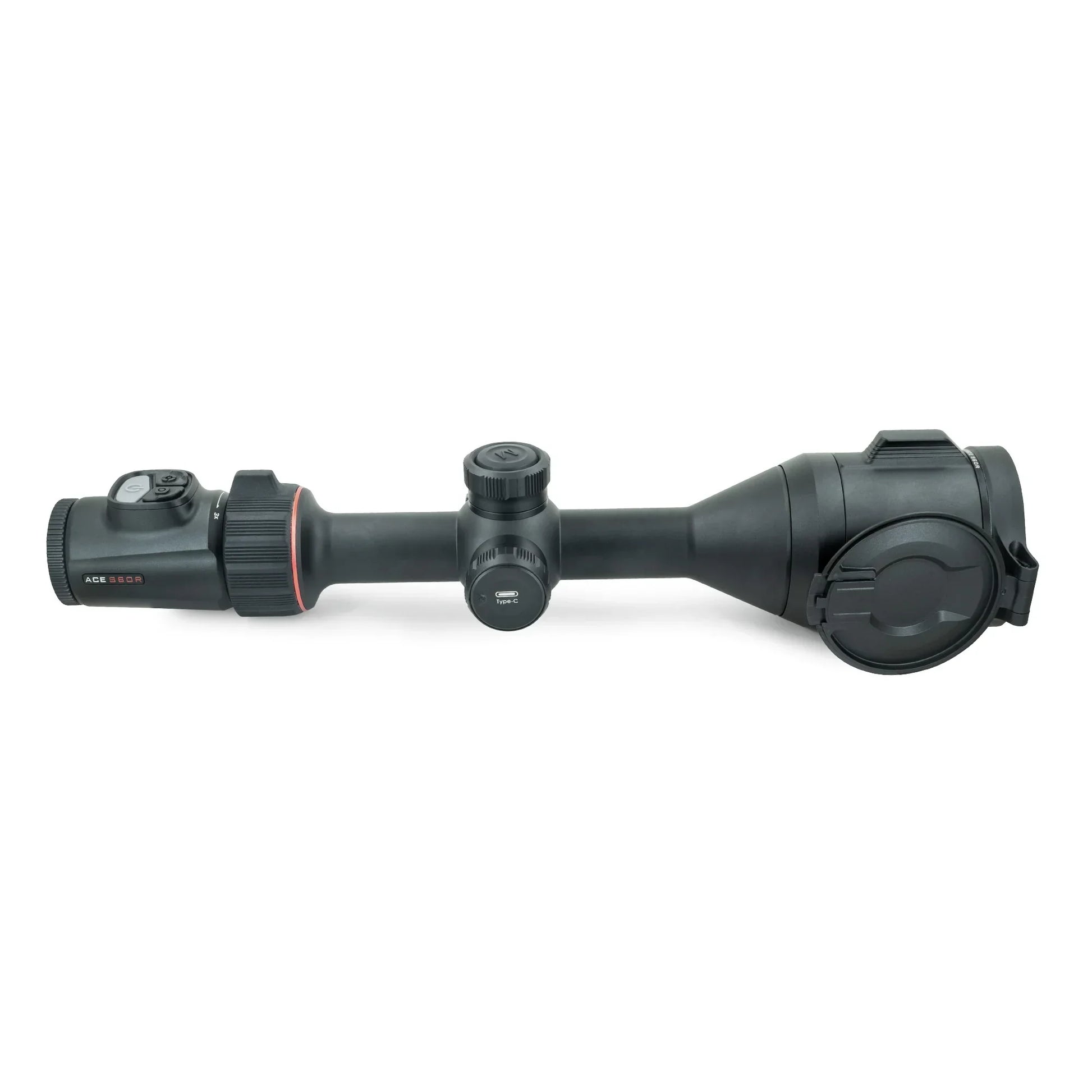

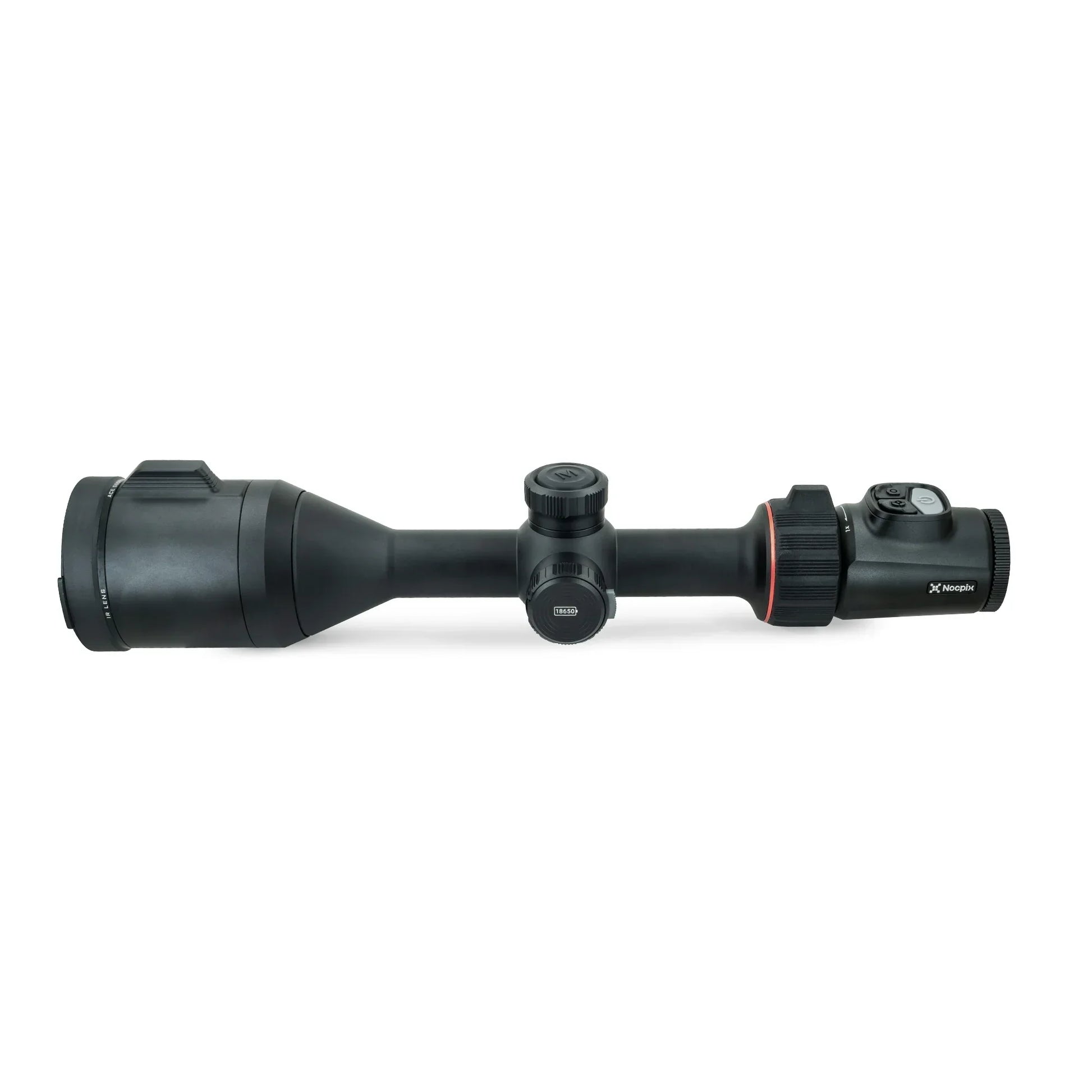

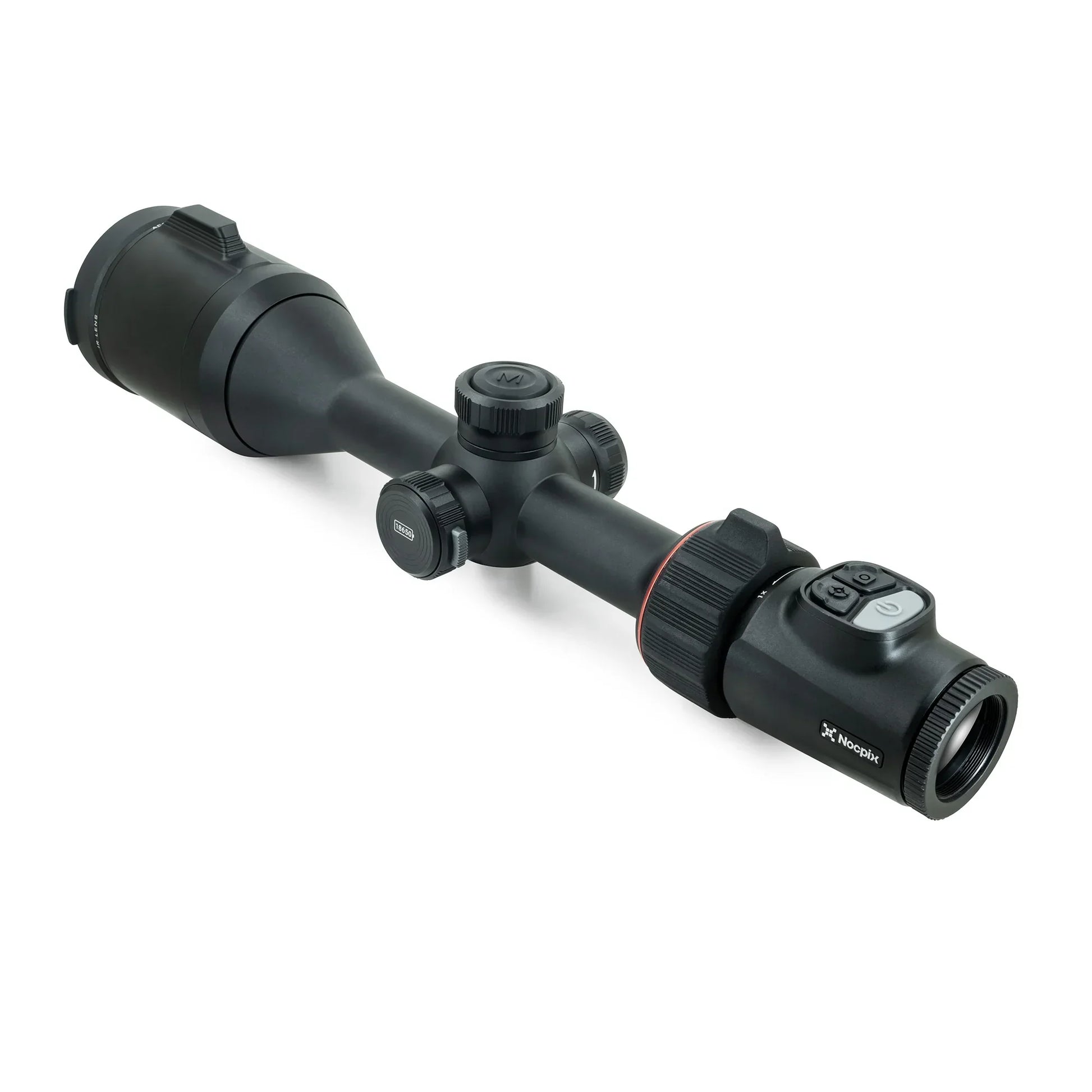

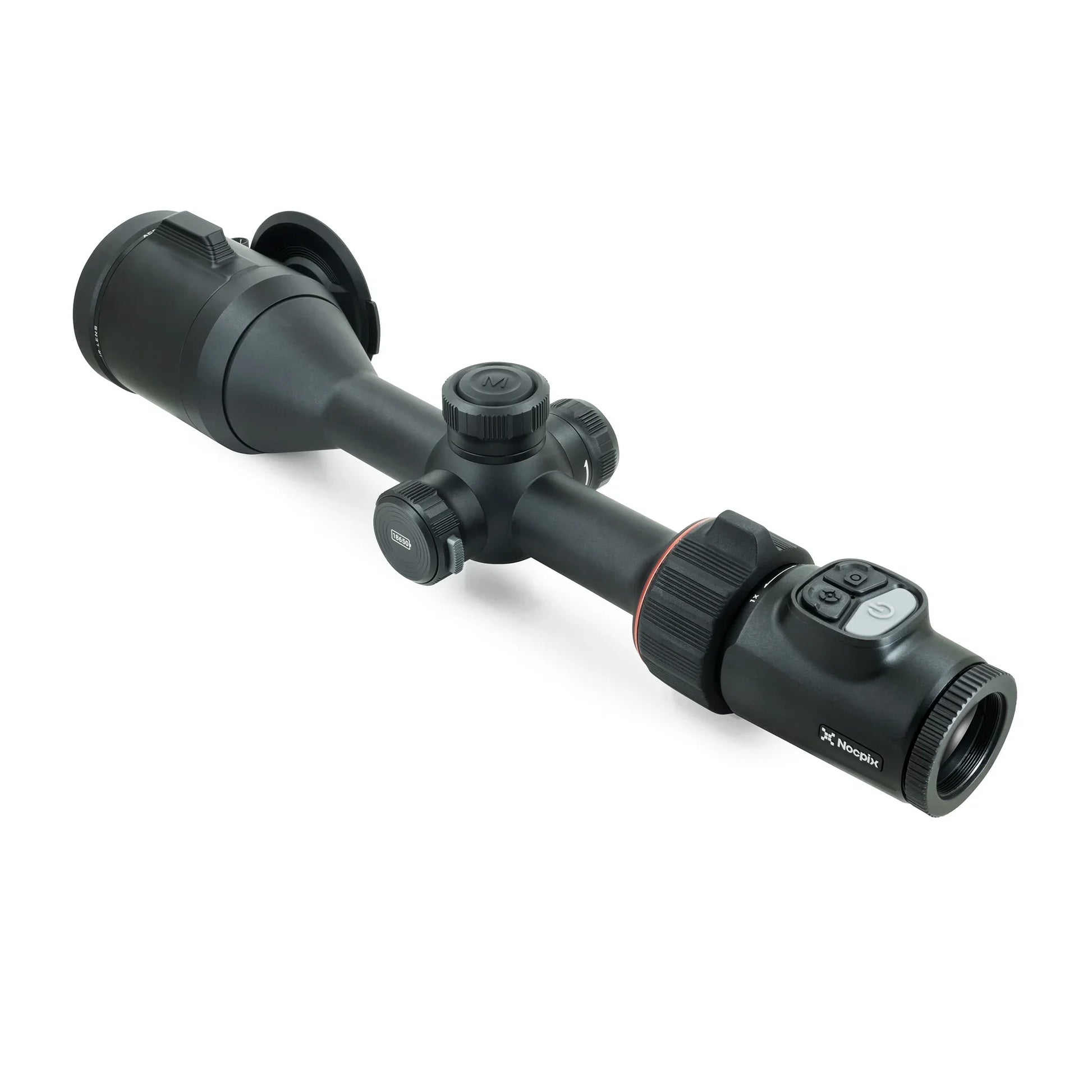

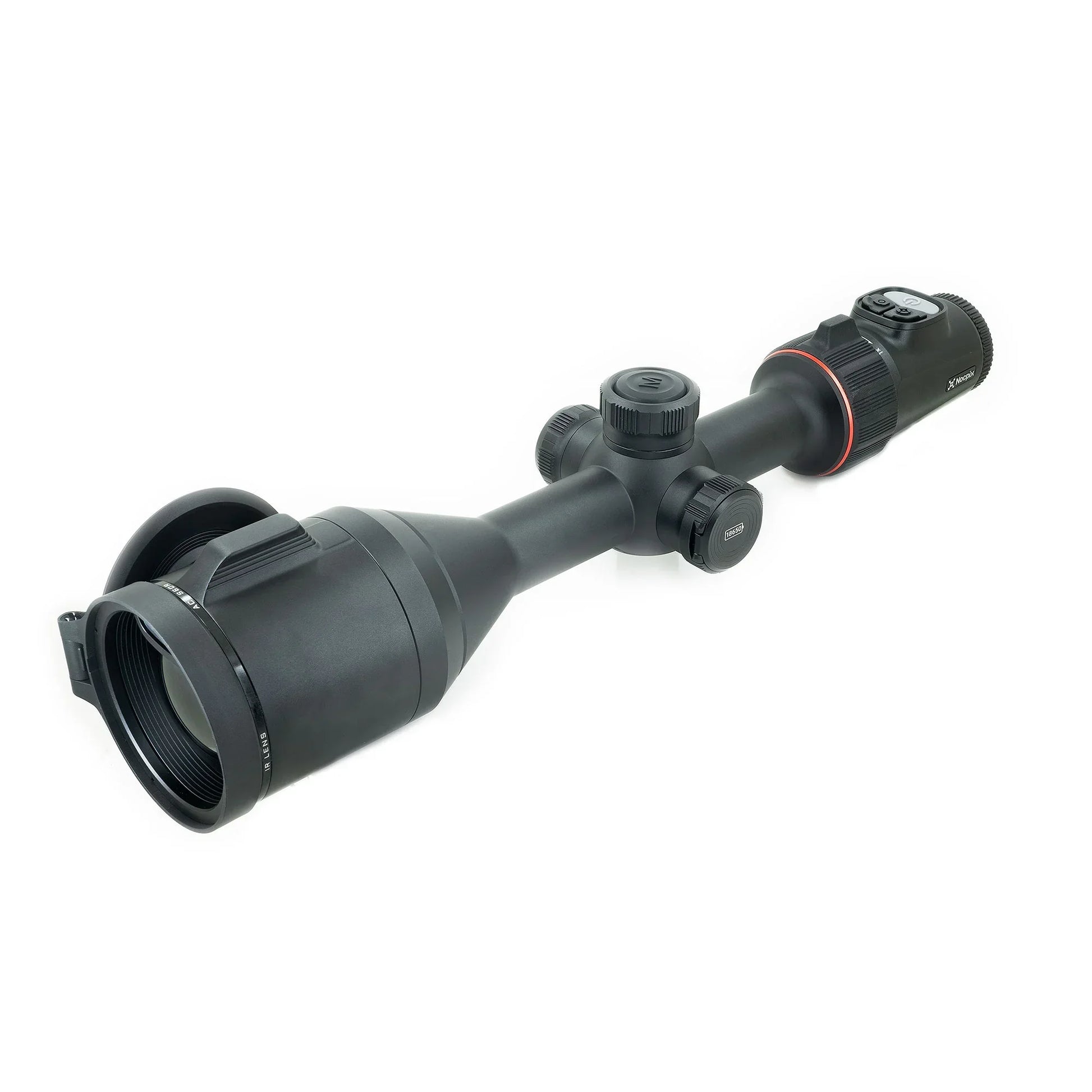

Nocpix ACE LRF Optical Zoom Optimized Thermal Scope 1280 S60R

Nocpix ACE LRF Optical Zoom Optimized Thermal Scope 1280 S60R

SKU:ACE-S60R

Regular price $ 6,999.00
Regular price Sale price $ 6,999.00
Sale Sold out
Shipping calculated at checkout.

Nocpix ACE LRF Optical Zoom Optimized Thermal Scope 1280x1024 60mm 2X ACE-S60R

Current lead time 4-6 weeks.

The ACE is built around the idea of combining leading user-requested features in a streamlined optic that balances advanced capability with ease-of-use in the field. Designed to feel like a traditional day optic, the ACE is compatible with bolt action or semi-automatic rifles using standard 30 mm mounts and rings. The combination of an internal USB-C charging battery and a removable 18650 style rechargeable battery allows users to hot-swap batteries in the field to run indefinitely. A 1-3x ocular magnifier provides optical magnification of the 2560×2560 round AMOLED display inside the eyepiece. The Vision+ system pairs this high-resolution display with a 15 mK NETD sensor for an incredibly detailed and precise image. The 1,300-yard capable laser rangefinder on the ACE is integrated directly into the 50 mm germanium objective lens. In addition to streamlining the body design and reducing bulk, this allows for improved horizontal alignment of the infrared laser with the viewing system.

New for 2025, the ACE S60R brings the best-available thermal sensor resolution (1280x1024) to the most versatile thermal weapon sight platform on the market. With a 2x native (base) magnification, a12x digital zoom and a 1-3x Optical Magnifier, the magnification range delivers fantastic image quality at all ranges.

Nocpix ACE S60R Features:

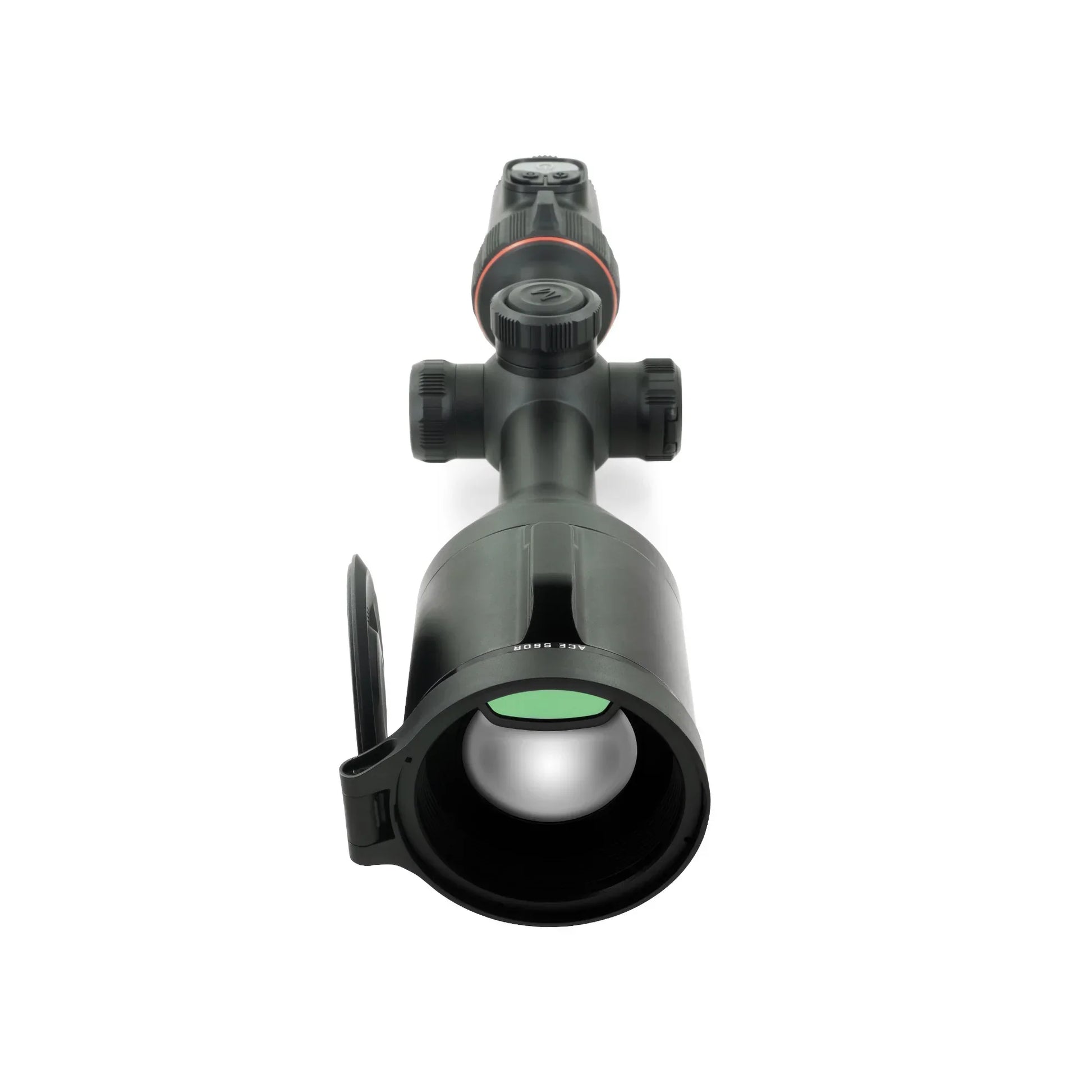

  • Lens-integrated laser rangefinder adds rangefinding capability to the optic and better laser alignment without adding bulk.
  • A 1-3x optical ocular magnifier provides additional magnification of the display without any reticle shift or digital zoom.
  • High-contrast round 2560×2560 AMOLED display provides increased clarity and detail.
  • Simplified controls offer improved ergonomics and a better user experience in the field.

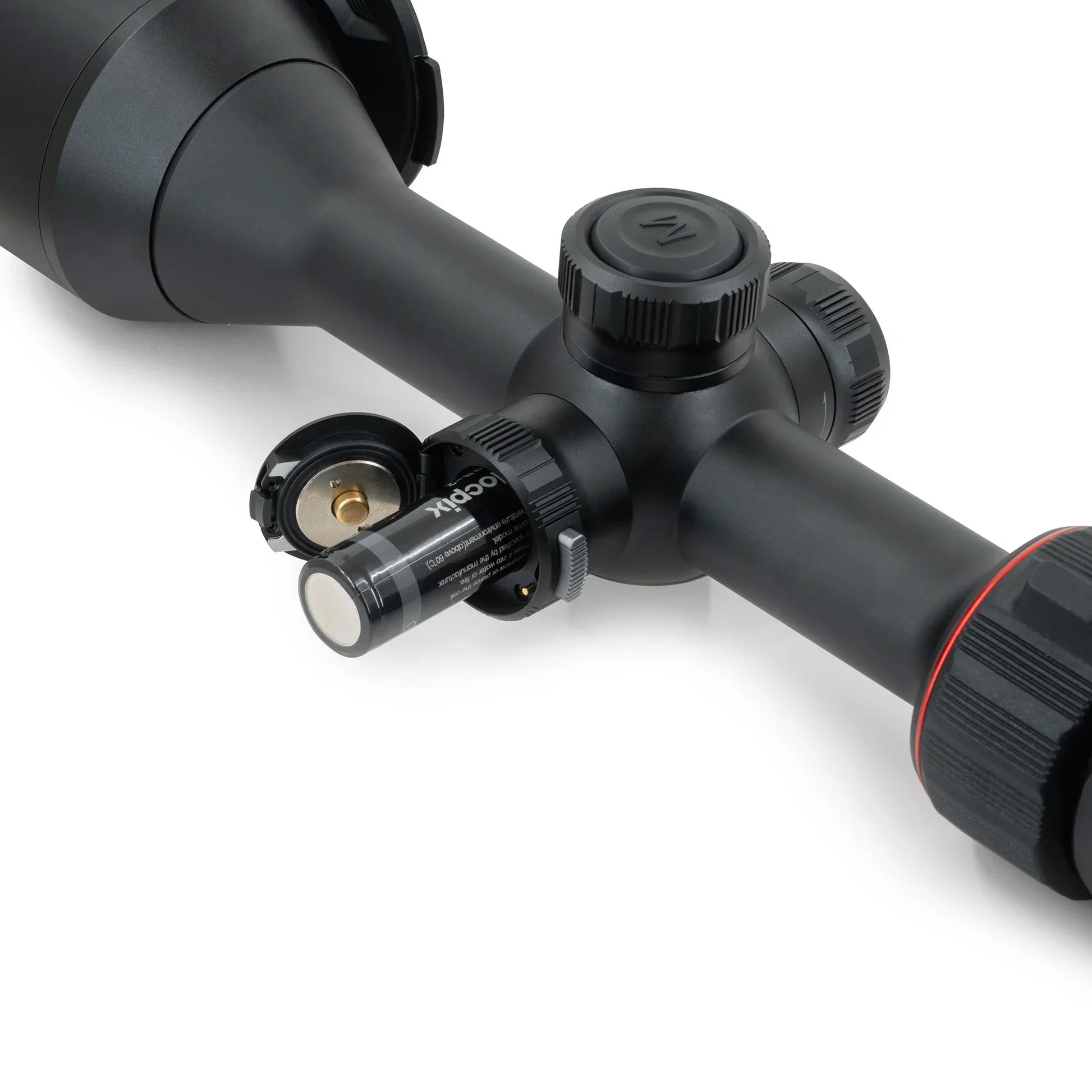

  • Uses common 18650 style rechargeable batteries.
  • A ballistic calculator function displays bullet drop values based on the laser rangefinder input data and a user-customized cartridge profile.
  • Charge through the unit with a unique lock-out USB-C port design.
  • 5 Year Warranty

Nocpix ACE S60R Specifications:

SENSOR

Resolution 1280x1024

Pixel Size 12 μm

Frame Rate 50 Hz

Sensor Sensitivity ≤15 mK

Image Processing Reality+

Core Nocpix 1280

OPTICS

Objective Lens 60 mm f/1.0

Native Magnification 2x

Digital Zoom 12x

Field of View 14.7° x 11.7°

Detection Range 3,400 yards

Display Type 1.03-inch Large-format AMOLED

Display Resolution 2560x2560

Color Palettes White Hot, Black Hot, Red Hot, Color, Crimson, Viridian, Violet

Picture-in-Picture Yes

Rangefinder Integrated 1,300 yd LRF

Eye Relief 50 mm

Diopter Range -5 to +5

ELECTRONICS

Onboard Recording Video and Image

Onboard Storage 32 GB

Wireless Connectivity Image and Video via App.

Data/Power Connector USB-C

Power Supply USB-C External, Built-In Battery, 18650 Batteries x2

Max. Operating Time 6+ Hours

Start Up Time <10 Seconds, Instant from Standby

PHYSICAL

Size 15.35” x 3.54” x 2.76”

Weight 38.5 oz.

ENVIRONMENTAL & WARRANTY

Warranty 5 Years

Housing Material T-6063 Aluminum

Ingress Protection IP67

Operation Temperature -4°F~122°F

The Nocpix ACE ships with everything you need to get out and hunt.

60mm Objective Lens Cap

QD Mount

Standard Rubber Eyeguard

18650 Battery ×2

Battery Charger

USB-C Cable for Data/Video

Soft Case and Straps

Lens Cloth

User Manual



EXPORT RESTRICTION

Please review our ITAR / EAR COMPLIANCE - The International Traffic in Arms Regulations (ITAR) & Export Administration Regulations (EAR)
